Rehasense Space LX User manual

11 / 2018
1
Space LX / CF
S pace LX
S pace CF
Lightweight aluminium-Space LX
Carbon fiber (CF) rollator-Space CF
User’s manual (EN)
More than mobility

11 / 2018
2
Space LX / CF
ENGLISH
1 General Information
Dear Customer,
This user manual contains a description of the medical device and important guidelines to ensure correct
and safe use of the product. It is important to read this manual carefully prior to use. It is especially
important to read the safety requirements and follow these.
REHASENSE continuously develops its products and reserves the right to change the specifications and
functions of products without notice.
If you have any queries please contact your dealer or Rehasense directly. Contact information is located
on the last page of this manual.
2 Intended usage, Indications & Contra indications
Intended usage: The rollator has been designed as a tool to assist walking for people who have mobility
problems, for example with standing, walking or sitting independently. Thanks to rollator these people can
stand, walk and rest easily and they can fulfil most of their daily tasks and routines without assistance from
others. Any other usage is prohibited.
Indications: The device is specifically designed for individuals who, due to a wide variety of possible health
problems, require additional stable support during walking.
Contraindications: The device must not be used by users who have serious problems with body balance or
who’s muscle strength is too low to be able to stand and walk, even with the extra support of a rollator. The
need and possibility of usage of a rollator by the user should always be assessed and indicated by a doctor
or physiotherapist.
3 Delivery & general product description
The rollators are supplied in boxes and come folded, for easier transportation.
The contents are:
✓1 complete, folded rollator
✓1 set of crutch holder (in the shopping bag)
✓1 user‘s manual
The SPACE LX/CF is a four-wheel, light weight rollator with a cross foldable frame. The product is made of
aluminium or carbon fiber so it is light and easy to store or transport. The rollator offers great
manoeuvrability, stability and its push handles are height adjustable for a good user fit. The product
consists of a powder coated foldable structure frame made of aluminum or carbon fiber tubing and a
foldable cross. It is also equipped with a nylon seat and a shopping bag which allows the user to rest and to
carry small items.

11 / 2018
3
Space LX / CF
4 Security requirements
Make sure that this user’s manual is read by all people who use the device. The manufacturer does not
take any responsibility for damages and/or injuries caused by the fact that the user’s manual has not been
followed.
Limitations for usage
• The device must not be loaded with more than 150 kg.
• The device’s bag has a load limitation of 5 kg.
• The device is devised to be used indoor and/or outdoor on flat surfaces.
• The device is not intended to be self-propelled while seated
• The brakes MUST be in the locked position BEFORE using the seat.
Avoiding accidents
• Use the device only for the purpose it is intended for.
• Use the device only in good technical condition.
• Avoid making constructive changes to the device, unless you have the manufacturer’s written
acceptance for such modifications.
• During different adjustments which are possible on the device, the user must take care not to trap their
fingers or other body parts between two moving elements of the device
• The device must only be used on a stable surface.
• All wheels MUST be in contact with the floor at ALL TIMES during use. This will ensure the rollator is
properly balanced and should avoid accidents.
• When using the rollator in a stationary position the hand brakes MUST be locked.
Mind your fingers
Be careful when you see this symbol on the device. Fingers or other body parts of a
user and/or assistant can be trapped between the device’s parts during folding,
unfolding or adjusting of the device. Be extremely careful when adjusting the device.
Observe the dimensions of gaps between the device’s elements to avoid trapping
your fingers or other body parts.

11 / 2018
4
Space LX / CF

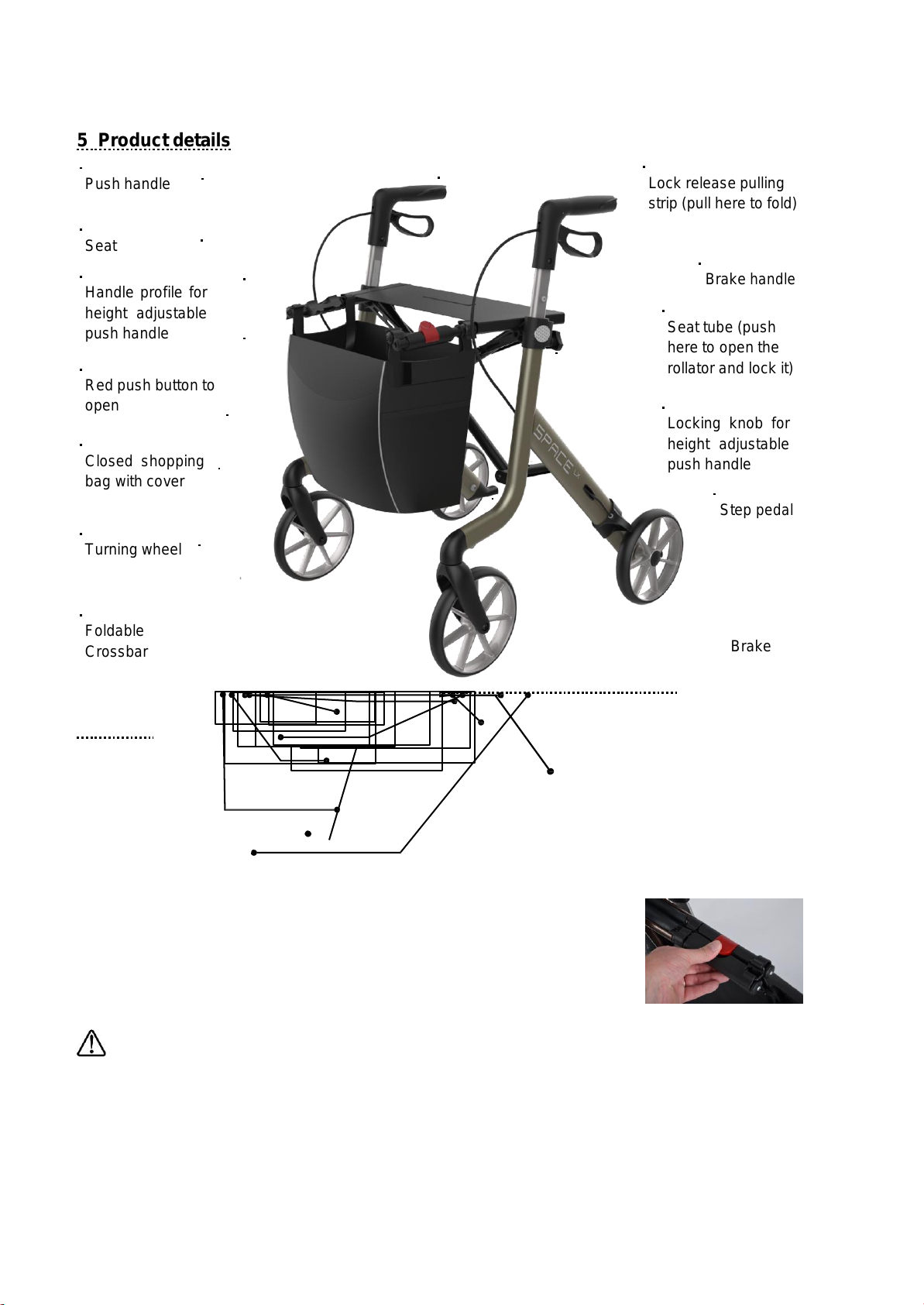

5 Product details
Push handle Lock release pulling
strip (pull here to fold)
Seat
Handle profile for
height adjustable
push handle
Red push button to
open
Closed shopping
bag with cover
Brake handle
Seat tube (push
here to open the
rollator and lock it)
Locking knob for
height adjustable
push handle
Step
pedal
Turning wheel
Foldable
Crossbar
Brake
6 Usage
Looking at the picture above the device should be prepared for use in an instinctive way. However we
recommend you follow the steps below:
Initial Check
- In the first instance take the device out of the box and check (using the picture above) that nothing
is missing. If you discover at this stage that some part is missing or damaged do not continue to
assemble the product. Contact your supplier of the product right away.
Opening of the rollator
�Push the red button which is locking the seating tubes
�Hold both seat tubes and simultaneously push them down until you
hear a “click”sound of the locking mechanism of the frame. Try to pull
the seat tubes back up to fold the frame. If this is impossible to do the
frame is opened and secured correctly. See the OPEN
position in the picture above.
�After unfolding or assembling the rollator always ensure that the seat support is securely locked by
the pulling strip mechanism for securing the lock and that the frame does not move anymore.
�Always ensure that both push handle tubes are securely locked in the main support tube with the
two wing knobs to prevent the accidental sliding in of the push handle tubes when forced.
�Always test to see that accessories are properly and safely locked in place BEFORE using.

11 / 2018
5
Space LX / CF
�Failure to follow these warnings can result in personal injury.

11 / 2018
6
Space LX / CF
Folding
- Lift the pulling strip on the seat to fold the rollator.
- Fold the rollator until the lock closes.
Adjusting the height of the push handles
- Release the handle locking knob,
- Make adjustments to your desired height.
- Tighten the knob.
• Both push handles should be adjusted to the same height.
• The correctly adjusted handles should be to the height of the user’s hips.
• Never leave the device without the breaks on.
Using the hand brakes
- TO STOP THE ROLLATOR simply pull the brake handles up towards the hand grips.
- TO REMAIN STATIONARY hold the brake handles in the ”UP”position.
- The braking force can be increased by squeezing/pulling the brake handles more firmly.
- TO START MOVING release the brake handles. They will drop down automaticallyand the brakes
will be released.
• You should always engage the breaks when you don’t plan to move the device.
• Never leave the device without the breaks engaged when there is someone sitting in it!
• Never leave the device on slopes without the breaks engaged!
• Never sit to much to the rear. Do not to sit (partly) above the shopping bag.
• Always sit straight up when seated on the rollator with your forearms or hands lightly resting on the
push handles.
• Never lean backwards when seated on the rollator
Locking/Unlocking the hand brakes
-To lock the brakes push the brake handles down until you can hear the ”click”sound.
-To unlock the brakes pull the brake handles up until you feel them loosen.
• When using the rollator in a stationary position, the hand brakes MUST always be locked.
7 Cleaning
General:
• Clean the device regularly and keep it clean.
• Lighter dirt and dust can be removed with a wet cloth.
• Larger parts of dirt can be removed with a non-corroding, mild washing agent and warm water.
• Do not use harsh abrasives or bleach based cleaners, as this may cause damage or discolouration.
• Dry parts with a soft cloth.
Wheels:
• Clean wheels with warm water and a mild cleanser. Dry with a clean rag.
• Lubricate with multi-purpose oil periodically or if wheels begin to squeak.

11 / 2018
7
Space LX / CF
SN
Space CF
(01)05901912634176(11)150112(21)0001
150 K g
Kg
K
g 5
K g
60,8 cm
L
REHASENSE Sp. z o.o.
Sulej owska 45
97-300 Piotrkó w Tryb.
Polan d
8 Label Example
The product label is placed on the inside of one of the vertical tubes of the side frame. It includes important
information about the product: name, serial number, production date, item number, max user’s weight,
shopping bag’s max load, product width, size and manufacturer’s data. The label should be never removed
from the device.
SN
Space lx
(01)05901912634176(11)150112(21)0001
150 K g
Kg
K
g 5
K g
60,8 cm
L
REHASENSE Sp. z o.o.
Sulej owska 45
97-300 Piotrkó w Tryb.
Polan d
9 Technical data
“SPACE LX/CF” Lightweight rollator
Size
Aluminium
Carbon Fiber
Max. users weight
150 kg
150 kg
Max. load of the bag
5 kg
5 kg
Total weight without shopping bag
6,1 kg
5,3 kg
Closed shopping bag with cover
0,43 kg
0,43 kg
Length
66 cm
66 cm
Total height folded (lowest)
86 cm
86 cm
Width opened
62 cm
62 cm
Width folded
22 cm
22 cm
Seat Width
46 cm
46 cm
Height of hand grips (adjustable)
78 –102 cm
78 –102 cm
Height of seat
63 cm
63 cm
Brakes
2 x maneuver hand brakes with parking function
Wheels (diameter x width)
200 x 35 mm
200 x 35 mm

11 / 2018
8
Space LX / CF
10 Transport description
The rollator is an easily foldable product, convenient for transportation. If it is necessary to transport it we
recommend folding it as stated in the description above. The rollator should be transported in a way that it
is stable and there is no risk of sudden and dangerous movements of the transported device.
11 Maintenance
• Ensure that every part of the rollator is secure at ALL times.
• Check all screws for tightness. If not, tighten if necessary.
• Replace any broken, damaged or worn items immediately.
12 Re-use
The rollator is suitable for re-use. Before passing on to another user it must be subject to an inspection by
the specialist dealer.
The following points have to be checked:
• Visual inspection of the frame
• Secure seating of nuts and bolts
• Condition of the plastic elements
• Condition of wheels and ball bearings
• Effectiveness and condition of the brakes
When one of the parts is damaged or broken it must be replaced by a new. It is recommended to replace
the wheels whenever a change. All loose bolts and nuts must be tightened.
The product must be thoroughly cleaned and disinfected prior to reuse.
WARNING! It is forbidden to re-use the rollator when the frame is bent or broken.
The instruction manual must accompanythe rollator with every change.
13 How to deposit the product
The device should not be deposited with normal garbage. It should be delivered to the deposit station for
re-use or recycling.
14 Warranty
The manufacturer offers a 7 year guarantee for errors in production. The guarantee is not valid by mis-
intended use of the product. The guarantee excludes damage caused by incorrect operation, accidents
and/or through normal wear and tear. For repairs during the guarantee period, please contact your local
dealer.

11 / 2018
9
Space LX / CF
In case of technical problems please contact your dealer.
You can also contact Rehasense® directly.
Dealer stamp :
Rehasense ® Europe
Manufacturer
Rehasense Sp. z o.o.
Sulejowska 45 97-300
Piotrkow Trybunalski Poland
www.rehasense.com
[e-mail]
