REMKO ETF 320 User manual

We reserve the right to make technical changes and provide no warranty as to the accuracy of this data!
Edition GB – I03
REMKO ETF 320
Mobile dehumidifiers
Operation · Technology · Spare parts

3
Contents
Carefully read this operating manual prior to
commissioning/using the unit!
This operating manual is a translation of the German original.
This manual is an integral part of the unit and must always
be kept in the vicinity of the installation location or on the
unit itself.
Subject to modifications; no liability accepted for errors or misprints!
Air dehumidification 4
Safety notes 6
Unit description 7
Set-up 8
Commissioning 9
Shutdown 11
Unit transport 12
Care and maintenance 13
Troubleshooting 12
Electrical wiring diagram 14
Intended use 15
Customer service and guarantee 15
Environmental protection and recycling 15
Exploded view of the unit 16
Spare parts list 17
Maintenance protocol 18
Technical data 19

4
REMKO ETF 320
It is evident that the corrosion
rate below 50 % relative humidity
(RH) is low, and below 40 % is
negligible.
The corrosion rate increases
significantly above 60 % RH.
This threshold for damage as the
result of humidity also applies to
other materials, such as powdery
substances, packaging, wood and
electronic units.
Buildings may be dried in a variety
of ways:
1. By heating and air exchange:
The air in the room is heated
in order for moisture to be
removed and then this air is fed
outside. All of the energy that
is involved is lost together with
the moist air that is released.
2. By air dehumidification:
The moist air that is present
within an enclosed space is
continuously dehumidified
according to the condensation
principle.
The correlations occurring when
air is dehumidified are based on
physical laws.
These are depicted here in
graphical form in order to provide
you with a brief overview of the
principles of air dehumidification.
The use of REMKO
air dehumidifiers
■ Even if windows and doors
are well insulated, water and
moisture are still capable of
penetrating thick concrete walls.
■ The water required for setting
when producing concrete,
mortar and plaster etc. may only
be diffused after 1-2 months.
■ Even moisture trapped in the
masonry after a flood is released
very slowly.
■ The same is also true of
moisture contained in stored
materials for example.
The moisture (water vapour)
released from parts of a building
or materials is absorbed by the
surrounding air. As a result, the
moisture content increases, which
ultimately gives rise to corrosion,
mould, rot, peeling of paint and
other unwanted damage.
By way of example, the diagram
shows the corrosion rate of metal
in different levels of humidity.
Air dehumidification
With regard to energy
consumption, air dehumidification
has one distinct advantage:
Energy expenditure is limited
exclusively to the air volumes
present. The mechanical heat that
is released by the dehumidification
process is fed back into the room.
Under normal use, the air
dehumidifier uses approximately
25 % of the energy that is
required for the “heating and
ventilating” principle.
Relative air humidity
Our ambient air is a gaseous
mixture which always contains
a certain volume of water in the
form of water vapour. This volume
of water is specified in g per kg of
dry air (absolute moisture content).
1 m3of air weighs approx. 1.2 kg
at 20 °C
Depending on the temperature,
each kg of air is only capable of
absorbing a certain volume of
water vapour. Once this capacity
has been reached, the air is
referred to as “saturated” and has
a relative humidity (RH) of 100 %.
Relative humidity is understood
to mean the ratio between the
current quantity of water vapour in
the air and the maximum possible
quantity of water vapour at the
same temperature.
The ability of the air to absorb
water vapour increases as
the temperature rises. I.e. the
maximum possible (absolute)
water content becomes greater as
the temperature rises.
Corrosion speed
Rel. humidity %

5
Water vapour
condensation
Because the capacity for the
maximum possible volume of
water vapour increases as the air
is heated, the volume of water
vapour contained remains constant
and so relative humidity falls.
In contrast, because the capacity
for the maximum possible volume
of water vapour decreases as the
air is cooled, the volume of water
vapour contained remains constant
and so relative humidity increases.
If the temperature continues to
fall, the capacity for the maximum
possible volume of water vapour
is reduced so much so that it is
ultimately equal to the volume of
water vapour contained in the air.
This temperature is referred to
as the dew point. If the air is
cooled to below the dew point,
the volume of water vapour in
the air will become greater than
the maximum possible volume of
water vapour.
At this point, the water vapour
begins to precipitate.
This condenses to water and
moisture is removed from the air.
Examples of condensation include
steamed-up window panes in
winter, or the moisture on the
outside of a cold drinks bottle.
As the relative humidity of the air
increases, so too does the dew
point, making it easier for the
temperature to fall below it.
Building materials and structures
are capable of absorbing
considerable volumes of water,
such as brick 90-190 l/m³, heavy
concrete 140-190 l/m³ and
limestone 180-270 l/m³.
The drying of moist materials such
as masonry is effected as follows:
■ The moisture
moves from
the inside of the
material to its
surface
■ Evaporation occurs on the
surface = Transfer of water
vapour to the ambient air
■ The air containing water vapour
is constantly circulated through
the REMKO air dehumidifier.
The air is dehumidified and,
slightly heated, leaves the unit
in order to re-absorb water
vapour
■ In this way, the moisture
contained in the material is
reduced gradually
The material is dried!
The accumulated condensate is
collected in the unit and drained
off from there.
Drying materials
Verdampfer Kondensator
°C
30
25
20
15
% r.F.
100
90
80
70
60
50
40
30
20
10
+
+
-
Lufttemperatur
Luftfeuchte
Verlauf
Luftrichtung
As it flows through or over the evaporator, the air stream is cooled
to dew point. The water vapour condenses, and is collected
in a condensate trap from where it is drained off.
Temp. Water vapour content in g/m3at humidity of
°C 40 % 60 % 80 % 100 %
-5 1.3 1.9 2.6 3.3
+10 3.8 5.6 7.5 9.4
+15 5.1 7.7 10.2 12.8
+20 6.9 10.4 13.8 17.3
+25 9.2 13.8 18.4 23.0
+30 12.9 18.2 24.3 30.3
CondenserEvaporator
% RH
Air temperature
Air direction
Air humidity
Progression

6
REMKO ETF 320
Safety notes
Condensation heat
The Energy transferred to the air
from the condenser consists of:
1. The amount of heat derived
beforehand in the evaporator.
2. The electrical drive energy.
3. The condensation heat released
by liquefying the water vapour.
Energy must be supplied when
liquid is converted into a gas.
This energy is designated as
evaporation heat. It does not
cause any increase in temperature,
but is required to convert a liquid
into a gas. Conversely, energy is
released when gas is liquefied,
this is designated as condensation
heat.
The amount of energy from
evaporation heat and condensation
heat is the same.
For water, this is:
2250 kJ/kg (4.18 kJ = 1kcal)
From this it is evident that the
condensation of water vapour
causes a large quantity of energy
to be released.
If the moisture that it is to be
condensed is not introduced by
evaporation in the room itself,
but from outside, e.g. through
ventilation, the condensation
heat released contributes to
the heating of the room. With
drying operations, a heat cycle
is created, whereby heat is
consumed for evaporation
and released for condensation.
When dehumidifying fed air,
a larger contribution of heat is
created, which manifests itself as
a temperature increase.
Generally speaking, the time
required for the drying process is
not only dependent on the output
of the unit, but is determined to
a greater extent by the speed at
which the material or building
section loses its moisture.
The units have been subjected to
extensive material, functional and
quality inspections prior to delivery.
However, dangers can result
from the units if they are used
improperly or not as intended by
untrained personnel.
The following notes
must be observed in full:
■ The units may not be installed
or operated in explosive
environments
■ The units must not be installed
or operated in atmospheres
containing oil, sulphur, chlorine
or salt
■ The units must be installed
upright and in a stable position
■ The units must not be exposed
to direct jets of water
■ An unobstructed air inlet and
air outlet must be guaranteed
at all times
■ The air-inlet grille must always
be kept free of dirt and loose
objects
■ The units must not be covered
during operation
■ Never stick foreign objects into
the units
■ The units must not be
transported while they are
running
■ The units may only be
transported upright
■ All electrical cables on the
outside of the units must be
protected against damage
(e.g. by animals etc.)
■ Before each change of location,
the condensate container must
be emptied
Extensions to the connection
cable must only be conducted
by authorised specialist
electricians, taking into
consideration the unit power
consumption, cable length and
local use.
Work on the refrigerant
system and on the electrical
equipment must only be
conducted by a specially-
authorised specialist!
!CAUTION
!CAUTION

7
Unit description

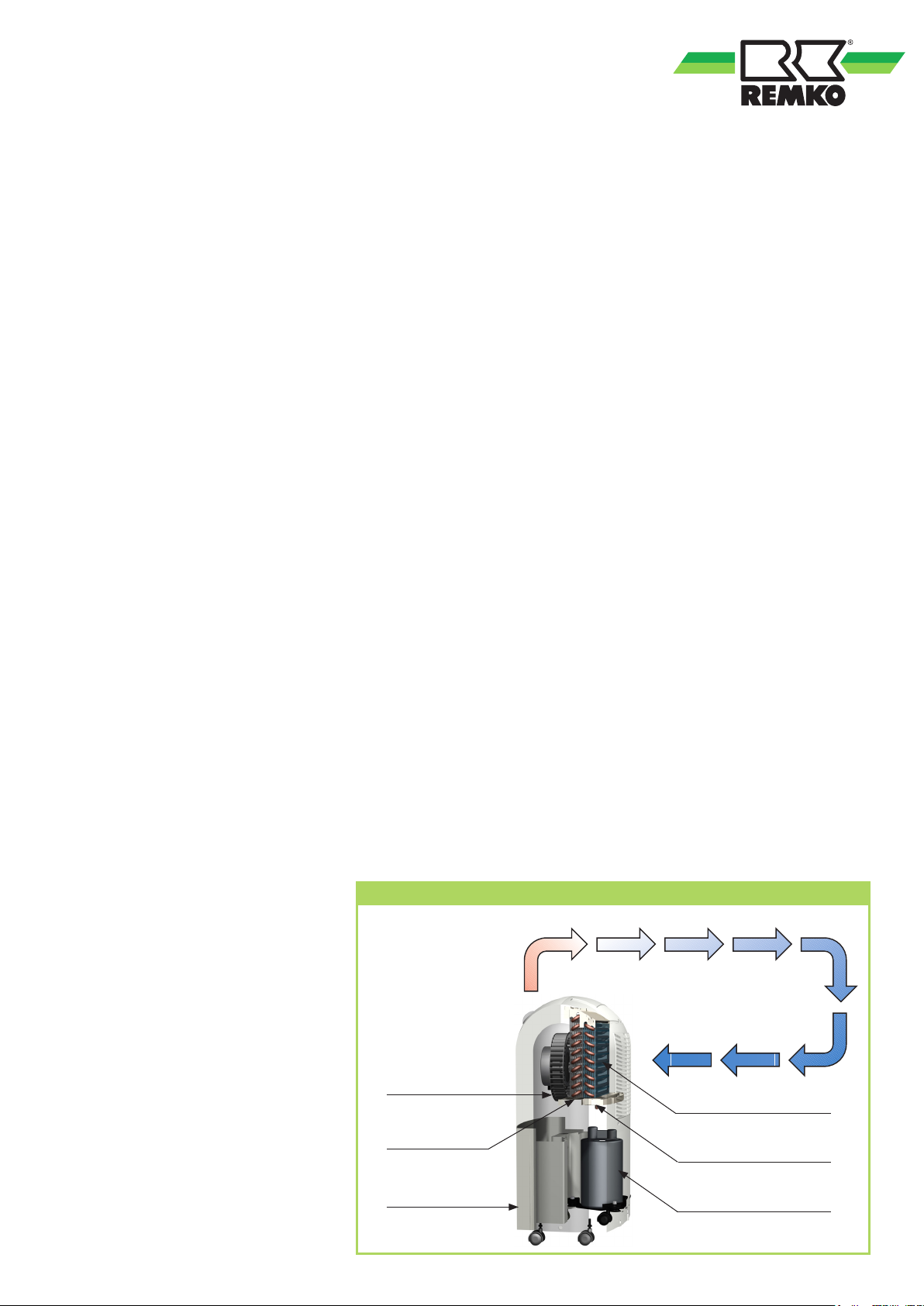

Operating sequence
The units are switched on and off
by the hygrostat.
In dehumidification mode,
the “Dehumidification” indicator
light on the control panel
illuminates.
The fan extracts the moist room air
through the intake grill with filter,
evaporator and the condenser
behind.
Heat is removed from the room air
on the cold evaporator. The air is
then cooled to below dew point.
The water vapour contained in
the room air is then deposited
as condensate or rime on the
evaporator fins.
On the condenser (heat
exchanger), the cold and
dehumidified air is warmed up
again and discharged back into
the room via the outlet grill
with a temperature increase of
around 5 - 10 °C above the room
temperature.
The processed, dry air then re-
mixes with the room air.
Continuous circulation of the room
air through the unit gradually
reduces the relative humidity
(% RH) in the room to the desired
humidity level.
Depending on the room air
temperature and the relative
humidity, condensed water will
drip into the condensate trap
and then through the integrated
discharge nozzle into the
condensate container below either
continuously or only during the
defrosting phases.
A float is installed inside the
condensate container. In the event
that the container is full, the float
will activate a microswitch which
will switch off dehumidification
mode.
The units switch off and the
“container full” indicator light
on the control panel illuminates.
This extinguishes again when the
empty condensate container
is re-inserted.
The units then restart after
a switch-on delay of around
3 minutes.
In unattended continuous
operation with an external
condensate connection,
the condensate that occurs is
drained continuously via a hose
connection.
The units have been designed for
universal and straightforward air
dehumidification.
Their compact dimensions allow
the unit to be transported and set
up with ease.
The units operate in accordance
with the condensation principle
and are equipped with
a hermetically sealed refrigerant
system, heat gas defrosting,
low-noise and low-maintenance
fan and connection cable with
plug.
The fully automatic control,
the infinitely variable hygrostat,
the condensate container with
integrated overflow protection
and the connection nozzle for
condensate drainage guarantee
fault-free continuous operation.
The units conform to the
fundamental health and safety
requirements of the appropriate
EU stipulations.
The units are dependable and offer
ease of operation.
The units are used in all locations,
where dry air is a must and where
economic consequential damage
(such as that caused by mould)
must be prevented.
The units may be used for the
drying and dehumidification of
areas such as:
■ Living rooms, bedrooms,
shower rooms or cellar rooms
■ Laundry rooms, weekend
homes, caravans
■ Warehouses, archives
laboratories
■ Bathrooms, wash rooms
and changing rooms etc.
■ Cellar rooms, storage rooms
Recirculating fan
Condensate
container
Condenser
Evaporator
Condensate trap
Compressor
Schematic depiction of the workings of the REMKO air dehumidifier
Moist room air
Dehumidified
room air

8
REMKO ETF 320
Electrical wiring
■ The units are
operated
with 230 V/50 Hz
alternating current
■ The electrical connection is
made using a built-in mains
cable with earthed safety plug
■ Extensions to the connection
cable may only be carried out
by authorised electricians,
subject to the length of
the cable, connected load
of the unit and taking into
consideration how the unit is
used at its location
Set-up
For the best economic and safe use
of the units, the following notes
must be followed in full:
■ The units must be set up in
an upright and level position,
to ensure that the condensate
can drain freely
■ To ensure optimum air
circulation, the units should be
set up in the centre of the room,
where possible
■ Ensure that the room air can
be sucked in and discharged
without hindrances
■ Observe a minimum clearance
of 50 cm from walls at all times
■ Units must never be set up in
the immediate vicinity of heaters
or other sources of heat
■ Air circulation is improved if the
unit is set up approx. 1 m above
the ground
■ The room being dried or
dehumidified must be closed to
the surrounding atmosphere
■ Avoid having opened windows
and doors etc., and avoid
frequent entry to or exit from
the room as much as possible
■ The units may not be used
in environments containing
a great deal of dust or chlorine,
or in places with atmospheres
containing ammonia
■ The output of the unit is entirely
dependent on the conditions
inside the room, room
temperature, relative humidity
and observance of the set-up
instructions
NOTE
The electrical connection
to the units must be made
at feedpoints with residual
current devices in accordance
with VDE 0100, Section 704.
When installing the units in
extremely damp environments
such as laundry rooms,
showers etc., the unit must
secured with a residual
current device provided by the
customer in accordance with
the regulations.
Wall clearance
min. 0.5 m
Maintain adequate clearance from
heaters or other sources of heat.
Keep windows and doors closed!
Schematic depiction of how to set up the REMKO air dehumidifier
All cable extensions must only
be used in a fully unrolled or
reeled off condition.
!CAUTION

9
Commissioning the units
1. Turn the hygrostat’s
rotary knob
anticlockwise into
the “OFF” position.
2. Connect the unit's
electrical connection
to a properly
installed mains
socket.
3. Open the air flap on the top
of the unit.
4. Preselect the
desired air humidity
for the installation
room on the
hygrostat.
The recommended approximate
setting values are listed in the
adjacent section.
Commissioning
Control panel
The hygrostat’s rotary knob and
the indicator lights are located on
the control panel.
➊Hygrostat
The infinitely adjustable
hygrostat can be used to select
the required air humidity in the
installation room.
➋“Dehumidification” indicator
light
This light indicates that
the unit is operating correctly.
➌“Container full” indicator light
This light indicates that the
condensate container is full and
must be emptied.
➍“Defrost mode” indicator light
This light indicates that the
automatic defrost system that
is integrated in the unit has
switched on the defrost cycle.
NOTE
In room temperatures below
10 °C and relative humidity
below 40 % , economical use
of the unit can no longer be
guaranteed.
NOTE
Note that the compressor does
not switch on until a waiting
time of 3 minutes has elapsed.
Restart protection!
NOTE
The devices can be switched
ON and OFF via an external
time (accessory) if required.
Before commissioning the unit
or if local requirements dictate,
the air-inlet grill and air-outlet
grill must be checked for
contamination.
Important notes prior
to commissioning
■ All extensions to the electrical
connection must be of
a sufficient cable size and must
only be used fully rolled out or
unrolled
■ Never use the mains cable
as a pull cord
■ After being switched on,
the units operate fully-
automatically until switched off
by the hygrostat or float when
the condensate container is full
■ The condensate container must
be inserted properly
The unit cannot be operated if
the condensate container is not
inserted properly!
■ In order to prevent damage to
the condenser, the units are
equipped with a mechanism
that prevents the compressor
being immediately switched
back on after it is switched off
The units do not switch back
on until a waiting time of
around 3 minutes has elapsed!
■ If the units work in continuous
operation with an external
condensate drainage
connection, refer to the
relevant section
NOTE
A contaminated grille or filter
must be cleaned or replaced
immediately.
s s s
➊➋➌➍
The units are only permitted
to be operated with the air
flap open in order to prevent
overheating.
!CAUTION

10
REMKO ETF 320
Adjusting the discharge
direction
The dehumidified room air is
discharged on the top of the unit.
The pivotable air flap [S] is used to
adjust the discharge direction.
Press the air flap’s rear surface [D]
to open it.
The front folds upwards. The air
direction can be adjusted infinitely.
The following notes must also be
observed in full:
■ If possible, open the air flap
completely to direct the air flow
upwards
■ Ensure that the air can
discharge without hindrances
This is the only way to
guarantee optimum unit
operation!
■ Ensure that sensitive objects
such as house plants are not
placed directly in the air flow
emerging from the unit
DS
Automatic defrost system
The moisture contained in the
room air condenses when cooling
and coats the evaporator fins
with rime or ice depending on the
air temperature and the relative
humidity (% RH).
The automatic defrost system that
is integrated in the unit switches
the defrost cycle on if required.
The rime or ice that has
accumulated on the exchanger
surfaces is defrosted using heat gas
as required.
This defrosting method is
particularly fast and effective, and
guarantees high dehumidification
performance.
Dehumidification mode is only
paused for a short time during the
defrost phase.
The “Defrost mode” indicator light
indicates that the defrost cycle is
running.
NOTE
If the room temperature is
sufficiently high, the surface
of the fins will not be cold
enough for rime formation to
occur, rendering defrosting
unnecessary.
Therefore, the air dehumidifier
works economically.
Adjusting units/moisture
The unit’s dehumidification power
is entirely dependent on the
conditions inside the room, the
room temperature, the relative
humidity and observance of the
notes in the “Setting up”chapter.
The higher the room temperature
and relative air humidity,
the higher the dehumidification
power.
A relative humidity of around
45 to 60 % is sufficient in living
rooms. The air humidity should not
exceed 40 to 45 % in warehouses,
archives, etc.
Adjust the hygrostat
for the recommended
air humidity
in living rooms.
Approx. 50 %.
Adjust the hygrostat
for the recommended
air humidity
in archives.
Approx. 40 %.
Adjust the hygrostat
for the minimum
air humidity in the
installation room.
The units work in continuous
operation in this position!
NOTE
The maximum possible
dehumidification power is only
obtained when the air flap is
opened completely.
s s s

11
Turn the hygrostat’s
rotary knob
anticlockwise
into the
“OFF” position.
If the units are
inactive for longer
periods, disconnect
them from the mains
power supply.
Empty the condensate container
completely and dry with a clean
cloth.
Beware of dripping condensate!
The units must be cleaned and
dried completely before storing.
When storing the unit, cover with
a plastic sheet/foil if necessary
and store in an upright position in
a sheltered and dry location.
The units are only permitted to be
stored upright in a suitable storage
location that is protected against
dust and direct sunlight.
Continuous operation with
external condensate outlet
The units are equipped with
a special connection nozzle on the
left side.
A standard 1/2” water hose can
be connected to this.
1. To do this, use a suitable tool
to break the cover [F] out of the
side wall.
Only required for the first
connection!
2. Connect a sufficiently long
and suitable drain hose to the
connection nozzle that is now
exposed.
In unattended permanent
operating mode, the condensate
should preferably be drained into
a lower-level drain.
If using an external collection
container (pan, bucket, etc.),
the unit must be placed
at a correct height.
Shutdown
F
Emptying the condensate
container
The integrated condensate
container must be emptied from
time to time.
Dehumidification mode is switched
off if the condensate container is
full.
The “Container full” indicator light
indicates that the unit has switched
off.
1. Pull the full container forwards
and out carefully.
2. Pour the water into a drain.
3. Re-insert the emptied container
carefully into the unit.
The “Container full” indicator light
extinguishes and the unit
continues to run automatically.
NOTE
The unit can only be started
once the condensate container
has been inserted correctly.
NOTE
After being emptied, the
condensate container incl.
float must be checked for
damage, contamination etc.
There is no unit overflow
protection in this variant.
!CAUTION
Ensure that the drainage hose
is placed at an incline to the
drain to allow the condensate
to drain without hindrance!
!CAUTION

12
REMKO ETF 320
The units are equipped with four
foot rollers and an additional
handle for easy and convenient
transport.
■ Before each change of location,
switch off the unit and remove
the power plug from the mains
socket
■ Empty the condensate
container completely
■ If moisture residual remains on
the evaporator or water remains
in the condensate container, the
units must only be transported
in an upright position
■ The transport rollers are only
suitable for use on level and
smooth ground
■ The devices must be carried
when transporting on rough
terrain or uneven surfaces
All moving parts have
a low-maintenance permanent
coat of lubricant. The entire
refrigerant system is designed as
a maintenance-free, hermetically
sealed system and may only be
repaired by a specialist.
■ Observe the regular care and
maintenance intervals
■ In accordance with the
operating conditions, the units
must, if necessary, be checked
at least yearly by a specialist
to ensure that they are in
a condition that is safe to use
■ Only clean the units with a dry
or damp cloth
Do not use a water jet!
■ Never use abrasive or
solvent-based cleaners
■ Use only suitable cleaners, even
for heavy contamination
■ Check the inlet and outlet grille
for contamination on a regular
basis
Clean or replace if required!
Care and maintenance
NOTE
Regular care and maintenance
is fundamental to a long
service life and fault-free
operation of the unit.
NOTE
Beware of dripping
condensate.
After switching off the units,
the evaporator may continue
to defrost under the influence
of the ambient temperature.
Cleaning the condenser and
evaporator
The unit housing must be opened
to allow the inside of the unit to be
cleaned and to provide access to
electrical components.
■ Clean the condenser and
the evaporator by blowing,
vacuuming or using a soft brush
Do not use water jets!
■ Clean the interior surfaces
on the units, the condensate
traps with hose connection,
the fan and the fan housing
carefully
■ Check all unit components for
damage and repair if necessary
■ Carefully refit all parts that
were removed in reverse order
NOTE
When cleaning the exchanger,
particular care must be taken
because the fine aluminium
fins bend very easily.
NOTE
Adjustment and maintenance
work may only be carried out
by authorised and qualified
technicians.
Unit transport
Before undertaking any work
on the units, the power plug
must be removed from the
mains socket.
!CAUTION
The mains cable must never
be used as a pull cord or fixing
device.
!CAUTION
An electrical safety check must
be carried out in accordance
with VDE 0701 after any work
on the units.
!CAUTION

13
Troubleshooting
The units are manufactured
using state-of-the-art production
methods and tested several times
to verify their correct function.
However, if a functional fault
should occur, the unit should first
be checked in accordance with the
following list.
The unit does not start:
■ Check the hygrostat’s setting
The set value must be lower
than the relative humidity in
the installation room!
■ Check the power supply and
the power fuse provided by the
customer 230V/1~/50 Hz
■ Check the power plug and the
cable for damage
■ Check the condensate tank’s fill
level and seating
The “Container full” indicator
light must not be illuminated!
■ Check that the microswitch
[MS] on the condensate
container is functioning
■ Check that the inlet and outlet
are free
Overheating!
■ Check the fuse on the control
board
5. Clean the air filter with
lukewarm water or a vacuum
cleaner.
6. Heavier contamination may be
remedied by rinsing the filter in
a lukewarm (max. 40 °C) soap
solution.
Finally, always rinse the filter
carefully with clear water and
allow to dry!
7. Also check the intake grill for
contamination and clean if
necessary.
8. Before refitting grill and filter,
ensure that they are fully dry
and that no damage has been
sustained.
NOTE
Heavily contaminated or
damaged air filters must be
replaced with new parts.
Only original spare parts may
be used.
NOTE
Adjustment and maintenance
work may only be carried out
by authorised and qualified
technicians.
Filter cleaning
To prevent damage to the unit, it is
equipped with an intake grill with
integrated air filter.
In order to prevent power losses or
unit faults, the intake grill with
filter must be inspected as
required, but every 2 weeks at the
latest, and cleaned if necessary.
1. Use the hygrostat to switch the
unit off.
2. Remove the power plug from
the mains socket.
3. Reach into the recess [G],
push the intake grill backwards
slightly and pull it upwards and
out of the unit’s rear wall.
4. Remove the filter that is behind
the intake grill.
G
s s s
The units are not permitted to
be operated without the
intake grill and air filter fitted!
!CAUTION

14
REMKO ETF 320
The unit runs but condensate
is not formed:
■ Check the room temperature
The operating range of the unit
is between 6 °C and 32 °C
■ Check the humidity of the air
Min. 40 % RH required
■ Check the intake grill and air
filter for contamination
Clean or replace if required!
■ Have the heat exchanger fins
checked for contamination
This work requires the unit to
be opened and must therefore
only be carried out by an
authorised specialist company!
Electrical wiring diagram
NOTE
If the unit fails to function
correctly after the checks have
been carried out, contact an
authorised specialist.
Note on refrigerants
The units work with
environmentally-friendly
and ozone-neutral R410a
refrigerant.
The mixture of refrigerant
and oil within the unit must
be disposed of properly
in accordance with the
statutory or locally-applicable
regulations.
The unit is loud or
condensate runs out:
■ Check whether the unit is on
a stable and even base
■ Check whether the unit is
standing upright and stably
■ Have the condensate trap or
the connection nozzles checked
to see whether there are dirt
deposits on them
This work requires the unit to
be opened and must therefore
only be carried out by an
authorised specialist company!
s s s
P3
P4
P5
P2
P6
P1
CN 4
CN 3
CN 2
CN 5
T3.15AL 250V
Kontrollleuchten
Hygrostat
Mikro-
schalter
Frostschutz-
sensor
ROT
ROT
BLAU
BLAU
BLAU
BLAU
BLAU
WEISS
Kondensator
BLAU
BRAUN
GRÜN/
GELB PE
230V/50Hz
N
L
Ventilator-
motor
Kondensator
WEISS
BLACK
Kompressor
2-Wege
Magnet-
ventil
Work on the refrigerant
system and on the electrical
equipment must only be
conducted by a specially-
authorised specialist!
!CAUTION
RED
BLUE
BLUE
BLUE
BLUE
BLUE
BROWN
GREEN/
YELLOW
WHITE
BLACK
2-way
solenoid
valve Fan motor
Microswitch
Antifreeze
sensor
Hygrostat
Indicator lights
Condenser
Condenser
Compressor

15
The units are designed exclusively
for drying and dehumidification
purposes on the basis of their
structural design and equipment.
The units must not be used for any
other purpose.
The units are only permitted
to be operated by people
with the relevant training and
understanding of how to handle
them.
The manufacturer shall not
be liable for damage resulting
from non-observance of the
manufacturer's specifications, the
respective local legal requirements
or from arbitrary alterations to the
units.
Customer service and
Guarantee
As a prerequisite for any
guarantee claims to be considered,
it is essential that the ordering
party or its representative
complete and return the
“Certificate of guarantee”
to REMKO GmbH & Co. KG at the
time when the units are purchased
and commissioned.
The units were tested at the
factory several times to verify their
correct function.
However, if malfunctions should
arise that cannot be remedied by
the operator with the assistance of
the troubleshooting section, please
contact your specialist dealer or
contractual partner.
Intended use
Disposal of packaging
When disposing of packaging
material, please consider our
environment.
Our units are carefully packed
and delivered in stable cardboard
transport packaging and,
if applicable, on a wooden pallet.
The packaging materials are
environmentally-friendly and can
be recycled.
By recycling packaging materials,
you make a valuable contribution
to the reduction of waste and
conservation of raw materials.
Therefore, only dispose of
packaging material at appropriate
collection points.
NOTE
Operation other than the types
listed in this operating manual
is prohibited.
With non-observance, any
manufacturer liability or
guarantee claims are voided.
NOTE
Adjustment and maintenance
work may only be carried out
by authorised and qualified
technicians.
Environmental
protection and
recycling
Disposal of the old unit
At the end of its service life,
this unit is not permitted to be
disposed of in household waste.
It must be taken to a special
collection point for electrical and
electronic units. The materials are
recyclable according to their labels.
By reusing, recycling substances
or other forms of recycling for
used devices, you make a valuable
contribution to protecting our
environment.
Please contact your local authority
for information on the disposal
facility responsible.
Important information
concerning recycling
The units are operated with
environmentally-friendly and
ozone-neutral R410a refrigerant.
The mixture of refrigerant and oil
within the unit must be disposed
of properly in accordance with
the statutory or locally-applicable
regulations.
Copyright
The redistribution, even in part,
or the use of this documentation
for purposes other than
intended is prohibited without
the written authorisation of
REMKO GmbH & Co. KG .
!CAUTION

16
REMKO ETF 320
Exploded view of the unit
We reserve the right to modify the dimensions and design as part of the ongoing technical development process.
1
3
6
5
10
29
27
34
24
19 16 15
40
41
43
17
18
26
28
39 9
25
7
35
36
32
23
30
33
21
31
22
20
4
2
13
12
38
2
2
42
45
47
46
14
44

17
Spare parts list
When ordering replacement parts, please always state the EDP no. and unit number (see name plate)!
No. Designation EDP no.
1 Base plate 1111120
2 Conveyor rollers 1103621
3 Compressor, cpl. 1111121
4 Vibration dampers 1111122
5 Suction pipe 1111123
6 High pressure line 1111124
7 Solenoid valve, cpl. 1111823
9 Centre wall 1111125
10 Condenser condensate trap (compressor) 1111126
12 Microswitch bracket 1111127
13 Microswitch 1103627
14 Condensate trap 1111128
15 Fin vaporiser 1111129
16 Fin condenser 1111130
17 Dry filter 1111131
18 Capillary 1111132
19 Cover, top 1103673
20 Fan motor 1103661
21 Fan housing 1111133
22 Fan wheel 1103636
23 Protection grid 1103637
24 Condenser (fan motor) 1103668
25 Distribution block 1111134
26 Mains cable with plug 1103660
27 Board housing 1111135
28 Cover (board housing) 1111136
29 Control board V1.1 1111142
30 Control panel 1103665
31 Rotary knob 1103666
32 Hygrostat 1103664
33 Cover indicator lights 1103663
34 Board indicator lights 1103681
35 Antifreeze sensor 1103642
36 Air flap 1103654
38 Side covering, right 1103650
39 Side covering, left 1103649
40 Back wall 1111137
41 Transport handle 1103652
42 Front wall 1103653
43 Intake grill 1111138
44 Air filter 1111139
45 Float housing 1103656
46 Float, cpl. 1103657
47 Condensate container cpl. 1103658
Not illustrated Fuse (on the control board) 1103676

18
REMKO ETF 320
Maintenance protocol
Unit to be maintained only by authorised specialists in accordance with the statutory regulations.
✍
Unit type: .................................. Unit number: ...................................
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
Unit cleaned - outside -
Unit cleaned - inside -
Fan blade cleaned
Fan housing cleaned
Condenser cleaned
Evaporator cleaned
Fan function checked
Air-inlet grid with filter cleaned
Unit checked for damage
Safety devices checked
All fastening screws checked
Electrical safety check
Test run
1. Date: ..............
..............................
Signature
2. Date: ..............
..............................
Signature
3. Date: ..............
..............................
Signature
4. Date: ..............
..............................
Signature
5. Date: ..............
..............................
Signature
6. Date: ..............
..............................
Signature
7. Date: ..............
..............................
Signature
8. Date: ..............
..............................
Signature
9. Date: ..............
..............................
Signature
10. Date: ............
..............................
Signature
11. Date: ............
..............................
Signature
12. Date: ............
..............................
Signature
13. Date: ............
..............................
Signature
14. Date: ............
..............................
Signature
15. Date: ............
..............................
Signature
16. Date: ............
..............................
Signature
17. Date: ............
..............................
Signature
18. Date: ............
..............................
Signature
19. Date: ............
..............................
Signature
20. Date: ............
..............................
Signature
Comments: .....................................................................................................................................................
.............................................................................................................................................................................
.............................................................................................................................................................................

19
Technical data
1) Contains greenhouse gas according to Kyoto protocol
2) Noise level measurement DIN 45635 - 01 - KL 3
Series ETF 320
Operating range, temperature °C 6 to 32
Operating range, humidity % RH 40 to 100
Dehumidification capacity max. l/day 30
At 30 °C/80 % RH l/day 28.4
At 20 °C/70 % RH l/day 15.2
At 15 °C/60 % RH l/day 8.4
Max. airflow volume m3/h 190
Condensate container capacity Litres 5.5/4.5
Refrigerant 1) --- R 410A
Refrigerant quantity g 180
Power supply V 230/1~
Frequency Hz 50
Max. rated current consumption A 3.6
Max. power consumption kW 0.65
At 20 °C/70 % RH kW 0.46
Sound pressure level LpA 1m 2) dB (A) 51
Depth mm 275
Width mm 390
Height mm 615
Weight kg 16
EDP no. 1610320
We reserve the right to modify the dimensions and design as part of the ongoing technical development process.

Consulting
Thanks to intensive training,
our consultants are always
completely up-to-date when it
comes to technical expertise.
This has given us the reputation
of being more than just
an excellent, reliable supplier:
REMKO, a partner who
helps to solve problems.
Sales
REMKO offers not just a well
established sales network both
nationally and internationally, but
also has exceptionally highly-
qualified sales specialists.
REMKO employees in the
field are more than just sales
people: above all, they must
be advisers to our customers
in air conditioning and heating
technology.
Customer service
Our units operate precisely and
reliably. However, in the event of
a malfunction REMKO customer
service is quickly on the scene.
Our comprehensive network of
experienced dealers guarantees
quick and reliable service.
REMKO INTERNATIONAL
... and also right in your neighbourhood!
Take advantage of our experience and advice
We reserve the right to make technical changes and provide no warranty as to the accuracy of this data!
REMKO GmbH & Co. KG
Air conditioning and heating technology
Im Seelenkamp 12 D-32791 Lage
Postfach 1827 D-32777 Lage
Telephone [phone]
Fax [phone]
E-mail [email protected]
Internet www.remko.de
