REMKO ELT Series User manual

Assembly and operating instructions
Read the instructions prior to performing any task!
REMKO ELT series
ELT 40
Electric heater
0199-2018-10 Edition 1, en_GB
This product is suitable only for well-insulated rooms or for occasional use.

Installation and operating instructions (translation of the orig-
inal)
Read these operating instructions carefully before commis-
sioning / using this device!
These instructions are an integral part of the system and must
always be kept near or on the device.
Subject to modifications; No liability accepted for errors or mis-
prints!

Table of contents
1 Safety and usage instructions............................................................................................................. 4
1.1 General safety notes....................................................................................................................... 4
1.2 Identification of notes...................................................................................................................... 4
1.3 Personnel qualifications.................................................................................................................. 4
1.4 Dangers of failure to observe the safety notes................................................................................ 4
1.5 Safety-conscious working............................................................................................................... 4
1.6 Safety instructions for the operator................................................................................................. 5
1.7 Safety notes for installation, maintenance and inspection work...................................................... 5
1.8 Unauthorised modification and changes......................................................................................... 5
1.9 Intended use................................................................................................................................... 6
1.10 Warranty........................................................................................................................................ 6
1.11 Transport and packaging............................................................................................................... 6
1.12 Environmental protection and recycling........................................................................................ 6
2 Technical data........................................................................................................................................ 7
2.1 Unit data.......................................................................................................................................... 7
3 Design and function.............................................................................................................................. 8
3.1 Unit description............................................................................................................................... 8
4 Electrical wiring..................................................................................................................................... 9
4.1 Electrical wiring diagram................................................................................................................. 9
5 Commissioning the unit..................................................................................................................... 10
6Shutdown............................................................................................................................................. 11
7 Troubleshooting and customer service............................................................................................ 12
8 Care and maintenance........................................................................................................................ 13
8.1 General......................................................................................................................................... 13
8.2 Maintenance protocol.................................................................................................................... 14

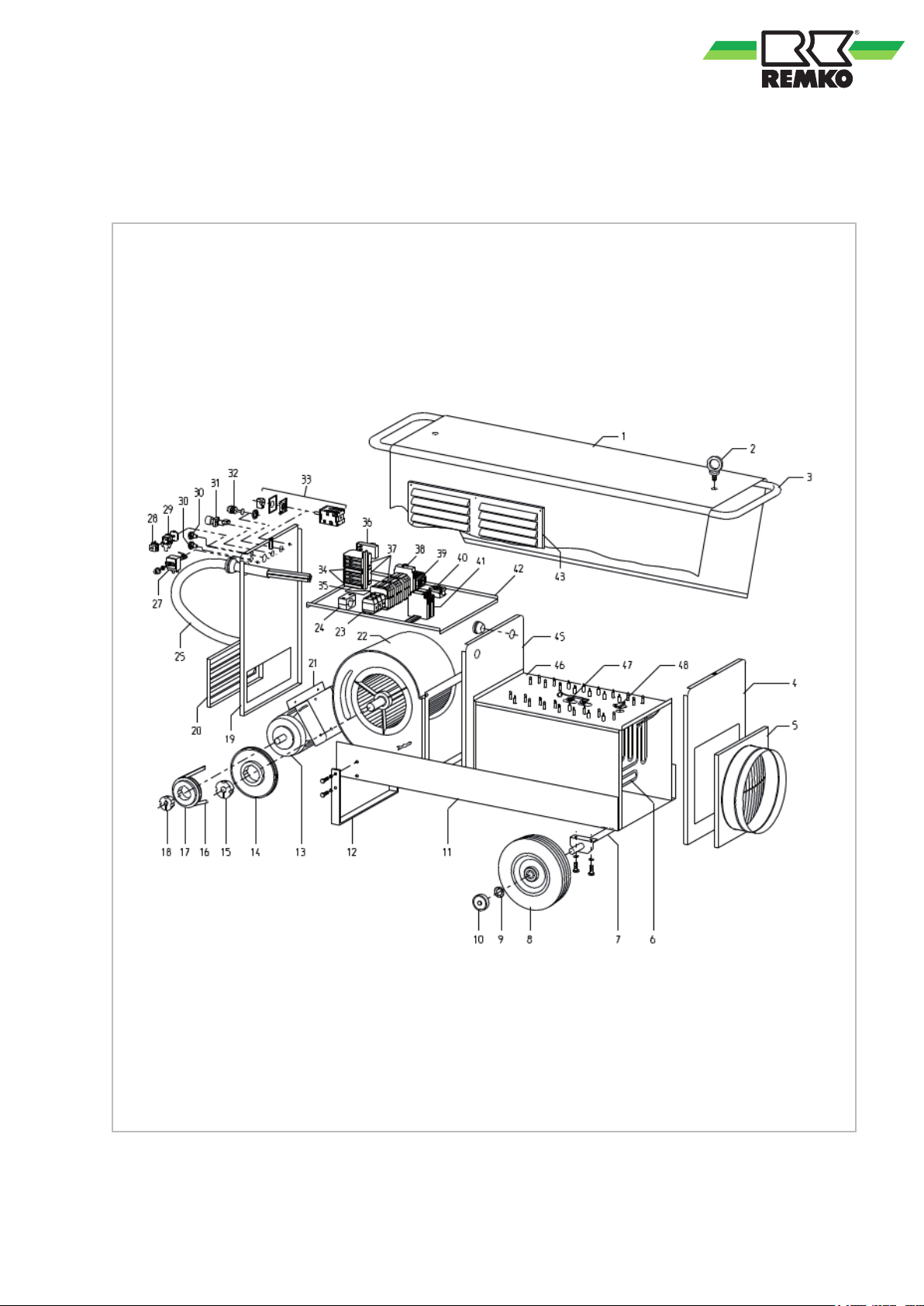

9 Exploded view of the unit and spare parts list................................................................................. 15
9.1 Exploded view of the unit.............................................................................................................. 15
9.2 Spare parts list.............................................................................................................................. 16
10 Index..................................................................................................................................................... 18
3

1 Safety and
usage instructions
1.1 General safety notes
Carefully read the operating manual before com-
missioning the units for the first time. It contains
useful tips and notes such as hazard warnings to
prevent personal injury and material damage.
Failure to follow the directions in this manual not
only presents a danger to people, the environment
and the system itself, but will void any claims for
liability.
Keep this operating manual and the refrigerant
data sheet near to the units.
1.2 Identification of notes
This section provides an overview of all important
safety aspects for proper protection of people and
safe and fault-free operation.The instructions and
safety notes contained within this manual must be
observed in order to prevent accidents, personal
injury and material damage.
Notes attached directly to the units must be
observed in their entirety and be kept in a fully
legible condition.
Safety notes in this manual are indicated by sym-
bols. Safety notes are introduced with signal words
which help to highlight the magnitude of the danger
in question.
DANGER!
Contact with live parts poses an immediate
danger of death due to electric shock. Damage
to the insulation or individual components may
pose a danger of death.
DANGER!
This combination of symbol and signal word
warns of a situation in which there is immediate
danger, which if not avoided may be fatal or
cause serious injury.
WARNING!
This combination of symbol and signal word
warns of a potentially hazardous situation,
which if not avoided may be fatal or cause
serious injury.
CAUTION!
This combination of symbol and signal word
warns of a potentially hazardous situation,
which if not avoided may cause injury or mate-
rial and environmental damage.
NOTICE!
This combination of symbol and signal word
warns of a potentially hazardous situation,
which if not avoided may cause material and
environmental damage.
This symbol highlights useful tips and recom-
mendations as well as information for efficient
and fault-free operation.
1.3 Personnel qualifications
Personnel responsible for commissioning, opera-
tion, maintenance, inspection and installation must
be able to demonstrate that they hold a qualifica-
tion which proves their ability to undertake the
work.
1.4 Dangers of failure to observe
the safety notes
Failure to observe the safety notes may pose a risk
to people, the environment and the units. Failure to
observe the safety notes may void any claims for
damages.
In particular, failure to observe the safety notes
may pose the following risks:
nThe failure of important unit functions.
nThe failure of prescribed methods of mainte-
nance and repair.
nDanger to people on account of electrical and
mechanical effects.
1.5 Safety-conscious working
The safety notes contained in this manual, the
existing national regulations concerning accident
prevention as well as any internal company
working, operating and safety regulations must be
observed.
REMKO ELT series
4

1.6 Safety instructions for the oper-
ator
The operational safety of the units and compo-
nents is only assured providing they are used as
intended and in a fully assembled state.
nThe personnel tasked with operating the units
must check the units for visible defects on the
operating and safety devices as well as the
presence and function of the protective devices
prior to starting work.
If defects are discovered these must be
reported to the supervisor!
nIn the event of defects that endanger the
operational safety of the unit, operation must
be discontinued immediately.
nDo not operate units or components with
obvious defects or signs of damage.
nObserve the respective local regulations and
the relevant electrical safety measures when
using the units.
nSafety devices must not be bypassed or disa-
bled.
nMaintain safety distances to combustible mate-
rials.
nNever insert foreign objects into the units.
nThe units must not be covered during opera-
tion.
nThe units must not be operated in the vicinity of
bathtubs, showers, swimming pools etc.
nThe units must not be operated directly below
a wall socket.
nThe units and components must not be
exposed to any mechanical load, extreme
levels of humidity or extreme temperatures.
nNever allow water to enter the units.
nProtective covers (grilles) over moving parts
must not be removed from units that are in
operation.
nContact with equipment parts or components
can lead to burns or injury.
nAll housing parts and unit openings, e.g. air
inlets and outlets, must be free from foreign
objects.
nThe air outlet must not be constricted or
equipped with pipe or hose lines.
nAll electrical cables for the units must be pro-
tected against damage, including damage
caused by animals.
nThe units must be inspected by a service tech-
nician to ensure that they are safe to use and
fully functional at least once yearly. Visual
inspections and cleaning may be performed by
the operator when the units are disconnected
from the mains.
1.7 Safety notes for installation,
maintenance and
inspection work
nThe units and components may only be set up,
installed and maintained by qualified per-
sonnel.
nAppropriate hazard prevention measures must
be taken to prevent risks to people when per-
forming installation, repair, maintenance or
cleaning work on the units.
nThe setup, connection and operation of the
units and its components must be undertaken
in accordance with the usage and operating
conditions stipulated in this manual and comply
with all applicable regional regulations.
nRegional regulations and laws must be
observed.
nThe units must be installed and operated in
such a way that personnel are not endangered
by warm air and radiant heat and that no fires
can occur
nA safety zone of 1.5 m should be maintained
around the units - including non-combustible
items
nThe power supply should be adapted to the
requirements of the units.
nMobile units must be set up securely on suit-
able non-combustible surfaces.
nThe units and components should not be oper-
ated in areas where there is an increased risk
of damage. Observe the minimum clearances.
nThe units and components must be kept at an
adequate distance from flammable, explosive,
combustible, abrasive and dirty areas.
nThe units must not be installed or operated in
atmospheres containing oil, sulphur or salt.
nThe units must not be exposed to direct jets of
water, e.g. pressure washers etc.
nSafety devices must not be bypassed or disa-
bled.
1.8 Unauthorised modification
and changes
Modifications or changes to units and components
are not permitted and may cause malfunctions.
Safety devices may not be modified or bypassed.
Original replacement parts and accessories
authorised by the manufactured ensure safety. The
use of other parts may invalidate liability for
resulting consequences.
5

1.9 Intended use
The units are designed exclusively for heating and
ventilation purposes in industrial or commercial use
(no living space heating in private use) on the
basis of their structural design and equipment. The
units must only be operated by appropriately
instructed personnel.
Any different or additional use is a non-intended
use. The manufacturer/supplier assumes no lia-
bility for damages arising from a non-intended use.
The user bears the sole risk in such cases.
Intended use also includes working in accordance
with the operating and installation instructions and
complying with the maintenance requirements.
The threshold values specified in the technical
data must not be exceeded.
1.10 Warranty
For warranty claims to be considered, it is essential
that the ordering party or its representative com-
plete and return the "certificate of warranty" to
REMKO GmbH & Co. KG at the time when the
units are purchased and commissioned.
The warranty conditions are detailed in the "Gen-
eral business and delivery conditions". Further-
more, only the parties to a contract can conclude
special agreements beyond these conditions. In
this case, contact your contractual partner in the
first instance.
1.11 Transport and packaging
The devices are supplied in a sturdy shipping con-
tainer. Please check the equipment immediately
upon delivery and note any damage or missing
parts on the delivery and inform the shipper and
your contractual partner. For later complaints can
not be guaranteed.
WARNING!
Plastic films and bags etc. are dangerous
toys for children!
Why:
- Leave packaging material are not around.
- Packaging material may not be accessible to
children!
1.12 Environmental protection
and recycling
Disposal of packaging
All products are packed for transport in environ-
mentally friendly materials. Make a valuable contri-
bution to reducing waste and sustaining raw mate-
rials. Only dispose of packaging at approved
collection points.
Disposal of equipment and components
Only recyclable materials are used in the manufac-
ture of the devices and components. Help protect
the environment by ensuring that the devices or
components (for example batteries) are not dis-
posed in household waste, but only in accordance
with local regulations and in an environmentally
safe manner, e.g. using certified firms and recy-
cling specialists or at collection points.
REMKO ELT series
6

2 Technical data
2.1 Unit data
Unit type Symbol Unit ELT 40
Nominal heat capacity Pnom kW 36
Minimum heat capacity Pmin kW 15
Maximum continuous heating power Pmax,c kW 36
Switchable heating capacity kW 15/30/36
Air volume m3/h 4250
Temperature increase (rt) max. K 65
Power supply V/Hz 400/3~/50
Max. rated current A 55
Max. power consumption kW 37.5
Auxiliary current consumption at nominal heating
power elmax kW 37.5
Auxiliary current consumption at minimum heating
power elmin kW 16.5
Auxiliary current consumption in standby condition elSB kW 0.005
Fuse protection (provided by the customer,
slow-blow) A 64
Sound pressure level, LpA 1m 1) dB(A) 74
Dimensions (length/width/height) mm 1410/560/775
Type of room temperature control electronic (external)
Weight kg 81.5
EDP no.: 114800
1) Noise level measurement DIN 45635 - 01 - KL 3
We reserve the right to modify the dimensions and design as part of the ongoing technical development
process.
7

3 Design and function
3.1 Unit description
The units are portable electric heating units for
industrial applications. The units are operated
exclusively with electric power and have been
designed in such a way that they can be used fully
automatically, universally and in a straightforward
manner.
The units are equipped with specially enclosed
electric heating resistors, a low noise and low-
maintenance radial fan, a safety and aftercooler
thermostat, an integrated room thermostat and a
power cable with protective contact plug.
The units conform to the fundamental health and
safety requirements of the appropriate EU regula-
tions.
The units are dependable and offer ease of opera-
tion.
Locations at which units are used
The units are designed exclusively for commercial
use.
The units may be used among other things for
the following:
nDrying newly completed buildings
nSpot heating outdoor workspaces or fire-proof
manufacturing facilities and halls
nContinuous or temporary room heating
nDe-icing machines, vehicles and non-combus-
tible warehoused goods while adhering to the
relevant safety distances
Operating sequence
The units can be used in the respective modes for
air heating and air circulation purposes.
They can be operated on three heating settings
and one fan setting. They have a 5-stage operating
switch with the functions:
Off (0)
Ventilation (1)
Heating (2-4)
The unit is equipped with an integrated thermostat
to ensure that the room temperature is constant.
Once the selected temperature has been reached,
the thermostat stops the heating operation. If the
room temperature falls below the selected temper-
ature, the thermostat starts up the heating opera-
tion again.
The integrated thermal cut-out switches off the unit
if the temperature is excessively high and switches
it on again automatically after it has cooled down.
After switching off the units via the operating
switch or the room thermostats, the supply air
fan runs to cool the heating resistors for a cer-
tain time and then switches off automatically.
For optimum operation the units should not be
operated above an ambient temperature of
25 °C.
REMKO ELT series
8

4 Electrical wiring
4.1 Electrical wiring diagram
Fig. 1: Electrical wiring diagram
F1: Control fuse 1
F2: Control fuse 2
F3: Motor overload protection switch
HW: Heating resistor
K1: Motor protection 1
K2: Motor protection 2
K3-K5: Contactor for heating stages
KX6: Phase sequence relay 1
KX7: Phase sequence relay 2
KX8: Time relay
M1: Fan motor
RT: Room thermostat socket
S1: Operating switch
S4: Aftercooler thermostat (NK)
S6: Temperature controller (TR)
S7: Safety temperature limiter (STB)
X3/..: Terminal block
We reserve the right to modify the dimensions and design as part of the ongoing technical development
process.
9

5 Commissioning the unit
One person, who has been adequately trained in
the handling of the unit, should be tasked with the
operation and monitoring of the unit.
The units must be in the intended horizontal posi-
tion at all times during operation.
The units are equipped with the following operating
switches:
Fig. 2: Operating switch
0: Off
1: Ventilation
2: 1. Heating stage
3: 2. Heating stage
4: 3. Heating stage
1. Check the mains voltage (400V/3~N/50Hz)
and for sufficient fuse protection (64A).
2. Switch the operating switch to the "0" (off)
position.
3. Connect the unit's power plug to a properly
installed mains socket.
The electrical connection for the units must be
made at a separate feedpoint with a residual
current device in accordance with VDE 0100,
Section 55.
NOTICE!
Extensions to the connection cable must only
be conducted by authorised specialist electri-
cians, taking into consideration the unit power
consumption, cable length and local use.
Operating mode settings
The operating mode settings can be selected using
a rotary selector switch.
However, a room thermostat is always required for
operation.
Heating
AB C
Fig. 3: Operating mode switch positions
A: 1. Heating stage
B: 2. Heating stage
C: 3. Heating stage
REMKO ELT series
10

Ventilation
Only the supply air fan operates in this setting.
Thermostatic regulation and heating operation are
not possible in this operating mode.
Switch the operating switch to the corresponding
position 1.
Fig. 4: Ventilation switch position
Heating with room thermostat (accessory)
The units operate fully automatically and according
to the room temperature.
1. Pull out the strapping plug [2].
2. Connect the room thermostat [4] plug [3] with
the thermostat receptacle [1] on the unit.
3
1
3. Place the room thermostat [4] at a suitable
location in the room. The thermostat sensor
must not be located directly in the warm air
flow and must not be placed directly on a
cold floor.
4. Set the desired temperature on the room
thermostat [4].
4
5. Select the desired power position on the
operating switch.
6 Shutdown
1. Switch the operating switch to the "0" (off)
position.
The supply air fan runs on to cool the units
and only switches off after the cooling down
phase is complete. The fan can switch on
and run several times before the final shut-
down.
2. If shut down for an extended period, discon-
nect the units from the mains power supply.
NOTICE!
Never interrupt the mains connection prior to
the completion of the follow-up cooling phase.
There is no warranty claim for damage to the
units from overheating.
11

7 Troubleshooting and
customer service
DANGER!
Vor allen Arbeiten an den Geräten muss der
Netzstecker aus der Netzsteckdose gezogen
werden.
Reparaturen bzw. Änderungen an der Elektroin-
stallation sowie der Zuleitung dürfen aus sicher-
heitstechnischen Gründen ausschließlich durch
autorisiertes Fachpersonal ausgeführt werden.
The unit has been manufactured using state-of-
the-art production methods and has been tested
several times to ensure that it works properly. How-
ever, in the event that malfunctions should occur,
the unit should be checked against the following
list. Please inform your dealer if the unit is still not
working correctly after all of the functional checks
have been performed.
The unit (fan) does not start
1. Check the mains fuses provided by the cus-
tomer.
2. Check the power plug.
3. Check the operating switch.
4. Check that the fan can move freely.
The unit does not heat up
1. Check the operating switch.
2. Check that the contactor is functioning cor-
rectly.
3. Check that the thermal cut-out or capillary
tube are functioning correctly and check for
damage.
4. Check whether the thermostat or strapping
plug are plugged in.
5. In case of unit operation with a room thermo-
stat, set the thermostat to a value that is
higher than the room temperature.
REMKO ELT series
12

8 Care and maintenance
8.1 General
Regular care and observation of some basic points
will ensure trouble-free operation and a long
service life.
DANGER!
Before undertaking any work on the units, the
mains plug must be removed from the mains
socket.
NOTICE!
Adjustment and maintenance work may only be
carried out by authorised qualified technicians.
nObserve the regular care and maintenance
intervals
nIn accordance with the operating conditions,
the units must, if necessary, be checked at
least yearly by a specialist to ensure that they
are in a condition that is safe to use
nKeep the units free of dust and other debris
nOnly clean the units with a dry or moistened
cloth
nNever subject to direct jets of water. such as
high-pressure cleaners etc.
nNever use abrasive or solvent-based cleaners
nEven with heavy contamination, use only suit-
able cleaners
nCheck the inlet and outlet grille for contamina-
tion on a regular basis
nCheck the units for mechanical damage and
have defective parts properly replaced
nCheck that the safety devices and the protec-
tive devices are operating correctly at regular
intervals
nKeep the probe for the safety devices free of
dust and dirt
nBe careful not to damage the temperature limit-
er’s probe or capillary tube when removing or
mounting the protective outlet grille
nObserve maintenance and care intervals
WARNING!
An electrical safety check must be carried out in
accordance with VDE 0701 after any work on
the units.
NOTICE!
Replace defective or damaged parts immedi-
ately and only with original spare parts.
Testing
The strapping plug enclosed with the unit is for
maintenance or testing purposes according to VDE
0701. To test, perform the following steps:
1. Connect the strapping plug supplied [2] to the
thermostat socket [1] on the unit
2
1
2. Perform the test on the unit
3. Remove the strapping plug again
13

8.2 Maintenance protocol
Unit type:
--------------------------------
Unit number:
---------------------------------------
0
1
0
2
0
3
0
4
0
5
0
6
0
7
0
8
0
9
1
0
1
1
1
2
1
3
1
4
1
5
1
6
1
7
1
8
1
9
2
0
Unit cleaned - outside -
Unit cleaned - inside -
Fan blade cleaned
Combustion chamber cleaned
Heat exchanger cleaned
Exhaust gas suppressors replaced
Inspection cover seal replaced
Fuel filter insert replaced
Safety equipment checked
Safety devices checked
Unit checked for damage
Electrical safety check
Burner maintenance *)
Test run
Comments: ...................................................................................................................................................
.............................................................................................................................................................................
01. Date: .............
...............................
Signature
02. Date: .............
...............................
Signature
03. Date: .............
...............................
Signature
04. Date: .............
...............................
Signature
05. Date: .............
...............................
Signature
06. Date: ............
...............................
Signature
07. Date: .............
...............................
Signature
08. Date: .............
...............................
Signature
09. Date: .............
...............................
Signature
10. Date: .............
...............................
Signature
11. Date: ............
...............................
Signature
12. Date: .............
...............................
Signature
13. Date: .............
...............................
Signature
14. Date: .............
...............................
Signature
15. Date: .............
...............................
Signature
16. Date: ............
...............................
Signature
17. Date: .............
...............................
Signature
18. Date: .............
...............................
Signature
19. Date: .............
...............................
Signature
20. Date: .............
...............................
Signature
*) Have the forced-air burner maintained and adjusted only by authorised specialists and in accordance with
the legal provisions (1st BImSchV.). A corresponding measurement log should be generated.
Unit to be maintained only by authorised specialists in accordance with the statutory regulations.
REMKO ELT series
14

9 Exploded view of the unit and spare parts list
9.1 Exploded view of the unit
Fig. 5: Exploded view of the unit
We reserve the right to modify the dimensions and design as part of the ongoing technical development
process.
15

9.2 Spare parts list
No. Designation ELT 40
1 Exterior cladding 1107971
2 Crane eye 1102554
3 Transport handle 1107972
4 Front wall 1107973
5 Outlet nozzle 1107974
6 Heating resistor 1107975
7 Axle 1107976
8 Wheel 260/60-240 1101621
9 20 mm locking ring 1101622
10 Hubcap 1101623
11 Unit base 1107977
12 Support, rear 1107978
13 Motor 1108611
14 V-belt pulley, fan 1102795
15 Clamping bush, fan 1102795
16 V-belt 1102698
17 Clamping bush, motor 1102794
18 V-belt pulley, motor 1102794
19 Back wall 1107979
20 Protective intake grille, rear 1107980
21 Motor plate 1107981
22 Radial fan 1108610
23 Connection terminal strip 1107982
24 Strain relief 1107983
25 Connection cable with plug 1107893
27 Safety thermostat with probe 1101197
28 Strapping plug 1101019
29 Thermostat socket, complete 1101018
30 Control fuse, complete with holder 1107984
31 Emergency stop switch 1107985
32 Unlocking unit for motor overload protection switch 1107986
33 Operating switch, cpl. 1107993
34 Auxiliary contact 1-2 (NC=normally closed) 1107898
35 Auxiliary contact 3-4 (NO=normally open) 1107899
REMKO ELT series
16

No. Designation ELT 40
36 Motor overload protection switch 1107890
37 Contactor 1107966
38 Time relay 1107891
39 Terminal block 1107892
40 Thermal cut-out with probe 1107960
41 Phase sequence relay ---
42 Mounting plate 1107894
43 Protective intake grille, side 1107895
45 Centre wall 1107896
46 Inner casing 1107897
47 Retaining clip for STB probe 1101395
48 Aftercooler thermostat 1104065
When ordering spare parts, please state the EDP no., unit number and type (see name plate)!
17

10 Index
D
Disposal of equipment .....................6
E
Environmental protection ...................6
R
Room thermostat ........................11
S
Safety
Dangers of failure to observe the safety
notes ............................... 4
General ............................. 4
Identification of notes ................... 4
Instructions for the operator .............. 5
Note for inspection work .................5
Note for installation work ................ 5
Note for maintenance work .............. 5
Personnel qualifications ................. 4
Safety-conscious working ................4
Unauthorised modification ...............5
Unauthorised replacement part manufacture . 5
W
Warranty ............................... 6
REMKO ELT series
18

Consulting
Thanks to intensive training,
our consultants are always
completely up-to-date in terms
of technical knowledge. This has
given us the reputation of being
more than just an excellent,
reliable supplier:
REMKO, a partner
helping you find solutions to
your problems.
Distribution
REMKO offers not just a well
established sales network both
nationally and internationally, but
also has exceptionally highly-
qualified sales specialists.
REMKO field staff are more than
just sales representatives: above
all, they must act as advisers to
our customers in air conditioning
and heating technology.
SFlbCustomer Service
Our equipment operates
precisely and reliably. However,
in the event of a fault, REMKO
customer service is quickly at
the scene. Our comprehensive
network of experienced dealers
always guarantees quick and
reliable service.
REMKO INTERNATIONAL
… and also right in your neighbourhood!
Make use of our experience and advice
We reserve the right to make technical changes, and provide no guarantee as to the accuracy of this data!
REMKO GmbH & Co. KG
Air conditioning and heating technology
Im Seelenkamp 12 D-32791 Lage
Postfach 1827 D-32777 Lage
Telephone [phone]
Telefax [phone]
E-mail [email protected]
Website www.remko.de
