REMKO EM Series User manual

Operating manual
Read the instructions prior to performing any task!

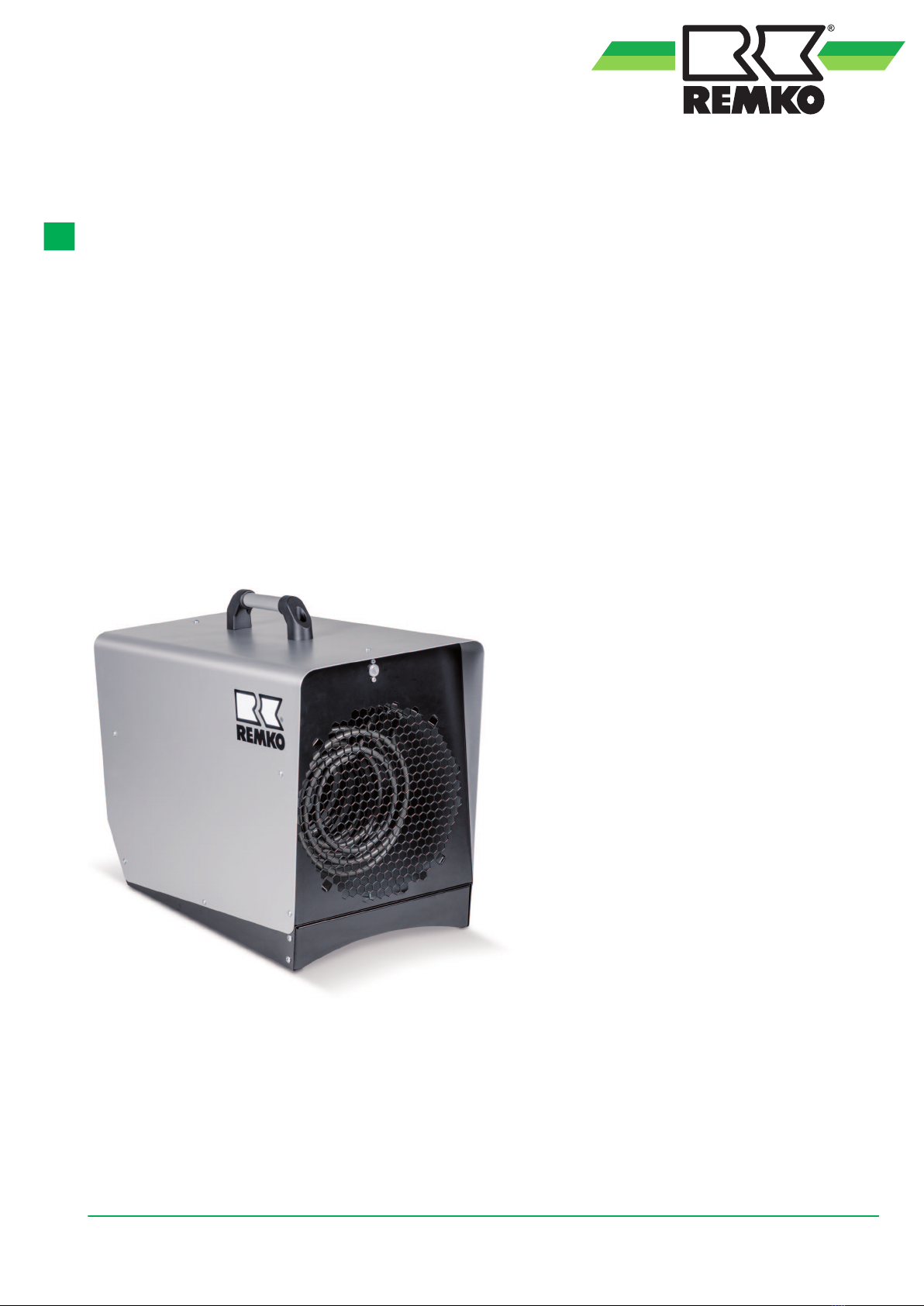

REMKO EM series
EM 6000, EM 10000, EM 18000
Electric heating units
Edition N-06 - 1, en_GB
This product is suitable only for well-insulated rooms or for occasional use.

3
Contents
Carefully read this original operating manual prior to commissioning /
using the units!
This operating manual is a translation of the German original.
This manual is an integral part of the unit and must always be kept in
the vicinity of the installation location or on the unit itself.
Subject to modifications. No liability accepted for errors or misprints!
Safety notes 4
Unit description 4-5
Commissioning 5
Shutdown 6
Care and maintenance 6
Troubleshooting 6
Intended use 7
Customer service and guarantee 7
Environmental protection and recycling 7
Exploded view of the unit 8-9
Spare parts list 10
Maintenance log 11
Technical data 12

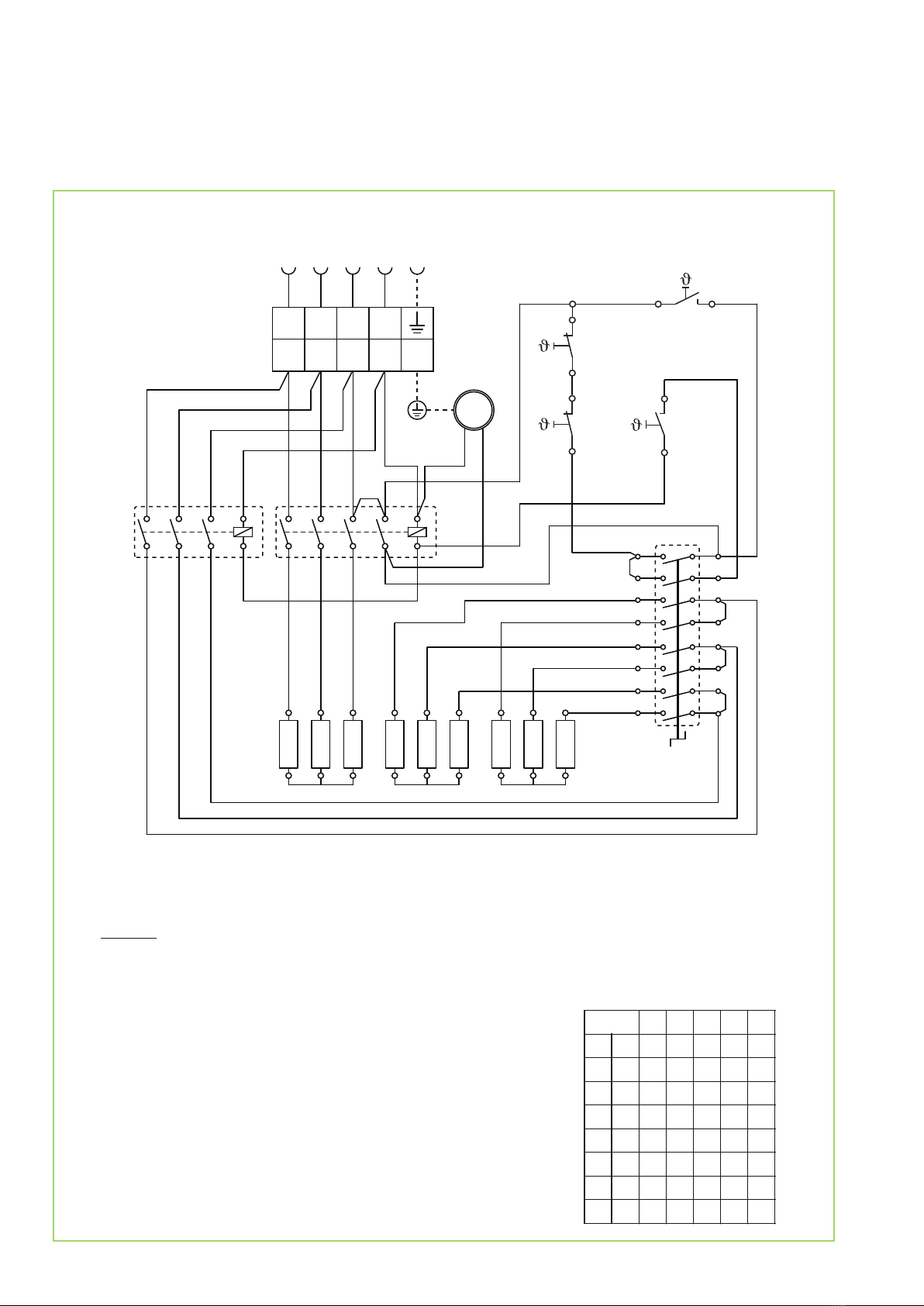

Electrical wiring diagram 13-14

4
REMKO EM series
Safety notes
Always observe the respective local building code and fire prevention
guidelines as well as the guidelines of the accident prevention and
insurance associations when using the units.
The units have been subjected
to extensive material, functional
and quality inspections prior to
delivery. However, dangers can
arise from the units if they are
used improperly or not as intended
by untrained personnel!
Please observe the following notes
■ The personnel tasked with
operating the units must check
the units for visible defects on
the operating and safety devices
as well as the presence and
function of the protective devices
prior to starting work
Inform the supervisor if defects
are discovered!
■ In the event of defects that
endanger the operational safety
of the unit, operation must
be discontinued immediately
■ Observe the respective local
regulations and the relevant
electrical safety measures when
using the units
■ Maintain safety distances to
combustible materials
■ An unobstructed air inlet and air
outlet must be guaranteed at all
times
■ The air outlet must not be
constricted or equipped with
pipe or hose lines
■ Never insert foreign objects into
the units
■ The units must not be covered
during operation
■ Safety devices must not
be bypassed or disabled
■ The units must not be operated
in the vicinity of bathtubs,
showers, swimming pools etc.
■ The units must not be operated
directly below a wall socket
■ The units must not be exposed
to direct jets of water
e.g. pressure washers, etc.
■ Never allow water to enter
the units
■ The units must not be installed
or operated in potentially
flammable or explosive
environments
■ The units must not be installed
or operated in atmospheres
containing oil, sulphur or salt
■ All electrical cables for
the units must be protected
against damage, even damage
caused by animals
Unit description
The units are portable electric
heating units for industrial
applications.
The units are operated exclusively
with electric power and have been
designed in such a way that they
can be used fully automatically,
universally and in a straightforward
manner.
The units are equipped with
specially enclosed electric heating
resistors, low noise and low-
maintenance axial fans, a safety
and aftercooler thermostat,
an integrated room thermostat
and a power supply cable.
The units conform to
the fundamental health and safety
requirements of the appropriate
EU regulations.
The units are dependable and offer
ease of operation.
The units may be used among
other things for the following:
■ Drying newly completed
buildings
■ Spot heating outdoor
workspaces or fire-proof
manufacturing facilities and
halls
■ Continuous or temporary room
heating
■ De-icing machines, vehicles and
non-combustible warehoused
goods while adhering to
the relevant safety distances
CAUTION
Safety devices must not
be bypassed or disabled.

5
Operating sequence
The units can be used according
to the relevant operating modes
for air heating or simply for air
circulation purposes (switch
position 1).
The heating capacity can be set in
2 stages (switch position 2 and 3).
The units are equipped with an
integrated thermostat to ensure
that the room temperature
is constant.
Once the set temperature has
been reached, the thermostat
switches the heating operation
off. If the room temperature
falls below the set temperature,
the thermostat starts up the
heating operation again.
The integrated thermal cut-
out switches off the unit if
the temperature is excessively
high and switches it on again
automatically after it has cooled
down.
After switching off the units via
the operating switch or the room
thermostats, the supply air fan
runs to cool the heating resistors
for a certain time and then
switches off automatically.
Commissioning
Heating
The units operate in a fully
automatic manner subject
to the temperature that is set
on the thermostat.
1. Set the desired
room temperature
on the thermostat.
2. Depending on the desired
heating capacity,
move the operating
switch to position
“2” = 4.5 kW
or “3” = 9 kW.
Ventilate
Only the supply air fan operates
in this setting. Thermostatic
regulation and heating operation
are not possible in this operating
mode.
1. Move the
operating switch
to position “1”,
ventilate.
One person, who has been
adequately trained in the handling
of the units, should be tasked with
the operation and monitoring
of the units.
1. Check that the mains power
supply matches the operating
voltage of the unit.
400V/3~N/50 Hz.
2. Move
the operating
switch to
the "0" (Off)
position.
3. Connect
the unit's
power plug
to a correctly
installed mains
socket.
400V/3~N/50Hz
NOTE
The electrical connection for
the units must be made at a
separate feed point with a residual
current device in accordance with
VDE 0100, Section 55.
NOTE
For optimum operation
the units should not be operated
above an ambient temperature
of 25 °C.
CAUTION
Extensions to the connection
cable must only be conducted
by authorised specialist
electricians, taking into
consideration the unit capacity,
cable length and local use.
CAUTION
All cable extensions must only
be used in a fully unrolled
or reeled off condition.
CAUTION
Never interrupt the power
supply prior to the completion
of the follow-up cooling phase.
There is no guarantee
entitlement in case of damage
to the units due to overheating.

6
REMKO EM series
The unit (fan) does not start.
1. Check the mains fuses on site.
2. Check the power plug.
3. Check the operating switch.
4. Check that the fan can move
freely.
The unit does not heat up
1. Set the thermostat to a value
that is higher than the room
temperature.
2. Check that the thermostat
is functioning correctly.
3. Check the operating switch.
4. Check that the contactor is
functioning correctly.
5. Check that the thermal cut-out
is functioning correctly and
check it for damage.
If all of the functional checks
have been carried out without
any findings, please contact
an authorised service station.
Troubleshooting
Regular care and observation
of some basic requirements will
ensure trouble-free operation and
a long service life of the units.
■ Observe the regular care
and maintenance intervals
■ In accordance with
the operating conditions,
the units must, if necessary,
be checked at least yearly
by a specialist to ensure
that they are in a condition
that is safe to use
■ Keep the units free of dust
and other debris
■ Only clean the units with a dry
or moistened cloth
■ Never use direct jets of water.
Such as high-pressure cleaners
etc.
■ Never use abrasive or solvent-
based cleaners
■ Check the inlet and outlet grille
for contamination on a regular
basis
■ Check the safety equipment
and protective devices
on a regular basis
■ Be careful not to damage
the thermostat’s probe or
capillary tube when removing
or mounting the rear panel
of the unit
Care and maintenance
1. Move the operating
switch to
the "0" position.
The supply air fan may run on
to cool the units and only switches
off after the cooling down phase
is complete.
The fan can switch on and run
several times before the final
shutdown.
2. If the units are
inactive for
long periods,
disconnect them
from the mains
power supply.
Shutdown
NOTE
Repair work may only
be carried out by authorised
qualified electricians.
CAUTION
Never interrupt the power
supply prior to the completion
of the follow-up cooling phase.
There is no guarantee
entitlement in case of damage
to the units due to overheating.
CAUTION
After completing any work on
the unit, an electrical inspection must
be carried out according to VDE 0701.
CAUTION
Before undertaking any work
on the units, the power
plug must be removed from
the mains socket.

7
Disposal of packaging
When disposing of packaging
material, please consider our
environment.
Our units are carefully packed
and delivered in sturdy transport
packaging made from cardboard
and polystyrene.
The packaging materials are
environmentally-friendly and
can be recycled.
By recycling packaging materials,
you make a valuable contribution
to the reduction of waste and
conservation of raw materials.
Therefore, only dispose
of packaging material
at appropriate collection points.
Disposal of the old unit
The manufacturing process for
the units is subject to continuous
quality control.
Only high-grade materials are
processed, the majority of which
are recyclable.
You also contribute to
environmental protection by
ensuring that your old equipment
is only disposed of in an
environment friendly manner.
Therefore, only bring the old
unit to an authorised recycling
business or to an appropriate
collection point.
The units are designed exclusively
for heating and ventilation
purposes in industrial or
commercial use (no living space
heating) on the basis of their
structural design and equipment.
The units must only be operated
by appropriately instructed
personnel.
With non-observance
of the manufacturer's
specifications, the respective
local legal requirements or after
arbitrary alterations to the units,
the manufacturer shall not
be liable for resulting damages.
Intended use Customer service
and guarantee
As a prerequisite for any
guarantee claims to be considered,
it is essential that the ordering
party or its representative complete
and return the
“Certificate of guarantee”
to REMKO GmbH & Co. KG
at the time when the units are
purchased and commissioned.
The units were tested
at the factory several times
to verify their correct function.
However, if malfunctions should
arise that cannot be remedied
by the operator with the assistance
of the troubleshooting section,
please contact your specialist
dealer or contractual partner.
Environmental
protection and
recycling
NOTE
Operation that differs from
that specified in this operating
manual is prohibited.
Failing to observe this renders
any manufacturer liability
or guarantee claims void.
NOTE
Adjustment and maintenance
work may only be carried out
by authorised and qualified
technicians.
CAUTION
Copyright
The redistribution, even
in part, or the use of this
documentation for purposes
other than intended without
the written authorisation of
REMKO GmbH & Co. KG
is prohibited.

8
REMKO EM series
We reserve the right to modify the dimensions and design as part of the ongoing technical development process.
Exploded view of the unit
9
20 18
35
6
2
1
4
8
19
21
10
11 21
12
17
16
14
14 15
EM 6000
EM 10000
14
18
24
6
7
7
23
4
3
5
8
25
19
19
9
20
14 15
11
10
16
17
12 21
2
1
21
22
22

9
We reserve the right to modify the dimensions and design as part of the ongoing technical development process.
EM 18000
14
18
27 6
7
23
4
3
5
8
25
19
19
9
15
11
10 16
12
2
1
22
21 26

10
REMKO EM series
When ordering spare parts, please state the EDP no., unit number and type (see name plate)!
Spare parts list
No. Designation EM 6000 EM 10000 EM 18000
EDP no. EDP no. EDP no.
1 Transport handle 1111973 1111973 1111973
2 Exterior cladding 1111974 1103957 1108002
3 Aftercooler thermostat 1104065 1104065 1104065
4 77 °C thermal cut-out 1101161 1101161 1101161
5 Inner casing 1101082 1103951 1107953
6 Heating resistor 1111975 1103958 1107998
7 Front wall 1101084 1103953 1107921
8 Floor panel 1101085 1107913 1107950
9 Fan blade 1101086 1103950 1101153
10 Drive clutch 1108014 1103956 1103956
11 Fan motor 1101094 1101254 1101254
12 Back wall 1101099 1103959 1108003
14 Thermostat assembly 1101066 1101066 1108005
15 Operating switch cpl. 1101090 1101090 1108004
16 Terminal block 1101366 1101366 1107952
17 Mounting plate 1101091 1103961 ---
18 Contactor 1101096 1101096 1101096
19 Thermal cut-out / STB 1101081 1107960 1107960
20 Grommet 1101304 1101304 ---
21 Strain relief 1107944 1107944 1107961
22 Mains cable with plug 1101026 1101026 1107962
23 Protective outlet grille --- 1103952 1101353
24 Mounting bracket / mounting plate --- 1101031 ---
25 Support plate --- 1107914 1107922
26 Protective hose --- --- 1107915
27 Protective intake grille --- --- 1107947

11
Unit to be maintained only by authorised specialists in accordance with the statutory regulations.
Maintenance log
Comments:...........................................................................................................................................................
.............................................................................................................................................................................
.............................................................................................................................................................................
.............................................................................................................................................................................
.............................................................................................................................................................................
1. Date: ..............
..............................
Signature
2. Date: ..............
..............................
Signature
3. Date: ..............
..............................
Signature
4. Date: ..............
..............................
Signature
5. Date: ..............
..............................
Signature
6. Date: ..............
..............................
Signature
7. Date: ..............
..............................
Signature
8. Date: ..............
..............................
Signature
9. Date: ..............
..............................
Signature
10. Date: ............
..............................
Signature
11. Date: ............
..............................
Signature
12. Date: ............
..............................
Signature
13. Date: ............
..............................
Signature
14. Date: ............
..............................
Signature
15. Date: ............
..............................
Signature
16. Date: ............
..............................
Signature
17. Date: ............
..............................
Signature
18. Date: ............
..............................
Signature
19. Date: ............
..............................
Signature
20. Date: ............
..............................
Signature
✍
Unit type: .................................. Unit number: ...................................
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
Unit cleaned - outside -
Unit cleaned - inside -
Fan blade cleaned
Protection grid cleaned
Safety equipment checked
Safety devices checked
Unit checked for damage
All fastening screws checked
Electrical safety check
Test run

12
REMKO EM series
Technical data
We reserve the right to modify the dimensions and design as part of the ongoing technical development process.
1) At 20 °C intake air temperature;
2) Noise level measurement DIN 45635 - 01 - KL3
Series Symbol Unit EM 6000 EM 10000 EM 18000
Nominal heat capacity Pnom kW 6.0 10.0 18.0
Minimum heat capacity Pmin kW 3.0 5.0 6.0
Maximum continuous
heating power Pmax,c kW 6.0 10.0 18.0
Switchable heating capacity kW 2 x 3.0 2 x 5.0 3 x 6.0
Air volume m3/h 500 750 1000
Air outlet temperature 1) °C 71 85 80
Power supply V/Hz 400/3~N / 50 400/3~N / 50 400/3~N / 50
Max. rated current A 4.0 / 8.0 7.4/14.8 9.0/18.0
Max. power consumption kW 6.1 10.6 18.1
Auxiliary current consumption
at nominal heating power elmax kW 0.065 0.080 0.155
Auxiliary current consumption
at minimum capacity elmin kW 0.065 0.080 0.155
Auxiliary current consumption
in standby condition elSB kW 0.000 0.000 0.000
Electrical protection
(provided by the customer) A (slow) 16 16 16
Sound pressure level, LpA 1m 2) dB (A) 52 53 57
Dimensions: L/W/H mm 510/300/455 675/300/455 740/375/500
Type of room temperature control Room temperature control with
mechanical thermostat (external)
Weight kg 16.5 20.5 27.0
EDP no.: 1614510 1614520 1614530

13
Electrical wiring diagram for EM 6000, EM 10000
Switching level for
operating switch [S]
Legend:
HW = Heating resistor
KL = Connection terminal strip
K1 = Contactor
M= Fan motor
NK = Aftercooler thermostat
HW1-3 = Heating resistors, 1st stage
HW4-6 = Heating resistors, 2nd stage
RT = Room thermostat
S = Operating switch
STB = Thermal cut-out
TB = Thermal cut-out
a
d
e
f
b
1
2
4
5
6
S01 2 3
TB
STB
M
1~
RT
f e d b a
6 5 4 2 1
NK
HW HW HW HW HW HW
06.2018
A1
A2
13
14
531
642
KL
1 2 3 4 5
400V/3~N/50Hz
L1 L2 L3 N
6
6
HW
1-3
HW
4-6
S
K1

14
REMKO EM series
Switching level
for operating switch [S]
Legend:
HW = Heating resistor
KL = Connection terminal strip
K1 = Contactor
M= Fan motor
NK = Aftercooler thermostat
HW1-3 = Heating resistors, 1st stage
HW4-6 = Heating resistors, 2nd stage
RT = Room thermostat
S = Operating switch
STB = Thermal cut-out
TB = Thermal cut-out
S01 2 34
X
XXX
X X
X
X X
X
X X
X
M
H X
1
V1 L1
V2
V3 V4
V5 V6
L2
L3
V3
V5
V1
HW
1-9 S
KL
1~
M
A1
A2
A1
A2
1 2 3 4 5
K1
K2
531
642
13
14
531
642
L1
L2
L3
V2
V4
V6
M
H
V1
V3
V5
400V/3~N/50Hz
L1 L2 L3 N
06.2018
HW HW HW HW HW HW HW HW HW
RT
TB
NK
STB
X
1
Electrical wiring diagram for EM 18000

15

Consulting
Thanks to intensive training,
our consultants are always
completely up-to-date when
it comes to technical expertise.
This has given us the reputation
of being more than just an
excellent, reliable supplier:
REMKO, a partner who helps
to solve problems.
Sales
REMKO offers not just a well
established sales network both
nationally and internationally,
but also has exceptionally highly-
qualified sales specialists.
REMKO employees in the field are
more than just sales people: above
all, they must be advisers to our
customers in air conditioning and
heating technology.
Customer service
Our units operate precisely
and reliably. However,
in the event of a malfunction
REMKO customer service
is quickly on the scene.
Our comprehensive network
of experienced dealers
guarantees quick and reliable
service.
REMKO INTERNATIONAL
... and also right in your neighbourhood!
Take advantage of our experience and advice
REMKO GmbH & Co. KG
Air conditioning and heating technology
Im Seelenkamp 12 D-32791 Lage
Postfach 1827 D-32777 Lage
Telephone [phone]
Fax [phone]
E-mail [email protected]
Internet www.remko.de
We reserve the right to make technical changes and provide no warranty as to the accuracy of this data!
