Remko Elt 3-2 User manual

REMKO -powerful like a bear.

REMKO ELT

Electric Heaters

Edition GB –M09

Operation

Technology

Spare Parts

Contents Page

Safety Instructions 4

Description of device 4

Starting 4

Unit shut down 5

Maintenance 5

Troubleshooting 6

Service and guarantee 6

Technical data 6

Contents Page

Exploded view ELT 3-27

Spare part list ELT 3-27

Exploded view ELT 10-68

Spare part list ELT 10-68

Exploded view ELT 18-99

Spare part list ELT 18-99

Wiring diagram 10

Maintenance log 11

Mobile

Electric Heaters

Operating instructions

Make sure to read these instructions carefully before starting/using the unit!

Our guarantee will become void when the unit supplied by us is used and

installed for inadequate purposes, or maintained incorrectly, etc.,

or if it is changed without our prior consent.

Subject to alterations!

GAlways keep these operating instructions near or on the unit! G

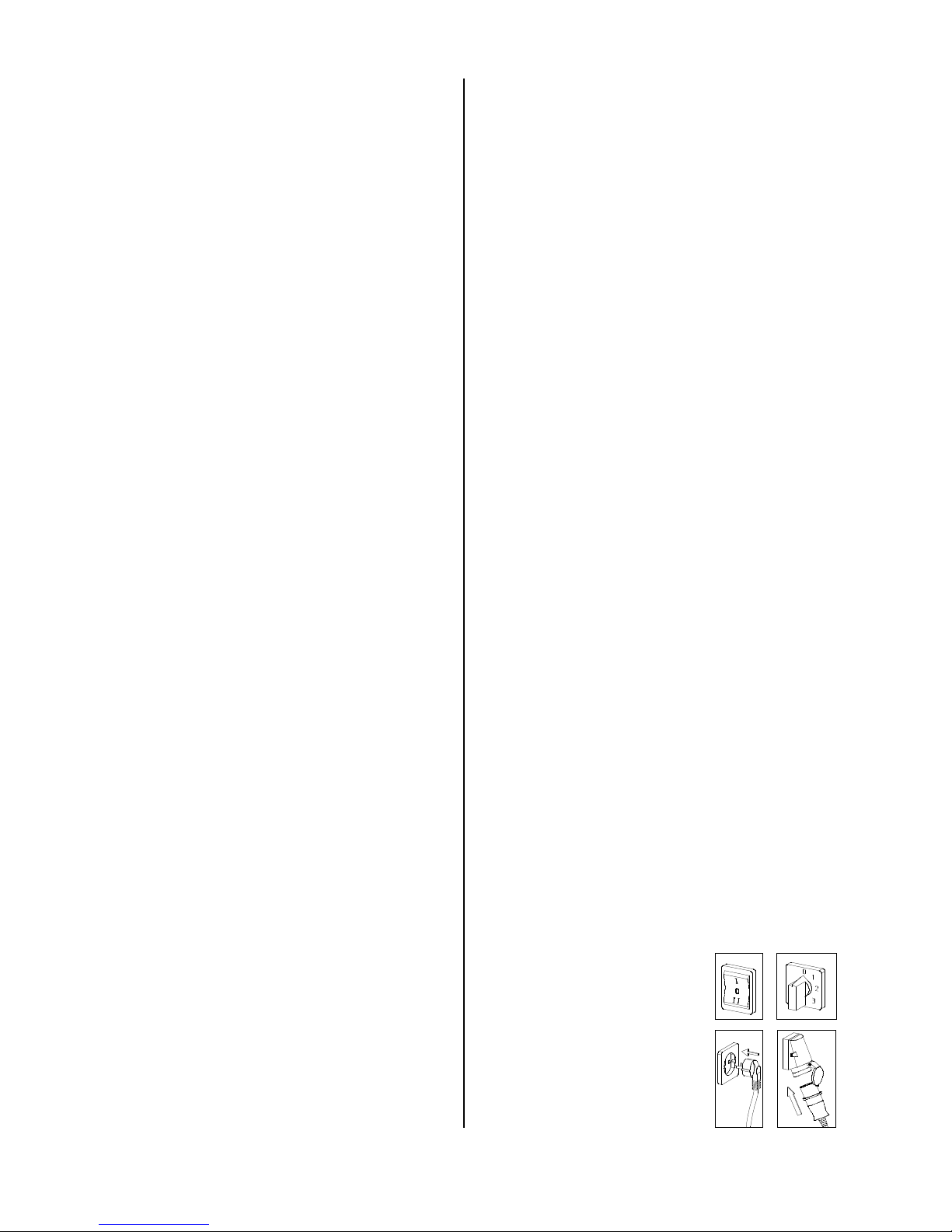

2. Put operating switch into

position "0".

3.Connect the unit-plug to an ade-

quate mains socket..

Safety Instructions

REMKO electric heaters will provide you with high utility

and long life thanks to our extensive material, function

and quality controls. Dangers may arise nevertheless if

the unit is used by persons not familiar with its operation

or if the unit is not used for its intended purpose.

◊The persons charged with the operation of the units

have to check these before starting work as to visible

defects of the operation and safety devices, as well as

to make sure that no protective devices are missing.

In the case of faults the supervisor is to be informed.

◊In the case of faults which endanger the safe opera-

tion of the units, the units are to be stopped!

◊During the operation of the units the applicable local

regulations are to be observed and the relevant

safety measures to be taken.

◊Make sure that the prescribed safety distances from

combustible objects are observed!

◊A free air suction and air discharge must be ensured.

◊The blow off opening of the unit may not be narrowed

or equipped with hoses or conduits.

◊Never place foreign objects into the unit.

◊Do not cover the units during operation.

◊The units may not be operated near bath tubs, show-

ers, swimming pools, etc.

◊The units may not be operated directly beneath a wall

socket.

◊The units may not be exposed to direct water jets.

◊Make sure that no water penetrates inside the units.

◊The units may not be operated in rooms which are

endangered by explosions.

◊Protect all electric cables outside the units from

damage (e.g. caused by animals). Starting

A well trained person is to be charged with the operation

and control of the units.

1. Check the main voltage is in accordance with the

unit voltage.

ELT 3-2 230V/1~

ELT 10-6 and ELT 18-9 400V/3~

Description of Device

The units are operating with electric energy and are suitable

for a fully automatic, all-purpose and simple application.

The units are equipped with capsuled electrical heating

elements, noiseless maintenance-free axial fans, safety

and after-cooling thermostat, thermostat socket and

connecting cable with plug.

The units are in accordance with the basic safety and

health requirements of the relevant EC –regulation.

The units are handled simply and are safe in operation.

Application

◊Drying of new buildings, spot heating of working places

outside or in fire-proof halls and production places.

◊Permanent or temporary heating of rooms.

◊Defrosting of machines vehicles and fire-proof storing

goods with keeping the prescribed distance of safety.

Connecting cable extensions may be laid exclu-

sively by authorised electricians based on the

unit capacity, cable length and taking the local

Working of device

All units can be used for heating or ventilation by setting the

equivalent mode on the operating switch.

The unit ELT 3-2has got exclusively on heating stage and

has a 2 step operating switch.

The units ELT 10-6and ELT 18-9has got three heating

stages.

The units can be operated with a room thermostat

(accessories) which is ready to be plugged in, to ensure

a constant room temperature. When the pre-selected

temperature has been reached, the thermostat stops

the heating operation to restart it when the temperature

has fallen below the set value.

When the units have been switched off by the operating

switch or the room thermostat, the supply air fan contin-

ues running for a certain time to cool down the heat ex-

changer, and then it stops automatically.

ELT 3-2ELT 10-6

ELT 18-9

The electric connection of the units is to be carried

out via a special supply point with fault current

safety switch.

Ventilation

In this position only the supply air fan runs. The thermo-

static regulation and the heating operation is not possible.

1. Put the operating switch into the necessary position.

Maintenance

Regular maintenance and the observation of some ba-

sic principles is important to ensure a long service life

and a trouble-free operation of the unit.

Attention, important hints to the after-cooling phase.

The air supply fan continues running to cool down the

unit and then stops later.

Fan can start several times before final switching off.

Unit Shut Down

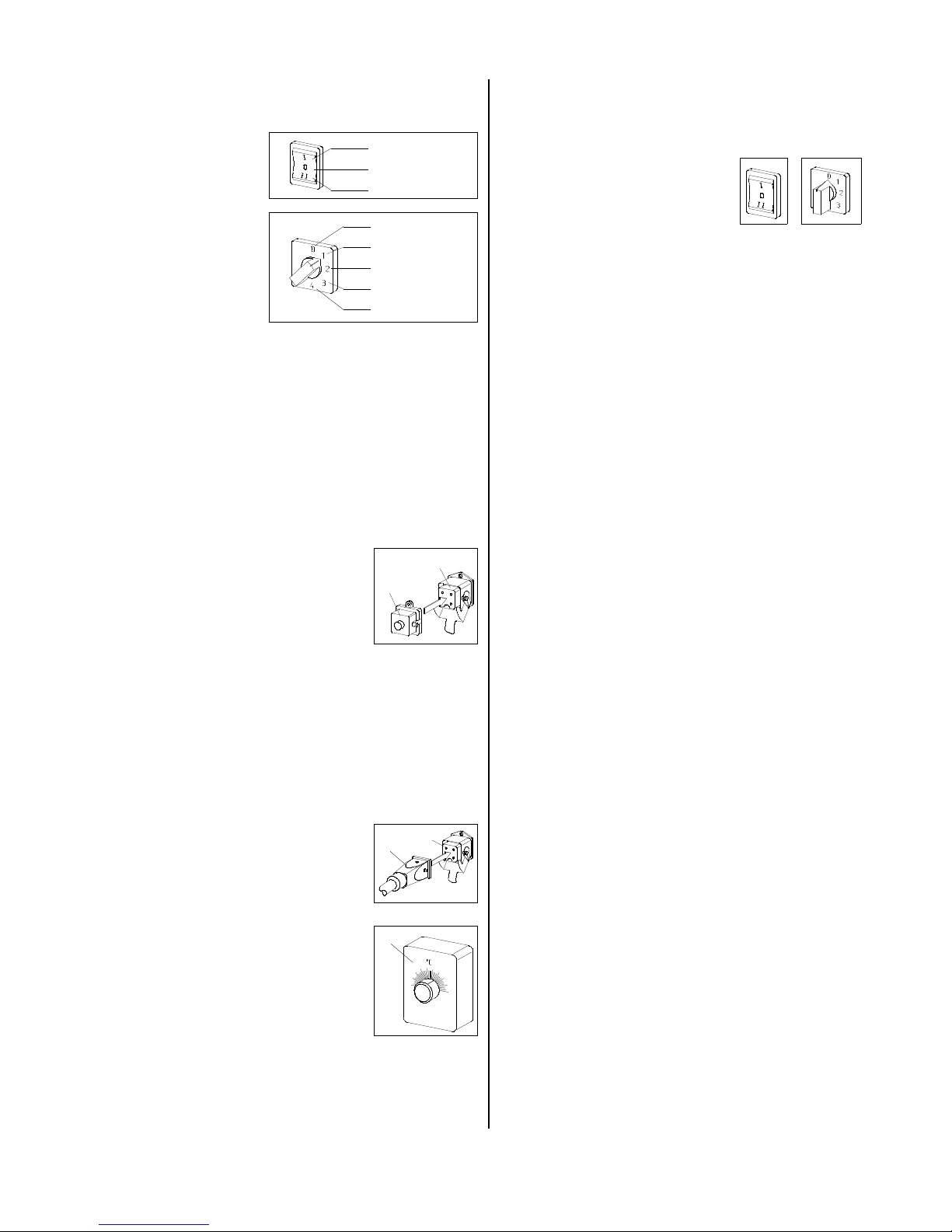

Switch settings

1. Connect the supplied bridge

circuit plug 2to the thermostat

socket 1of the unit.

2. Put the operating switch into the

desired position.

Heating without room thermostat

The unit runs under continuous duty.

1.Remove the bridge circuit plug 2.

2. Connect thermostat plug 3of the

room thermostat (accessories) to

the thermostat socket 1.

3. Put room thermostat 4in a suitable

place.

The thermostat sensor may not be

exposed directly to the hot air cur-

rent and not fixed directly on a cold

surface.

4. Pre-select desired room tempera-

ture on the room thermostat.

5. Put the operating switch into the de-

sired position.

Heating with room thermostat

The unit runs fully automatically and is dependent on set

temperatures.

off

heating

ventilate

Operating switch

ELT 3-2

ventilate

off

1. stage heating

3. stage heating

2. stage heating

Operating switch

ELT 10-6

ELT 18-9

For optimum unit operation, the device should not

be operated at an ambient temperature above 25 °C.

1. Put operating switch into position

“0” (OFF).

ELT 3-2ELT 10-6

ELT 18-9

Please pay attention to the following points:

◊The unit is to be maintained and cleaned in regular

intervals.

◊The unit is to be kept free from dust and other de-

posits and is to be cleaned only with a dry or humid

cloth.

Do not use water jet.

◊Do not use any aggressive cleaning agents or those

which are harmful or environmentally unfriendly.

◊Do not use cleaning agents which contain solvents.

◊Only use suitable cleaning agents to remove ex-

treme dirt.

◊Check safety devices regularly.

Check protective suction and blower grids regularly

and clean, when necessary.

◊Do not damage the sensor and capillary tube of the

thermostat when the protective blower grid is in-

stalled or removed.

◊According to the terms of use the units are to be

checked as to their perfect operation by an expert

when necessary, but at least once a year.

Never interrupt (except in emergency situations)

the connection to the mains before the end of the

whole after-cooling phase.

Our guarantee does not cover damages caused

to the unit by overheating.

Prior to starting any work make sure to pull the

mains plug out of the mains socket!

Please carry out an electrical safety test after hav-

ing finished service on the unit.

Troubleshooting

Unit (fan) does not start:

1. Check main fuse

2. Check connecting cable with plug

3. Check operating switch

4. Check slight drifting of fan (motor)

Unit does not heat

1. Check operating switch

2. Check auxiliary relay / contactor (ELT 10-6 / ELT 18-9).

3. Check function of temperature limiter resp. check

capillary tubing (if damaged)

4. Check if thermostat plug resp. bridge circuit plug is

coupled

5. Check thermostat-operation: thermostat must be set

higher than the room temperature

Series ELT 3-2ELT 10-6ELT 18-9

Nominal heat output kW 3,2 10,5 18

Switchable heat output kW 1 x 3,2 3 x 3,5 3 x 6

Air output m³/h 350 750 1000

Electrical connection V230/1~ 400/3~ 400/3~

Frequency Hz 50 50 50

Rated current A13,9 14,9 27,5

Power consumption max. kW 3,25 10,65 18,2

Fuse protection (required) A (inert) 16 16 32

Sound pressure level LpA 1m1) dB (A) 46 53 57

Dimensions Length mm 400 675 740

Width mm 200 300 335

Height mm 335 455 500

Weight kg 6,8 20,0 27,4

1) noise measuring DIN 45635 -01 -KL 3

Technical Data

Should the unit still not be working despite these checks,

please contact an authorised service centre.

Prior to starting any work make sure to pull the

mains plug out of the mains socket!

Setting and maintenance is to be carried out

only by authorised experts!

Correct usage

The units are to be used only for heating and ventilation

purpose in industrial or commercial application because

of their construction and equipment.

If specification of the manufacturer or legal regulations,

are not followed or if unauthorised changes are made

on the unit, the manufacturer is not liable for resulting

damages.

An operation/use other than that indicated in these

instructions is prohibited!

In the case of non-observation we will not be held

responsible and our guarantee will become void.

Service and Guarantee

Any claims under guarantee regarding materials can be

accepted only when the orderer or his customer has

filled in completely the “guarantee certificate” which is

enclosed with every REMKO-heater and has returned it

to REMKO GmbH & Co. KG in due time after the unit’s

sale and commissioning.

The units are factory tested on faultless function. If any

failure occurs though which cannot be eliminated by the

operating person, please contact your dealer or contact

person.

Exploded View ELT 3-2

No. Description Ref.-No.

1 transport handle 1101142

2 outside casing 1103905

3 recool thermostat 1104065

4 temperature limiter 1101161

5 inside casing 1103907

6 heating element 1103908

7 heating element 1103909

8 front panel 1103910

9 discharge protection grille 1103803

10 base plate 1103911

11 fan blade 1103902

12 clutch plate 1103912

13 fan motor 1103820

14 rear panel 1103913

15 connecting cable with plug 1103901

16 traction relief 1101267

17 bridge circuit plug 1101019

18 thermostat socket, cpl. 1101018

19 operating switch, cpl. 1101188

20 contactor 1108038

21 terminal strip, 6 x 1101366

23 angle support 1101067

24 protection socket, small 1101304

not shown thermostat plug 1101020

Spare Part List ELT 3-2

We reserve the right to make modifications in dimensions and construction in the interests of technical progress.

1213

85 7

23 24

19 20

1817

No. Description Ref.-No.

1 transport handle 1101142

2 outside casing 1107910

3 inside casing 1103951

4 discharge protection grille 1103952

5 front panel 1103953

6 base plate 1107913

7 support bracket 1107914

8 temperature limiter with sensor 1107960

9 protection hose 1107915

10 fan blade 1103950

11 clutch plate B8 ∅1103956

12 fan motor 1101295

13 rear panel 1103954

14 traction relief 1107944

15 bridge circuit plug 1101019

16 thermostat socket, cpl. 1101018

17 operating switch, cpl. 1107993

18 terminal strip, 5 x 1107952

19 contactor 1101025

20 protection socket 1101304

21 heating element 1103955

22 temperature limiter 1101161

23 recool thermostat 1104065

24 angle support 1101021

not shown connecting cable with plug 1101026

thermostat plug 1101020

We reserve the right to make modifications in dimensions and construction in the interests of technical progress.

15 16

67 5

Exploded View ELT 10-6

Spare Part List ELT 10-6

ELT 18-9

9810

12 1114 13

1617

21 22

23 24 3 4 5

No. Description Ref.-No.

1 transport handle 1101142

2 outside casing 1107920

4 cone gasket 1107954

3 inside casing with blow-out cone 1107953

5 discharge protection grille 1101353

6 front panel 1107921

7 base plate 1107950

8 temperature limiter with sensor 1107960

9 support bracket 1107922

10 protection hose 1107915

11 fan blade 1101153

12 clutch plate B8 ∅1103956

13 fan motor 1101295

14 rear panel 1107923

15 traction relief 1107961

16 thermostat socket, cpl. 1101018

17 bridge circuit plug 1101019

18 air suction grille 1107947

19 protection socket 1101304

20 operating switch, cpl. 1107993

21 contactor 1101025

22 terminal strip, 5 x 1107952

23 temperature limiter 1101161

24 recool thermostat 1104065

25 heating element 1107998

not shown connecting cable with plug 1107962

thermostat plug 1101020

Spare Part List ELT 18-9

We reserve the right to make modifications in dimensions and construction in the interests of technical progress.

Exploded View ELT 18-9

Wiring Diagram

400 3/N ~ 50Hz

L1 L2 PEL3

L1 L2 L3 N

12534

NK TB

STB

13513 A2

24614 A1

K2 K1

HW S

13513 A2

24614 A1

400 3/N ~ 50Hz

L1 L2 PEL3

L1 L2 L3 N

12534

NK TB

STB

HW S

13513 A2

24614 A1

ELT 3-2ELT 10-6

ELT 18-9

K = contactor KL =terminal strip S =operating switch

HW =heating element M =fanmotor STB =temperature limiter (with sensor)

K1 =contactor 1 NK =recool thermostat TB =temperature limiter

K2 =contactor 2 RT =thermostat socket

We reserve the right to make modifications in dimensions and construction in the interests of technical progress.

4 L1 PE

6543

2 1

6 5

PENL1

13 14

23 24

2 3

230/1~50Hz

HW2HW1

34 31

14 11

Maintenance Log

Clean unit -surface-

Clean unit -interior-

Clean protection grille

Clean fan blade

Check safety facility

Check protection guards

Check unit for damage

Check fastening screws

Test run

Electric safety-inspections

12345678910 11 12 13 14 15 16 17 18 19 20

Model: ................................ Model No: ......................................

Setting and maintenance work is to be carried out only by authorised specialists!

Remarks:......................................................................................................................................................................

......................................................................................................................................................................................

1. Date:...................... 2. Date:...................... 3. Date:...................... 4. Date:...................... 5. Date:......................

.................................. .................................. .................................. .................................. ..................................

Signature Signature Signature Signature Signature

6. Date:...................... 7. Date:...................... 8. Date:...................... 9. Date:...................... 10. Date:....................

.................................. .................................. .................................. .................................. ..................................

Signature Signature Signature Signature Signature

11. Date:.................... 12. Date:.................... 13. Date:.................... 14. Date:.................... 15. Date:....................

.................................. .................................. .................................. .................................. ..................................

Signature Signature Signature Signature Signature

16. Date:.................... 17. Date:.................... 18. Date:.................... 19. Date:.................... 20. Date:....................

.................................. .................................. .................................. .................................. ..................................

Signature Signature Signature Signature Signature
