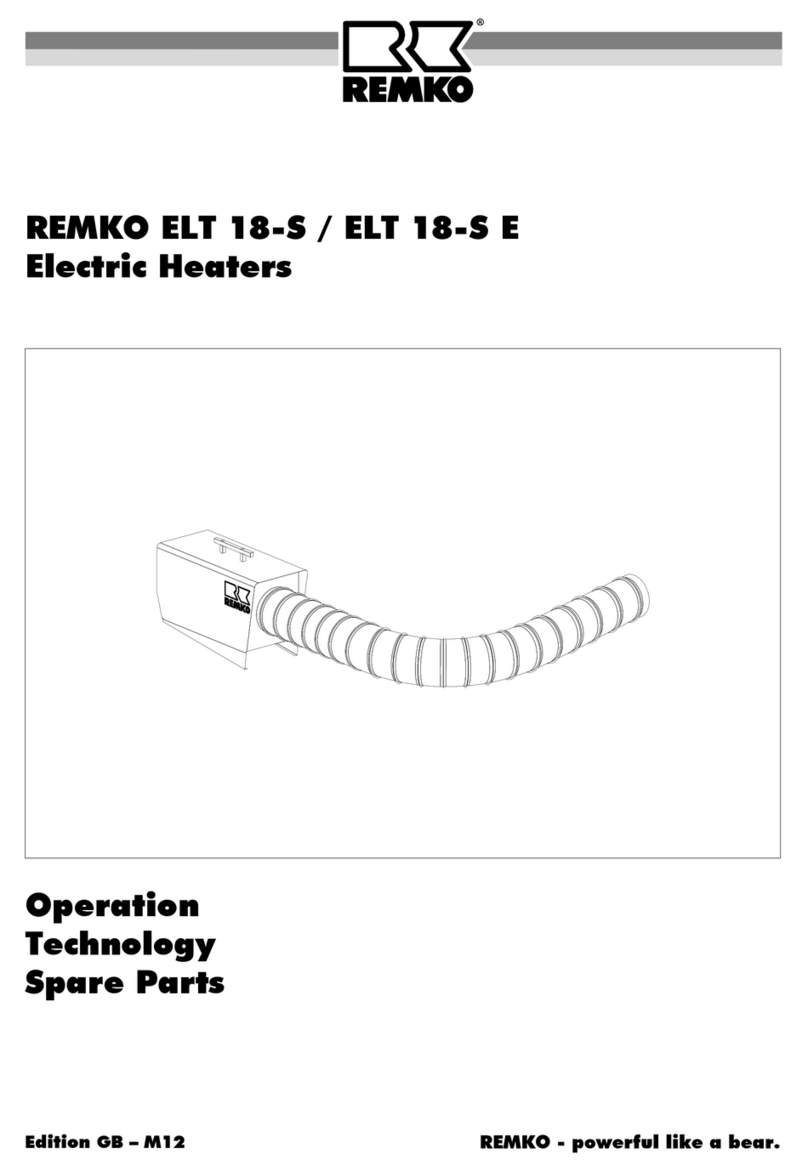

REMKO ELT 18-S Installation instructions

Edition GB – F06
REMKO ELT 18-S
Electric heaters
Operation · Technology · Spare parts

3
Contents
Carefully read this original operating manual prior
to commissioning / using the units!
This operating manual is a translation of the German original.
These original instructions are an integral part of the unit and must
always be kept in the vicinity of the installation location or on the
unit itself.
Subject to modifications; no liability accepted for errors or misprints!
Safety notes 4
Unit description 4
Commissioning 4
Shutdown 5
Care and maintenance 5
Operation with hot air hoses 5
Troubleshooting 6
Intended use 7
Customer service and guarantee 7
Environmental protection and recycling 7
Electrical wiring diagram 8
Maintenance protocol 9
Exploded view of the unit 10
Spare parts list 11
Technical data 11

4
REMKO ELT 18-S
Commissioning
One person, who has been
adequately trained in the handling
of the units, should be tasked with
the operation and monitoring of
the units.
The units are equipped with
a 5-stage operating switch.
1. Move the operating switch
to the “0” position.
2. Connect the unit's
power plug to a
properly installed
mains socket.
Heating without room
thermostat
The units are operating in
permanent operating mode.
1. Connect the strapping plug 2
supplied with the thermostat
socket 1 on the unit.
2. Move the operating switch to
the desired position. Heating
stage 1 to 3
Off
Only ventilation
1st Heating stage;
6 kW
2nd Heating stage;
12 kW
3rd Heating stage;
18 kW
2
1
The units are portable electric
heating units for industrial
applications.
The units are operated exclusively
with electric power and have been
designed specially for use with hot
air hoses.
The units are equipped with
specially enclosed electric heating
resistors, low noise and low-
maintenance axial fans, safety and
aftercooler thermostats, a room
thermostat socket and power cable
with protective contact plug.
The units conform to the
fundamental health and safety
requirements of the appropriate
EU stipulations.
The units are dependable and offer
ease of operation.
The units may be used among
other things for the following:
■ Drying newly completed
buildings
■ Spot heating outdoor
workspaces or fire-proof
manufacturing facilities and
halls
■ Continuous or temporary room
heating
■ De-icing machines, vehicles and
non-combustible warehoused
goods while adhering to the
relevant safety distances
Safety notes Unit description
The units have been subjected
to extensive material, functional
and quality inspections prior to
delivery. However, dangers can
arise from the units if they are used
improperly or not as intended by
untrained personnel!
Please observe the following notes:
■ In the event of defects that
endanger the operational safety
of the unit, operation must be
discontinued immediately
■ Observe the respective local
regulations and the relevant
electrical safety measures when
using the units
■ Maintain safety distances to
combustible materials
■ An unobstructed air inlet and air
outlet must be guaranteed at all
times
■ Never insert foreign objects into
the units
■ The units must not be covered
during operation
■ The units must not be operated
in the vicinity of bathtubs,
showers, swimming pools etc.
■ The units must not be operated
directly below a wall socket
■ The units may not be exposed to
direct jets of water
■ The units must not be installed
or operated in potentially
flammable or explosive
environments
■ All electrical cables for the
units must be protected against
damage, including damage
caused by animals
NOTE
For optimum operation the
units should not be operated
above an ambient temperature
of 25 °C.
NOTE
The electrical connection for
the units must be made at
a separate feed point with
a residual current device in
accordance with VDE 0100,
Section 55.

5
Regular care and observation
of some basic requirements will
ensure trouble-free operation and
a long service life of the units.
■ In accordance with the
operating conditions, the units
must, if necessary, be checked
at least yearly by a specialist
to ensure that they are in a
condition that is safe to use
■ Keep the units free of dust and
other debris
■ Only clean the units with a dry
or moistened cloth
■ Never subject to direct jets of
water.
e.g. pressure washers etc.
■ Never use abrasive or solvent-
based cleaners
■ Use only suitable cleaners, even
for heavy contamination
■ Check the inlet and outlet grille
for contamination on a regular
basis
■ Check the safety equipment
and protective devices on
a regular basis
■ Be careful not to damage the
probe or capillary tube of the
temperature limiter when
removing or mounting the
protective exhaust grid
1. Move the operating
switch to the “0”
position.
2. If the units are inactive for long
periods, disconnect them from
the mains power supply.
The supply air fan runs on to cool
the units and only switches off
after the cooling down phase is
complete.
The fan can switch on and run
several times before the final
shutdown.
Shutdown
Care and maintenance
Fan
Only the supply air fan operates
in this setting. Thermostatic
regulation and heating operation
are not possible in this operating
mode.
Move the operating
switch to position 1.
Heating with room thermostat
(accessory)
The units operate fully
automatically and according
to the room temperature.
1. Pull out the strapping plug 2.
2. Connect the plug 3 of the
room thermostat 4 with the
thermostat socket 1 on the unit.
3. Place the room thermostat 4 at
a suitable location in the room.
The thermostat sensor must not
be located directly in the warm
air flow and must not be placed
directly on a cold floor.
4. Set the desired temperature on
the room thermostat .
5. Move the operating switch to
the desired power position.
3
1
4
1st level 2nd level 3rd level CAUTION
Extensions to the connection
cable must only be conducted
by authorised specialist electri-
cians, taking into consideration
the unit capacity, cable length
and local use.
CAUTION
Before undertaking any work
on the units, the power plug
must be removed from the
mains socket.
CAUTION
Never interrupt the power
supply prior to the completion
of the follow-up cooling
phase. There is no guarantee
entitlement in case of damage
to the units due to overheating.
CAUTION
An electrical safety check must
be carried out in accordance
with VDE 0701 after any work
on the units.

6
REMKO ELT 18-S
REMKO accessories:
Hot air hose ø305,
7.6m with fixing strap
EDP no. 1099502
Hot air hose ø203,
7.6m with fixing strap
EDP no. 1099501
Adapter
with 2 outlets each ø203
EDP no. 1099550
Hose extension ø305
with 2 fixing straps
EDP no. 1009760
Operation with hot air hoses
The units are equipped with a
special high performance axial fan.
This enables operation with various
types of hot air hoses, in order
to specifically and effectively
transport the heated air to the
respective application location.
Only use hot air hoses (accessories)
approved by us, because these
have been specially tailored to the
units.
Note for installing the hot air
hoses
■ The inner overlapping on
the seams must point in the
direction of the air flow.
■ It is necessary to ensure secure
fastening to the unit outlet
nozzle or the hose extension.
■ There should be no sharp kinks
or bends in the hose lines in
order to prevent hot-spots
forming.
■ Always ensure an unobstructed
air outlet at the end of the
hose.
Possible variants:
(max. length 15 m)
1. Hot air hoses ø 305
maximum 2 x 7.6m
with hose extension
2. Hot air hoses ø 203
maximum 2 x 7.6m
with adapter
3. Hot air hoses ø 305
in combination with ø 203
maximum 1 x 7.6m ø 305
plus 2 x 7.6m ø 203
with adapter 2 outlets
Sample assemblies
Hose extension ø305
Adapter
with 2 outlets
Hot air hose ø305
Hot air hose ø205
Hot air hose ø205
Hot air hose ø205
Hot air hose ø205
Hot air hose ø305
CAUTION
With a temperature increase
above 100 °C at the unit
outlet, heating operation is
interrupted.
CAUTION
Due to the special high
performance axial fan, unit
operation without a hose
connection (clear blow-out)
should be avoided.

7
Troubleshooting Customer service and
Guarantee
The units are designed exclusively
for heating and ventilation
purposes in industrial or
commercial use (not for living
space heating in private use) on
the basis of their structural design
and equipment.
The units must only be operated
by appropriately instructed
personnel.
With non-observance of the
manufacturer's specifications, the
respective local legal requirements
or after arbitrary alterations to the
units, the manufacturer shall not
be liable for resulting damages.
Intended use
As a prerequisite for any
guarantee claims to be considered,
it is essential that the ordering
party or their representative
complete and return the
"certificate of guarantee" to
REMKO GmbH & Co. KG at the
time when the units are purchased
and commissioned.
The units were tested at the
factory
several times to verify their correct
function.
However, if malfunctions should
arise that cannot be remedied by
the operator with the assistance of
the troubleshooting section, please
contact your specialist dealer or
contractual partner.
Disposing of packaging
When disposing of packaging
material, please consider our
environment.
Our units are carefully packed
and delivered in sturdy transport
packaging made from cardboard
and polystyrene.
The packaging materials are
environmentally-friendly and can
be recycled.
By recycling packaging materials,
you make a valuable contribution
to the reduction of waste and
conservation of raw materials.
Therefore, only dispose of
packaging material at appropriate
collection points.
The unit (fan) does not start.
1. Check the mains fuses on site.
2. Check the power plug.
3. Check the operating switch.
4. Check that the fan can move
freely.
The unit does not heat up.
1. Check the operating switch.
2. Check that the contactor is
functioning correctly.
3. Check that the temperature
limiter or capillary tube are
functioning correctly and check
for damage.
4. Check whether the thermostat
or strapping plug are plugged
in.
5. In case of unit operation
with a room thermostat, set
the thermostat to a value
that is higher than the room
temperature.
If all of the functional checks
have been carried out without
any findings, please contact an
authorised service station.
NOTE
Adjustment and maintenance
work may only be carried out
by authorised and qualified
technicians.
CAUTION
Safety devices must not be
bypassed or disabled.
CAUTION
Never interrupt the power
supply prior to the completion
of the follow-up cooling phase.
There isnoguaranteeentitlement
in case of damage to the units
due to overheating.
NOTE
Operation other than the types
listed in this operating manual
is prohibited.
With non-observance, any
manufacturer liability or
guarantee claims are voided.
CAUTION
Before undertaking any work
on the unit, the power plug
must be unplugged from the
mains socket. Adjustment and
maintenance work may only be
carried out by authorised and
qualified electricians.
Environmental
protection and
recycling

8
REMKO ELT 18-S
400V/3~N/50Hz
M1 C1 C2
6 7 8
C
M
1~
KLM
KL
K2 K1
HW
1-9
RT
S
06/2014
13
14
13
14
531
642
531
642
A2
A1
A2
A1
TBNKSTB
32
2
1
C
M
H
V1
V3
V5
L1
L2
L3
V2
V4
V6
HW HW HW HW HW HW HW HW HW
1 2 4 53
L1 L2 L3 N PE
Electrical wiring diagram
Legend:
C= Capacitor
HW = Heating resistor
KL = Connection terminal strip
KLM = Motor terminal strip
K1 = Contactor 1
K2 = Contactor 2
M= Fan motor
NK = Aftercooler thermostat
RT = Thermostat socket
S= Operating switch
STB = Temperature limiter
TB = Temperature limiter
Motor connection diagram:
M1 C1 C2
678
C
M
1~
KLM
blue
brown
black
We reserve the right to modify the dimensions and design as part of the ongoing technical development process.

9
Maintenance protocol ✍
Comments:.....................................................................................................................................................
............................................................................................................................................................................
............................................................................................................................................................................
1. Date: ..............
..............................
Signature
2. Date: ..............
..............................
Signature
3. Date: ..............
..............................
Signature
4. Date: ..............
..............................
Signature
5. Date: ..............
..............................
Signature
6. Date: ..............
..............................
Signature
7. Date: ..............
..............................
Signature
8. Date: ..............
..............................
Signature
9. Date: ..............
..............................
Signature
10. Date: ............
..............................
Signature
11. Date: ............
..............................
Signature
12. Date: ............
..............................
Signature
13. Date: ............
..............................
Signature
14. Date: ............
..............................
Signature
15. Date: ............
..............................
Signature
16. Date: ............
..............................
Signature
17. Date: ............
..............................
Signature
18. Date: ............
..............................
Signature
19. Date: ............
..............................
Signature
20. Date: ............
..............................
Signature
Unit to be maintained only by authorised specialists in accordance with the statutory regulations.
Unit type: .................................. Unit number: ...................................
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
Unit cleaned - outside -
Unit cleaned - inside -
Fan blade cleaned
Protection grid cleaned
Safety equipment checked
Safety devices checked
Unit checked for damage
All fastening screws checked
Electrical safety check
Test run

10
REMKO ELT 18-S
Exploded view of the unit
We reserve the right to modify the dimensions and design as part of the ongoing technical development process.
1
2
11
17
13
18
7
15
17
4
25
6
16
9
12
14
10
8
24 20 21 19
22 23
3
5
8
26

11
When ordering spare parts, in addition to the EDP no. please always also quote the unit number and unit type (see name plate)!
xx = not illustrated
Spare parts list
Technical data
1) Noise level measurement DIN 45635 - 01 - KL 3
( ) Noise measurement in hose operation DIN 45635 - 01 - KL 3
We reserve the right to modify the dimensions and design as part of the ongoing technical development process.
Series ELT 18-S (E)
Nominal heat capacity kW 18
Switchable heating capacity kW 3 x 6
Air volume m3/h 1600
Power supply V/Hz 400/3~N / 50
Max. rated current A 27.8
Max. power consumption kW 18.5
Electrical protection (provided by the customer) A (slow) 32
Sound pressure level LpA 1m 1) dB (A) 72 (68)
Dimensions: Length mm 750
Width mm 335
Height mm 500
Weight kg 28.7
No. Designation EDP no.
14 Thermostat socket, cpl. 1101018
15 Strapping plug 1101019
16 Air-inlet grille 1107994
17 Grommet 1101304
18 Operating switch, cpl. 1107993
19 Condenser 1102716
20 Terminal block 5er 1107952
21 Terminal block 3er 1101373
22 Temperature limiter 1101161
23 Aftercooler thermostat 1104065
24 Contactor 1101021
25 Heating resistor 1107998
26 Mains cable with plug 1107962
xx Thermostat plug 1101020
No. Designation EDP no.
1 Transport handle 1101142
2 Exterior cladding ELT 18-S 1107920
2a Exterior cladding ELT 18-S E 1107919
3 Interior cladding with blow-out cone 1107953
4 Seal for blow-out cone 1107954
5 Protective exhaust grid 1101353
6 Front wall with outlet nozzle 1107930
7 Floor panel 1107950
8 Temperature limiter with probe 1107960
9 Support 1107922
10 Protective hose 1107915
11 Fan motor with blade 1107992
12 Back wall 1107931
13 Strain relief 1107961

Consulting
Thanks to intensive training,
our consultants are always
completely up-to-date when it
comes to technical expertise.
This has given us the reputation
of being more than just an
excellent, reliable supplier:
REMKO, a partner who helps to
solve problems.
Sales
REMKO offers not just a well
established sales network both
nationally and internationally, but
also has exceptionally highly-
qualified sales specialists.
REMKO employees in the
field are more than just sales
people: above all, they must
be advisers to our customers
in air conditioning and heating
technology.
Customer service
Our units operate precisely and
reliably. However, in the event of
a malfunction REMKO customer
service is quickly on the scene.
Our comprehensive network of
experienced dealers guarantees
quick and reliable service.
REMKO INTERNATIONAL
... and also right in your neighbourhood!
Take advantage of our experience and advice
REMKO GmbH & Co. KG
Klima- und Wärmetechnik
Im Seelenkamp 12 D-32791 Lage
Postfach 1827 D-32777 Lage
Telephone [phone]
Fax [phone]
E-mail [email protected]
Internet www.remko.de
We reserve the right to make technical changes and provide no warranty as to the accuracy of this data!
