PRECAUTIONS DURING USE
The prior acceptance of the General Conditions of Sale is mandatory before using the system.
The description of the models given in this manual is based on the specifications at the time of writing. This manual covers
all existing functions for the models described. Whether or not they are fitted depends on the equipment model, op-
tions selected and the country where they are sold. This manual may also contain information about functions to be
introduced later in the model year.
For more details, please consult an Authorised Dealer.
Precautions when operating the system
– Operate the controls and read the information on the screen only when road conditions allow.
– Set the volume to a reasonable level so that outside noise can be heard.
Precautions regarding navigation
– Use of the navigation system does not in any way replace the responsibility or vigilance of the driver when driving the vehi-
cle.
– Depending on the geographical area, the map may not have the latest information on new roads. Be alert. In all cases, Road
Traffic Regulations and road signs always take precedence over the directions of the navigation system.
Precautions concerning the equipment
– Do not attempt to dismantle or modify the system, as there is a risk of damage to equipment and fire.
– Contact a representative of the manufacturer in the event of malfunction and for all operations involving disassembly.
– Do not insert foreign objects or a damaged or dirty external storage device (USB key, SD card, etc...) into the reader.
– Always clean your screen with a microfibre cloth.
– Use an external storage device (USB key, SD card, etc...) which is suitable for your system.
– Do not use products containing alcohol and/or spray fluids on the area.
It is essential to follow the precautions below when using the system, both in the interest of safety and to prevent material damage.
You must always comply with the laws of the country in which you are travelling.

0.2

0.3
General information .............................................
Navigation .............................................................
Multimedia ............................................................
Phone ....................................................................
Apps ......................................................................
Vehicle ...................................................................
System ..................................................................
Index ......................................................................
Sections
1
CONTENTS
2
3
4
5
6
7
8

0.4

1.1
General information
General description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2
Introduction to the controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.4
operating principles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.9
Switch on/off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.14
Add, manage widgets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.16
Using voice recognition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.18

1.2
GENERAL DESCRIPTION (1/2)

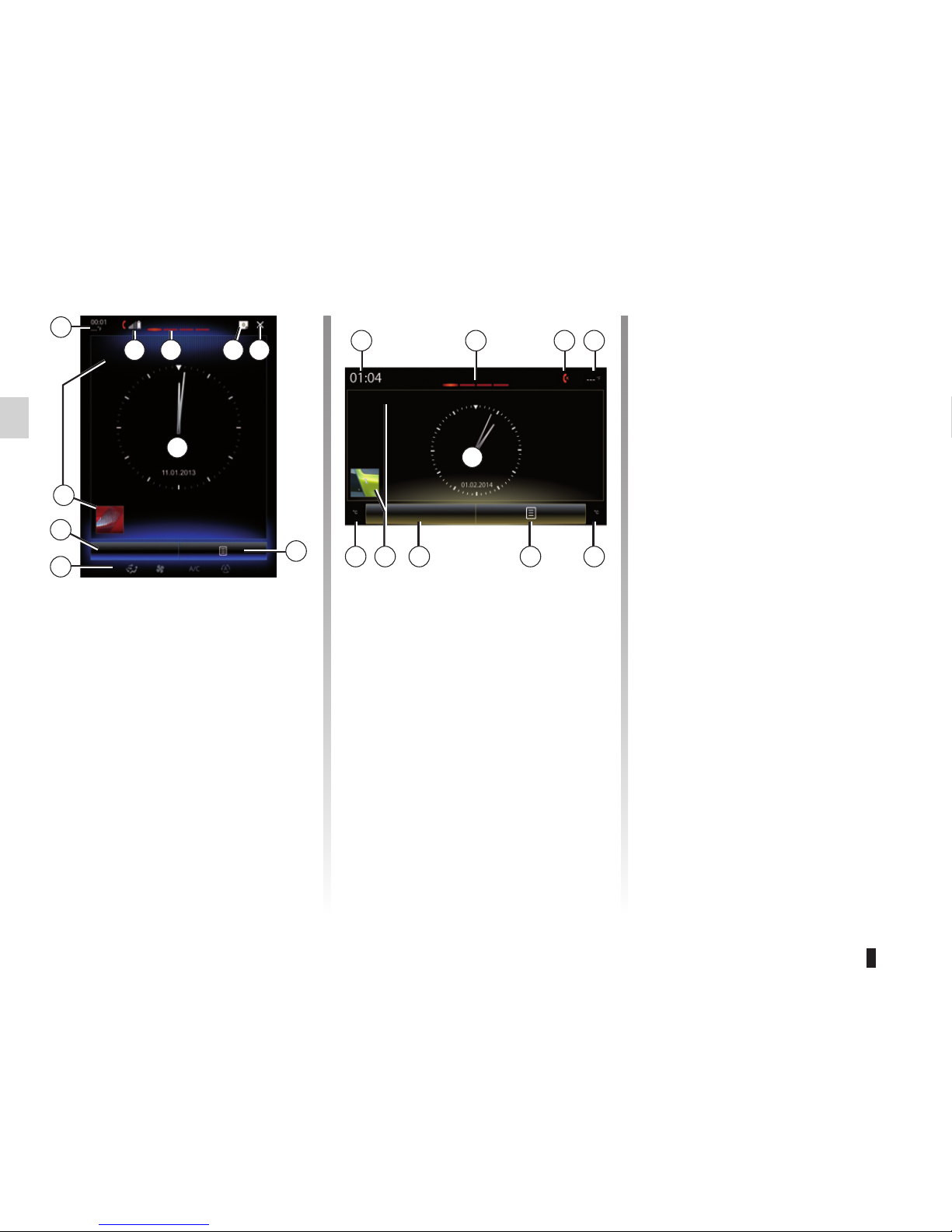

Home screens
AClock and exterior temperature.
BPhone information (network and bat-
tery): press area Bto directly access
the telephone menu.
CPage indicator: quickly swipe the
content area to change the page.
DNotifications (telephone and apps).
Press Dto view the notifications list.
Menu
A
G
H
F
EDC
EStatus of the system’s connection
to the R-Link Store.
FAccess to options (pop-up menu):
– “Change home pages”: refer to
the section on “Add, manage widg-
ets”;
– “Change profile”;
– “Change theme”: you can change
the clock style;
– “Date and time”;
– “Black screen”: the multimedia
system screen goes black but is still
active.
CamilleB
GInformation and access to the air
conditioning settings menu.
Please refer to the driver’s hand-
book for further information.
HAccess to main menu.
ISelected user profile. To configure
the user profile, refer to the section
entitled “System”.
JPage content.
Note: You can change the configura-
tion of the home page as well as the
clock format. For further information on
configuration, please refer to the sec-
tion on “Add, manage widgets”.
Menu
A C B
FHG G
Camille
JJ
A
I
I

1.3
K
Menu
Phone
Multimedia
Apps
Navigation
Vehicle System
Log In
LM N
GENERAL DESCRIPTION (2/2)
Menu screen
Depending on the menu, the Kbar dis-
plays two or three buttons:
L“Back” (always shown): this button
takes you back to the previous
screen.
M“Function”: this button is dedicated
to the screen’s main action (it disap-
pears or is greyed out if not active).
N“Options” (this button is greyed out
if not active): it goes to the pop-up
menu.
Menu
PhoneMultimedia
Apps
Navigation
Vehicle System
Log In
K
LM N
For more information, see the user
manual available in your system by
pressing the pop-up menu button
from the main menu screen, then
“User manual”.

1.4
Function
1On/Off.
2Volume up.
3Volume down.
4Access to home pages.
5Access to the settings menu for driving assistance devices.
6Access to the settings menu for the displays.

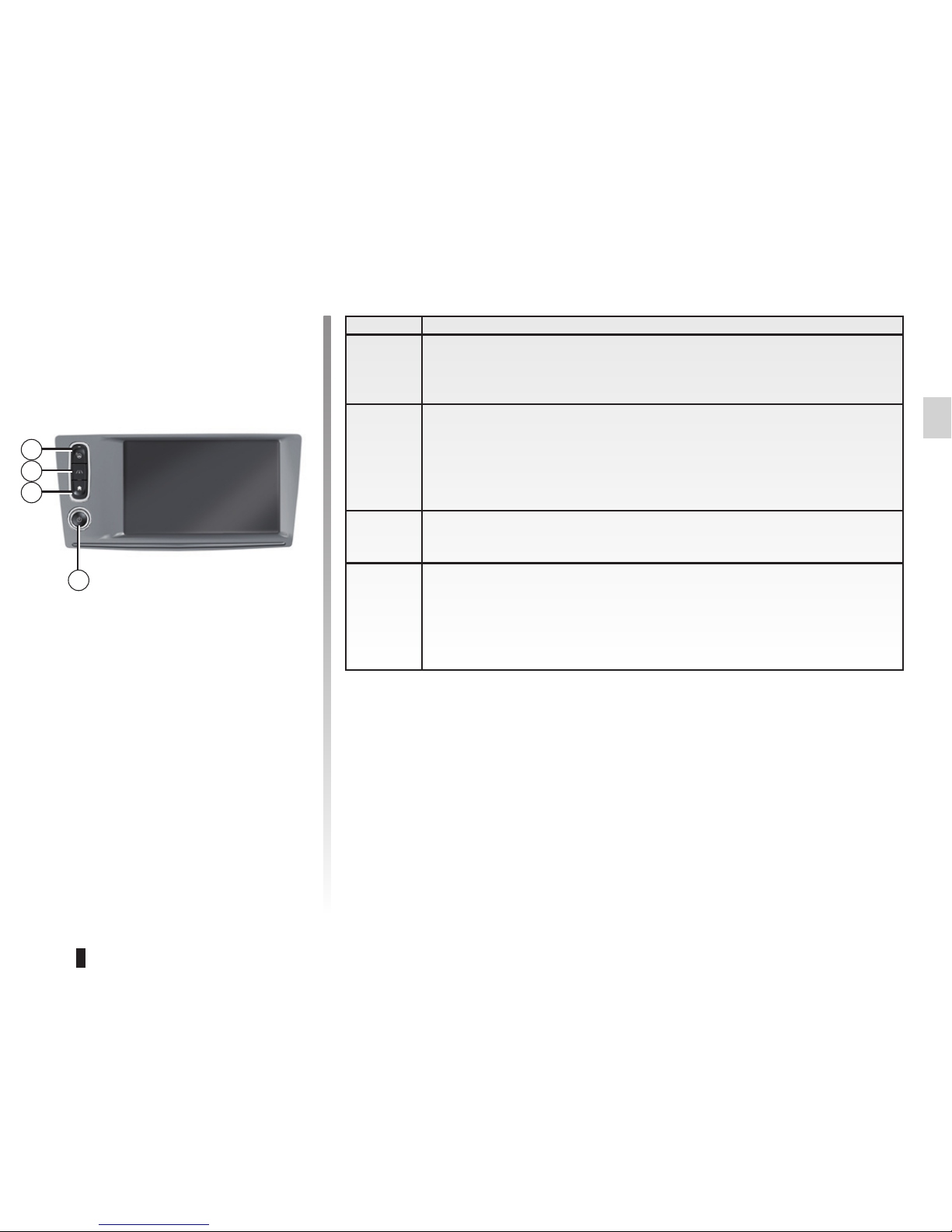

INTRODUCTION TO THE CONTROLS (1/5)
Screen controls 1
1
4
5
6
2
3

1.5
Screen controls 2 Function
7Direct access to the Easy park assist function screen (for further infor-
mation, please refer to the section on «Parking aids»).
8Access to the driving assistance systems settings menu or access to
the user settings.
9Access to home pages.
10
Short press: On/Off;
Press and hold (around 5 seconds): resetting of the system to the fac-
tory settings;
Rotate: adjust the volume of the source currently in use.
INTRODUCTION TO THE CONTROLS (2/5)
7
8
9
10

1.6
INTRODUCTION TO THE CONTROLS (3/5)
Screen controls 3
Screen controls 4
Function
11 Access to home pages.
12 Press: contrast settings.
13
Short press: On/Off;
Press and hold (around 5 seconds): resetting of the system to the fac-
tory settings;
Rotate: adjust the volume of the source currently in use.
14 Access to the driving assistance systems settings menu or access to
the user settings.
15 Access to the settings menu for the displays.
16 On/Off.
17 Volume up.
18 Volume down.
11 12 13 14 15
16
17
18
11
14
15

1.7
INTRODUCTION TO THE CONTROLS (4/5)

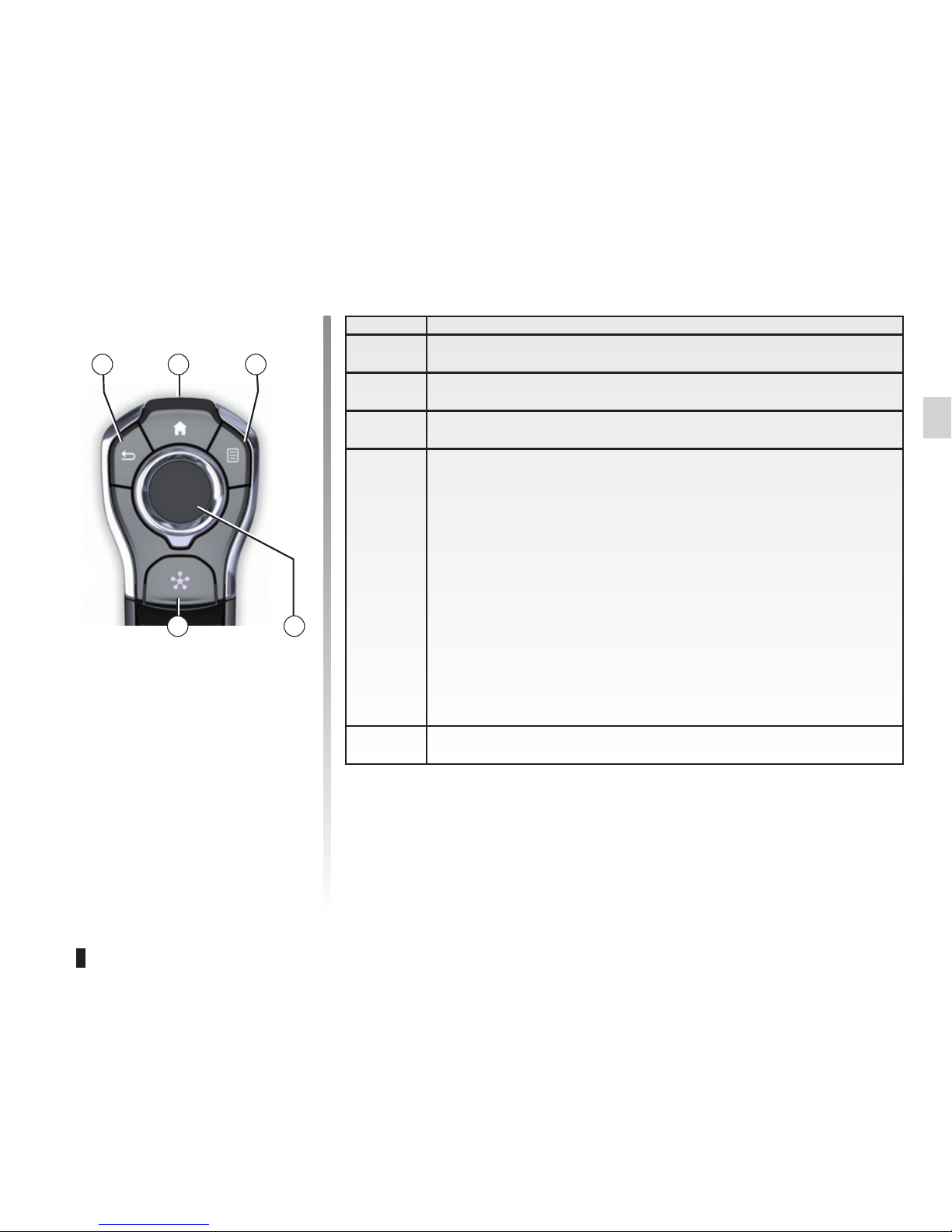

Central control (depending
on the vehicle)
19 21
2223
Function
19 Go back to the previous menu.
20 Access to home pages.
21 Access to the options menu (pop-up menu).
22
Switching:
– navigation in the selected area;
– up/down: move around the various areas of a menu (upper bar, cen-
tral zone, lower bar);
– left/right: move around the various tabs of a menu.
Rotate:
– move around the various elements of a zone;
– move around a list;
– adjust the scale (ZOOM mode).
Press:
– confirm.
23 Go to the Multi-Sense system menu.
20

1.8
Function
24 Select the audio source.
25 Access to telephone functions.
26 Increase the volume of the source currently in use.
27 Radio mute on/off.
Pause/play an audio track.
28 Decrease the volume of the source currently in use.
29 – Change radio mode (preset/list/frequency).
– Confirmation.
30 Browse the list of radio stations or audio tracks/directories.
INTRODUCTION TO THE CONTROLS (5/5)
Steering wheel control
24 25
26
28
29
30
27

1.9
Gesture interaction
– Tap: touch a part of the screen with
your finger and then take the finger
off from the screen.
– Double tap: touch a part of the screen
and then touch the same part again
all within 1 second.
– Long tap: touch a part of the screen
for 1 second or longer.

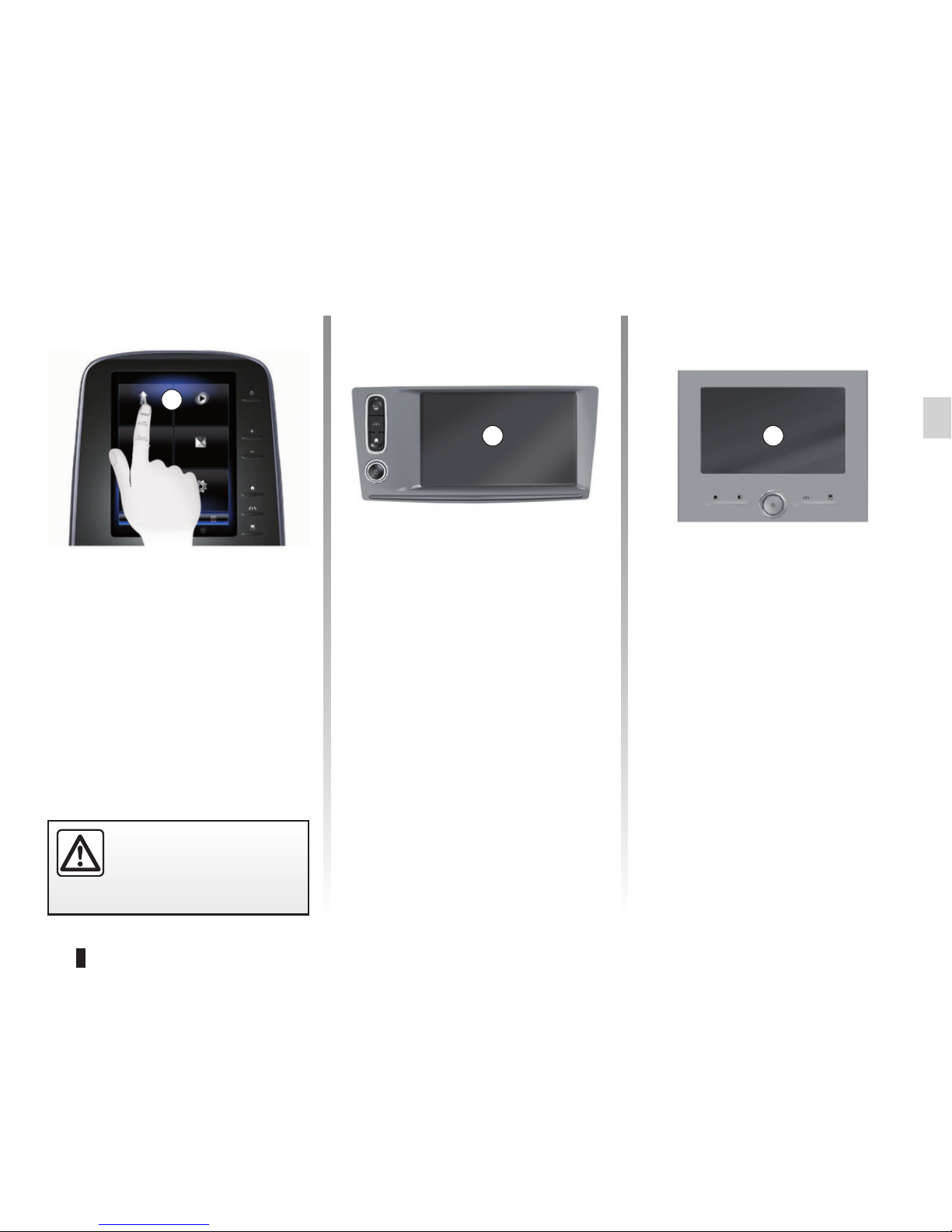

Multifunction capacitive
touchscreen 1
Navigating a menu
The touchscreen 1grants access to
the system functions. Touch the touch-
screen 1to open a menu or slide your
finger from top to bottom to move from
one page to another. A vertical scroll
bar is displayed on the screen.
OPERATING PRINCIPLES (1/5)
1
For safety reasons, carry
out these operations when
the vehicle is stationary.
1
– Panning: touch the screen with a
finger and swipe across the screen.
– Fast sweep (“swipe”): slide your
finger quickly from one point to an-
other.
– Drag and drop: touch a part of the
screen for one second or longer
while moving an object.
– Pinch in/out: bring your two fingers
close or slide them apart on the
screen.
1

1.10
For safety reasons, carry
out these operations when
the vehicle is stationary.
3
2
4
Screen controls
Shortcut to a menu
1: Multifunction capacitive touchscreen.
2: Go to the home pages.
3: Go to the driving aids settings menu
or go to the user settings menu.
4: Go to the display settings menu.
5: Go to the “Easy park assist” menu.
OPERATING PRINCIPLES (2/5)
5
2
3
Videos show demonstrations on
how to use:
– the touchscreen;
– the Multi-Sense;
– driving aids.
With the vehicle at a standstill, press
the relevant pop-up menu button,
then “About”.
A video shows a demonstration on
how to use the multimedia system
and its touchscreen. With the vehi-
cle at a standstill, press “Menu” on
the home screen, then press the
pop-up menu button and “About”.
1
3
2
4

1.11
– press the joystick 8to open the se-
lected element;
– in the tabs menus, move the joy-
stick 8left or right to switch from one
tab to another.
Confirming/cancelling a selection
Press the joystick 8to confirm a change.
Press the button 6to cancel your choice
and return to the previous menu.
Press the button 7to go back to the
home page.
OPERATING PRINCIPLES (3/5)
7
6
8

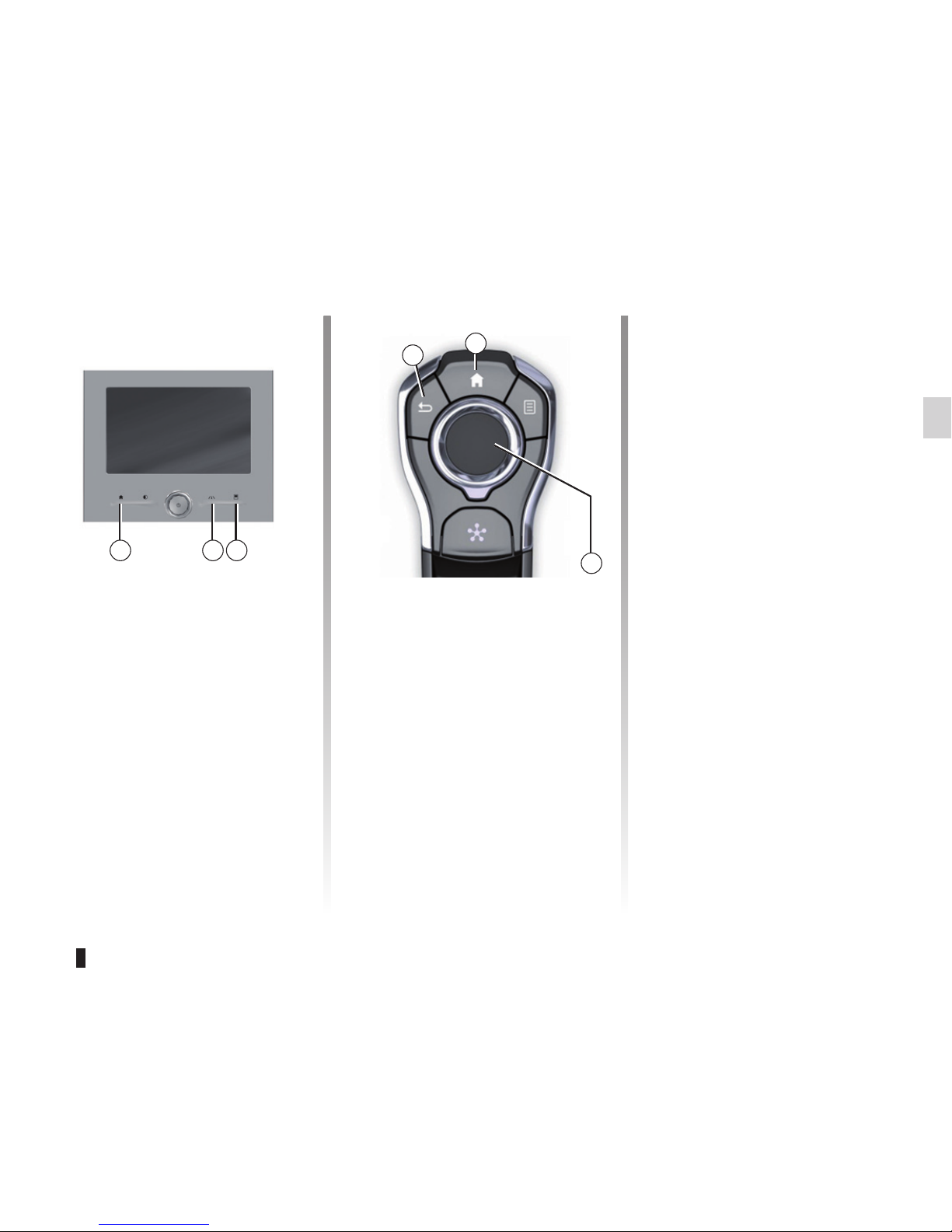

Central control
Navigating a menu
Use the joystick 8to move around the
different screens:
– Move the joystick 8up or down to
move around the different areas of
the screen (upper bar, central zone,
lower bar);
– turn the joystick 8to search the list or
zoom in/out map;
Screen controls
Shortcut to a menu
2: Go to the home pages.
3: Go to the driving aids settings menu
or go to the user settings menu.
4: Go to the display settings menu.
2 3 4

1.12
Scroll bar
The bar 9shows the position of the
current screen in the page. Sweep
the touchscreen up or down to scroll
through the list and move around the
page.
Pop-up menu
Available from most system menus, the
pop-up menu 10 grants access to sub-
menus (delete favourites, change cur-
rent navigation itinerary, settings, etc.).
OPERATING PRINCIPLES (4/5)
Introduction to the home
pages

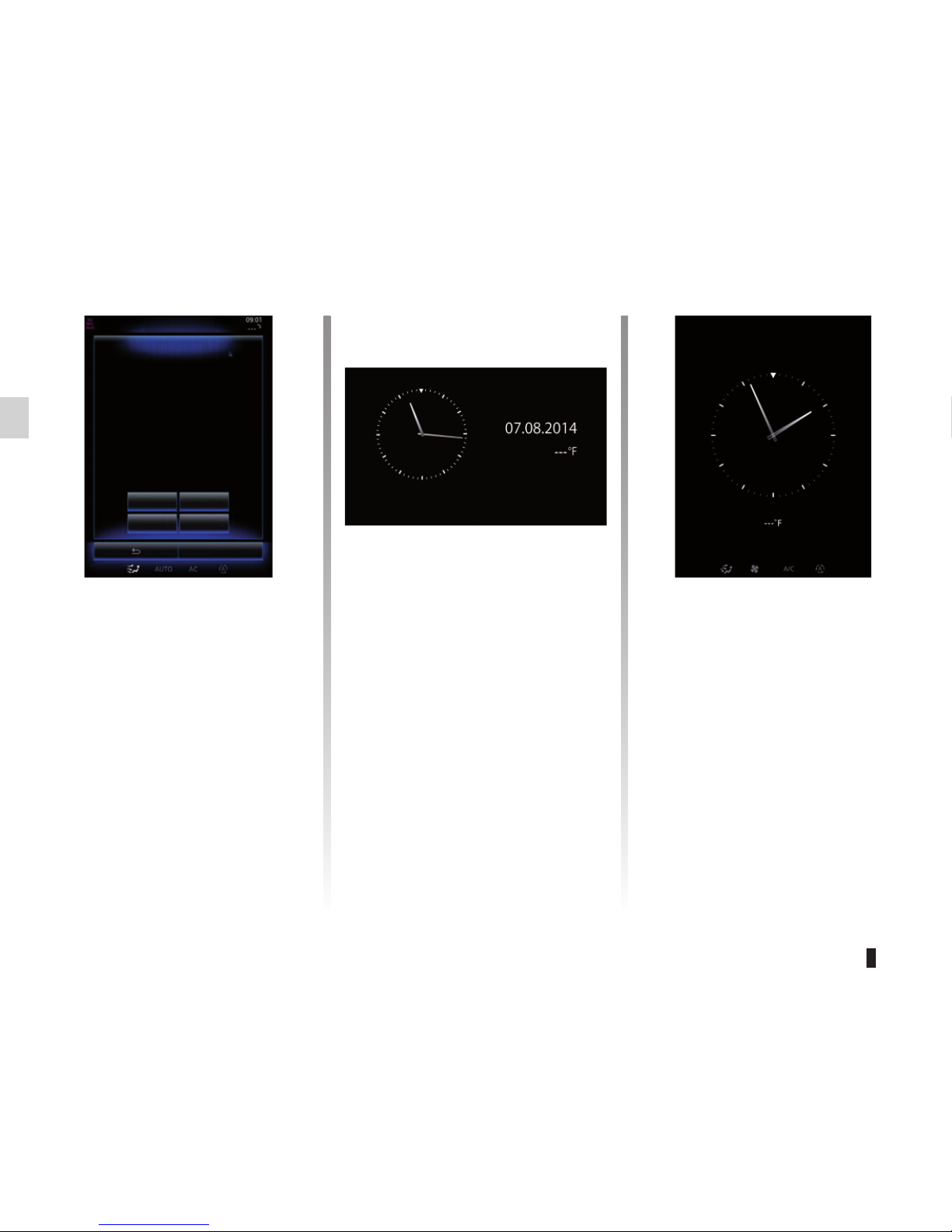

The home pages are the default
screens for your multimedia system.
Your system has four home pages,
three of which can be personalised.
Move from one page to another by slid-
ing your finger (“swiping”) horizontally.
These home pages are made up of a
certain number of widgets to functions
such as the navigation, the radio, etc.
Menu
Phonebook
Search
C
Catherine
Daisy Wiston
10
Caroline Felini
D
Cody Hecquet
9Camille
These widgets grant you direct access
to the main screen for the function or,
in certain cases, enable you to directly
control them from one of the main
screens (change the radio station, for
example).
For a description of the home page,
please refer to the “General descrip-
tion” section.
Note: You can change the configura-
tion of the home page. Please refer to
the “Add, manage widgets” section for
further information.
Camille
Menu

1.13
OPERATING PRINCIPLES (5/5)
12
Menu
Phone
Multimedia
Apps
Navigation
Vehicle System
Log In
Presentation of the
instructions provided with
your multimedia system
You can view the instructions for your
“R-Link 2” multimedia system from
the multimedia screen by pressing the
button 12, then “User manual”.
Menu
Navigation Multimedia Phone
Apps Vehicle System
Log In
12
Introduction to the main
menu
To access the main menu, press “Menu”
from the home page. The system is
made up of six major sections, all of
which can be accessed from the main
menu:
– the “Navigation” function includes all
the satellite guidance functions, road
maps and traffic information;
– the “Multimedia” function enables
the management of radio, audio and
video playback;
– the “Phone” function is used to pair
the system to one or more mobile
phones and to use the hands-free
mode;
– the “Application” includes applica-
tions and the online R-Link Store
store;
– the “Vehicle” function includes the
management of certain equipment
such as the reversing camera,
Driving Eco², etc.;
– the “System” function is used for ad-
justing various settings on the mul-
timedia system, e.g. display, lan-
guage, etc.
Connect your multimedia
system
Activate your connected services by
pressing button 11 to obtain the appli-
cations from the R-Link Store.
11
11

1.14
ON/OFF (1/2)
Switching on
The multimedia system switches on
automatically when the ignition is
switched on. In other cases, press the
on/off button.
At start-up, the system enables you to
set certain functions:
– Press “Set privacy” to allow or reject
applications to share data related to
your journey.
– Press “OK” to allow data sharing.
– Press “Profile” to change the user
profile.
– Press “Language” to change the
system language.
Switching off
With the ignition off, the system is deac-
tivated automatically when the driver’s
door is opened.
With the ignition on, press the On/Off
button on your multimedia system.
Safety and Data sharing
No data sharing
Warning: always drive safely and obey local traffic
regulations.
You have chosen to share information outside of this
vehicle. You can change this setting at any time in the
Apps menu.
Set privacy OK
LanguageProfile
Options
Clock/temperature screen
This screen is displayed when the
driver’s door is opened, before the ig-
nition is switched on.
It can also be displayed when the
system is stopped: with the ignition on,
press the on/off button on your system.
The system then stops the guidance
and turns the sound off.
A screen showing the time is displayed.
