ResMed VS III User manual

Making quality of care easy
Respiratory Care solutions
VS III™
User Manual
English

Making quality of care easy
Respiratory Care solutions

iii
Contents
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.1 Definitions 1
1.2 User/Owner responsibility 1
1.3 Medical information 2
2 Description of the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.1 Components 3
2.2 Your device 4
2.3 Respiratory circuit 7
3 Connection procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.1 Connecting to a power supply 8
3.2 Connecting the respiratory circuit 9
3.3 Connecting the mask 11
3.4 Example of a fully-assembled system 11
4 How to use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

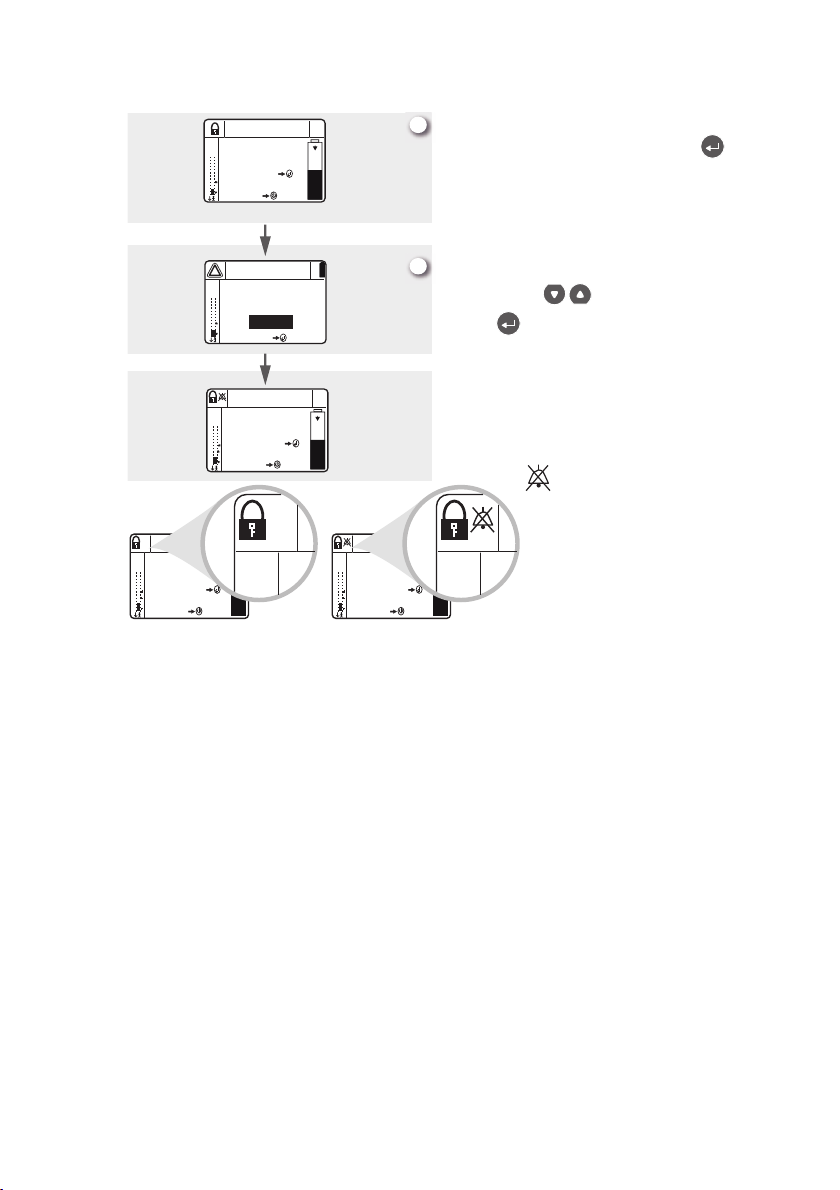

4.1 Starting ventilation 12
4.2 Switching programs (during ventilation) 13
4.3 Viewing data (during ventilation) 14
4.4 Setting the date and time (while ventilation is stopped) 15

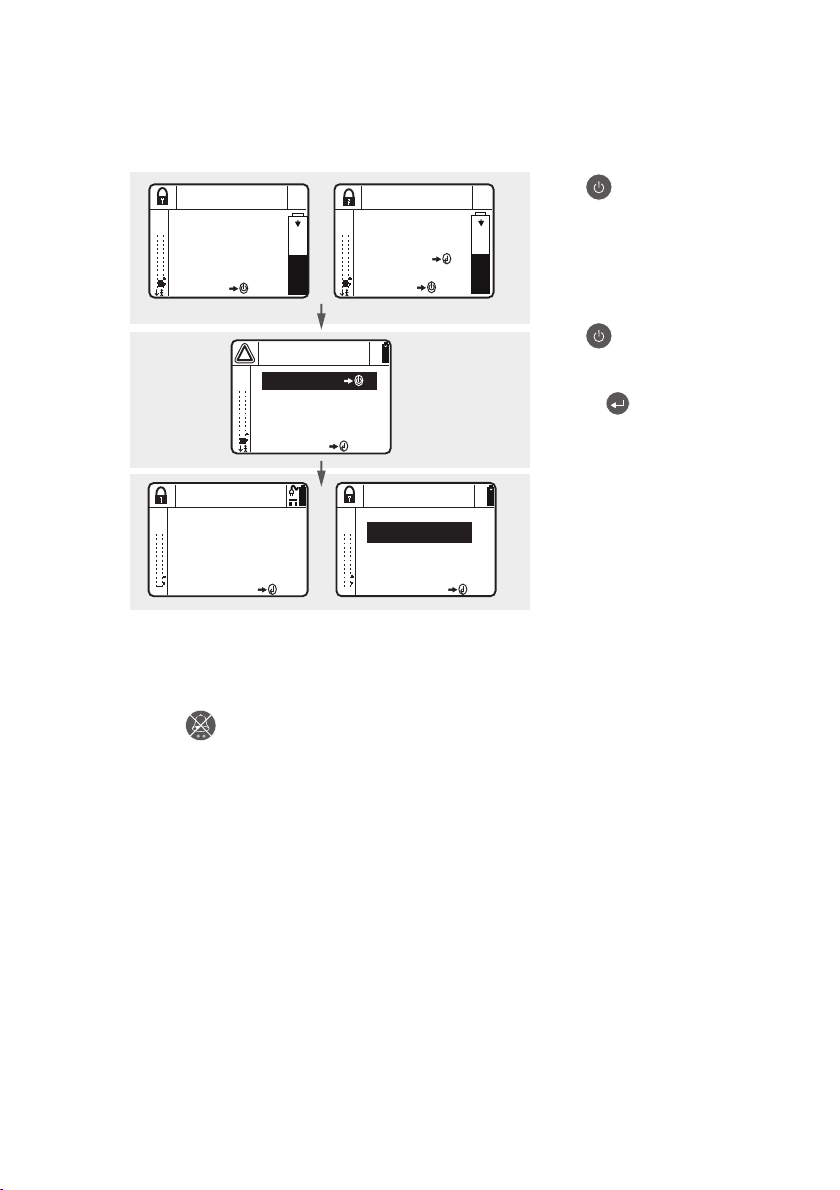

4.5 Turning off the device 16
5 Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . 17
6 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
7 Technical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
7.1 Dimensions 21
7.2 Weight (without external power supply) 21
7.3 Power supply 21
7.4 Transport 22
8 Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
9 Symbols displayed on the screen . . . . . . . . . . . . . . . . . . . . 23
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

iv

1
Introduction
1 Introduction
Please read this manual carefully before using the device.
This manual is provided with the VS III™ device you have received. It
does not in any way replace the clinical manual supplied to your
physician or HME provider.
The VS III is designed to provide ventilation to all patients, whether or not
they are ventilator-dependent. It can deliver invasive ventilation (via a
tracheostomy tube, for example) or non-invasive ventilation (via a mask
or mouthpiece, for example); however, the illustrations and text describe
mask setups only.
1.1 Definitions
This manual contains special terms and icons that appear in the margins
to draw your attention to specific and important information.
CAUTION
Explains special measures for the safe and effective use of the
device.
WARNING
Alerts you to possible injury.
Note: Is an informative or helpful note.
: Signals an action for you to perform.
1.2 User/Owner responsibility
The owner or user of this device shall have sole responsibility and liability
for any injury to persons or damage to property resulting from:
•The device being set up, operated or cleaned in a manner which does
not comply with the instructions provided
•The device being set up, maintained or altered by unauthorised
persons and/or in a manner which does not comply with the
instructions.

2
1.3 Medical information
Purpose of your ventilation device
The VS III is intended to ventilate both adults and children. Patients may
use it at home and/or in a hospital.
The device is used with either a single or double respiratory circuit.
Two ventilation programs can be set up by your physician. You can
switch from one to the other while ventilation is running.
Warnings
•This manual must be read and understood in full before the device is
used.
•The advice contained in this manual does not replace the instructions
given by your prescribing physician (or HME provider), who will
already be familiar with the operation of the device through the
clinical manual provided.
•The device settings must be entered by competent and trained staff
under the supervision of a physician.
•The device must be used with the accessories recommended by the
manufacturer and by your prescribing physician. The use of
inappropriate accessories is likely to affect the operation of the
device.
•If you have any questions about setting up, operating or maintaining
your ventilator or its accessories, contact your HME provider.
•The ventilator must be transported in its travel bag.
•In the case of externally visible faults, cease using the device.
•If the performance of the device becomes erratic, and you find it
difficult to breathe or trigger a breath, contact your HME provider.
•To avoid the risk of electrocution, do not open the device casing.
Repairs and internal servicing should only be performed by an
authorised service agent.
•If there is interference on the electrical network, operate the
ventilator on battery power.
•Your HME provider must ascertain the electromagnetic
characteristics of the environment in which this ventilator will be
used. In particular, your HME provider must ensure that:
•When the ventilator is operated in proximity to other electrical
devices, including cell phones, there is no interference, and the
ventilator performs correctly
•The ventilator is never placed on or under other devices

3
Description of the device
•There is an adequate distance between the ventilator and other
electrical devices in your home.
•In accordance with Directive 2002/96/EC concerning waste electrical
and electronic equipment, this ventilator must be sorted and
disposed of separately from other types of rubbish. It must not be
disposed of with ordinary municipal waste. Contact your HME
provider for more information.
The above are general warnings. Other specific warnings and notes will
be found throughout the text of the manual.
2 Description of the device

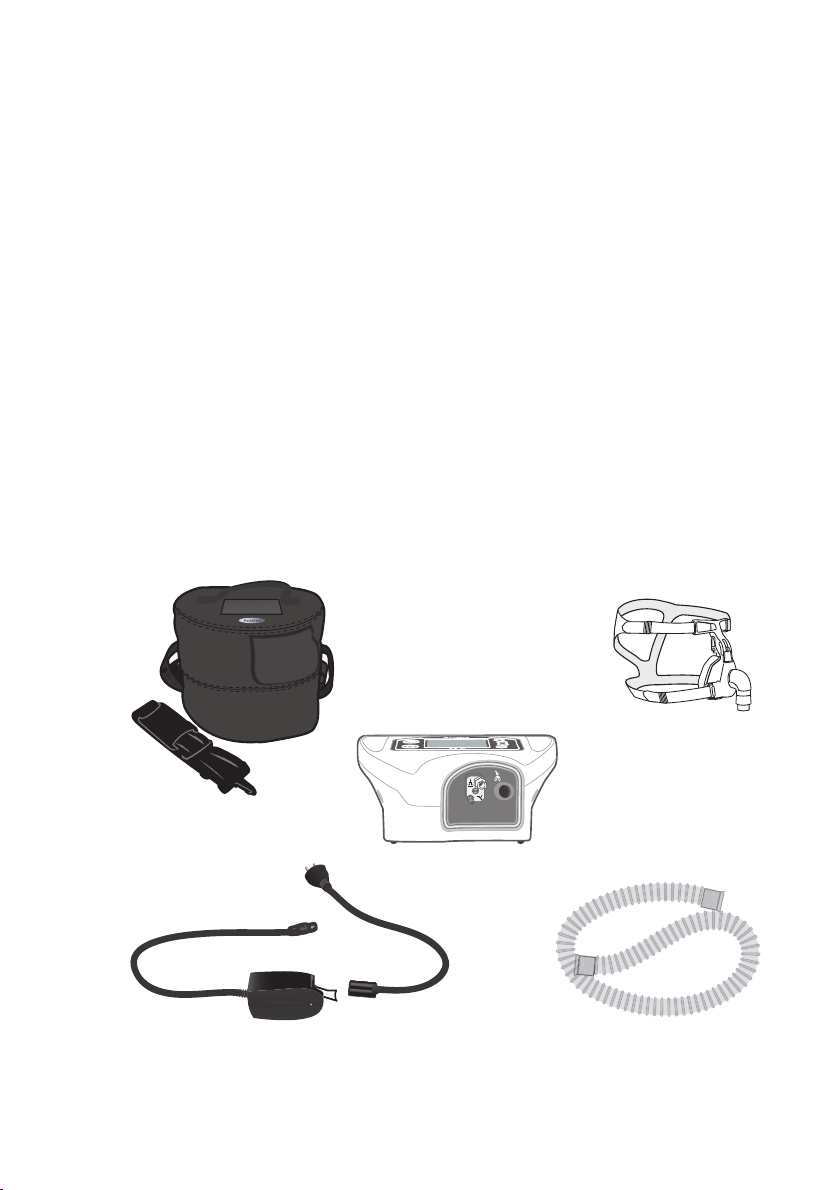

2.1 Components
The picture below shows the components available from your HME
provider:
Figure 1: Components available from your HME provider
P
Your device
Travel bag Interface (such as a mask
or tracheostomy tube)
External power
supply unit
Respiratory circuit

4
2.2 Your device
Front view
Figure 2: Front view of the device (single circuit)
There is a different type of circuit support for double circuits (see next
figure).
Figure 3: Detailed view of circuit support (double circuit)
P
Control panel
(screen and keypad)
Respiratory circuit connection area
Air outlet
Single circuit support with
exhalation and pressure
line connection
Air outlet
Double circuit support (air return)

5
Description of the device
Rear view
On the rear of the device, take particular note of the location of the
following:
•The power supply socket
•The dust filter, which you will have to replace (see “Cleaning and
maintenance” on page 17).
CAUTION
Never block the air vents. This symbol appears on the rear
of the device.

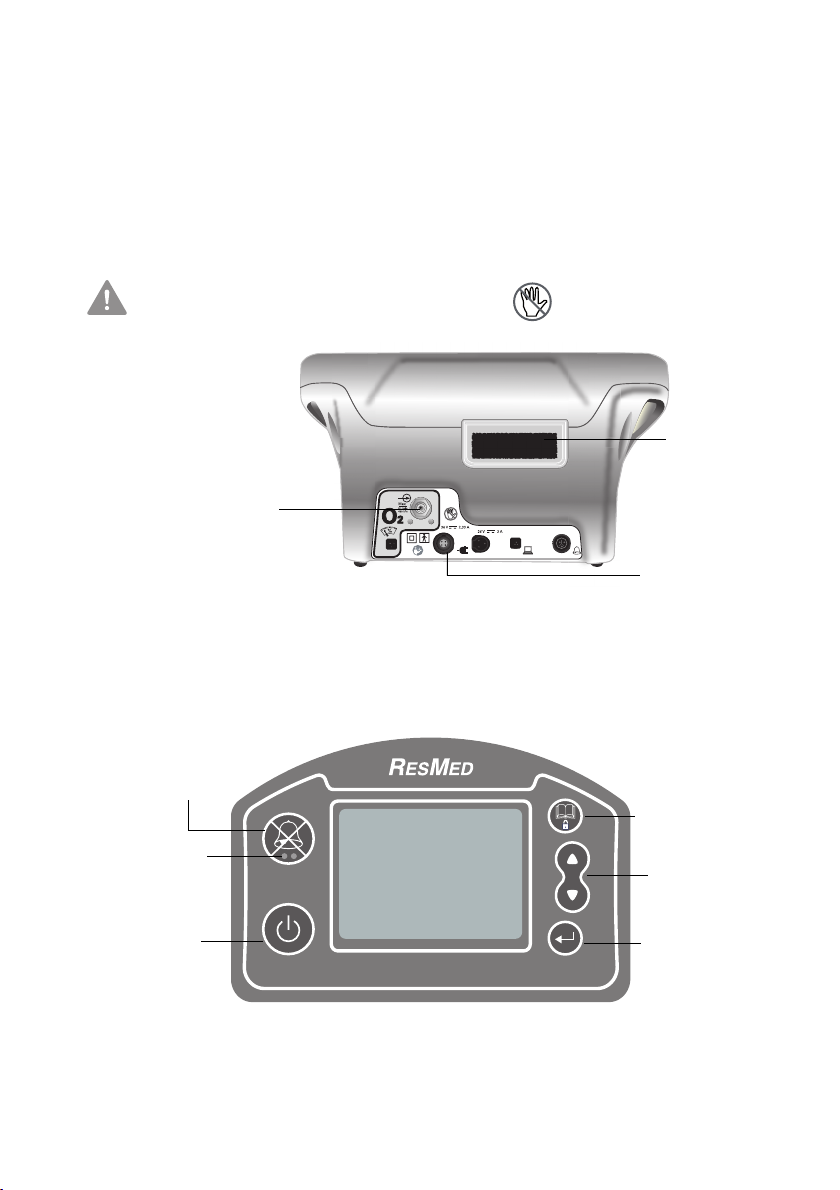

Figure 4: Rear view of the device
Device control panel
The device control panel comprises an LCD screen and a keypad.
Figure 5: Detailed view of the control panel
The keypad consists of buttons and LED indicator lights.
The buttons on the keypad are listed in the table below.
Dust filter
(air inlet)
Power socket
Oxygen supply:
•Max. pressure:
400 kPa
•Max. flow:
8 L/min
VS III
Alarm Silence
button
LEDs
LCD screen
On/Off
button
Enter button
Adjustment
buttons
Menu button

6

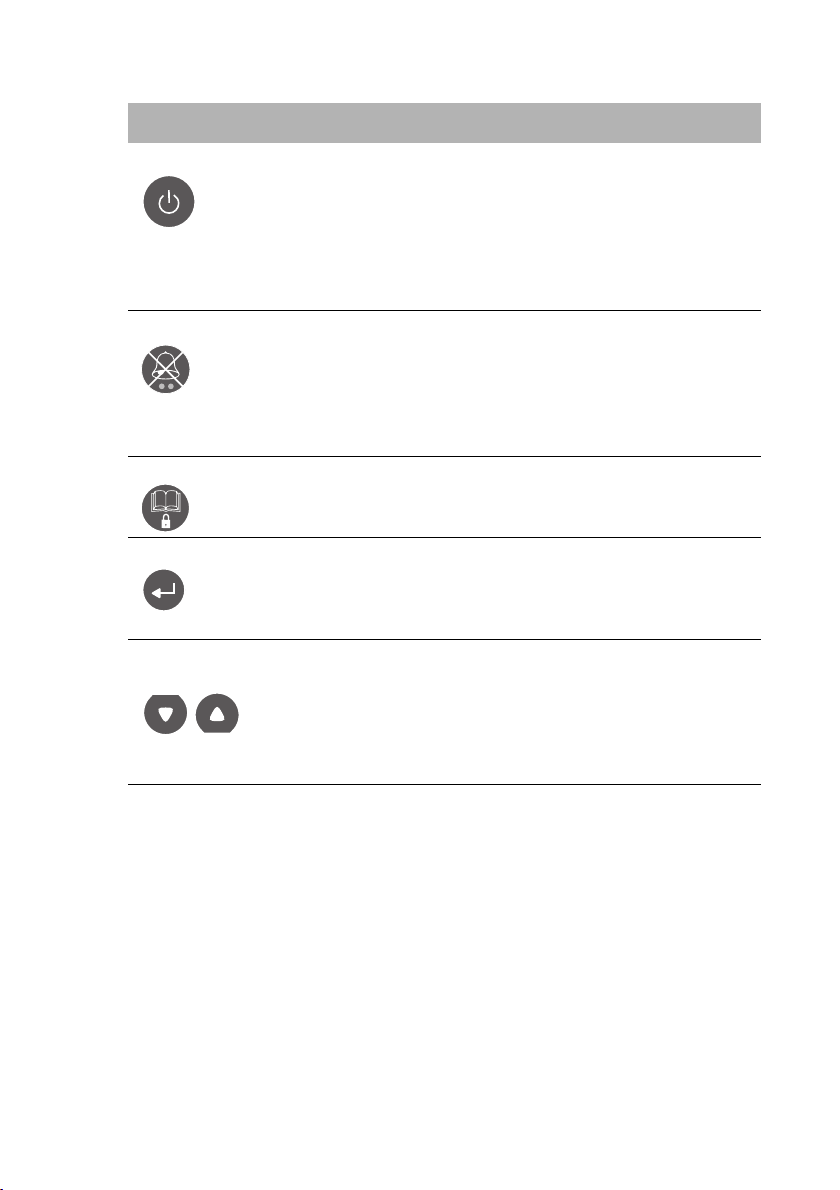

Table 1: Buttons on the device control panel
Button Function
On/Off button Turns the device on.
Stops the device by displaying an options screen.
The user can choose to stop ventilation (if
ventilation is being delivered) or turn off the
device (if ventilation is not being delivered).
Press twice to stop ventilation (press and hold the
second time).
Alarm Silence button Silences the audible alert. After the button is
pressed once, the alarm details stay on the
screen. Press the button a second time to remove
them.
Either the orange or red LED will start flashing,
depending on the type of alarm.
Menu button Opens the menu (viewing data, setting date and
time) or returns to the previous screen.
Enter button Starts ventilation.
Confirms the selected menu or text.
Lets you enter/exit edit mode (for setting the
date).
Adjustment button (Up/
down arrows)
Lets you navigate from one selected menu item
to another: selects the previous item (up arrow) or
the next item (down arrow).
In edit mode (date setting): Increases/decreases
the value of a unit. The device beeps when the
maximum or minimum value is reached.

7
Connection procedures
Screen appearance while device operating
Figure 6: Appearance of the screen while the device is operating
2.3 Respiratory circuit
According to the ventilation mode prescribed by your physician, you will
be using one of the following:
•A single circuit
•A single circuit with expiratory valve and with or without a pressure
line
•A double circuit.
To determine the type of respiratory circuit prescribed for you and for
instructions on connecting it to the device, see “Connecting the
respiratory circuit” on page 9.
3 Connection procedures
The device must be placed on a flat surface. Ensure the area is dust-free,
and cleared of any objects that could block the dust filter.
CAUTION
Be careful not to place the device where it could be knocked over
or where someone is likely to trip over the power cord.
Displays the
instantaneous
pressure
measurement
(in a bar graph)
27/06/2008 16:48
cmH2O
9
60
50
40
30
20
10
0
PS.Vs
Stop
Charge level of
internal battery
Shows that the device is
in the Patient menu
(closed padlock) Time
Message to help you navigate Current ventilation program
Date displayed as
Day/Month/Year

8
3.1 Connecting to a power supply
To connect the ventilator to mains power:
1. Plug the power supply connector into the rear of the ventilator (into
the socket marked , see next figure) .
2. Plug the power cord into the power supply box and fasten to
prevent accidental disconnection .
3. Connect the other end of the power cord to the mains .
Figure 7: Connecting the device to the mains power supply
Note: Skip step 2 if using a power supply unit with a fixed power cord.
Your device is now in standby mode.
WARNING
The power cord is equipped with a push-pull locking connector.
Gently pull the power cord to remove from the ventilator. Do not
twist its outer housing.
Notes:
If your device is fitted with a rechargeable internal battery it can be used
without a mains power supply for a period of 2–4 hours, depending on
your settings.
The battery recharges automatically when the device is connected to
the mains supply.
1
2
3
Fastening clip

9
Connection procedures
3.2 Connecting the respiratory circuit
CAUTION
Only the circuit supplied by your HME provider may be used with
your device. Using a different type of circuit may reduce the
effectiveness of your treatment.
Option 1 – Single circuit
1. Connect one end of the corrugated tube firmly to the air outlet, as
shown in the next figure :
Figure 8: Connecting a single circuit to the device
Once your circuit is connected to the device, you can connect the mask
to the other end of the tube.

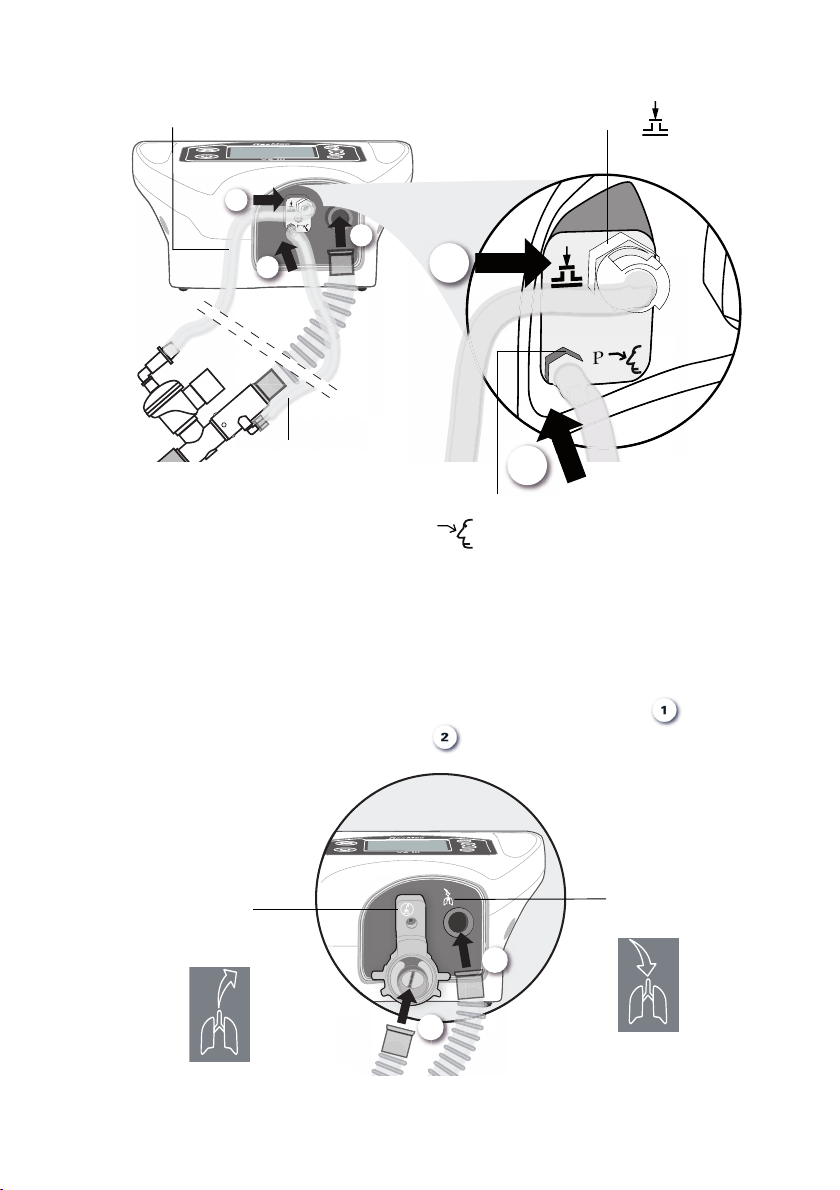

Option 2 – Single circuit with expiratory valve and
pressure line
1. Connect the air outlet firmly to one branch of the corrugated
tube .
2. Connect the expiratory valve tube (the only one fitted with a
white connector) to the valve control , then turn the connector
slightly to the right to make the connection secure.
3. Finally, connect the other tube (with no connector fitted) to the
pressure line .
Note: If your circuit configuration does not include a pressure line,
this third step will not apply.
P
1
Corrugated tube
Symbol identifying air outlet

10
Figure 9: Connecting a single circuit with expiratory valve and pressure line
Once your circuit is connected to the device, you can connect the mask
to the other end of the circuit.
Option 3 – Double circuit
1. Firmly connect one limb of the circuit to the air outlet .
2. Then connect the other limb .
Figure 10: Connecting a double circuit
P
1
2
32
3
Expiratory valve tube Expiratory valve control
Pressure line
(Prox. P.)
P
Pressure line tube
1
2
Symbol
identifying
air outlet
Symbol
identifying
air return

11
Connection procedures
Once your circuit is connected to the device, you can connect the mask
to the other end of the circuit.
Note: These three circuit configurations may not be exactly as shown in
this illustration. It may also include a humidification system, antibacterial
filter or water traps. Contact your HME provider if you have any
questions about connecting your respiratory circuit.
3.3 Connecting the mask
Refer to the instructions given by your physician or HME provider.
CAUTION
It is essential to use only the mask supplied by your physician or
HME provider.
3.4 Example of a fully-assembled system
Figure 11: Example of a fully-assembled system (single circuit with valve
and pressure line)
If your setup does not have any accessories (oxygen accessories,
external battery or remote alarm), you can now switch your device on
(see next paragraph).
P
P

12
4Howtouse
This ventilator and its accessories must be operated in a dust-free
environment and kept away from direct sunlight.
The ventilator is a medical device. To ensure smooth operation, keep the
ventilator out of reach of pets, and ensure children do not have
unsupervised access to it.
You can:
•Turn your device on and off
•Switch from one ventilation program to the other, if your treatment
includes two different programs
•Display data for each ventilation program: the settings and alarm
thresholds entered by your physician, measurements for the
current ventilation program, technical data, and the Event and
Alarm Log.
•Set the date and time.
4.1 Starting ventilation
Figure 12: Turning the device on: self test performed and ventilation start
screen displayed with one program (lower left screen) or two programs
(lower right screen)
1
2
VS III
24/08/2008 15:29
cm H2O
0
60
50
40
30
20
10
0
24/08/2008 15:29
cm H2O
0
60
50
40
30
20
10
0
Start ventilation Start ventilation
PS.Vs Prog1: PS.Vs
Prog2: PS.Vt
VS III
Software version: x.xx
Autotest in progress ...
1500h
Regardless of whether the
device is running on battery or
mains power, press .
The device performs its self
test.
The main screen is displayed.
•Either press to start
ventilation
•Or use to select
“Prog1” or “Prog2”, then
press to start ventilation.
1 program 2 programs

13
How to use
4.2 Switching programs (during ventilation)
Figure 13: Switching programs during ventilation
Note: Once the “Mouthpiece/Speaking” option is activated by your
physician, you are able to speak without triggering the low pressure
alarm during expiration.
Ensure that a caregiver is able to supervise the use of the device while
this option is activated.
1
2
27/09/2008 17:50
cmH2O
9
60
50
40
30
20
10
0
Prog1: PS.Vs
Prog2: PS.Vt
Stop
27/09/2008 17:50
cmH2O
11
60
50
40
30
20
10
0
Prog2: PS.Vt
Prog1: PS.Vs
Stop
Confirmation
cmH2O
9
60
50
40
30
20
10
0
Confirm
No
Yes
Program change?
!
LP
While the device is delivering
ventilation under “Prog1”, press .
On the program change confirmation
screen, use to select “Yes”, then
press to confirm.
The device is now delivering ventilation
under “Prog2”.
27/09/2008 17:50
cmH2O
11
60
50
40
30
20
10
0
Prog2: PS.Vt
Prog1: PS.Vs
Stop
LP
LPLP
cmH2O
11
27/09/2008 17:50
cmH2O
11
60
50
40
30
20
10
0
Prog2: PS.Vt
Prog1: PS.Vs
Stop
cmH2O
11
With “Mouthpiece/Speaking”
option deactivated
Symbol displayed when
the “Mouthpiece/Speaking”
option has been selected for
Prog 2 (in valve ventilation
modes only).
LP
With “Mouthpiece/
Speaking” option activated

14
4.3 Viewing data (during ventilation)
Figure 14: Viewing data
The following figure shows the screens for each option:
Figure 15: Information screens (examples)
For any further information, please contact your HME provider.
1
2
27/08/2008 17:20
cm H2O
9
60
50
40
30
20
10
0
PS.Vs
Stop
cm H2O
12
60
50
40
30
20
10
0
Back
PS.Vs
Menu
View settings/alarms
Technical information
Events/Alarms Log
View Monitoring
With the main screen displayed, press
to access the “Menu” screen.
Use to select the option you wish to
display:
•the ventilation settings and alarm
thresholds;
•the measurements (monitoring);
•the technical information or;
•the Event and Alarm Log, then press
to confirm.
cmH2O
10
60
50
40
30
20
10
0
cmH2O
0
60
50
40
30
20
10
0
27/08/2008 16:49
cm H2O
0
60
50
40
30
20
10
0
PS.Vs
View alarm thresholds
min max
f -- 20
bpm
Vt 0.25 0.80 L
FiO2 21 100 %
cm H2O
0
60
50
40
30
20
10
0
PS.Vs
PEEP 4
fmin 15
Rise t
Vts 0.50 Timax 2.0
Timin 0.3
TgE AUTO
TgI(V) NO
TgI(P) AUTO
PS 10
cmH2O
cmH2O
bpm
Ls
s
2
View settings
: Alarm thresholds : Settings
27/06/2011 16:48
cmH2O
0
60
50
40
30
20
10
0
DATE & TIME ALL EVENTS CODE
Events #1 to 8 of 17 : Alarms only: Scroll /
21
25
21
01
3
2
1
0
High FiO2:%FiO2:
High FiO2:%FiO2:
Low FiO2:%FiO2:
Start of ventilation: prog:
Loss of power supply:
Switched to internal battery:
Switched to external supply:
Switched to mains supply:
28/06/2011 18:38:48
28/06/2011 18:54:40
27/06/2011 09:52:43
25/06/2011 08:13:03
24/06/2011 11:06:22
23/06/2011 09:52:23
22/06/2011 10:32:03
21/06/2011 19:55:54
27/06/2011 16:49
cm H2O
0
60
50
40
30
20
10
0
DATE & TIME ALARM EVENTS CODE
Events #1 to 8 of 11 : All events: Scroll /
21
25
21
--
--
--
--
--
High FiO2:%FiO2:
High FiO2:%FiO2:
Low FiO2:%FiO2:
Mains supply
Mains supply
Patient disconnection
Patient disconnection
External battery
28/06/2011 18:38:48
28/06/2011 18:54:40
27/06/2011 09:52:43
20/06/2011 08:13:03
20/06/2011 08:13:20
13/06/2011 09:52:23
13/06/2011 09:52:30
01/06/2011 19:55:54
PS.Vs
View Monitoring
f = 15 bpm FiO2 = 21 %
I:E = 1:2.3 Leaks = 0 %
Ti = 1.00 s
Vti = 0.60 L
MV
I = 9.0 L/min
Patient hours= 1650h
Machine hours= 2000h
Turbine wear= 0%
Circuit type= Valve
Software version= x.xx
Ventilation settings and alarm thresholds:
Measurements: Technical information:
Event and Alarm Log:

15
How to use
4.4 Setting the date and time (while ventilation is
stopped)
Figure 16: Setting the date and time
Repeat steps 3 and 4 for the “Month”, “Year”, “Hour” and “Minute”
fields.
Press twice to return to the main screen.
3
4
1
2
cmH2O
0
60
50
40
30
20
10
0
24/08/2008 16:53
cmH2O
0
60
50
40
30
20
10
0
25/08/2008 16:54
cmH2O
0
60
50
40
30
20
10
0
24/08/2008 16:53
24/08/2008 16:48
cmH2O
0
60
50
40
30
20
10
0
Start ventilation
PS.Vs
Date and Time
Day: 24
Month: 8
Year: 2008
Hour: 10
Minute: 13
Date and Time Setting
Day: 25
Month: 8
Year: 2008
Hour: 10
Minute: 13
Date and Time Setting
Day: 25
Month: 8
Year: 2008
Hour: 10
Minute: 13
Back
PS.Vs
Menu
View settings/alarms
Technical information
Events/Alarms Log
Date and Time Setting
cmH2O
0
60
50
40
30
20
10
0
The “Day”, “Month”, “Year”, “Hour” and
“Minute” fields appear. The “Day” field is
selected by default.
Press to edit the “Day” field.
The highlighted area reduces in size to cover
only the editable field and the words “Set Date
and Time” are displayed in the message area.
Use to change the day of the month.
Press to confirm the change.
The highlighted area returns to its original size
and moves to the next field.
Press to access the “Menu” screen.
Use to select “Date and Time Setting”,
then press .

16
4.5 Turning off the device
Stopping ventilation
Figure 17: Stopping ventilation
Note: When stopping ventilation, the device will beep continuously.
Press to confirm.
27/09/2008 16:48
cm H2O
9
60
50
40
30
20
10
0
27/09/2008 17:50
cm H2O
9
60
50
40
30
20
10
0
27/09/2008 16:48
cm H2O
0
60
50
40
30
20
10
0
27/09/2008 17:50
cm H2O
0
60
50
40
30
20
10
0
cm H2O
6
60
50
40
30
20
10
0
!
Stop ventilation 1s
Turn off ventilator
Cancel
Disconnect O2 before stop!
Confirm
PS.Vs
Stop
Stop
Start ventilation Start ventilation
PS.Vs
Prog1: PS.Vs
Prog2: PS.Vt
Prog1: PS.Vs
Prog2: PS.Vt
Confirmation
1 program 2 programs
Press .
Press again and hold
for 1 second, or confirm
“Stop ventilation” by
pressing .
The message “Wait a few
moments” is displayed.
The main screen displays:
•Either the current
program (if only one
program is configured)
•Or the currently selected
program (if two programs
are configured).
