ReSound Ziga ZG30 User manual











2
3

Your new digital ReSound ZigaTM hearing instruments will enable you
to hear sounds that you may not have heard in years because of your
hearing loss. Practice and a positive attitude are important in learning
to use hearing instruments. While some people adjust quickly to
wearing hearing instruments in their ears and hearing the new sounds,
other people may need more time.
The intent of this user guide is to provide information on the many
aspects of using hearing instruments. Your hearing instruments have
been adjusted to your hearing loss by your hearing care professional.
Familiarising yourself with the functions of your new hearing
instruments will help you get optimal benet.
ReSound ZigaTM is a trademark of ReSound.
 Page
Illustration of the hearing instrument.............................4
Adjusting to a world of new sounds ...............................6
New sounds ........................................................6
How to adjust ......................................................7
How to use the hearing instrument ...............................8
On/off function ....................................................8
Inserting the hearing instrument.................................. 9
Volume control (optional for all) ................................. 10
Removing the hearing Instrument............................... 11
Programme selector.............................................. 12
Telephone use .................................................... 14
Low battery warning .............................................16
Changing the battery .............................................16
When not in use ...................................................16
Maintenance ......................................................17
Daily maintenance ................................................17
Cleaning and replacing the sound lters .........................18
Warnings and precautions .......................................19
Repairs ............................................................22
Technical data ....................................................23
Troubleshooting ..................................................24
Key word index ....................................................26

4
5
ReSound ZigaTM ITC and ITE
1. Programme Selector
2. Battery Compartment & On/Off Switch
3. Sound Outlet
4. 1st Microphone Sound Inlet
5. 2nd Microphone Sound Inlet
6. Volume Control
7. Air Vent
1
23
4
5
6
7
8. Model
9. Manufacturer
10. Serial number
GN ReSound
ReSound Ziga
XXXXXXX
10
89

6
7


A hearing loss is typically acquired gradually over many years. You may
have become accustomed to an everyday life with fewer sounds, which
also means hearing less noise than people with normal hearing.
With your new hearing instruments you will experience many sounds
that you may not have heard for years. It will take time to get used to all
these sounds again. Some examples of these sounds are:
• The clock ticking
• Turning pages of the newspaper
• Children’s voices
• Whispers and soft speech
• Car noise
• Birdsong
• The sound of your own footsteps

If you are inexperienced with hearing instruments it is advisable to:
1. Use your hearing instruments every day
2. Wear your hearing instruments for just a couple of hours a day
during the rst week
3. Gradually increase the time you wear your hearing instruments.
It can take several months for your brain to get used to all the “new”
sounds around you. Start using your hearing instruments in mainly
quiet surroundings, and start with a comfortable volume (the hearing
care professional will ensure this). Listen to and get familiar with all
sounds in your home, such as a ticking clock, water running in the sink,
or silverware used on a plate. In quiet surroundings, converse with a
person you know well. Listen to a TV or radio at home. After you have
used the hearing instruments for a while you will be ready for more
demanding listening situations, like conversation with a group of two
or three people.

8
9


Your ReSound ZigaTM ITC and ITE is equipped with an on/off switch inte-
grated into the battery compartment.
1. When the battery compartment is fully closed, the instrument is
turned on
2. To turn the instrument off, open the battery compartment. Many
individuals use their ngernail to pull it open.
3. Whenever you are not using the instrument, remember to turn it off
to stop battery consumption

SmartStart allows you to insert the instrument in your ear without
the hearing instrument squealing. It delays the switch-on time by 10
seconds after closing the battery compartment. A beep each second is
presented during this time.


1. Hold the instrument with your thumb and foren-
ger (as shown), either above and below or on the
sides (as illustrated)
2. Place the sound outlet portion into your ear canal
3. Insert the instrument into your ear canal

It may be helpful to pull your ear up and outward
with your opposite hand while inserting.
By experimenting, you may nd a method that is easier for you. When
properly inserted, the instrument should t comfortably and tightly
in your ear. It is important that the custom shell ts correctly into
your ear. If the hearing instrument irritates your ear in any way please
contact your hearing care professional to have the custom shell
modied. You should never attempt to modify the shape of the
custom shell yourself.

Opening and closing your mouth can ease insertion.

10
11

To remove the hearing instrument, simply pull the removal cord with
your thumb and forenger and pull outward. Consult your hearing care
professional if you have difculty removing the hearing instrument.


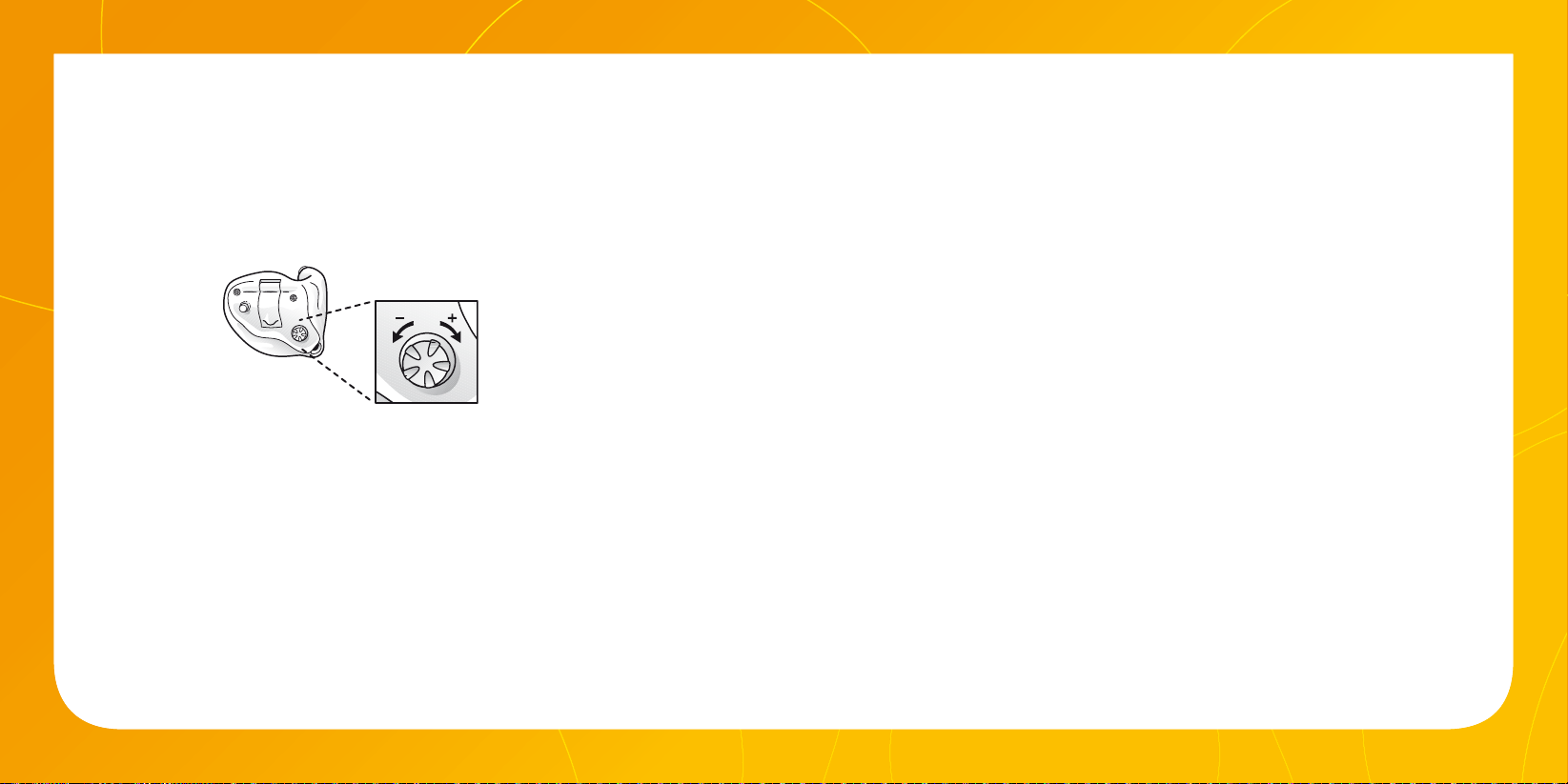

Your ReSound Ziga hearing instruments have a volume control.
When using the instrument, you can increase the volume by turning
the volume control forward (towards your face when you are wearing the
instrument), and reduce volume by turning it backward.
For each volume step, you will hear a “beep” signal indicating the change.
The loudness of the “beeps” will increase as you turn the volume up and
decrease as you turn it down. If you reach the upper or lower limit of the
volume control range, there will be a different type of “beep” signal with a
lower pitch.

12
13

You can have up to four different programmes on your hearing instru-
ment. The selection of programmes can be changed by your hearing
care professional.
1. You can switch between programmes by pushing the programme
selector once
2. You will then hear one or more “beeps”. The number of beeps indi-
cates which programme you have selected
3. You can always return to programme 1 by turning your instrument
off and then on again, or by placing it in stand-by mode and then
returning to its operating mode

(to be completed together your hearing care professional):
Programme Description of when to use
1
2
3
4

In stand-by mode, the hearing instrument will not process sound
or deliver an acoustic signal to the ear. When in this mode, a small
amount of power will be used. To put the instrument in stand-by mode,
hold down the programme selector for 5 seconds. You will hear a series
of beeps and the device will be in stand-by mode. To return to standard
mode, press the programme selector once. This can only be done after
at least 5 seconds in the stand-by mode.

14
15

You can use the telephone with your hearing instruments. Using the
telephone while using your hearing instruments may require some
practice.
By selecting the optional telecoil programme you can improve un-
derstanding of speech when using a hearing instrument compatible
telephone. Rather than picking up the sound from the telephone, this
programme only picks up the telephone’s magnetic signal and converts
it to sound. Your hearing care professional can activate the telecoil if
your device has the optional telecoil available.

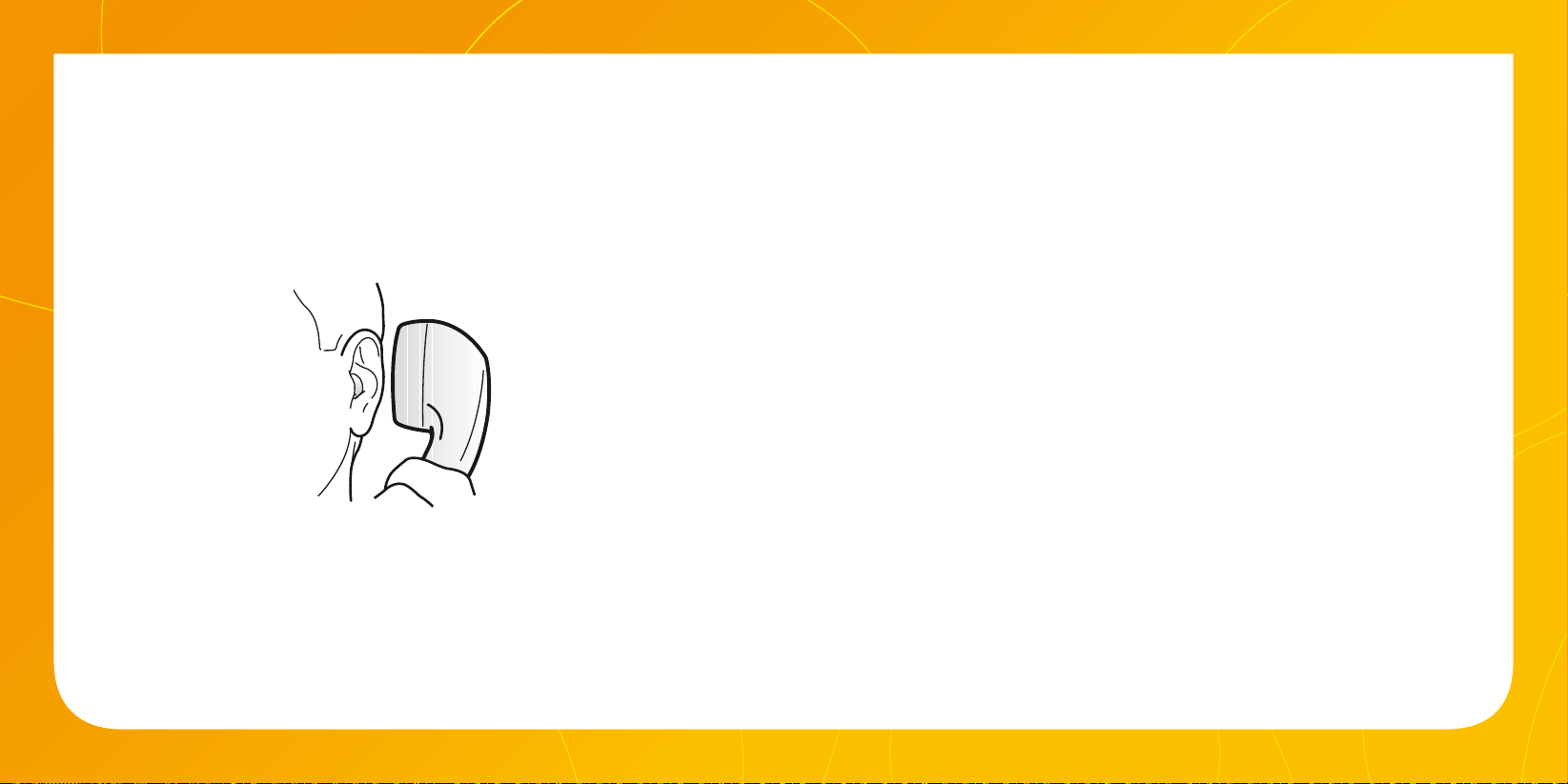

When using the telecoil programme, the receiver of the telephone
should be held as shown in the drawing. You may need to move the
handset around slightly to nd the best reception.
If you do not wish to have a telecoil programme or if your instrument
does not have a telecoil, you may still use the phone while using your
hearing instrument. Hold the phone close to the front microphone of
the hearing instrument, but not directly on it. If it whistles, it may take
a few seconds for the instrument to adapt. If the whistling continues,
move the telephone 2-3 cm away from your ear. Some hearing instru-
ments also have an acoustic telephone program. This program might
decrease problems with acoustic feedback when using the telephone

If you use a cellular phone you may experience a buzzing or clicking
noise. This is caused by the strong signal of the cellular phone.
Consult with your hearing care professional for options to improve
the sound quality

16
17


It is important to keep your hearing instrument clean and dry every
day. To clean the instrument, use a soft cloth. If the instrument has
been exposed to high humidity or perspiration, use a drying kit that
is available from your hearing care professional.

1. Never immerse the instrument in water or other liquids since this
may cause permanent damage to the hearing instrument
2. Protect your hearing instrument from rough handling, and avoid
dropping it on hard surfaces or oors
3. Do not leave the instrument in or near direct heat or sunlight since
excessive heat can damage the instrument or deform the casing

Your hearing care professional can activate a Low Battery Warning
function in your hearing instruments. When the battery voltage/power
decreases to a certain level, the instrument will emit ve soft beeping
signals. This sequence will continue every ve minutes until the instru-
ment automatically switches off. It is recommended that you keep a
spare battery at hand.


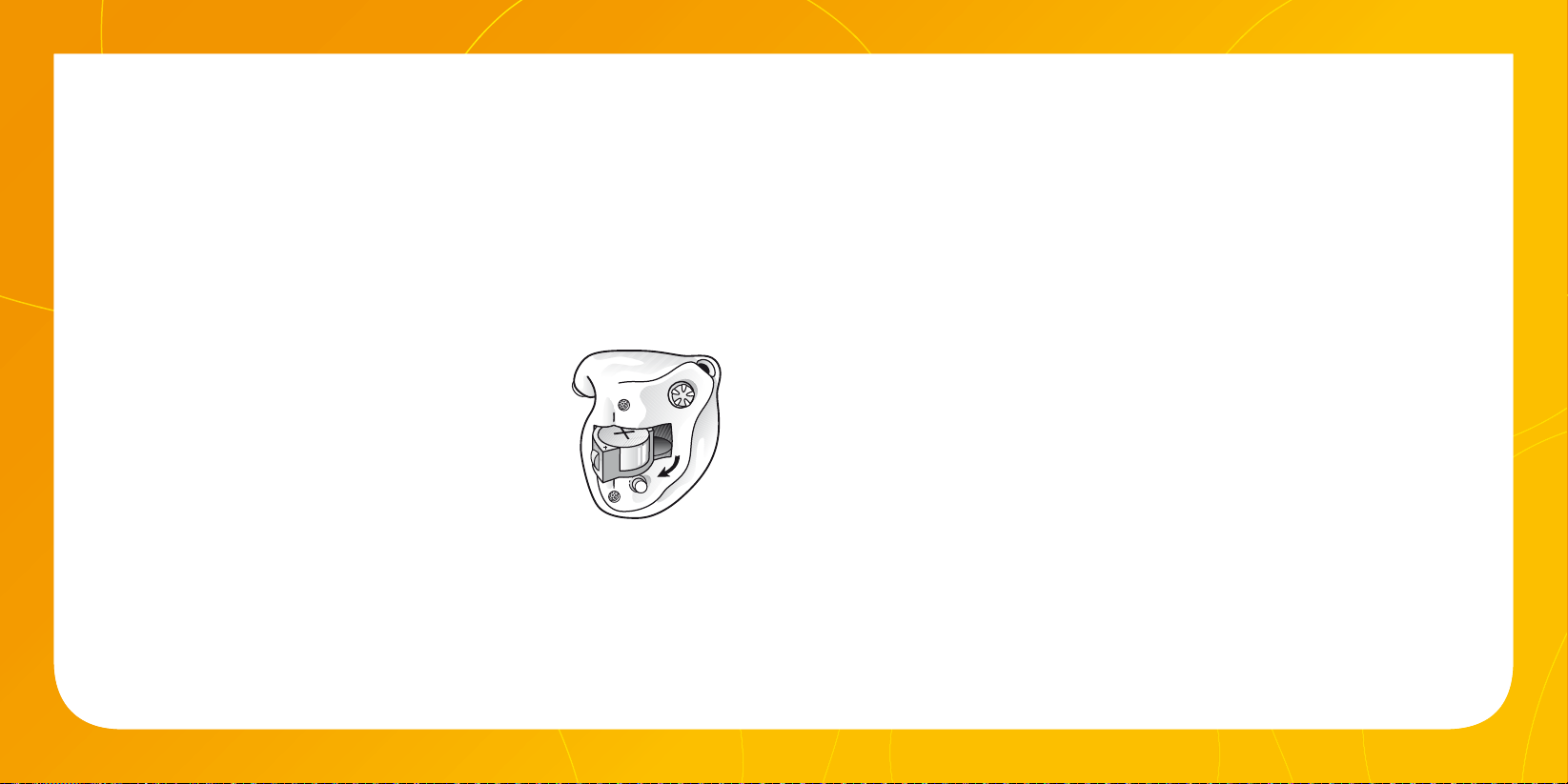

1. Open the battery compartment completely by
using your ngernail
2. After removing the old battery, insert the new
one
3. Always use Zinc-Air battery. Your hearing care
professional can tell you which size battery you
need
It is important to insert the battery with
the positive side in the correct position.
The battery door has a + marking to help determine correct insertion.

Removing the battery when you are not wearing the instrument for a
longer period will help prevent corrosion of the battery contacts.

18
19



For proper function of the microphone, it is important to clean the
sound inlet to remove dust or other sound-disturbing debris. The soft
brush, provided with your hearing instrument, can be used for this
purpose. Your hearing care professional can instruct you on how to
properly use this tool.

Your ReSound ZigaTM hearing instrument may be equipped with a sound
outlet lter (consult your hearing care professional). This lter is located
at the end of the sound outlet and prevents debris from getting into the
hearing instrument. If the hearing instrument seems to have lost power,
and changing the battery does not help, the lter may be blocked, and
needs to be changed. Your hearing care professional can instruct you
on how to change the lter.
If your hearing instrument does not have a lter, ear wax and/or other de-
bris may accumulate in the sound channel. The cleaning loop, provided
with your hearing instrument, can be used to remove this material. Your
hearing care professional can instruct you on how to properly use this
tool. When using this tool, be careful not to damage or pull the tubing
placed at the opening of the sound outlet. If this is pulled out, the hear-
ing instrument may need to be returned for repair.


1. Do not leave your hearing instrument in the sun, near an open re or
in a hot, parked car
2. Do not wear your instrument while showering, swimming, in heavy
rain or in a moist atmosphere such as steam bath or sauna
3. Should your hearing instrument become wet or moist, use the
drying kit that your hearing care professional has recommended.
Do not place the hearing instrument in a very warm place to
remove moisture (for example, the oven or use a hair dryer).
Direct or indirect heat can damage the instrument.
4. Remove your hearing instrument when applying such things as
cosmetics, perfume, aftershave, hair spray, and suntan lotion.
These might get into the instrument and cause damage.

20
21

1. Consult a physician if you discover a foreign object in your ear canal,
if you experience skin irritation or if excessive ear wax accumulates
with the use of the hearing instrument
2. Different types of radiation, e.g. from NMR, MRI or CT scanners, may
damage the hearing instrument. Therefore, do not wear the hearing
instrument during these or other corresponding scanning procedu-
res. Other types of radiation (burglar alarms, room surveillance sys-
tems, radio equipment, mobile telephones, etc) contain less energy
and will not damage the hearing instrument They could, however,
momentarily affect the sound quality or create strange sounds from
the hearing instruments
3. Do not wear the hearing instrument in mines or other explosive
areas, unless those areas are certied for hearing instrument use
4. Do not allow others to use your hearing instrument. It may cause
permanent damage to their hearing
5. Hearing instrument usage by children or mentally challenged
persons should be supervised at all times
6. Hearing instruments should be used only as prescribed by your
hearing care professional. Incorrect use may result in sudden and
permanent hearing loss

1. Keep batteries away from children and mentally challenged persons
2. Batteries can be harmful if swallowed. If you do, seek medical help
immediately
3. Do NOT attempt to recharge batteries which are not specically
designated rechargeable as they may leak or explode
4. Do NOT attempt to dispose batteries by burning them
5. Replace spent batteries, and do not leave them in the instrument
for a prolonged period. If your hearing instrument is equipped with
a low battery warning feature, replace battery immediately after
low battery warning is reached
6. Used batteries can be harmful to the environment. Please dispose
of them according to local regulations or return them to your
hearing care professional.

22
23

If your ReSound hearing instrument malfunctions it must be repaired
by a qualied technician. Do not attempt to open the case of the hear-
ing instrument since this will invalidate the warranty. If your hearing
instrument requires service, please contact your hearing care profes-
sional for assistance.

Maximum Output (2cc Coupler / IEC 60118-7)
ZG30 112 dB SPL (Typical)
ZG30-P 119 dB SPL (Typical)
ZG30-D 112 dB SPL (Typical)
ZG30-DP 119 dB SPL (Typical)
ZG40 120 dB SPL (Typical)
ZG40-P 126 dB SPL (Typical)
ZG40-D 120 dB SPL (Typical)
ZG40-DP 126 dB SPL (Typical)
ZG50 120 dB SPL (Typical)
ZG50-P 126 dB SPL (Typical)
ZG50-D 120 dB SPL (Typical)
ZG50-DP 126 dB SPL (Typical)

24
25

 
 • Stand By Mode
• Not turned on
• Dead battery
• Battery improperly inserted
• Blocked sound outlet lter
 • Change in hearing
• Excessive ear wax
• Blocked sound outlet lter
• Volume set too low
 • Instrument not inserted correctly
• Dual Stabilizer II needs re-initialization
• Build-up of earwax
• Instrument settings not optimal
 • Weak battery
 • Hearing instrument damaged
• Hearing instrument settings not optimal
If there are any other problems not mentioned in this guide,
please contact your hearing care professional.

• Re-activate by pushing the programme selector once
• Turn on by closing the battery door
• Replace battery
• Insert battery properly
• Change lter or consult your hearing care professional
• Reinsert carefully or consult your hearing care professional
• Consult your physician
• Change lter or consult your hearing care professional
• Consult your hearing care professional
• Remove and reinsert
• Consult your hearing care professional
• Consult your physician
• Consult your hearing care professional
• Replace battery
• Consult your hearing care professional
• Consult your hearing care professional

26
27


Adjusting to the hearing instrument ..............................6
Battery change ....................................................16
Battery compartment ..............................................4
Cerumen/earwax ...............................................18,24
Cleaning the instrument ..........................................17
Inserting the hearing instrument..................................9
Low battery warning ..............................................16
Maintenance.......................................................17
On/off switch .....................................................4,8
Precautions........................................................19
Programme Selector ............................................4,12
Removing the hearing instrument................................11
Repairs.............................................................22
Sound disappeared................................................24
Sound outlet lter .................................................18
Stand-by mode ....................................................13
Technical data .....................................................23
Telephone use .....................................................14
Troubleshooting guide ............................................24
User operated controls.............................................8
Volume control ....................................................10
Warnings ..........................................................20
Squealing ..........................................................24
Faceplate/Electronics by: GN ReSound A/S
Any issues relating to the EU Medical Device Directive
93/42/EEC should be directed to GN ReSound A/S.

16602600-GB-09.04 Rev. B
Worldwide Headquarters
GN ReSound A/S
Lautrupbjerg 7
DK-2750 Ballerup, Denmark
Tel.: [phone]
Fax: [phone]
www.resound.com
United Kingdom
GN ReSound Ltd.
1 Landscape Close
Weston Business Park
Weston-on-the-Green
Oxon OX25 3SX
Tel.: [phone]
Fax: [phone]
www.gnresound.co.uk
Australia
GN ReSound Pty. Ltd.
Unit R1 Regent Park Estate
391 Park Road
Regent Park NSW 2143
Tel.: (free) 1800 658 955
Fax: [phone]
www.gnresound.com.au
New Zealand
GN ReSound (NZ) Ltd.
12 Parkway Drive
Mairangi Bay
Auckland
Tel.: (free) 0800 900 126
Fax: (free) 0800 007 695
www.gnresound.co.nz
