Manual
Cyclone SM300
Translation

2
Copyright
Copyright by
Retsch GmbH
Haan, Retsch-Allee 1-5
D-42781 Haan
Federal Republic of Germany

3
1Notes on the Operating Manual ............................................................................................................4
1.1 Explanations of the safety warnings .................................................................................................. 5
1.2 General safety instructions ................................................................................................................ 6
1.3 Repairs............................................................................................................................................... 7
2Confirmation ...........................................................................................................................................8
3Assembling and using the cyclone ......................................................................................................9
3.1 Cyclone assembly.............................................................................................................................. 9
3.1.1 Inserting the wide mouth bottle adapter ...................................................................................... 13
4Disposal.................................................................................................................................................14
5Index ......................................................................................................................................................15

Notes on the Operating Manual
4
Pos: 1.1 /00005 Übersc hriften/1. Überschrift en/1 Hinweise zur Bedi enungsanleitung @ 0\ mod_12223474 15287_9.doc @ 26 31@ @ 1
1 Notes on the Operating Manual
Pos: 1.2 /00 010 Be dienungsa nleitunge n Kapitelsa mmlung en/Cr yoMill/0001 Hi nweis e z ur B edie nungsanl eitung/M odul Hin weis zur Bedienungsanleitung @ 0\mod_1222347341773_ 9.doc @ 2 540 @ @ 1
This operating manual is a technical guide on how to operate the device safely and
it contains all the information required for the areas specified in the table of
contents. This technical documentation is a reference and instruction manual. The
individual chapters are complete in themselves.
Familiarity (of the respective target groups defined according to area) with the
relevant chapters is a precondition for the safe and appropriate use of the device.
This operating manual does not contain any repair instructions. If faults arise or
repairs are necessary, please contact your supplier or get in touch with Retsch
GmbH directly.
Application technology information relating to samples to be processed is not
included but can be read on the Internet on the respective device’s page at
www.retsch.com.
Pos: 1.3 /00010 Bedie nungsanleitungen Ka pitelsammlungen/Cr yoMill/0001 Hinweis ez urB edienungsanl eitung/Modul Änderungen @ 0\mod_122234 7341241_9.doc @ 2 526 @ @ 1
Changes
Subject to technical changes.
Pos: 1.4 /00010 Bedie nungsanleitungen Ka pitelsammlungen/Cr yoMill/0001 Hinweis ez urB edienungsanl eitung/Modul Urhe berrecht @ 0\ mod_122234734203 8_9.doc @ 2547 @ @ 1
Copyright
Disclosure or reproduction of this documentation, use and disclosure of its contents
are only permitted with the express permission of Retsch GmbH.
Infringements will result in damage compensation liability.
Pos: 2.1 /00 010 Be dienungsa nleitunge n Kapitelsa mmlung en/------- Seiten umbruch ----------- @ 0\mod_12223443737 58_0.doc @ 2386 @ @1

Notes on the Operating Manual
5
Pos: 2.2 /00005 Übersc hriften/1.1 Überschrif ten/1.1 Überschrifte n BDA/11 Erklärungen zu d enSic herheits warnungen @ 0\mod_ 1222344569771_9 .doc @ 2484 @ @ 1
1.1 Explanations of the safety warnings
Pos: 2.3 /00003 Standard K apitel/General Mo dulW arnhinweise Er klärung neu @ 0\mod_ 1234858329746 _9.doc @ 6190 @ @ 1
In this Operating Manual we give you the following safety warnings
Serious injury may result from failing to heed these safety warnings. We give you
the following warnings and corresponding content.
WARNING
Type of danger / personal injury
Source of danger
–Possible consequences if the dangers are not observed.
•Instructions on how the dangers are to be avoided.
We also use the following signal word box in the text or in the instructions on action
to be taken:
WARNING
Moderate or mild injury may result from failing to heed these safety warnings.
We give you the following warnings and corresponding content.
CAUTION
Type of danger / personal injury
Source of danger
–Possible consequences if the dangers are not observed.
•Instructions on how the dangers are to be avoided.
We also use the following signal word box in the text or in the instructions on action
to be taken:
CAUTION
In the event of possible property damage we inform you with the word
“Instructions” and the corresponding content.
NOTICE
Nature of the property damage
Source of property damage
–Possible consequences if the instructions are not observed.
•Instructions on how the dangers are to be avoided.
We also use the following signal word in the text or in the instructions on action to
be taken:
NOTICE
Pos: 2.4 /00 010 Be dienungsa nleitunge n Kapitelsa mmlung en/------- Seiten umbruch ----------- @ 0\mod_12223443737 58_0.doc @ 2386 @ @1

Notes on the Operating Manual
6
Pos: 2.5 /00005 Übersc hriften/1.1 Überschrif ten/1.1 Überschrifte n BDA/11 Generelle Sic herheitshinweise @ 0\ mod_1222344 568974_9.doc @ 2 463 @ @ 1
1.2 General safety instructions
Pos: 2.6 /00 004 Warnhinweise/ V0002 V ORSICHT Bedienungsanleitung l es en @ 2\mod_1263894982 815_ 9.doc @ 1863 0 @ @ 1
CAUTION
Read the Operating Manual
Non-observance of these operating instructions
–The non-observance of these operating instructions can
result in personal injuries.
•Read the operating manual before using the device.
•We use the adjacent symbol to draw attention to the
necessity of knowing the contents of this operating
manual.
Pos: 2.7 /00003 Standard K apitel/General Mo dulZ ielgruppe und Sic herheit @ 0\mod_1 228722955300_9.do c@ 4 100 @ @1
Target group : All persons concerned with the machine in any form
This machine is a modern, high performance product from Retsch GmbH and
complies with the state of the art. Operational safety is given if the machine is
handled for the intended purpose and attention is given to this technical
documentation.
Pos: 2.8 /00003 Standard K apitel/General Mo dulSic herheitshin weise @ 0\mod_122 8722954800_9.doc @ 4 086 @ @1
You, as the owner/managing operator of the machine, must ensure that the people
entrusted with working on the machine:
•have noted and understood all the regulations regarding safety,
•are familiar before starting work with all the operating instructions and
specifications for the target group relevant for them,
•have easy access always to the technical documentation for this machine,
•and that new personnel before starting work on the machine are familiarised
with the safe handling of the machine and its use for its intended purpose,
either by verbal instructions from a competent person and/or by means of
this technical documentation.
Improper operation can result in personal injuries and material damage. You are
responsible for your own safety and that of your employees.
Make sure that no unauthorised person has access to the machine.
Pos: 2.9 /00004 Warnhi nweise/V0015 VORS ICHT+ H INWEIS Sach- undP ersonenschäden @ 1\mod_ 1236238456676_9.d oc @ 7642 @ @ 1
CAUTION
Changes to the machine
–Changes to the machine may lead to personal injury.
•Do not make any change to the machine and use spare parts and
accessories that have been approved by Retsch exclusively.
NOTICE
Changes to the machine
–The conformity declared by Retsch with the European Directives will lose
its validity.
–You lose all warranty claims.
•Do not make any change to the machine and use spare parts and
accessories that have been approved by Retsch exclusively.
Pos: 2.10 /00010 Bedi enungsanleitungen K apitelsammlungen/------- Seite numbruch ----------- @ 0\mod_12 22344373758_0.doc @ 238 6@ @ 1

Notes on the Operating Manual
7
Pos: 2.11 /00005 Überschrif ten/1.1 Überschrift en/1.1 Überschrift enBD A/11 Reparature n @ 0\mod_12236 24336511_9.doc @ 2978@ @ 1
Reperaturen
1.3 Repairs
Pos: 2.12 /00003 Stand ard Kapitel/Gen eralM odulR eparaturen @ 0 \mod_122872295 4535_9.doc @ 4079 @ @ 1
This operating manual does not contain any repair instructions. For your own
safety, repairs may only be carried out by Retsch GmbH or an authorized
representative or by Retsch service engineers.
In that case please inform:
The Retsch representative in your country
Your supplier
Retsch GmbH directly
Your Service Address:
Pos: 3.1 /00020 BD A Software/20005 PM GC Kapitelsa mmlung/- - - - S eitenumbruch - - - - @ 0\mod_12088576884 13_0.doc @ 337 @ @ 1

Confirmation
8
Pos: 3.2 /0010 BDA Softw are/Überschriften /1.Üb erschriften/1 Best ätigung (Formular für d enB etreiber) @ 0\m od_12088708410 95_9.doc @ 430 @ @ 1
Bestätigung
2 Confirmation
Pos: 3.3 /00003 Standard K apitel/General Mo dulB estätigung @ 0\ mod_122872296 2707_9.doc @ 4114 @ @ 1
This operating manual contains essential instructions for operating and maintaining
the device which must be strictly observed. It is essential that they be read by the
operator and by the qualified staff responsible for the device before the device is
commissioned. This operating manual must be available and accessible at the
place of use at all times.
The user of the device herewith confirms to the managing operator (owner) that
(s)he has received sufficient instructions about the operation and maintenance of
the system. The user has received the operating manual, has read and taken note
of its contents and consequently has all the information required for safe operation
and is sufficiently familiar with the device.
As the owner/managing operator you should for your own protection have your
employees confirm that they have received the instructions about the operation of
the machine.
I have read and taken note of the contents of all chapters in this operating
manual as well as all safety instructions and warnings.
User
Surname, first name (block letters)
Position in the company
Signature
Service technician or operator
Surname, first name (block letters)
Position in the company
Place, date and signature

Assembling and using the cyclone
9
Pos: 4.1 /00005 Übersc hriften/1. Überschrift en/1 Verwendung vonZyklon u ndB odenplatte für Weithals flaschen –SM30 0@ 3\ mod_1279541116382 _9.doc @ 20674 @ @ 1
3 Assembling and using the cyclone
Pos: 4.2 / 00005 Übersc hriften /1.1 Üb erschriften/ 1.1 Ü berschrifte n BDA/1 1 Z yklon M ontage ( 2) @ 3\ mod_12 79541156398 _9.doc @ 20683@ @ 1
3.1 Cyclone assembly
Pos: 4.3 /00 004 War nhi nweise/V 0014 VORS ICHT R otierend e M esser @ 2 \mo d_1263 48005101 7_9.doc @ 1 8590 @ @ 1
CAUTION
1.V0014
Injuries to limbs
Rotating blade
–Can cause injury to hands and feet.
•Keep hands and feet away from the device openings
when the device is switched on.
•Pull the plug out before cleaning or retrofitting.
Pos: 4.4 /00 004 War nhi nweise/V 0001 VORS ICHT Abg etren nte Fi nger - Ei ngri ff i n d en drehe nden R ot or @ 2\mod_127918383013 4_9.d oc @ 2 0580 @ @ 1
CAUTION
2.V0001
Risk of injury to fingers
Reaching into the turning rotor
–Unintended reaching into the grinding area and the turning
rotor.
•Never connect the device to the mains without the
discharge flange.
•Only operate the device with discharge flange.
Pos: 4.5 /00010 Bedie nungsanleitungen Ka pitelsammlungen/SM 300Z yklon (2011) /0001Z ySM Kapitel Zyklo nM ontage/0201 Z ySMMo dul Montage Z yklon @ 2\mod_12791 86828533_9.doc @ 20 601 @ 3 @ 1
Fig. 1: Removing the discharge flange
•Disconnect the device from the mains.
•Loosen the screw (A1).
•Pull off the discharge flange (AV).
A1
1
AV
1

Assembling and using the cyclone
10
Fig. 2: Fastening the discharge flange
•Insert the retrofit dust removal (U).
•Tighten the screw (U1).
Fig. 3: Inserting the plug for the sliding block
•Insert the plug (HS) into the back (flat surface) of the sliding block (NS).
Fig. 4: Inserting the sliding block
•Guide the sliding block with plug into the aluminium profile.
U
U1
HS
NS

Assembling and using the cyclone
11

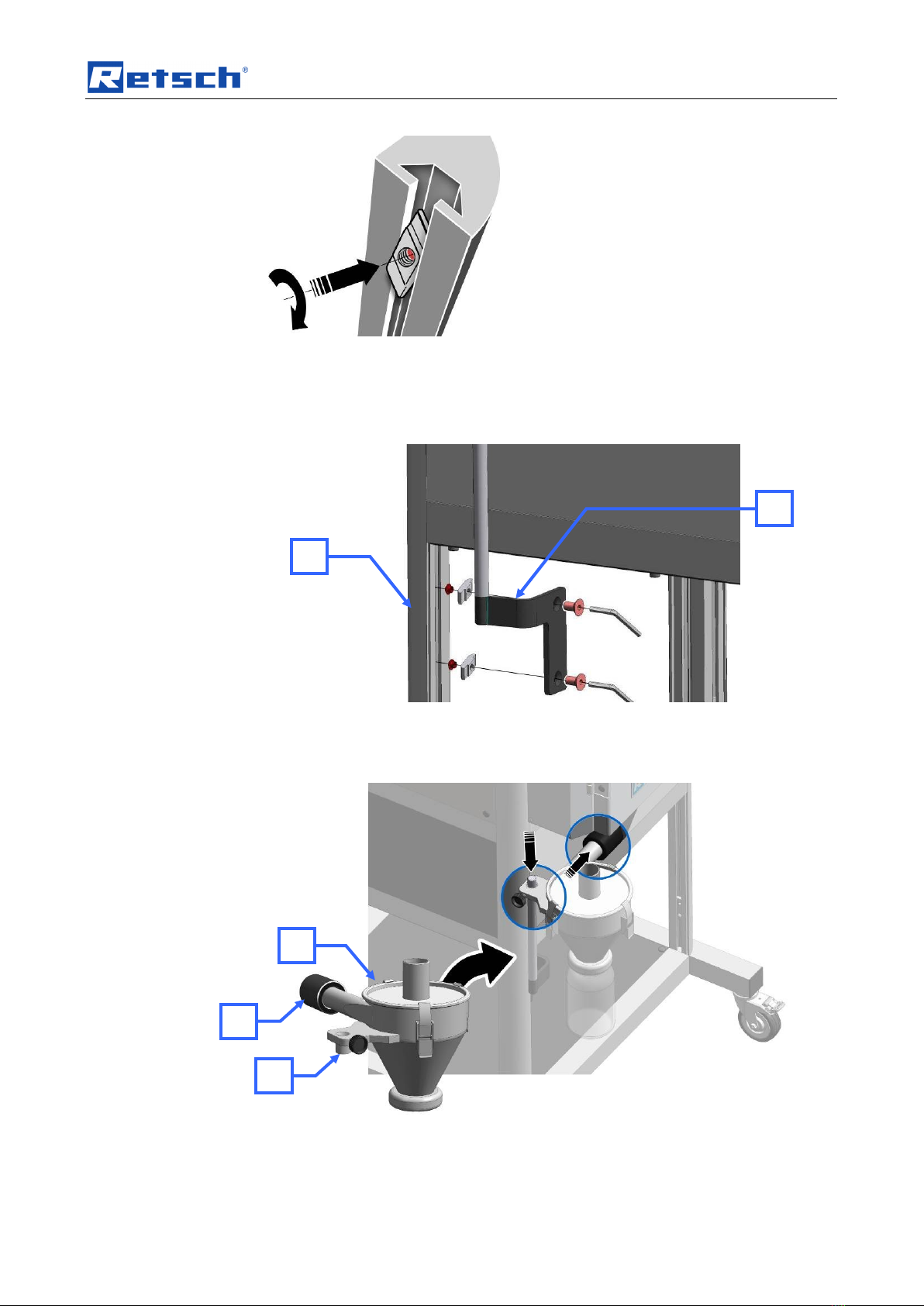

Fig. 5: Turning the sliding block
•Push in the sliding block against the resistance of the plug and turn the
sliding block to the position indicated.
•Insert the second sliding block in the same way.
Fig. 6: Fastening the cyclone support
•Fasten the cyclone support (Z3) on the front left-hand leg of the housing
(GF).
Fig. 7: Installing the cyclone
•Connect the cyclone (Z2) onto the rod of the stand on the cyclone support.
Z
Z1
Z2
Z3
GF

Assembling and using the cyclone
12
•Turn the side tube to the discharge flange and push the coupling (Z1) onto
the adapters on the discharge flange.
Fig. 8: Assembled cyclone
CAUTION
Before using the industrial vacuum cleaning, read the operating instructions
supplied with the vacuum cleaner.
Fig. 9: Connecting the industrial vacuum cleaner
•Plug the connector for dust extraction (W1) into the top opening on the
cyclone.
W1
W1

Assembling and using the cyclone
13
3.1.1 Inserting the wide mouth bottle adapter
Fig. 10: Inserting the wide mouth bottle adapter
•Insert the adapter for wide mouth bottles (Z5) into the outlet opening of the
cyclone (AZ) .
•Affix the adapter using the threaded pin (GS).
•Use a SW3 Allen key to screw in the threaded pin (Z4).
This avoids the adapter turning when the wide mouth bottles are screwed in and
out.
You can use 1l, 2l and 5l wide mouth bottles.
Pos: 5.1 /00 010 Be dienungsa nleitunge n Kapitelsa mmlung en/------- Seiten umbruch ----------- @ 0\mod_12223443737 58_0.doc @ 2386 @ @1
Z4
Z5
Z6
AZ
GS

Disposal
14
Pos: 5.2 /00005 Übersc hriften/1. Überschrift en/1 Entsorgung @ 0\ mod_12342587 46831_9.doc @ 6173 @ @ 1
4 Disposal
Pos: 5.3 /00003 Standard K apitel/General Mo dulE ntsorgung @ 0\m od_12342694049 35_9.doc @ 6180 @ @ 1
Please observe the respective statutory requirements with respect to disposal.
Information on disposal of electrical and electronic machines in the European
Community.
Within the European Community the disposal of electrically operated devices is
regulated by national provisions that are based on the EU Directive 2002/96/EC on
Waste Electrical and Electronic Equipment (WEEE).
Accordingly, all machines supplied after 13.08.2005 in the business-to-business
area to which this product is classified, may no longer be disposed of with
municipal or household waste. To document this they have the following label:

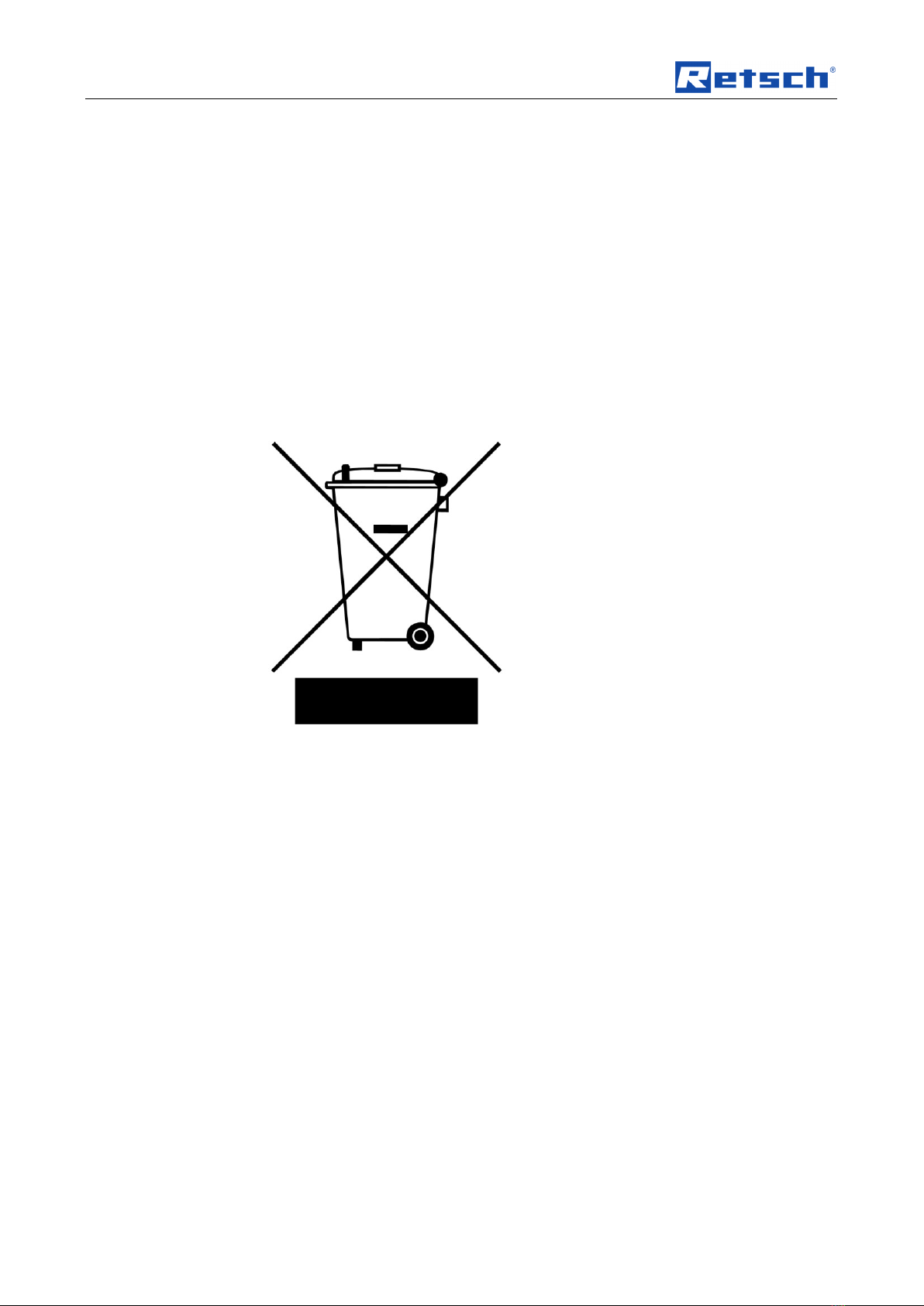

Fig. 11: Disposal label
Since the disposal regulations within the EU may differ from country to country we
would request you to consult your supplier.
=== Ende der Liste für Te xtmarke Inhalt ===

15
5 Index
A
Assembling and using the cyclone .......................8
C
Changes ...............................................................4
Confirmation .........................................................8
Connecting the industrial vacuum cleaner..........12
Copyright ..............................................................4
Cyclone assembly.................................................8
D
Disposal ..............................................................14
Disposal label .....................................................14
E
Explanations of the safety warnings .....................5
F
Fastening the cyclone support............................11
Fastening the discharge flange ..........................10
G
General safety instructions ...................................6
I
Inserting the sliding block ...................................10
Inserting the wide mouth bottle adapter............. 13
Installing the cyclone.......................................... 11
M
Moderate or mild injury ........................................ 5
N
Notes on the Operating Manual........................... 4
P
Plug.................................................................... 10
property damage.................................................. 5
R
Removing the discharge flange ........................... 9
Repairs................................................................. 7
S
Safety warnings ................................................... 5
serious injury........................................................ 5
Service Address................................................... 7
Sliding block....................................................... 10
T
Target group ........................................................ 6
Turning the sliding block .................................... 11

17

19

20
Copyright
® Copyright by
Retsch GmbH
Haan, Retsch-Allee 1-5
D-42781 Haan
Federal Republic of Germany
