RevJams Disco LED User manual

USERS GUIDE
On-Ear Auriculares Bluetooth
ON-EAR BLUETOOTH HEADPHONES

FEATURES
• Rechargeable battery offers up to 15 hours of
play time on a single charge (with LED light off)
• 7 Color-Changing LED lights to groove with your
music
• Bluetooth wireless technology allows for solid
connection to your device from up to 33 ft away
• Large super soft ear cups, help reduce ambient
noise allowing for crystal clear audio
• Comfortable, lightweight and a fully adjustable
on ear design, insures a perfect fit
• On board controls and a Built-In microphone for
music and call functionalities
• Compatible with Non-Bluetooth devices using
the supplied audio cable
1

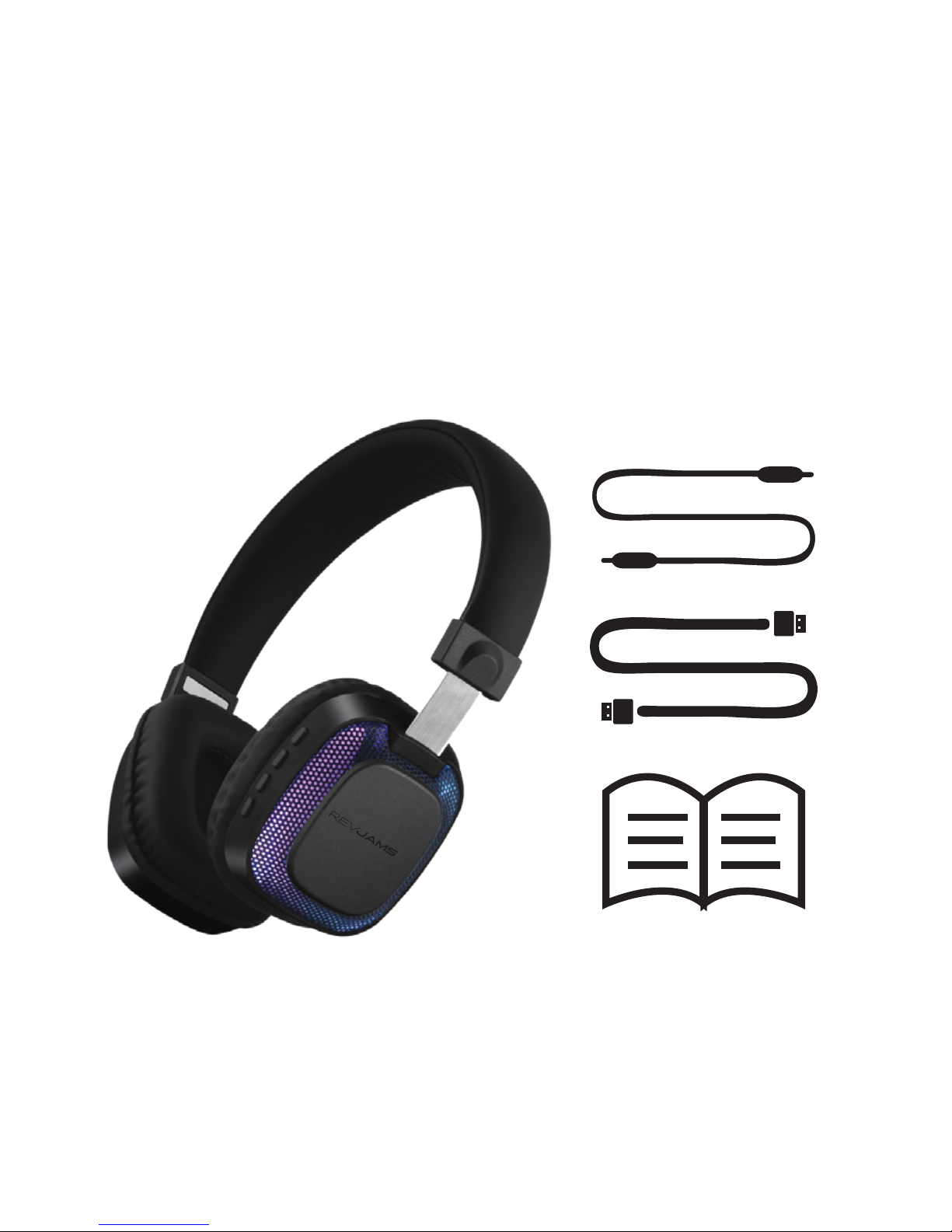

PACKAGE CONTENTS
• RevJams Disco LED Bluetooth Headphones
• 1X Micro USB Charging Cable
• 1X 3.5mm Audio Cable
• 1X Users Guide
2

EARBUD CONTROL UNIT:
1. LED Display Lights
2. Micro USB Port
3. 3.5mm Audio Port
4. Microphone
5. LED Indicator
6. Adjustable Headband
7. Multi-Function Button-Power/Play/Pause/Call
8. Volume+/Next Track
9. Volume -/Previous Track
10. LED Light Power Button
6
1
2
8
9
10
7
1
3
4
5
v+
v-
3

LED INDICATOR GUIDE
STATUS
Power On
Charging
Pairing Mode
INDICATOR
Flashing Blue Light
Red Light
Red and Blue Light flash
alternately. Once Paired
Blue light will flash slowly
4

GETTING STARTED
To use your RevJams Disco LED Bluetooth
Headphones, please follow the steps below:
1. Ensure your Bluetooth headset is fully charged.
2. Pair your Bluetooth headset to a
Bluetooth-enabled device prior to use. (See Pairing
your Headset instructions)
CHARGING YOUR HEADSET
CHARGE FULLY BEFORE USE.
To charge your headset, use the supplied micro usb
charging cable, the battery indicator will turn red
when charging and turn off once charging is
complete. Initial charging time is
approximately 2 hours.
5

GETTING STARTED
To use your RevJams Disco LED Bluetooth
Headphones, please follow the steps below:
1. Ensure your Bluetooth headset is fully charged.
2. Pair your Bluetooth headset to a
Bluetooth-enabled device prior to use. (See Pairing
your Headset instructions)
CHARGING YOUR HEADSET
CHARGE FULLY BEFORE USE.
To charge your headset, use the supplied micro usb
charging cable, the battery indicator will turn red
when charging and turn off once charging is
complete. Initial charging time is
approximately 2 hours.
Appx. 2 hours
6

PAIRING YOUR HEADSET
In order to use your RevJams Disco LED Bluetooth
Headphones with a Bluetooth-enabled device, you will
first need to pair the two.
1. Place the headset and the mobile phone where they
are easily viewable and no more than 3 ft. apart.
2. Ensure that the headset is fully charged
3. Ensure that the headset is powered off
4. Press the Multi-Function
button for approximately 3-4
seconds to power on the
headphones, the headphones will
automatically enter Pairing Mode
(the red and blue LED indicator
light will flash alternately which
indicates that you are in Pairing
Mode) A voice prompt will
announce “Bluetooth Mode”
5. Activate your mobile phone's Bluetooth pairing
function.
6. Set the mobile phone to search for Bluetooth
devices within range and select “Disco LED” from
the list of devices shown. Once pairing is successful
the LED indicator will flash blue and a voice prompt
will announce “Connected”.
7. If you are prompted for a Passcode enter “0000”
and press “ok” to pair the headset with your mobile
phone. (Note: If the Bluetooth version of your phone
is 2.1, there is no need to enter the passcode when
pairing.)
8. Now you can use your Bluetooth headset to listen
to music and make and receive phone calls.
7

Settings
Bluetooth
Bluetooth
Disco
LED
Passcode
0000
PAIRING YOUR HEADSET
In order to use your RevJams Disco LED Bluetooth
Headphones with a Bluetooth-enabled device, you will
first need to pair the two.
1. Place the headset and the mobile phone where they
are easily viewable and no more than 3 ft. apart.
2. Ensure that the headset is fully charged
3. Ensure that the headset is powered off
4. Press the Multi-Function
button for approximately 3-4
seconds to power on the
headphones, the headphones will
automatically enter Pairing Mode
(the red and blue LED indicator
light will flash alternately which
indicates that you are in Pairing
Mode) A voice prompt will
announce “Bluetooth Mode”
5. Activate your mobile phone's Bluetooth pairing
function.
6. Set the mobile phone to search for Bluetooth
devices within range and select “Disco LED” from
the list of devices shown. Once pairing is successful
the LED indicator will flash blue and a voice prompt
will announce “Connected”.
7. If you are prompted for a Passcode enter “0000”
and press “ok” to pair the headset with your mobile
phone. (Note: If the Bluetooth version of your phone
is 2.1, there is no need to enter the passcode when
pairing.)
8. Now you can use your Bluetooth headset to listen
to music and make and receive phone calls.
8

POWERING ON THE HEADSET
Press and hold down the Multi-Function button for 3
seconds until a blue light appears
POWERING OFF THE HEADSET
Once powered on, Press and hold down the Multi-Function
button for 5 seconds to power off.
WEARING YOUR HEADSET
The Left “L” and Right “R” indicator are located on the
inside of the headphone headband
LED LIGHT
Short Press the LED Light power button to Power On
and OFF the LED display lights. Please note that using the
LED light function while using the headset will reduce the
battery life.
0/

CALL MODE
Answering a Call
When you receive a call, the ring tone will be heard through the
headset. Short Press the Multi-Function button once to accept
the call or answer the call normally via your mobile phone.
Rejecting a Call
Press and hold the Multi-Function button for 2 seconds to reject
the incoming call.
Ending a Call
Short Press the Multi-Function button to end the call or end the
call directly from your mobile phone.
Redialing a Call
Press the Multi-Function button twice to redial the last dialed
phone number on your mobile phone.
Increase /Decrease Volume
Press and hold the key to increase volume or
key to decrease volume.
v+ v-
00

MUSIC MODE
Adjusting the Volume
Press and hold the key to increase volume or
key to decrease volume. You will hear a beep
or a voice prompt when you reach the maximum or
minimum volume level. (You can also adjust the
volume on your handset or device)
Play/Pause Music
When the Bluetooth headset is connected with your
mobile phone and music player, press the
Multi-Function button once to play music. Short
Press the Multi-Function button while music is
playing to pause music. (Attention: your mobile
phone must support A2DP profile.)
Next Track
Short Press the key to select the Next track.
Previous Track
Short Press the key to select the Previous
track.
Connection with The Last Paired
Device
When powered on, the headset will automatically
connect with the last successfully paired device. If
the connection is successful, it enters standby
mode. If the devices fail to connect within 5
minutes after the pairing has been initiated, the
headset will turn off automatically.
v+
v-
v+
v-
01

MUSIC MODE
Adjusting the Volume
Press and hold the key to increase volume or
key to decrease volume. You will hear a beep
or a voice prompt when you reach the maximum or
minimum volume level. (You can also adjust the
volume on your handset or device)
Play/Pause Music
When the Bluetooth headset is connected with your
mobile phone and music player, press the
Multi-Function button once to play music. Short
Press the Multi-Function button while music is
playing to pause music. (Attention: your mobile
phone must support A2DP profile.)
Next Track
Short Press the key to select the Next track.
Previous Track
Short Press the key to select the Previous
track.
Connection with The Last Paired
Device
When powered on, the headset will automatically
connect with the last successfully paired device. If
the connection is successful, it enters standby
mode. If the devices fail to connect within 5
minutes after the pairing has been initiated, the
headset will turn off automatically.
02

TROUBLESHOOTING
If you are unable to connect your headset and mobile
phone, please try the following:
Ensure that your headset is fully charged and
powered on.
Ensure that the headset is paired with your mobile
phone.
Ensure that your mobile phone's Bluetooth feature is
activated. Please refer to your mobile phone user
guide for specific instructions.
Ensure that the headset is within a 10 meter (30 ft.)
range of your mobile phone
If the above steps do not solve your problem, please
remove your mobile phone battery or power down
and restart your device. Repeat the troubleshooting
sequence.
WARRANTY
At RevJams, we are commited to making the highest
quality product. To back this up, your RevJams
Bluetooth headset is warrantied for One (1) full year
from the date of purchase. Please visit our website
www.revjams.com for more details.
Call or Email us at:
[e-mail]
Toll free number: 855-206-6634
03

TROUBLESHOOTING
If you are unable to connect your headset and mobile
phone, please try the following:
Ensure that your headset is fully charged and
powered on.
Ensure that the headset is paired with your mobile
phone.
Ensure that your mobile phone's Bluetooth feature is
activated. Please refer to your mobile phone user
guide for specific instructions.
Ensure that the headset is within a 10 meter (30 ft.)
range of your mobile phone
If the above steps do not solve your problem, please
remove your mobile phone battery or power down
and restart your device. Repeat the troubleshooting
sequence.
WARRANTY
At RevJams, we are commited to making the highest
quality product. To back this up, your RevJams
Bluetooth headset is warrantied for One (1) full year
from the date of purchase. Please visit our website
www.revjams.com for more details.
Call or Email us at:
[e-mail]
Toll free number: 855-206-6634
04

SAFETY INFORMATION
Check local laws regarding the use of mobile phones
and headsets while driving.
If you use the headset while driving, ensure that your
attention and focus remains on the road and you drive
in a responsible and safe manner.
Never allow children to play with the headset, as the
small parts may be a choking hazard.
Observe all signs that require an electrical device or RF
radio product to be switched off in designated areas.
These could include hospitals, airplanes, blasting
areas, and potentially explosive environments.
Never mount or store your headset over an air bag
deployment area, a serious injury may result when the
air bag deploys.
Do not open or mutilate the built-in battery.
Dispose of batteries according to local regulations.
Do not dispose as household waste.
05

CARE AND MAINTENANCE OF
YOUR HEADSET
i. Consider turning your headset off before placing it in your
pocket or bag. If the Power button is accidentally activated, your
mobile phone may place an unintended call.
ii. Do not expose the headset to liquid, moisture or humidity, as it
is not waterproof.
iii. Do not use abrasive cleaning solvents to clean the headset.
iv. Do not expose the headset to extreme temperatures. The best
storage temperature range is from 40-80 F, otherwise, the life of
the headset will be affected.
v. Do not dispose of the headset in fire as it this may result in an
explosion.
vi. Do not bring your headset into contact with sharp objects as
this will cause scratches and can damage the headset.
vii. Do not attempt to disassemble the headset, as it does not
contain serviceable components.
viii. If you do not use the headset for long periods, be sure to store
it in a dry place, free from extreme temperature conditions and
dust.
06

PRODUCT SPECIFICATIONS
Model No. REV-OEH401
Product Size: 6.45 X 7.4 X 2 inches
Product Weight: 6.5 oz.
Battery amperage: 360mAh
Battery Charging time: Up to 3 hours
Play Time: Up to 6 hours (with LED light)
Up to 15 hours (without LED light)
Talk Time: Up to 5 hours
Charging input: DC5V
Bluetooth Version: V4.2+EDR
Supported Bluetooth Profie:
DSP/HSP/HFP/A2DP/AVRCP
Wireless Range: About 33ft.
Frequency: 20Hz-20kHz
Actual performance may vary due to the user's habits, different
modes of operation, and mobile phone settings. This manual is
for reference purposes only. The specifications and design of the
headset may change without prior notice. Actual product may
differ slightly from the image on the packaging
07

WARNING AND PRECAUTIONS
WARNING: To prevent fire or shock hazard, do not expose this
unit to rain or moisture.
WARNING: Do not place this unit directly onto furniture
surfaces with any type of soft, porous, or sensitive finish. As
with any rubber compound made with oils, the feet could cause
marks or staining where the feet reside.
WARNING: Lithium batteries, like all rechargeable batteries
are recyclable and should be recycled or disposed of in normal
household waste. Contact your local government for disposal or
recycling practices in your area. They should be incinerated
since they might explode.
NOTE: This device uses an internal rechargeable lithium-ion
battery that should last the lifetime of the device. If you
suspect your battery may be dead after several attempts to
charge, please visit www.revjams.com for support.
Never disassemble the unit or attempt to remove the battery as
that could cause leakage of an electrolyte substance
FCC WARNINGS
WARNING: Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15
of the FCC rules. These limits are designed to provide
reasonable protections against harmful interference in a
residential installation. This equipment generates, uses, and
can radiate radio frequency and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment on and off, the user is encouraged to try
to correct the interference by one or more of the following
measures.
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected
08

WARNING AND PRECAUTIONS
WARNING: To prevent fire or shock hazard, do not expose this
unit to rain or moisture.
WARNING: Do not place this unit directly onto furniture
surfaces with any type of soft, porous, or sensitive finish. As
with any rubber compound made with oils, the feet could cause
marks or staining where the feet reside.
WARNING: Lithium batteries, like all rechargeable batteries
are recyclable and should be recycled or disposed of in normal
household waste. Contact your local government for disposal or
recycling practices in your area. They should be incinerated
since they might explode.
NOTE: This device uses an internal rechargeable lithium-ion
battery that should last the lifetime of the device. If you
suspect your battery may be dead after several attempts to
charge, please visit www.revjams.com for support.
Never disassemble the unit or attempt to remove the battery as
that could cause leakage of an electrolyte substance
FCC WARNINGS
WARNING: Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15
of the FCC rules. These limits are designed to provide
reasonable protections against harmful interference in a
residential installation. This equipment generates, uses, and
can radiate radio frequency and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment on and off, the user is encouraged to try
to correct the interference by one or more of the following
measures.
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected
