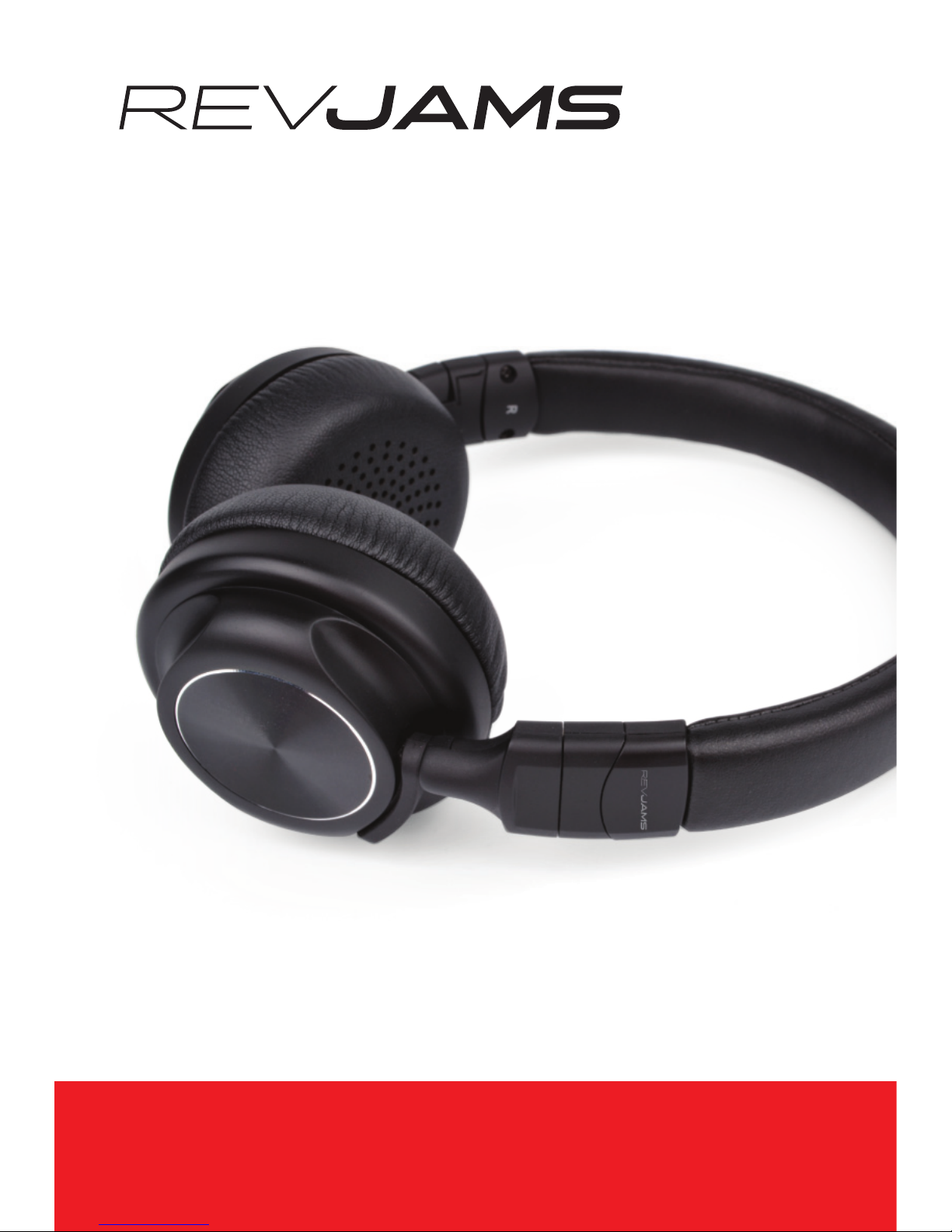

RevJams StudioLite REV100-BLK User manual

REV100-BLK
USERS MANUAL
Bluetooth
Headphones
StudioLite

Thank you for choosing the RevJams Studio Lite
Bluetooth Headphones !
Please take the time to read this manual carefully,
even if you are already familiar with a similar
product.
2

• RevJams Studio Lite Bluetooth Headphones
• Micro USB charging cable
• AUX audio cable
• Users guide
PACKAGE CONTENTS
3

1. Volume – / Previous track
2. Volume + / Next track
3. Multi-Function Button - Power/Play/Pause/Pair
4. Micro USB charging port
5. Microphone
6. LED indicator
7. AUX audio port
BLUETOOTH HEADPHONE CONTROLS
2
1
7
4
63
5
L
4

LED INDICATOR GUIDE
INDICATOR
Blue light
Turn red to power o
Red light
Red and blue light
ash alternately
Blue LED ashing
slowly
STATUS
Power On
Power O
Charging
Bluetooth Pairing Mode
Connected to Bluetooth
5

To use your RevJams Studio Lite Bluetooth
Headphones, please follow the steps below:
1. Ensure your Bluetooth headphones are fully
charged.
2. Pair your Bluetooth headphones to a Bluetooth-
enabled device prior to use. (See Pairing your
Headset instructions)
CHARGING YOUR HEADSET
Your RevJams Studio Lite Bluetooth Headphones
come with a built-in rechargeable battery and a
Micro USB charging cable. Charge fully before
use. The battery indicator will turn red when
charging and turn o once charging is complete.
Initial charging time is approximately 3 hours.
GETTING STARTED
Appx. 3 hours
6

In order to use your RevJams Studio Lite Bluetooth
Headphones with a Bluetooth-enabled device, you
will rst need to pair the two.
1. Begin with the headset being powered o and
fully charged.
2. Place the headset and the mobile phone where
they are easily viewable and no more than 3ft apart.
3. Press and hold the Multi-Function button for
approximately 3 seconds, the red and blue light will
ash alternately which indicates that the
headphones are in Pairing Mode.
4. Activate your mobile phone's Bluetooth pairing
function and select “Studio Lite” from the list of
devices shown.
When successfully paired the LED indicator will ash
Blue
PAIRING YOUR HEADSET
100%
PRESS & HOLD
Settings
Bluetooth
Bluetooth
Studio
Lite
7

Press and hold down the Multi-Function button for
3-4 seconds until a BLUE light appears.
POWERING OFF THE HEADSET
Once powered on, Press and hold down the
Multi-Function button until a RED light appears to
turn o.
POWERING ON THE HEADSET CONNECTION WITH THE LAST PAIRED
DEVICE
When powered on, the headset will automatically
connect with the last successfully paired device.
WEARING YOUR HEADSET
The Left / Right indicator is located on the inside of
the headphones band.
Be sure to adjust the headband so that the ear cups
rest comfortably on your ear, only with the right t
will you enjoy a snug t & premium sound quality
3-4
sec
PRESS & HOLD
PRESS
& HOLD
8

Press and hold down the Multi-Function button for
3-4 seconds until a BLUE light appears.
POWERING OFF THE HEADSET
Once powered on, Press and hold down the
Multi-Function button until a RED light appears to
turn o.
CONNECTION WITH THE LAST PAIRED
DEVICE
When powered on, the headset will automatically
connect with the last successfully paired device.
WEARING YOUR HEADSET
The Left / Right indicator is located on the inside of
the headphones band.
Be sure to adjust the headband so that the ear cups
rest comfortably on your ear, only with the right t
will you enjoy a snug t & premium sound quality
L
9

CALL MODE
Answering a Call Short Press the Multi-Function button
once to accept the call, or answer the
call normally via your mobile phone.
Short Press the Multi-Function button
to end the call or end the call directly
from your mobile phone.
Press the Multi-Function button twice
to redial the last dialed phone number
on your mobile phone.
Press and hold the Multi-Function
button for 2 seconds to reject the
incoming call.
Rejecting a Call
Ending a Call
Redialing a Call
10

MUSIC MODE
Adjusting the
Volume
Press and hold the Volume + to
increase volume or Volume – to
decrease volume. You can also adjust
the volume on your handset or device
Short Press the "Volume -" key to
select the Previous track.
Short Press the "Volume +" key to
select the Next track.
Once connected, Press the
Multi-Function button once to play
music. Short Press the Multi-Function
button to pause music.
Play/Pause
Music
Previous Track
Next Track
11

If you are unable to connect your headset and
mobile phone, please try the following:
Ensure that your headset is fully charged and
powered on.
Ensure that the headset is paired with your mobile
phone.
Ensure that your mobile phone's Bluetooth feature
is activated. Please refer to your mobile phone
user’s guide for specic instructions.
Ensure that the headset is within a 30 ft. range of
your mobile phone and that there are no
obstructions, such as walls or other electronic
devices, between the two.
Ensure that there are no other Bluetooth enabled
devices paired to your headphones. If this occurs,
delete the paired headphones from that device and
try pairing and connecting again.
If you are experiencing Bluetooth connection issues - KEEP
THE MUSIC DEVICE AT OR ABOVE WAIST LEVEL ON YOUR
RIGHT SIDE, THE SAME SIDE AS THE HEADPHONE
ANTENNA. Your body is 80% water. Water blocks low power
radio signal like Bluetooth. In the absence of nearby
ceilings for signal bounce, your body can block the signal
between the music device and the headphones. When
outdoors or at the gym the use of armbands or wrist-worn
music players are recommended. Having your music player
TROUBLESHOOTING in your pants pocket below waist level may produce varied
results as your body can get between the music device &
headphones.
CARE AND MAINTENANCE OF YOUR
HEADSET
i. Consider turning your headset off before placing it
in your pocket or bag. If the Power button is
accidentally activated, your mobile phone may
place an unintended call.
ii. Do not expose the headset to liquid, moisture or
humidity, as it is not waterproof.
iii. Do not use abrasive cleaning solvents to clean
the headset.
iv. Do not expose the headset to extreme
temperatures. The best storage temperature range
is from 40-80 F, otherwise, the life of the headset will
be affected.
v. Do not dispose of the headset in re as this may
result in an explosion.
vi. Do not bring your headset into contact with
sharp objects as this will cause scratches and can
damage the headset.
vii. Do not attempt to disassemble the headset, as it
does not contain serviceable components.
viii. If you do not use the headset for long periods,
be sure to store it in a dry place, free from extreme
temperature conditions and dust.
12

If you are unable to connect your headset and
mobile phone, please try the following:
Ensure that your headset is fully charged and
powered on.
Ensure that the headset is paired with your mobile
phone.
Ensure that your mobile phone's Bluetooth feature
is activated. Please refer to your mobile phone
user’s guide for specic instructions.
Ensure that the headset is within a 30 ft. range of
your mobile phone and that there are no
obstructions, such as walls or other electronic
devices, between the two.
Ensure that there are no other Bluetooth enabled
devices paired to your headphones. If this occurs,
delete the paired headphones from that device and
try pairing and connecting again.
If you are experiencing Bluetooth connection issues - KEEP
THE MUSIC DEVICE AT OR ABOVE WAIST LEVEL ON YOUR
RIGHT SIDE, THE SAME SIDE AS THE HEADPHONE
ANTENNA. Your body is 80% water. Water blocks low power
radio signal like Bluetooth. In the absence of nearby
ceilings for signal bounce, your body can block the signal
between the music device and the headphones. When
outdoors or at the gym the use of armbands or wrist-worn
music players are recommended. Having your music player
in your pants pocket below waist level may produce varied
results as your body can get between the music device &
headphones.
CARE AND MAINTENANCE OF YOUR
HEADSET
i. Consider turning your headset off before placing it
in your pocket or bag. If the Power button is
accidentally activated, your mobile phone may
place an unintended call.
ii. Do not expose the headset to liquid, moisture or
humidity, as it is not waterproof.
iii. Do not use abrasive cleaning solvents to clean
the headset.
iv. Do not expose the headset to extreme
temperatures. The best storage temperature range
is from 40-80 F, otherwise, the life of the headset will
be affected.
v. Do not dispose of the headset in re as this may
result in an explosion.
vi. Do not bring your headset into contact with
sharp objects as this will cause scratches and can
damage the headset.
vii. Do not attempt to disassemble the headset, as it
does not contain serviceable components.
viii. If you do not use the headset for long periods,
be sure to store it in a dry place, free from extreme
temperature conditions and dust.
13

At RevJams, we are dedicated to making the best
quality product. To back this up, your RevJams
Studio Lite Bluetooth Headphones are covered by a
One (1) Year Limited Manufacturer’s Warranty.
Details of the warranty are as follows: for a period of
one (1) year from the date of retail purchase,
RevJams warrants that this product is free of any
defects in manufacturing, materials and workman-
ship. During the warranty period, we shall, at our
sole discretion, repair or replace any defective parts
within a reasonable period of time.
Please visit our website www.revjams.com for
more details
Or Email us at: [e-mail] for
any questions or concerns about your product.
WARRANTY SAFETY INFORMATION
Check local laws regarding the use of mobile
phones and headsets while driving.
If you use the headset while driving, ensure that
your attention and focus remains on the road and
you drive in a responsible and safe manner.
Never allow children to play with the headset, as the
small parts may be a choking hazard.
Observe all signs that require an electrical device or
RF radio product to be switched off in designated
areas. These could include hospitals, airplanes,
blasting areas, and potentially explosive
environments.
Never mount or store your headset over an air bag
deployment area, a serious injury may result when
the air bag deploys.
Do not open or mutilate the built-in battery.
Dispose of batteries according to local regulations.
Do not dispose as household waste.
14

At RevJams, we are dedicated to making the best
quality product. To back this up, your RevJams
Studio Lite Bluetooth Headphones are covered by a
One (1) Year Limited Manufacturer’s Warranty.
Details of the warranty are as follows: for a period of
one (1) year from the date of retail purchase,
RevJams warrants that this product is free of any
defects in manufacturing, materials and workman-
ship. During the warranty period, we shall, at our
sole discretion, repair or replace any defective parts
within a reasonable period of time.
Please visit our website www.revjams.com for
more details
Or Email us at: [e-mail] for
any questions or concerns about your product.
SAFETY INFORMATION
Check local laws regarding the use of mobile
phones and headsets while driving.
If you use the headset while driving, ensure that
your attention and focus remains on the road and
you drive in a responsible and safe manner.
Never allow children to play with the headset, as the
small parts may be a choking hazard.
Observe all signs that require an electrical device or
RF radio product to be switched off in designated
areas. These could include hospitals, airplanes,
blasting areas, and potentially explosive
environments.
Never mount or store your headset over an air bag
deployment area, a serious injury may result when
the air bag deploys.
Do not open or mutilate the built-in battery.
Dispose of batteries according to local regulations.
Do not dispose as household waste.
15

Actual performance may vary due to the user's
habits, different modes of operation, and mobile
phone settings. This manual is for reference
purposes only. The specications and design of the
headset may change without prior notice. Actual
product may dier slightly from the image on the
packaging
PRODUCT SPECIFICATIONS
Bluetooth version: 4.1
Frequency 2.402-2.480GHz
Bluetooth mode: HSP HFP A2DP AVRCP
Working range: 33 ft.
Talk/Music time: Up to 20 hours
Standby time: 250 hours
Charging time: About 3 hours
Battery: 400mAh 3.7V Polymer Li-ion Battery
Speaker size: 40mm 110±3dB 20Hz~20KHz
Microphone: 4015 -42+/-3dB 30-16KHZ
WARNING AND PRECAUTIONS
WARNING: To prevent re or shock hazard, do not
expose this unit to rain or moisture.
WARNING: Do not place this unit directly onto
furniture surfaces with any type of soft, porous, or
sensitive nish. As with any rubber compound made
with oils, the feet could cause marks or staining
where the feet reside. We recommend using a
protective barrier such as cloth or a piece of a glass
between the unit and the surface to reduce the risk
of damage and/or staining.
WARNING: Lithium batteries, like all rechargeable
batteries are recyclable and should be recycled or
disposed of in normal household waste. Contact
your local government for disposal or recycling
practices in your area. They should be incinerated
since they might explode.
NOTE: This device uses an internal rechargeable
lithium-ion battery that should last the lifetime of the
device. If you suspect your battery may be dead after
several attempts to charge, please visit
www.revjams.com for support.
Never disassemble the unit or attempt to remove the
battery as that could cause leakage of an electrolyte
substance
FCC WARNINGS
Warning: Changes or modications to this unit not
expressly approved by the party responsible for
compliance could void the user’s authority to
operate the equipment.
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protections against
harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency and, if not installed and used in accordance
with the instructions, may cause harmful interference
to radio communications.
16

Actual performance may vary due to the user's
habits, different modes of operation, and mobile
phone settings. This manual is for reference
purposes only. The specications and design of the
headset may change without prior notice. Actual
product may dier slightly from the image on the
packaging
WARNING AND PRECAUTIONS
WARNING: To prevent re or shock hazard, do not
expose this unit to rain or moisture.
WARNING: Do not place this unit directly onto
furniture surfaces with any type of soft, porous, or
sensitive nish. As with any rubber compound made
with oils, the feet could cause marks or staining
where the feet reside. We recommend using a
protective barrier such as cloth or a piece of a glass
between the unit and the surface to reduce the risk
of damage and/or staining.
WARNING: Lithium batteries, like all rechargeable
batteries are recyclable and should be recycled or
disposed of in normal household waste. Contact
your local government for disposal or recycling
practices in your area. They should be incinerated
since they might explode.
NOTE: This device uses an internal rechargeable
lithium-ion battery that should last the lifetime of the
device. If you suspect your battery may be dead after
several attempts to charge, please visit
www.revjams.com for support.
Never disassemble the unit or attempt to remove the
battery as that could cause leakage of an electrolyte
substance
FCC WARNINGS
Warning: Changes or modications to this unit not
expressly approved by the party responsible for
compliance could void the user’s authority to
operate the equipment.
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protections against
harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency and, if not installed and used in accordance
with the instructions, may cause harmful interference
to radio communications.
17

Actual performance may vary due to the user's
habits, different modes of operation, and mobile
phone settings. This manual is for reference
purposes only. The specications and design of the
headset may change without prior notice. Actual
product may dier slightly from the image on the
packaging
WARNING AND PRECAUTIONS
WARNING: To prevent re or shock hazard, do not
expose this unit to rain or moisture.
WARNING: Do not place this unit directly onto
furniture surfaces with any type of soft, porous, or
sensitive nish. As with any rubber compound made
with oils, the feet could cause marks or staining
where the feet reside. We recommend using a
protective barrier such as cloth or a piece of a glass
between the unit and the surface to reduce the risk
of damage and/or staining.
WARNING: Lithium batteries, like all rechargeable
batteries are recyclable and should be recycled or
disposed of in normal household waste. Contact
your local government for disposal or recycling
practices in your area. They should be incinerated
since they might explode.
NOTE: This device uses an internal rechargeable
lithium-ion battery that should last the lifetime of the
device. If you suspect your battery may be dead after
several attempts to charge, please visit
www.revjams.com for support.
Never disassemble the unit or attempt to remove the
battery as that could cause leakage of an electrolyte
substance
FCC WARNINGS
Warning: Changes or modications to this unit not
expressly approved by the party responsible for
compliance could void the user’s authority to
operate the equipment.
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protections against
harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency and, if not installed and used in accordance
with the instructions, may cause harmful interference
to radio communications.
18
