RevJams REV-400 User manual

USERS GUIDE
PRO SPORT
REJAMS ACTIVE PRO
WIRELESS HD IN-EAR HEADPHONES
REV-400

Welcome
Thank you for choosing RevJams
Active Pro Wireless HD In-Ear
Headphones
RevJams Active Pro Wireless HD In-Ear Headphones
are the perfect choice for active on the go people.
No wires.
No cables. The RevJams Active Pro wireless Earbuds
use Bluetooth 4.1 technology to connect to your
Tablet, Smartphone, Computer or MP3 and are
perfect for listening to music while on the go,
watching movies, playing video games. All the while
being ready to accept incoming calls. Built-in Li-ion
battery works for up to 6 hours of listening playtime
or 100 hours of standby time. With the RevJams
Active Pro Wireless HD Bluetooth Earbuds you are
always ready to go.

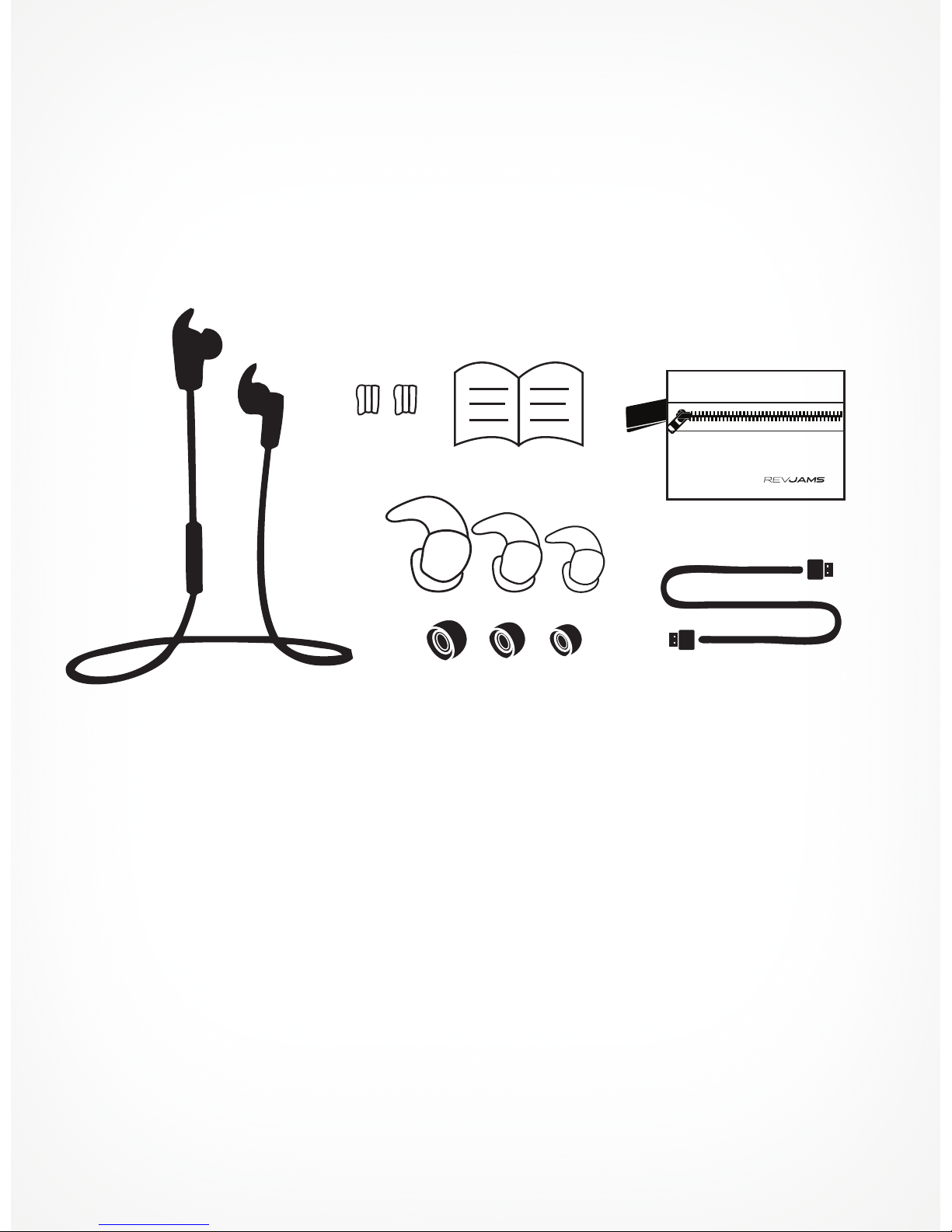

Included in the Package
• RevJams Active Pro In-Ear Bluetooth 4.1
Stereo Headphones
• 3 Sets of Ear gel Tips (S,M,L)
• Micro USB Charging Cable
• 2 Sizing Clips
• 1 Carrying Case
• Users Guide

Description of Parts
Control Unit:
• Micro USB Charging port
• Volume +/ Next Track
• Power/Play/Pause/Pair
• Volume – / Previous Track
• Pairing/ Power LED Indicator
• Microphone
+
-
VOLUME UP / NEXT
VOLUME DOWN / PREVIOUS
MFB (MULTI-FUNCTION BUTTON)
POWER / PLAY / PAUSE / PAIR
MICRO USB
CHARGING
PORT
LED
INDICATOR
MICROPHONE

LED Indicator Guide
Power On
Power O
Charging
Charging Complete
Pairing Mode
Low Power
Flashing blue light
Red light then turns o
Red light
Blue light
Red and blue light ash alternately
Flashing red light

How to Wear
Importance of Proper Fit
Wearing your new headphones properly will oer
optimum comfort and sound quality. The
headphone earpiece has an Active Fit ear gel tip
attached allowing it to rest comfortably in the bowl
of your ear. The wing part of the tip ts just under
your ear ridge. Each tip is marked with either an L or
R to indicate which earpiece it is for.
Be sure to attach the left Active Fit ear gel tip to the
left earpiece and the right Active Fit ear gel tip to the
right earpiece.

To determine if the tip is the right size:
1. Insert the earpiece into the canal just enough for
the headphone to rest lightly against your ear
2. Tilt the headphone back and press the tip wing
under the ear ridge until it is secure
3. The tips should t comfortably yet securely in the
bowl of the ear

Adjusting for Comfort and Stability
One of the ways you can adjust your headset cable
to decrease length and provide additional comfort
and stability is by using the sizing clip which is
enclosed in your package.

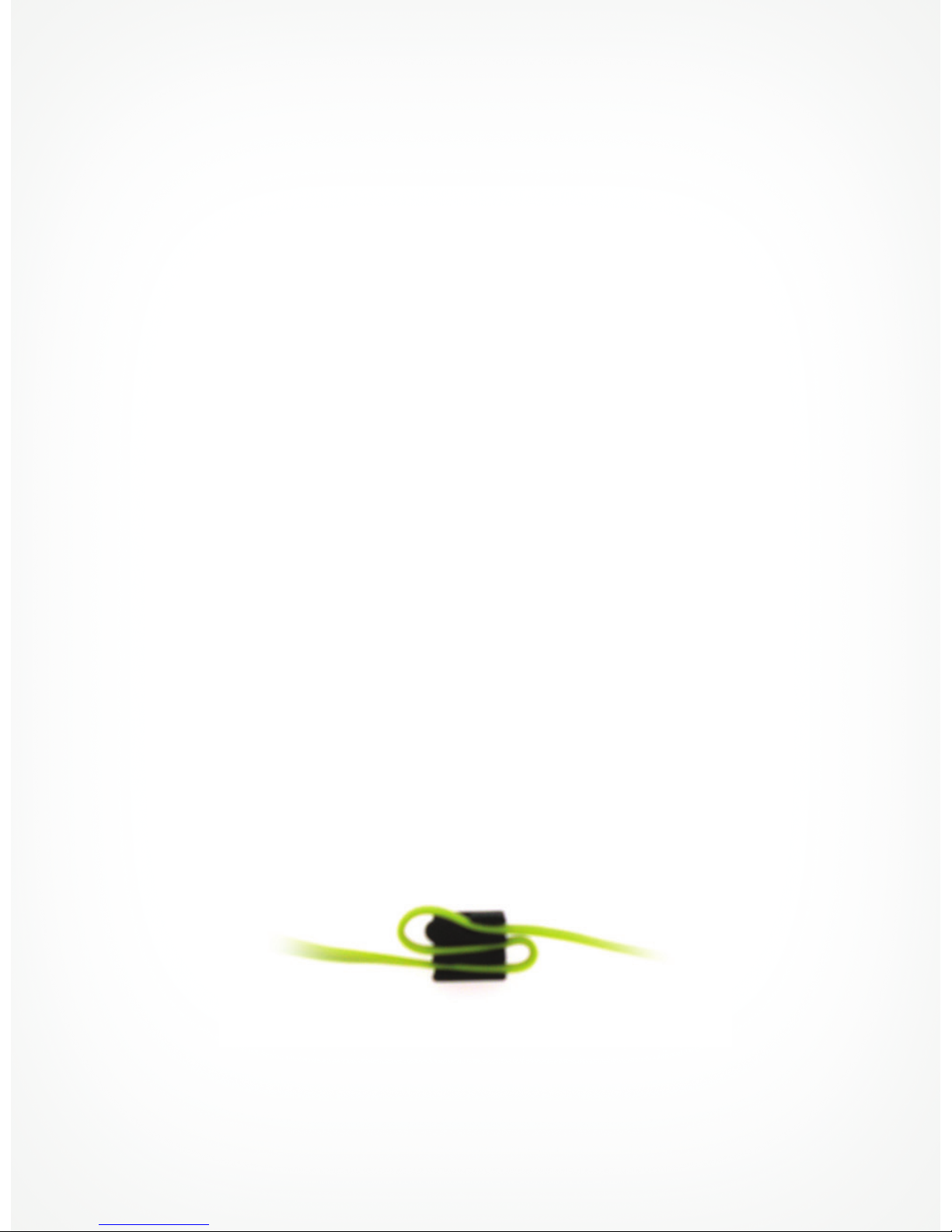

Using the sizing clip
Use the sizing clip to adjust the cable to your desired
length

How to Use
Getting Started
To start using your RevJams Active Pro Wireless HD
in-ear Bluetooth Stereo headphones, please follow
the steps below:
1. Select the appropriate sized ear gel tip and install
as per the instructions above.
Ensure your Bluetooth headset is fully charged.
2. Pair your Bluetooth headset with a Bluetooth-
enabled device prior to use. (See Pairing your
Headset instructions)

Charging Your Headset
Getting Started
Your RevJams Active Pro headset comes with a
built-in rechargeable battery and a Micro USB
charging cable.
Your RevJams Active Pro headset can be charged
either directly from an AC power supply (not
included) or through your PC via a micro USB cable
(included). Charge fully before use. The battery
indicator will turn red when charging and turn blue
once charging is complete. Initial charging time is
approximately 2 hours.

Pairing Your Headset
In order to use your RevJams Active Pro Bluetooth
Stereo Earbuds with a Bluetooth-enabled device,
you will rst need to pair the two.
1. Place the headset and the mobile phone where
they are easily viewable and no more than 3 ft. apart.
2. Ensure that the headset is fully charged
3. Ensure that the headset is turned off (Very
important)
4. Press the Pairing button (middle multi-function
button) for approximately 8-9 seconds until the RED
AND BLUE LIGHT FLASH ALTERNATELY which
indicates that you are in Pairing Mode.
(Note: A blue light will turn on at rst but keep
pressing down on the pairing button until it changes
to a ashing blue/red light which indicates that you
are in pairing mode)

5. Activate your mobile phone's Bluetooth pairing
function.
6. Set the mobile phone to search for Bluetooth
devices within range and select “Revjams Active
Pro” from the list of devices shown.
7. If you are prompted for a Passcode enter “0000”
and press “ok” to pair the headset with your mobile
phone. (Note: If the Bluetooth version of your phone
is 2.1, there is no need to enter the passcode when
pairing.)
8. Now you can use your Bluetooth headset to listen
to music, and make and receive phone calls. Some
mobile phones will connect automatically to the
RevJams Active Pro Bluetooth Earbuds when
powered on.

Using Your Headset
Powering On the Headset
Press and hold down the MFB (Multi-function
button) for 3 seconds until a blue light appears.
Powering O the Headset
Once powered on, Press and hold down the MFB for
3 seconds until a red light appears.
Wearing Your Headset
The Left / Right indicator is located on the inside of
the Earbuds.
Using Your Headset
Answering a Call
When you receive a call, the ring tone will be heard
through the headset. Press the MFB once to accept
the call, or answer the call normally via your mobile
phone.

Rejecting a Call
Press the MFB for 2 seconds to reject the incoming
call.
Ending a Call
Press the MFB once to end the call or hang up on
your mobile phone.
Redialing a Call
Press the MFB twice to redial the last dialed phone
number on your mobile phone.
Adjusting the Volume
Press and hold down the Volume + to increase
volume or Volume – to decrease volume. You will
hear an audible tone when you reach the maximum
or minimum volume level. You can also adjust the
volume on your handset or device.
NOTE: To reach maximum volume BOTH the headset
and phone volume must be turned up!

Play/Pause Music
When the Bluetooth headset is connected with your
mobile phone, press the MFB once to play music.
Press Pause button quickly to pause music.
(Attention: your mobile phone must support A2DP
prole.)
Next Track
Briey press the "Volume +" key to select the next
track.
Previous Track
Briey press the "Volume -" key to select the
previous track.
Connection With The Last Paired Device
When powered on, the headset will automatically
connect with the last successfully paired device. If
the connection is successful, it enters standby mode.
If the devices fail to connect within 5 minutes after
the pairing has been initiated, the headset will turn
o automatically.

Care and Maintenance of Your
Headset
Maintenance of your Headset
Your headset may require periodic cleaning:
• Ear tips: First, remove them from the headset and
wash the tips with a mild detergent and water. Make
sure you thoroughly rinse and dry them before
putting them back on the headset.
• Headset nozzles, Microphone, Answer/End button:
Clean only with a dry, soft cotton swab or equiva-
lent. Never insert any cleaning tool into the nozzle or
microphone opening.
i. Consider turning your headset o before placing it
in your pocket or bag. If the Power button is
accidentally activated, your mobile phone may place
an unintended call. Your Bluetooth headset comes
with a premium quality carry pouch for your
convenience.
ii. Do not expose the headset to liquid, moisture or
humidity, as it is not waterproof.
iii. Do not use abrasive cleaning solvents to clean the
headset.

iv. Do not expose the headset to extreme tempera-
tures. The best storage temperature range is from
40-80F, otherwise, the life of the headset will be
aected.
v. Do not dispose of the headset in re as it this may
result in an explosion.
vi. Do not bring your headset into contact with sharp
objects as this will cause scratches and can damage
the headset.
vii. Do not attempt to disassemble the headset, as it
does not contain serviceable components.
viii. If you do not use the headset for long periods,
be sure to store it in a dry place, free from extreme
temperature conditions and dust. For best protec-
tion, use the included storage pouch.
Troubleshooting
If you are unable to connect your headset and
mobile phone, please try the following:
Ensure that your headset is fully charged and
powered on. Ensure that the headset is paired with
your mobile phone. Ensure that your mobile phone's
Bluetooth feature is

activated. Please refer to your mobile phone user’s
guide for specic instructions.
Ensure that the headset is within a 30ft range of your
mobile phone and that there are no obstructions,
such as walls or other electronic devices, between
the two.
If your device is already paired, try deleting from the
Bluetooth paired devices and re-pairing it
If the above steps do not solve your problem, please
remove your mobile phone battery for a short time
and recharge the headset. Repeat the troubleshoot-
ing sequence.
Warranty
At RevJams, we are dedicated to making the best
quality product we can. To back this up, your
RevJams Bluetooth earphones are warranted for One
(1) full year from the date of purchase. Should you
require additional information or have any questions
about your product or its warranty, please contact us
via email at:
Customer Service: [e-mail]

Product Specifications
Size: 24.8.6X1.02X0.98 inches
Weight: 0.53 oz. (bare)
Voltage: 3.7V
Charging voltage: DC 5V
Charging Jack: Micro USB port
Charging Time: Up to 2 hours Charging current:
100mA Automatic Power off: After 5 minutes
Multi Connection: One headset can be connected to
2 phones Talk/Music time: Up to 6 hours
Standby time: Up to 100 hours
Bluetooth Version: Bluetooth 4.1
Wireless Range: 33Ft (10M)
Digital Volume Control
Built-In Microphone

Battery Specs:
3.7V 55mAh *2 Lithium Battery
DC Battery power: Built-in rechargeable lithium
battery Battery life: Up to 6 hours of Talk/Music Time
Standby Time: Up to 100 hours
Cycle Life: 300 times(the discharge capacity≥80%)
Speaker Specs:
Speaker diameter:Φ10mm
Impedance:16Ω
Rated power:10mW (the max power15mW)
Frequency response:100Hz~5KHz
Sensitivity:100dB±3dB
