RevJams REV-BTH150 User manual

L
R
RE V-BTH150
USERS MANUAL
Wireless Stereo Sport Earbuds

2

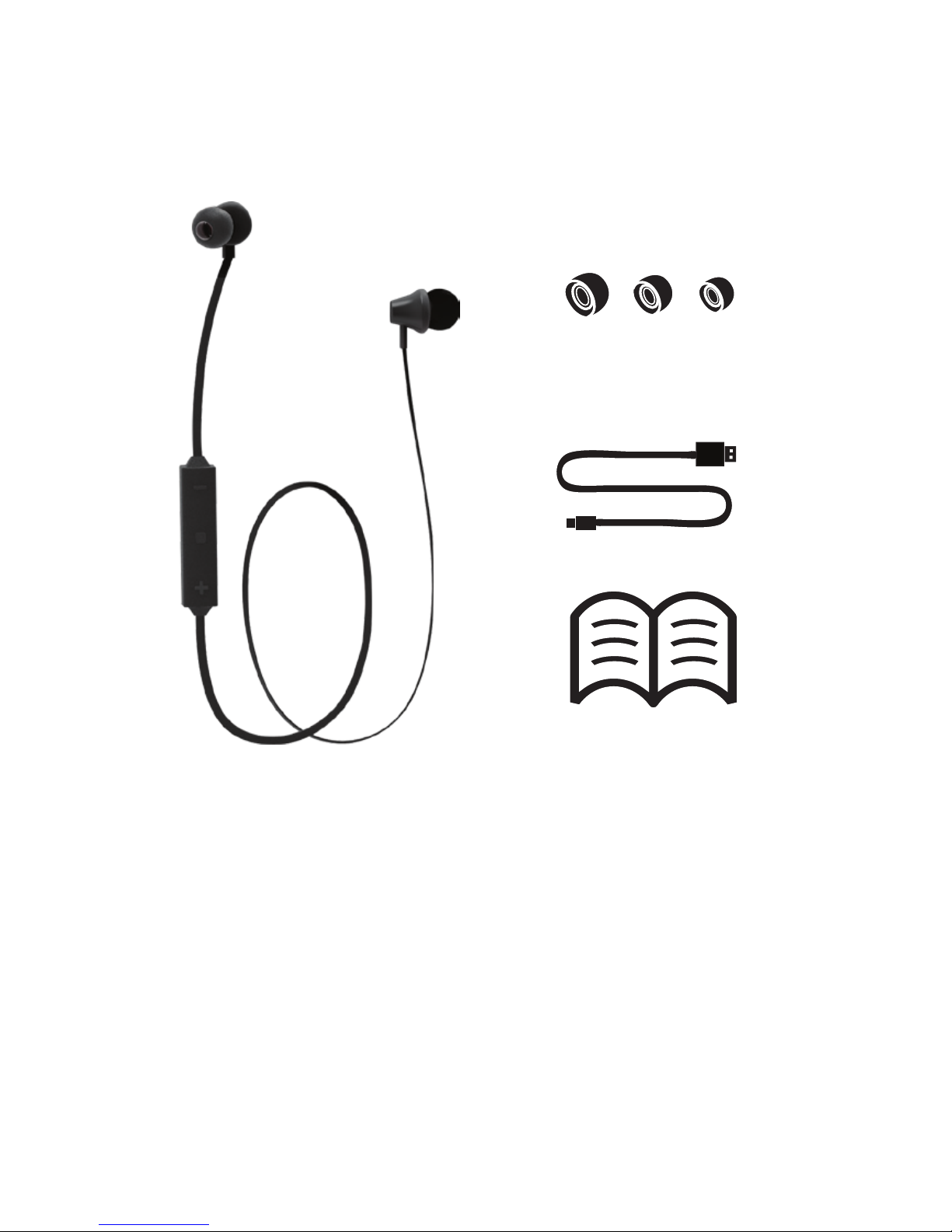

• RevJams PLAY Wireless Stereo Earbuds
• Micro USB Charging Cable
• 3 sets of ear bud tips (S,M,L)
• Users Guide
PACKAGE CONTENTS
3

1. Micro USB Charging port
2. Volume +/Previous Track
3. Multi-Function Button - Power/Play/Pause/Pair
4. Volume – / Next Track
5. Microphone
6. LED Indicator
HEADSET CONTROLS
2
6
1
4
3
5
4

CUSTOMIZE FIT
LM S
A proper t will ensure stability and optimal sound
quality.
5

HOW TO WEAR
L R
RL
R
L
6

CHARGING YOUR HEADSET
Fully charge your Bluetooth earbuds before use.
The LED indicator will turn red when charging and
turn Blue once charging is complete.
Initial charging time is approximately 2 hours.
Appx. 2 hours
7

1. Begin with the headset being powered o and
fully charged.
2. Place the headset and the mobile phone where
they are easily viewable and no more than 3ft. apart.
3. Press and hold the Multi-function button for 5
seconds until the red and blue light ash alternately
which indicates that you are in Pairing Mode.
4. Activate your mobile phone's Bluetooth pairing
function.
5. Set the mobile phone to search for Bluetooth
devices within range and select “RevJams PLAY”
from the list of devices shown.
PAIRING YOUR HEADSET
Please visit our support page at
www.revjams.com/support for helpful tips
such as user’s guide, instructional videos and more!
100%
PRESS & HOLD
Settings
Bluetooth
Bluetooth
RevJams
Play
5
sec
1 2 3
8

Powering On the Headset
Press and hold down the Multi-Function button for 3
seconds until a blue light appears
Powering O the Headset
Once powered on, Press and hold down the
Multi-Function button for 3-4 seconds until a red
light appears.
GENERAL INSTRUCTIONS FOR USE
PRESS & HOLD
3
sec
Power ON
PRESS & HOLD
3-4
sec
Power OFF
9

LED INDICATOR GUIDE
STATUS INDICATOR
Power On Blue Light
Power Off Turns Red to Power Off
Charging Red Light
Charging complete Blue Light
Pairing Mode Red and Blue light ash
alternately in pairing mode
Connected Blue LED slowly ashes
10

CALL MODE
Answering a Call Short Press the Multi-Function button
once to accept the call, or answer the
call normally via your mobile phone
Short Press the Multi-Function button
to end the call or end the call directly
from your mobile phone
Double Press the Multi-Function
button to redial the last dialed phone
number on your mobile phone
Press and hold the Multi-Function
button for 2 seconds to reject the
incoming call
Rejecting a Call
Ending a Call
Redialing a Call
11

MUSIC MODE
Adjusting the
Volume
Short Press the Volume + to increase
volume or Volume – to decrease
volume. You can also adjust the
volume on your handset or device
In music mode, Press and hold the “+"
key to select the Previous track
In music mode, Press and hold the "-"
key to select the Next track
Once connected, Press the
Multi-Function button once to play
music. Short Press the Multi-Function
button to pause music
Play/Pause
Music
Previous Track
Next Track
12

TROUBLESHOOTING
Connection issues
• Be sure that your headset is fully charged and
powered on.
• Be sure that the headset is paired with your mobile
phone.
• Be sure that your mobile phone's Bluetooth feature
is activated.
Audio issues
• Wireless devices are susceptible to interference
that may affect audio quality and result in static.
Make sure there is a direct line of sight between your
headset and phone. Avoid placing objects that can
block radio signals, between paired devices. These
include walls, doors, and windows.
• Make sure the distance between your headset and
the paired device does not exceed 33 feet (10m).
• Keep your headset and mobile phone on the same
side of your body.
Note: Low battery capacity in your earbuds and mobile
phone may aect the Bluetooth range.
Bluetooth Connection issues
If you are experiencing Bluetooth connection issues -
Keep the music device at or above waist level on your
right side, the same side as the headphones antenna
13

WARRANTY
At RevJams, we are dedicated to making the best
quality product. To back this up, your RevJams PLAY
Wireless Stereo Earbuds are warrantied for One (1) full
year from the date of purchase.
Please visit our support page at
www.revjams.com/support for helpful tips
such as user’s guide, instructional videos and more!
For Customer Service / Technical Assistance
Call or Email Us!
Email: [e-mail]
Toll free number: 855-206-6634
14

SAFETY INFORMATION
Check local laws regarding the use of mobile
phones and headsets while driving.
If you use the headset while driving, ensure that
your attention and focus remains on the road and
you drive in a responsible and safe manner.
Never allow children to play with the headset, as
the small parts may be a choking hazard.
Observe all signs that require an electrical device
or RF radio product to be switched off in
designated areas. These could include hospitals,
airplanes, blasting areas, and potentially explosive
environments.
Never mount or store your headset over an air bag
deployment area, a serious injury may result when
the air bag deploys.
Do not open or mutilate the built-in battery.
Dispose of batteries according to local regulations.
Do not dispose as household waste.
15

CARE AND MAINTENANCE OF YOUR
HEADSET
i. Consider turning your headset off before placing it
in your pocket or bag. If the Power button is
accidentally activated, your mobile phone may place
an unintended call.
ii. Do not expose the headset to excessive moisture or
humidity, as it is not waterproof, it is rated IPX3
water-resistant and can withstand moderate
sweating and moisture.
iii. Do not use abrasive cleaning solvents to clean the
headset.
iv. Do not expose the headset to extreme tempera-
tures. The best storage temperature range is from
40-80 F, otherwise, the life of the headset will be
affected.
v. Do not dispose of the headset in re as it this may
result in an explosion.
vi. Do not bring your headset into contact with sharp
objects as this will cause scratches and can damage
the headset.
vii. Do not attempt to disassemble the headset, as it
does not contain serviceable components.
viii. If you do not use the headset for long periods, be
sure to store it in a dry place, free from extreme
temperature conditions and dust.
16

PRODUCT SPECIFICATIONS
Model No. REV-BTH150
Product size: 24X0.5X0.75 inches
Weight: 0.5oz
Playing time: Up to 5 hours
Stand by Time: 70 hours
Charging voltage: DC 5 V
Charging interface: MICRO USB
Charging time：1-2 hours
Auto-shut-off：5 minutes
Noise cancellation：AEC/NR
Sensitivity: 108dB±3dB
Bluetooth version: 4.2
Bluetooth support agreement:
A2DP/AVRCP/HSP/HFP/SPP/HID
Frequency range: 20HZ-20Khz
Bluetooth range: 33 ft.
Battery: 3.7V 65mAH
Impedance: 32Ω
Built in: Microphone
Actual performance may vary due to the user's habits,
dierent modes of operation, and mobile phone
settings. This manual is for reference purposes only. The
specications and design of the headset may change
without prior notice. Actual product may dier slightly
from the image on the packaging.
17

WARNING AND PRECAUTIONS
WARNING: To prevent re or shock hazard, do not
expose this unit to rain or moisture.
WARNING: Do not place this unit directly onto
furniture surfaces with any type of soft, porous, or
sensitive nish. As with any rubber compound made
with oils, the feet could cause marks or staining
where the feet reside. We recommend using a
protective barrier such as cloth or a piece of a glass
between the unit and the surface to reduce the risk of
damage and/or staining.
WARNING: Lithium batteries, like all rechargeable
batteries are recyclable and should be recycled or
disposed of in normal household waste. Contact your
local government for disposal or recycling practices
in your area. They should be incinerated since they
might explode.
NOTE: If you suspect your battery may be dead after
several attempts to charge, please visit
www.revjams.com for support.
Never disassemble the unit or attempt to remove the
battery as that could cause leakage of an electrolyte
substance
FCC WARNINGS
Warning: Changes or modications to this unit not
expressly approved by the party responsible for
compliance could void the user’s authority to operate
the equipment.
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protections against
harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications.
18

WARNING: To prevent re or shock hazard, do not
expose this unit to rain or moisture.
WARNING: Do not place this unit directly onto
furniture surfaces with any type of soft, porous, or
sensitive nish. As with any rubber compound made
with oils, the feet could cause marks or staining
where the feet reside. We recommend using a
protective barrier such as cloth or a piece of a glass
between the unit and the surface to reduce the risk of
damage and/or staining.
WARNING: Lithium batteries, like all rechargeable
batteries are recyclable and should be recycled or
disposed of in normal household waste. Contact your
local government for disposal or recycling practices
in your area. They should be incinerated since they
might explode.
NOTE: If you suspect your battery may be dead after
several attempts to charge, please visit
www.revjams.com for support.
Never disassemble the unit or attempt to remove the
battery as that could cause leakage of an electrolyte
substance
FCC WARNINGS
Warning: Changes or modications to this unit not
expressly approved by the party responsible for
compliance could void the user’s authority to operate
the equipment.
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protections against
harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications.
