Revolve Electronics XE4400 User manual

Owner’s Manual
e4400
X

Specications
POWER
AC INPUT: 100-240V AC 50/60Hz 130mA
USB INPUT: 5V DC 2.1A max.
USB OUTPUT: 5V DC 2.8A max (total)
BATTERY
(2) 2200 mAh Lithium-Ion (4400 mAh total)
This package includes:
- χe4400
- 18650 Lithium batteries (pre-installed)
- USB A to USB Mini B Cable
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
CAUTION: Changes or modications not expressly approved by Revolve
Electronics, Inc. for compliance with FCC rules and regulations could void authority
to operate this equipment.
CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose
of used batteries according to instructions. The χe4400 batteries are designed
exclusively for use with Revolve Electronics’products. DO NOT USE WITH ANY
OTHER PRODUCTS.
Revolve Electronics, Inc.
230 South Olive Street
Ventura, CA 93001
Phone [phone] Fax [phone]
©2012 Revolve Electronics, Inc. All Rights Reserved

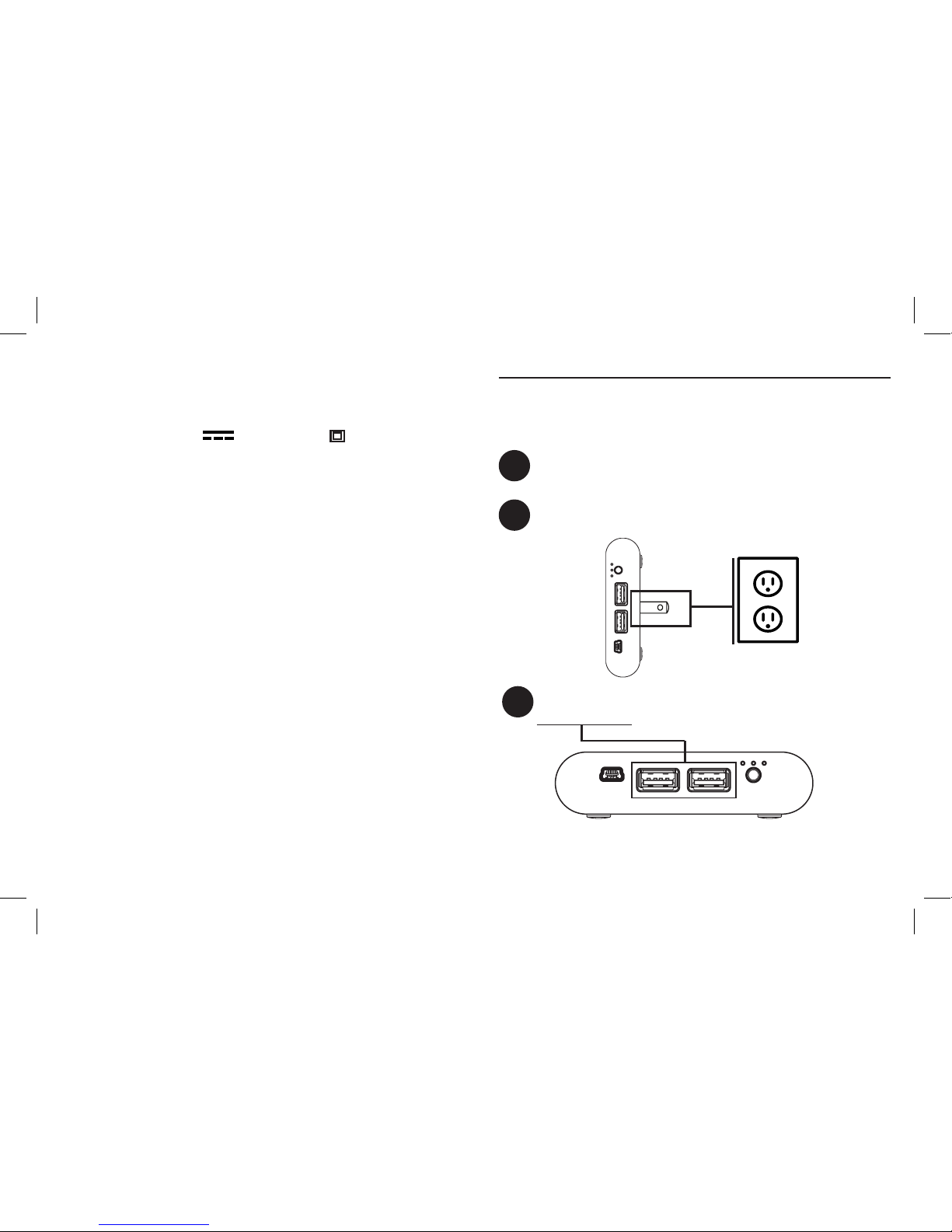

Quick Start
IMPORTANT: Conrm compatibility of χe4400 power inputs
and outputs with external device(s) before making any external
connection(s) (see specications).
Fully charge the χe4400 battery prior to use.
To charge the χe4400 plug into an AC wall socket.
To charge external devices, use cable to connect to USB
power output(s).
Having Trouble? See How to Use the χe4400 or refer to the Troubleshooting Guide in
this manual for more information.
1
2
3
C

How to Use the χe4400
The χe4400 has been designed to help simplify your life. The χe4400
will charge any small electronic device that accepts 5V DC (USB
standard), two at a time! You no longer need to carry multiple power
supplies for your devices. Plus, the χe4400 has a built-in battery to
provide power to compatible devices on the go.
Connecting to Power
IMPORTANT: Conrm compatibility of χe4400 power inputs
and outputs with external device(s) before making any external
connection(s) (see specications).
To get power into the χe4400:
Plug it into an AC outlet.
A
B
Charging External Devices
To charge external device(s), connect up to two compatible devices
to the χe4400’s USB power output(s) using USB cable(s).
Note: Some devices require a proprietary connector to connect to a power source. Since USB
adapters are widely available to accommodate such connectors, we have not included adapters
with the χe4400 to eliminate the potential waste that could result from including adapters that
you may not use or need.
You can also
charge your
χe4400 using your
computer, a Revolve
Sol-Sport5 solar
panel, or the χePico
charger with the
included USB mini
cable.
Your Computer Revolve Sol-Sport5
Revolve χePico

The χe4400 Batteries
The χe4400 Battery Pack is an advanced lithium-ion battery designed
for years of service. To obtain a replacement battery and participate
in our hassle-free battery recycling program, contact Revolve’s
support department at www.revolveusa.com or by emailing us
at [e-mail].
CAUTION: The χe4400 is designed to work exclusively with Revolve’s χe4400 batteries, which are
included in this package. Risk of explosion if battery is replaced by an incorrect type. Dispose of
used batteries according to instructions.
Replacing the batteries
Device Compatibility
Both χe4400 outputs have been designed to be compatible with a
wide variety of devices that accept 5V DC power (USB standard) and
require 2.1A or less, with the following limitations:
Checking Charging Status
When the χe4400 Battery Pack is storing energy from any sources,
the charge status LED will illuminate red. When the χe4400 Battery
Pack is completely charged, the charge status LED will turn o.
Checking Backup Battery Status
To determine the amount of energy stored in the χe4400’s batteries,
press the Battery Status Button
This output is compatible with a
wide range of devices including
iPad, Phone, iPod, and more.
This output is compatible with most
devices, but is not compatible with
certain iPod models.
Green = Recharged
Yellow = Medium Level
Red = Recharge Now

Carefully remove the 4
rubber feet.
Remove the back cover.
The batteries can
now be removed and
replaced. It is VERY
IMPORTANT to make
sure that the positive
(+) and negative (-)
markings on the new
cells match the same
marks found in the
battery compartment.
Replace the back cover,
screws and rubber feet.
1
2
3
4

Service
To obtain service for your χe4400, contact the Revolve Electronics
support department either online at www.revolveusa.com or by
emailing [email protected].
Troubleshooting Guide
Step 1: Verify Compatibility – Before connecting any device to the
χe4400, check the power requirements for the device. The device
must match the input or output requirements of the χe4400. For
example, the χe4400’s output is 5V DC and the external device(s)’
current demand must not exceed 1.2A (1200mA). If the voltage does
not match (i.e. 6V, 9V, etc.), or the current draw exceeds 1.2A (i.e.
1400mA, 1.8A, etc.), do not connect it to the χe4400.
Step 2: Check the Cable – Unplug, then reconnect the cable.
Revolve cables are high-quality and designed to meet the χe4400’s
requirements. Some cables do not connect all lead points and
cables can easily get damaged or short out. If problem persists,
replace cable with a new cable and retest.
Step 3: Check Battery Status Indicator – If your compatible device
is not charging from the χe4400 and you have replaced the cable,
check the χe4400’s battery status by pressing the battery status
indicator button next to the USB outputs on your χe4400. If the
green light does not illuminate, connect the χe4400 to a power
source and allow the χe4400 to recharge.
Note: Your χe4400 has built-in battery protection circuitry that will
automatically turn o your battery when the charge level is too low. To
recover, simply connect your χe4400 to a power source and allow 4-6
hours for it to fully recharge.
You Are Making a Dierence
Eliminating Waste
The χe4400’s packaging has been made from 100% post-consumer
recycled material. We encourage you to keep these materials out of the
landll by separating and recycling them, so that they may be used again.
Unlike proprietary AC chargers that become obsolete and battery
backups that wear out, the χe4400 has been designed to be compatible
with a wide range of devices and deliver many years of use. The
χe4400 uses USB standard power specications that have been widely
adopted by the electronics industry. Organizations like the International
Telecommunications Union are implementing initiatives designed
to expand the adoption of these power standards to make them truly
universal. As a result, your χe4400 will provide power to a wide range of
products both now and in the future.
The χe4400 Battery Pack battery uses advanced lithium-ion technology
to provide maximum service life. However, no battery will last forever.
When you are ready for a new battery, contact Revolve Electronics
Support either online at www.revolveusa.com or by calling (800) 693-
0068 to purchase a replacement and participate in our hassle-free
battery recycling program.
While Revolve Electronics has designed the χe4400 to provide you with
many years of service, you may eventually need to dispose of it. To do so
without causing harm to the environment, we suggest that you contact a
local electronics recycler near you. To locate one, please visit:
NCER US Directory: www.electronicsrecycling.org or
IAER World Directory: www.iaer.org/search/

Exercising Your Voice
By purchasing the χe4400, you have made
a powerful choice. You have chosen to
support a company that believes in a
healthy planet, a sustainable lifestyle, a
rich life experience, and the idea that these
goals are not mutually exclusive. Revolve
Electronics has made very conscious
choices in the design and manufacturing
of this product to include “green” features
and use sustainable materials and
processes. Your purchase has helped to
validate the eorts of our team and makes it possible for us to continue
to oer products that make a positive impact.
The team that has made this product possible is composed of hundreds
of people around the globe. From the χe4400’s designers to the
engineers, from the sourcing agents to assembly workers, our entire
team appreciates you for enabling us to pursue our passions, dreams,
and aspirations. In a very real and tangible way, we are now connected.
To learn more about the story behind the people you have just made a
connection with, visit us at www.revolveusa.com.
A Helping Hand
Every year, Revolve Electronics contributes 10% of our prots towards
assisting “green” entrepreneurs. The best part is that you get to help
us decide who receives this assistance. Simply visit us online at www.
revolveusa.com, register your product, and you can cast your vote for the
organization that you’d like to receive our money.
LIMITED WARRANTY
Revolve Electronics, Inc. (“the Company”) warrants to the original purchaser that
this equipment will be free from defects in materials and workmanship for a pe-
riod of 1 (one) year from the original date of purchase. If a defect exists that is
covered by this Limited Warranty, the Company will, at its sole option, (i) repair
the product at no charge, using new or refurbished replacement parts, (ii) ex-
change the product with a product that is new or which has been manufactured
from new or serviceable used parts and is at least functionally equivalent to the
original product, or (iii) refund the purchase price of the product. A replacement
product/part assumes the remaining warranty of the original product or ninety
(90) days from the date of replacement or repair, whichever provides longer
coverage for you. When a product or part is exchanged, any replacement item
becomes your property and the replaced item becomes the Company’s prop-
erty. When a refund is given, your product becomes the Company’s property. All
warranty returns must be sent with postage and insurance prepaid.
LIMITATIONS
This Limited Warranty applies only to hardware products manufactured by or for
the Company. This Limited Warranty does not apply to any non-Company hard-
ware products or any equipment, even if packaged or sold with Company hard-
ware. This warranty does not apply: (a) to damage caused by accident, abuse,
misuse, misapplication, or non-Company products; (b) to damage caused by
service (including upgrades and expansions) performed by anyone other than
the Company; (c) to a product or a part that has been modied without the writ-
ten permission of the Company; or (d) if any Company serial number has been
removed or defaced.
Responsibility is limited to the actual cost of the item. Company shall not be
liable in any way for damages resulting from use, intended or unintended, or
misuse of this product in conjunction with any device or accessory other than
an appropriate equipment or devices as described in the product manual. Com-
pany will not be responsible for expenses or inconveniences, or consequential
damages occasioned by equipment, or by breach of any expressed or implied
warranty with respect thereto. Implied warranties on this item shall be in eect
only for duration of the expressed warranty set forth above and after the ex-
piration of such expresses warranty there shall be no warranties, expressed or
implied (including merchantability) on the product.
