Revolve Electronics XeMini User manual

Owner’s Manual

Quick Start
IMPORTANT: Conrm compatibility of χeMini power inputs
and outputs with external device(s) before making any
external connection(s) (see specications).
Install χeBattery (included) and replace battery
cover door.
To charge external devices, use cable (not included)
to connect to USB power output(s).
To connect the χeMini to a power source:
Having Trouble? See How to Use the χeMini or refer the
Troubleshooting Guide in this manual for more information.
Specications
POWER
AC INPUT: 100-240V AC 50/60Hz 100mA
USB INPUT: 5V DC 0.5-2A
USB OUTPUT: 5V DC 1.2A (max)
BATTERY
2200 mAh Lithium Ion
PV PANEL
5V .8 Watts
CAUTION: Changes or modications not expressly approved
by Revolve Electronics, Inc. for compliance with FCC rules and
regulations could void authority to operate this equipment.
Revolve Electronics, Inc.
2060-D E Avenida de los Arboles #605
Thousand Oaks, CA 91362
Phone [phone]
Fax [phone]
©2010 Revolve Electronics, Inc. All Rights Reserved
2
3
C

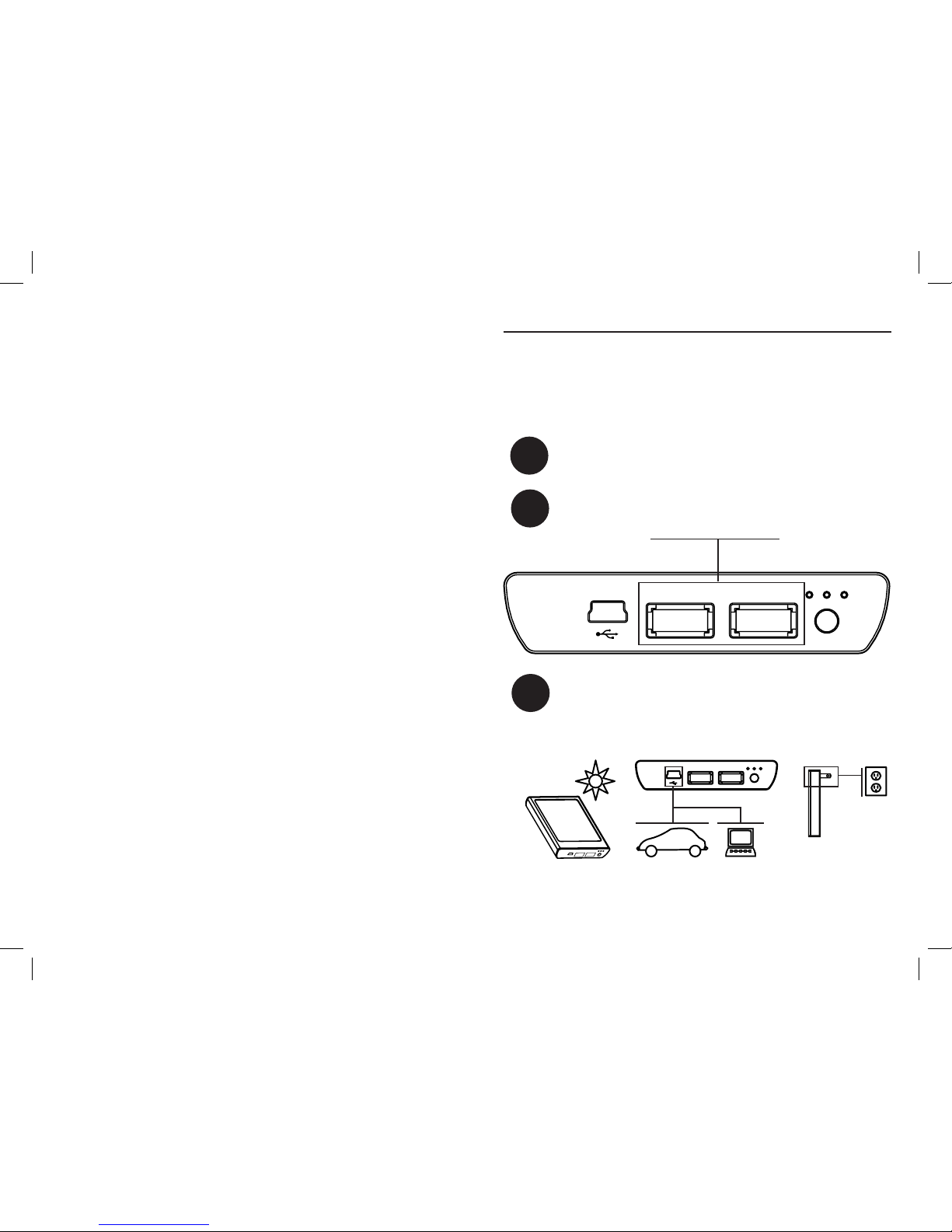

Place in sunlight Connect to USB source Plug into AC outlet
1
CHARGE/SYNC CHARGE
CHARGE/SYNC CHARGE

Connecting to Power
IMPORTANT: Conrm compatibility of χeMini power inputs
and outputs with external device(s) before making any
external connection(s) (see specications).

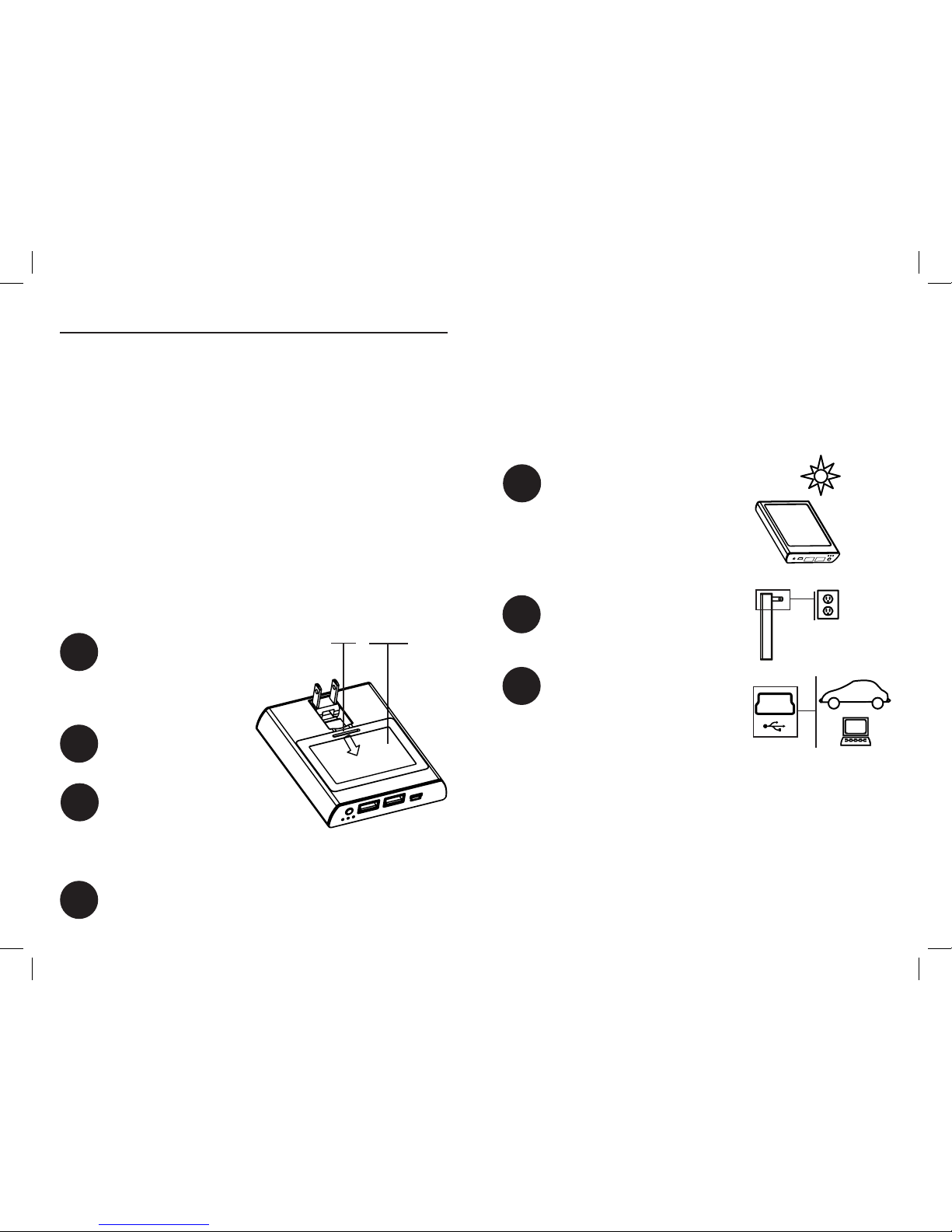

To connect the χeMini to a power source:
Place it in direct sunlight.
Plug it into an AC outlet.
Connect the USB power input
to an external power source
such as a computer or car
charger (see specications)
with a USB cable (not
included).
Or, any combination of the above!
Special Note: if you connect the χeMini to a car charger that
is not iPod/iPhone compatible, the CHARGE/SYNC output on
the χeMini will not be iPod/iPhone compatible. We recom-
mend Revolve’s χePico charger to maximize compatibility.
How To Use the χeMini
The χeMini has been designed to help simplify your life. The
χeMini will charge any small electronic device that accepts 5V
DC (USB standard), two at a time! You no longer need to carry
multiple power supplies for your devices. Plus, the χeMini has
a built in battery back-up to provide power to compatible
devices on the go.
IMPORTANT: The χeMini is designed to work exclusively with
a Revolve’s χeBattery, included this package. The use of any
other battery will void the limited warranty.
Installing The Battery
The χeBattery must be installed in the χeMini before using. To
install battery:
Remove cover by using
nger to gently press tab
on cover away from the
edge and lift.
Remove χeBattery from
protective plastic wrap.
Align contacts on the
χeBattery and χeMini.
Insert the battery’s
contact end in rst and
press battery into place.
Replace battery cover.
Note: The green light will
illuminate in charge status display
when the χeMini is charging via
Light Assisted Power™
A
B
C
1
3
Cover
Tab
4
2
C

Charging External Devices
To charge external device(s), connect up to two compatible
devices to the χeMini’s USB power output(s) using USB
cable(s) (not included).
Note: Some devices require a proprietary connector to connect
to a power source. Since USB adapters are widely available to
accommodate such connectors, we have not included adapters with
the χeMini to eliminate the potential waste that could result from
including adapters that you may not use or need.
Device Compatibility
Both χeMini outputs have been designed to be compatible
with a wide variety of devices that accept 5V DC power
(USB standard) and require 1.2A or less, with the following
limitations:
This output is compatible with most smart devices, but is only
compatible with certain iPod models when the χeMini is also
connected to a computer or external iPod charger, like the χePico.
Charge Status
Light Assisted Power™
Checking Charging Status
When the χeMini is being charged by sunlight, the green
Light Assisted Power™ LED on the face of the χeMini will
illuminate. When the χeMini is receiving a charge from AC or
USB sources, the charge status LED will illuminate red. When
the χeMini is completely charged, the charge status LED will
illuminate green.
Checking Back-Up Battery Status
To determine the amount of energy
stored in the χeMini’s internal back-up
battery, press the Battery Status button.
The Battery Status button will indicate
the level of power in the χeMini’s
battery.
Replacing the Battery
The χeMini includes an advanced lithium-ion battery
designed for years of service. The χeMini battery can be
replaced using ONLY a Revolve Electronics χeBattery. The use
of any other battery in the χeMini voids the limited warranty.
To obtain a replacement battery and participate in our hassle
free battery recycling program, contact Revolve Electronics
Support online at www.revolveusa.com or by calling us toll-
free at [phone].
POWER OUTPUTS
Example: Connecting to iPhone
C
Red = Low Yellow = Medium Green = Full
Battery Status Button
This output is compatible with iPod and iPhone,
but is not compatible with certain smart devices
like Flip.

You Are Making a Dierence
Reducing Your Carbon Footprint
When using a traditional AC charger to recharge your
electronic devices, you connect to an AC outlet and draw
power from the power grid. Grid power is typically generated
using carbon emitting fossil fuels, like coal, oil, and natural gas.
As a result, when you use regular AC chargers to recharge your
devices, you are contributing to environmental pollution.
The χeMini’s exclusive Light Assisted Power™ generates
and stores clean, green power to recharge your compatible
electronic devices. By making the choice to place your χeMini
in the sunlight and recharge with Light Assisted Power™, you
reduce your need for grid power and reduce your contribution
to carbon pollution. With Light Assisted Power™, the χeMini
empowers you to make a positive change.
Eliminating Waste
The χeMini’s packaging has been made from 100% post
consumer recycled material. We encourage you to keep these
materials out of the landll by separating and recycling them,
so that they may be used again.
Unlike proprietary AC chargers that become obsolete
and battery backups that wear out, the χeMini has been
designed to be compatible with a wide range of devices
and deliver many years of use. The χeMini uses USB standard
power specications that have been widely adopted by the
electronics industry. Organizations like the International
Telecommunications Union are implementing initiatives
designed to expand the
adoption of these power
standards to make them truly
universal. As a result, your
χeMini will provide power
to a wide range of products
both now and in the future.
After hundreds of charge
cycles, a dead battery won’t
turn your χeMini into waste
- the χeMini’s battery is easily
replaced. The χeMini’s battery
uses advanced lithium ion technology to provide maximum
service life. But, no battery will last forever. When you are
ready for a new battery, contact Revolve Electronics Support
online at www.revolveusa.com or by calling [phone]
to purchase a replacement and participate in our hassle free
battery recycling program.
Exercising Your Voice
By purchasing the χeMini, you have made a powerful choice.
You have chosen to support a company that believes in a
healthy planet, a sustainable lifestyle, a rich life experience,
and the idea that these goals are not mutually exclusive.
Revolve Electronics has made very conscious choices in the
design and manufacturing of this product to include “green”
features and use sustainable materials and processes. Your
purchase has helped to validate the eorts of our team and
makes it possible for us to continue to oer products that
make a positive impact.

The team that has made this product possible is composed
of hundreds of people around the globe. From the χeMini’s
designers to the engineers, from the sourcing agents to
assembly workers, our entire team appreciates you for
enabling us to pursue our passions, dreams, and aspirations.
In a very real and tangible way, we are now connected. To
learn more about the story behind the people you have just
made a connection with, visit us at www.revolveusa.com.
A Helping Hand
Every year, Revolve Electronics donates 10% of our prots to
charity. The best part is that you get to help us decide
who receives this donation. Simply visit us online at
www.revolveusa.com, register your product, and you can
cast your vote for the charity organization that you’d like to
receive our donation.
Recycling Guide
Packaging–To recycletheχeMinipackaging materialproperly,
please separate the recycled plastic panel from the recycled
cardboard box before depositing into a recycling bin.
Battery - To obtain a replacement battery and participate in
our hassle free battery recycling program, contact Revolve
Electronics Support online at www.revolveusa.com or by
calling [phone].
Electronics – While Revolve Electronics has designed the
χeMini to provide you with many years of service, you may
eventually need to dispose of it. To do so without causing
harm to the environment, we suggest that you contact a local
electronics recycler near you. To locate one, please visit:
NCER US Directory: www.electronicsrecycling.org or
IAER World Directory: www.iaer.org/search/
Troubleshooting Guide
Step 1: Verify Compatibility - Before connecting any device
to the χeMini, check the power requirements for the device.
The device must match the input or output requirements of
the χeMini. For example, the χeMini’s output is 5V DC and
the extrnal device(s) current demand must not exceed 1.2A
(1200mA). If the voltage does not match (i.e. 6V, 9V, etc.), or
the current draw exceeds 1.2A (i.e. 1400mA, 1.8A, etc.), do not
connect it to the χeMini.
Step 2: Check the Cable – Unplug, then reconnect the cable.
Revolve cables are high quality and designed to meet the
χeMini’s requirements. Some cables do not connect all lead
points and cables can easily get damaged or short out. If
problem persists, replace cable with a new cable and retest.
Step 3: Check Battery Status Indicator – if your compatible
device is not charging from the χeMini and you have replaced
the cable, check the χeMini’s battery status by pressing the
battery status indicator button next to the USB outputs on
your χeMini. If the green light does not illuminate, connect the
χeMini to a power source and allow the χeMini to recharge.
Note: your χeMini has built in battery protection circuitry that
will automatically turn o your battery when the charge level
is too low. To recover, simply connect your χeMini to a power
source and allow 4-6 hours for it to fully recharge.
C

Service
To obtain service of your χeMini, contact Revolve Electronics
Support department online at www.revolveusa.com or by
calling [phone].
LIMITED WARRANTY
Evolving Products, Inc. (“the Company”) warrants to the original purchaser that this
equipment will be free from defects in materials and workmanship for a period of 1 (one)
year from the original date of purchase. If a defect exists that is covered by this Limited
Warranty, the Company will, at its sole option, (i) repair the product at no charge, using
new or refurbished replacement parts, (ii) exchange the product with a product that is
new or which has been manufactured from new or serviceable used parts and is at least
functionally equivalent to the original product, or (iii) refund the purchase price of the
product. A replacement product/part assumes the remaining warranty of the original
product or ninety (90) days from the date of replacement or repair, whichever provides
longer coverage for you. When a product or part is exchanged, any replacement item
becomes your property and the replaced item becomes the Company’s property. When
a refund is given, your product becomes the Company’s property. All warranty returns
must be sent postage and insurance prepaid.
LIMITATIONS
This Limited Warranty applies only to hardware products manufactured by or for the
Company.This LimitedWarranty does not apply to any non-Company hardware products
or any equipment, even if packaged or sold with Company hardware. This warranty
does not apply: (a) to damage caused by accident, abuse, misuse, misapplication, or
non-Company products; (b) to damage caused by service (including upgrades and
expansions) performed by anyone other than the Company; (c) to a product or a part
that has been modied without the written permission of the Company; or (d) if any
Company serial number has been removed or defaced.
Responsibility is limited to the actual cost of the item. Revolve Electronics, Inc. will not
be responsible for expenses or inconveniences, or consequential damages occasioned
by equipment, or by breach of any expressed or implied warranty with respect thereto.
Implied warranties on this item shall be in eect only for duration of the expressed
warranty set forth above and after the expiration of such expresses warranty there shall
be no warranties, expressed or implied (including merchantability) on the product.
