RGBlink TAO 1Mini-N User manual

Quick Start
TAO 1mini

1
Content
Packing List .................................................................................................................... 2
About Your Product ....................................................................................................... 3
Product Overview ....................................................................................................3
Key Features ............................................................................................................ 3
Appearance ..............................................................................................................4
Interface ...................................................................................................................5
Dimension ................................................................................................................6
Device Installation and Connection .............................................................................. 7
Connect Video Signal ...............................................................................................7
Connect Power Supply ............................................................................................ 7
Connect Network .................................................................................................... 8
Network Configuration ............................................................................................8
Use Your Product ......................................................................................................... 10
NDI Encoding ......................................................................................................... 10
NDI Decoding .........................................................................................................12
RTMP Push .............................................................................................................13
ON AIR ................................................................................................................... 14
RTMP Pull ...............................................................................................................20
Record....................................................................................................................21
Contact Information .................................................................................................... 22

2

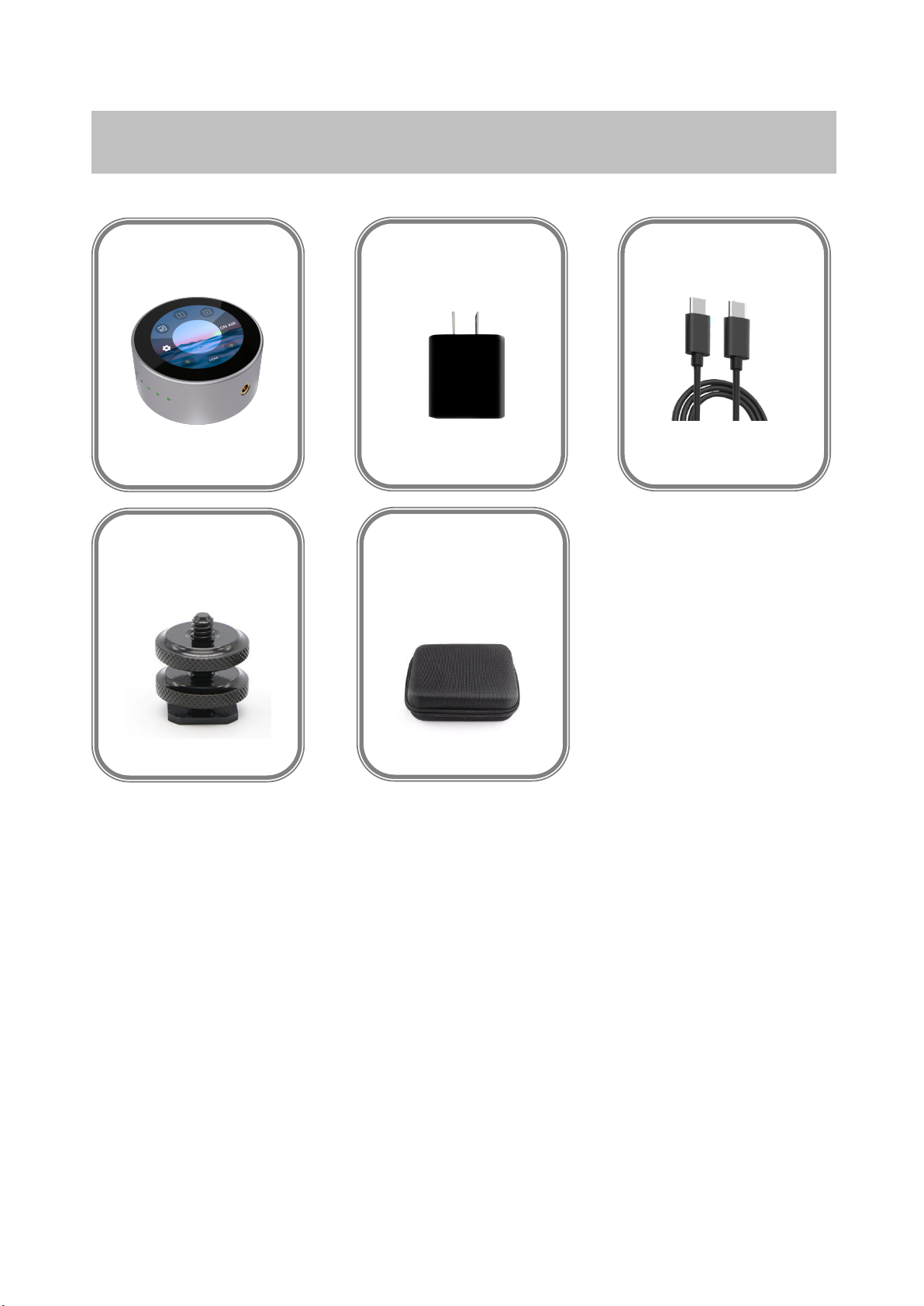

Packing List
TAO 1mini
Power Adapter
USB-C Cable
Double-thread
1/4 Screw
Storage Box

About Your Product
Product Overview
TAO 1mini supports HDMI &UVC and FULL NDI®gigabit Ethernet video
stream codecs for encoding and decoding.
TAO 1mini is small and compact, which makes it easy to carry. Standard
camera screw holes are provided for camera mounting. The device has a
2.1-inch touch screen for real-time monitoring of signals and menu
operations. Support U disk recording, support PoE and other functions.
Key Features
●Small and compact, easy to carry
●Serve as either NDI video encoder or NDI decoder
●Support multiple formats, including RTMP/RTMPS/RTSP/SRT/FULL
NDI/NDI | HX3/NDI | HX2/ NDI | HX
●Stream to at least 4 platforms at the same time
●Low latency of end-to-end transmission
●Intuitive touch control, higher color and image quality
●Power from USB-C or PoE network
●Dual ¼in mounts

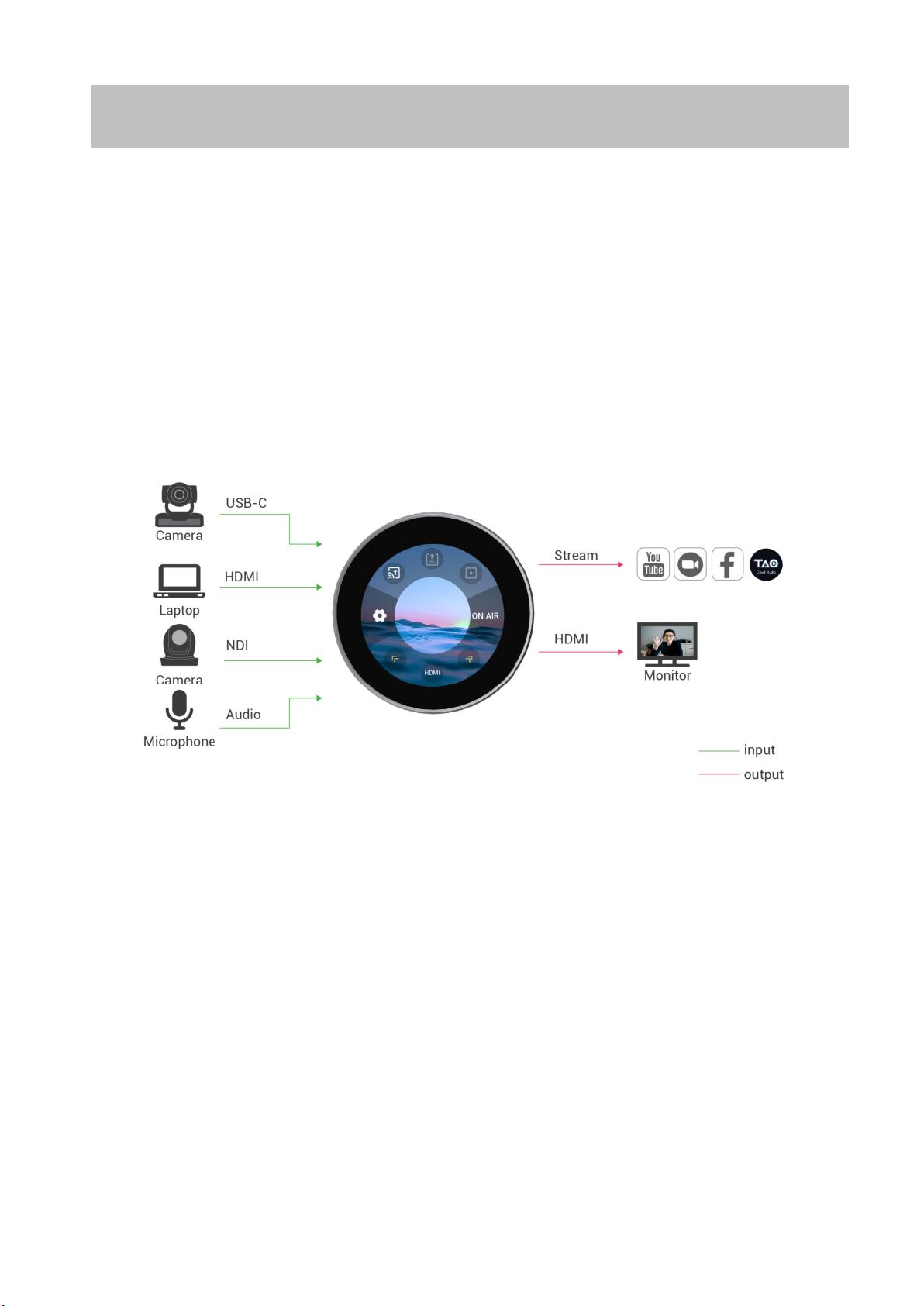

TAO 1mini System Connection Diagram

Appearance
No.
Item
Description
1
Touch Screen
2.1-inch touch screen for real-time monitoring of
signals and menu operations.
2
¼in Mounts
For mounting.
3
Tally Lamp
Work indicators show device status.
1
2
3

Interface
No.
Connectors
Description
1
USB-C
Connect to the power supply, support PD protocol.
2
HDMI-OUT
Connect to external monitor for real-time monitoring of
inputs and outputs.
3
USB-C
For receiving video signal from your phone or others.
Connect to USB camera for UVC capture. Support 5V/1A
reverse power supply.
4
HDMI-IN
For receiving video signal.
5
3.5mm Audio
Socket
For analog audio input and audio output monitoring.
6
USB 3.0
Connect to hard disk for recording, and storage up to 2T.
7
LAN
Gigabit network port with PoE.
7
1
2
3
4
5
6

Dimension
Following is the dimension of TAO 1mini for your reference:
91mm(diameter)×40.8mm(height).
Bottom View Right View
Front View Rear View

Device Installation and Connection
Connect Video Signal
Connect the HDMI/UVC signal source to the HDMI/UVC input port of the
device through a cable. And connect the HDMI output port to the display
device via a HDMI cable.
Connect Power Supply
Connect your TAO 1mini with the packaged USB-C power link cable and
standard power adapter.
TAO 1mini also supports power from PoE network.
Connect the power and video input source correctly, power on the device,
and the 2.1 inch screen will show TAO 1mini logo and then come into
the main menu.
Notice：
1. Users can choose functions through tapping and set parameters through long-pressing.
2. In Settings, users can choose different functions through clicking Arrow Icon.
3. NDI encoding mode and decoding mode cannot work simultaneously.

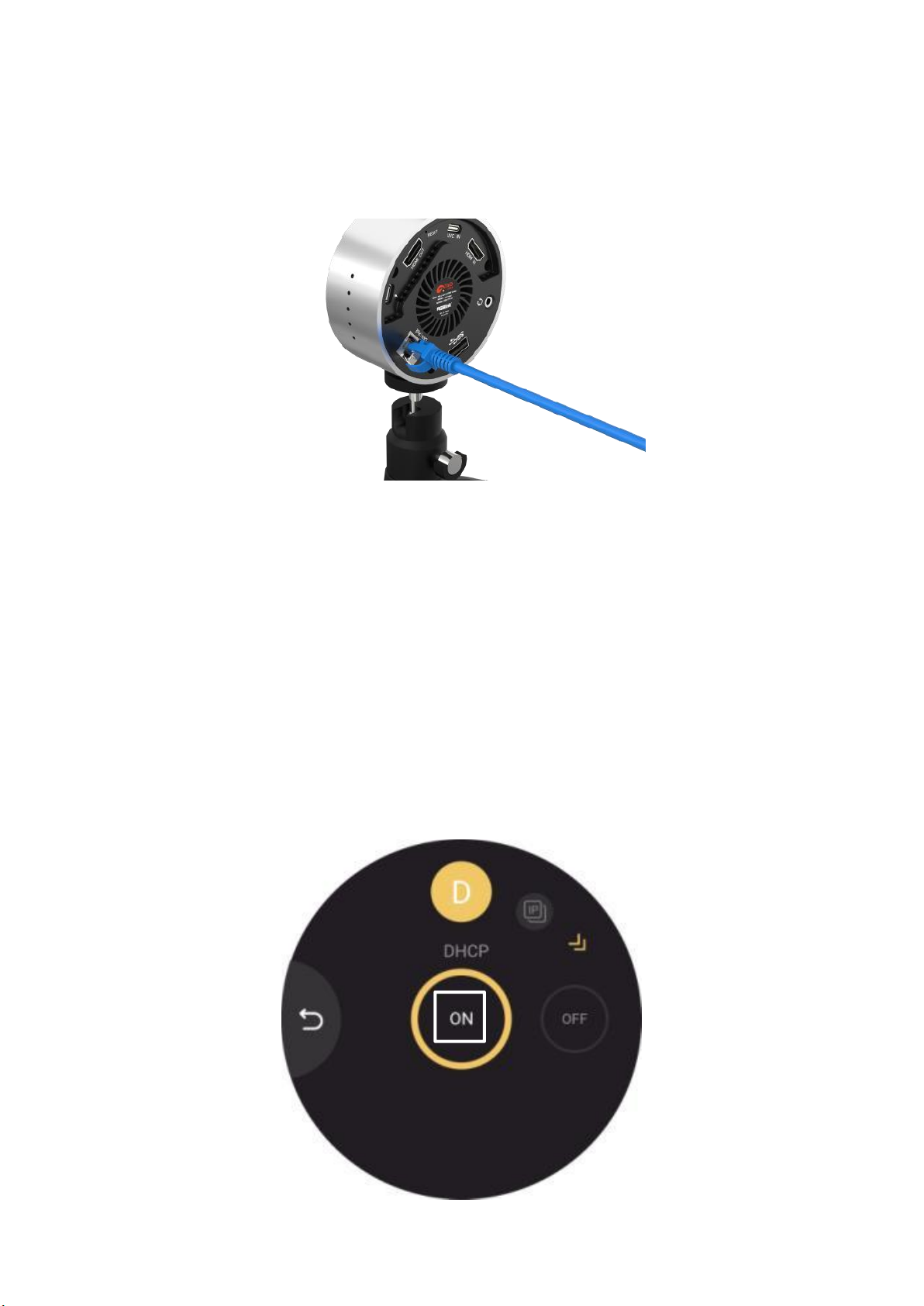

Connect Network
Connect one end of the network cable to LAN port of TAO 1mini. The
other end of the network cable is connected to the switch. You can also
connect directly to the network port of your computer.
Network Configuration
TAO 1mini and your computer configuration must be in the same LAN.
There are two ways to configure a network. You can turn on DHCP for
automatic capture of IP address, net mask and gateway or configure IP
address, net mask and gateway manually by turning off DHCP. The
detailed operations are as follows.
The first way is to use DHCP to automatically obtain IP.
User should firstly ensure that the switch has access to the network.
Then connect TAO 1mini and the computer to the same switch and in the
same LAN. Finally, turn on DHCP of TAO 1mini, no configuration is needed
for your computer.

The second way is Manual Setting.
Step 1: Click Network icon in Settings for TAO 1mini network
configuration. Turn off DHCP and manually configure IP address, net
mask and gateway. The default IP address is 192.168.5.100.
Step 2: Turn off the computer's network an then configure TAO 1mini and
computer to the same LAN. Please set the IP address of the computer
network port to 192.168.5.*.
Step 3: Please click the buttons on the computer as follows: “Network
and Internet Settings”>“Network and Sharing Center”>“Ethernet”>
“Internet Protocol Version 4”>“Use the IP address below”, then
manually enter the IP address with 192.168.5.*.

Use Your Product
After completing the above steps in Device Installation and Connection,
you can use TAO 1mini for following operations.
NDI Encoding
Users can refer to the following diagram for application of NDI encoding.
Input Signal Selection
Tap yellow arrows to select/switch HDMI/UVC as input signal according
to actual input signal source, and make sure the input image can be
displayed successfully on the screen of TAO 1mini.

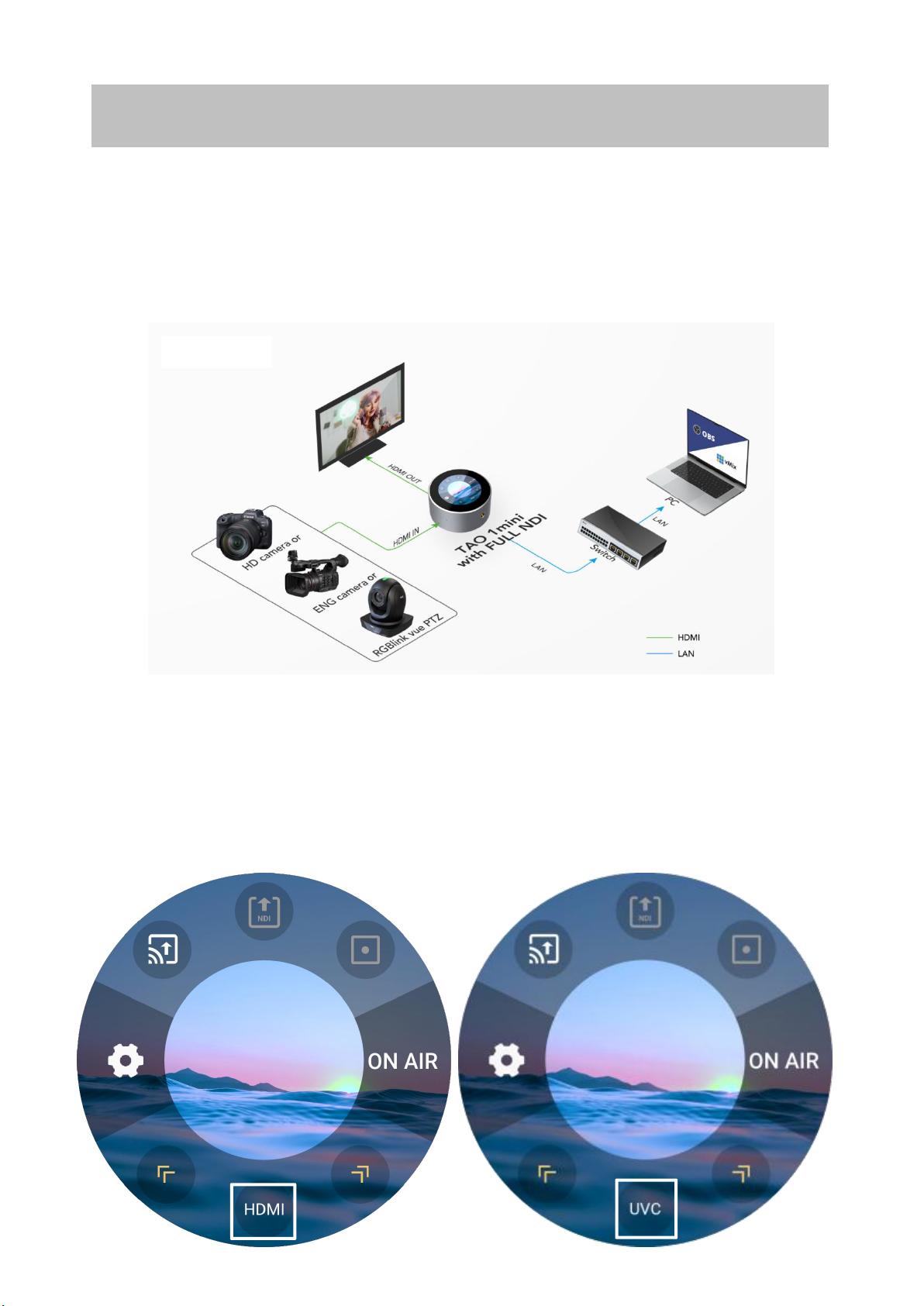

NDI Encoding Connection Diagram

Configure NDI Encoding Parameters

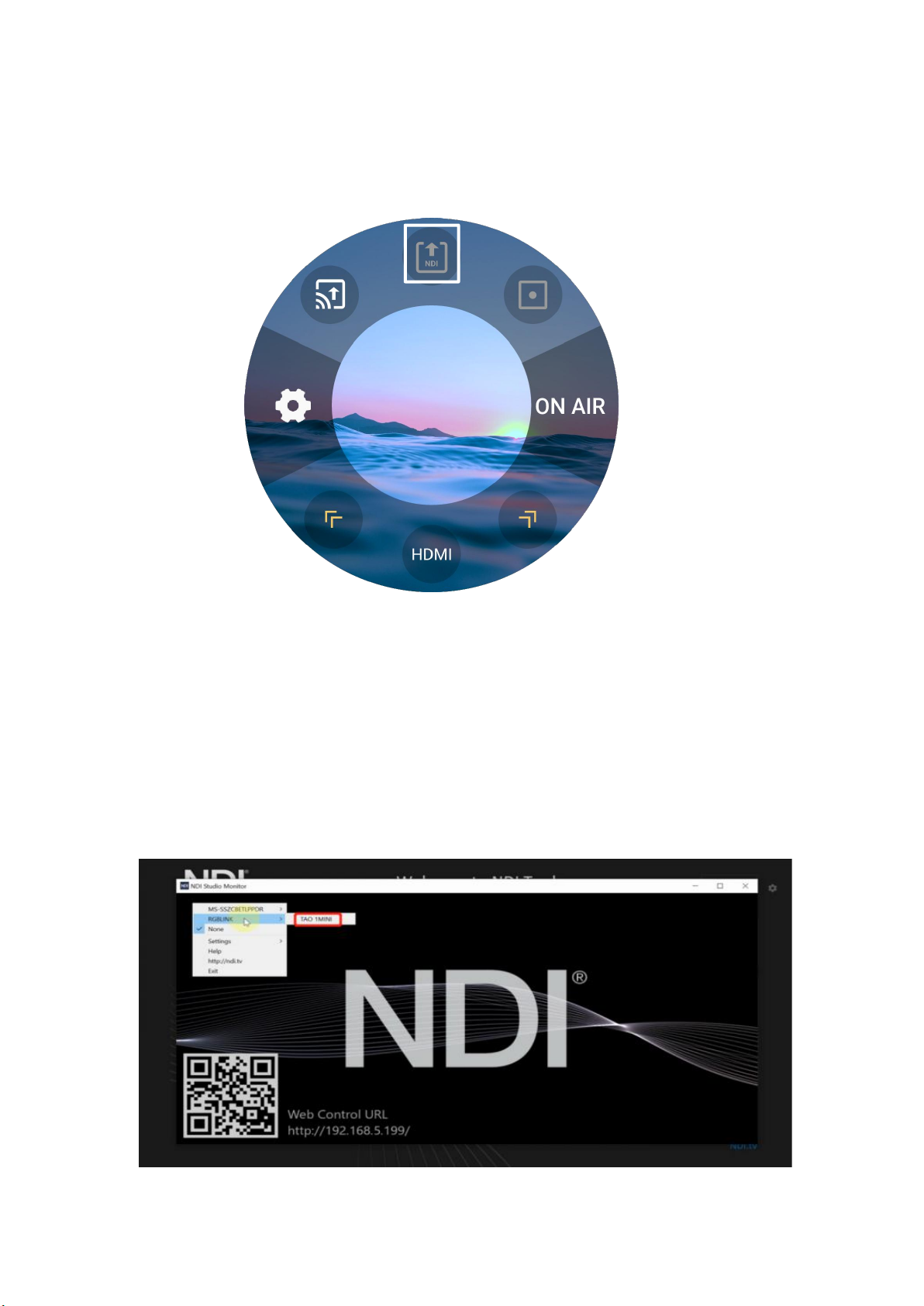

Tap NDI Encoding icon in Output Area to turn on NDI Encoding and long
press the icon to choose encoding format (NDI|HX by default), set
resolution, bitrate and check channel name.
Download NDI Tools
You can download and install NDI Tools from NewTek website for more
operations.
(https://www.newtek.com/ndi/tools/#)
Open NewTek Studio Monitor software and then click the icon in the
upper left corner to display the list of device names that have been
discovered. Select the device you want to connect, and then you can pull
the current video stream of TAO 1mini.

After successful pull of video stream, you can click blank area of device
interface to check NDI resolutions.
NDI Decoding
Users can refer to the following diagram for application of NDI decoding.
You can configure network of other device (Support NDI decoding
function ) and TAO 1mini to the same LAN. Then click Search to find the
NDI sources in the same LAN.
Tap yellow arrows to select NDI Decoding icon. Long press the icon to
enter the following interface.
NDI Decoding Connection Diagram

Find the NDI source to be decoded by swiping the screen and then click
to decode and output.
RTMP Push
Long press RTMP Push icon in Output Area and you can check
RTSP/RTMP/SRT stream address by click . Then the interface will
display the RTSP/RTMP/SRT stream address of TAO 1mini, shown as
below.
Users can modify IP address of TAO 1mini in Network Settings and then
the RTMP/RTSP/SRT stream address will be modified synchronously.
Users can also click Edit Icon at the bottom to set the Resolution, Bitrate
and Display Mode.
Note: NDI encoding mode and decoding mode cannot work simultaneously.

ON AIR

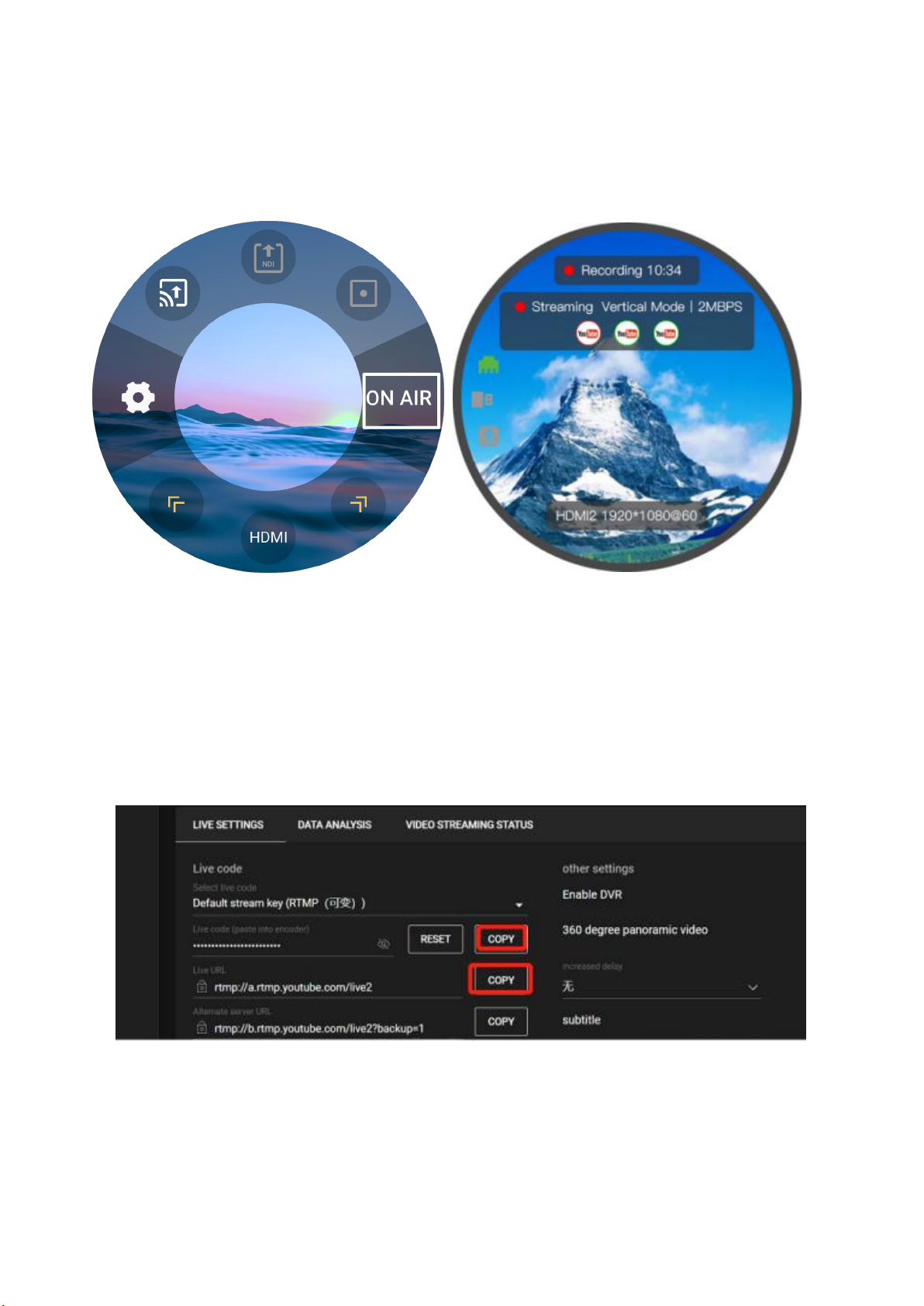

Click ON AIR and TAO 1mini will start streaming.
Following steps take YouTube stream as the example. Two methods for
you to choose from.
The first method is to operate RTMP Push via USB disk.
Step 1: Make sure the device is connected and the network is set up.
Step 2: Open YouTube Studio on your computer to Copy Stream URL and
Stream Key.
Step 3: Create a new TXT file first, and paste the Streaming URL and
Streaming Key (the format must be : rtmp//:YOUR STREAM URL/YOUR
STREAM KEY), and save the TXT file to USB as rtmp.ini.(Newline is
required to add multiple streaming addresses) and connect the USB disk
to TAO 1mini’s USB port.

Step 4: Press and hold the streaming settings, you can see the links of the
platforms identified by TAO 1mini after entering the settings, select the
links of the live stream platforms you need, tap Next. Once the
parameters are set, go back to the home screen and click ON AIR.
The second method is to operate RTMP Push via TAO APP.
Step 1: Copy stream address and stream key to the following address
(https://live.tao1.info/stream_code/index.html) to create the QR code.
The created QR code will be displayed in the right.
Step 2: Use your mobile phone to scan the following QR code so as to
download TAO APP.
Step 3: Click TAO APP Icon to enter the homepage. Click Scan Icon in the
homepage and then click Send RTMP to Device.

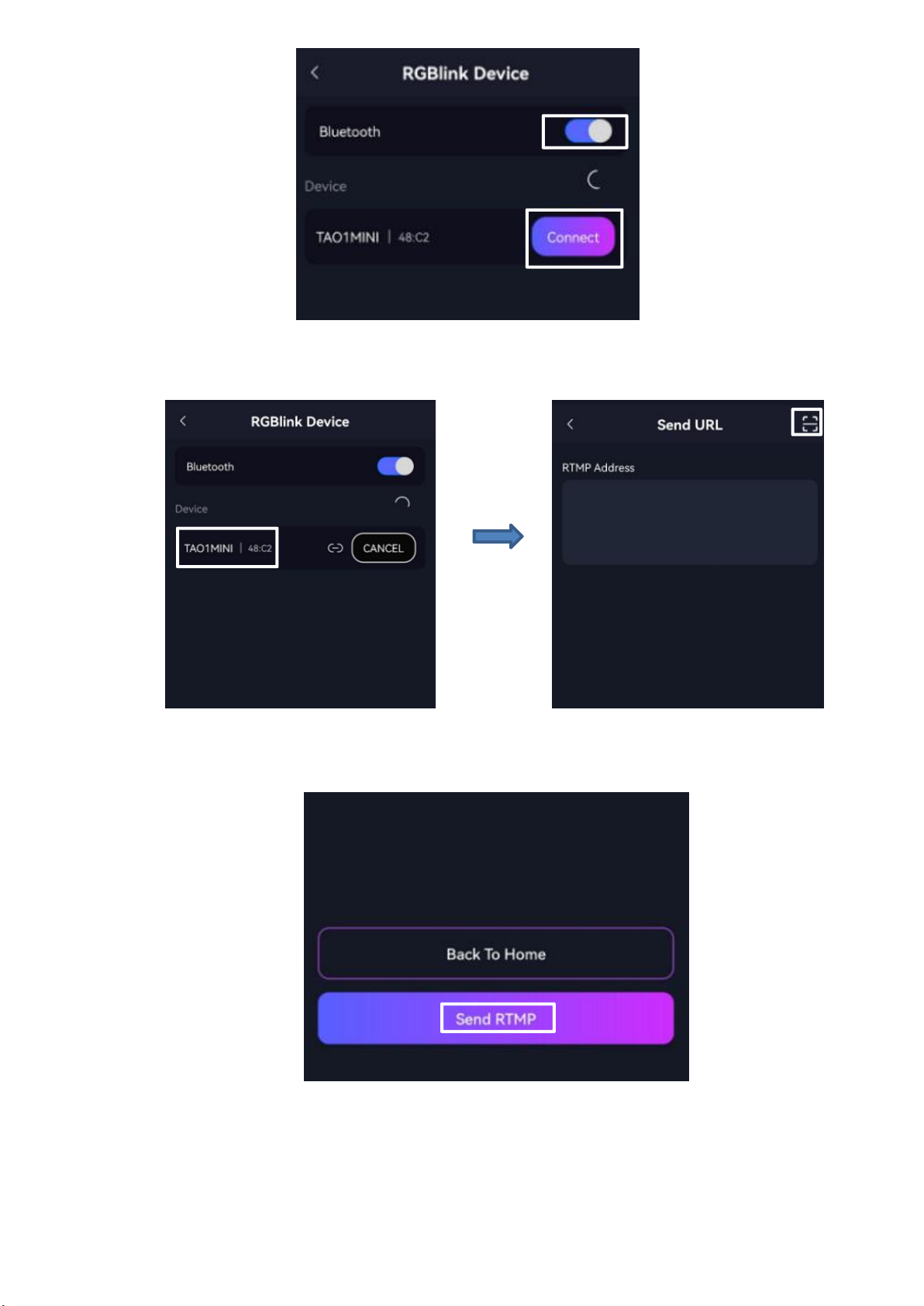

Step 4: Take following steps to turn on Bluetooth of TAO 1mini.
Step 5: Turn on Bluetooth of TAO APP. Then TAO 1mini will be recognized,
shown as below. Click connect to pair TAO 1mini with TAO APP.
Notice: 1. Make sure the distance between TAO 1mini and mobile phone is within 2m.
2. Pair TAO 1mini with TAO APP within 300s.

Step 6: After successful paring, user should click Device Name and then
scan the QR code created in Step 1.
Step 7: The RTMP address will be shown in the box, then click Send
RTMP.
Step 8: Then TAO 1mini will pop up a message, shown as below. Click YES
to receive RTMP stream address.

Then choose the platform you need. The saved platforms are displayed at
the top of the interface, and the newly added platforms are displayed at
the bottom. The green circle indicates the platform been chosen.
Long press the icon to check stream address and click Edit in the middle
for deletion of platform.

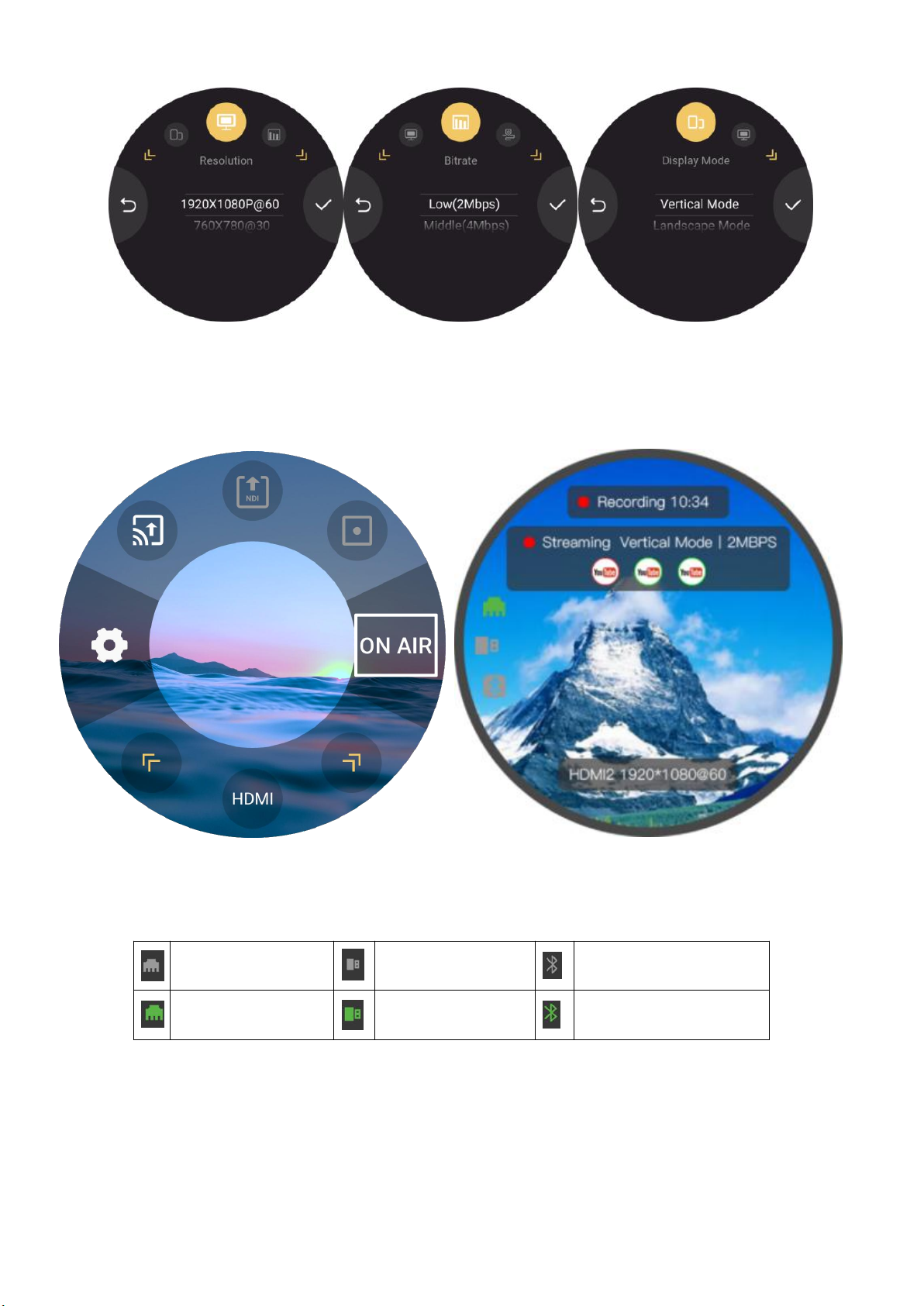

Users can also set Resolution, Bitrate and Display Mode by clicking
shown as below.

Finally, click [ON AIR] in the main interface to stream ( Support up to 4
live streaming platforms at the same time).
Click the blank area of the home page. The left area of interface is the
Status Display Area, which displays the status of the TAO 1mini.
User can do the following operations:
1: The user can hide the setting options by clicking the blank screen. And
the interface will display output information at the top and the input
information at the bottom. As shown in the figure above, information
no network input
no U disk
Bluetooth not connected
with network input
U disk inserted
Bluetooth connected
