RGBlink MSP 325H User manual

1
MSP 325H
Quick Start

© Xiamen RGBlink Science & Technology Co., Ltd.
Ph: [phone] |[email protected] |www.rgblink.com
1
CONTENTS
CONTENTS................................................................................................................................................................... 1
USER YOUR PRODUCT................................................................................................................................................. 2
1. Environment Configuration.............................................................................................................................2
1.1 Log in Web UI........................................................................................................................................ 2
1.2 Check Status.......................................................................................................................................... 2
1.3 Preview Video....................................................................................................................................... 3
2. Encoder Setting............................................................................................................................................... 4
2.1 Main Stream..........................................................................................................................................4
2.2 Audio Setting.........................................................................................................................................5
2.3 Advanced...............................................................................................................................................5
3. OSD.................................................................................................................................................................. 6
3.1 OSD Streaming Setting.......................................................................................................................... 6
3.2 LOGO Upload.........................................................................................................................................7
4. System............................................................................................................................................................. 7
4.1 Network.................................................................................................................................................7
4.2 Password............................................................................................................................................... 8
4.3 Serial to TCP.......................................................................................................................................... 8
4.4 Upgrade.................................................................................................................................................9
4.5 Reset......................................................................................................................................................9
4.6 Reboot................................................................................................................................................. 10
5. Application.....................................................................................................................................................10
5.1 Multicast..............................................................................................................................................10
5.2 Play Source on NVR............................................................................................................................. 11
5.3 Remote RMTP Connection..................................................................................................................12
6. Trouble Shooting........................................................................................................................................... 13
6.1 Cannot login in the WEB UI.................................................................................................................13
6.2 Cannot Play Video on VLC...................................................................................................................14
Contact Information.................................................................................................................................................. 16

© Xiamen RGBlink Science & Technology Co., Ltd.
Ph: [phone] |[email protected] |www.rgblink.com
2
USER YOUR PRODUCT
1. Environment Configuration
1.1 Log in Web UI
Type in 192.168.1.168 to the search bar of your internet browser and open up the online admin interface.
There will pop up and a window asking for user name (admin) and password (admin).
1.2 Check Status
Change the language of WEB UI to English if needed. Check the main stream address as in the red frame.

© Xiamen RGBlink Science & Technology Co., Ltd.
Ph: [phone] |[email protected] |www.rgblink.com
3
1.3 Preview Video
Input signal can be previewed either on WEB UI or on VLC Player
Check 【Status】-【Main Stream】-【Preview Video】
Or play video on VLC Media Player. When there are valid input signal captured, open up VLC Player(download：
http://www.videolan.org/),choose【media】→Open Network Stream.
Type in the TS URLfrom Main Stream

© Xiamen RGBlink Science & Technology Co., Ltd.
Ph: [phone] |[email protected] |www.rgblink.com
4
2. Encoder Setting
2.1 Main Stream
Click【Encoder】→【Main Stream】→Type in each parameter’s value→click Apply
Explanation of Some Parameters:
FPS:Frame Per Second, numbers of picture output each second
GOP:gap of key frame, how many pictures between each two key frame
Bitrate:numbers of bits processed in each second.

© Xiamen RGBlink Science & Technology Co., Ltd.
Ph: [phone] |[email protected] |www.rgblink.com
5
Here is an usual bitrate setting table.
Item
Calculation Formula
192×144
320×240
480×360
640×480
1280×720
1920×1080
EX Low
W×H×3/4
30kb/s
60kb/s
120kb/s
250kb/s
500kb/s
1mbps
Low
W×H×3/2
60kb/s
120kb/s
250kb/s
500kb/s
1mbps
2mbps
Medium
W×H×3
120kb/s
250kb/s
500kb/s
1mbps
2mbps
4mbps
High
W×H×3×2
250kb/s
500kb/s
1mbps
2mbps
4mbps
8mbps
EX High
W×H×3×4
500kb/s
1mbps
2mbps
4mbps
8mbps
16mbps
Bitrate Control
CBR stands for constant bitrate. During CBR encoding, the bitrate or the number of bits per second is kept the same throu
ghout the encoding process.
VBR stands for variable bit rate VBR changes the bitrate according to the image content
2.2 Audio Setting
Click【Encoder】→【Audio】→Type in each parameter’s value→click Apply

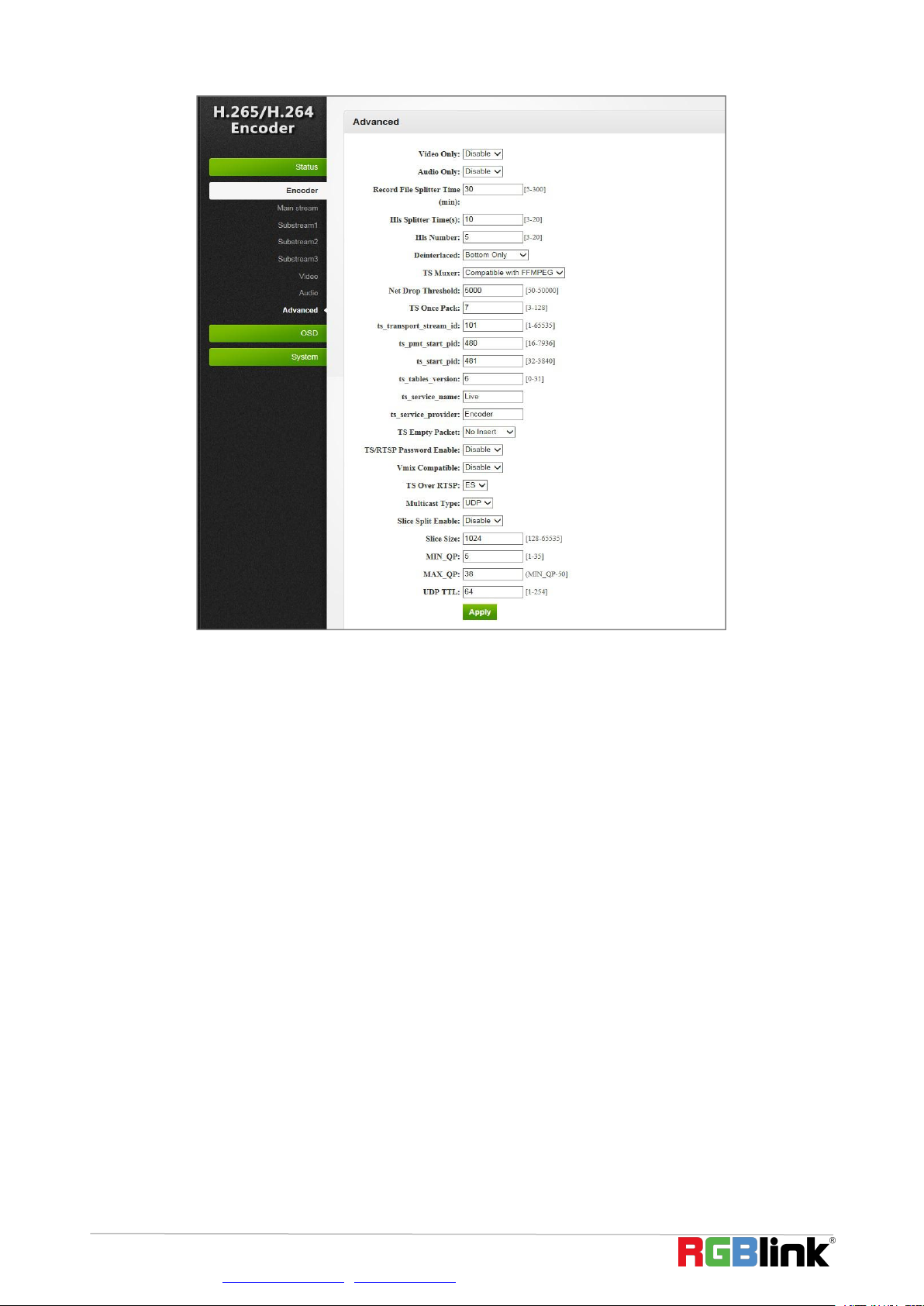

2.3 Advanced
Click【Encoder】→【Advanced】→Type in each parameter’s value→click Apply

© Xiamen RGBlink Science & Technology Co., Ltd.
Ph: [phone] |[email protected] |www.rgblink.com
6
3. OSD
3.1 OSD Streaming Setting
Click【OSD】→【Main Stream】→Type in each parameter’s value→click Apply

© Xiamen RGBlink Science & Technology Co., Ltd.
Ph: [phone] |[email protected] |www.rgblink.com
7
3.2 LOGO Upload
Click【LOGO Upload】→select desired LOGO pic from local→click Upload
4. System
4.1 Network
Click【System】→【Network】→Type in parameters→click Apply

© Xiamen RGBlink Science & Technology Co., Ltd.
Ph: [phone] |[email protected] |www.rgblink.com
8
4.2 Password
Click【System】→【Password】→type in password→click Apply

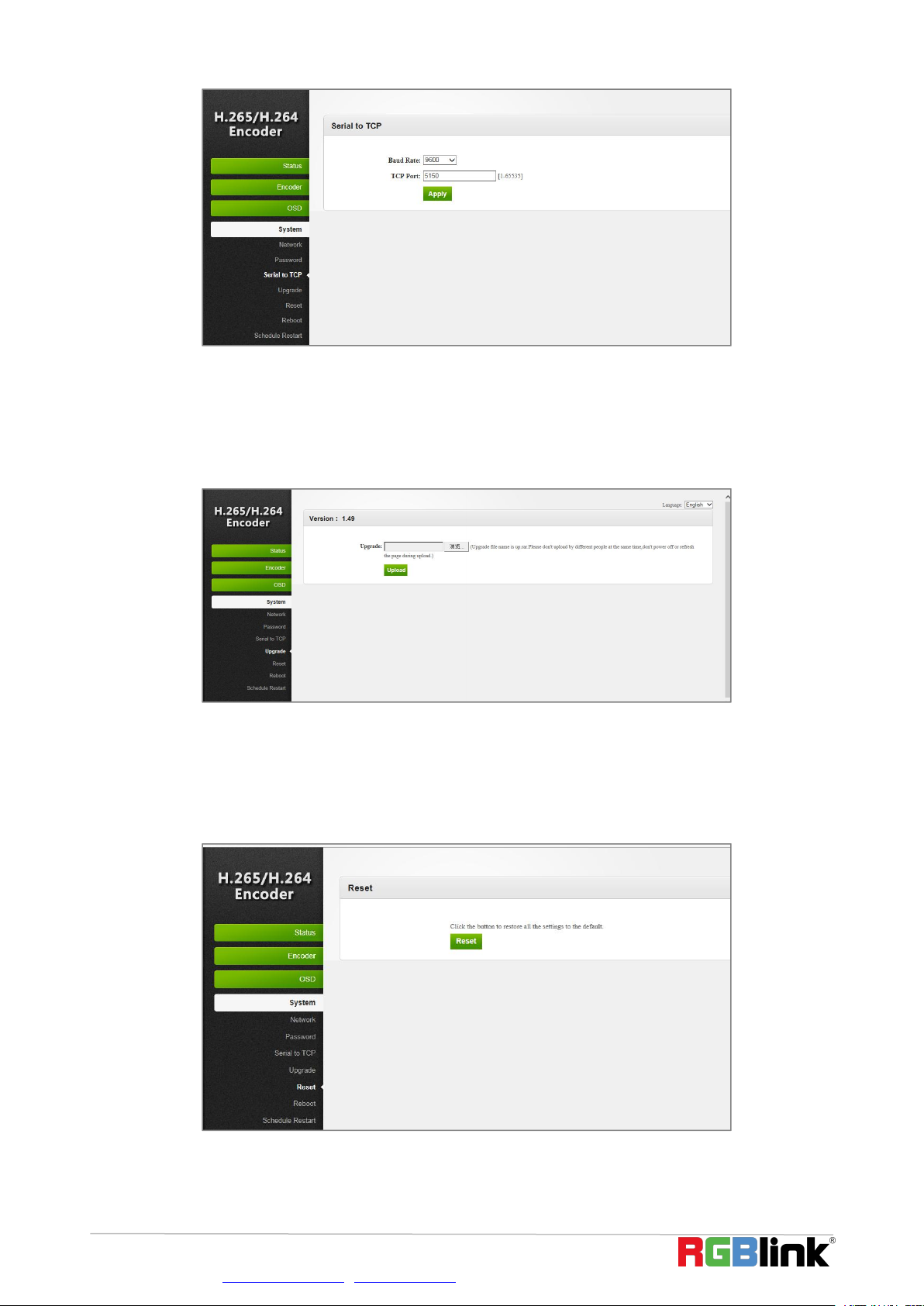

4.3 Serial to TCP
Click【System】→【Serial to TCP】→choose Baud Rate and TCP Port→click Apply

© Xiamen RGBlink Science & Technology Co., Ltd.
Ph: [phone] |[email protected] |www.rgblink.com
9
4.4 Upgrade
Click【System】→【Upgrade】→choose upgrade file.up.rar→click Upload
4.5 Reset
Click【System】→【Reset】→click Reset

© Xiamen RGBlink Science & Technology Co., Ltd.
Ph: [phone] |[email protected] |www.rgblink.com
10
4.6 Reboot
When reboot is required, Click Reboot. (Refresh the webpage 1 minute after reboot)
5. Application
5.1 Multicast
Multicast is designed for multiple local users to watch the video source from one Endcoder.
Enable Multicast in Encoder→Main Stream→Enable Multicast
After Enable Multicast, a warning window pop up. Reboot the Encoder is required.
After rebooting the device, a multicast URL is shown in the Status. Copy the multicast URL and paste on VLC
Player of each each user.

© Xiamen RGBlink Science & Technology Co., Ltd.
Ph: [phone] |[email protected] |www.rgblink.com
11
5.2 Play Source on NVR
1. Make sure your NVR can support H.264 decoding. Due to ONVIF communication, RTSP shall be enabled.
2. If the audio from the Encoder need to be recognizable on NVR, the AUDIO setting shall be done. After AUDIO
Setting, reboot the Encoder is required.

© Xiamen RGBlink Science & Technology Co., Ltd.
Ph: [phone] |[email protected] |www.rgblink.com
12
Note: If NVR cannot play the video after the above setting, download a ONVIF testing tool from
http://url.cn/2ESQRcn to the test the ONVIF feature on Encoder.
If the ONVIF feature is normal, please check the NVR settings.
5.3 Remote RMTP Connection
If a large number of users from all over the country need to watch the video source of the same encoder at the
same time, we suggest the RTMP transfer mode. At present, we perfectly support RTMP server platforms
including free platforms: NGINX, RED5 MEDIA SERVER,paid platform: ADOBE MEDIA SERVER5 and some
platforms such as http://mudu.tv/. Other methods of setting the RTMP publication are as follows:
Since the current RTMP protocol only supports H.264 function, you need to set the encoder type to H.264, set
the RTMP publishing address in the live broadcast platform and enable it as shown in the picture below. After
setting, please restart the encoder.
Note: Some live streaming platforms provides a live code and the RTMP address. Then we need to combine the
two pages of text and fill in to the encoder: RTMP address plus slashes, and live code Such as RTMP address is:
RTMP: / / video mudu. TV/live broadcast code for: abcdef combination: rtmp://video.mudu.tv/live/abcdef

© Xiamen RGBlink Science & Technology Co., Ltd.
Ph: [phone] |[email protected] |www.rgblink.com
13
6. Trouble Shooting
6.1 Cannot login in the WEB UI
If you cannot on open up the WEB UI, check the LAN port and see if it is lit up, if the LAN connection is fine,
but you still cannot open up the page, check your IP address and see if your computer is in the network of
192.168.1.XX, if not here is the method for you to manually check and change your IP address.
Check your IP address
Step 1. Press Windows + X keys together and open Windows
PowerShell (or Command Prompt).
Step 2. Type ipconfig and hit Enter, then the information will be displayed in the window.
Manually Change IP Address
Step 1. Click Start menu, then type Control Panel and click the option on the result.
Step 2. Open Network and Internet >Network and Sharing Center.
Step 3. On the left pane of the new window, click Change adapter settings.
Step 4. You will be displayed with Network Connections of the PC.
Important note: Right click on “Ethernet” or “Local Area Connection” if you want to
change IP of any physical connection. And right click on “WLAN” in case you wish to
change IP of any wireless connections.
Step 5. Choose Properties after right clicking on the network name.
Step 6. Select the Internet Protocol Version 4 (TCP/IPv4), then click Properties.

© Xiamen RGBlink Science & Technology Co., Ltd.
Ph: [phone] |[email protected] |www.rgblink.com
14
Step 7. Obtain an IP Address automatically should be selected by default, but please
choose the Use the Following IP Address.
Step 8. Now put your desired IP Address according to your wish its correct format.
Change Subnet mask and default gateway if you want to.
6.2 Cannot Play Video on VLC
If VLC Player does not play video after TS URL is typed in, check the Status of Encoder and see if there are
video frames collected.

© Xiamen RGBlink Science & Technology Co., Ltd.
Ph: [phone] |[email protected] |www.rgblink.com
15
If the signal collected is 0, please check the connection between input device and Encoder and check the HDMI
indicator is lit up make sure they are correctly connected, and make sure the input source is supported on
Encoder.

© Xiamen RGBlink Science & Technology Co., Ltd.
Ph: [phone] |[email protected] |www.rgblink.com
16
Contact Information
Warranty:
All video products are designed and tested to the highest quality standard and backed by full 1 years parts and
labor warranty. Warranties are effective upon delivery date to customer and are non-transferable. RGBlink
warranties are only valid to the original purchase/owner. Warranty related repairs include parts and labor, but
do not include faults resulting from user negligence, special modification, lighting strikes, abuse(drop/crush),
and/or other unusual damages.
The customer shall pay shipping charges when unit is returned for repair.
Headquarter: S601Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C
● Tel: [phone]
● Fax: [phone]
● Customer Hotline: [phone]
● Web: http://www.rgblink.com
● E-mail: [e-mail]
