Rice Lake 920i Weighing Center User manual

920i® Weigh Center
Agricultural Weighing
Operation Manual
PN 159192 Rev I
February 11, 2021

An ISO 9001 registered company
© Rice Lake Weighing Systems. All rights reserved.
Rice Lake Weighing Systems® is a registered trademark of
Rice Lake Weighing Systems.
All other brand or product names within this publication are trademarks or registered
trademarks of their respective companies.
All information contained within this publication is, to the best of our knowledge, complete and
accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make
changes to the technology, features, specifications and design of the equipment without notice.
The most current version of this publication, software, firmware and all other product updates
can be found on our website:
www.ricelake.com

Contents
© Rice Lake Weighing Systems ● All Rights Reserved i
Contents
Technical training seminars are available through Rice Lake Weighing Systems.
Course descriptions and dates can be viewed at www.ricelake.com/training
or obtained by calling 715-234-9171 and asking for the training department.
1.0 Introduction ................................................................................ 1
1.1 FCC Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.2 Important Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2.1 Safety Decals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2.2 Non-Safety Decals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.3 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.4 Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.4.1 Keypad Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.4.2 Annunciators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.4.3 Softkeys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.5 Indicator Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
1.5.1 Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
1.6 Mount to Animal Scale. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.0 Operation .................................................................................. 13
2.1 Weighing Multiple Animals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.1.1 Weigh Ticket Print-Out. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2.1.2 Last Ticket Reprint. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2.1.3 Summary Report Ticket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.1.4 Shrink. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.2 Weighing a Single Animal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.3 Verify Head Count . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.3.1 Function OFF. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.3.2 Function ON. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.0 Configuration............................................................................ 17
3.1 Database and Stored Workbooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.2 Configuration Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3.3 Zero The Inclinometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3.4 USB Flash Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
3.4.1 Loading Configuration Files and Databases . . . . . . . . . . . . . . . . . . . 19
3.4.2 Loading Database Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
3.5 Saving Configuration Files and Databases . . . . . . . . . . . . . . . . . . . . . . 21
4.0 Front Panel Calibration............................................................ 22
5.0 Appendix................................................................................... 24
5.1 Repair Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5.2 Parts Kit List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
5.3 Weigh Center Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
5.4 Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
5.4.1 Checking Level Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
5.5 Troubleshooting Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
6.0 Specifications........................................................................... 34

920i Weigh Center
ii Visit our website www.RiceLake.com
Rice Lake continually offers web-based video training on a growing selection
of product-related topics at no cost. Visit www.ricelake.com/webinars.
Contents

Introduction
© Rice Lake Weighing Systems ● All Rights Reserved 1
1.0 Introduction
The 920i Weigh Center can be installed on most Rice Lake Weighing Systems livestock
scales. This system is manufactured with top quality components and is engineered using
the latest technology to provide operating features and reliability unmatched for years to
come.
This manual provides operating instructions and configuration information for the 920i
Weigh Center.
Manuals and additional resources are available on the Rice Lake Weighing
Systems website at www.ricelake.com
Warranty information can be found on the website at www.ricelake.com/
warranties
Safety Signal Definitions:
Indicates an imminently hazardous situation that, if not avoided, will
result in death or serious injury. Includes hazards that are exposed when
guards are removed.
Indicates a potentially hazardous situation that, if not avoided could
result in serious injury or death. Includes hazards that are exposed when
guards are removed.
Indicates a potentially hazardous situation that, if not avoided, could
result in minor or moderate injury.
Indicates information about procedures that, if not observed, could
result in damage to equipment or corruption to and loss of data.
General Safety
Do not operate or work on this equipment unless this manual has been
read and all instructions are understood. Contact any Rice Lake Weighing
Systems dealer for replacement manuals.
Failure to heed may result in serious injury or death.
Do not allow minors (children) or inexperienced persons to operate this unit.
Do not operate without all shields and guards in place.
Do not use for purposes other than weighing.
Do not place fingers into slots or possible pinch points.
Do not use any load bearing component that is worn beyond five percent of the original
dimension.
Do not use this product if any of the components are cracked.
Do not exceed the rated load limit of the unit.
Do not make alterations or modifications to the unit.
DANGER
WARNING
CAUTION
IMPORTANT
WARNING

920i Weigh Center
2Visit our website www.RiceLake.com
Do not remove or obscure warning labels.
Keep hands, feet and loose clothing away from moving parts.
Some procedures described in this manual require work inside the indicator enclosure.
These procedures are to be performed by qualified service personnel only.
Always be certain when lowering the scale that everyone is clear of the scale and any
moving parts.
Use two hands when gripping the lift handle to raise or lower the scale.
Be sure the gates are latched or tied inward before transporting the scale.
Ensure all three hitch lock pins are installed and the suspension stops are in the transport
position before moving the scale.
Livestock scales are not intended for the transportation of livestock or any other goods.
Any addition of weight to the scale while in transport mode can cause premature component
failure and voids the Rice Lake Weighing Systems warranty.
Animal Safety
Animal safety is a very serious issue and must be observed when handling any type of
animal.
The scale surface may become slippery during use; a build-up of manure on the scale may
reduce traction. It is recommended to take any necessary precautions to maintain an
acceptable level of animal footing.
Calibration
Do not calibrate this scale with a weight cart having a gross weight in excess of 25% of the
total capacity of the scale. See the scale installation manual for specific calibration
instructions. This device is designed to be calibrated with single block weights spread
evenly throughout the floor of the scale. If using a test cart, use 3/4'' plywood for testing and
calibration. This will minimize the damage to the x-lug flooring. Shift tests should not be
done with more than 4,000 lb or 1,815 kg in a 4' x 4' area. Failure to comply with this warning
will result in damage to the scale and void the warranty.
IMPORTANT

Introduction
© Rice Lake Weighing Systems ● All Rights Reserved 3
1.1 FCC Compliance
United States
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
Canada
This digital apparatus does not exceed the Class A limits for radio noise
emissions from digital apparatus set out in the Radio Interference Regulations of
the Canadian Department of Communications.
Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant
les limites applicables aux appareils numériques de la Class A prescites dans le
Règlement sur le brouillage radioélectrique edicté par le ministère des
Communications du Canada.

920i Weigh Center
4Visit our website www.RiceLake.com
1.2 Important Decals
For safety decal information see Section 1.2.1.
For non-safety decal information see Section 1.2.2 on page 5.

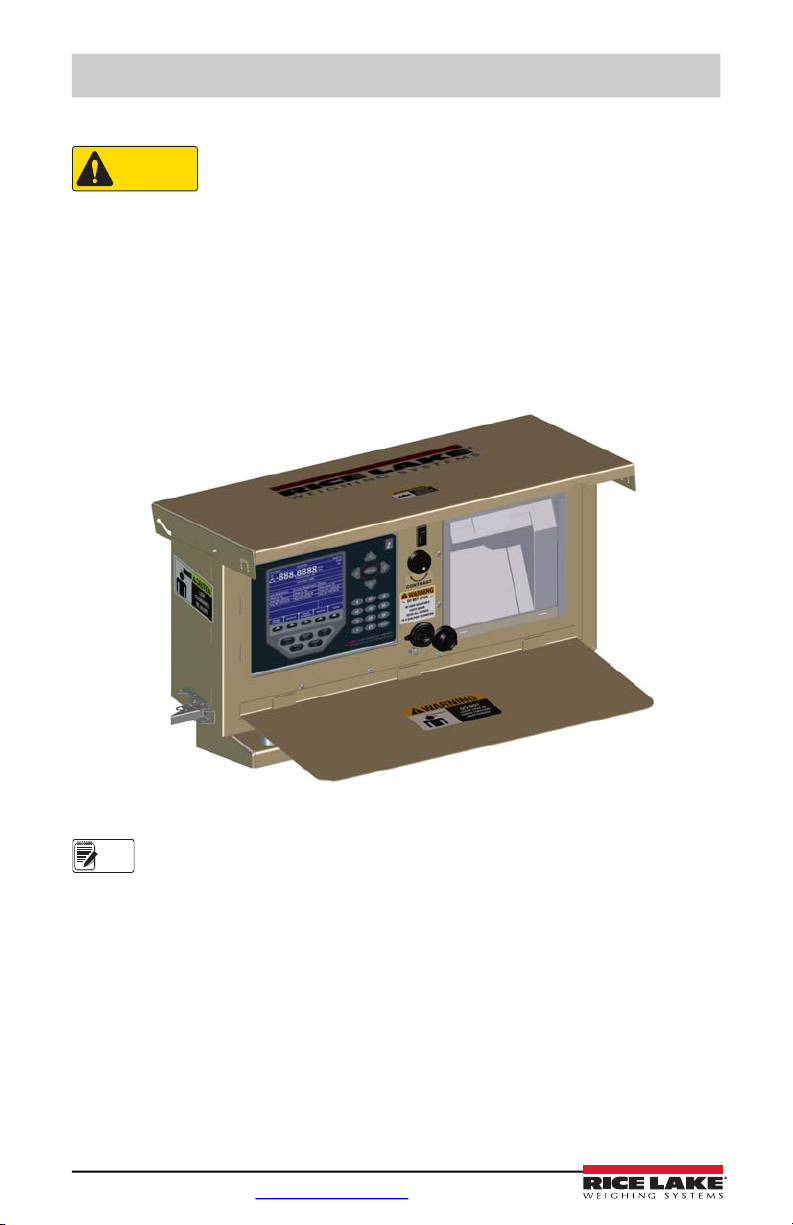

Figure 1-1. Decal Locations
1.2.1 Safety Decals
Figure 1-2. Safety Decals
Item No. Part No. Description Qty.
1 151908 Read Manual 1
2 151904 Caution, Low Clearance 1
3 151907 Warning, Do Not Leave Tray Down 2
4 151906 Warning, Do Not Open 1
5 161043 Label, Contrast Control 1
– 164911 Label, 920AG Indicator 1
Table 1-1. Decals List
1
2
5
4
3
1
4
3
2

Introduction
© Rice Lake Weighing Systems ● All Rights Reserved 5
1.2.2 Non-Safety Decals

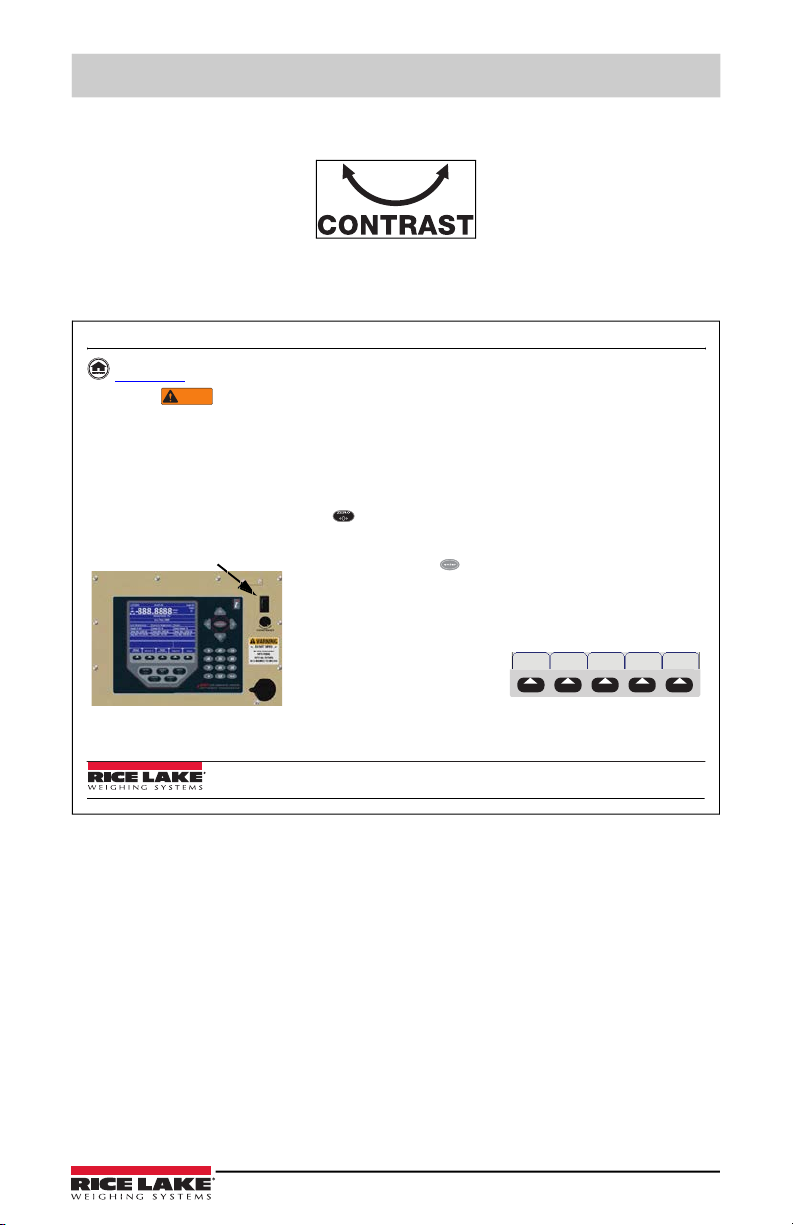

Figure 1-3. Contrast Control Switch Label
(Item No. 5 in Figure 1-1 on page 4 for Location)
Figure 1-4. 920i Ag Indicator Label
$XJXVW 315HY$
www.ricelake.com
Rice Lake Weighing Systems is an ISO 9001 registered company.
Specifications subject to change without notice.
© Rice Lake Weighing Systems
230 W. Coleman St. • Rice Lake, WI 54868
PHONE: [phone] • FAX: [phone]
2SHUDWRU&DUG ² $*  /LYHVWRFN'LJLWDO:HLJK&HQWHU
5HIHUWR2SHUDWRU¶V0DQXDO31IRUGHWDLOHG
LQVWUXFWLRQV0DQXDOVDUHDYDLODEOHRQRXUZHEVLWHDW
ZZZULFHODNHFRPPDQXDOV
)DLOXUHWRKHHGPD\UHVXOWLQVHULRXVLQMXU\RUGHDWK
'RQRWDOORZPLQRUVLQH[SHULHQFHGSHRSOHWRRSHUDWH
'RQRWRSHUDWHZLWKRXWDOOVKLHOGVDQGJXDUGVLQSODFH
'RQRWXVHIRUSXUSRVHVRWKHUWKDQZHLJKWWDNLQJ
'RQRWSODFHILQJHUVLQWRVORWVRUSRVVLEOHSLQFKSRLQWV
'RQRWXVHORDGEHDULQJFRPSRQHQWVZRUQEH\RQGRIWKH
RULJLQDOGLPHQVLRQ
'RQRWXVHWKLVSURGXFWLIDQ\FRPSRQHQWVDUHFUDFNHG
'RQRWH[FHHGWKHUDWHGORDGOLPLWRIWKHXQLW
'RQRWPDNHDOWHUDWLRQVRUPRGLILFDWLRQVWRWKHXQLW
'RQRWUHPRYHRUREVFXUHZDUQLQJODEHOV
)LJXUH,QGLFDWRU)URQW3DQHO
,QGLFDWRU2SHUDWLRQV
3RZHU6FDOH
3UHVVWKHSRZHUVZLWFKWRWXUQWKHLQGLFDWRURQRURII
(QWHU6KULQN
6KULQNYDOXHLVDSSOLHGWRWKHJURVVZHLJKWDQGLVOLPLWHGWR
SHUFHQW
3UHVVWKH6KULQNVRIWNH\DQ\WLPHWRFKDQJHWKHVKULQN
SHUFHQWDJH
(QWHU+HDG&RXQW
 ,QVHUWWLFNHWLQWRWKHSULQWHU3UHVV)25:$5'RQWKH
SULQWHUWRVHFXUHWKHSDSHU
 9HULI\WKHVFDOHLVOHYHO,IQRWLWZLOOEODQNWKHZHLJK
GLVSOD\DQGJRWRDVFUHHQVKRZLQJWKHFXUUHQWSLWFKDQG
UROO
 3UHVV WRUH]HURVFDOHLIUHTXLUHG
 /RDGDQLPDOVRQWRVFDOH
 3UHVVWKH:HLJK$QLPDOVVRIWNH\(QWHU+HDG&RXQW
GLVSOD\V
 (QWHUWKHQXPEHURIDQLPDOVDQGSUHVV 2QFHWKH
VFDOHLVVWDEOHKHDGFRXQWWRWDOZHLJKWDQGDYHUDJH
ZHLJKWSHUKHDGLVGLVSOD\HGDQGWLFNHWZLOOEHJLQWRSULQW
DQGDGYDQFH
 /DVWZHLJKPHQWLQIRUPDWLRQRIWKHSUHYLRXVJURXSRI
DQLPDOVRQWKHVFDOH
 &XUUHQWZHLJKPHQWQXPEHURIDQLPDOVFXUUHQWO\RQ
WKHVFDOHWKHLUWRWDOZHLJKWDQGWKHDYHUDJHZHLJKWSHU
DQLPDO
 7RWDOVWRWDORIDOODQLPDOVZHLJKHGLQWKHFXUUHQW
ZHLJKEDWFKDQGWKHLUDYHUDJHZHLJKW
 8QORDGWKHVFDOH
 5HSHDWVWHSVXQWLODOODQLPDOVIURPWKHFXUUHQWEDWFK
KDYHEHHQZHLJKHG
 3UHVVWKH%DWFK&RPSOHWHVRIWNH\WRFRPSOHWHFXUUHQW
EDWFKRIDQLPDOV6XPPDU\LQIRUPDWLRQLVSULQWHGRQWKH
WLFNHWDQGWKHWLFNHWLVUHOHDVHG
3UHVVWKH5HSULQWVRIWNH\DQ\WLPHSULRUWRVWDUWLQJWKH
QH[WEDWFKWRUHSULQWWKHODVWWLFNHW
6RIWNH\2SHUDWLRQV
:HLJK$QLPDOV
3UHVVWREHJLQZHLJKLQJDQLPDOV
3UHVVHDFKWLPHDQHZJURXSRIDQLPDOVLVSODFHGRQVFDOH
ZKHQDEDWFKLVLQSURFHVV
6KULQN
$OORZVLQSXWRIDVKULQNDJHYDOXHZKHQZHLJKLQJDQLPDOV
%DWFK&RPSOHWH
3UHVVWRFRPSOHWHEDWFKDQGSULQWVXPPDU\WLFNHW
5HSULQW
3ULQWVODVWVWRUHGWLFNHWXQWLOQH[WEDWFKLVVWDUWHG
6HWXS
3DVVZRUGSURWHFWHGGLVSOD\VFXUUHQWSLWFKDQGUROODQJOHV
DQGDOORZVLQSXWRIWKHIROORZLQJ
 5HSRUWV7XUQWUDQVDFWLRQVWRULQJDQGUHSRUWV2Q2II
 86%$OORZVVHOHFWLRQRI86%GHYLFHGRZQORDGLQJRI
GDWDEDVHILOHVDQGDGMXVWLQJRIVFUHHQFRQWUDVW
 &KDQJH3DVVZRUG,QSXWSDVVZRUGSURWHFWLRQ
 7LPH'DWH6HWWLQJWKHV\VWHPWLPHDQGGDWH
 0RUH3UHVVWRGLVSOD\VHWRIWKHVRIWNH\V
 %DFN5HWXUQVWRSUHYLRXVPHQX
 'HOWD:W3HUFHQWDJHFKDQJHLQSULQWHGZHLJKW
EHIRUHWKH/LYH7RWDOLVXSGDWHGDJDLQ
 3ULQW5HSRUW3ULQWVVXPPDU\UHSRUWRIGDWDEDVHWRWDOV
 ([LW5HWXUQVGLVSOD\WRPDLQVFUHHQ
)LJXUH6RIWNH\$VVLJQPHQWV
&RQWUDVW&RQWURO
$GMXVWVGLVSOD\FRQWUDVWGHSHQGLQJRQDPELHQWOLJKWDQG
DPELHQWWHPSHUDWXUH
WARNING
3RZHU
SOFTKEY1 SOFTKEY2 SOFTKEY3 SOFTKEY4 SOFTKEY5
SetupReprintShrink %
Weigh
Animals Batch Complete

920i Weigh Center
6Visit our website www.RiceLake.com
1.3 Overview
Animal safety is a very serious issue and must be observed when
handling any type of animal. The scale surface may become slippery
during use; a build-up of manure on the scale may reduce traction. It is
recommended to take any necessary precautions to maintain an
acceptable level of animal footing.
The Weigh Center houses the 920i indicator and ticket printer. Figure 1-5 shows the
layout of the control box. Figure 1-6 on page 7 shows a close-up of the 920i indicator. The
control box is powered by a deep cycle battery located in the battery box mounted to the
scale frame. This battery is normally charged during towing; however, if the battery is low,
charge it using a trickle charger.
Figure 1-5. Weigh Center
The Weigh Center should be given at least 15 minutes to warm up in cold weather
prior to use.
CAUTION
Note

Introduction
© Rice Lake Weighing Systems ● All Rights Reserved 7
1.4 Front Panel
The keys, annunciators and knobs of the 920i Weigh Center front panel are described in
the following sections.

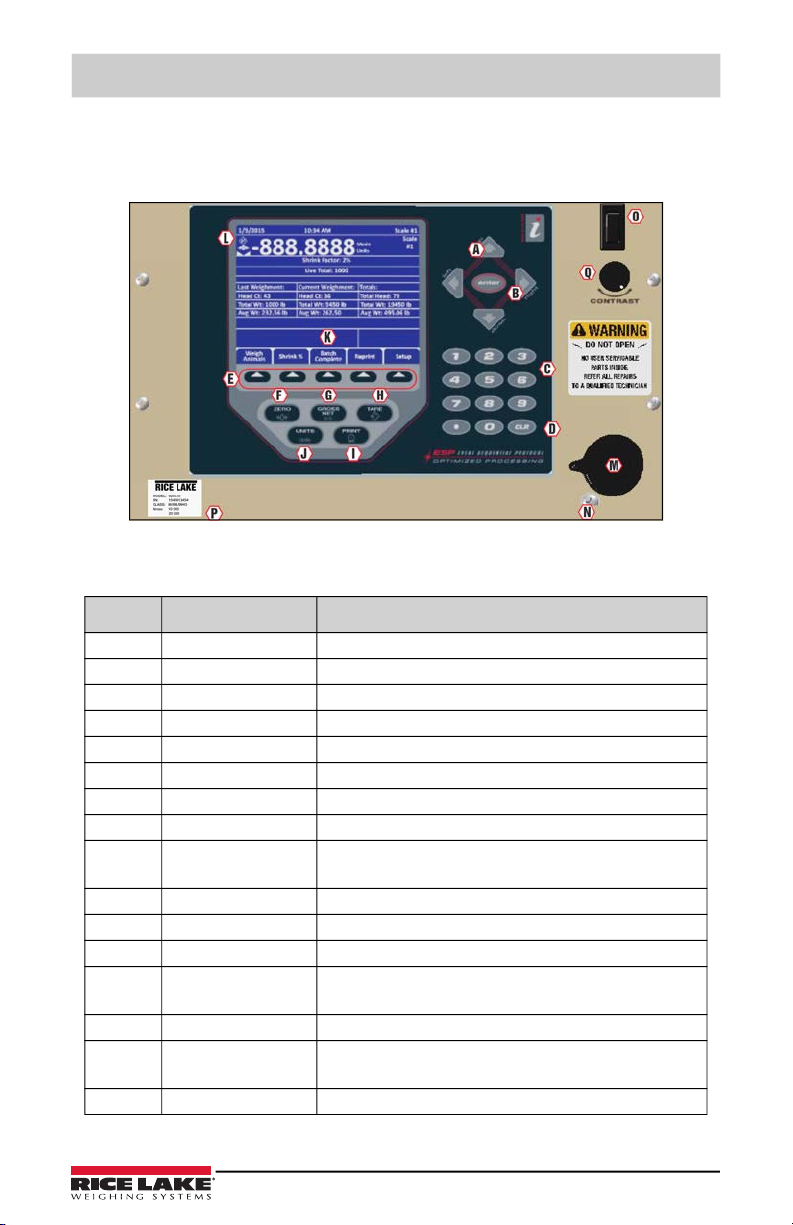

Figure 1-6. 920i Indicator Front Panel
1.4.1 Keypad Functions
Item No. Key/Display Description
A Directional Arrows Moves the cursor to needed area and updates values
B Enter Saves the data entered from the keypad
C Keypad Allows input of numbers for head count and shrinkage
D Clear Key Clears the data from the display
E Softkeys Gives additional functionality (Figure 1-7 on page 8)
F Zero Key Zeros the scale
G Gross/Net Key Toggles between Gross and Net when tare is present
H Tare Key Non-functional
I Print Key Prints a Gross or Net Format ticket when not group weigh-
ing animals
J Units Non-functional
K Display Area Displays weight and messages
M USB Jack Connects to flash drive or USB keyboard
N Setup Switch Enters into Configuration mode (must remove the screw
to access)
O Power Switch Turns the Weigh Center on or off
P SN Label Contains the serial number and other important information
about the scale
Q Contrast Control Knob Adjusts the contrast of the display
Table 1-2. Front Panel Display

920i Weigh Center
8Visit our website www.RiceLake.com
1.4.2 Annunciators
1.4.3 Softkeys
Figure 1-7. Softkey Assignments
Figure 1-8. Setup Softkeys
Item No. Display Description
L Tare Annunciator – Used to zero out a known weight
Center of Zero Annunciator – Indicates that the scale is zeroed
Standstill Annunciator – Indicates load force has settled in the motion window
Table 1-3. Annunciator Symbols
Softkey Description
Weigh Animals Press when a new group of animals is placed on the scale during a batch process
Shrink % Allows input of a shrinkage value when weighing animals
Batch Complete Press to complete the batch and print a summary ticket
Reprint Prints the last stored ticket, until next batch is started
Setup Displays the current pitch and roll angles and is password protected;
Allows access to the setup softkeys (Table 1-5 on page 9)
Table 1-4. Softkey Descriptions
pT
0
SOFTKEY1 SOFTKEY2 SOFTKEY3 SOFTKEY4 SOFTKEY5
SetupReprintShrink %
Weigh
Animals Batch Complete
More=>Time/DateUSBReport Change
Password
Exit% Delta Wt<=Back Verify Head
Count
First Screen - press More=> to display second screen.
Second Screen - press <=Back to return to first screen.
Print Report

Introduction
© Rice Lake Weighing Systems ● All Rights Reserved 9
Softkey Description
Reports Turns transaction storing and reports ON or OFF;
If ON, the batch totals will be stored for each batch in the transaction database;
If OFF, batch totals will not be stored;
For more information, see Print Report in table
USB Allows selection of a USB device, download of database files and adjusting the
screen contrast; See the 920i Programmable Indicator/Controller Technical Manual
(PN 67887) for further information
Change
Password
Allows the input of password protection; Default is none;
When set to nothing no password is requested when Setup is selected
Time/Date Sets the system time and date
More=> Press More to display set 2 of the setup softkeys
<=Back Returns display to previous menu
% Delta Wt Set the percent change in the printed weight before the live total starts getting
updated again;
Example: If 1000 lb is weighed and most of those animals leave the scale and the
next batch starts coming on (scale does not go all the way to zero), when it is at 100 lb
(default is 90 percent change in weight) or 1100 lb (either direction) it will start
updating that weight again.
The live total should show more than the regular total if they’re getting close to
weighing capacity (if the scale only holds 20,000 and their last total was 19,500, they
will want to only add 500 worth of animals).
Verify Head
Count
Turns head count verification On/Off
Print Report A summary report can be printed by pressing the Print Report softkey, showing the
totals since the last time the database was cleared (Figure 2-2 on page 15);
After printing, the indicator will prompt Clear Transactions? and display YES and NO
softkeys
Exit Returns the display to the main screen
Table 1-5. Setup Soft Keys

920i Weigh Center
10 Visit our website www.RiceLake.com
1.5 Indicator Settings
1.5.1 Date and Time
The 920i has a built-in time and date clock that automatically adjusts for leap years.
The real time clock will run even if power is removed from the indicator. There is a battery
inside the indicator that will keep the clock running continuously while there is no power to
the indicator.
There is no need to be in Calibration mode to change the time and date.
Setting Time/Date
Use the following steps to set up the time and date.
1. Press the Setup softkey.
2. Press the Time/Date softkey.
3. Use the directional arrows to enter the current time and date.
4. Press the Enter key to return to the setup menu.
5. Press the Exit softkey to return to the main menu.
Press the Cancel softkey to exit without saving any changes.
Note
Note

Introduction
© Rice Lake Weighing Systems ● All Rights Reserved 11
1.6 Mount to Animal Scale
Use the following steps to mount the 920i Weigh Center to the animal scale (see Figure 1-
9 on page 11 and Figure 1-10 on page 12).
1. Use mineral spirits to clean the wall tubes where the bracket will mount, as well as
the space between the holes on the mount bracket.
2. Run a bead of silicone in the area where the mounting bracket will be mounted.
3. Install the adhesive tape on the mounting bracket between the holes.
4. Place mounting bracket onto cage wall by pressing the adhesive tightly to the cage.
5. Secure with four bolts (included).
6. Mount Weigh Center onto the mounting bracket and route the cable to the battery.
7. Install the clamps to secure the conduit.
8. Secure the lower end of the conduit by drilling a hole through the cage sheeting and
install the clamp with the bolt provided.
.
Figure 1-9. Weigh Center Mounting
Silicone
Conduit Clamp 9/32Ø
Silicone Detail
Specificationssubjectto change withoutnotice
www.Fairbanks.com
51463 ©Fairbanks Scales
821Locust ƔKansasCity, MO 64106
Phone:[phone]
REV2 Ɣ2/10/21
Operator Card – FB700 AG Livestock Weigh Center QuickStart
RefertoOperator’s Manualfor detailed instructions. Manuals
areavailable on our web site atwww.fairbanks.com
Failureto heed may result in serious injury or death.
Donotallow minors/inexperienced people to operate.
Donotoperate without all shields and guardsin place.
Donotuse for purposesotherthan weighttaking.
Donotplace fingers into slots or possible pinch points.
Donot use any load bearingcomponent that is worn beyond
5%ofthe original dimension.
Donot use this p roduct if any components are cracked.
Donotexceed the rated load limit of the unit.
Donotmake alterationsor modi fications to the unit.
Donotremove or obscure warning labels.
Keepbodyand loose clothing away from moving parts
Figure1-1. Indicator Front Panel
IndicatorOperati ons
PowerScale
Pressthepower switch to tur n the indicator on or off.
EnterShrink
Shrinkvalue is appli ed to the gross weight an d is limited to
0.00-100.00%.
Pressthe Shrink softkey any timeto change the shrinkpercentage.
EnterHead Count
1. Insertticketinto the printer. Press FORWARD on the
printertosecure the paper.
2. Verifythescaleis level. If not, it willblank the weigh
displayand go to a screen s howing the current p itch
androll.
3. Press tore-zeroscale if required.
4. Loadanimalsonto scale.
5. PresstheWeigh Anima ls softkey.Ent erHe ad
Countdisplays.
6. Enterthenumberof animals and press
Oncethe scale is stable, head count, to tal weight
andaverage weight per head is displayed and ticket
willbegin to print and advance.
• Last weighment - information of the previous group of
animalson the scale
• Current weighment - number of animals currently o n the
scale,theirtotal we ight and the average weight per animal
• Totals - total of all animals weighed in the current
weighbatchand their average weight
7. Unloadthescale.
8. Repeatsteps4-7 until al l animals from the current
batchhavebeen weighed.
9. PresstheBatch Complete softkey to complete
currentbatchof animals. Summary information is
printedon the ticket and the ticket is released.
10. Press the Reprint softkey any time prior tostarting
thenext batch to rep rint the last tic ket.
SoftkeyOperations
WeighAnimals
Pressto begin weighing animals.
Presseach time a new group of animals is placed on scale ,
whena batch is in process.
Shrink
Allowsinput of a shrinkage value when weighing animals.
BatchComplete
Pressto complete batch and print summary t icket.
Reprint
Printslaststored ticket until next batc h is started.
Setup
Passwordprotected- displays currentpitch and roll angles,
andallows input of the following:
• Reports - Turn transaction storing and reports
On/Off
• USB - Allows selection of USB device, downloading of
databasefiles, and adjusting of screen contrast
• Change Password - Input password prote ction
• Time/Date - Setting the system time and date
• More - Press to display set 2 of the softk eys
• Back - Returns to previous menu
• % Delta Wt - Percentage change in printed wei ght
beforetheLive Total is updated again
• Print Report - Pr intssumm ary report of database totals
• Exit - Returns display to main scr een
Figure1-2. Softkey Assignments
ContrastControl
Adjustsdisplay contrast depending on ambient li ght and
ambienttemperature.
WARNING
Power
l
UNIT
S
SOFTKEY1 SOFTKEY2 SOFTKEY3 SOFTKEY4 SOFTKEY5
SetupReprint
Shrink%
Weigh
Animals Batch Complete

920i Weigh Center
12 Visit our website www.RiceLake.com
Battery Box Connections
1. Connect the scale cable and secure with a cable tie.
2. Connect the power wires as shown in Figure 1-10 on page 12.
3. Replace the battery cover.
Figure 1-10. Wiring Diagram
Weigh Center
Blue
Black
Orange
Load cell cable to j-box mounted in scale frame
Chassis Ground Point
Red
30 Amp Circuit Breaker
Red Black
Deep Cycle Battery
Right Left +V Tail Brakes GND
Black
Male
Connector
Female
Connector
7.5 Amp Fuse

Operation
© Rice Lake Weighing Systems ● All Rights Reserved 13
2.0 Operation
The following sections describe the basic operation of the 920i Weigh Center.
2.1 Weighing Multiple Animals
1. Press the power switch to turn on the indicator.
2. Insert a ticket into the printer.
3. Press FORWARD on printer to secure the paper.
If paper will not go into the printer under the print head, make sure the release
light is on. If it is not, press RELEASE on the printer.
4. Verify the scale is level. If it is not, it will blank the weigh display screen and go to a
screen showing the current pitch and roll.
5. Press to re-zero the scale (if required).
6. Load the animals onto the scale.
Animals moving around could cause scale to become out of level. An Out of
Level prompt will display momentarily until animals settle down, if it goes off
within five seconds it’s ignored.
7. Press . Enter Head Count is displayed.
8. Use the keypad to enter the number of animals to be weighed and press .
The indicator captures a stable gross weight.
9. If Verify Head Count is turned on, Re-Key in Head Count is displayed.
Use the keypad to enter the number of animals to be weighed and press ENTER.
The head count, total weight and average weight per head will be displayed.
A line (ticket) will print out with animal count, weight, units and average weight
to printer. Typically when using verify head count, the operator will remove the
cattle before entering the head count the second time.
•Last Weighment - Provides information on previous group of animals that were on
the scale.
•Current Weighment - Provides information on number of animals currently on scale,
total weight and the average weight per animal.
•Totals - Provides information on the total of all animals weighed in the current weigh
batch and their average weight.
Last Weighment Current Weighment Totals
Head Ct: 0 Head Ct: 0 Total Head: 0
Gross Wgt: 0 Gross Wgt: 0 Total Wgt: 0
Avg. Wgt: 0 Avg. Wgt: 0 Avg. Wgt: 0
Table 2-1. Weight Display
Note
Note
SOFTKEY1
Weigh
Animals
Note

920i Weigh Center
14 Visit our website www.RiceLake.com
10. Unload the scale.
11. Repeat Step 4 on page 13 – Step 10 until all animals from the current batch have
been weighed.
12. Press to complete the current batch of animals. Summary information will
be printed on the ticket and the ticket will be released.
2.1.1 Weigh Ticket Print-Out
Press Batch Complete to obtain the Weigh Ticket for the current batch of animals.
Figure 2-1. Weigh Ticket Example
2.1.2 Last Ticket Reprint
Press any time prior to starting the next batch to reprint the last weigh ticket.
SOFTKEY3
Batch
Complete
02/04/2016 05:52PM
#Hd Weight UM Avg Wt
----------------------------------
25 7720 lb 309
22 7915 lb 360
29 8010 lb 276
----------------------------------
76 23645 lb 311 Gross
23645 lb 311 Net
0.00% Shrink
SOFTKEY4
Reprint

Operation
© Rice Lake Weighing Systems ● All Rights Reserved 15
2.1.3 Summary Report Ticket
Press to generate the Summary Report Ticket.
This will printout a summary of all the batches stored in the Report memory, if the Report
function is enabled in the Setup menu.
If enabled, this Report function will append and store the weigh ticket batches in the
Report memory. Upon print-out, the operator has the opportunity to clear the report
memory.
If the reports function is enabled in the Setup menu, the summary information
will also be stored to the transaction database where it can be printed or
uploaded to a PC.
Figure 2-2. Summary Report Ticket Example
2.1.4 Shrink
Press at any time to change the shrink percentage (0.0-99.99 percent)
to be subtracted from the total gross weight. This is saved through power cycles.
The default is 0.0 percent.
SOFTKEY4
Print Report
Note
Summary Report
Date/Time 05:54PM 02/04/2016
#Hd Wgt Shr
----------------------------------
02/03/2016 10:48PM
2 550 lb 50.00%
- - - - - - - - - - - - - - - - -
02/03/2016 10:49PM
2 550 lb 50.00%
- - - - - - - - - - - - - - - - -
02/04/2016 05:52PM
76 23645 lb 0.00%
- - - - - - - - - - - - - - - - -
----------------------------------
Tot Head: 80
Tot Wgt : 24745 lb Gross
SOFTKEY2
Shrink %

920i Weigh Center
16 Visit our website www.RiceLake.com
2.2 Weighing a Single Animal
1. Press and enter a head count of 1.
2. Press to print the summary information of a batch on the weigh Ticket.
3. Press to print a complete summary report of all batches in report memory.
2.3 Verify Head Count
2.3.1 Function OFF
If the Verify Head Count function is OFF in the setup menu, the program will operate as
normal. It will only prompt the operator once to enter the Head Count prior to printing the
weighment value.
2.3.2 Function ON
If the Verify Head Count function is ON in the setup menu, the program will require extra
operator verification.
It will prompt the operator to re-enter the Head Count value, immediately after the original
Head Count value is entered. If the operator enters a different value, the program will
store and print the latest value entered.
SOFTKEY1
Weigh
Animals
SOFTKEY3
Batch
Complete
SOFTKEY4
Print Report
