WPL-3000
48726
Operating Manual

You can help improve this manual by
calling attention to errors and
by recommending improvements.
Please convey your comments to the
nearest Ishida Company regional
representative. Thank you!
Copyright 1997 by Ishida Co., Ltd. All Rights Reserved.
No part of this manual may be reproduced in any form, by mimeograph
or any other means, without written permission of the publisher.

To ensure safe operation, the general safety considerations below must
be followed.
Grounding
This instrument is a Class 1 device which requires protective grounding
for safe operation.
To avoid potential shock hazards, a protective grounding conductor
for the instrument must be securely connected to the main grounding
provision by qualified service personnel.
Do not remove covers, enclosures, or connectors
To avoid personal injury and shock, do not open or remove any covers,
enclosures, or connectors of the instrument unless specified in the
manual.
Do not perform unspecified maintenance
For your personal safety, do not perform any maintenance procedures
which are not specified in the manual.
Disconnect power supply before servicing
To ensure your personal safety, disconnect the power supply before
servicing.
Secure machine to fixed location with screws
This machine is to be installed to a fixed location and secured to the
floor with suitable screws. The level must be adjusted by qualified ser-
vice personnel at time of installation.
SAFETY CONSIDERATIONS
CAUTION
WARNING
Power supply to the machine is disconnected only when the electrical
plug is removed from the electrical outlet. For safe operation of this
machine, connect the plug to the nearest and most accessible outlet.
WARNING
The following symbols are used to alert the operator of potential danger or special
circumstances related to the safe and proper operation of this machine:
Precautions which must be followed to prevent the possibility of death
or serious injury.
Precautions which must be followed to prevent the possibility of light or
moderately severe injury to personnel or damage to the equipment.
NOTE: Important information for the operation of the machine.

CAUTIONS FOR USE
Do not disassemble the scale.
When cleaning the scale, only use a
soft dry cloth or a cloth wetted with
a neutral cleanser.
Never use thinner or other volatile
liquids.
Do not drop or apply a strong shock
to the scale.
Do not expose the scale to direct
sunlight for long periods.
Do not allow any liquids to come into
contact with the scale or terminal.
Always operate the scale with
the same rated AC power supply
shown on the specification plate.
:
Always operate the scale on
a level surface.
Do not expose the scale to direct
sunlight for long periods.

Chapter 1
Overview
Chapter 2
Daily Operation
Chapter 3
Subtraction
Chapter 4
Troubleshooting
1.1 Appearance............... ..........................2
1.2 Display.................................................2
1.3 Operation Keys ....................................3
1.3.1 Operation Key Sheet ...........................................3
1.3.2 Basic Function Keys ............................................4
1.3.3 Additional Function Keys .....................................5
1.4 Loading Label/Receipt Roll ..................7
2.1 Pre-operation Inspection....................10
2.2 Power On ..........................................11
2.3 Prepack for Weighed Item..................12
2.4 Prepack for Fixed-price Item ..............13
2.5 Sales of Weighed Item .......................14
2.6 Sales of Fixed-price Item....................15
2.7 Label Batch Print ...............................16
2.8 Pack Count Sub-total ........................17
2.9 Mark Down Functions ........................18
2.10 Unit Price Override .............................19
2.11 Voiding the Last Label ........................19
2.12 Switching Sales Mode........................19
2.13 Date Override.....................................19
2.14 Target Control ....................................20
3.1 Subtraction Mode ..............................22
4.1 Error Messages..................................26
4.2 How to Release Error Conditions .......27
4.3 How to Replace Fuse.........................27
4.4 Other Problems..................................27
Table of Contents

Contents
1.1 Appearance ..................................... 2
1.2 Display ................................................ 2
1.3 Operation Keys ................................. 3
1.3.1 Operation Key Sheet ....................................... 3
1.3.2 Basic Function Keys .......................................... 4
1.3.3 Additional Function Keys ................................. 5
1.4 Loading Label/Receipt Roll ............. 7
CHAPTER 1
OVERVIEW

WPL-3000 • User’s Manual (Operator) • Rev 0 page 7
1.2 Display
1.1 Appearance
Display
Key Sheet
Printer Unit
Conveyor
Check
Weighing Unit
I
WPL-3OOO
WEIGHT lb UNIT PRICE $
TOTAL PRICE $
PLU
ZERO NET SAVE AUTO
Scale capacity 30X0.01lb
Conveyor capacity 10X0.01lb

page 8 WPL-3000 • User’s Manual (Operator)• Rev 0
1.3 Operation Keys
1.3.1 Operation Key Sheet
Preset Keys
Additional Function Keys
Four of the following options can
be preset by the dealer in
accordance with the customer‘s
request.
• DATE/TIME display
• STORE NAME number
• LOGO number
• EXTRA TEXT number
• POP TEXT number
• COUPON TEXT number
• FIXED PRICE
• FIXED WEIGHT
• DISCOUNT
• AMOUNT DISCOUNT
• PERCENTAGE DISCOUNT
• LABEL SWITCH
• TARGET QUANTITY
• TARGET PRICE
• TARGET WEIGHT
• OPERATOR
• ADD
•START
•STOP
•ROTATE
• TRAY
• UPPER
• LOWER
• BAR
Insert the Operation Key Sheet
over the Program Key Sheet.
VOID
DATE
7
4
1
0
8
5
2
CLR
9
6
3
TARE
PRINT
PLU
ZERO
RESET
LABEL
BATCH
PRE
PACK
X
MULTIPLY
PGM
MODE
LOWER
PRESET
PAPER
FEED
PACK
COUNT
HELP
Program Key Sheet
Operation
Key Sheet
Keys 1 to 4 are dealer options.
Default preset functions:
PF (1) : Conveyor start key
PF (2) : Conveyor stop key
PF (3) : Tray selection key
PF (4) : Target

WPL-3000 • User’s Manual (Operator) • Rev 0 page 9
1.3.2 Basic Function Keys
NUMERIC ENTRY
Keys 0 through 9 are used to enter
numeric data.
CLEAR
Used to cancel incorrectly entered
numeric data.
LABEL BATCH
Used to issue batches of labels.
LOWER PRESET
Used to access the second level of data
programmed to the preset keys.
MULTIPLIER
Used to multiply the entered quantity of
fixed-price items.
PACK COUNT SUB-TOTAL
Used to issue a label that shows the
number of labels (packs), total weight and
amount which have been printed since
this key was last pressed.
PAPER FEED
Used to advance labels/receipts to the
correct printing position.
PLU SELECT
Used to access PLU data.
Also used to display the tare weight.
PREPACK
Used to switch between auto printing
mode and the manual printing mode.
PRINT
Used to print labels/receipts.
PROGRAM MODE
Used to access the program subtraction,
and total modes after a 4-digit password
has been entered. Also used to exit the
entered mode.
TARE
Used to subtract the tare weight from the
total weight on the weigh platter.
TEMPORARY DATE
Used to change the current date of the
scale temporarily.This allows labels to be
produced ahead of time for prepacking
items.
VOID
Used to cancel the previous label issued.
ZERO ADJUSTMENT
Used to return the scale to zero.
This key will only function if nothing is on
the weigh platter.This change is effective
until the next PLU is accessed.
HELP
Used to display an explanation (up to 32
letters) of each function key.
RESET
Used to forcibly exit a particular mode and
return to the initial status of the normal
mode.
0
to
9
CLR
LABEL
BATCH
LOWER
PRESET
X
MULTIPLY
PACK
COUNT
PAPER
FEED
PLU
TARE
DATE
VOID
ZERO
HELP
RESET
PRINT
PGM
MODE
PRE
PACK

page 10 WPL-3000 • User’s Manual (Operator)• Rev 0
1.3.3 Additional Function Keys
DATE/TIME
Used to display the current date and time
for a few seconds.
STORE NAME
Used to access the store name corres-
ponding to the entered number after the
PLU has been accessed.
LOGO
Used to access a logo message corres-
ponding to the entered number after the
PLU has been accessed.
EXTRATEXT
Used to access an extra message corres-
ponding to the entered number after the
PLU has been accessed.
POPTEXT
Used to access the POP text corres-
ponding to the entered number after the
PLU has been accessed.
COUPONTEST
Used to access a coupon message
corresponding to the entered number
after the PLU has been accessed.
FIXED PRICE
Used to temporarily change from weight
item sales to fixed-price item sales.
Also used to enter a new fixed price.
FIXED WEIGHT
Used to temporarily change the fixed
weight. Also used to enter the fixed
weight.
DISCOUNT
Used to enter a special selling price.
AMOUNT DISCOUNT
Used to subtract the entered amount from
the selling price.
PERCENTAGE DISCOUNT
Used to subtract the entered percentage
from the selling price.
LABEL SWITCH
Used to change the label format.
TARGET QUANTITY
Used to preset a target quantity.
After reaching the target quantity, a
message informing that the target has
been reached will be displayed.
TARGET PRICE
Used to preset a target price.
After reaching the target price, a message
informing that the target has been
reached will be displayed.
TARGET WEIGHT
Used to preset a target weight.
After reaching the target weight, a
message informing that the target has
been reached will be displayed.
OPERATOR
Used to record name of operator.
Function keys become active after
the operator enters two digit code.
DATE
TIME
STORE
NAME
–$
–%
TARGET
Q'TY
TARGET
PRICE
LABEL
SWITCH
TARGET
WEIGHT
DISCOUNT
LOGO
POP
TEXT
FIXED
PRICE
FIXED
WEIGHT
OPERATOR
EXTRA
TEXT
COUPON
TEXT

WPL-3000 • User’s Manual (Operator) • Rev 0 page 11
ADD
Used to toggle between add and no add
function. When key is pressed, the
activate mode will be displayed.
START
Used to start conveyor manually. When
PLU is not active, the product will pass
through without being weighed.
STOP
Used for conveyor emergency stop. To
resume operation, press the START key.
ROTATE
Used to apply label in front or rear. Press
function to change mode.
TRAY
Used to control conveyor delay by tray
size. Each tray has a default setting
with a programmed value. It is possible
to change between 16 setting modes.
UPPER
Used to set upper limit weighing range.
When the upper limit is exceeded,
weighing cannot be completed and an
error buzzer sounds.
LOWER
Used to set lower level limit weighing
range. When weight is insufficient,
weighing cannot be completed and an
error buzzer sounds.
BAR
Used to prevent bar code from being
printed.This is only in effect for one item
processing cycle and returns to default
settings when completed.
ADD
START
STOP
ROTATE
TRAY
UPPER
LOWER
BAR

page 12 WPL-3000 • User’s Manual (Operator)• Rev 0
1.4 Loading Label/Receipt Roll
1. Make sure that the power is off.
2. Open the side cover of the printer unit.
3. Pull the release lever to raise the printer head.
4. Insert a new roll onto the label holding shaft.
5. When using the label roll, remove labels
from the first 30 cm (12 inches) of backing paper.
6. Thread the label paper as shown below.
Check that the backing paper is:
• threaded properly under the label guide.
• threaded properly through the label sensor.
• threaded properly over the peeling bar,
making sure it passes through the groove.
7. When the label/receipt needs to be wound up,
wind the tip of the paper around the winding
sleeve and fasten it with the U-pin.
8. Move the ring to adjust the guide shaft
to the width of the label/receipt.
9. Push the printer head down until it locks securely.
10. Close the side cover of the printer unit.
11. Turn on the power and press the PAPER FEED key
to advance the label/receipt to the correct printing
position.
LABEL HOLDING SHAFT
PRINT HEAD
RELEASE LEVER
PEELING BAR LABEL SENSOR
LABEL GUIDE
WINDING SLEEVE
U-PIN
PRINTER
UNIT
LABEL HOLDING SHAFT
PRINT HEAD
RELEASE LEVER
PEELING BAR LABEL SENSOR
LABEL GUIDE
WINDING SLEEVE
U-PIN
PRINTER
UNIT
PAPER
FEED

CHAPTER 2
DAILY OPERATION
Contents
2.1 Pre-operation Inspection ............... 10
2.2 Power On ......................................... 11
2.3 Prepack for Weighed Item ............ 12
2.4 Prepack for Fixed-price Item ......... 13
2.5 Sales of Weighed Item ................... 14
2.6 Sales of Fixed-price Item ................ 15
2.7 Label Batch Print ............................. 16
2.8 Pack Count Sub-total..................... 17
2.9 Mark Down Functions..................... 18
2.10 Unit Price Override.......................... 19
2.11 Voiding the Last Label .................... 19
2.12 Switching Sales Mode .................... 19
2.13 Date Override ................................. 19
2.14 Target Control ................................. 20

page 14 WPL-3000 • User’s Manual (Operator)• Rev 0
1. Make sure that the power is off.
2. Check that the scale is clean and free of foreign matter.
If not, wipe any soiled areas with a dry cloth.
3. In order to maintain print quality, clean the thermal head at least once a week with a cotton swab
dipped in cleaning fluid.

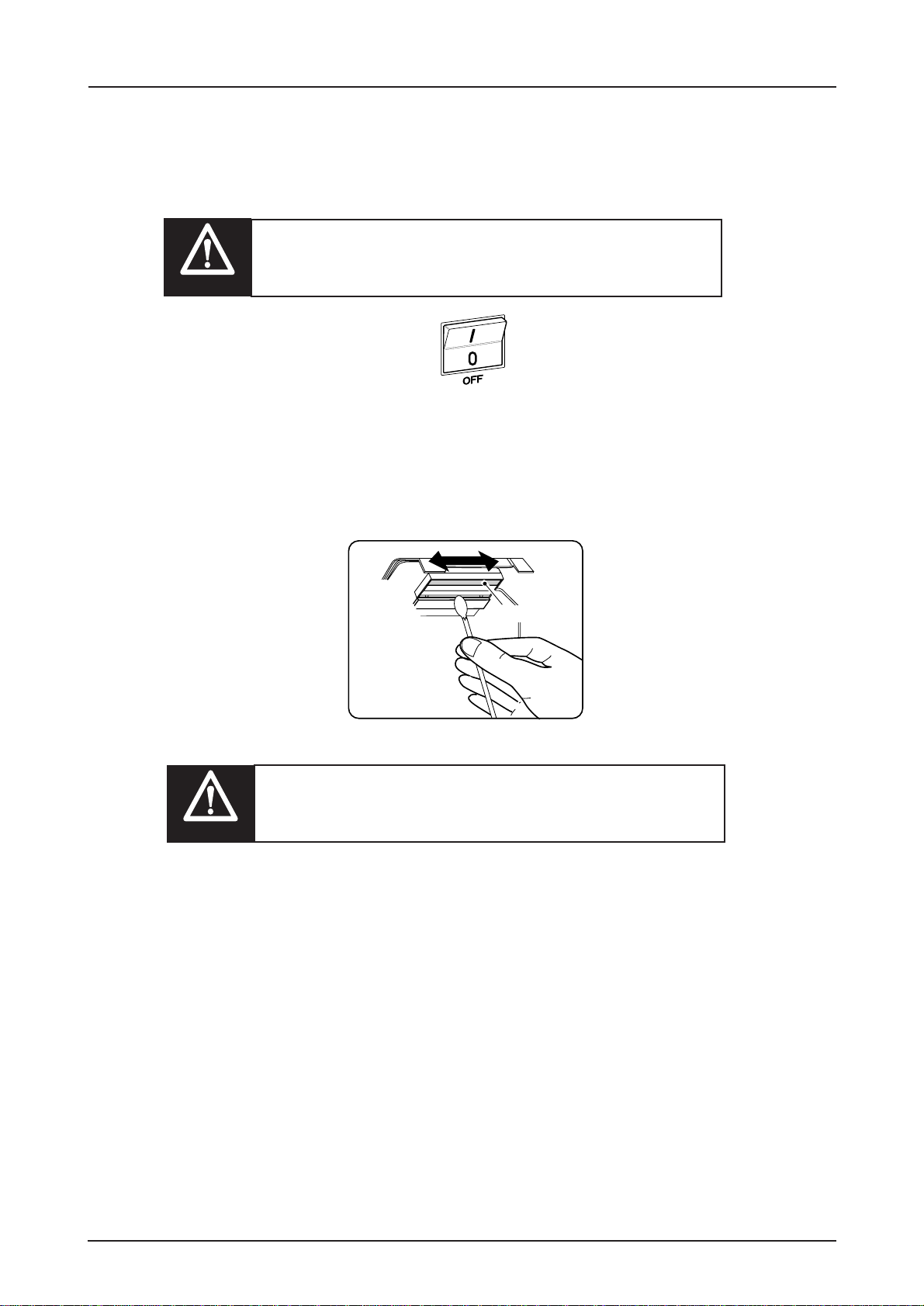

2.1 Pre-operation Inspection
In order to maintain optimum scale performance, perform the following inspection before starting daily operations.
Always turn off the power switch when performing this inspection.
Thermal Head
Do not use metal tools to clean the thermal head as they may
damage the head surface.
CAUTION
CAUTION

WPL-3000 • User’s Manual (Operator) • Rev 0 page 15

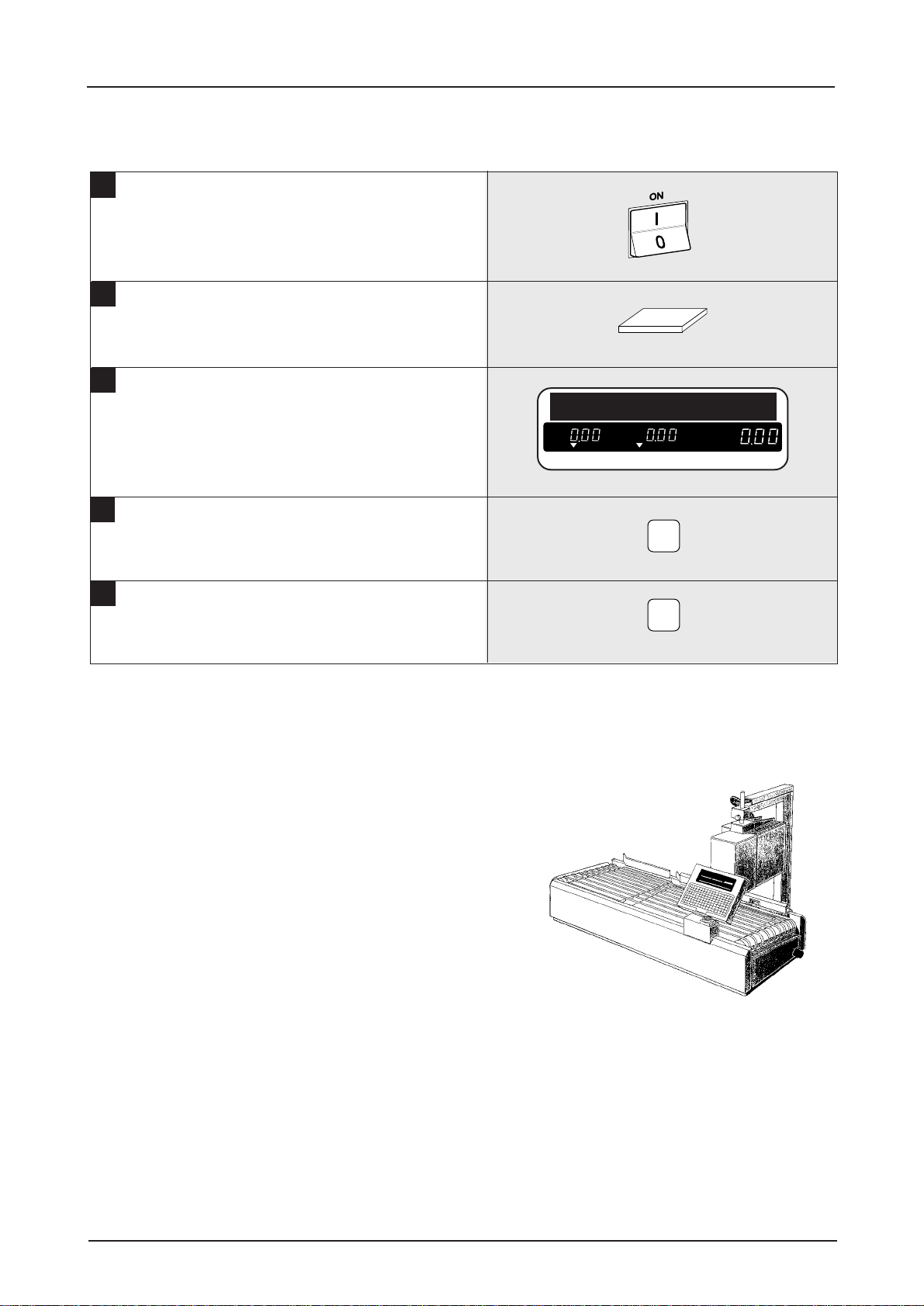

2.2 Power On
1Turn on the power.
The machine will perform display check before
entering normal mode and starting weighing
function.
2Make sure that nothing is on the weigh
platter.
3Check that the ZERO and AUTO
indicators are lit.
4If the AUTO indicator is not lit,
press the PREPACK key.
5If the ZERO indicator is not lit,
press the ZERO key.
✱TOTAL MODE PRESS [ ] KEY
KEY IN ITEM No.
AUTOZERO
PRE
PACK
ZERO
NOTE: When the power is turned on, the conveyor will stop in its lowered position and
the machine will perform display check before entering normal mode. When
in normal mode, the weighing function will start and PLU functions can be
accessed.
TheWPL-3000 can be be switched between
automatic and manual weighing modes.
Manual weighing mode allows the operator
to stop and lower conveyor in addition to
automatic printing.
Automatic weighing allows the operator to
call up PLU operations and raise conveyor
in addition to automatic printing.
When the conveyor is started without calling up a PLU operation, the machine will
pass the item through without performing weighing or labeling operations.

page 16 WPL-3000 • User’s Manual (Operator)• Rev 0

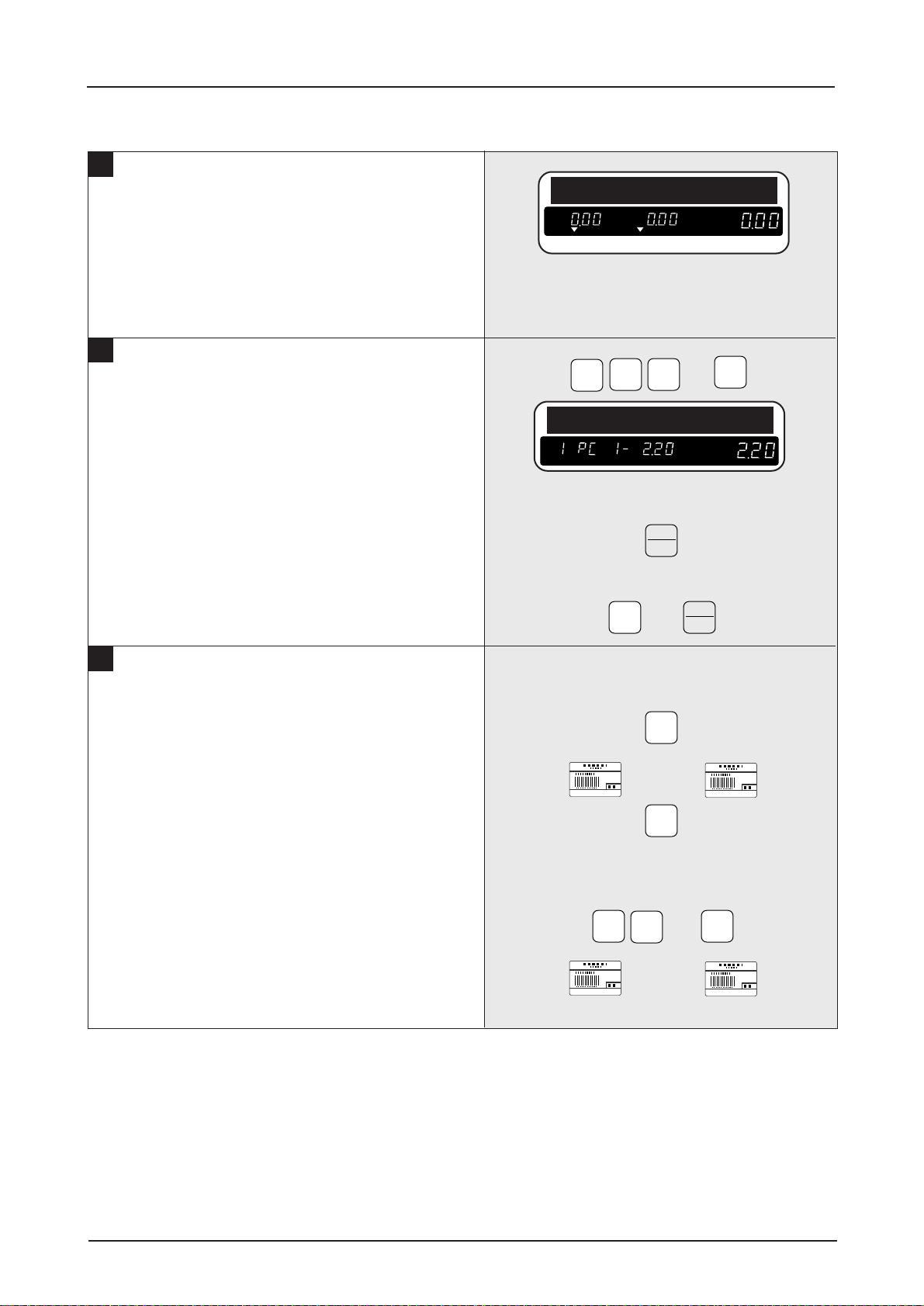

2.3 Prepack for Weighed Item
1Check that nothing is on the weigh
platter.
•Check that the ZERO and AUTO indicators
are lit.
•If the AUTO indicator is not lit, press the
PREPACK key.
•If the ZERO indicator is not lit, press the
ZERO key.
2Subtract the tare.
Weighing tare
•Place the tare on the weigh platter.
The tare weight will be displayed.
•Press the TARE key.
The displayed value will return to zero,
and the NET indicator will light.
Fixed tare weight
•Enter the tare weight and press the TARE
key.
Example: Tare Weight = 0.08 lb.
Tare look-up key
•Press the Tare Look-Up (preset) key.
Example: Tare Look Up #1 (0.12 lb.)
3Enter the PLU.
PLU number entry
•Enter the PLU number(between 1 and
999999) and press the PLU key.
Example: PLU no.= 350
If the PLU is already programmed, the PLU
canbeaccessedby pressing the appropriate.
PLU key. Activating the PLU will raise the
conveyor to send item for prepacking.
PLU (preset) key
•Press the preset key in which the PLU item
data is set.
Weigh the item.
•Place the item on the weigh platter.
Example: Net weight = 8.60 lb.
Unit price = $2.20/lb.
•The label is automatically printed.
•Repeat this step until all the items are
weighed.
✱TOTAL MODE PRESS [ ] KEY
KEY IN ITEM No.
ZERO AUTO
TARE
NET AUTO
TARE
#1
ZERO
TARE
8
➔
ZERO
----------------------------------------------------------------
----------------------------------------------------------------
5
0
3
PLU
➔
FILET MIGNON
NET AUTO
----------------------------------------------------------------
Example: When accessing PLU10
----------------------------------------------------------------
Example: When accessing PLU90
➔
PLU10
PLU90
LOWER
PRESET
PLU10
PLU90
✱TOTAL MODE PRESS [ ] KEYFILET MIGNON
NET AUTO
4Weigh the item.
•Place the item on the weigh platter.
Example: Net weight = 8.60 lb.
Unit price = $2.20/lb.
•The label is automatically printed.
•Repeat this step until all the items are weighed.
3
2
1

WPL-3000 • User’s Manual (Operator) • Rev 0 page 17
2.4 Prepack for Fixed-price Item
✱TOTAL MODE PRESS [ ] KEYKEY IN ITEM No.
AUTOZERO
5
0
PLU
➔
4
----------------------------------------------------------------
✱TOTAL MODE PRESS [ ] KEYSAUSAGE
Example: When accessing PLU15
----------------------------------------------------------------
Example: When accessing PLU95
PRINT
• • • • •
Example: Ten labels
➔
PRINT
• • • • •
Example: Continuous issue
----------------------------------------------------------------
0
1
PLU15
PLU95
➔
LOWER
PRESET
PLU15
PLU95
1Check that nothing is on the weigh
platter.
•Check that the ZERO and AUTO indicators
are lit.
•If the AUTO indicator is not lit, press the
PREPACK key.
•If the ZERO indicator is not lit, press the
ZERO key.
2Enter the PLU.
PLU number entry
•Enter the PLU number and press the PLU
key.
Example: PLU No.= 450
If the PLU is already programmed, the PLU
can be accessed by pressing the appropriate
PLU key. Activating the PLU will raise the
conveyor to send item for prepacking.
PLU (preset) key
•Press the preset key in which the PLU item
data is set.
•Press the PRINT key to continuously issue
labels.
•Press the CLEAR key to stop printing.
OR
•Enter the number of labels, and press the
PRINT key.
Note: Press the CLEAR key once to
temporarily stop printing.
To continue printing, press the PRINT
key again.
CLR
Print labels.

page 18 WPL-3000 • User’s Manual (Operator)• Rev 0

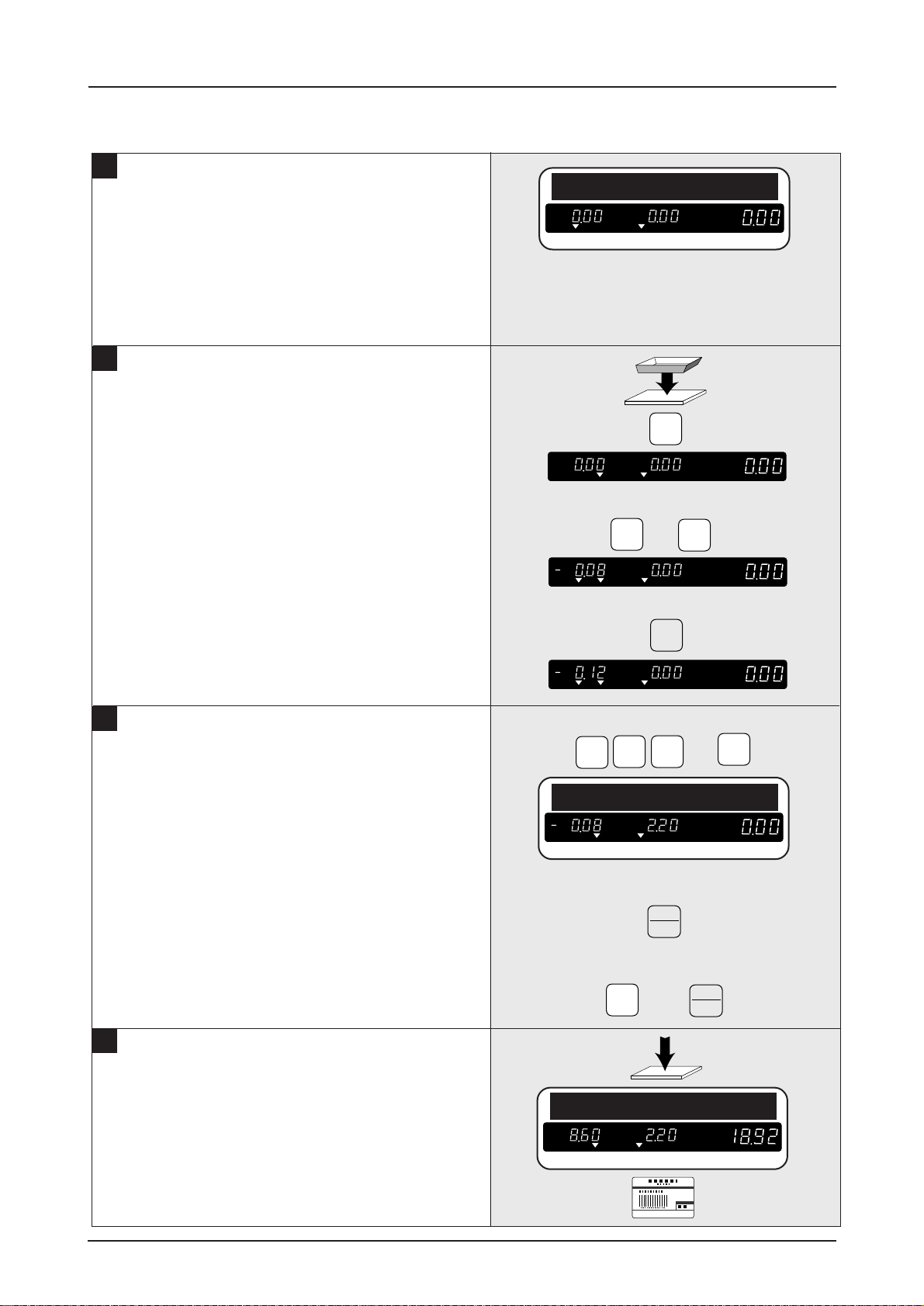

2.5 Sales of Weighed Item
1Press the PREPACK key.
•Check that nothing is on the weigh platter.
•Check that the ZERO indicator is lit.
Note: If the ZERO indicator is not lit, press
the ZERO key.
•Check that the AUTO indicator is not lit.
Note: If the AUTO indicator is lit, press the
PREPACK key again to turn off the
indicator.
2Subtract the tare.
Weighing tare
•Place the tare on the weigh platter.
The tare weight will be displayed.
•Press the TARE key.
The displayed value will return to zero,
and the NET indicator will light.
Fixed tare weight
•Enter the tare weight and press the TARE
key.
Example: Tare Weight = 0.08 lb.
Tare look-up key
•Press the Tare Look-Up (preset) key.
Example: Tare Look Up #1 (0.12 lb.)
3Enter the PLU.
PLU number entry
•Enter the PLU number and press the PLU key.
Example: PLU no.= 350
PLU (preset) key
•Press the preset key in which the PLU item
data is set.
4Weigh the item.
•Place the item on the weigh platter.
Example: Net weight = 8.60 lb.
Unit price = $2.20/lb.
•The label is automatically printed.
•Repeat this step until all the items are weighed.
Note: When the scale is in the manual print
mode by pressing the PREPACK key,
labels will only be issued when the
PRINT or OPERATOR key is pressed.
5Issue labels.
Press the PRINT key.
Press the OPERATOR key when the operator
system is used.
✱TOTAL MODE PRESS [ ] KEYKEY IN ITEM No.
ZERO
PRE
PACK
TARE
NET
TARE
8➔
ZERO
ZERO
TARE
#1
5 0
3
PLU
➔
PLU10
PLU90
✱TOTAL MODE PRESS [ ] KEYFILET MIGNON
PLU10
PLU90
Example: When accessing PLU90
✱TOTAL MODE PRESS [ ] KEYFILET MIGNON
Example: When accessing PLU10
----------------------------------------------------------------
➔
LOWER
PRESET
PRINT
Susan
----------------------------------------------------------------
----------------------------------------------------------------
----------------------------------------------------------------
---------------------------------------------------------------
-

WPL-3000 • User’s Manual (Operator) • Rev 0 page 19
2.6 Sales of Fixed-price Item
1Press the PREPACK key.
•Check that nothing is on the weigh platter.
•Check that the ZERO indicator is lit.
Note: If the ZERO indicator is not lit, press
the ZERO key.
•Check that the AUTO indicator is not lit.
Note: If the AUTO indicator is lit, press the
PREPACK key again to turn off the
indicator.
2Enter the PLU.
PLU number entry
•Enter the PLU number and press the PLU key.
Example: PLU no. = 450
Fixed price = $0.98
PLU (preset) key
•Press the preset key in which the PLU item
data is set.
3Print the labels.
Enter the number of labels, and press the
PRINT key.
Press the PRINT key or the OPERATOR key for
one label to be issued.
Note: Press the CLEAR key once to temporarily
stop printing.
To continue printing, press the PRINT key
again.
✱TOTAL MODE PRESS [ ] KEY
KEY IN ITEM No.
ZERO
PRE
PACK
5 0
PLU
➔
4
✱TOTAL MODE PRESS [ ] KEY
SAUSAGE
PLU15
PLU95
Example: One label
PRINT
OR
Susan
Example: When accessing PLU15
----------------------------------------------------------------
Example: When accessing PLU95
➔
PLU15
PLU95
LOWER
PRESET
0
➔
PRINT
1
Example: Ten labels
----------------------------------------------------------------
----------------------------------------------------------------

page 20 WPL-3000 • User’s Manual (Operator)• Rev 0

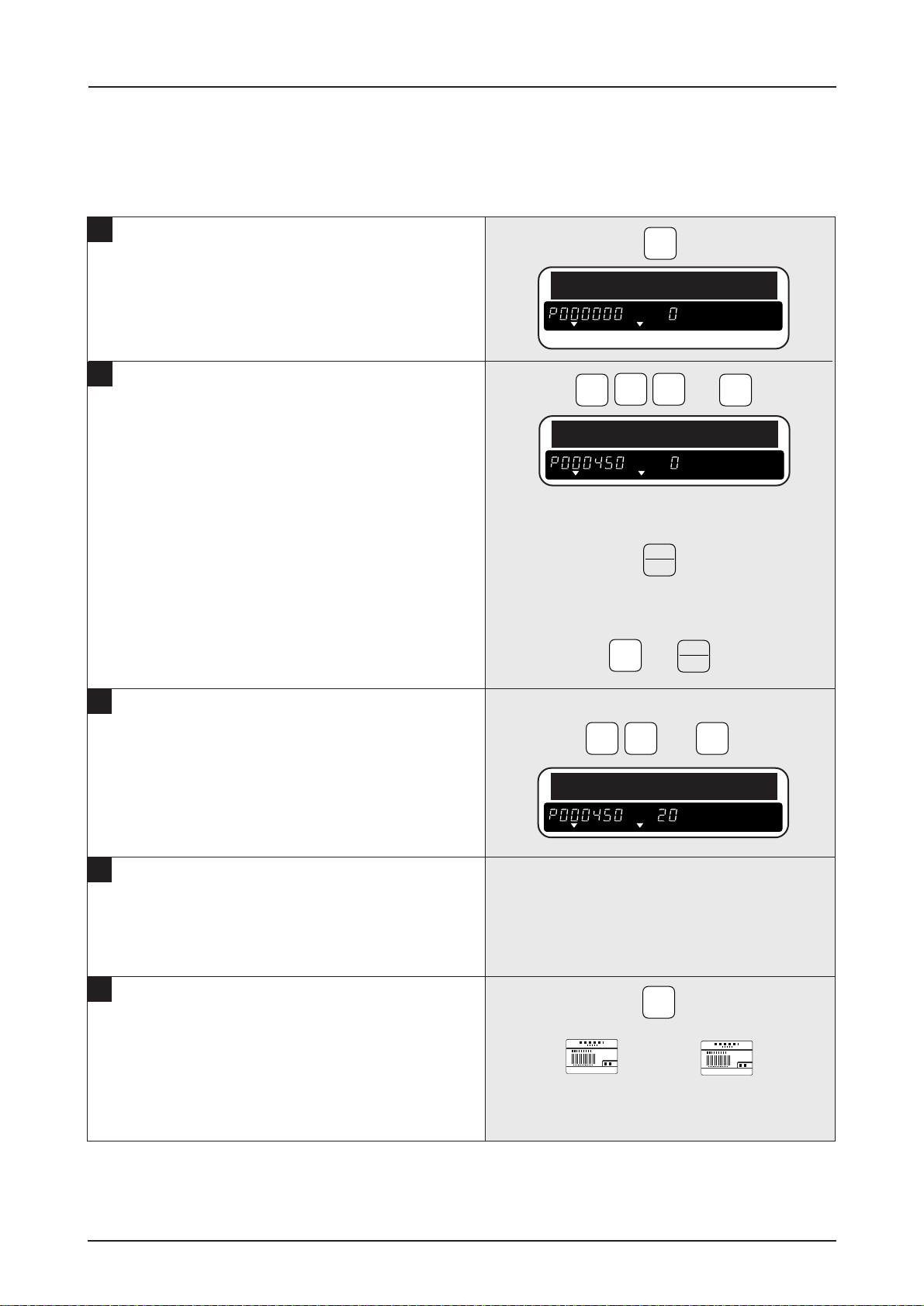

2.7 Label Batch Print
This function presets the number of fixed-price labels (for up to 20 items) to be printed. This function is only
available for fixed-price items when in the AUTO mode.
1Enter the label batch print mode.
•Press the LABEL BATCH key to enter the
label batch print mode.
2Enter the PLU.
PLU number entry
•Enter the PLU number and press the PLU key.
Example: PLU no. = 450
Fixed price = $0.98
PLU (preset) key
•Press the preset key in which the PLU item
data is set.
Note: If the weighed item is entered, the beep will
sound.
3Enter the desired number of labels.
•Enter the number of labels to be issued.
(Max. 999)
•Press the LABEL BATCH key.
4Enter any other PLUs, if necessary.
•Repeat steps 2 and 3 when labels for any
other PLUs are needed. A maximum of 20
PLUs can be entered.
5Print labels.
•Press the PRINT key.
Note: Press the CLEAR key once to
temporarily stop printing.
To continue printing, press the PRINT
key again.
Example: Twenty labels
0
➔
2
LABEL
BATCH
✱TOTAL MODE PRESS [ ] KEY
✱BATCH MODE SAUSAGE
LABEL
BATCH
✱TOTAL MODE PRESS [ ] KEY
✱BATCH MODE
AUTO
5 0 ➔
✱TOTAL MODE PRESS [ ] KEY
✱BATCH MODE SAUSAGE
4
PLU
Example: When accessing PLU15
PLU15
PLU95
----------------------------------------------------------------
Example: When accessing PLU95
LOWER
PRESET
PLU15
PLU95
➔
PRINT
• • • • •
----------------------------------------------------------------
