Rice Lake ATK User manual

Automated Ticketing Kiosk
Installation
Manual
93478 Rev A

Contents i
Technical training seminars are available through Rice Lake Weighing Systems.
Course descriptions and dates can be viewed at www.ricelake.com/training
or obtained by calling 715-234-9171 and asking for the training department.
Contents
1.0 Introduction..................................................................................................................................... 1
2.0 Installation ...................................................................................................................................... 2
2.1 Installing the Printer Kiosk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2.1.1 Installing the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2.1.2 Connecting Power and Ethernet/ Serial Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.2 Installing the Load Assignment Kiosk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3.0 Check-In And Check-Out Procedures ............................................................................................. 4
3.1 RFID Card Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3.2 Number Keypad. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3.3 Number Keypad/RFID Card Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3.4 Smart Pass Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4.0 Foundation Drawings ...................................................................................................................... 7
© Rice Lake Weighing Systems. All rights reserved. Printed in the United States of America.
Specifications subject to change without notice.
Rice Lake Weighing Systems is an ISO 9001 registered company.
October 3, 2014

ii ATK Automated Ticketing Kiosk
Rice Lake continually offers web-based video training on a growing selection
of product-related topics at no cost. Visit www.ricelake.com/webinars.

Introduction 1
1.0 Introduction
This manual is intended for use by technicians responsible for installing and servicing the ATK Automated
Ticketing Kiosk System.
Authorized distributors and their employees can view or download this manual from the Rice Lake
Weighing Systems distributor site at www.ricelake.com.
Standard features include:
• Accommodation of most models of thermal transfer printers.
• Circuit breaker protected AC power management (instead of fuse)
• Custom-engineered riser plates ensure proper positioning of printer.
• Weather-resistant ticket access door with drain holes.
• Media storage and tool hangers inside the enclosure.
• Locked door secures printer.
• Access panel for printer front panel buttons/display.
Recommended accessories include:
• Truck ID
• Traffic lights
• LaserLight M-Series Remote Messaging Display
• Scale interface
•Printer
Rice Lake’s ATK Automated Ticketing Kiosk System can be used in a single- or multi-kiosk configuration.
Single Configuration
The single configuration can be used for both the weigh-in and weigh-out functions. Trucks can proceed directly to
the scale without the driver ever having to exit the vehicle. Tare weights can be established as often as required, per
transaction, or set up to expire after a longer period of time. The driver may interact with the kiosk to change load
information such as customer, job, destination, or product. After the truck is loaded, it returns to the scale and
weighs out using the same kiosk to capture the truck’s loaded weight and print the ticket.
Multi-Kiosk Configuration
The multi-kiosk configuration uses standard, non-printing kiosks as well as ticket printing kiosks, scales, and silo
load-out systems to automate the loading of material in the trucks. Trucks check in to the yard and are directed to
the correct location, depending on the required product or dumping area. Lane verification kiosks check to ensure
the truck is at the correct location before allowing the loading or unloading process to begin. The truck is weighed
and the ticket is saved to a ticket stack. When the driver reaches the print ticket kiosk, the ticket is retrieved from
the stack and printed.
There are five ways to access the kiosk system:
• RFID Card Reader
• Number Keypad
• Number Keypad/Card Reader
• Smart Pass Antenna
• Smart Pass and HID Tags
RFID Card
Reader
Number
Keypad Number Keypad/
Card Reader Smart Pass
Antenna
Smart Pass and
HID Tags
Figure 1-1. ATK Access Options

2ATK Automated Ticketing Kiosk
2.0 Installation
The ATK Automated Ticketing Kiosk System consists of three units:
• ATK Printer Kiosk
• ATK Load Assignment Kiosk
• ATK Vehicle ID Kiosk
Note
Depending on your individual needs, you may have a setup consisting of one, two, or all three units. You may
also have more than one of each unit being installed along with accessories such as traffic lights or remote
messaging display.
2.1 Installing the Printer Kiosk
The printer kiosk is designed to accommodate a wide variety of commonly used printers. It is shipped without a
printer to allow the selection of a printer that would be most beneficial.
Installation consists of three processes: mounting the unit, installing the desired printer, and connecting power and
Ethernet/serial cable.
2.1.1 Installing the Printer
Depending on which printer is selected, printer installation within the ATK Printer Kiosk may vary. Consult
individual printer documentation to ensure the printer is installed correctly.
Accessing the Printer
Once the printer is installed, it can be accessed via the front panel printer access door. This sliding door is locked
from the inside; a security pin must be pulled to release the lock; while the pin is being pulled, the door can be slid
upwards. The pin is located inside the kiosk, at the top of the access door (see Figure 2-1).
Security
Pin
Access
Door
Figure 2-1. In-kiosk security pin release for printer access door (left); Printer revealed with access door raised (right)

Installation 3
2.1.2 Connecting Power and Ethernet/ Serial Cable
Ethernet cable
connected to jack on
Ethernet card
WARNING
To avoid shock or serious injury, consult a licensed electrician for any electrical installation procedure.
Connecting the Ethernet Cable
1. Locate the Ethernet card mounted in the upper-left corner of the long kiosk wall.
2. Connect the Ethernet cable to the jack.
Figure 2-2. Ethernet Cable Connection
2.2 Installing the Load Assignment Kiosk
Once the load assignment kiosk is mounted in its desired position, the power and Ethernet cables need to be
connected. Refer to Figure 2-3 for the location of these connections, and plug in the power and Ethernet cables
accordingly. The rest of the wiring comes pre-connected.
Power Connection Ethernet Connection
WARNING
To avoid shock or serious injury, consult a licensed electrician for any electrical installation procedure.
Figure 2-3. Power and Ethernet connections

4ATK Kiosk System
3.0 Check-In And Check-Out Procedures
There are several check-in and check-out methods using the ATK Kiosk System (RFID card reader, number
keypad, number keypad/card reader combo, smart pass antenna, smart pass and HID tags).
3.1 RFID Card Reader
Radio frequency identification (RFID) stores and retrieves data by using a special RFID card/badge.
Figure 3-1. RFID card reader
To check-in or check-out using this method:
1. Come to a complete stop and place the RFID badge in front of the card reader (See Figure 3-1).
2. When the badge has been read successfully, the LED lights change from red to green.
3. Proceed to the appropriate location.
3.2 Number Keypad
The number keypad uses a personal identification number (PIN) to store and retrieve data.
Figure 3-2. Number keypad
To check-in or check-out using this method:
1. Come to a complete stop and use the numeric keypad to enter your personal identification number (PIN).
2. Proceed to the appropriate location.

Check-In And Check-Out Procedures 5
3.3 Number Keypad/RFID Card Reader
Some kiosk systems are equipped with a combination number keypad/RFID card reader, providing the option of
using either method described in Section 3.1 or Section 3.2 for storing and retrieving data.
Figure 3-3. Number keypad/RFID combo
3.4 Smart Pass Antenna
The Smart Pass Antenna allows drivers to check-in and check-out without stopping. It automatically detects
vehicles containing Smart Pass Access Cards at speeds up to 70 mph.

6ATK Kiosk System

Foundation Drawings 7

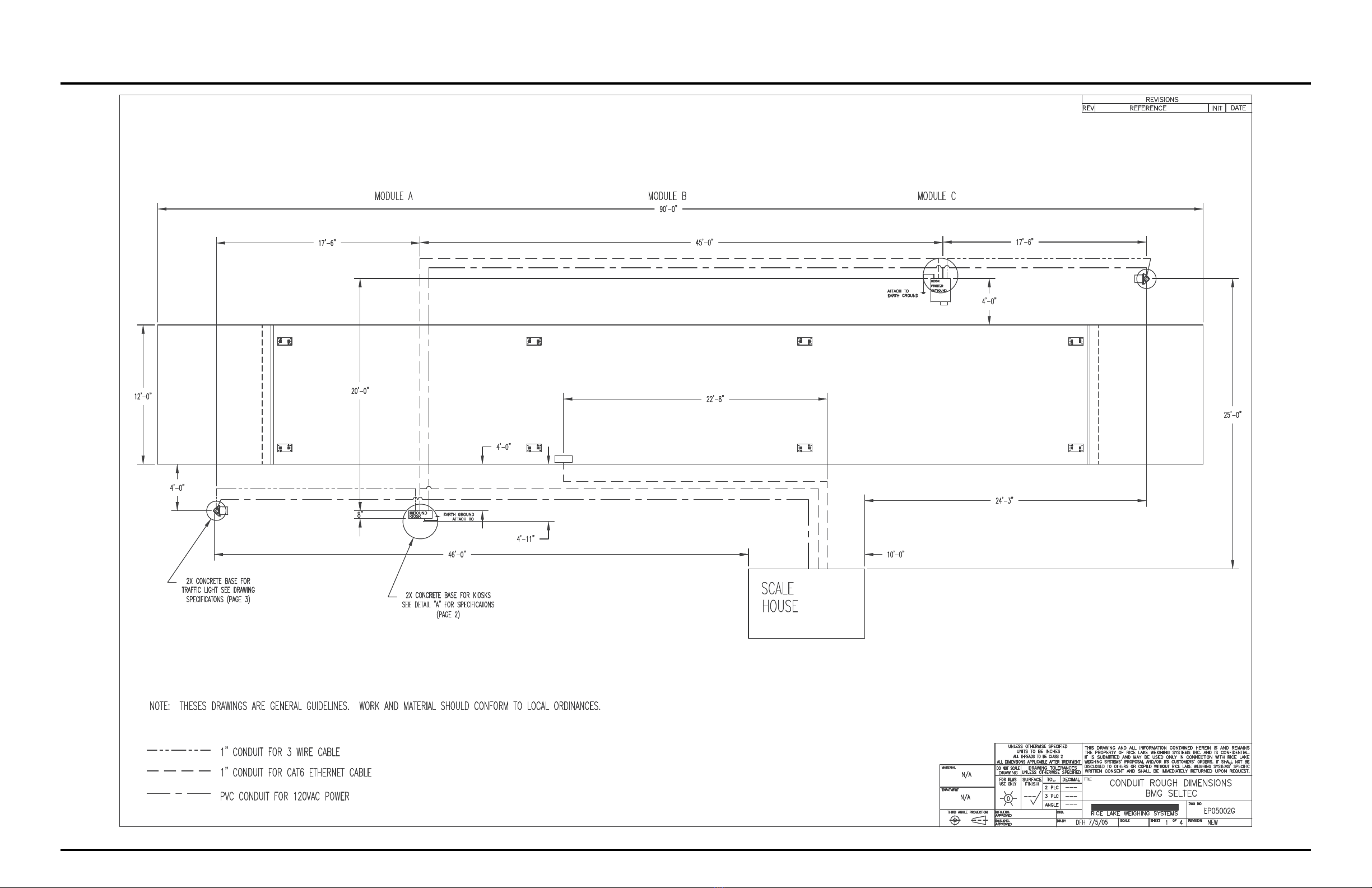

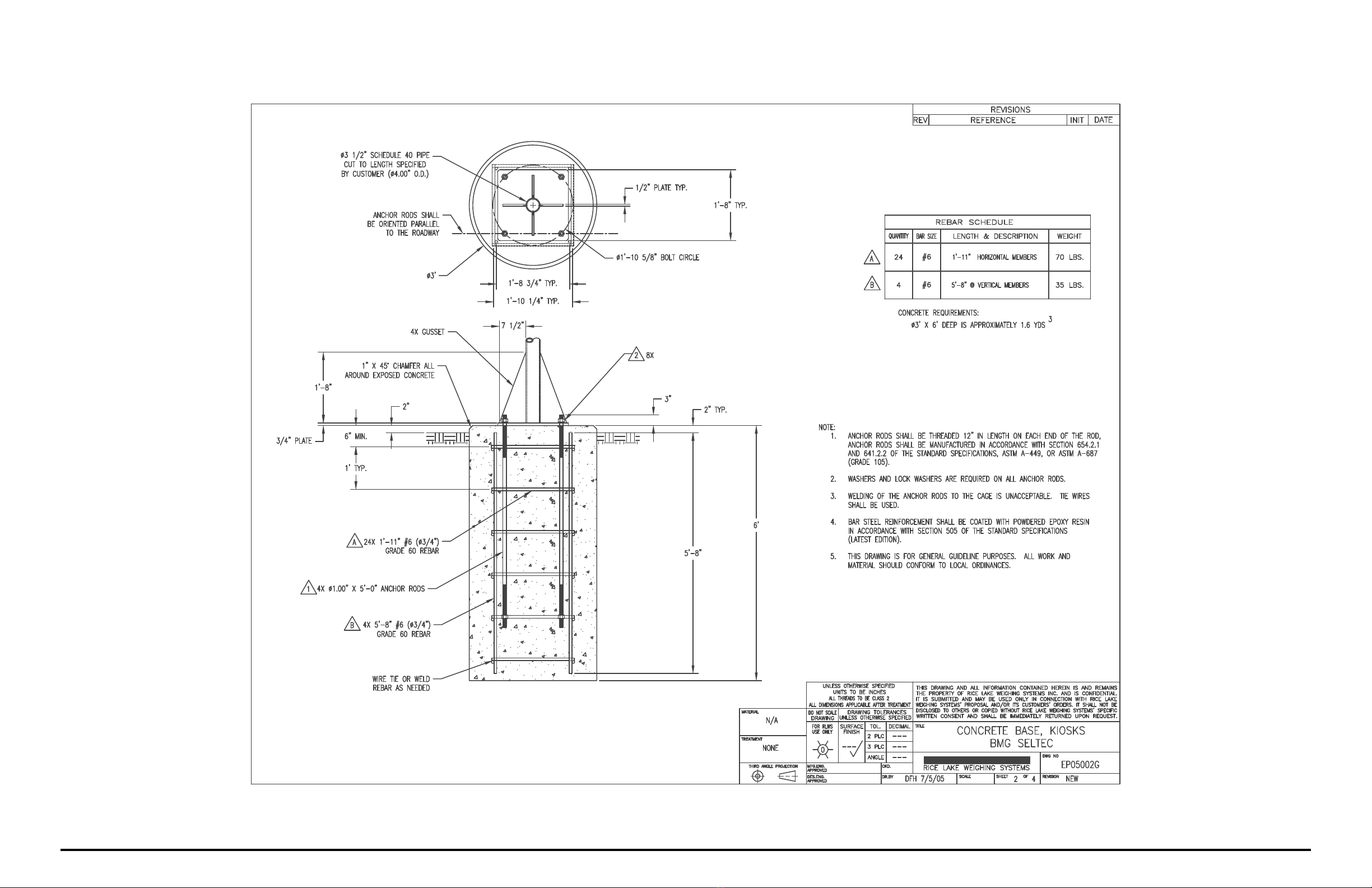

4.0 Foundation Drawings

8 ATK Installation Manual

Foundation Drawings 9

10 ATK Installation Manual
