Ride1up 500 Series User manual

1
Manual
1 Safety notes..........................................................................2
1.1 Personal Safety:..............................................................2
1.2 Ebike Safety:...................................................................2
1.3 Electrical Safety: .............................................................3
1.4 Brake Safety: ..................................................................3
1.5 Maintenance:..................................................................4
2 Assembling your ebike ..........................................................6
2.1 What’s in the box............................................................6
2.2 Installation steps: ...........................................................7
2.2.1. Front wheel assembly................................................ 7
2.2.2. Stem assembly........................................................... 8
2.2.3. Saddle assembly ........................................................ 8
2.2.4. Pedal assembly.......................................................... 9
3 Hand-bar introduction ..........................................................9
4 Battery discharge and Charging .......................................... 10
5 Display instructions............................................................. 13

For additional information, instructional videos,
and more visit Ride1up.com
2
IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE.
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
WARNING: Basic safety precautions should always be observed when
using an electrical appliance to reduce the risk of fire, electrical shock or
serious injury.
1Safety notes
1.1 Personal Safety:
• This Ebike is intended for use on paved roads
or paths only. Using the Ebike for any other
purpose may result in serious injury.
• Before you ride this Ebike in a busy area or
on public roads, practice riding in a safe area
free from hazards. Take time to learn the
Ebike’s controls and power.
• It is your responsibility to identify and follow
all local laws and regulations, including fitting
your Ebike with any additional equipment
necessary to comply with local laws.
• At night your Ebike MUST have white front
and red rear lights lit. It MUST also be fitted
with a red rear reflector and amber pedal
reflectors which are both supplied.
• Use caution when loading your Ebike into a
car or when mounting it on a bicycle carrier.
1.2 EBIKE Safety:
• You must be over 18 to ride this Ebike.
• Your Ebike is designed for a maximum
permitted overall weight (rider + luggage
+bicycle) of 250lbs. The maximum permitted
weight of the rider (200lbs) plus luggage
(50lbs) is 250lbs.
• You MUST have the bike inspected or
assembled by a knowledgeable professional
prior to use.
• Do not submerge your Ebike in water.
• Be aware that the speed at which you are
travelling may be faster than you are used to,
especially when accelerating.

For additional information, instructional videos,
and more visit Ride1up.com
3
1.3 Electrical Safety:
• Only use batteries and chargers supplied by
Ride1UP.
• Never modify the charger in any way.
• The charger has been designed for a specific
voltage, always check that the mains voltage is
the same as that stated on the rating label. A
charger that is suitable for one type of battery
pack may create a risk of fire when used with
another battery pack; never use the charger
with another appliance or attempt to charge
this product with another charger.
• Before use, check the charger cord for signs
of damage or ageing.Adamaged or entangled
charger cord increases the risk of fire and
electric shock.
• Keep the charger cord away from hot
surfaces and sharp edges.
• Do not handle the charger with wet hands.
• Do not store or charge the appliance
outdoors.
• The charger must be removed from the socket
before removing the battery, cleaning or
maintaining the appliance.
1.4 Brake Safety:
• Regularly check your brakes for signs of
wear and tear. Any worn parts must be repaired
or replaced immediately.
• Be careful while getting used to the brakes.
Practice emergency stops in a place clear of
traffic until you are comfortable controlling
your Ebike.
• Wet weather reduces your braking power and
the grip of the brakes. Reduce your speed and
be aware of longer stopping distances when
cycling in wet conditions.
• Braking on unpaved surfaces will differ. Be
sure to practice braking on different surface
types.
• Ensure that braking surfaces and brake pads
are free of wax, grease and oil.
• Do not pedal and brake at the same time as
this will cause excessive wear.

For additional information, instructional videos,
and more visit Ride1up.com
4
1.5 Maintenance:
• Many parts on your Ebike are subject to a
higher degree of wear due to their function and
depending on their use. Have your Ebike
checked regularly at a professional bike shop
and have any worn parts replaced.
• After an accident or crash you must take your
Ebike to a bike repair specialist to make sure
that it is safe to ride. Be aware that damage
may not be visible. Failure to do this may
result in serious injury.
• Any form of crack, scratches or change of
coloring in highly stressed areas indicate that
the life expectancy of the part has been reached
and it should be replaced immediately.
• Ensure the battery is removed from the bike
before carrying out any maintenance.
• Make sure that all screws and bolts are
tightened securely and to the prescribed
tightening torques before riding.
• You must always use genuine replacement
parts when performing maintenance on
your Ebike.
• Regularly check the tire pressures (minimum
50psi, maximum 75psi) and regularly check
the tread depth of tires.

For additional information, instructional videos,
and more visit Ride1up.com
5
ELECTRIC BIKE PARTS
Warranty registration:
We have registered your warranty for you.
Keep your receipt with this manual, as you will need it if you ever have a warranty
claim. See website for warranty restrictions. Misuse of the Ebike will void your
warranty.

For additional information, instructional videos,
and more visit Ride1up.com
6
2Assembling Your Bike

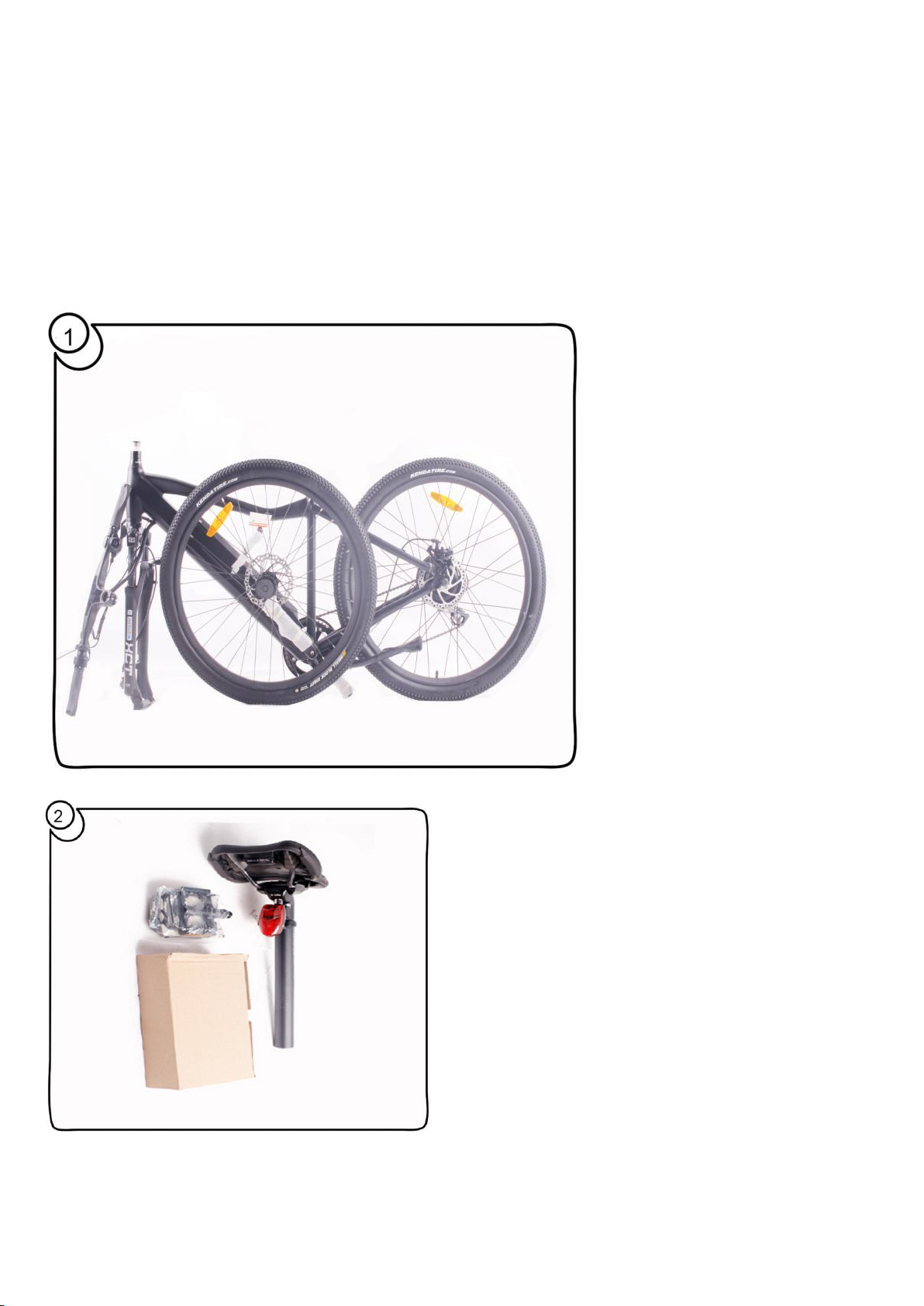

2.1 What’s in the box

For additional information, instructional videos,
and more visit Ride1up.com
7
2.2 Installation steps:
2.2.1. Front wheel assembly
1. Place the front wheel axle onto the fork mounts. (Fig.3)
2. Fit the holes of the fork. (Fig.4)
3. Install the quick release. (Fig.5)
4. Rotate to tighten and then clip it. (Fig.6)
WARNING ◆IT IS VITAL THAT THE QUICK RELEASE HAVE BEEN TIGHTENED. IF THEY ARE NOT
PROPRRLY ALIGNED, THE WHEEL MAYCOME OFF, CAUSING DAMAGE TO THE BIKE OR YOURSELF.

For additional information, instructional videos,
and more visit Ride1up.com
8
2.2.2. Stem assembly
1. Unscrew the four screws. (Fig.7)
2. Install the handlebar. (Fig.8)
3. Tighten the screws to fix the handlebar. (Fig.9)
NOTE: ◆IT’S VITAL TO TIGHTEN THE SCREWS TO AVOID THE MOVEMENT OF THE HANDBAR. THIS
SHOULD ONLY BE COMPLETED BY A PROFESSIONAL BIKE MECHANIC.
2.2.3. Saddle assembly
1. Open the seat clip and insert the seat post. (Fig.10＆11)
2. Adjust the suitable height and rotate the clip to tighten and then shut it. (Fig.12)

For additional information, instructional videos,
and more visit Ride1up.com
9
2.2.4. Pedal assembly
1. Screw each pedal into a crank by hand. (Fig.14＆15)
2. Use an adjustable wrench to finish tightening the pedal in place.
NOTE: ◆THERE ARE TWO PEDALS INCLUDED IN THE BOX WITH YOUR BIKE. THE PEDALS SCREW
INTO THE ENDS OFTHE CRANKS WITHOUT EXTRA NUTS, SCREWS OR PINS.
3 Handle-bar equipment

For additional information, instructional videos,
and more visit Ride1up.com
10
Accessories as shown in picture. (Fig.16)

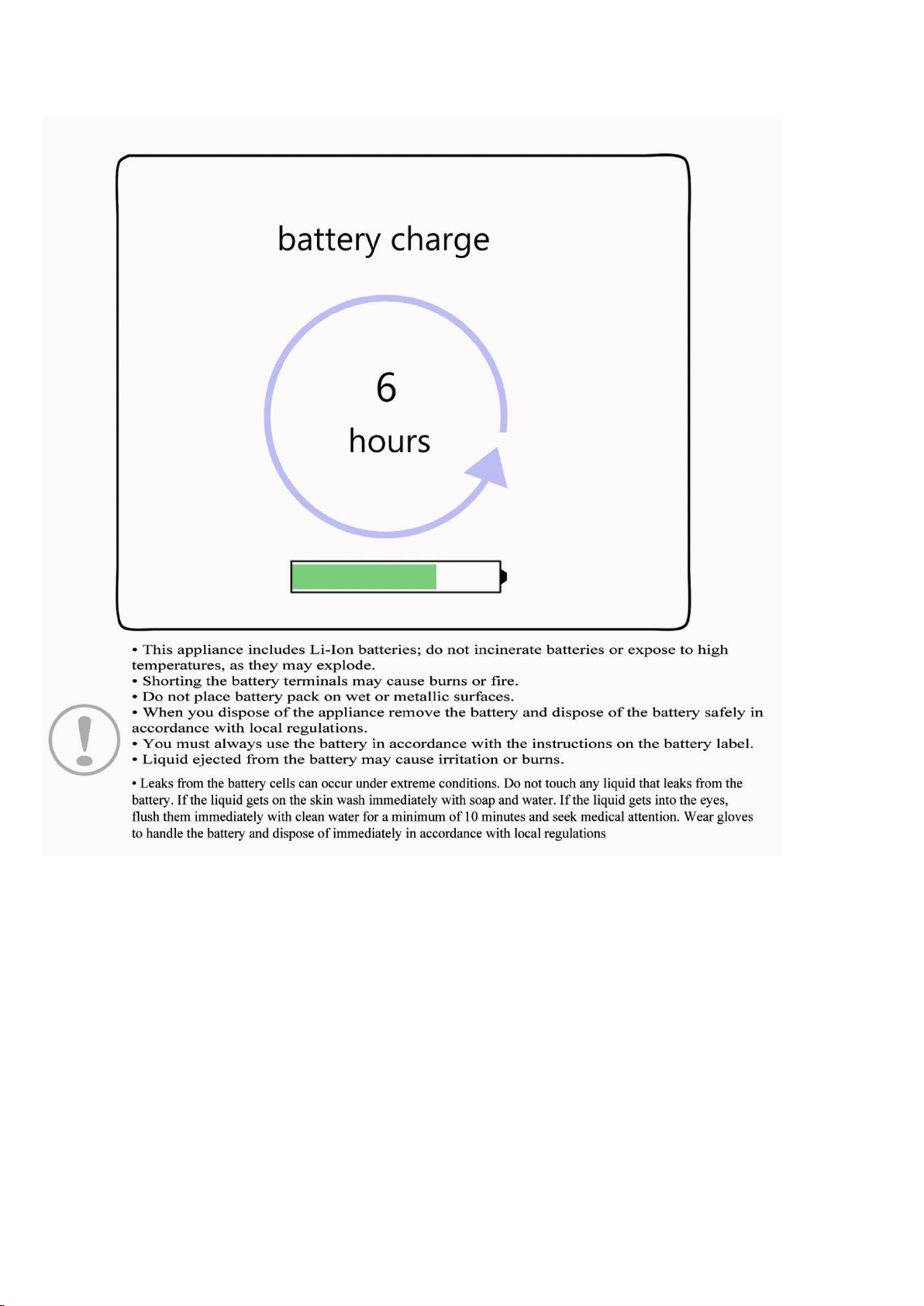

4 Battery connection and charging

For additional information, instructional videos,
and more visit Ride1up.com
11
1. Insert the key to the battery key hole. (Fig.17)
2. Spin the key in a clockwise direction (At 90°). (Fig.18)
3. Pull out the battery. (Fig.19)
4. Replace battery with key in the same position, then turn key to lock. (Fig.20)
5. Charging port ＆USB port on the bottom of the battery. (Fig.21)

For additional information, instructional videos,
and more visit Ride1up.com
12

For additional information, instructional videos,
and more visit Ride1up.com
13

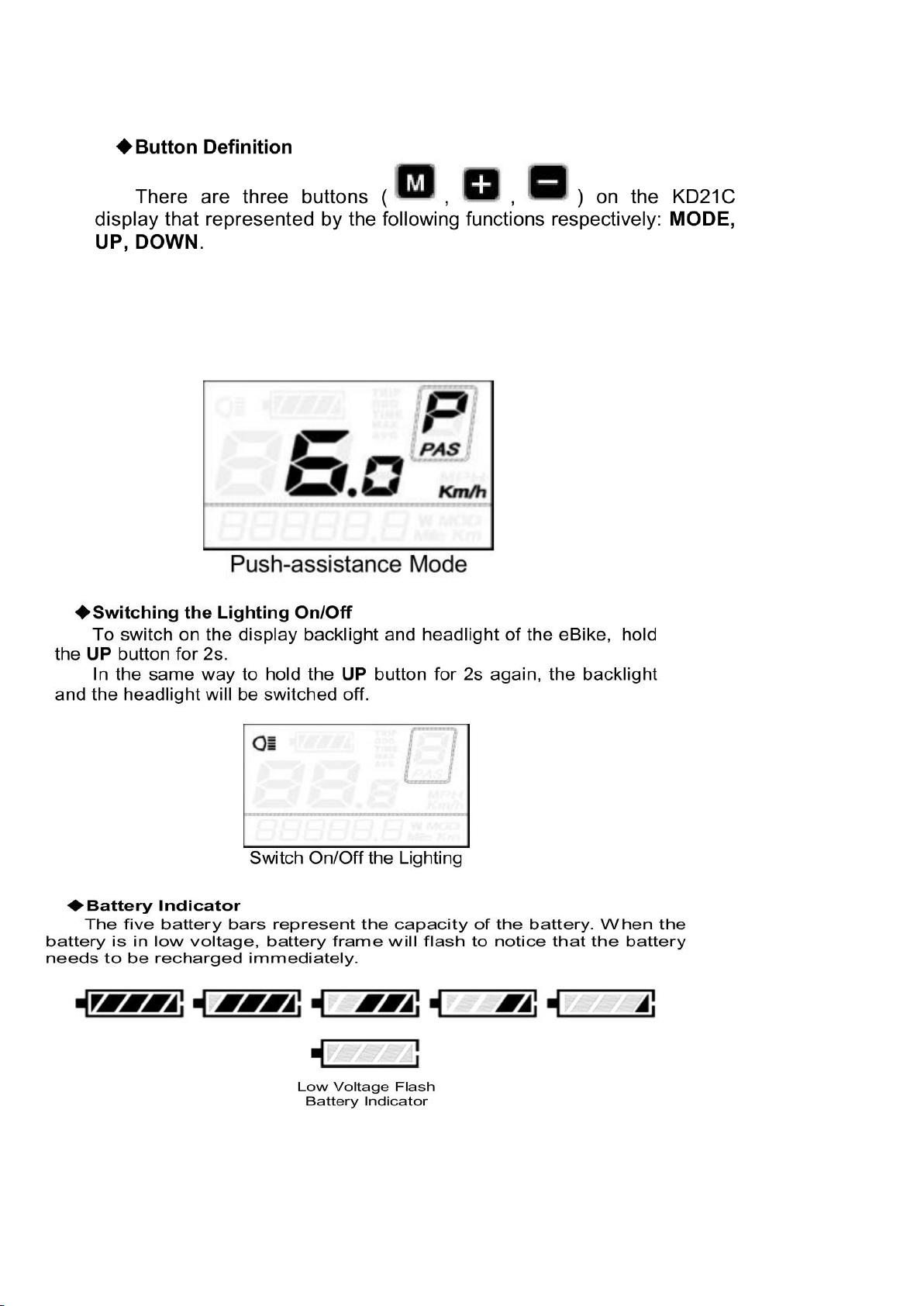

5 (Optional) Display instructions
