Ridea OSPW+ RD5 User manual

Greater than
0 degrees
Less than
30 degrees
BigBig
Rear Derailleur Cage (RD5)
SRAM RED E-TAP
RIDEA GROUP Limited
www.rideabikes.com
ser[email protected]
TEL: [phone]
FAX: [phone]
Best position after installation
Extendable distance
20mm
1
23mm
2
27mm
3
31mm
4
Assemble rear triangle plate, use
T7 Star key wrench to tighten the
screw on triangle plate lightly.
(Please do not overtighten, or the
screw may get stripped.)
RDHL 22 RDHL 20
Distance extended
22mm
Rear derailleur hanger link
Upgrade is complete.
11
10
The installation instruction is suitable for
RD5 C35 / C60 rear derailleur cage .
OSPW+
OverSized Pulley Wheel System +
Greater than
10 degrees
Less than
30 degrees
Small
Small
PS. A: Torx screw
B: Triangle plate
A
B

Thank you for your purchasing. Please follow the
installation instruction to upgrade.
(Warranty void if you do not upgrade by the instruction.)
Original model
A. Tweezers
B. T7 star key wrench
Tools required
For the installation of your new RD5 Oversized pulley Wheel
System for Sram (henceforth referred to as OSPW System)
you will need the following tools:
B
A
1
2
A
B
4
A F
B
C
D
E

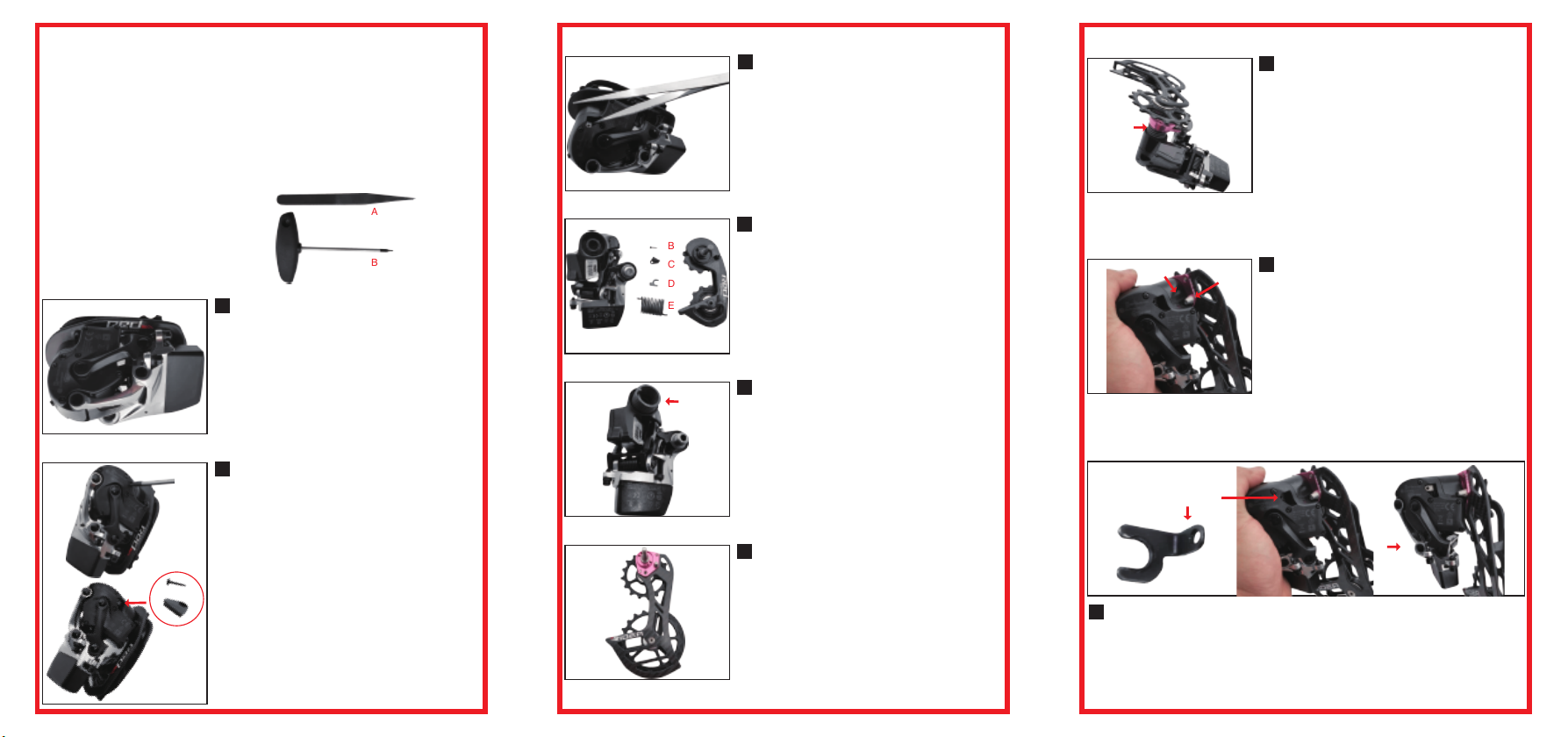

The exploded view is as below
D: Tenon
E: Extension spring
F: Original cage
C: Triangle plate
B: Torx screw
A: Rear derailleur body
Use T7 star key wrench to remove
rear triangular plate of rear derailleur
cage.
PS. A: T7 Star key wrench
B: Triangle plate
Use sharp tweezers or other tools
to take out the tenon.Please be
careful to avoid the tenon jumping.
3
PS. Beware of tenon jumping
Tenon
Assemble the tenon. Please hold the cage when assembling
the tenon.
9
Prepare whole set of RIDEA rear
derailleur cage to be assembled.
6
A: First, fix RIDEA RD5 rear
derailleur cage into the body.
Please do not press to the end,
and reserve the space for
rotating.
7
A
8Please fix and rotate the limit screw
in front of the stopper, and hold the
derailleur body and plate tightly.
PS. A: Limit screw
B: Stopper
A
B
5Warning: Please fix the spring
PS. A: Extension spring
A
