Riello P200 T/N Quick start guide

Installation, use and maintenance instructions
2915832 (4) - 08/2012
Heavy oil burners
CODE MODEL TYPE
3437785 P200 T/N 467 T80
3437786 P200 T/N 467 T80

5832
1
TECHNICAL DATA
ELECTRICAL DATA
Motor IE1
Motor IE2
Thermal power - Output 515 / 2280 kW - 45 / 200 kg/h (See sheet 3)
Operation 1st stage - 2nd stage - 3rd stage
Fuel Oil with max. viscosity 50mm2/s (7°E) at 50°C
with kit: max. viscosity 500mm2/s (65°E) at 50°C
Pump 350 kg/h at 25 bar
Electrical supply 3N ~ 220/380V
60 Hz
Fan motor rpm
V
kW
A
3470
220/380
5,5
19,7 - 11,4
Ignition transformer V1 - V2
I1 - I2
230 V - 2 x 6 kV
2 A - 35 mA
Electrical power consumption kW max 20
Electrical supply 3N ~ 220/380V
60 Hz
Fan motor rpm
V
kW
A
3568
220/380
5,5
20 - 11,5
Ignition transformer V1 - V2
I1 - I2
230 V - 2 x 6 kV
2 A - 35 mA
Electrical power consumption kW max 20

5832
2

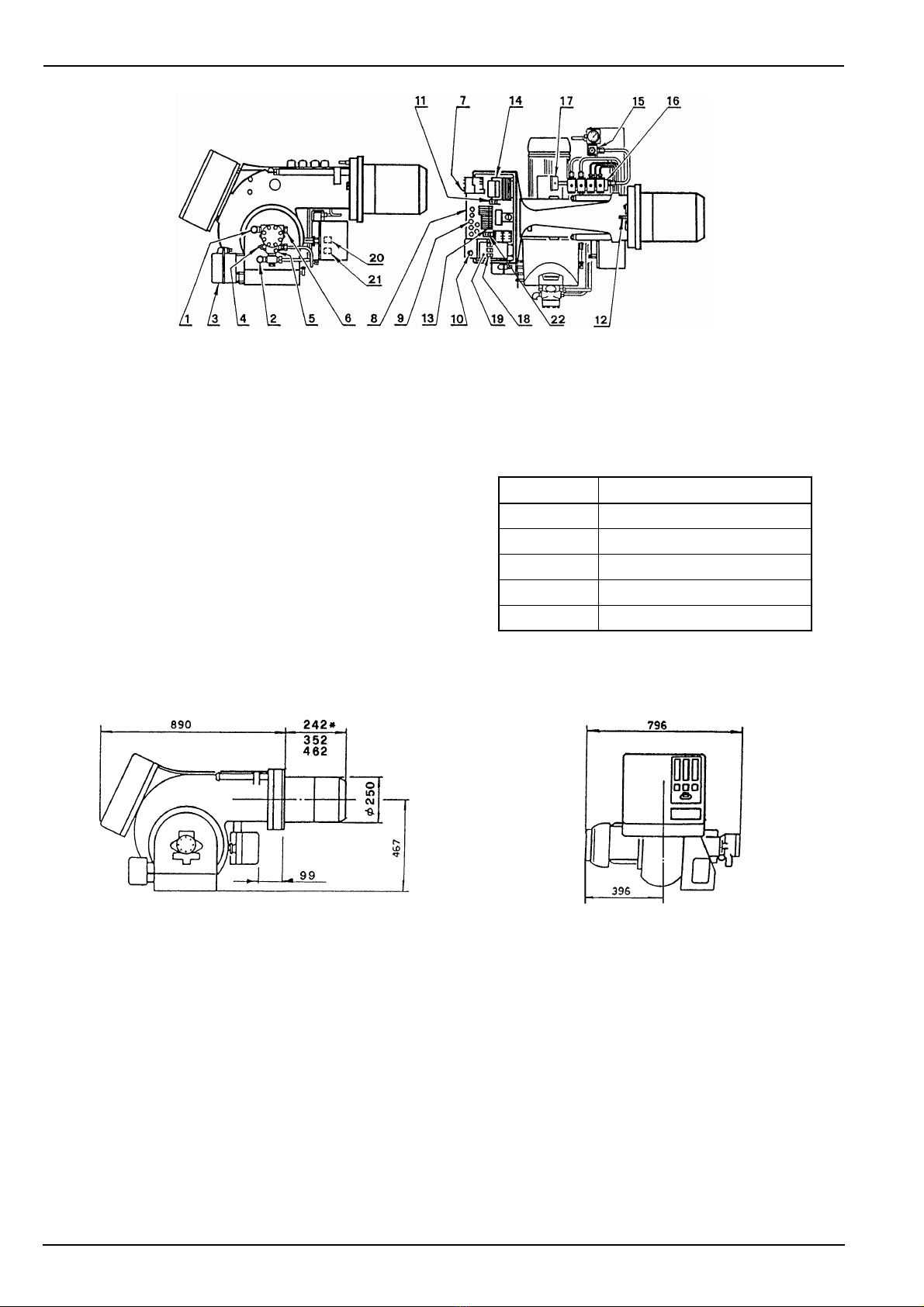

1 - Suction line
2 - Return line
3 - Air shutter opening motor
4 - Pump pressure adjustment screw
5 - Manometer plug (G 1/8)
6 - Vacuometer plug (G 1/2)
7 - Reset push-button of the motor overload relay
8 - Electric board
9 - Cable clamps
10 - Control box reset push-button and lock-out
lamp
11 - Adjustment thermostat
12 - Regulating bush for combustion head
13 - Wiring terminal board
14 - Ignition transformer
15 - Filter
16 - Valves group
17 - Manometer
18 - Lamp
19 - Commutator
20 - Low limit thermostat
21 - High limit thermostat
22 - Timer
Fig. 1
Quantity Accessories
2 Flexibles tubes
2 Nipples
4 Screws
1 Gasket for flange
5 Cable clamps
*It is possible with a spacer, upon request
DIMENSIONS

5832
3
COMBUSTION CHAMBER PRESSURE - MAXIMUM OUTPUT
(Three nozzles in operation)
Operation field: Limit Safety
When the burner operates with only one or two nozzles, the pressurization conditions are improved and no
problems arise.
Boiler front plate drilling
Combustion head projection
For the combustion head projection carefully follow the boiler
manufacturer indications.
A proper protection with refractory material on the combustion head
projecting into the combustion chamber shall be made, when boilers
with frontal smoke box are used.

5832
4
OPERATION AND EFFICIENCY OF THE BURNER
ACCESSOIRES
RADIO DISTURBANCE PROTECTION KIT: Code 3010386
If the burner is installed in places particularly subject to radio disturbance (emission of signals exceeding 10 V/m) owing
to the presence of an INVERTER, or in applications where the length of the thermostat connections exceeds 20 metres,
a protection kit is available as an interface between the control box and the burner.
1st STAGE
POWER AND OUTPUT
MINIMUM MAXIMUM
kW kg/h kW kg/h
1st nozzle: ignition phase 376 33 763 67
1st+ 2nd nozzle: intermediate phase 763 67 1516 133
1st + 2nd + 3rd nozzle: operation phase 1140 100 2279 200
2nd STAGE
POWER AND OUTPUT
MINIMUM MAXIMUM
kW kg/h kW kg/h
1st nozzle: ignition phase 376 33 763 67
1st + 2nd nozzle: 1st stage of operation 763 67 1516 133
1st + 2nd + 3rd nozzle: 2nd stage of operation 1140 100 2279 200
3rd STAGE
POWER AND OUTPUT
MINIMUM MAXIMUM
kW kg/h kW kg/h
1st nozzle: 1st stage of operation 513 45 763 67
1st + 2nd nozzle: 2nd stage of operation 1026 90 1516 133
1st + 2nd + 3rd nozzle: 3rd stage of operation 1140 100 2279 200

5832
5

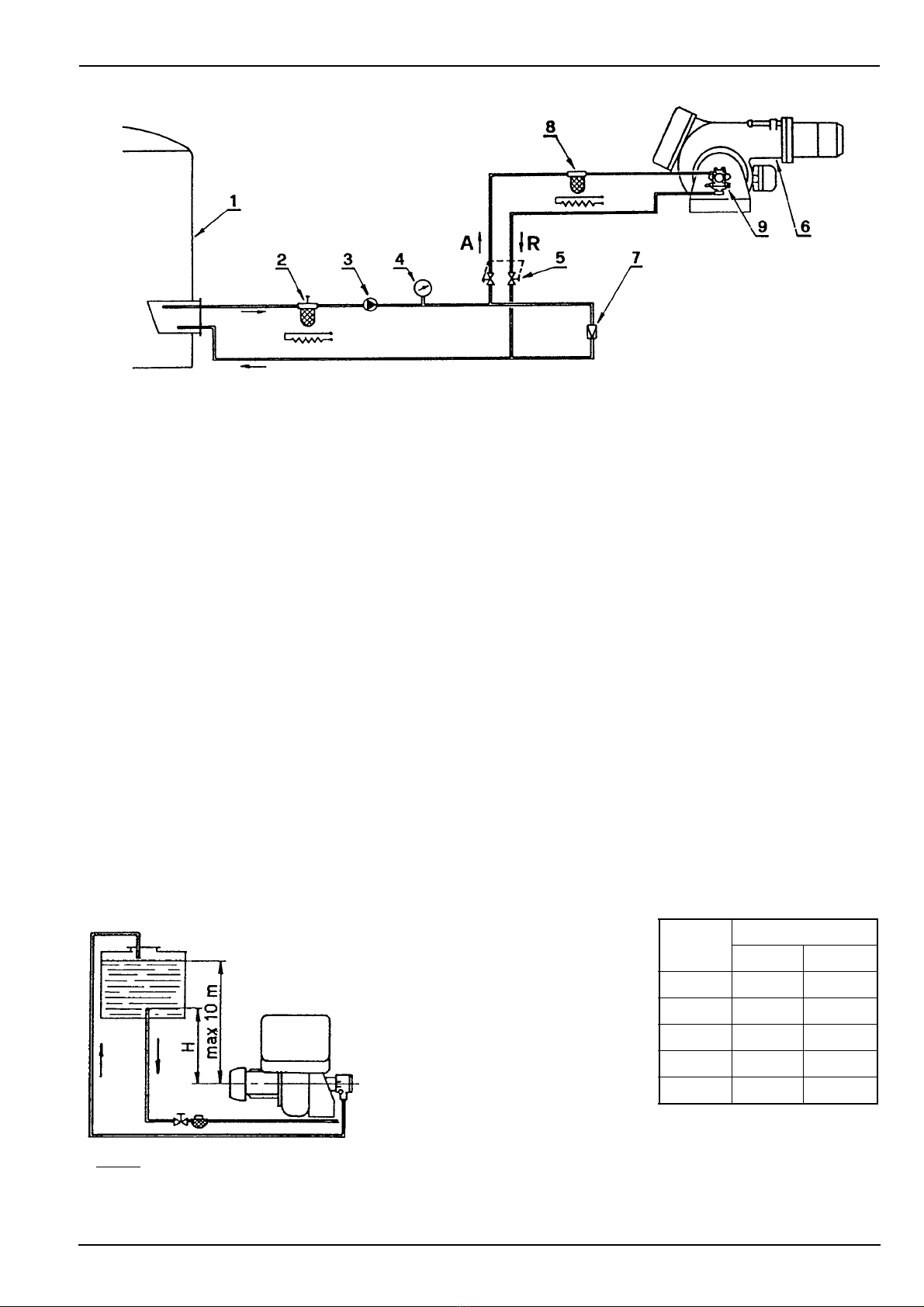

HEAVY OIL SUPPLY LINE
RING SUPPLY LINE
(for heavy oil with viscosity up to 50°E at 50°C)
1- Tank (heated for heavy oil)
2- Filter (with resistance for oil > 7°E at 50°C)
3- Forwarding pump
4- Control manometer
5- Shutter valves (in couple) excluding the burner
6- Burner (provided for Kit for heavy oil code no. 3000721)
7- Pressure adjuster
8- Filter (with resistance for oil > 7°E at 50°C)
9- Burner pump
WARNING
- The oil could easily flow through the pipes if those are properly seized, protected and heated (by electricity, steam
or hot water).
- The forwarding pump capacity should be at the least double of that of the burner pump.
- If several burners are supplied through the same ring supply line, the forwarding pump should have a capacity of
approx. 30% more than the sum of the single burners outputs.
- For starting-up: after excluding the burner by the shutter valves (5) let the oil flow into the supply ring up to reach
the required circulation; after than open the valves and supply normally the burner.
GRAVITY SUPPLY LINE
(only for oil with max. viscosity up to 7°E at 50°C)
Notice: before placing the burner in operation, ensure that the return line is open. Any obstruction may damage the
pump seal.
H
meters
L meters
ø 1” ø 11/4”
0210
0,5 3 11
1412
1,5 5 13
2614
Pump priming
Loose the tap of the vacuometer plug
(6) (fig. 1) and wait for the oil flow.
H = Difference in the pipes height
L = Total length of the suction tube

5832
6

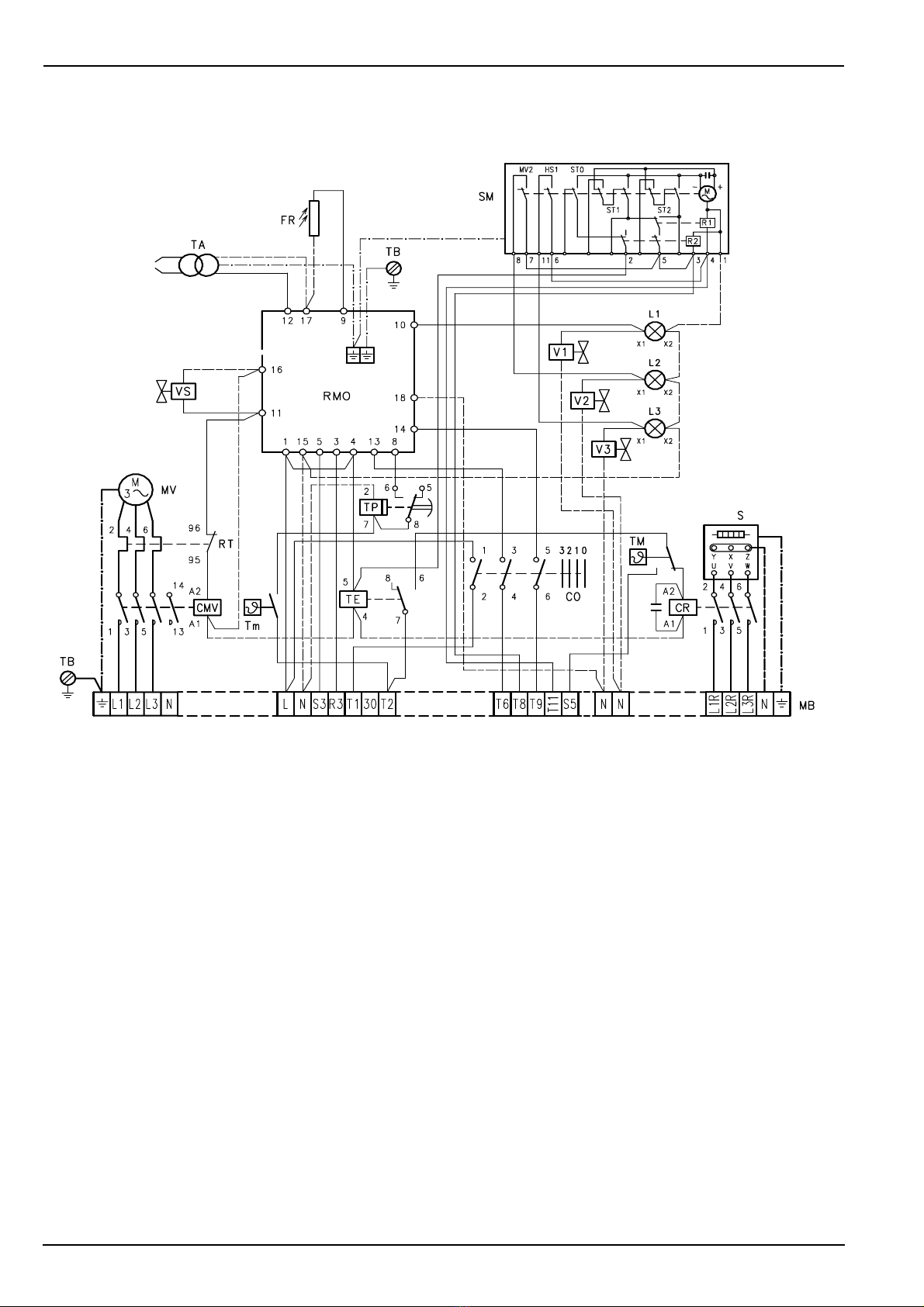

INTERNAL WIRING DIAGRAM
(carried out by the factory)
LEGEND
CMV Fan motor contact maker TB Burner earth
CO Commutator TE Electronic thermostat
CR Resistor contact maker TM Maximal thermostat
FR Photoresistance Tm Minimal thermostat
MB Burner terminal strip TP Timer
MV Fan motor L1 Lamps for 1st stage
RMO Control box L2 Lamps for 2nd stage
RT Overload L3 Lamps for 3rd stage
SPre-heater tank V1 Oil valves for 1st stage
SM Air-damper actuator V2 Oil valves for 2nd stage
SO Probe PT100 V3 Oil valves for 3rd stage
TA Ignition transformer VS Safety valves
D2618

5832
7
WIRING CONNECTORS TO THE TERMINAL BOARD
(carried out by the installer)
2645
220V 380V
A Ampere T35 T25
B Ampere T50 T35
C mm24,0 2,5
D mm210 6
HRemote lock-out signal
I1 Optional switch on-off burner
MB Burner terminal strip
PS Reset push - button
SA High temperature oil alarm
TL Limit control device system
TS Safety control device system
T2 Load control system for 2nd stage
T3 Load control system for 3rd stage
NOTE:
yCheck the lock-out by darkening the photo-cell after removal of the cover.
ATTENTION HIGH VOLTAGE.
yIn case of supply 220V without neutral, connect the motor and the pre-heater thank through delta (the “star”
connection is the original one, made for 380V).
yNOTE
In systems where the run of wiring connecting the thermostat exceeds 20 metres in length, or in places where
the burner is subject to particularly disturbing electromagnetic interference (over 10 v/m), you must insert the
relay-interface kit item number 3010386.

5832
8
CHOICE: OF THE NOZZLES - OF THE PUMP PRESSURE -
OF THE COMBUSTION HEAD ADJUSTMENT

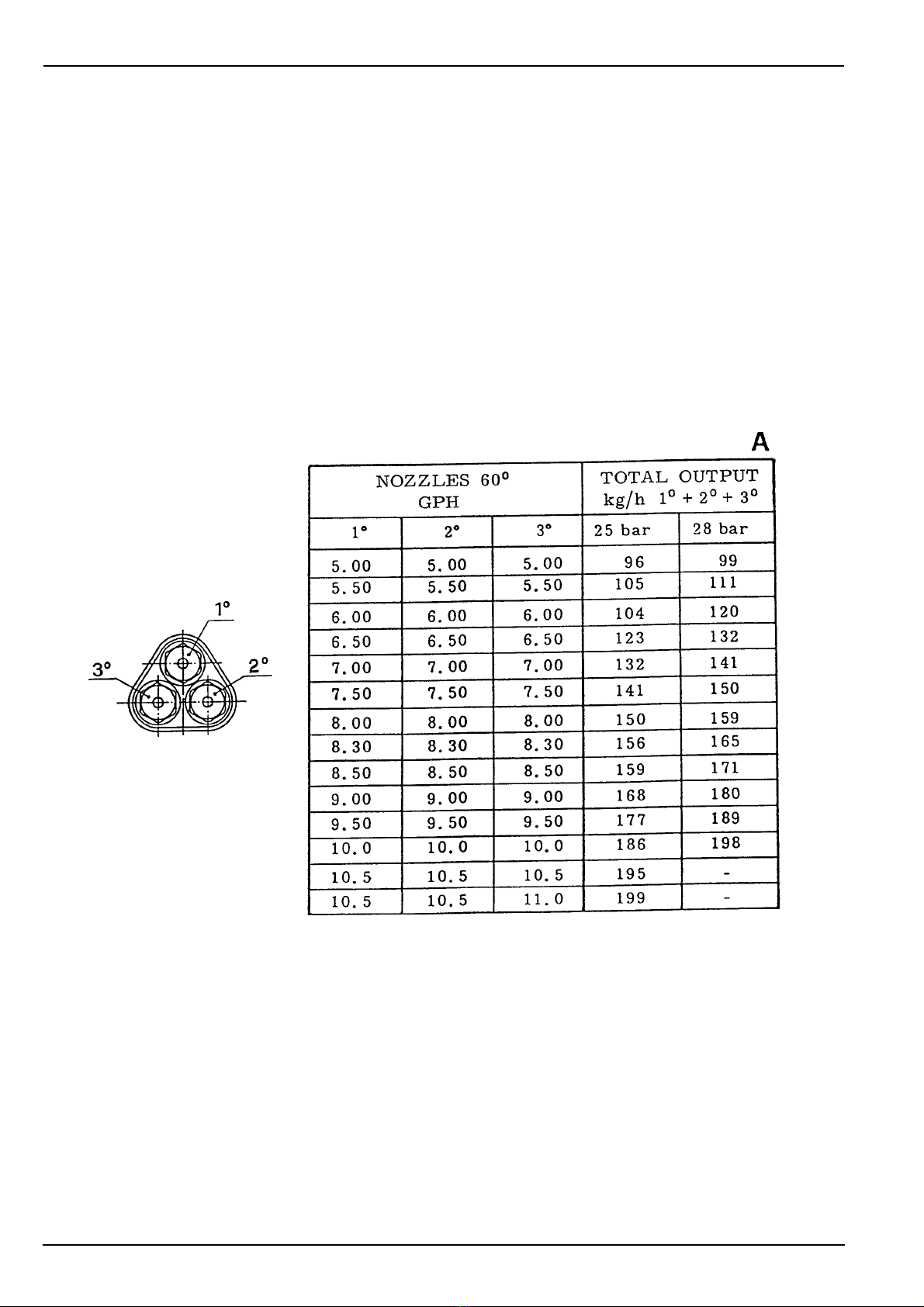

• First of all state the maximum output required with all three nozzles in operation.
• On the base of the maximum output choose, from table A, three related nozzles.
Nozzles: 60° - Pump pressure: 25 bar.
• The references of table B should be followed in case of need of:
- modification of the pump pressure in order to vary the output,
- diverse composition of the 3 nozzles group,
- knowledge of the output in 1st and 2nd stage.
SUGGESTED NOZZLES
The pump pressure is referred to all three nozzles operating. The pump pressure increases automatically when two
nozzles are operating and becomes higher with only one nozzle.

5832
9
Suggested pressure
- Light oil: 25 bar
- Heavy oil: 28 bar (transformation kit)
Rated nozzles deliveries are listed on the table.
A tolerance of ±5% concerns the real delivery against the rated one.
The pump leaves the factory set at 25 bar.

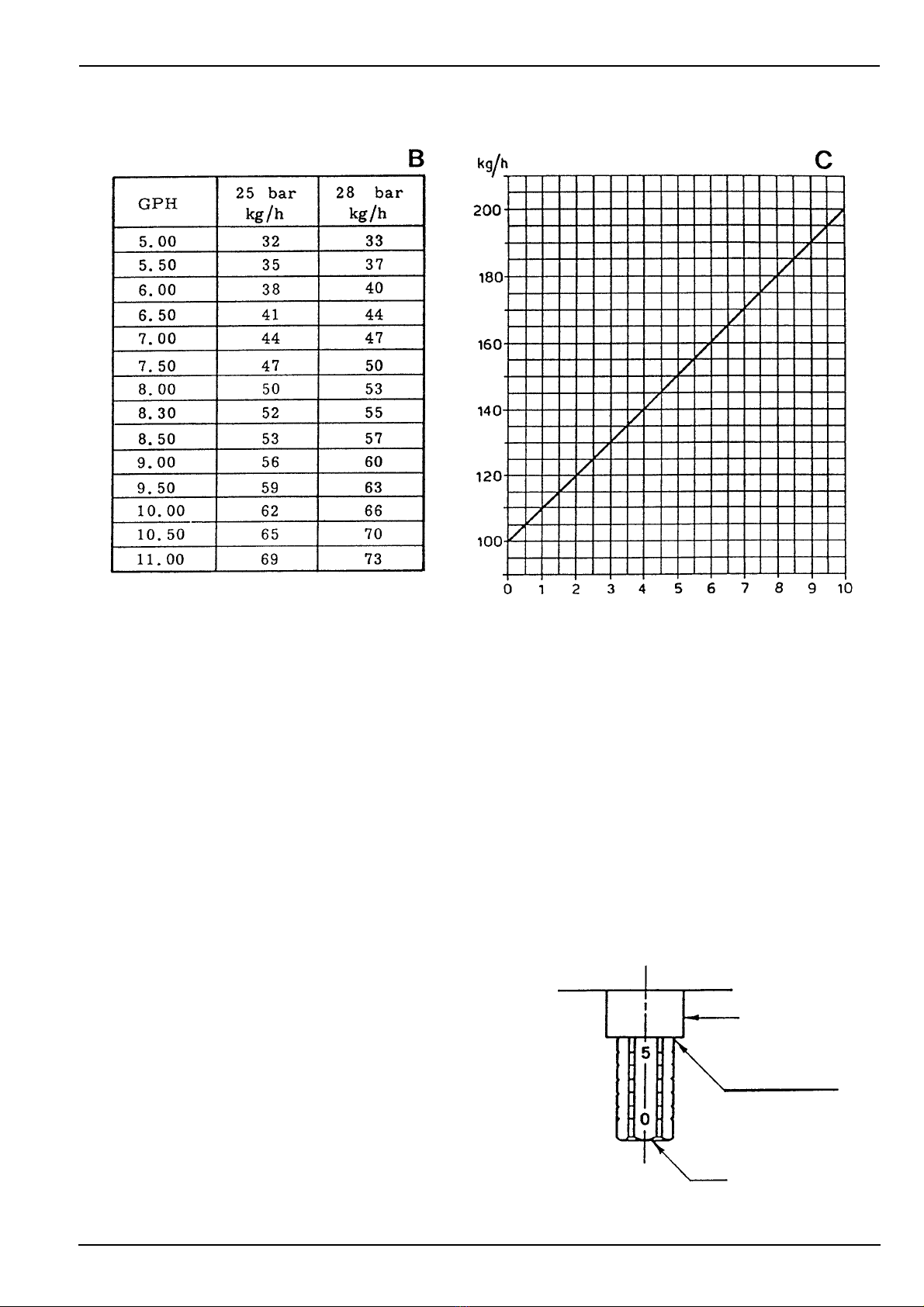

• On the base of the maximum delivery detect, from table C, the combustion head adjustment.
The adjustment should be made by turning the screw Atill the
set-point (see diagram) is on the line with the washer B.
Nozzles delivery
Pump pressure
Combustion head adjustment
Maximum output
Combustion head adjustment
(set-point)
Set-point 6
B
A

5832
10
AIR SHUTTERS ADJUSTMENTS
The adjustment of the air shutters shall be set each time, with reference to the nozzles deliveries and the combustion
chamber pressurization.

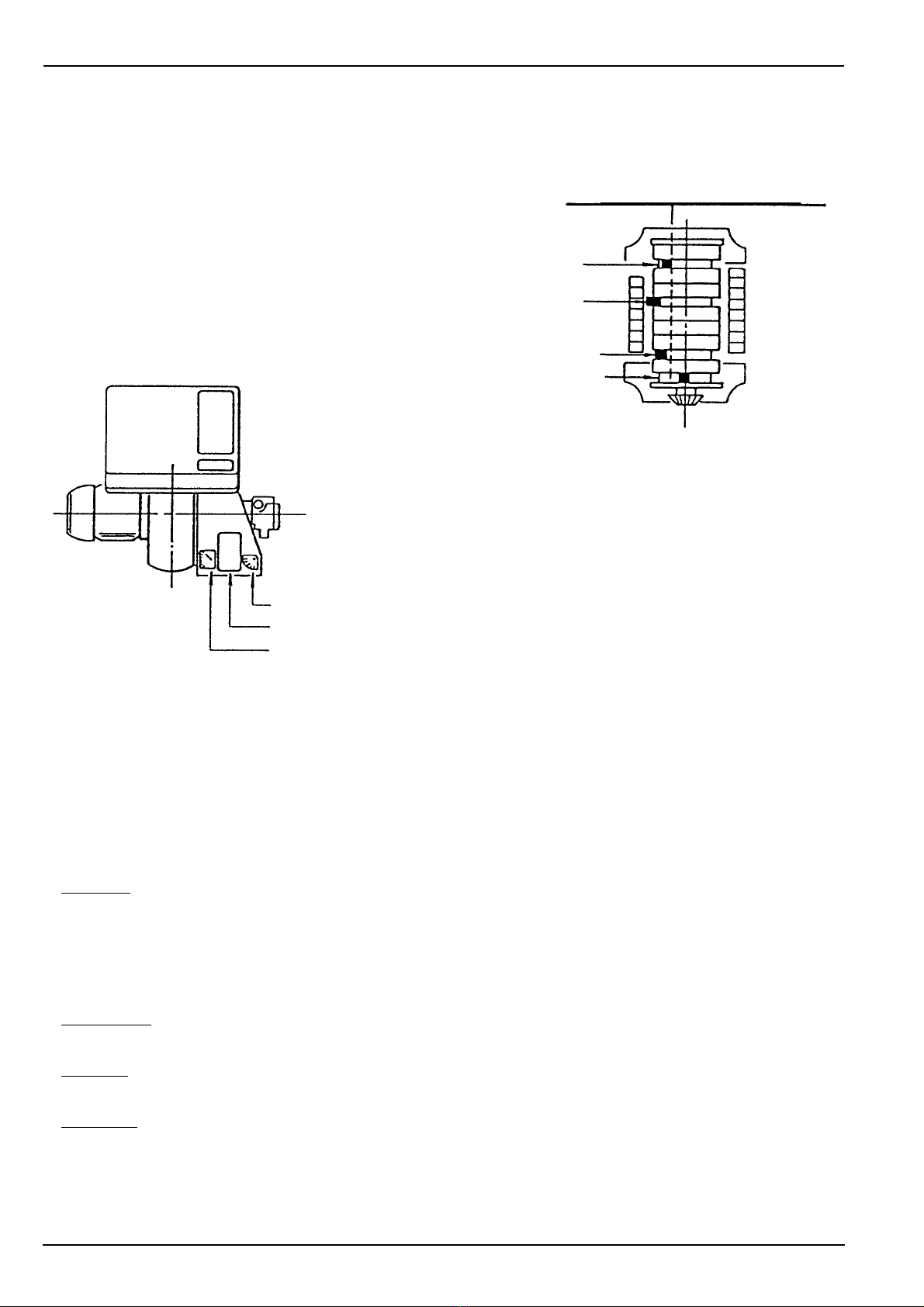

Fig. 2 shows the positioning of the air shutters.
Fig. 3 shows the positioning of the cams of the motor.
Air shutters adjustment
1st stage: manual regulation carried out by acting on the sector A(fig. 2).
2nd-3rd stage: carried out by acting on the coloured lever of the motor (fig. 3).
Blue lever: adjustment not necessary.
Positioned by the factory on the vertical of the motor axis. It maintains the shutters of 2nd and 3rd stage
closed during the 1st stage operation and in the stop periods.
Do not turn clockwise (-) the lever to avoid crawlings of the air shutters, turning the lever anticlockwise
(+) the motor will be in different position during the passage from 2nd to 1st stage or during the stop.
Orange lever: for 2nd stage air shutters adjustment, it is adjustable both in opening and in closing position.
Red lever: for 3rd stage air shutters adjustment, it is adjustable both in opening and in closing position.
Black lever: it controls the opening of the 2nd stage oil valve. It has always to anticipate the orange lever.
The control of the 3rd stage valve is automatic through one of the cam next to the red lever.
Fig. 2
Fig. 3
Black lever has to anticipate
the orange one
Air shutter position 2 nd and 3rd stage
2nd and 3rd stage air shutter motor
Sector A 1st stage air shutter
MV2 - Black lever
ST3 - Red lever
ST2 - Orange lever
0 - Blue lever
Opening +–Closing

5832
11
SPRAY TEMPERATURE ADJUSTMENT
Thermostat for adjustment - maximum value - minimum value
Electronic adjustment thermostat by means of information relayed from a PT100 probe immersed in the oil in the
delivery manifold, the thermostat adjusts spray temperature. (The correct conditions for fuel spray are shown in the
temperature/viscosity graph below).
Example: fuel oil with 7 °E viscosity at 50 °C is pre-heated to approximately 110 °C.
Note although the temperature set on the thermostat should correspond to the temperature of the fluid, it is good
practice to check that the thermometer shows the correct reading once the unit has been in operation for a few
minutes.
The LED will illuminate to indicate that the heating resistances are working properly.
Minimum temperature thermostat. In addition to shutting down the burner if the fuel temperature should fall below the
critical value for correct combustion, this thermostat also provides a permissive signal at the time of burner start-up.
(Factory set at approximately 80°C, adjustable by removing the pre-heater cover and relative plate).
Maximum temperature thermostat. This switches off the resistance when, because of failure of the adjustment ther-
mostat, the temperature of the pre-heater increases to unacceptable levels; a “high temperature” alarm output is
provided on the burner terminal strip. (Factory setting is approximately 180°C).
Renewing the minimum and maximum temperature thermostats.
Reposition the probes of the new thermostat, after having first loos-
ened the plate pack securing screws. Make sure that the probe is
touching the resistance and the plate pack as shown in the adjacent
figure. The same precautions should be taken when renewing the re-
sistances in contact with the thermostat probes.
If the pre-heater should malfunction, use an ohmmeter to check that
the resistances located in contact with the temperature probes are not
burnt out (reading of approximately 35 Ohm).
Changing the PT100 probe in the oil delivery manifold.
Fit the supplied nut and biconical collar on the new probe, insert a
length of approximately 40 mm in the manifold, and secure firmly into place.
At this point, the section remaining outside the manifold can be bent as required, with no risk of damaging the re-
sistance.
Adjustment thermostat probe
Thermometer
Min. temperature thermostat
Pre-heater
Max. temperature thermostat
Purge
Resistance
Tubes into aluminium plate
Aluminium
plate
Thermostat probe

5832
12
CYCLE OF THE BURNER START-UP
(tx) Factory setting: 20 s.
This time determines the heavy oil tempera-
ture at ignition. It can be adjusted, accord-
ing to the fuel’s viscosity, by the timer 22)
(Fig. 1).
The adjacent diagram shows the suggest-
ed settings.
Motor lock-out
It is caused by the over load relay when overload oc-
curs or no current supply.
Re-set: push button 7 and 10 (fig. 1)
NB.: Periodically clean the filter of the pre-heater tank.
THREE STAGE OPERATION
Thermostat
Motor
Ignition transformer
1 st stage valve
2 nd stage valve
Lock-out lamp
Pre-purge
3 rd stage valve
Lock-out because no ignitionNormal
D2848
tx (s)
Viscosity at 50°C (°E)
D3211
t
x
max = 60 s
1 st stage
2 nd stage
3 rd stage max.
0

5832
13
BURNER START-UP CYCLE DIAGNOSTICS
During start-up, indication is according to the followin table:
OPERATING FAULT DIAGNOSTICS
The control box has a self-diagnostic system, which easily allows identifying the operating faults (RED LED signal).
ITo use this function, wait at least ten seconds from the safety lock out, and then press the reset button for a minimum of 3 sec-
onds.
After releasing the button, the RED LED starts flashing as shown in the diagram below.
The pulses of the LED constitute a signal spaced by approximately 3 seconds.
The number of pulses will provide the information on the possible faults, according to the table below:
COLOUR CODE TABLE
Sequences Colour code
Pre-purging           
Ignition phase           
Operation, flame ok            
Operating with weak flame signal          
Electrical supply lower than ~170V           
Lock-out          
Extraneous light           
Key: Off Yellow Green Red
SIGNAL PROBABLE CAUSE
2 flashes The flame does not stabilise at the end of the safety time:
– faulty photocell;
– faulty or soiled oil valves;
– faulty ignition transformer
– poor burner regulation.
3 flashes
– Not used.
4 flashes
– Light in the chamber before firing.
7 flashes Loss of flame during operations:
– poor burner regulation;
– faulty or soiled oil valves.
8 flashes – Faulty thermostat for oil permissive signal;
– Heating resistances blown.
10 flashes – Wiring error or internal fault;
– Presence of electromagnetic disturbance: use the radio disturbance protection kit
RED LED on
wait at least 10 s
Press button
for > 3 s Signal Signal
Interval
3 s

Subject to modifications
RIELLO S.p.A.
I-37045 Legnago (VR)
Tel.: [phone]
http:// www.riello.it
http:// www.rielloburners.com
