Rimage Autostar II User manual

Copyright ©2007 Rimage Corporation 2000584_B
Replace the Printer on a Rimage Autoloader
OR
USB Cable
Printer Power Cord
Printer Cable
Printer Cable
Printer Power Cord
USB Cable
If your Rimage autoloader has a printer cover, remove the cover.
For packing instructions, refer to one of the following documents:
From the back of the printer disconnect the following cables:
Printer cable
Printer power cord
USB cable
•
•
•
1Access the printer.
4Pack the printer for shipping.
Before you begin:
1. Stop or pause all jobs.
2. Power off the control center (external or embedded).
3. Power off the Rimage autoloader.
4. Disconnect the power cord from the power outlet.

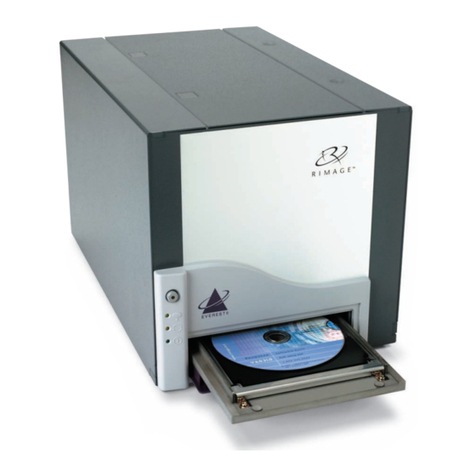

Everest printer
Prism printer
Caution: Some cables in your system may be latched. Equipment
damage may occur if cables are not disconnected appropriately.
2Disconnect the cables.
3Remove the printer from the autoloader.
Lift the printer up and off the autoloader.
Caution: Lift the Everest printer with care; it is very heavy.
Pack the Rimage Everest II™ Printer (110891-001)
Pack the Rimage Everest III™ Printer (110877-001)
Pack the Rimage Prism™ Printer (112143-001)
These documents are available at www.Rimage.com/Support.html.
Navigate: Product Family > Support - Product > Documents tab.
Refer to the label on the box of your replacement printer.
5Unpack the replacement printer.
 Note: The term “autoloader” is used throughout this document to refer to the
following Rimage products: AutoPrinter II™, Endeavor/Disclab™, DLN5100™,
DL5200™, DLN5200™, 5100N™, 5300N™, Autostar II™, Protégé II™, Amigo
II™, Producer 7100™, Producer 8100™, Producer 7100N™, and Producer
8100N™.

2000584_B
Copyright ©2007 Rimage Corporation
USB Cable
Printer Power Cord
Printer Cable
Printer Cable
USB Cable Printer Power Cord
Slots
Printer Plate
Place the printer on your Rimage autoloader so that the printer feet slide
into the slots on the printer plate.
6Place the printer on the Rimage autoloader.
If your new printer is an Everest III, follow the prompts in the New
Hardware Wizard to add the printer to your list of available printers.
10 Install the printer driver (Everest III only).
OR
At the back of the printer connect the following cables:
Printer cable
Printer power cord
USB cable
•
•
•
Everest printer
Prism printer
7Connect the cables.
Refer to the instructions in the user guide that was included with your
Rimage autoloader. User guides are also available at www.Rimage.
com/Support.html. Navigate: Product Family > Support - Product >
Documents tab.
Your Rimage autoloader is ready for use.
12 If necessary, align the printer to the Rimage
autoloader.
a. Connect the autoloader power cord to the power outlet.
b. Press the autoloader power switch to power on the system.
8Power on the Rimage autoloader.
9
If your printer was shipped to you with a Rimage software disc, install the
software on the embedded or external control center.
Important! Be sure to uninstall any previous Rimage software before
installing your new software.
Install the Rimage software.
Install the latest autoloader or AutoPrinter rmware. Firmware and
instructions are available at Rimage.com/Support.html. Navigate:
Product Family > Support - Product > Downloads tab.
Important! If you are replacing a Prism printer with an Everest III
printer, refer to the Updating Printer Firmware using Gemini Utilities
document (PN 2000759) included with your new printer.
11 Update the autoloader or AutoPrinter rmware.
