Installation and Operating Instructions for
Brake EV/EH 018/024/028/038 FEM-240M/480M
E 09.769e

Installation and Operating Instructions for Brake
EV/EH 018/024/028/038 FEM,
Spring activated –electromagnetically released
E 09.769e
issue: 04.01.2023
version: 3
drawn.:BAHS
checked.: EISF
pages: 21
page: 2
IMPORTANT
Please read these instructions carefully before installing and operating the product. Your particular
attention is drawn to the notes on safety.
These installation and operating instructions are valid on condition that the product meets the selec-
tion criteria for its proper use. Selection and design of the product is not the subject of these installa-
tion and operating instructions.
Disregarding or misinterpreting these installation and operating instructions invalidates any product
liability or guarantee by RINGSPANN; the same applies if the product is taken apart or changed.
These installation and operating instructions should be kept in a safe place and should accompany
the product if it is passed on to others -either on its own or as part of a machine- to make it accessible
to the user.
SAFETY NOTICE
•Installation and operation of this product should only be carried out by skilled personnel.
•Repairs may only be carried out by the manufacturer or accredited RINGSPANN agents.
•If a malfunction is indicated, the product or the machine into which it is installed, should be
stopped immediately and either RINGSPANN or an accredited RINGSPANN agent should be
informed.
•Switch off the power supply before commencing work on electrical components.
•Rotating machine elements must be protected by the purchaser to prevent accidental contact.
•Supplies abroad are subject to the safety laws prevailing in those countries.
This is a translation of the German original version!
In case of inconsistencies between the German and English version of this in-
stallation and operating instruction, the German version shall prevail.

Installation and Operating Instructions for Brake
EV/EH 018/024/028/038 FEM,
Spring activated –electromagnetically released
E 09.769e
issue: 04.01.2023
version: 3
drawn.:BAHS
checked.: EISF
pages: 21
page: 3
Contents
1. General Remarks
1.1 General Safety Instructions
1.2 Special Safety Instructions
2. Function, Marking, Technical Details and Standards
2.1 Function, Operating Principle
2.2 Marking
2.3 Technical Details
2.4 Standards, Guidelines, Protection Class and Certification Mark
3. Proper Use / Specified Purpose
4. Improper Use
5. Condition upon Delivery
6. Handling and Storage
7. Technical Requirements for Safe and Reliable Operation
8. Installation of the RINGSPANN Brake
8.1 General Instruction for Assembly and Installation
8.2 Prior Assembly and Installation

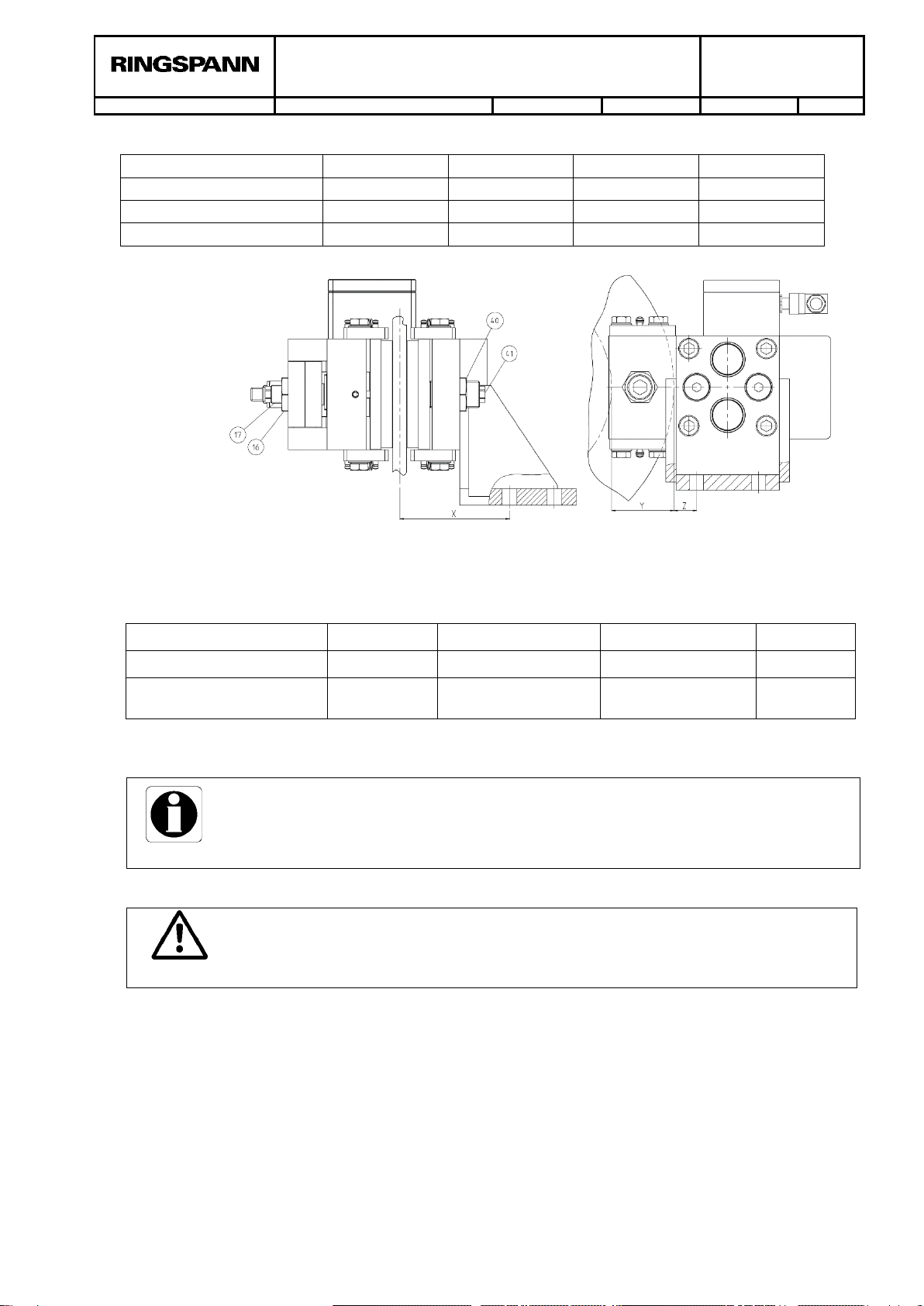

8.3 Adjust to the Brake Disc Thickness and Mounting the Brake

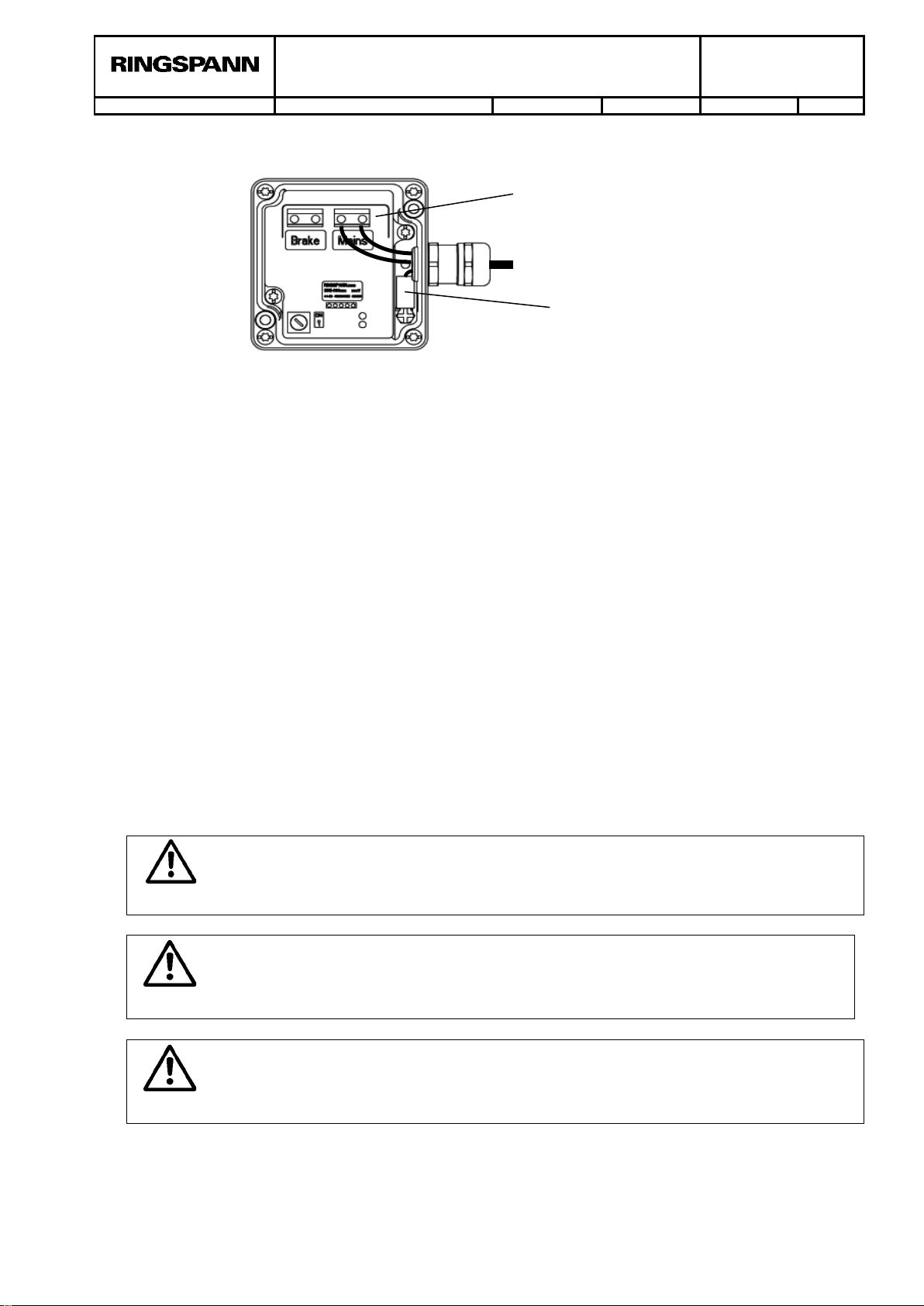

8.4 Electrical Connection
8.5 Brake Force Adjustment
8.6 Manual Brake Release
9. Commissioning
10. Disassembling the Brake
11. Maintenance
11.1 General Maintenance
11.2 Brake Pad Adjustment, permissible Brake Pad Wear and Brake Pad Replacement
12. Accessories: Switches

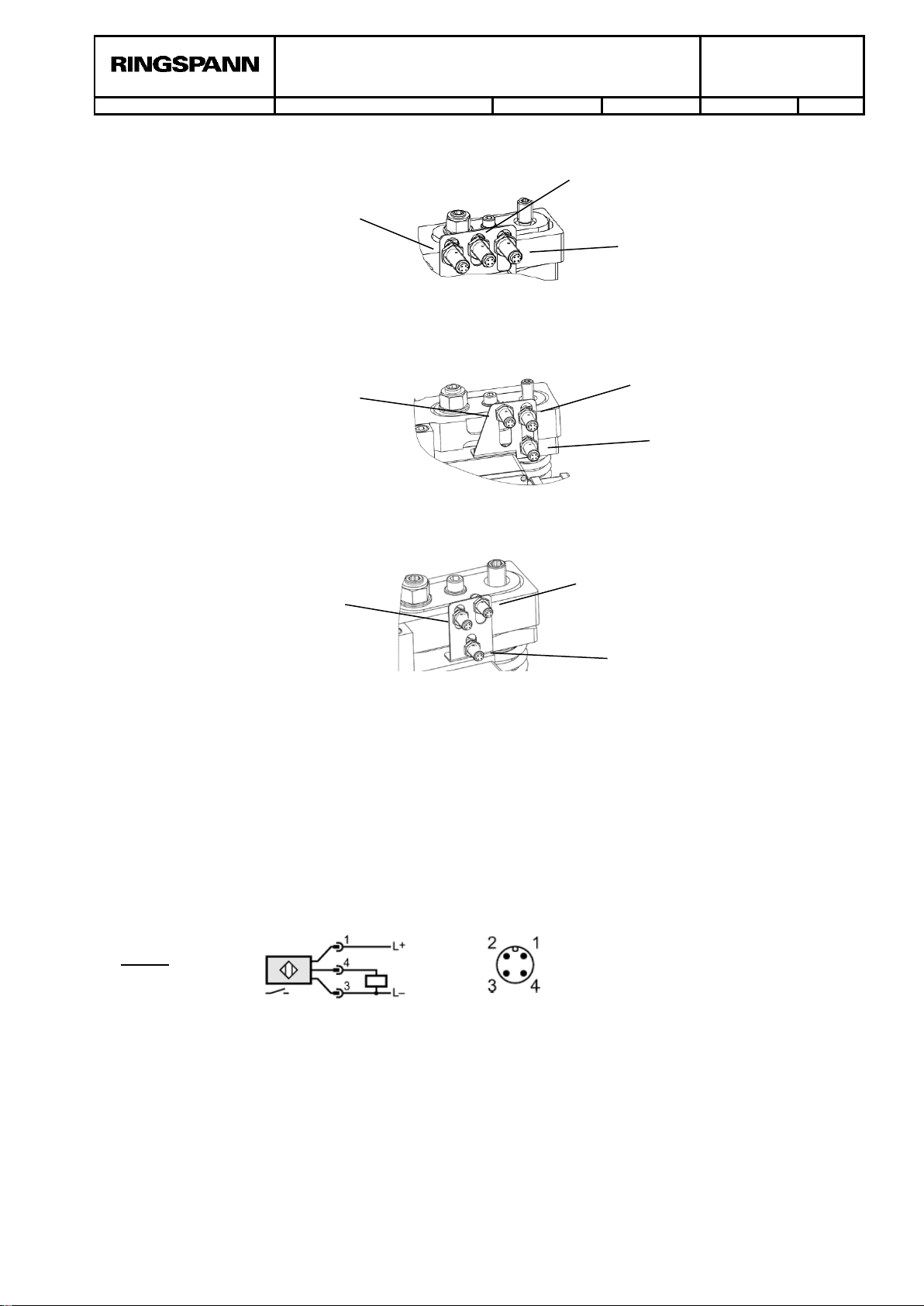

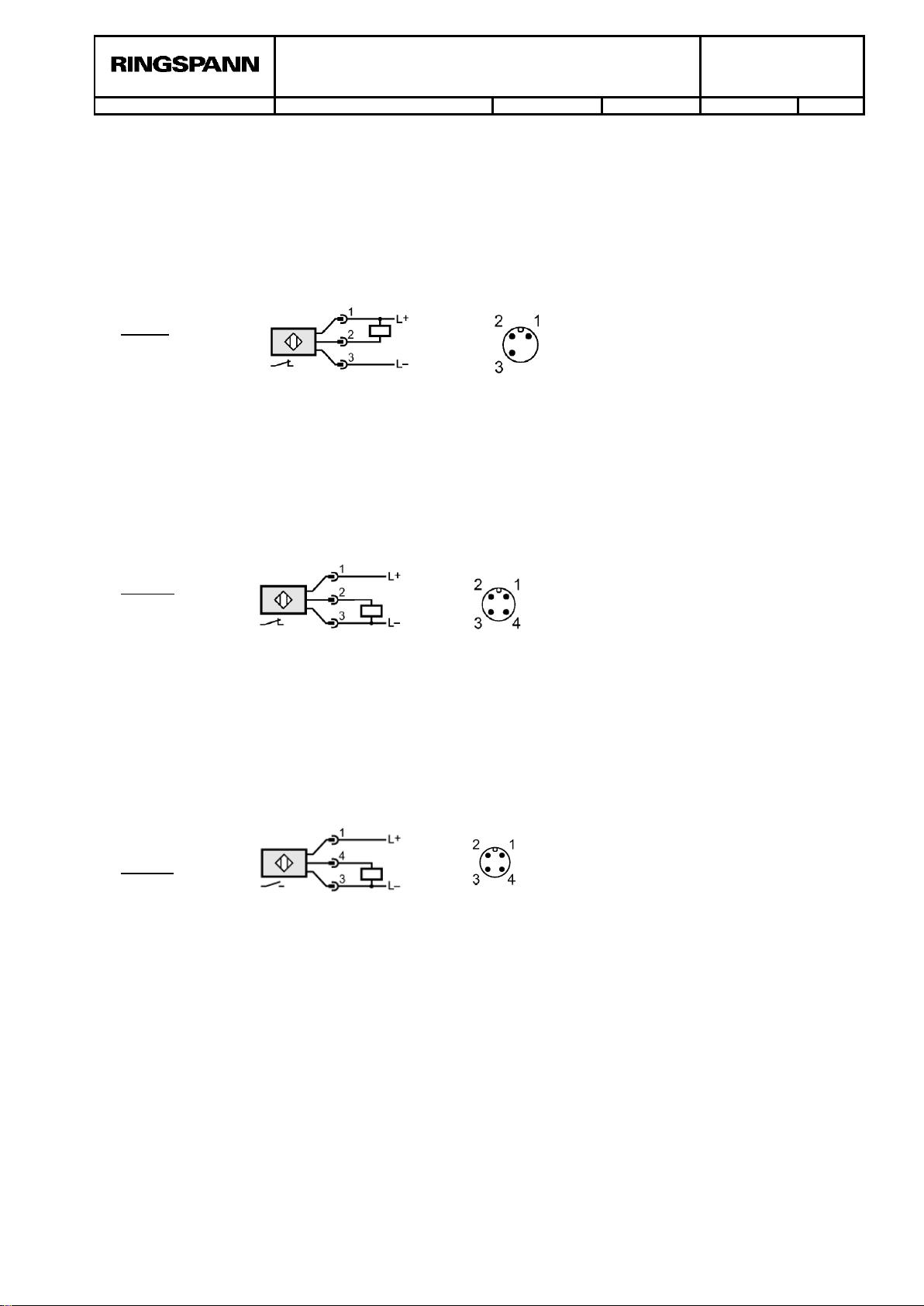

12.1 Installing and connecting the Inductive Proximity Switches for Brake Closed, Brake Open and
Brake Pad Wear Adjustment necessary
13. EC-Declaration of Conformity
14. Electrical Connection, Drawing 4453-000001
15. Drawing and Parts List

Installation and Operating Instructions for Brake
EV/EH 018/024/028/038 FEM,
Spring activated –electromagnetically released
E 09.769e
issue: 04.01.2023
version: 3
drawn.:BAHS
checked.: EISF
pages: 21
page: 4
1. General remarks
1.1 General safety instructions
Please read these installation and operating instructions carefully before installing and operating
the brake. Please refer also to the drawings in the various sections. Safety must be given the
highest priority during all work performed on the brake. Switch off the drive unit before performing
work on the brake. Rotating components (e.g. brake disc) must be secured by the operator to
prevent accidental contact.
1.2 Special safety instructions
Danger to life and limb!
It is essential to secure the entire drive train against inadvertent starts dur-
ing brake installation and maintenance. Rotating components can cause
severe injuries. Therefore, rotating components (e.g. brake disc) must be
secured by the operator to prevent accidental contact.
2. Function, Marking, Technical details and Standards
2.1 Function, Operating Principle
The brakes of type EV an EH are machine components, used for the purpose of braking acceler-
ated masses safely and reliably. The combination of brake and brake disc provides a complete
brake unit capable of securing machines and equipment system effectively. Thanks to its univer-
sal design, it can perform the following functions:
•As a holding or parking brake, it prevents the unintended start of a stationary shaft.
•As a stopping brake, it brings a rotating shaft to a complete standstill.
Braking force is generated by spring force (46), the brake is released electromagnetically (2). If
the lining of the friction blocks (1) wears out, the holding or braking torque is reduced because the
spring preload is reduced.

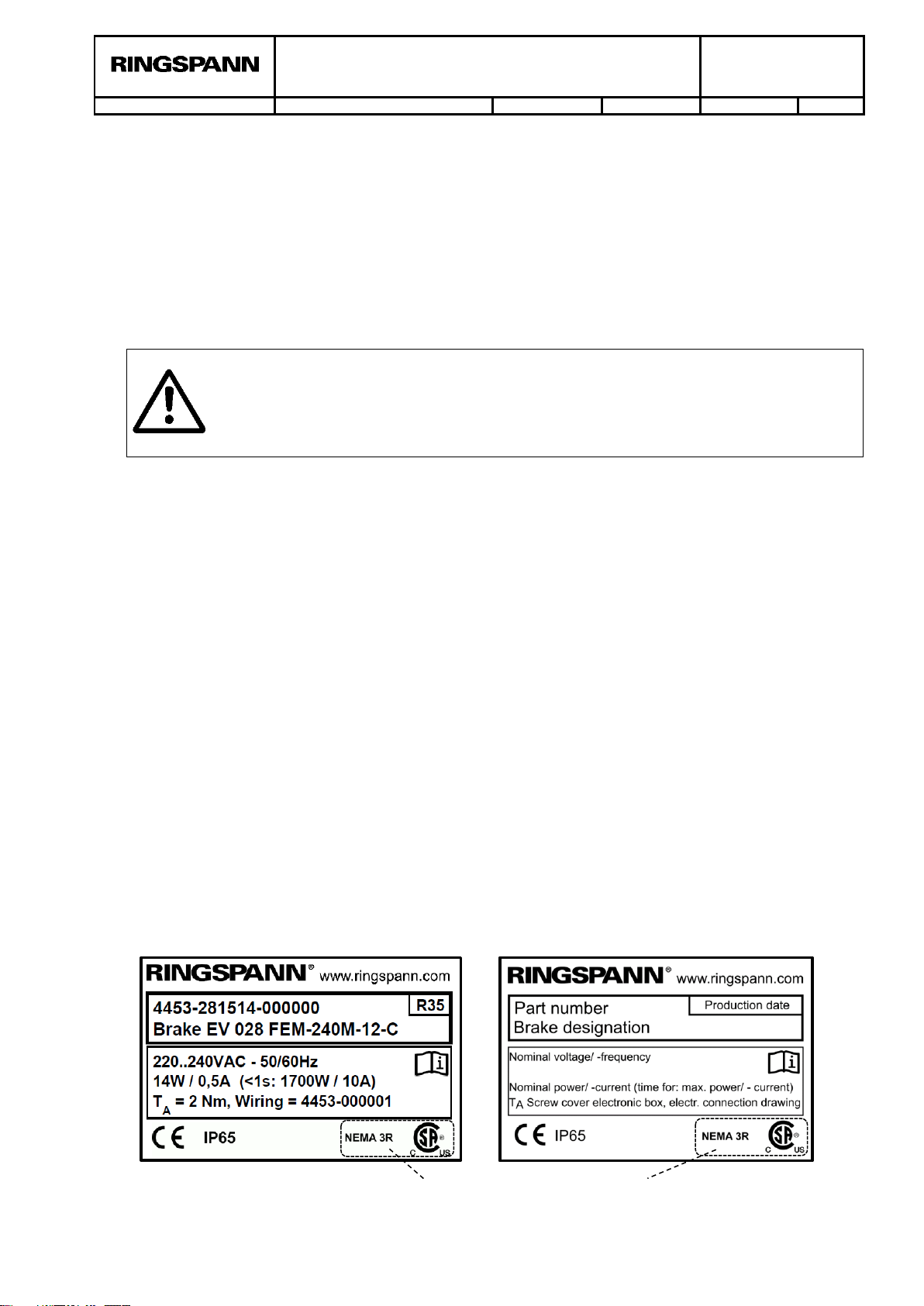

2.2 Marking
These installation and operating instructions apply to:
•the types EV/EH 018/024/028/038 FEM, each with two separate voltage ranges 240V (220 …
240VAC) and 480V (380 … 480VAC).
•installation on horizontal brake discs and vertical brake discs in combination with horizontal
shafts
•for models with and without switches
•for different brake pad material and for brake pads with signal cables.
•with cable bushing (cCSAus type) and plug as connection for the supply voltage
Example: Designation
Only cCSAus version

Installation and Operating Instructions for Brake
EV/EH 018/024/028/038 FEM,
Spring activated –electromagnetically released
E 09.769e
issue: 04.01.2023
version: 3
drawn.:BAHS
checked.: EISF
pages: 21
page: 5
2.3 Technical details
EV / EH
018FEM
EV / EH
024FEM
EV / EH
028FEM
EV / EH
038FEM
Clamping force
3200 N
5000 N
10000 N
20000 N
Nominal air gap each side
0,3 mm
0,3 mm
0,3 mm
0,3 mm
Max. friction pad wear 2)
5 mm
5 mm
7 mm
7 mm
Friction pad wear without adjustment
0,3 mm
0,3 mm
0,3 mm
0,3 mm
Clamping force / braking torque
adjustable
50 –100%
50 –100%
60 –100%
60 –100%
Weight [kg]
6,5 kg
13 kg
24 kg
50 kg
Smallest brake disc diameter
125 mm
250 mm
300 mm
430 mm
type 12,5
Brake disc thickness
type 25
8 to 15mm
16 to 20 mm
10 to 16 mm
18 to 26 mm
10 to 16 mm
18 to 26 mm
12,5 to 20 mm
22 to 30 mm
Type 240V
Supply voltage 1)
(single phase) Type 480V
220 …240VAC
380 … 480VAC
220 … 240VAC
380 … 480VAC
220 … 240VAC
380 … 480VAC
220 … 240VAC
380 … 480VAC
Supply voltage frequency 4)
50 or 60 Hz
50 or 60 Hz
50 or 60 Hz
50 or 60 Hz
Electric fuse
B10 or C6
B10 or C6
B10 or C6
B10 or C6
Power consumption „brake open“
24 W (220-240V)
32 W (380-480V)
20 W (220-240V)
20 W (380-480V)
15 W (220-240V)
19 W (380-480V)
20 W (220-240V)
24 W (380-480V)
Electrical degree of protection
IP 65, 3R
IP 65, 3R
IP 65, 3R
IP 65, 3R
Insulation class
PE conductor
PE conductor
PE conductor
PE conductor
Duty cycle
100 %
100 %
100 %
100 %
Max. switching frequency at 20°C
ambient temperature 3)
360 / h
360 / h
360 / h
360 / h
Sound Level (max at opening) 6) [dB]
74
76
78
88
Ambient temperature 3) 5)
0°C .. +40°C
0°C .. +40°C
0°C .. +40°C
0°C .. +40°C
1) The nominal value is marked on the type label, and on a sticker on the electronics. There are two
kinds of electronics: 220 … 240VAC and 380 … 480 VAC.
2) The max. allowable friction pad wear depends on the brake disc thickness. See also chapter 11.2.
3) Higher ambient temperature as 20°C reduces the max. switching frequency per hour.
4) No adjustments necessary, the brake can only be used with 50Hz or 60Hz.
5) UL508 or CSA c22.2 No14-13 cover only ambient temperatures between 0° and +40°C. Technically lower or higher temperatures
are possible, consultation with Ringspann is necessary.
6) Measured according IEC 61672-2 “Fast”, with max. clamping force.
2.4 Standards, Guidelines, Protection Class and Certification Mark
The following standards and guidelines have been applied:
2011/65/EU RoHS Directive
2014/35/EU Low-Voltage Directive
DIN EN 61000-6-2 EMC –Immunity to interference in industrial areas
DIN EN 61000-6-2 EMC - Interference emission for industrial areas (only with RFI filter
3515-190001-0000)
CSA C22.2 No. 14-13 Industrial Control Equipment (cCSAus –type)
UL 508 Industrial Control Equipment (cCSAus –type)
Electrical protection class: IP65
Mechanical protection class: IP10
In the sense of the Low-Voltage Directive 2014/35/EU.
cCSAus Type: Complies with Canadian and US American standards.
Enclosure type 3R.

Installation and Operating Instructions for Brake
EV/EH 018/024/028/038 FEM,
Spring activated –electromagnetically released
E 09.769e
issue: 04.01.2023
version: 3
drawn.:BAHS
checked.: EISF
pages: 21
page: 6
3. Proper use / specified purpose
The brake may only be connected with the voltage marked on the nameplate and corresponding
to the technical details. 240VAC = 220 … 240 VAC, single phase
480VAC = 380 … 480 VAC, single phase
With 50 Hz or 60 Hz (no adjustment necessary), single phase and corresponding to the technical
details. The electrical connection see chapter 8.4.
The brake is designed for use as a holding/parking brake and/or stopping brake.
Other uses are improper and incompatible with the specified purpose. RINGSPANN assumes no
liability for damages resulting from improper use. The risk is assumed by the user alone.
4. Improper use
Operating the brake with other supply voltage as specified on the nameplate is prohibited.
To switch the brake without brake disc is only allowed if the assembly locking nut Pos. 25 in Fig.
5.1 remains on the brake and is loosened not more than 4 mm.
Repeated switching without brake disc and without assembly locking nut can damage the brake.
Unauthorized constructive modifications of the brake are similarly prohibited. If the grub screw
pos. 44 is provided with sealing wax at the factory, the clamping force on the brake must not be
adjusted by the customer!
To protect the brake electronics, the installation of surge protectors is mandatory to con-
trol the overvoltage. These surge protectors must be connected between the customer's
switching relay and the brake electronics.

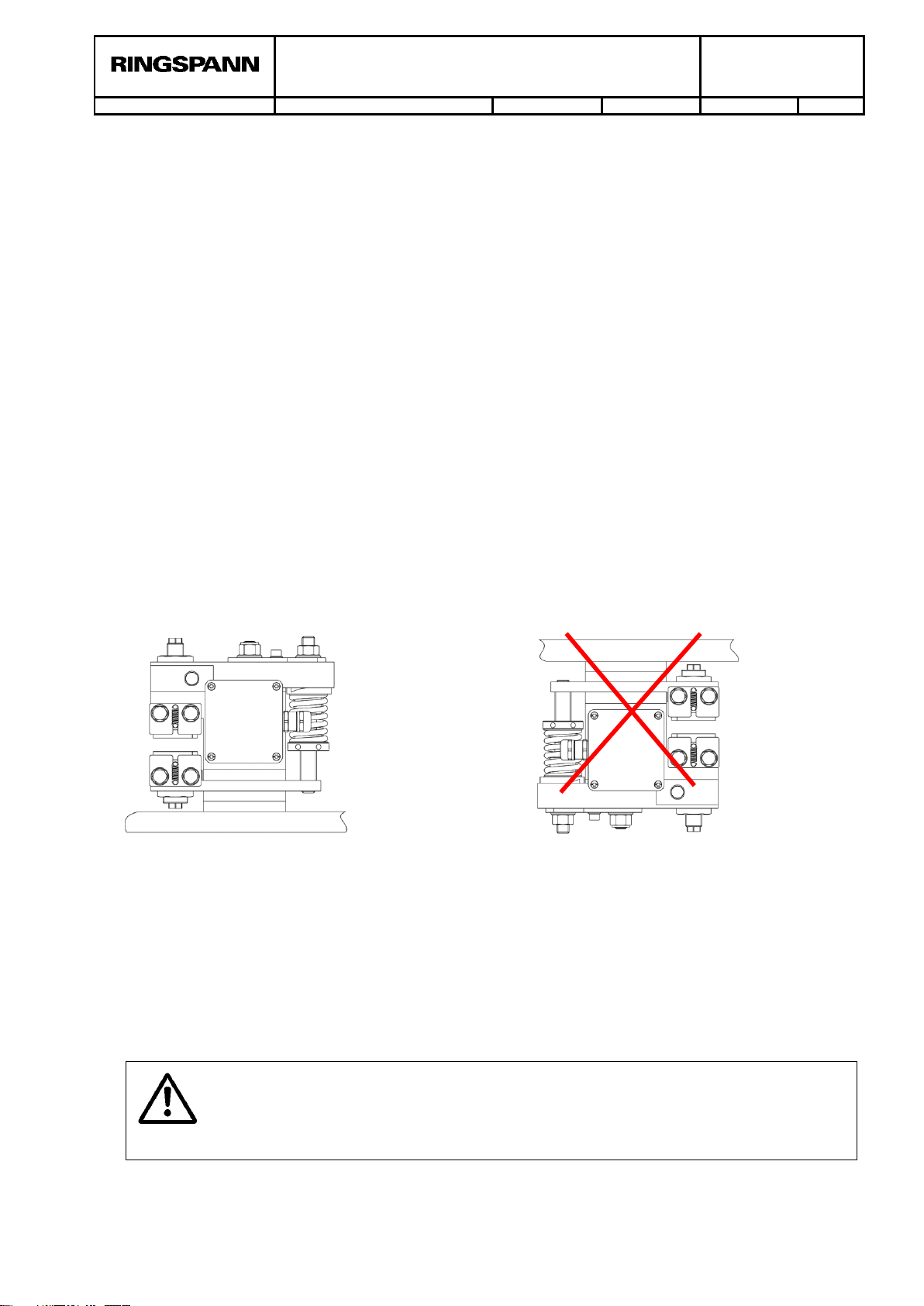

It is not allowed to mount the brake with the brake body looking downwards:
For damages caused by switching the brake without brake disc or unauthorized constructive
modifications RINGSPANN assumes no liability for damages resulting from improper use. The
risk is assumed by the user alone.
Attention!
To switch the brake without brake disc is only allowed if the assembly locking nut
Pos. 25 in Fig. 5.1 remains on the brake and is loosened not more than 4 mm.

Installation and Operating Instructions for Brake
EV/EH 018/024/028/038 FEM,
Spring activated –electromagnetically released
E 09.769e
issue: 04.01.2023
version: 3
drawn.:BAHS
checked.: EISF
pages: 21
page: 7

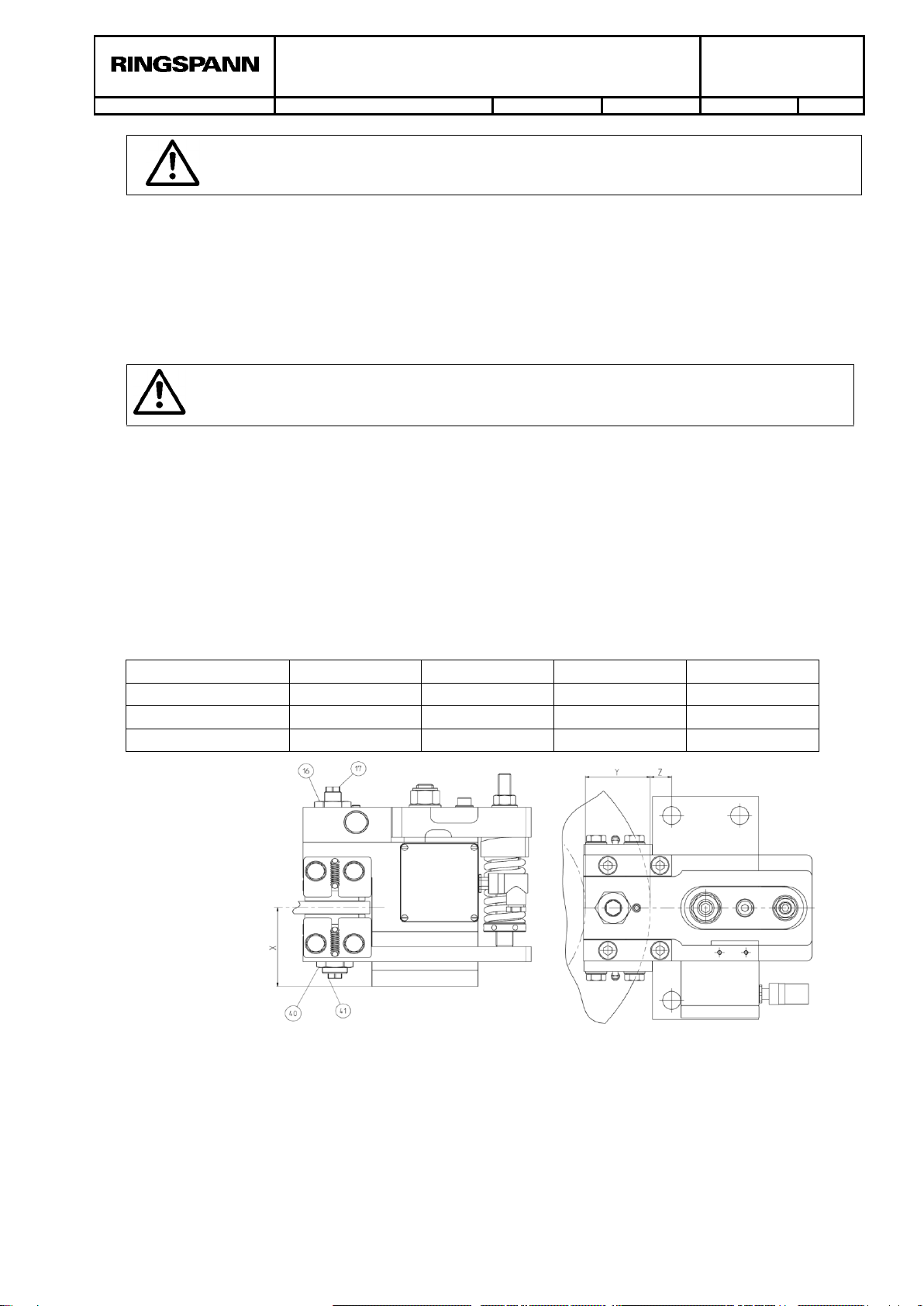

5. Condition upon delivery
The brake is tested prior to delivery. The braking force is adjusted to the maximum braking force.
The compression spring for the clamping force is fixed in the open position by the assembly lock-
ing nut Pos. 25 in Fig. 5.1, to assemble the brake to the disk without supply voltage.
For operation, the mounting lock nut must be removed and the exact air gap adjusted (s. section
8.3).
Size
018
024
028
038
Assembly locking nut
M12
M12
M12
M20

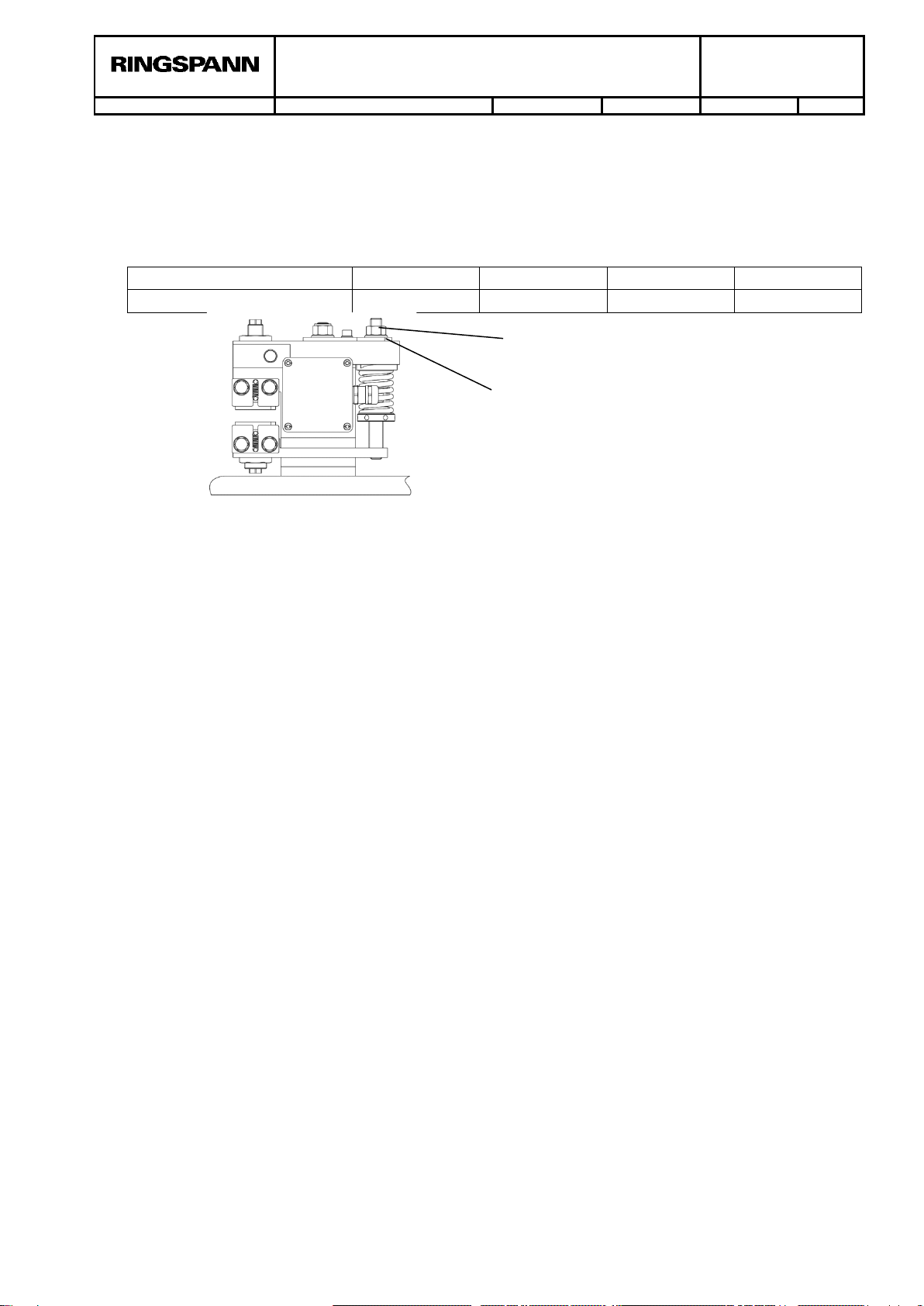

Fig. 5.1
6. Handling and storage
The weight of the brake depends on the size, between 6,5kg and 50kg, see also chapter 2.3.
The brake is delivered with anti-corrosion protection and can be stored in an enclosed, dry space
for up to 12 months. It is important to prevent condensation from forming. Moist storage areas are
unsuitable.
7. Technical requirements for safe and reliable operation
Mounting the brake to stable, low-vibration machine components ensures low-screech, low-noise
braking.
To protect the brake electronics, the installation of surge protector is mandatory. These surge
protectors (per phase one) must be connected between the customer's switching relay and the
brake electronics. In this case, the surge protector of L1 and L2 is switched to N or PE in order to
derive mains disturbances. For 230 / 400V electric grids e.g., surge protection switch of the brand
"Bourns 1250-xS-230" can be used. In 480V mains surge protectors type "Bourns 1250-2S-400"
can be used.
8. Installation of the RINGSPANN brake
8.1 General instructions for assembly and installation
Before installing the brake, the brake disc must be cleaned with alcohol, e.g. ethyl or isopropyl
alcohol or a water-based surfactant solution (soapy water, etc.) and then rubbed dry with a clean
cloth.
When cleaning the brake disc with a thinner, acetone or a brake cleaning agent, it is important to
ensure that neither these cleaners nor any cleaner residues come in contact with the brake pads.
This is especially important in the case of brakes used only as parking brakes, as no dynamic
braking operations take place during which thinner residues would be rubbed off the brake disc.
Pos.25
Pos.26

Installation and Operating Instructions for Brake
EV/EH 018/024/028/038 FEM,
Spring activated –electromagnetically released
E 09.769e
issue: 04.01.2023
version: 3
drawn.:BAHS
checked.: EISF
pages: 21
page: 8
Please note!
Oil and rust-proofing-agent residues reduced friction coefficient and thus dimin-
ish transmissible braking torque substantially!
8.2 Prior assembly and installation
Prior to installation, check to ensure that the mounting surface is even and planned run between
the brake disc and the mounting surface is within the tolerance range of 0.2 mm.
Check the axial movement of the brake disc. Axial movement must not exceed ± 0.2 mm.
Maximum permissible lateral brake disc wobble is 0.1 mm. Greater wobble may cause rattling
and shaking of the brake unit.
Attention!
Check to ensure that the brake disc rotates freely.
8.3 Adjust the brake to the brake disc thickness and mount the brake
The brake is delivered with a distance between the friction pads of 13,1 or 25,6 mm. You can ad-
just the distance between the friction pads with the setting screw Pos. 17 and Pos. 41 (see Fig.
8.1 or Fig. 8.2). The adjustment of the air gap between the friction pads and the brake disc is the
same as the adjustment of the brake disc thickness. You can adjust the air gap with the setting
screw Pos. 17 and Pos. 41 (see Fig. 8.1 or Fig. 8.2). The air gap between the friction pad and the
brake disc should be 0,3 mm. A bigger air gap reduces the braking force!
During installation, ensure that the brake pads are centred and in full contact with the surface of
the brake disc. For the distance X and Z see table 8.1 or 8.2. See also Fig. 8.1 or 8.2.
The brake can be hold in position with a lifting belt for the multiple installation positions.
Tab. 8.1
Type
EV 018..
EV 024..
EV 028..
EV 038..
Distance X
48 mm
64,5mm
79 mm
103 mm
Distance Z
24,5 mm
19 mm
20 mm
27 mm
Rubbing surface Y
42 mm
47 mm
62 mm
72 mm
Fig.8.1 EV…

Installation and Operating Instructions for Brake
EV/EH 018/024/028/038 FEM,
Spring activated –electromagnetically released
E 09.769e
issue: 04.01.2023
version: 3
drawn.:BAHS
checked.: EISF
pages: 21
page: 9
Tab. 8.2
The brake is attached with 4 screws. The tightening torques refers to screws lubricated with
Molycote MoS2. So the screws must be lubricated with Molycote MoS2.
Size
EV/EH 018
EV/EH024 / EH028
EV028 / EH038
EV038
Screw size
M10-10.9
M12-10.9
M16-10.9
M20-10.9
Tightening torque (lubri-
cated with MoS2)
63 Nm
108 Nm
264 Nm
517 Nm
Tab. 8.3
Information!
To facilitate installation, you may fix the brake in position initially with a single
screw before swinging it to the point at which the other screws can be inserted
as well.
Attention!
The air gap between brake pad and brake disc is to be adjusted after the first in-
stallation and after replacement of brake pads.
After the Adjustment of the air gap the setting screw Pos. 17 and Pos. 41 must be fixed with the
nut Pos. 16 and Pos. 40, see Fig. 8.1 or Fig. 8.2.
Type
EH 018..
EH 024..
EH 028..
EH 038..
Distance X
60,5 mm
84,5 mm
99 mm
126 mm
Distance Z
24,5 mm
19 mm
22 mm
29,5 mm
Rubbing surface Y
42 mm
47 mm
62 mm
72 mm
Fig.8.2 EH…

Installation and Operating Instructions for Brake
EV/EH 018/024/028/038 FEM,
Spring activated –electromagnetically released
E 09.769e
issue: 04.01.2023
version: 3
drawn.:BAHS
checked.: EISF
pages: 21
page: 10
8.4 Electrical Connection
Attention!
To protect the brake electronics, the installation of surge arresters is man-
datory to control the overvoltage. These surge arresters must be connected
between the customer's switching relay and the brake electronics.
Attention!
To protect the electronic against too fast switching, a security feature is inte-
grated in the electronic. The security feature locks the supply voltage and the
brake cannot be opened. After 40 s the electronic will pass the supply voltage
and after a further activation the brake will open.
Attention!
Only trained electrician are allowed to connect the brake with the supply
voltage. The trained electrician must be familiar with the relevant standards
(e.g. in Germany DIN VDE 0113).
Attention!
To use the brake the electronic Pos. 34 (included in the scope of delivery) is
mandatory. Do not connect the brake directly to the supply voltage. To switch the
brake without brake disk is only allowed if theassembly locking nut Pos. 25 in Fig.
5.1 remains on the brake and is loosened not more than 4 mm.
Attention!
For higher operating cycles (> 100 / h), the brake can heat up to 65 ° C.
The following rules must be observed:
a) It is not allowed to use coiled cables in the supply line. (e.g. cable drum, reserve cable loops or
the like)
b) For safe operation of the brake a sufficient grid quality is necessary. See also the standards of
grid quality.
c) Before replacing the electronic, check the coil of the solenoid to be shure that the coil is not
damaged. Please consult RINGSPANN.
•Cable bushing or plug is in the scope of delivery.
•The brake can only be used with 50Hz or 60Hz, single phase, no adjustment is necessary.
•Only electrical cables with Cu conductors are to be used to connect to the electronics.
•Strip length for the conductors used with the WAGO connector is 9 … 10 mm.
•The cable shall be selected according to the Canadian Electrical Code, part 1 or National Elec-
trical Code (NEC).

Installation and Operating Instructions for Brake
EV/EH 018/024/028/038 FEM,
Spring activated –electromagnetically released
E 09.769e
issue: 04.01.2023
version: 3
drawn.:BAHS
checked.: EISF
pages: 21
page: 11

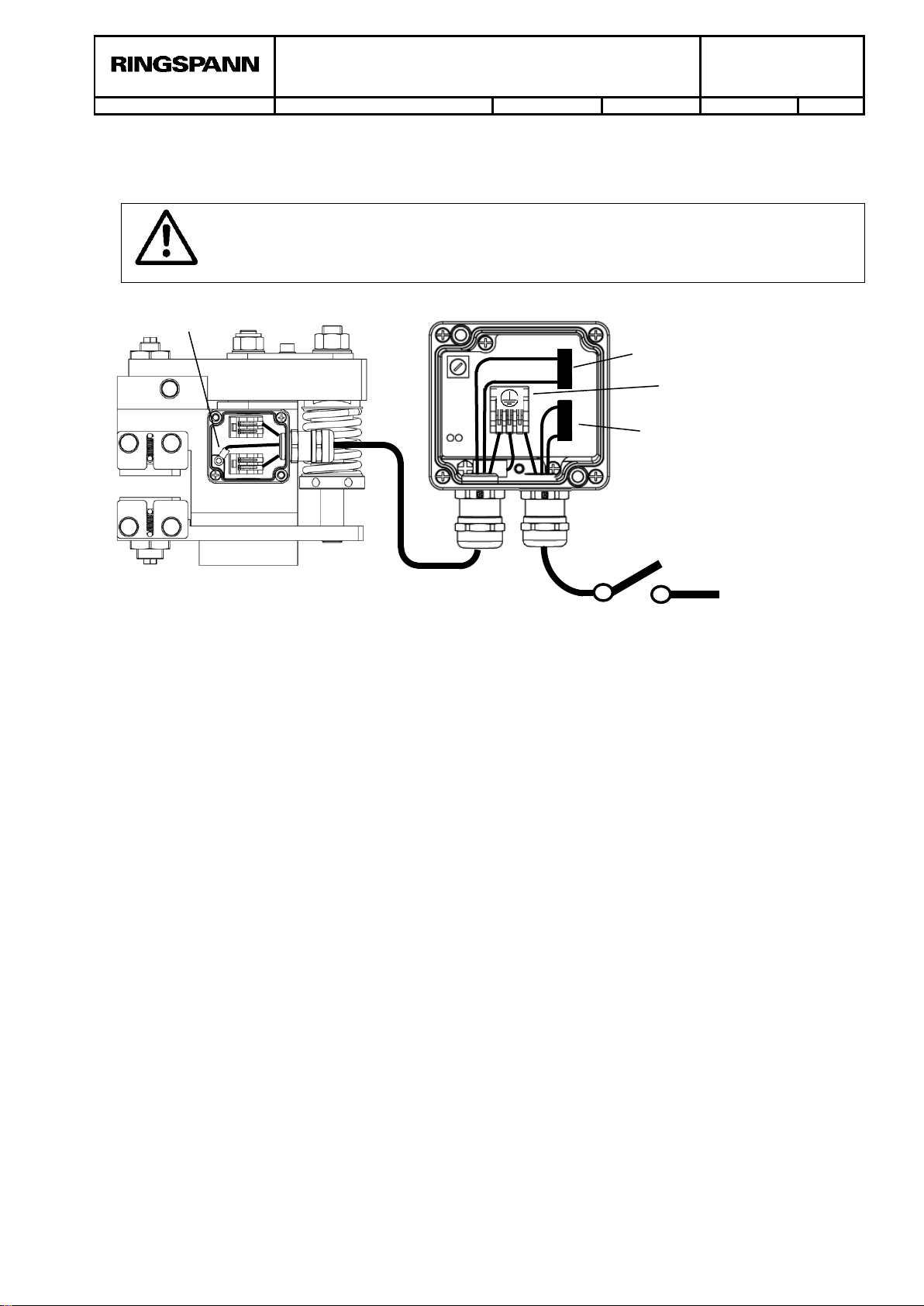

Brake size 018
For the size 018 the electronic is not attached to the brake, the seperate electronic module is to
be used.
Attention - SIZE 018 !!
Do not disconnect the cable between the brake and the electronic while the
brake is under voltage, this will destroy the solenoid!
Fig. 8.3
Strip length for the conductors used with the WAGO connector is 9 … 10 mm
The brake can only be used with 50Hz or 60Hz, no adjustment is necessary.
The cable shall be selected according to the Canadian Electrical Code, part 1 or National
Electrical Code.
Supply voltage: Operating voltage is marked on the nameplate, single phase.
Line protection: 10 A type B or 6 A type C; protection has to be ensured by the user!
cable Supply cable: 1-1,5 mm² flexible, only Cu conducters shall be used, not longer than
50m, L and N can be swapped; outer diameter of the supply cable: 5-10mm (cable gland) and 8-
10mm (plug), do not lay the supply cable together with supply cable from electrical motors in one
cable duct. Use surge protectors! Cable length between electronic and brake not longer than 5m.
PE, grounding conducter: 1-1,5 mm2, connected via cable lugs to the electronic box and splicing
connector (see picture above).
Switching function: directly on the operating voltage, between electronics and supply voltage,
double pole switching! Max. Inrush current 6 A rms (15 A peak) for 0,2s, than smaller 0,6 A (rms).
After the electrical connection you have to check the protective earth conductor function (accord-
ing DIN VDE 0113 or EN 60204).
PE
Supply voltage (mains),
single phase (L and N can
be swapped).
Brake
PE

Installation and Operating Instructions for Brake
EV/EH 018/024/028/038 FEM,
Spring activated –electromagnetically released
E 09.769e
issue: 04.01.2023
version: 3
drawn.:BAHS
checked.: EISF
pages: 21
page: 12
Brake size 024, 028 and 038:
Fig. 8.4
The brake can only be used with 50Hz or 60Hz, no adjustment is necessary.
The cable shall be selected according to the Canadian Electrical Code, part 1 or National
Electrical Code.
Supply voltage: Operating voltage is marked on the nameplate, single phase.
Line protection: 10 A type B or 6 A type C; protection has to be ensured by the user!
cable Supply cable: 1-1,5 mm² flexible, only Cu conducters shall be used, not longer than
50m, L and N can be swapped; outer diameter of the supply cable: 5-10mm (cable gland) and 8-
10mm (plug), do not lay the supply cable together with supply cable from electrical motors in one
cable duct. Use surge protectors!
PE, grounding conducter: 1-1,5 mm2, connected via cable lugs to the electronic box and splicing
connector (see picture above).
Switching function: directly on the operating voltage, between electronics and supply voltage,
double pole switching! Max. Inrush current 15 A rms (24 A peak) for 0,2s, than smaller 1 A (rms).
After the electrical connection you have to check the protective earth conductor function (accord-
ing DIN VDE 0113 or EN 60204).
8.5 Braking force adjustment
The entire surface of both brake pads must be in contact with the brake disc in order to achieve
the optimum braking effect. The brake pads must also be heated briefly to approx. 200°C. There-
fore, multiple brief braking operations under low spring force and rotating brake disc are required
to heat the brake pads.
Attention!
If the brake is used as parking brake, the brake torques specified are not met.
Reductions of up to 50% of the braking torques are possible.
Attention!
If the grub screw pos. 44 is provided with sealing wax at the factory, the clamp-
ing force on the brake must not be adjusted by the customer!
Attention!
If the brake cannot be run in, the braking torques listed in our publication no. 46
cannot be achieved. Reductions of up to 50% are possible.
PE
Supply voltage (mains), sin-
gle phase (L and N can be
swapped)

Installation and Operating Instructions for Brake
EV/EH 018/024/028/038 FEM,
Spring activated –electromagnetically released
E 09.769e
issue: 04.01.2023
version: 3
drawn.:BAHS
checked.: EISF
pages: 21
page: 13

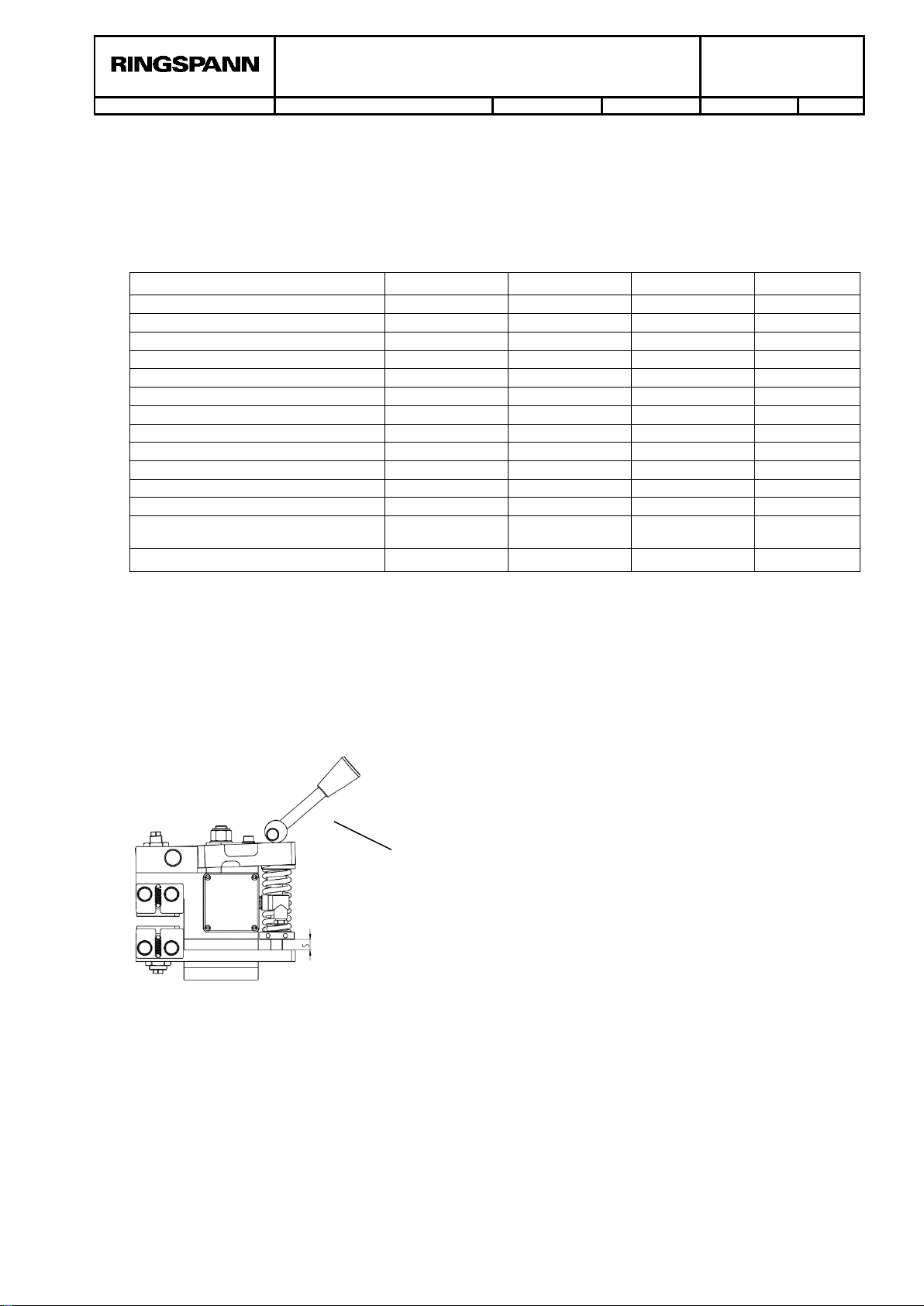

The braking force is adjusted to the maximum braking force. If the braking force should be re-
duced, the clamping force can be reduced by reducing the pretension of the spring. Therefore
you have to loosen the threaded pin Pos. 44 of the spring compression nut Pos. 43. With the
spring compression nut you can adjust the distance S (see Fig. 8.5) according to the values in
table 8.4. If you reduce the clamping force the reaction time of the brake will increase. After the
adjustment, lock the spring compression nut with the threaded pin.
EV / EH 018
EV / EH 024
EV / EH 028
EV / EH 038
Nominal clamping force (100%) [N]
3.200
5.000
10.000
20.000
1) Braking force [N]
2.560
4.000
8.000
16.000
Friction diameter [mm] DR=
DA - 46
DA - 51
DA - 66
DA - 76
1)2) Braking torque [Nm] at DA= 200
200
-
-
-
DA= 250
260
400
-
-
DA= 300
330
500
940
-
DA= 355
400
610
1.160
-
DA= 430
490
760
1.460
2.830
DA= 520
610
940
1.820
3.550
DA= 630
750
1.160
2.260
4.430
DA= 710
850
1.320
2.580
5.070
Clamping force, adjustable [%]
50-100
50-100
60-100
60-100
Loss in Braking Force per mm spring
preload reduction [N]
75
165
250
400
3) Distance S (Fig. 8.5) [mm]
25
28,5
17,5
31
1) Braking force and braking torque is calculated with a theoretical friction coefficient of 0,4 and 100%
clamping force.
2) DA= Outer diameter of the brake disc in mm.
3) With the distance “S” 100% of clamping force is achieved. Mechanical wear and noise is increasing with smaller distance s.
Tab. 8.4
8.6 Manual brake release
For manual brake release you can use the assembly locking nut Pos. 25 and washer Pos. 26
see Fig. 5.1. To open the brake screw on the nut.
Fig. 8.5
A hand release lever is optionally available for
controlled manual opening of the brake. To facilitate
assembly, the handle can be screwed out of the
eccentric; for safe operation, the hand release lever
must be removed again.
Size 018-028: 4453-000002-000000
Size 038: 4453-000003-000000

Installation and Operating Instructions for Brake
EV/EH 018/024/028/038 FEM,
Spring activated –electromagnetically released
E 09.769e
issue: 04.01.2023
version: 3
drawn.:BAHS
checked.: EISF
pages: 21
page: 14
9. Commissioning
Attention!
To switch the brake without brake disc is only allowed if the assembly locking nut
Pos. 25 in Fig. 5.1 remains on the brake and is loosened not more than 4 mm.
Before commissioning you have to switch on the electric current (the solenoid holds the brake
open) and the assembly locking nut Pos. 25, Fig. 5.1 is to be removed.
The brake is now ready for operation.
10. Disassembling the brake
Danger to life and limb!
When disassembling the brake it is essential to ensure that the entire drive
train is secured against inadvertent activation. Rotating components can
cause severe injuries. Therefore, rotating components (e.g. brake discs)
must be secured against accidental contact. To prevent injuries to person-
nel, secure the brake with the aid of an assembly locking device.
Attention - SIZE 018 !!
Do not remove the cables between the brake and the electronics as long as the
brake is energized, this will destroy the magnet! (see figure 8.3).
Secure the open position with the assembly locking nut Pos. 25 and washer Pos. 26 in Fig. 5.1.
Therefore you have to switch on the electric current. After the brake is secured with the assembly
locking nut in open position switch off the electric current.
Attention!
Take care, that the electric supply cable is currentless.
Secure the brake for disassembly.
Remove the screws used to hold the brake in place. The brake can now removed from the
mounting surface.
11. Maintenance
11.1 General maintenance
Maintenance must be performed on the brake at intervals of 4 weeks up to once a year, depend-
ing upon the operating load.
Perform the following checks during every maintenance operation:
•Check brake pads for wear.
•Check the air gap between the brake pad and the brake disk.
•Check the bolt connection between the brake pad and the machine component as well as the
bolt connections for the retaining plates for tightness.
•Check the electric supply cables (sight check)

Installation and Operating Instructions for Brake
EV/EH 018/024/028/038 FEM,
Spring activated –electromagnetically released
E 09.769e
issue: 04.01.2023
version: 3
drawn.:BAHS
checked.: EISF
pages: 21
page: 15
11.2 Brake pad adjustment, permissable brake pad wear and brake pad replacement
Danger to life and limb!
Brake pads may be replaced only when the equipment system and/or the work-
ing machine is at a complete standstill!
Attention!
Brake pads must not be worn to a residual thickness (mounting plate thickness
plus remaining pad material). Brake pads must always be replaced in pairs.
Only original RINGSPANN brake pads may be used.
Brake pad wear adjustment:
To counter brake pad wear you can adjust the distance between brake pad and brake disc with
set screws Pos. 41 and Pos. 17 (see Fig. 8.1 or 8.2). Therefore you have to switch on the electric
current and screw on the assembly locking nut Pos. 25 in Fig. 5.1. Screw on the assembly lock-
ing nut without tightening torque, only with hands.The gap between brake disc and brake pad on
each side should be 0,3 mm. The maximum allowable distance between brake disk and brake
pad without adjustment is 0,6mm. A greater gap will reduce braking force up to a complete loss of
braking force.
A greater gap will reduce braking force. Consider the maximum permissible wear of the brake
pads (see table 11.1).
After the adjustment of the gap between brake disc and brake pad, lock the set screw Pos. 41
and Pos. 17 with the locking nut Pos. 16 and Pos. 40 (see Fig. 8.1 or 8.2).
Remove the assembly locking nut Pos. 25, Fig. 5.1 The brake is now ready for operation again.
Attention!
The gap between brake disc and brake pad on each side should be 0,3 mm. A
greater gap will reduce braking force. The maximum allowable distance between
brake disk and brake pad without adjustment is 0,5mm (size 018 = 0,3mm). A
greater gap will reduce braking force up to a complete loss of braking force. Con-
sider the maximum permissible wear of the brake pads (see table 11.1).
Size 018
Residual thickness1)
Brake disc thickness from 8 …11mm and 16 … 17 mm
9 mm
Brake disc thickness from >11 … 15 mm and >17 … 20 mm
7 mm
Size 024
Residual thickness1)
Brake disc thickness 10mm and 18 …19 mm
13 mm
Brake disc thickness from >10 … 16 mm and >19 …26 mm
11 mm
Size 028
Residual thickness1)
Brake disc thickness 10mm and 18 …19 mm
17 mm
Brake disc thickness from >10 … 16 mm and >19 … 26 mm
13 mm
Size 038
Residual thickness1)
Brake disc thickness from 22 …23 mm
17 mm
Brake disc thickness from 12,5 … 20 mm and >23 …30 mm
15 mm
1) Residual thickness = backplate of the brake pad + residual brake pad
Tab. 11.1

Installation and Operating Instructions for Brake
EV/EH 018/024/028/038 FEM,
Spring activated –electromagnetically released
E 09.769e
issue: 04.01.2023
version: 3
drawn.:BAHS
checked.: EISF
pages: 21
page: 16
Brake pad replacement:
Before replacing the brake pads Pos. 1, ensure that the mass held by the brake is secured to
prevent movement, as parts of the brake must be loosened/removed for replacement.
Before replacing the brake pads switch on the electric current (the solenoid opens the brake) and
secure the the brake with the assembly locking nut Pos. 25 and washer Pos.26 (see Fig. 5.1) by
hand. Switch off the electric current.
Remove all tension springs Pos.5 and one of two retainig plates Pos. 6 each side, see Fig. 11.1
Pull out the old brake pads and screw out the set screws Pos. 17 and Pos. 41, Fig. 8.1, so that
the new brake pads can easily inserted. Take care, that the chamfer on the brake pad is on the
outer diameter of the brake disc and the friction material of the brake pad is on the brake disc
side. Fasten the retaining plates again (tightening torque, see table 11.1).
Fig. 11.1
Size 018
Size 024
Size 028
Size 038
Screw
M6-8.8
M8-8.8
M10-8.8
M12-8.8
Tightening torques 1)
11 Nm
27 Nm
54 Nm
93 Nm
1) Screw secured with Loctite 243.
Tab. 11.2
After replacing the brake pads, you have to adjust the air gap between the brake disc and the
brake pad See (chapter 11.2 ). After replacing the brake pads remember the chapter 8.5. The en-
tire surface of both brake pads must be in contact with the brake disc in order to achieve the opti-
mum braking effect. The brake pads must also be heated briefly to approx. 200°C. Therefore,
multiple brief braking operations under low spring force and rotating brake disc are required to
heat the brake pads.
12. Accessories: switches for brake closed, brake open and brake pad wear adjustment
Necessary (Option)
12.1 Installing and connecting the inductive proximity switches for brake closed, brake open and
brake pad wear adjustment necessary
Danger to life and limb!
The inductive proximity switch may be installed and/or replaced only when the
equipment system and/or working machine is at a complete standstill!

Installation and Operating Instructions for Brake
EV/EH 018/024/028/038 FEM,
Spring activated –electromagnetically released
E 09.769e
issue: 04.01.2023
version: 3
drawn.:BAHS
checked.: EISF
pages: 21
page: 17
Danger!
When switching the brake, the lever Pos. 29 and the spring compressor Pos. 27
will move very fast.
The inductive proximity switch must only be mounted and adjusted after the brake has been
adjusted (chapter 8).
The assembly of the inductive proximity switch is only possible after the brake is assembled and
the air gap between brake pad and brake disc is set correctly (see chapter 8 and 9). To indicate
„Brake open“, „Brake closed“ or “Brake pad adjustment necessary” a inductive proximity switch
for each request is to assemble. The inductive proximity switch is part of the sensor kit and
supplied loose as accessory. The sensor kit consists of an inductive proximity switch with two
fastening nuts, a fastening sheet metal and fastening screws and washers. On the brake housing
you can find threads to fasten the fastening sheet metal (see Fig. 12.1). On the metal sheet you
have different assembling possibilities for “Brake open”, “Brake closed” and “Brake pad wear
adjustment necessary” (see Tab. 12.1). You always get a signal for brake status. With one sensor
kit you can detect only one brake status, for further signals you have to order another proximity
switch in NC or NO version (see figure 12.2; 12.3 and 12.4). For sensor kits with more than one
sensor or for special requirements, such as other voltage ranges or low temperatures below -
25°C, please contact RINGSPANN.
Sensor kit:
size 018
Brake open (NC)
3500-112005-000000
Brake closed (NO)
3500-112004-000000
Adjust brake pad wear (NO)
3500-112004-000000
size 024
Brake open (NC)
3500-112005-000000
Brake closed (NO)
3500-112004-000000
Adjust brake pad wear (NO)
3500-112004-000000
size 028
Brake open (NO)
3500-112002-000000
Brake closed (NO)
3500-112002-000000
Adjust brake pad wear (NO)
3500-112002-000000
size 038
Brake open (NO)
3500-112003-000000
Brake closed (NO)
3500-112003-000000
Adjust brake pad wear (NO)
3500-112003-000000
Tab.12.1
Fig. 12.1
To adjust the inductive proximity switch for brake pad wear, you can increase the airgap between
brake disc and brake pad on each side to a value of 0,6mm. Then switch off the brake (brake is
closed). Then fasten the inductive proximity switch in a way that the LED is almost glowing. Then
reduce the airgap to 0,3mm again. Switch on the brake, the LED must not glow after the brake is
in open position. Test the proper function by switching the brake. The LED of the proximity switch
must glow, if the brake status you want to detect is reached.

Installation and Operating Instructions for Brake
EV/EH 018/024/028/038 FEM,
Spring activated –electromagnetically released
E 09.769e
issue: 04.01.2023
version: 3
drawn.:BAHS
checked.: EISF
pages: 21
page: 18
Brake status indication size 018 and 024:
Brake status indication size 028:
Brake status indication size 038:
Technical details of the inductive proximity switch (optinal):
For inductive proximity switch 3504-000070-000000:
Switching function : PNP (Closer, NO) Sensing range : 4 mm, non-flush
Operating voltage : 10....36 V DC Current rating : 150 mA
Current consumption : < or = 15 mA Voltage drop : < 2,5 V
Polarity protect : yes Status indication LED: yellow
Housing : brass, coated Protection : IP 67
Connection : M12 connector Ambient temperature: -25°C bis +80°C
Short-curcuit protection : yes, pulsed
Wiring
Brake open (NC)
Brake closed (NO)
Brake pad wear adjustment
necessary (NO)
Brake pad wear adjustment
necessary (NO)
Brake closed (NO)
Brake open (NO)
Brake pad wear adjustment
necessary (NO)
Brake closed (NO)
Brake open (NO)
Fig. 12.2
Fig. 12.3
Fig. 12.4

Installation and Operating Instructions for Brake
EV/EH 018/024/028/038 FEM,
Spring activated –electromagnetically released
E 09.769e
issue: 04.01.2023
version: 3
drawn.:BAHS
checked.: EISF
pages: 21
page: 19
For inductive proximity switch 3504-000071-000000:
Switching function : NPN (Opener, NC) Sensing range : 4 mm, flush
Operating voltage : 10....30 V DC Current rating : 100 mA
Current consumption : < or = 10 mA Voltage drop : < 2,5 V
Polarity protect : yes Status indication LED: yellow
Housing : brass, coated Protection : IP 68
Connection : M12 connector Ambient temperature: -40°C bis +85°C
Short-curcuit protection : yes, snapping
Wiring
For inductive proximity switch 3504-000099-000000 (Special):
Switching function : PNP (Opener, NC) Sensing range : 4 mm,non- flush
Operating voltage : 10....36 V DC Current rating : 150 mA
Current consumption : < or = 15 mA Voltage drop : < 2,5 V
Polarity protect : yes Status indication LED: yellow
Housing : brass, coated Protection : IP 67
Connection : M12 connector Ambient temperature: -25°C bis +80°C
Short-curcuit protection : yes, pulsed
Wiring:
For inductive proximity switch 3504-000100-000000 (Special):
Switching function : PNP (Closer, NO) Sensing range : 4 mm, non-flush
Operating voltage : 9....32 V DC Current rating : 150 mA
Current consumption : < or = 15 mA Voltage drop : < 2,5 V
Polarity protect : yes Status indication LED: yellow
Housing : brass, coated Protection : IP 67
Connection : M12 connector Ambient temperature: -40°C bis +80°C
Short-curcuit protection : yes, pulsed
Wiring:

Installation and Operating Instructions for Brake
EV/EH 018/024/028/038 FEM,
Spring activated –electromagnetically released
E 09.769e
issue: 04.01.2023
version: 3
drawn.:BAHS
checked.: EISF
pages: 21
page: 20
13. EC-Declaration of Conformity
Note regarding EMC Directive 2014/30/EU
The brake is an uncritical equipment according to the EMC-Directive because of its passive operation.
The brake can not be operated independently. After integration into a complete system, the brake can
be evaluated according to EMC-Directive. To comply with DIN EN 61000-6-4, the mounting of a line
filter (up to 250VAC = 3515-090001-000000, from 3515-190001-000000) is required as a general
rule.
Note regarding EC-Machinery Directive 2006/42/EC
The product is a component for installation in a machine according to the EC-Machinery Directive
2006/42/EC. Together with other components, the product can meet safety-related applications. The
necessary measures will emerge from the risk analysis of the machine. Built-in, the brake is part of
the machine and the machine manufacturer assesses the conformity of the safety device on the
Machinery Directive. The commissioning of the brake is only permitted if the machine fulfills the
Machine Directive.
Note regarding REACH Directive No. 1907/2006
The brake is considered as a “product” and not as a “substance”, and as such are not subjucted to
registration. EC-Declaration of Conformity
For the purpose of EC-Low voltage directive 2014/35/EU
We hereby declare that the following products, developed, designed and manufactured by our own
responsibility, are In accordance with the EC-Low voltage directive 2014/35 / EU
RINGSPANN GmbH
Schaberweg 30-38
D-61348 Bad Homburg
Product: Electromagnetic released, spring activated disc brake
Designation: EV/EH..FEM
Sizes: 018/024/028/038
Types: 4453-xxxxxx-xxxxxx
Following standards and directives have been applied and complied with:
2014/35/EU Low-Voltage Directive
DIN EN 61000-6-2 EMC –Immunity to interference in industrial areas
DIN EN 61000-6-4 EMC –Emission standard for industrial areas (with RFI filter)
2011/65/EU RoHS Directive
1907/2006 REACH
CSA C22.2 No. 14-13 Industrial Control Equipment (cCSAus type)
UL 508 Industrial Control Equipment (cCSAus type)
The commissioning of the brake is only permitted when the machine complies with the EC-Machinery
Directive 2006/42 / EC.
ppa. Ernst Fritzemeier
RINGSPANN GmbH
Schaberweg 30-38
D-61348 Bad Homburg
Bad Homburg, 17.06.2020
