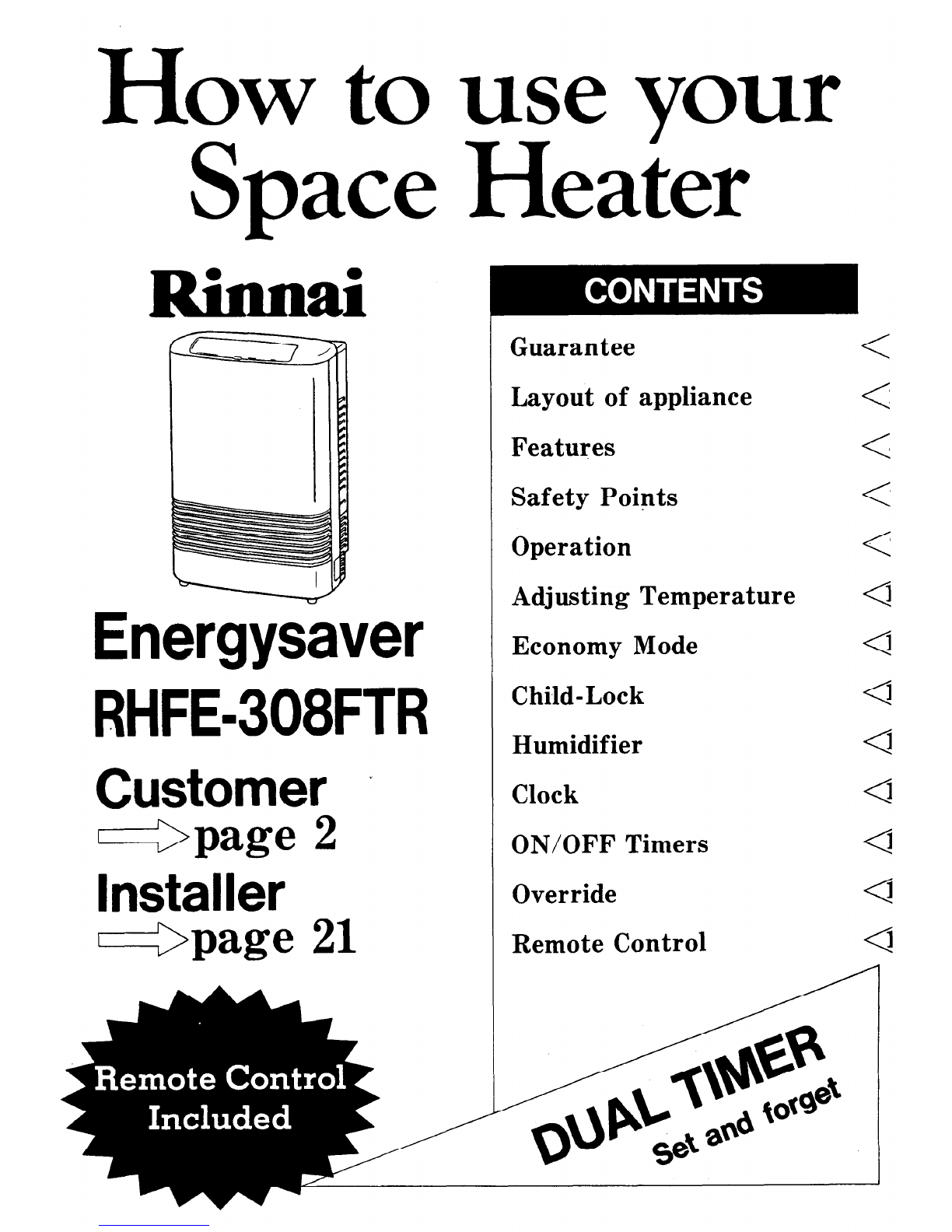

Rinnai ENERGYSAVER RHFE-308FTR Operating instructions

How to
Space
Rinnai
Energysaver
RHFE-308FTR
Customer ”
-page 2
Installer
tipage 21
use vour
Heaier
Guarantee
Layout of appliance
Features
Safety Points
Operation
Adjusting Temperature
Economy Mode
Child-Lock
Humidifier
Clock
ON/OFF Timers
Override
Remote Control

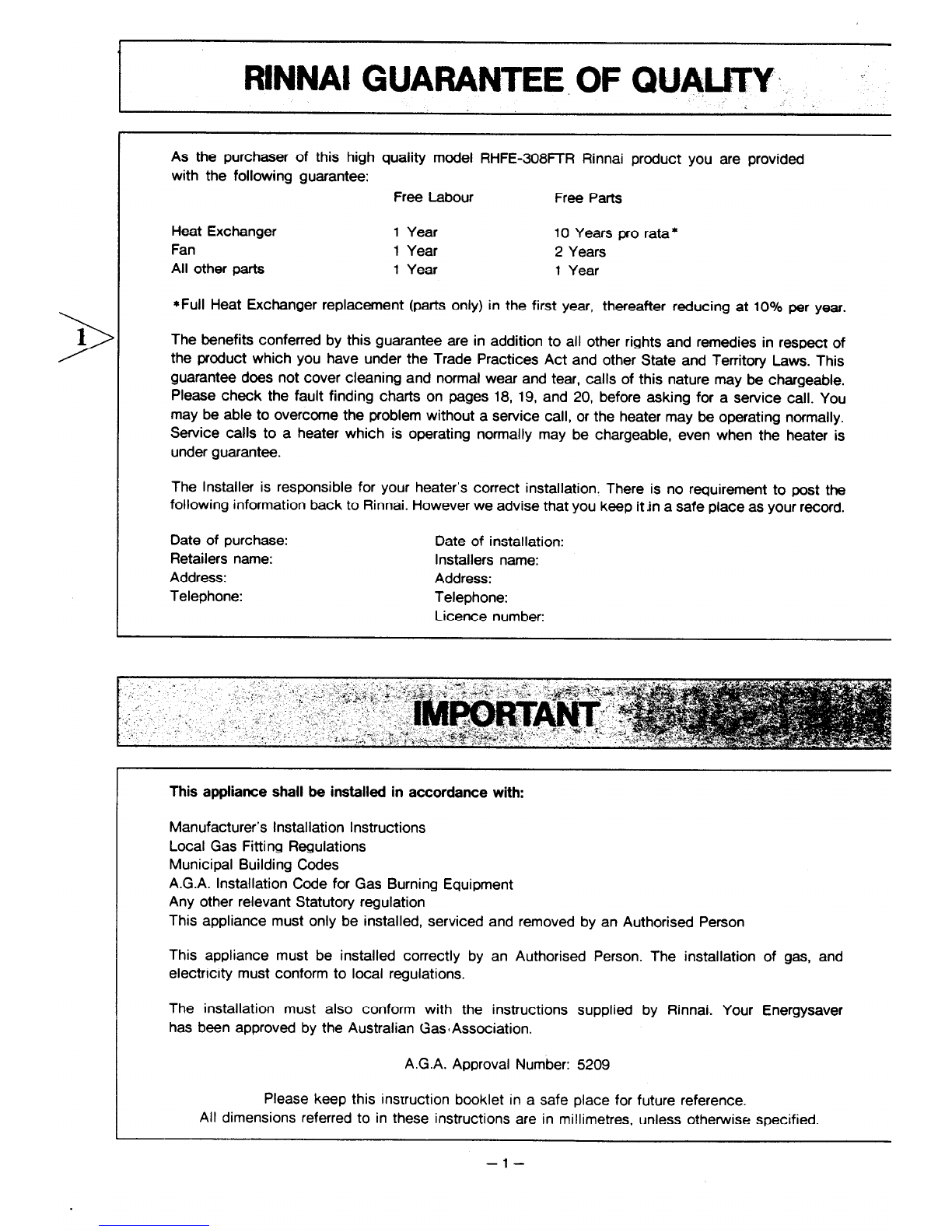

RINNAI GUARANTEE,OF QUALRY, -’
As the purchaser of this high quality model RHFE-308FTR Rinnai product you are provided
with the following guarantee: Free Labour Free Parts
Heat Exchanger 1 Year 10 Years pro rata *
Fan 1 Year 2 Years
All other parts 1 Year 1 Year
*Full Heat Exchanger replacement (parts only) in the first year, thereafter reducing at 10% per year.
The benefits conferred by this guarantee are in addition to all other rights and remedies in respect of
the product which you have under the Trade Practices Act and other State and Territory Laws. This
guarantee does not cover cleaning and normal wear and tear, calls of this nature may be chargeable.
Please check the fault finding charts on pages 18, 19, and 20, before asking for a service call. You
may be able to overcome the problem without a service call, or the heater may be operating normally.
Service calls to a heater which is operating normally may be chargeable, even when the heater is
under guarantee.
The Installer is responsible for your heater’s correct installation. There is no requirement to post the
following information back to Rinnai. However we advise that you keep it .in a safe place as your record.
Date of purchase:
Retailers name:
Address:
Telephone:
Date of installation:
Installers name:
Address:
Telephone:
Licence number:
This appliance shall be installed in accordance with:
Manufacturer’s Installation Instructions
Local Gas Fitting Regulations
Municipal Building Codes
A.G.A. Installation Code for Gas Burning Equipment
Any other relevant Statutory regulation
This appliance must only be installed, serviced and removed by an Authorised Person
This appliance must be installed correctly by an Authorised Person. The installation of gas, and
electricity must conform to local regulations.
The installation must also conform with the instructions supplied by Rinnai.. Your Energysaver
has been approved by the Australian GaslAssociation.
A.G.A. Approval Number: 5209
Please keep this instruction booklet in a safe place for future reference.
All dimensions referred to in these instructions are in millimetres, unless otherwise specified.
-l-

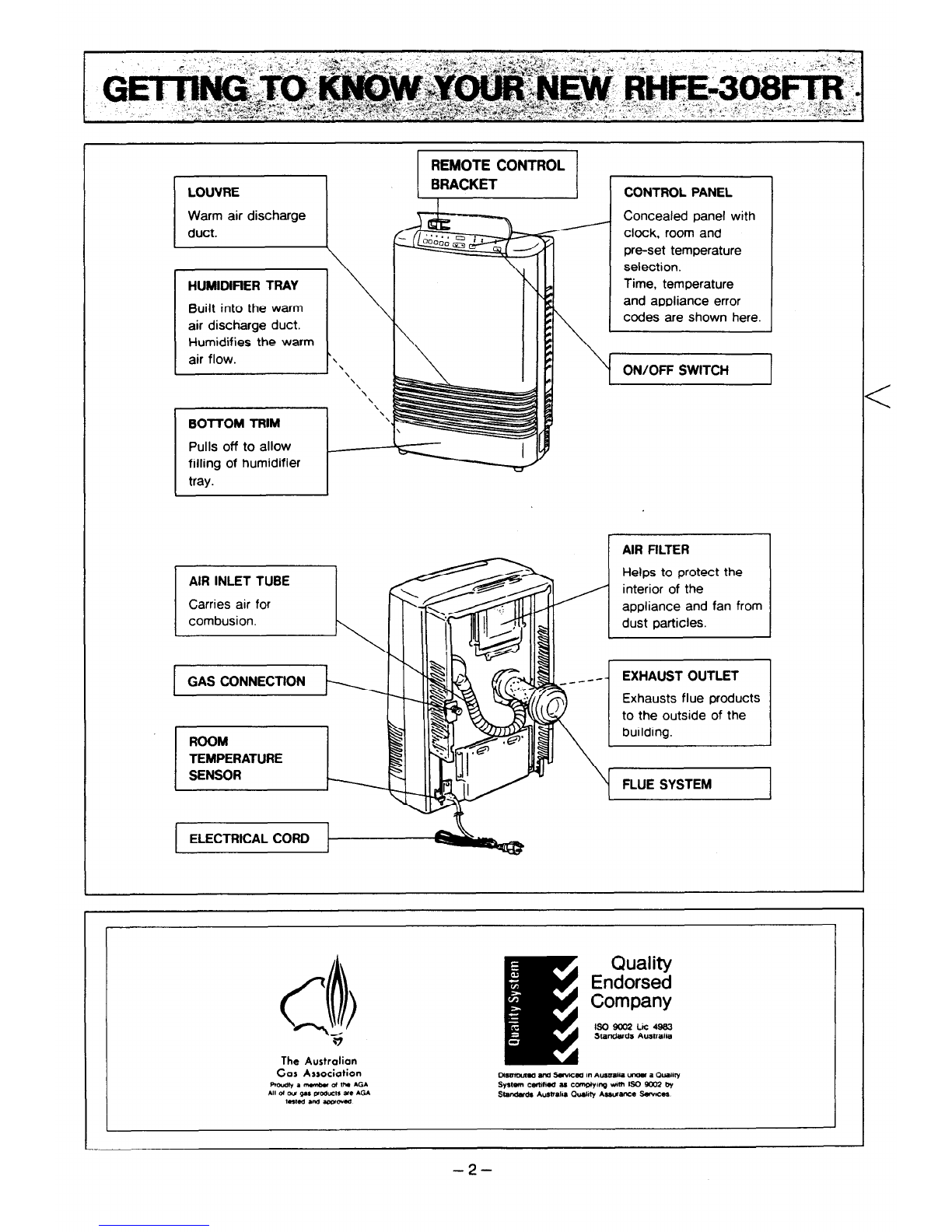

Warm air discharge
Built into the warm
air discharge duct.
Humidifies the warm
Concealed panel with
clock, room and
pre-set temperature
Time, temperature
and appliance error
BOTTOM TRIM
Pulls off to allow
filling of humidifier
AIR INLET TUBE
Carries air for
Helps to protect the
interior of the
appliance and fan from
Exhausts flue products
to the outside of the
cib
Td b
The Australian
Gas Association
Row@ammbr ofmm*GA
Allolw gasp3Lkcea1c*GA
1”mdandylpor~
-2-
<

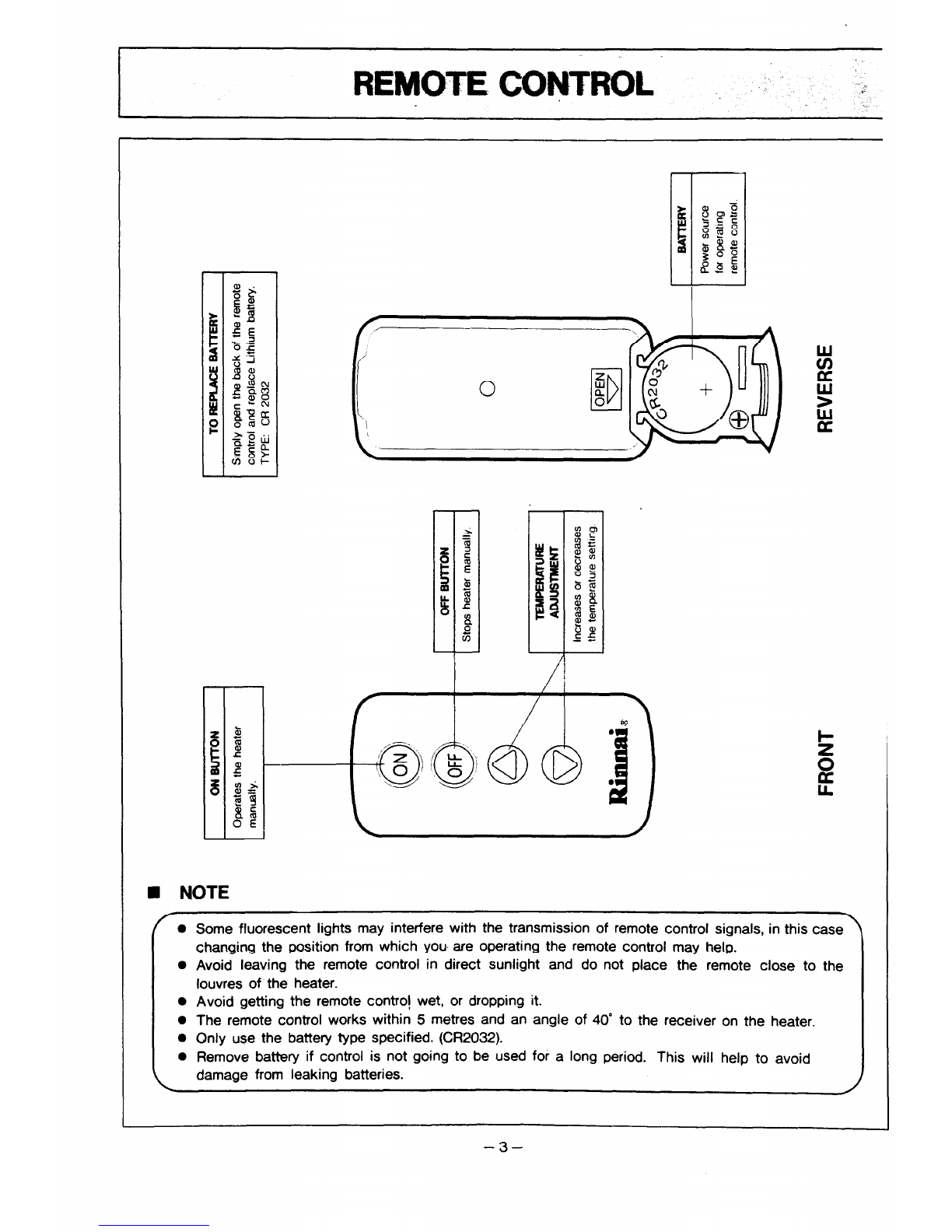

REMOTE.COl’$TF?OL __ ,:1 ::i
m NOTE
/ 7
l Some fluorescent lights may interfere with the transmission of remote control signals, in this case
changing the position from which you- are operating the remote control may help.
l Avoid leaving the remote control in direct sunlight and do not place the remote close to the
louvres of the heater.
0 Avoid getting the remote contra) wet, or dropping it.
0 The remote control works within 5 metres and an angle of 40’ to the receiver on the heater.
l Only use the battery type specified. ((X2032).
0 Remove battery if control is not going to be used for a long period. This will help to avoid
damage from leaking batteries. /
1

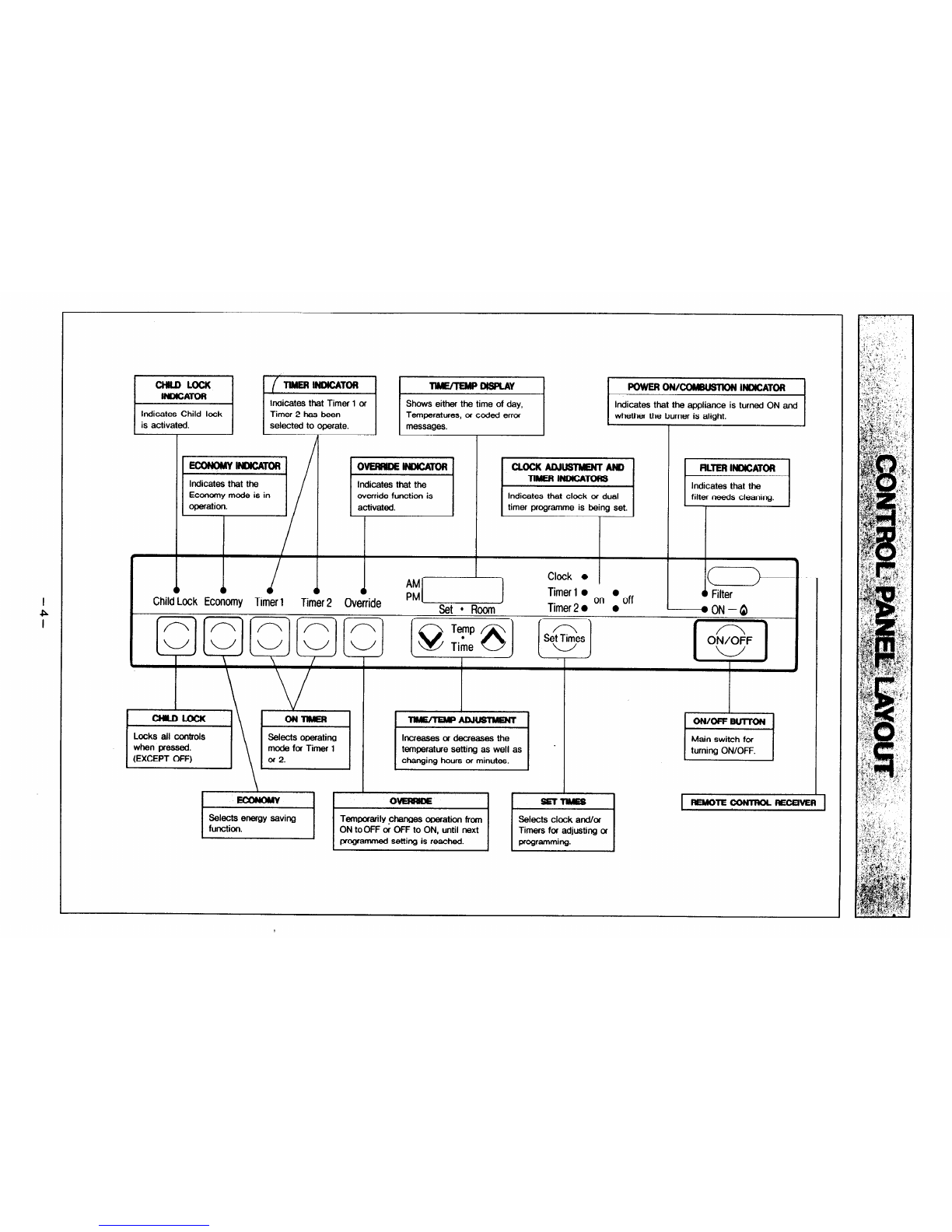

-3-

I
P
I
WLO LOCK
INDICATOR
Indicates Child lock
is activated. 1 ~{$~i-~ 1 Indicates that the appliance is turned ON and 1
1 whether thetyrnerisalight.
Indicates that the
override function is
activated.
cLocKADJusrmNTANo
TIMER INDKXT~
Indicates that clock or dual
timer programme is being set.
ALTER INMCATOR
Indicates that the
t
filter needs cleaning.
4
Clock l (iI-----
0 0 0 6 AM
PM 1 Timer 1 l l
ChildLock Economy Timer1 Timer2 Override Off l Filter
set l Room Timer20 On l .ON-Q
r ‘,f \ / \f
f--f---l~/----Y
\ / \ / /
wu
I \
( J-l, JJ, <S,
\
turning ON/OFF.
Eoo;corc‘~1~1
Selects energy saving
function.
I
REMmECONTROLlw%EwER

r
’
FORCED FLUE SYSTEM
Air for combustion is taken from outside
the room and the flue products are
exhausted outside, keeping the room air
clean.
>5 F. ’
WARM AIR DISCHARGE
Warm air flows from the bottom of the
appliance through the louvres, assisting
in even heat distribution. An integral
humidifier tray is built into the warm air
discharge duct.

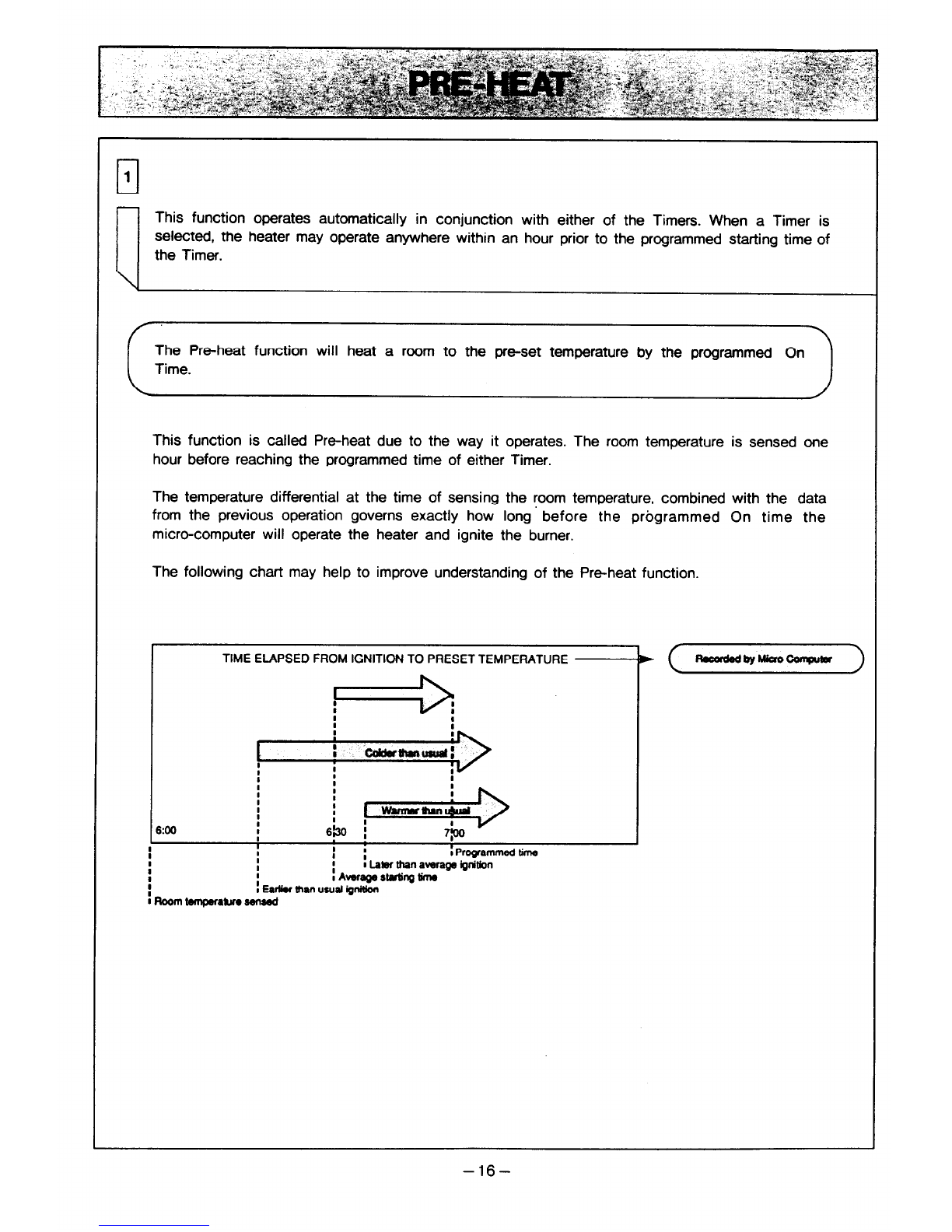

PRE-HEAT
The function will automatically operate the
appliance within one hour prior to the
programmed time of the Timer. This is
designed to heat a room to the pm-set
temperature by the programmed time.
(SW page16)
r Y
PUSH BUTTON IGNITION
Only one touch of the ON/OFF switch is
required to operate the heater.
(Se page9)
/

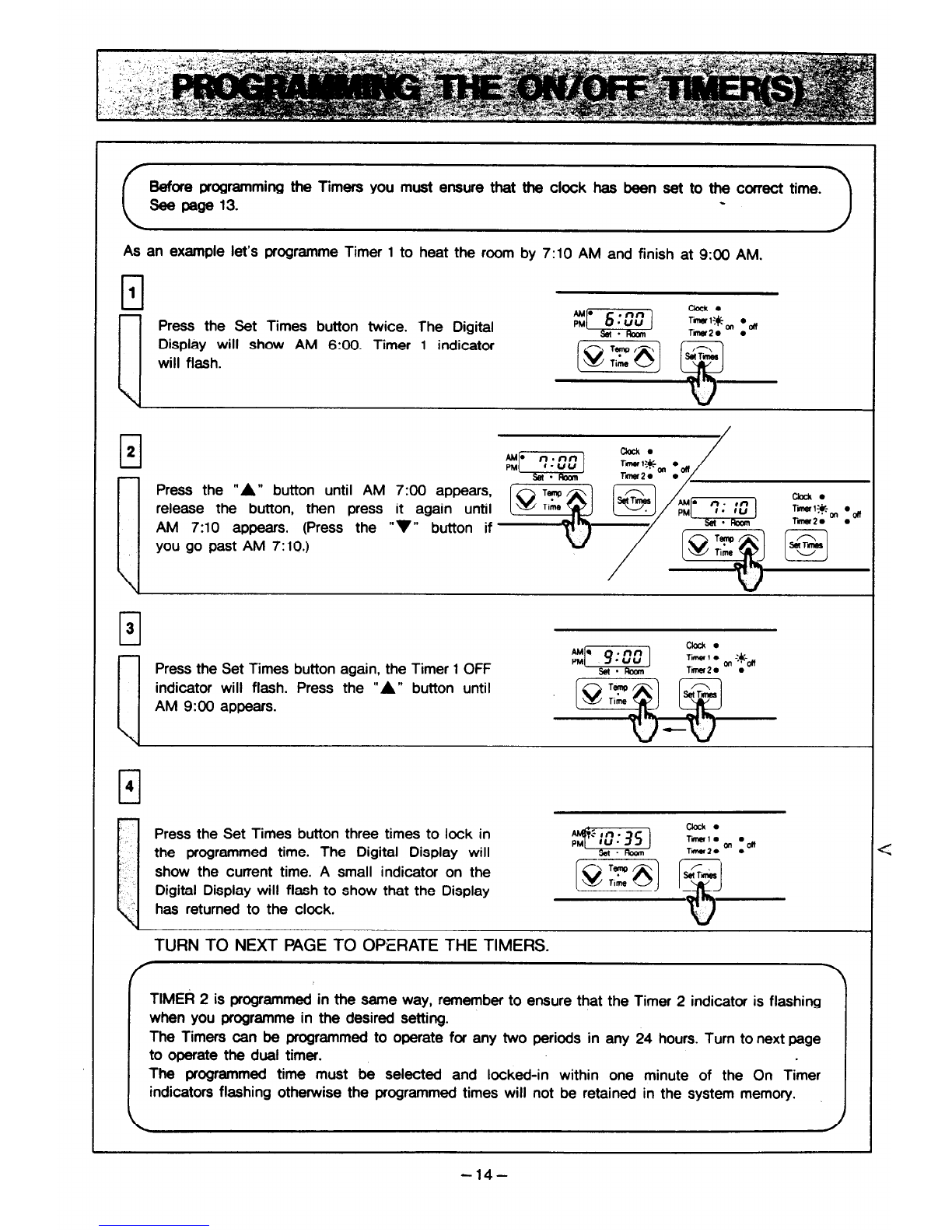

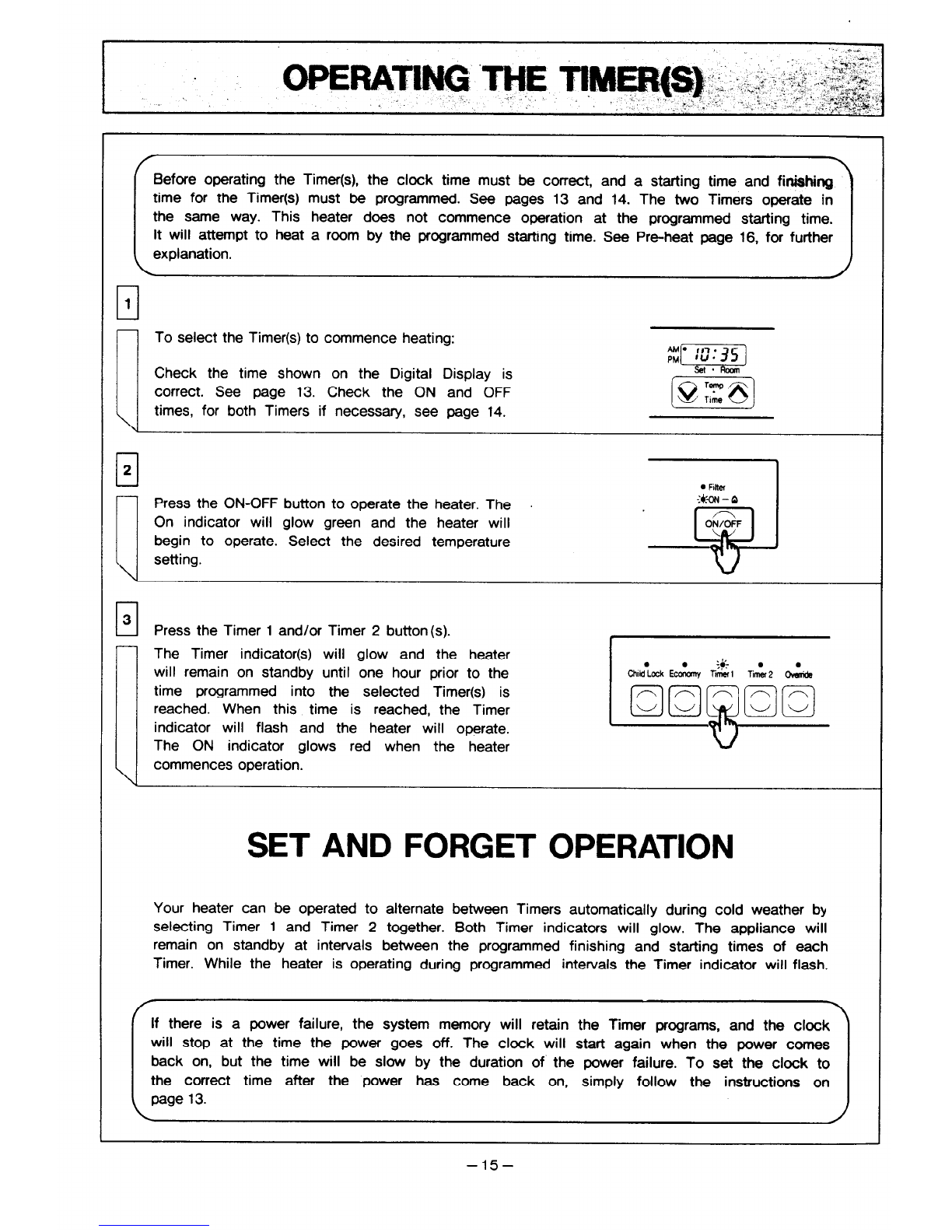

F ’DUAL ON/OFF TIMER
The Dual Timer allows you to programme
the appliance to come on for two separate
periods each day, usually one period in
the morning, and one period in the evening.
The built in Intelligent Mode brings the rOOrn
temperature to the temperature you have
selected, by the time programmed into the
Timer.
The Dual Timer feature means that you can
“Set and Forget” your heater. It will turn
itself ON and Off at times you have
programmed until you cancel the Timer
wcv~.
-5-

, F f 7
FILTER INDICATOR AUTO COMFORT
When the fan filter becomes covered with
dust and the temperature inside the
appliance rises, the filter indicator will
flash. The filter should be vacuumed at
regular intervals to avoid unnecessary
strain on the appliance.
b : , : -.f#gg&pf+#jR+ ;:_:-y
For the convenience of turning the heater
ON or OFF, as well as adjusting the
temperature up or down while at a short
distance from the heater.
This is an energy saving feature designed
to reduce the room temperature to 1°C
less than the pre-set temperature over a
period of 30 minutes, and an additional
1% after another 30 minutes.
11 hourhour
Ensures that the flow of warm air from the
louvres is maintained at a comfortable
volume during the warm-up period by a 8
step modulating convection fan, in
conjunction with the thermostat, reducing
cool draughts.
When the Child lock is activated all controls
other than the OFF switch will be locked.
Deactivating the lock releases the controls.
If the lock is activated when the appliance
is off, all functions will be locked.
The micro-computer records selected pre-
set temperatures, the times programmed
into the Timers as well as operating the
Economy and Intelligent modes, to
maintain comfort levels.
-6-

SAFETY POINTS
Do not restrict the warm air discharge This appliance must not be used for any
by placing articles in front of the heater. purpose other than heating.
Do not spray aerosols whilst the heater is FJue guard is recommended where
operating. Most aerosols contain butane children may be able to touch the flue
gas, and can be a fire hazard if terminal.
Do not allow curtains or other Do not allow anyone to sit on or lean
flammable or combustible materials to against the appliance.
come into contact with the heater.
/
Combustible materials must not be placed
where the heater could ignite them:
-7-

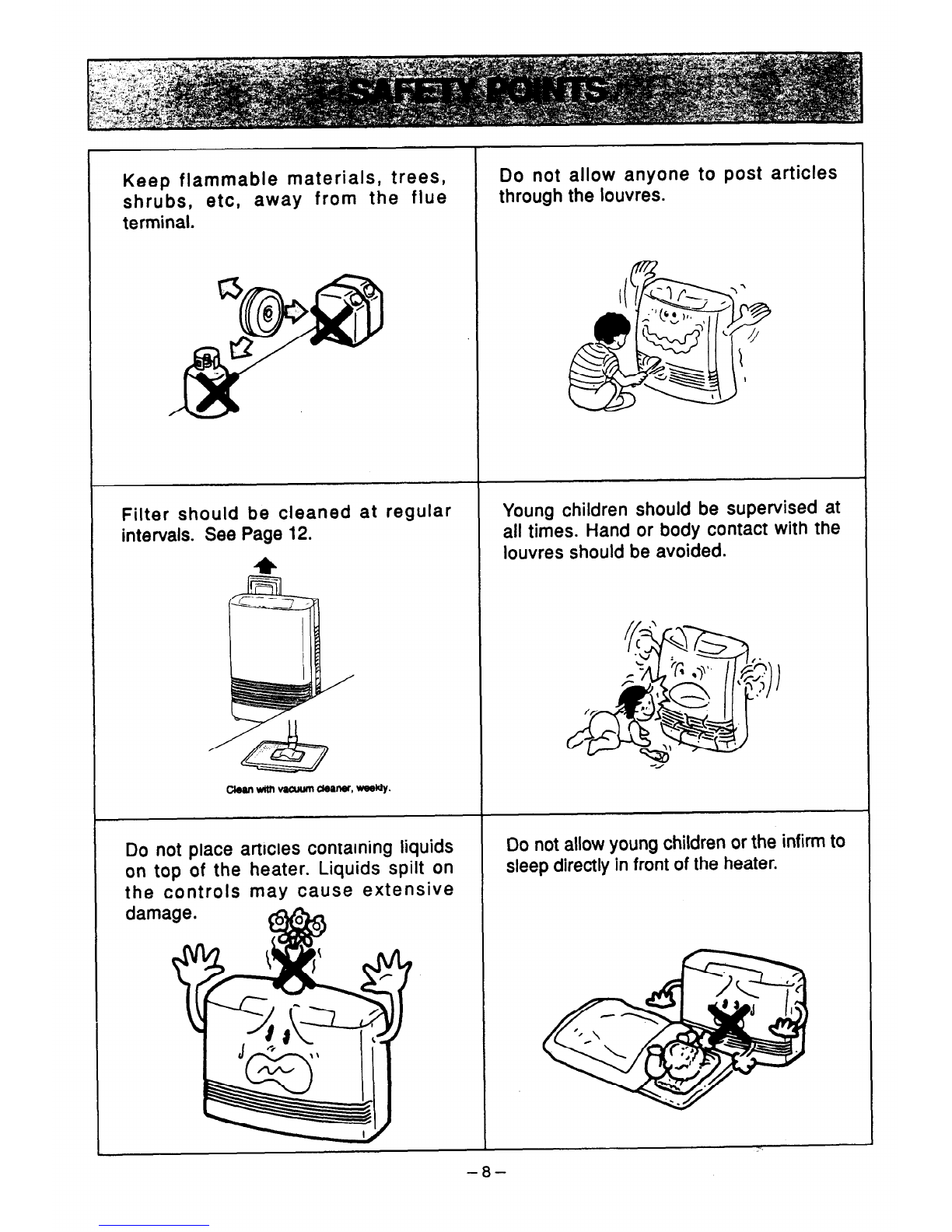

Keep flammable materials, trees, Do not allow anyone to post articles
shrubs, etc, away from the flue through the louvres.
terminal.
Filter should be cleaned at regular Young children should be supervised at
intervals. See Page 12. all times. Hand or body contact with the
louvres should be avoided.
cmllwith+mawm
challer.WeeMy.
Do not place artrcres containing liquids Do not allow young children or the infirm to
on top of the heater. Liquids spilt on sleep directly in front of the heater.
the controls may cause extensive
-a-

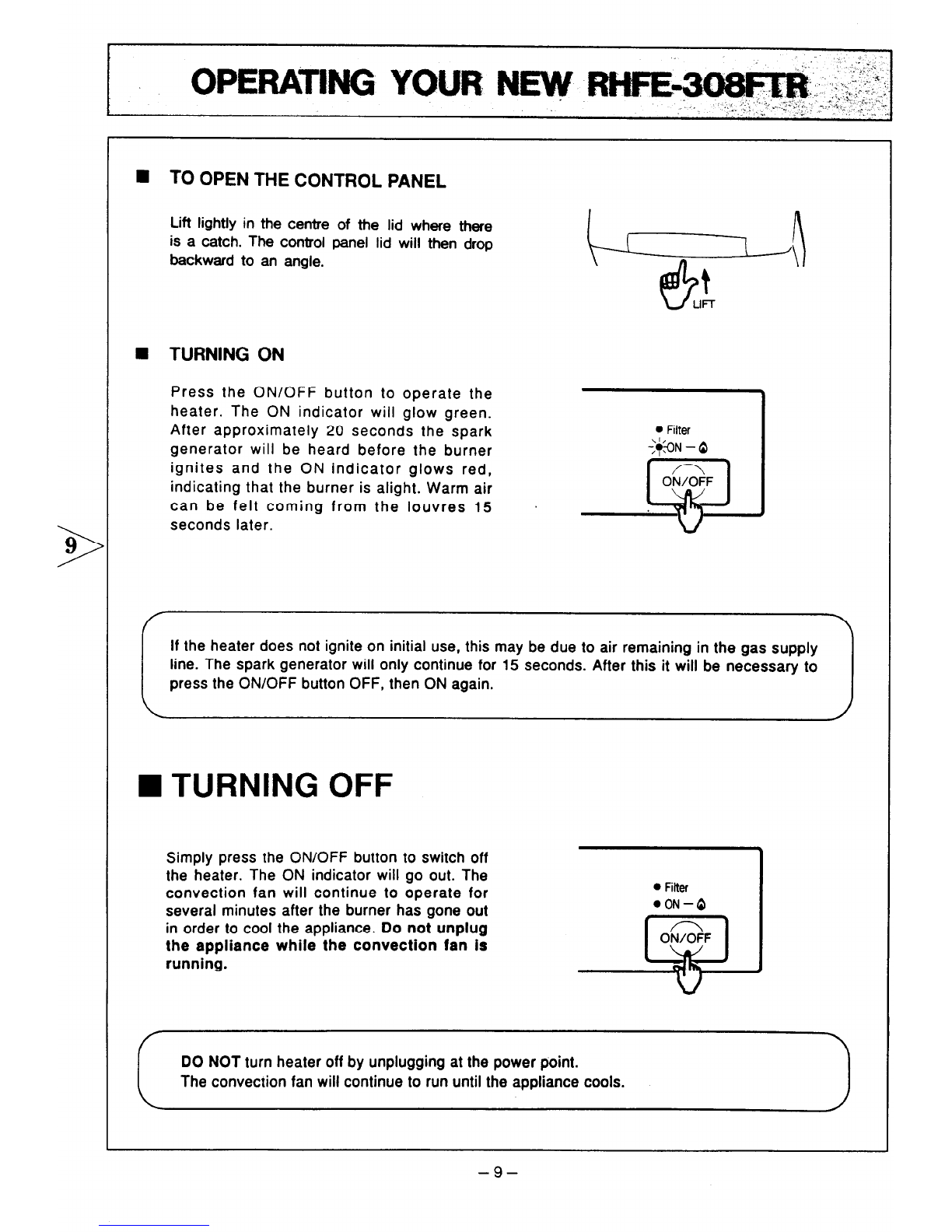

n TO OPEN THE CONTROL PANEL
Lift lightly in the centre of the lid where there
is a catch. The control panel lid will then drop
backward to an angle.
n TURNING ON
Press the ON/OFF button to operate the
heater. The ON indicator will glow green.
After approximately 20 seconds the spark
generator will be heard before the burner
ignites and the ON indicator glows red,
indicating that the burner is alight. Warm air
can be felt coming from the louvres 15
seconds later.
If the heater does not ignite on initial use, this may be due to air remaining in the gas supply
line. The spark generator will only continue for 15 seconds. After this it will be necessary to
press the ON/OFF button OFF, then ON again.
n TURNING OFF
Simply press the ON/OFF button to switch off
the heater. The ON indicator will go out. The
convection fan will continue to operate for
several minutes after the burner has gone out
in order to cool the appliance. Do not unplug
the appliance while the convection fan is
running.
l Filter
.ON-Q
f
DO NOT turn heater off by unplugging at the power point.
The convection fan will continue to run until the appliance cools.
-9-

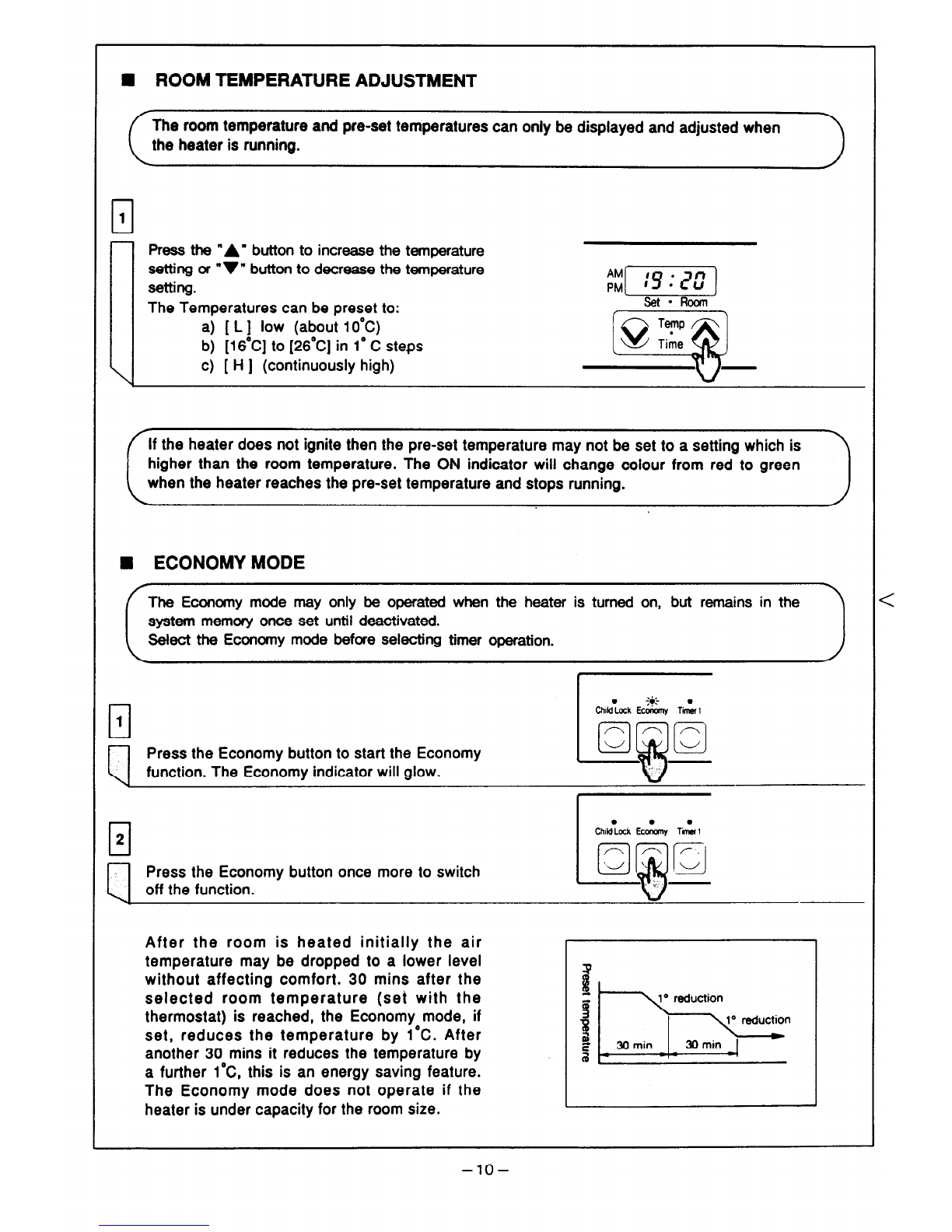

n ROOM TEMPERATURE ADJUSTMENT
The room temperature and pre-set temperatures can only be displayed and adjusted when
the heater is running.
0
1
\
Press the .A” button to increase the temperature
setting or “v” button to decrease the ternuerature
setting.
The Temperatures can be preset to:
a) [ L ] low (about 1O’C)
b) [l&C] to [26’C] in lo C steps
c) [ H ] (continuously high)
If the heater does not ignite then the pre-set temperature may not be set to a setting which is
higher than the room temperature. The ON indicator will change colour from red to green
when the heater reaches the pre-set temperature and stops running.
n ECONOMY MODE
The Economy mode may only be operated when the heater is turned on, but remains in the
f system memory once set until deactivated.
Select the Economy mode before selecting timer operation.
Press the Economy button to start the Economy
function. The Economy indicator will glow.
II
2
Press the Economy button once more to switch
off the function.
After the room is heated initially the air
temperature may be dropped to a lower level
without affecting comfort. 30 mins after the
selected room temperature (sei with the
thermostat) is reached, the Economy mode, if
set, reduces the temperature by 1°C. After
another 30 mins it reduces the temperature by
a further l’C, this is an energy saving feature.
The Economy mode does not operate if the
heater is under capacity for the room size.
-lO-

n CHILD LOCK
he Child lock will help to prevent accidental operation as well as small children from altering
0
1
~~ -;+- . .
- To operate the Child lock simply press the Child Lock TzT2 tl+LdB
button. The function is activated immediately and the
Child lock indicator will glow. fi anna
cl
2
To deactivate the Child lock simply press the Child Chldkck Ecky Tit&l TIfiL OAE
Lock button for2 seconds and the Child lock indicator ~~fcic]
will go out. The lock can be deactivated at any time
in this way.
During normal operation the Child lock may be activated and all controls other than the OFF
switch will be locked. Deactivating tine lock releases the controls. If the lock is activated
whilst the heater is turned OFF, then all functions will be locked. If the heater is turned
OFF whilst the Child lock is activated, it cannot be turned ON again until the lock is
deactivated.
n AUTO COMFORT
A room temperature sensor located at the rear of the appliance is continuously monitoring the
temperature of the room. The main purpose of Auto Comfort is to improve control over the flow of
warm air being discharged through the louvres when the heater is first operated. The means by
which this control is achieved is an 7 speed modulating convection fan and the temperature sensor,
in conjunction with a micro-computer.
In order to achieve comfortable heating, it is preferable to avoid cold draughts from the appliance.
In the case of a conventional fan heater, the convection fan operates normally from the time of
ignition and a cool draught may accompany the flow of air from the appliance.
To overcome this situation, fuzzy logic controls the speed of the convection fan after taking into
consideration the room temperature at the time of ignition. For example: the room temperature is
low, then the fan rotates at low speed. As the room temperature rises the speed of the convection
fan gradually increases.
In this way it is possible to ensure a comfortable flow of warmed air, as well as decreasing the
sensation of cold draughts immediately after ignition.
The convection fan speed increases proportionally as the room gradually heats up. This improves
the warm air distribution, assisting in a reduction of warm air stratification throughout the room, and
resulting in more effective heating conditions.
The micro computer continuously monitors the room temperature and adjusts the convection fan
speed according to the conditions at the time.
-ll-

n FAN RLTER
To protect the room air fan from dust particles or
lint, a filter is situated at the rear of the appliance.
When this filter becomes blocked, the filter
indicator will flash to indicate that it should be
cleaned. Clean the filter weekly during the heating
season to avoid unnecessary strain on the
appliance.
Do not remove filter when appliance is
operating. When the filter requires cleaning,
clean filter before using the appliance, or whilst
the appliance is not operating.
If you do not clean the filter at regular intervals
and the filter indicator is allowed to remain
flashing, then the appliance will stop and [14] will
flash on the Digital Display signifying that the
inbuilt safety device has functioned. You must
clean the filter before operating the heater again.
n HUMIDIFIER TRAY
So that you can humidify the air, your Rinnai RHFE-308FTR is fitted with an enamelled tray at
the bottom of the heater. If you choose to make use of the humidifier tray, it will need filling
about once a day during the heating season. Do not fill the humidifier tray while the heater
i
Tofill the humidifier tray:
Remove the bottom trim panel, below the louvres,
by pulling on both sides. Simply pull the tray
forward to allow it to be filled with water. The
warm air will be humidified as it passes over the
water in the tray. Refit the bottom trim panel after
filling the tray. The RHFE-308FTR is a very high
efficiency appliance, during operation a small
amount of condensation is produced in the flue
system, this drains into the enamelled humidifier
tray.
The humidifier has the benefit (when filled with water) of raising the humidity in the air. With increased
humidity, the heater can actually be run at a lower temperature while still maintaining the same level
of comfort.
n VERTICAL LOUVRE ADJUSTMENT
The warm air flow direction may be altered by
inserting a screwdriver or similar tool and gently
bending the vertical louvre(s) either to the left or the
right.
Note: These louvres are not designed to be
adjusted more than 6 times.
<
-12-

/hen the appliance is first plugged in and then turned on, the Digital Display will show - - : - -.
As an example, let’s set the clock to 10% am.
)PEN THE CONTROL PANEL-SEE PAGE 9.
1
1When the appliance is first plugged in or after a
power failure, the Digital Display will show - -: - -.
Press the Set Times button once, the Clock
Indicator will flash.
2
1
-_ Press and hold the “A” button; the minutes ,4l
begin to change first, then the time will change by
whole hours. Release the button when AM 10:00
shows on the Digital Display. Confirm that you
have selected AM, a small indicator on the left
hand side of the Digital Display indicates the AM
setting.
Press and hold the “A” button again, release the
button when AM lo:35 shows. If you go past
AM lo:35 then the “V” button can be used to
change the time settings in reverse.
1
3
Press the Timer Set button five times to lock
in and complete setting the time. The Clock and
Timer indicators will go out. A small indicator
on the Digital Display will flash to show that the
clock is operating.
-13-

Before programming the Timers you must ensure that the clock has been set to the correct time.
As an example let’s programme Timer 1 to heat the room by 7:lO AM and finish at 9:OO AM.
Press the Set Times button twice. The Digital
Display will show AM 6:O0. Timer 1 indicator
will flash.
1
Press the “A” button until AM
release the button, then press
AM 7:lO appears. (Press the
you go past AM 7: 10.)
7:OO appears,
it again until
“V” button if
n
3
Press the Set Times button again, the Timer 1 OFF
indicator will flash. Press the “A” button until
AM 9:OO appears.
cl
4
Press the Set Times button three times to lock in
the programmed time. The Digital Display will
show the current time. A small indicator on the
Digital Display will flash to show that the Display
has returned to the clock.
TURN TO NEXT PAGE TO OPERATE THE TIMERS.
TIMER 2 is programmed in the same way, remember to ensure that the Timer 2 indicator is flashing
when you programme in the desired setting.
The Timers can be programmed to operate for any two periods in any 24 hours. Turn to next page
to operate the dual timer.
The programmed time must be selected and locked-in within one minute of the On Timer
indicators flashing otherwise the programmed times will not be retained in the system memory.
-14-

’ Before operating the Timer(s), the clock time must be correct, and a starting time and finishing \
time for the Timer(s) must be programmed. See pages 13 and 14. The two Timers operate in
the same way. This heater does not commence operation at the programmed starting time.
It will attempt to heat a room by the programmed starting time. See Pre-heat page 16, for further
u
11
To select the Timer(s) to commence heating:
Check the time shown on the Digital Display is
correct. See page 13. Check the ON and OFF
times, for both Timers if necessary, see page 14.
Ll
22
Press the ON-OFF button to operate the heater. The
On indicator will glow green and the heater will
begin to operate. Select the desired temperature
setting.
Press the Timer 1 and/or Timer 2 button(s).
The Timer indicator(s) will glow and the heater
will remain on standby until one hour prior to the
time programmed into the selected Timer(s) is
reached. When this time is reached, the Timer
indicator will flash and the heater will operate.
The ON indicator glows red when the heater
commences operation.
SET AND FORGET OPERATION
Your heater can be operated to alternate between Timers automatically during cold weather by
selecting Timer 1 and Timer 2 together. Both Timer indicators will glow. The appliance will
remain on standby at intervals between the programmed finishing and starting times of each
Timer. While the heater is operating during programmed intervals the Timer indicator will flash.
If there is a power failure, the system memory will retain the Timer programs, and the clock
will stop at the time the power goes off. The clock will start again when the power comes
back on, but the time will be slow by the duration of. the power failure. To set the clock to
the correct time after the power has come back on, simply follow the instructions on
page 13.
-15-

n
This function operates automatically in conjunction with either of the Timers. When a Timer is
selected, the heater may operate anywhere within an hour prior to the programmed starting time of
the Timer.
I The Pre-heat function will heat a room to the preset temperature by the programmed On
Time.
This function is called Pm-heat due to the way it operates. The room temperature is sensed one
hour before reaching the programmed time of either Timer.
The temperature differential at the time of sensing the room temperature, combined with the data
from the previous operation governs exactly how long’ before the programmed On time the
microcomputer will operate the heater and ignite the burner.
The following chart may help to improve understanding of the Pre-heat function.
TIME ELAPSED FROM IGNITION TO PRESET TEMPERATURE
I I
I I
: : : I Programmedtime
: : I Laterthanavaraga i~nitkm
I Avaragartariillg tima
: Eatiierthanusualignilion
3oomtamparatio sonsad
-16-

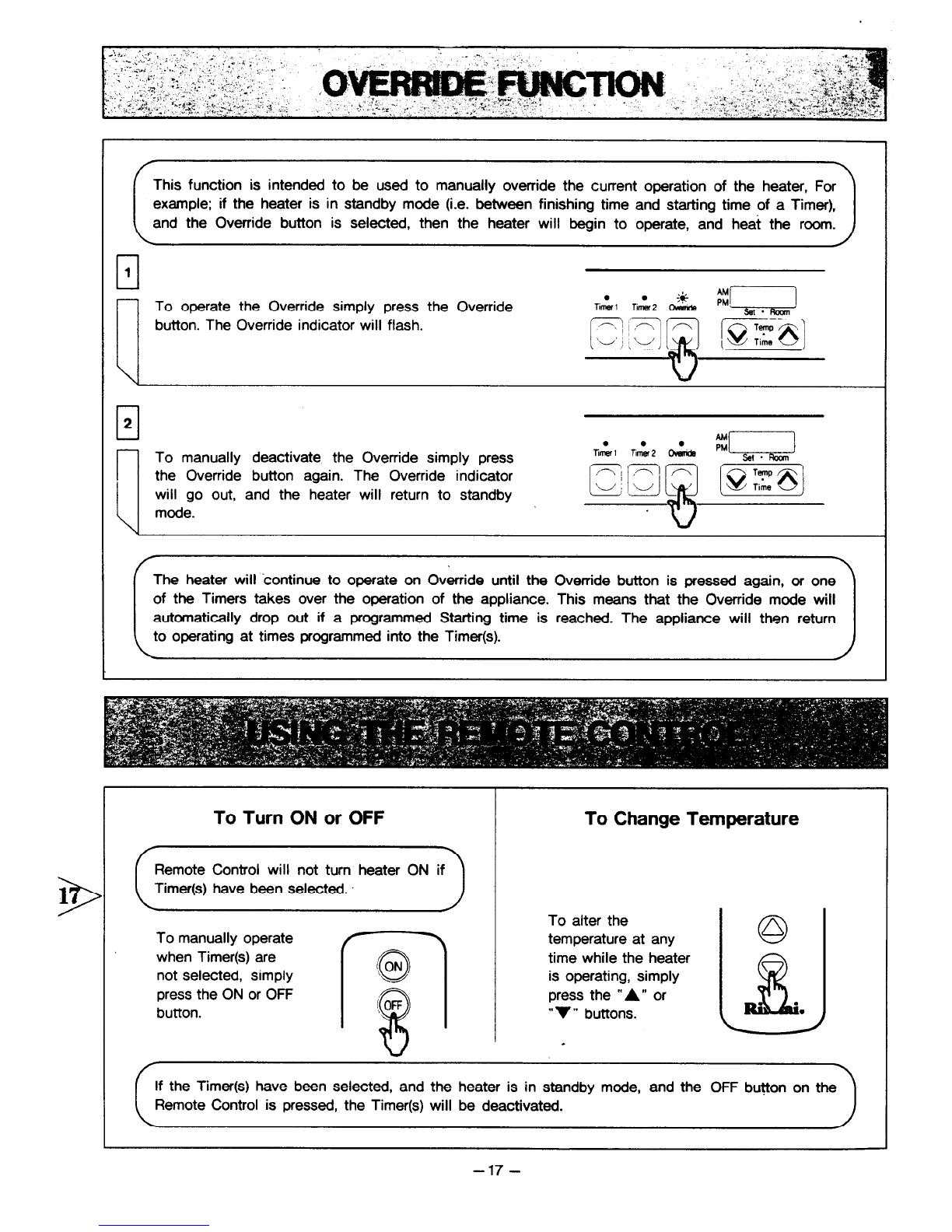

This function is intended to be used to manually override the current operation of the heater, For
example; if the heater is in standby mode (i.e. between finishing time and starting time of a Timer),
and the Override button is selected, then the heater will begin to operate, and heat the room.
To operate the Override simply press the Override
button. The Override indicator will flash.
cl
22
To manually deactivate the Override simply press
the Override button again. The Override indicator
will go out, and the heater will return to standby
mode.
The heater will continue to operate on Override until the Override button is pressed again, or one
of the Timers takes over the operation of the appliance. This means that the Override mode will
automatically drop out if a programmed Starting time is reached. The appliance will then return
to operating at times programmed into the Timer(s).
To Turn ON or OFF
Remote Control will not turn heater ON if
(d)
To manually operate
when Timer(s) are
not selected, simply
press the ON or OFF
button.
To Change Temperature
To alter the
temperature at any
time while the heater
is operating, simply
press the nA )( or
”V ” buttons.
.
If the Timer(s) have been selected, and the heater is in standby mode, and the OFF button on the
Remote Control is pressed, the Timer(s) will be deactivated.
-17 -

This appliance is controlled by a micro computer. If there is something wrong with the
appliance then it will stop, as it is protected by the following safety devices.
Ignition Safety Device Power Failure Safety Device
Burner Safety Device
Overheat Safety Device Power Surge Safety Device
Fan Delay Safety Device
Your RHFE-308FTR requires very little maintenance,
simply clean the rear fan filter once a week and
wipe the outer case and louvre section with a
damp cloth.
DO NOT USE SOLVENTS.
Solvents may melt or distort plastic parts.
Problem
Cause
Remedy
Power Cut
Service Call
Service Call
I Miss Ignition 1~14
Flue terminal
obstructed
Flue manifold not
connected
1 Louvre obstructed
I I I Cancel On Timer I
Cancel Child lock
Turn gas on
I /@I Replace battery I
-18-

Before asking for a service call please check the following points.
These points are part of the normal operation of the unit.
H At Ignition:
IHeater does not operate. I+ Is the heater plugged in?
Have the fuses or breaker blown at the switch board?
Is there a power failure?
Is the air filter blocked?
Is anything Wng the outlet for the hot air?
Is the flue blocked?
Are Timers set? Clear Timers and operate again.
Warm air does not flow when the burner lights. + The fan is started automatically after a short delay.
This is to allow the heat exchanger to warm up,
helping to avoid cofd draughts.
Smoke or strange smells are produced on the
first trial light up after installation. This is caused by grease or oil and dust on the heat exchanger
and will stop after a short time.
Sharp clicking noises at ignition, or when the
unit cuts down on the thermostat, or goes out. This is simply expansion noise.from the heat exchanger.
n During combustion:
Clunking noise when the thermostat operates. + This is the sound of the solenoid gas valves opening and
cbsing.
Unit is not heating room. -b Is the air filter blocked?
Is the set temperature high enough?
Is the warm air outlet blocked by anything?
Are the doors and windows of the room closed?
Air filter is blocked or the louvres are blocked
or obstructed. + Allow heater to cool, clean air filter, operate again.
Heater will not reignite after overheating. I-+
n When the unit is turned off:
In continues to run after turning OFF.1 +
n Other Points:
Steam is discharged from the flue terminal. -b
Unit cuts off without apparent reason. I-
Power Failure. I-
Even after unit has cooled down the heater does not ignite
again. Repair is necessary.
Contact your local agent or Rinnai for a
Service call.
This is to remove the residual heat from the heat exchanger, the
fan will stop when the heater cools down.
Hiih efficiency appliances tend to discharge water vapour on
cold days, this is normal.
Check whether filters are blocked, dii Mrs wilt cause the
healer to overheat.
Switch OFF; then ON again when power is restored to
m-set controls. I
-19-
