Rinnai SS850 User manual

Gas Fireplace
Installation Manual
MODELS:
RINNAI SS850 (SS850ICAN) NG
RINNAI SS850 (SS850ICAL) LPG
RINNAI SS850 (SS850CLN) NG
RINNAI SS850 (SS850ICLL) LPG

Rinnai 2 SS850 IM
Congratulations on the purchase of your Rinnai SS850 Gas Fire. We trust you will have many years of comfort and
enjoyment from your appliance.
IMPORTANT
BEFORE INSTALLING THIS APPLIANCE
Before proceeding with the installation read this manual thoroughly and gain a full understanding
of the appliance, to ensure safe and correct use.
For details on how to use this appliance refer to the Operation Manual Part Number: 13722.
This appliance must be installed in accordance with:
• Manufacturer’s Installation Instructions
• Current AS/NZS 3000, AS/NZS 3500 & AS/NZS 5601
• Local Regulations and Municipal Building Codes
including local OH&S requirements
This appliance must be installed, maintained and removed
ONLY by an Authorised Person.
For continued safety of this appliance it must be installed
and maintained in accordance with the manufacturer’s
instructions.
All Rinnai gas products
sold in Australia are
A.G.A. certified.

Rinnai 3 SS850 IM
WARNING
This appliance MUST be installed, maintained and removed ONLY by an Authorised Person.
For continued safety of this appliance it MUST be installed and maintained in accordance with
the manufacturers instructions.
Warnings & Important Information 4
Before Using or Installing this Appliance ......................................................................................................................... 4
Regulatory Information ....................................................................................................................................................... 4
Notice to Victorian Consumers .......................................................................................................................................... 4
Dress Guard Warnings ........................................................................................................................................................ 4
Mandatory Inspection Prior to Installation ........................................................................................................................ 4
Modications ........................................................................................................................................................................ 5
General Safety Warnings .................................................................................................................................................... 5
Before You Start 6
Installation Requirements ................................................................................................................................................... 6
Certication .......................................................................................................................................................................... 6
General Installation Information 7
Location ................................................................................................................................................................................ 7
Flooring and Hearth Material Selection ............................................................................................................................. 8
TV Installation ...................................................................................................................................................................... 9
Framing 10
Enclosure Requirements .................................................................................................................................................. 10
Supply Connections 11
Gas Supply ..........................................................................................................................................................................11
Electrical Supply ................................................................................................................................................................ 12
Flueing 13
General Flueing Guidelines .............................................................................................................................................. 13
Flueing Option: Masonry ................................................................................................................................................. 14
Flueing Option: False Fireplace ...................................................................................................................................... 15
Flue Components .............................................................................................................................................................. 16
Flue Installation Dimensions & Restrictions Flue Terminal Clearances ...................................................................... 18
Installation 19
False Fireplace Installation ............................................................................................................................................... 19
Masonry Installation .......................................................................................................................................................... 21
Aeration Plates ................................................................................................................................................................... 23
Fire to Flange Connection ................................................................................................................................................ 24
Burner Media Installation 25
Burner Media Placement ................................................................................................................................................... 25
Commissioning 27
General Information ........................................................................................................................................................... 27
Commissioning the Appliance for Di󰀨erent Gas Type ................................................................................................... 30
Attaching Fascia Assembly .............................................................................................................................................. 31
Abnormal Flame Pattern ................................................................................................................................................... 32
Installation Checklist 33
Specications 34
Appliance Details ............................................................................................................................................................... 34
Dimensions ........................................................................................................................................................................ 35
Wiring Diagram .................................................................................................................................................................. 36
Contacts 40
TABLE OF CONTENTS

Rinnai 4 SS850 IM
IMPORTANT
BEFORE INSTALLING THIS APPLIANCE
Before proceeding with the installation read this manual thoroughly and gain a full understanding
of the appliance, to ensure safe and correct use.
Failure to carefully read and follow all instructions in this manual can result in equipment
malfunction, re or explosion, property damage, personal injury and/or death.
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in
personal injury or death.
WARNINGS: Indicates a potentially hazardous situation which, if not avoided, could result in
personal injury or death.
CAUTIONS: Indicates a potentially hazardous situation which, if not avoided, could result in
minor or moderate injury or damage to the appliance. It may also be used to alert against unsafe
practices.
WARNING
REGULATORY INFORMATION
This appliance shall be installed in accordance with:
Manufacturer’s Installation Instructions.
Current AS/NZS 3000, AS/NZS 3500 & AS/NZS 5601.
Local Regulations and Municipal Building Codes including local OH&S requirements.
This appliance has been certied by the Australian Gas Association. The A.G.A. Certication
Number is shown on the data plate.
This appliance MUST be installed, maintained and removed ONLY by an Authorised Person.
For continued safety of this appliance it MUST be installed and maintained in accordance with
the manufacturer's instructions.
NOTICE TO VICTORIAN CONSUMERS
This appliance MUST be installed by a person licensed with the Victorian Building Authority.
ONLY a licensed person will have insurance protecting their workmanship.
So make sure you use a licensed person to install this appliance and ask for your Compliance
Certicate. For further information contact the Victorian Building Authority on 1300 815 127.
WARNING
DRESS GUARD WARNINGS
The guard is tted to this appliance to reduce the risk of re or injury from burns and
no part of it should be permanently removed. For protection of young children or the
inrm, a secondary guard is required.
The glass dress guard supplied with this appliance MUST NOT be permanently removed as it
fulls an operational safety function. Additional dress guards including free standing types may
be used in conjunction with, but NOT replace, the dress guard supplied with this appliance.
WARNING
MANDATORY INSPECTION PRIOR TO INSTALLATION
Immediately report any damage or discrepancies to the Supplier of the appliance. This
appliance was inspected and tested at the time of manufacture and packaging, and released for
transportation without known damage. Upon receipt, inspect the exterior for evidence of rough
handling in shipment. Ensure that the appliance is labelled correctly for the gas and electrical
supply, and/or other services it is intended to be connected to.
For safety and warranty purposes, appliances that may be damaged or incorrect MUST NOT be
installed or operated under ANY circumstances. Installation of damaged or incorrect appliances
may contravene local government regulations. Rinnai disclaims any liability or responsibility
whatsoever in relation to the installation or operation of damaged or incorrect appliances.
Take care when opening or unpacking this appliance. Failure to do so may result in serious injury
or product failure.
Check the label for the correct gas type (refer rating plate, inside the appliance). Refer to local gas
authority for conrmation of the gas type if you are in doubt.
WARNINGS & IMPORTANT INFORMATION

Rinnai 5 SS850 IM
WARNING
MODIFICATIONS
DO NOT MODIFY THIS APPLIANCE,modifying from original specications may create a
dangerous situation and will void your warranty. Failure to comply with these instructions could
result in a re or explosion, which could cause serious injury, death or property damage.
DO NOT modify the electrical wiring of this appliance.
If the power cord is damaged or deteriorated it MUST be replaced by an authorised person.
Failure to do so may result in electric shock, re, serious injury or product failure.
Improper installation, adjustments, service or maintenance can cause serious injury, death or
property damage. Such work MUST ONLY be performed by an authorised person.
WARNING
GENERAL SAFETY WARNINGS
This appliance is HEAVY, during installation the use of a mechanical lifting aid is recommended,
noting that improper lifting may result in serious injury.
WARNING: This heater MUST NOT be used if any of the glass panels are damaged.
Flue terminal MUST always vent directly to outdoors. DO NOT extend the ue vertically or
horizontally in ways other than prescribed in this appliance manufacturer’s installation
instructions. ONLY the ue components specied by Rinnai MUST be used.

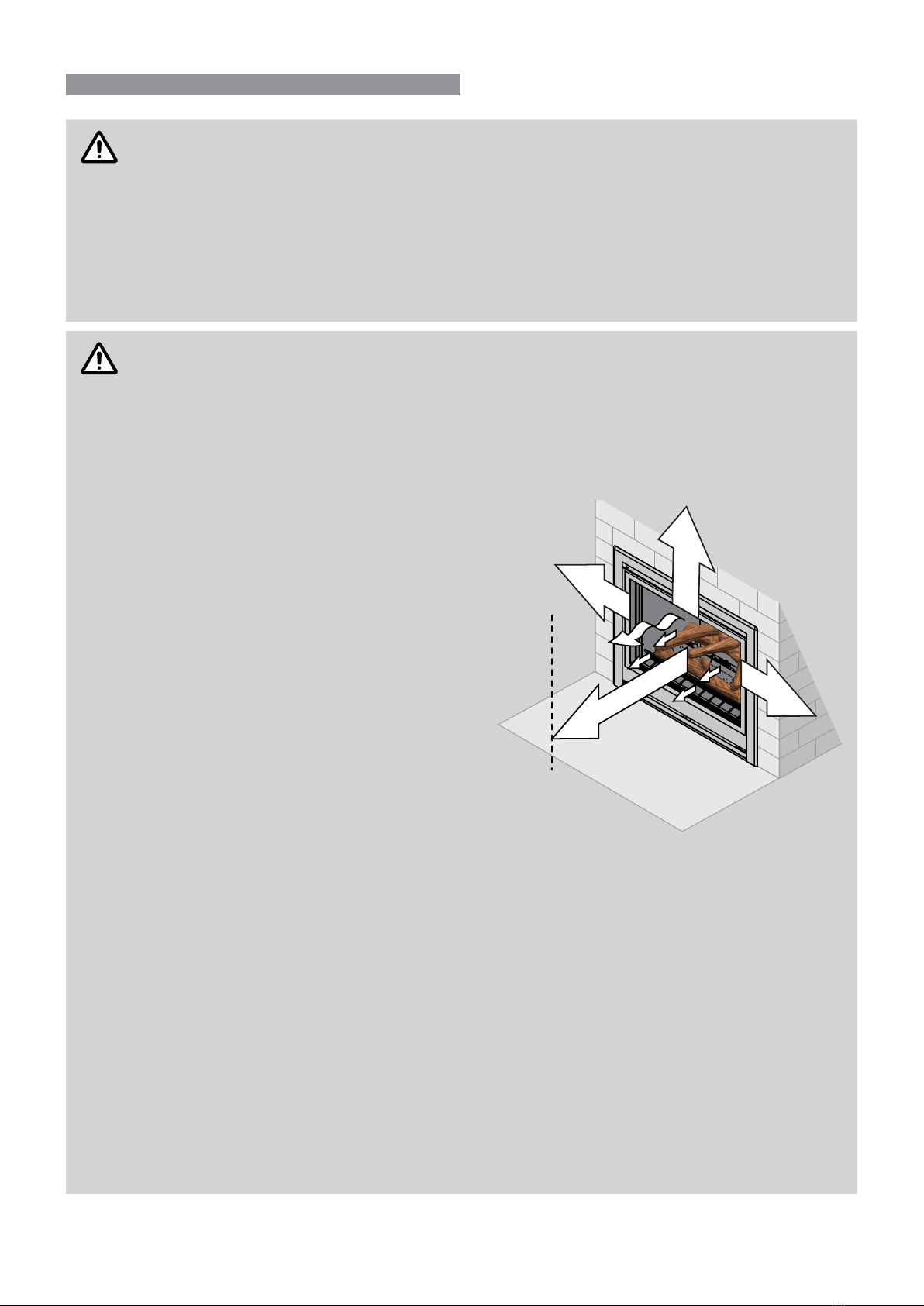

When considering installation ensure minimum
clearances as follows are adhered to.
Heat radiating from the front of this heater
may over time a󰀨ect the appearance of some
materials used for ooring such as carpet,
vinyl, cork or timber. This e󰀨ect may be
amplied if the air in the room contains cooking
vapours, candle vapours and cigarette smoke,
etc. Refer to "Location" on page 7 for mantel
clearances, additional installation information
and warnings.
This appliance MUST NOT be installed
where curtains or other combustible materials
could come into contact with it. In some cases
curtains may need restraining.
This appliance is NOT intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities or
lack of experience and knowledge, unless they
have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
The appliance is NOT intended for use by young children or inrm persons without supervision.
Young children and the inrm SHOULD be supervised at all times when in the vicinity of this
heater while it is in operation.
The heater MUST NOT be located immediately below a power socket outlet.
A dedicated 230 V earthed 10 Amp power point must be used with this appliance.
Refer to local gas authority for conrmation of the gas type if you are in doubt.
Suitable ONLY for indoor installation.
DO NOT operate this appliance before leak checking hoses and gas cylinder connection.
This heater MUST NOT be used if either of the glass panels are damaged.
NOT to be connected to an LP gas cylinder located indoors.
Please keep this instruction booklet in a safe place for future reference. All dimensions referred
to in these instructions are in millimetres, unless otherwise specied.
1000mm
150mm* 150mm*
**400mm
*150mm is the minimum clearance from edge of glass
to combustibles.
**400mm is the minimum top clearance from edge of
glass to combustible items other than mantel, over-
hanging 250mm or less. (Refer Mantel Clearances,
page 7 and TV Installation, page 9)
WARNINGS & IMPORTANT INFORMATION

Rinnai 6 SS850 IM
INSTALLATION REQUIREMENTS
This heater MUST be installed ONLY by an authorised person.
The installation MUST conform to local regulations.
The installation MUST also comply with the instructions supplied by Rinnai.
Service and removal MUST be carried out ONLY by an authorised person.
CERTIFICATION
The Rinnai SS850 Gas Fire has been certied by the Australian Gas Association.
The AGA Certication Number is shown on the appliance data plate.
No parts or functions should be modied or permanently removed from the heater.
Please keep these instructions in a safe place for future reference.
CARTON CONTENTS / ITEM CHECKLIST
The following table lists the components for the Rinnai SS850 Gas Fires. Ensure that all the relevant components
for the model being installed are present before proceeding.
IMPORTANT
DO NOT Install any damaged items. Check all components have been supplied.
Major component descriptions and carton contents SS850ICLN (NG) SS850ICAN (NG)
SS850ICLL (LPG) SS850ICAL (LPG)
➊Rinnai SS850 Engine.
➋Coaxial adapter. N/A
➌Colinear adapter. N/A
➍Zero clearance box. N/A
➎Masonry adapter frame. N/A
➏Four sided fascia.
➐Aeration plate and screws. Two are factory tted on the engine, two are
supplied in the accessory pack.
➑Semi rigid stainless steel gas pipe with 5/8” connections (x1).
➒½” BSP - 5/8” UNF ared brass adaptors (x1).
➓Ceramic log set and granules.
Remote Control, Infra Red (IR).
Operation and Installation manual.
9
6
4
5
7
8
1
10
2
3
12
11
11
12
BEFORE YOU START

Rinnai 7 SS850 IM
LOCATION
When positioning the heater, the main variables governing the location are Flueing and Warm Air Distribution.
Combustible clearances
The heater MUST NOT be installed where
curtains, furniture or other combustible materials
could come into contact with the re while it is
operating. The 150 mm side clearance, measured
from the edge of the glass, includes side walls.
The 1000 mm clearance is in front of the re.
Hearths
A hearth is not necessary but can be used for
decorative purposes. It MUST NOT obscure the
front of the re or obstruct the re in any way. For
more information refer next page.
Floor protection
Heat radiating from the re may a󰀨ect the
appearance of some materials used for ooring
such as vinyl planks, carpet, cork, or timber. To
avoid this occurring it is recommended a mat be
placed in front.
IMPORTANT
Carpet MUST NOT be tted hard
up against the re as it will a󰀨ect
operation
Mantels and surrounds
Combustible mantels and surrounds require
clearance from the unit to minimise the risk of re.
They are allowed providing they are outside the
minimum clearances shown.
The SS850 gas replace is not designed to be built
into bookcases.
AMantel needs to be a min. of 400 mm away
from the edge of the glass
BMax. mantel depth at 400 mm (A) is 250 mm
CSurround needs to be a minimum of 150 mm
away from the edge of the glass
For every 50 mm of added mantel depth there
must be an additional 100 mm of clearance from
the edge of the glass. For example:
Mantel depth (B) Vertical clearance req (A)
250 mm 400 mm
300 mm 500 mm
350 mm 600 mm
400 mm 700 mm
400 mm
150 mm
150 mm
1000 mm
AB
C
GENERAL INSTALLATION INFORMATION

Rinnai 8 SS850 IM

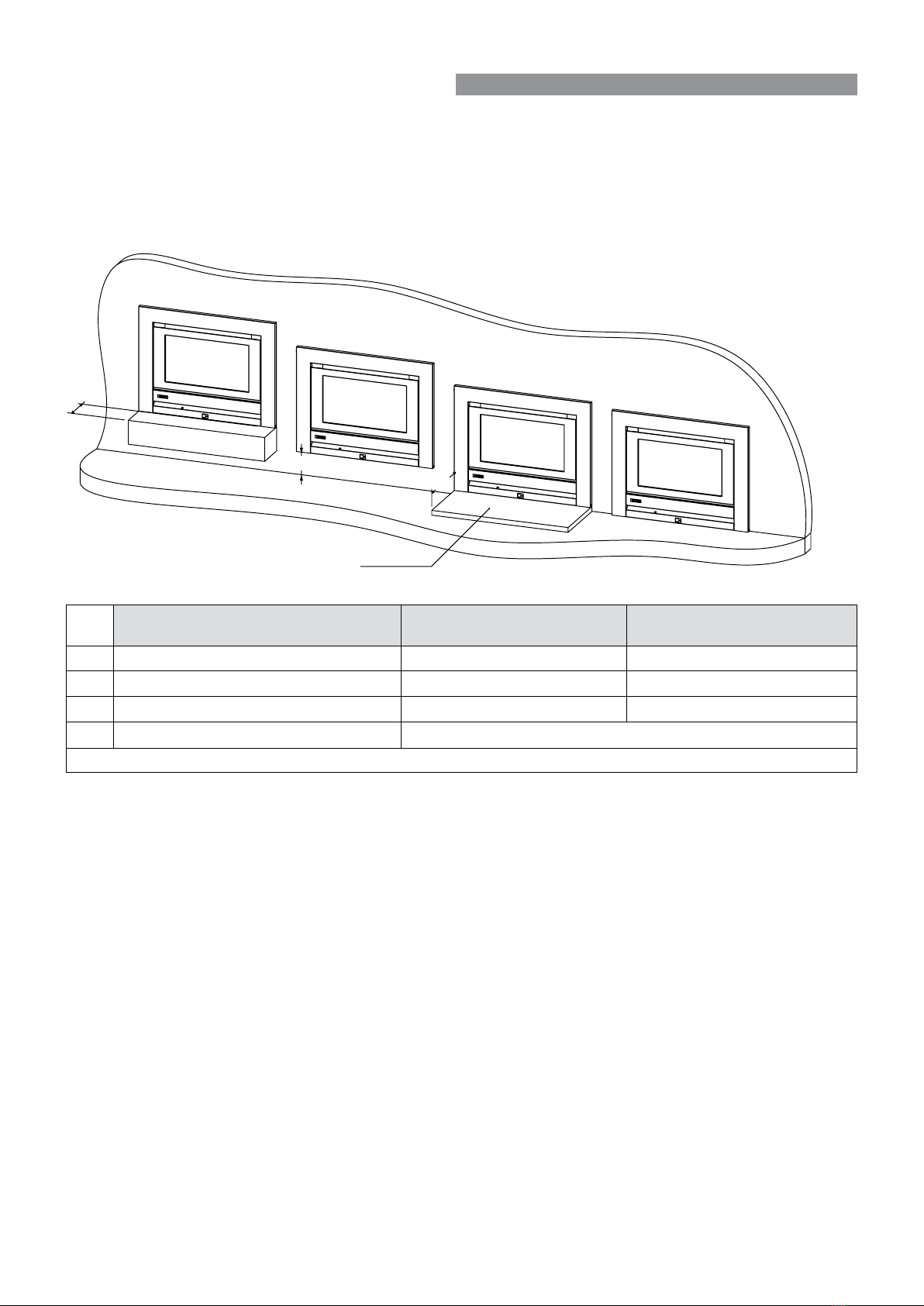

FLOORING AND HEARTH MATERIAL SELECTION
The temperature in front of the re (200-350 mm x 400 mm wide) can reach up to 40 °C above ambient, therefore
material selection is important. Some guidelines are detailed below. For example, vinyl planks are often only rated
for ambient temperatures. Consequently, the heater would not be suitable for installation directly on that ooring
type.
A
B
C
D
non-combustible
hearth
Dim. Non-combustible materials or materials
rated to 60 °C or higher above ambient
Materials rated to a maximum
of 50 °C above ambient
Unrated materials, anything up
to 20 °C above ambient
ANo maximum. 150 mm maximum¹ 100 mm maximum¹
BNo minimum 150 mm minimum 300 mm minimum
CNo minimum 400 mm minimum 450 mm minimum
DNo restriction Not suitable for carpets or any heat sensitive materials
1 Refer oating hearth section below
Even if a material is rated above 60 °C it may still be subject to deterioration when exposed to heat cycles.
Always refer to the materials supplier for suitability. The temperatures given assume the heater is operating in a
room temperature of no more than 25 °C. Operation in higher ambient temperatures may result in higher surface
temperatures.
Floating hearth - low rated and unrated ooring materials
For unrated ooring materials, if you use a non-combustible oating hearth, the dimensions of the hearth, minimum
depth and minimum height can be optimised using the following calculations:
Min. hearth depth (A) = 450mm - height of hearth (for 50 °C rated materials it will be 400mm)
Min. hearth height (B) = 450mm - depth of hearth (for 50 °C rated materials it will be 400mm)
Example
For a 200mm deep non-combustible hearth, the calculation for hearth height would be:
450mm - hearth depth (A) (450mm - 200mm = 250mm). The non-combustible hearth height would need to be
250mm minimum.
This would mean the oating hearth dimensions could be 200mm deep and 250mm high.
GENERAL INSTALLATION INFORMATION

Rinnai 9 SS850 IM

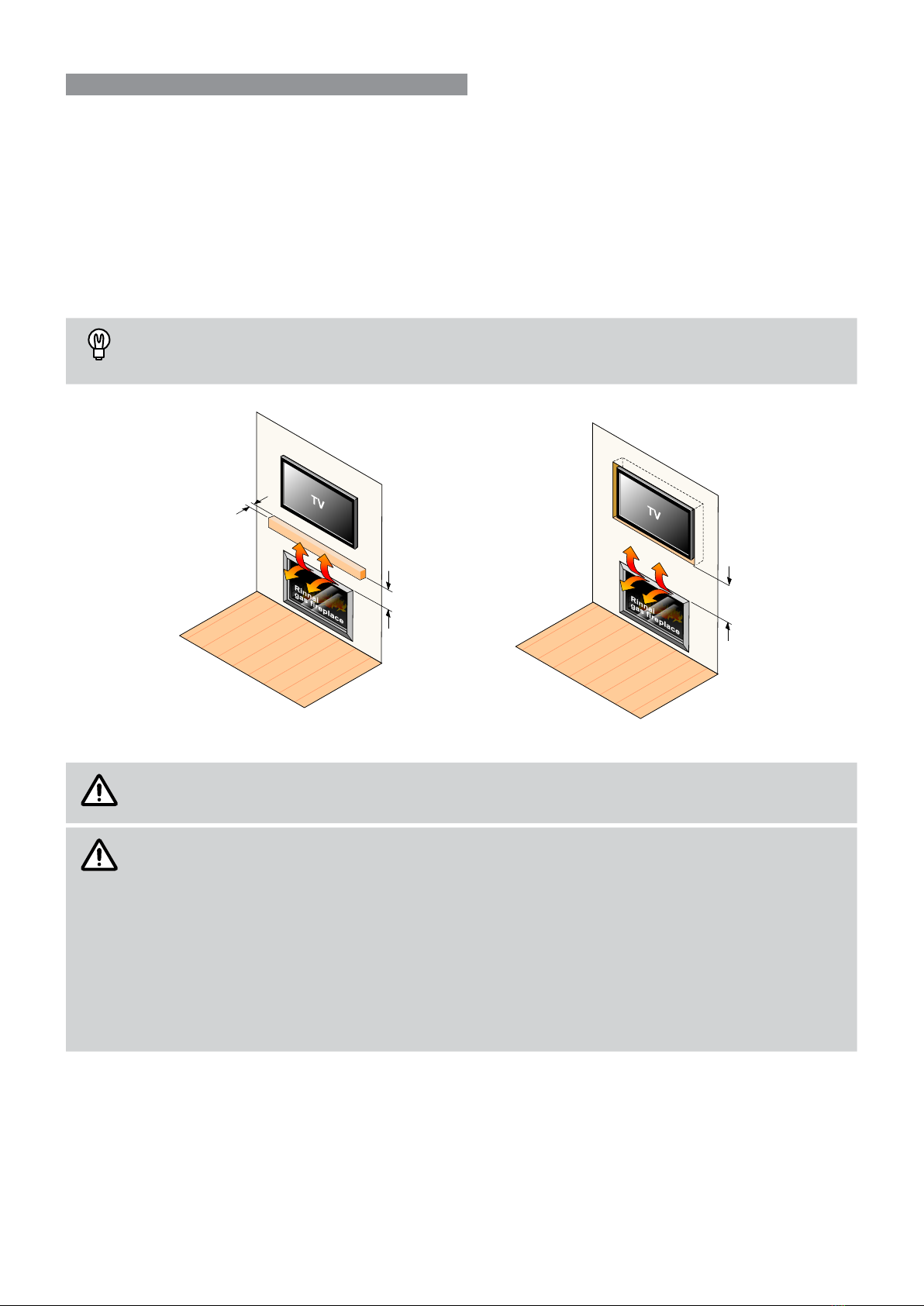

TV INSTALLATION
The SS850 has a fan that distributes warm air from the top of the appliance out into the room. As warm air is
dispersed outwards and not directly upwards, installation of a TV may be an option.
The general rule for television installations is that the bottom of the television should be at least 400-450 mm above
the re.
For a TV mounted directly above the re, the mantel must be at least the depth of the TV to deect heat away.
It is the responsibility of the owner to conrm with the TV manufacturer the suitability of such an installation and
any conditions in the TV warranty that may apply to this.
IDEA
Use either a shelf or mantel below the TV or ornament or alternately you can construct a recess
to mount TV or ornaments in. Check the manufacturer's installation instructions for these items
and ensure the recess is suitable.
WARNING
RINNAI DOES NOT TAKE ANY RESPONSIBILITY FOR ANY DAMAGE OCCURRING
TO ANY ITEMS INSTALLED ABOVE AND IN THE VICINITY OF THE HEATER.
CAUTION
INSTALLATION OF TV OR ORNAMENTATION ABOVE THE HEATER
The installation of electrical appliances above and in the vicinity of the heater such as, but not
limited to, TVs, Home Theatre Screens, Speakers, etc., MUST comply with their manufacturer's'
instructions. It is the responsibility of the installer/end-user to check the installation instructions
of these items and to ensure the location is suitable.
This caution also extends to, but is not limited to, ornaments such as: Paintings, Prints,
Photographs, Tapestries, Mirrors, Stu󰀨ed Animals, etc.
Please note the recommended clearances in the diagrams above. Wall surface temperature
may be elevated directly above the appliance and may discolour paint nishes or distort vinyl
coverings. For durability of surfaces consult the relevant manufacturer's specication.
At least the
depth of the TV
400 mm
minimum
400 mm
minimum
TV Installation with
Mantel
TV Installation with
Recess
GENERAL INSTALLATION INFORMATION

Rinnai 10 SS850 IM
ENCLOSURE REQUIREMENTS
Masonry Fireplace Installation
The appliance MUST be positioned within the replace on a at level surface.
If the appliance is elevated from the ground within the structure, a base MUST be constructed using suitable
material with supporting joists capable of supporting a minimum of 1.5 times the weight of the appliance.
IMPORTANT
In a masonry replace, use a slurry of sand and cement to level the base as required.
False Fireplace Installation
Framework of the installation MUST conform to local building codes. Non-combustible materials need not be
used. If the appliance is elevated from the ground within the structure, a base MUST be constructed using
suitable material with supporting joists capable of supporting a minimum of 1.5 times the weight of the appliance.
CAUTION
AS/NZS 5601 “GAS INSTALLATIONS” requires that ue components be supported independently
of the appliance.
Enclosure Dimensions
Enclosure dimensions are shown below. The enclosure dimensions specied MUST be strictly adhered to.
Enclosure Type (All dimensions are minimums and are in mm unless otherwise stated)
Masonry False Fireplace Corner ‡
Model Height
(H)
Width
(W)
Depth
(D)
Chimney
(X)
Height
(H)
Width
(W)
Depth
(D)
Face
(A)
Sides
(B)
Depth
(C)
SS850 600 700 370 * 200 x 200 655 # 800 # 370 * 1550 1105 788
With Inill Panel
1030 740 370
WARNING
The co-linear exible ue MUST NOT come into contact with ANY combustible material.
# The larger enclosure dimension for False Fireplace installations allows tment of the zero
clearance frame. This frame is necessary to provide the required clearances from combustibles.
CAUTION
* When preparing the cavity the minimum depth must be inclusive of the external cladding
thickness for false replace installations. It is the installers responsibility that adequate clearance
be provided between the heater engine and electrical connections.
‡ Corner installations use False Fireplace enclosure dimensions and framing specications.
MASONRY FALSE FIREPLACE CORNER
H
W
DH
W
D
Level base with a slurry of sand
and cement.
Refer to Elevated Installation section. Minimum internal dimensions
and clearances.
B
A
C
FRAMING

Rinnai 11 SS850 IM
GAS SUPPLY
WARNING
Gas pipe sizing MUST consider the gas input to this appliance as well as all other gas appliances
in the premises. The gas meter and regulator MUST be specied for the total gas rate.
A suitable sizing chart such as the one in AS/NZS 5601 should be used.
The use of rubber hose for any gas connection to a xed appliance is NOT authorised by the
manufacturer.
IMPORTANT
Conrm correct gas type (see labels located on top or rear panels). Refer to local gas authority
for conrmation of gas type if you are in doubt.
Installation of Consumer Piping
The gas supply (consumer piping), termination is inside the heater and enters
through the rear of the appliance.
Refer to page 35 for appliance gas inlet location and other relevant dimensions.

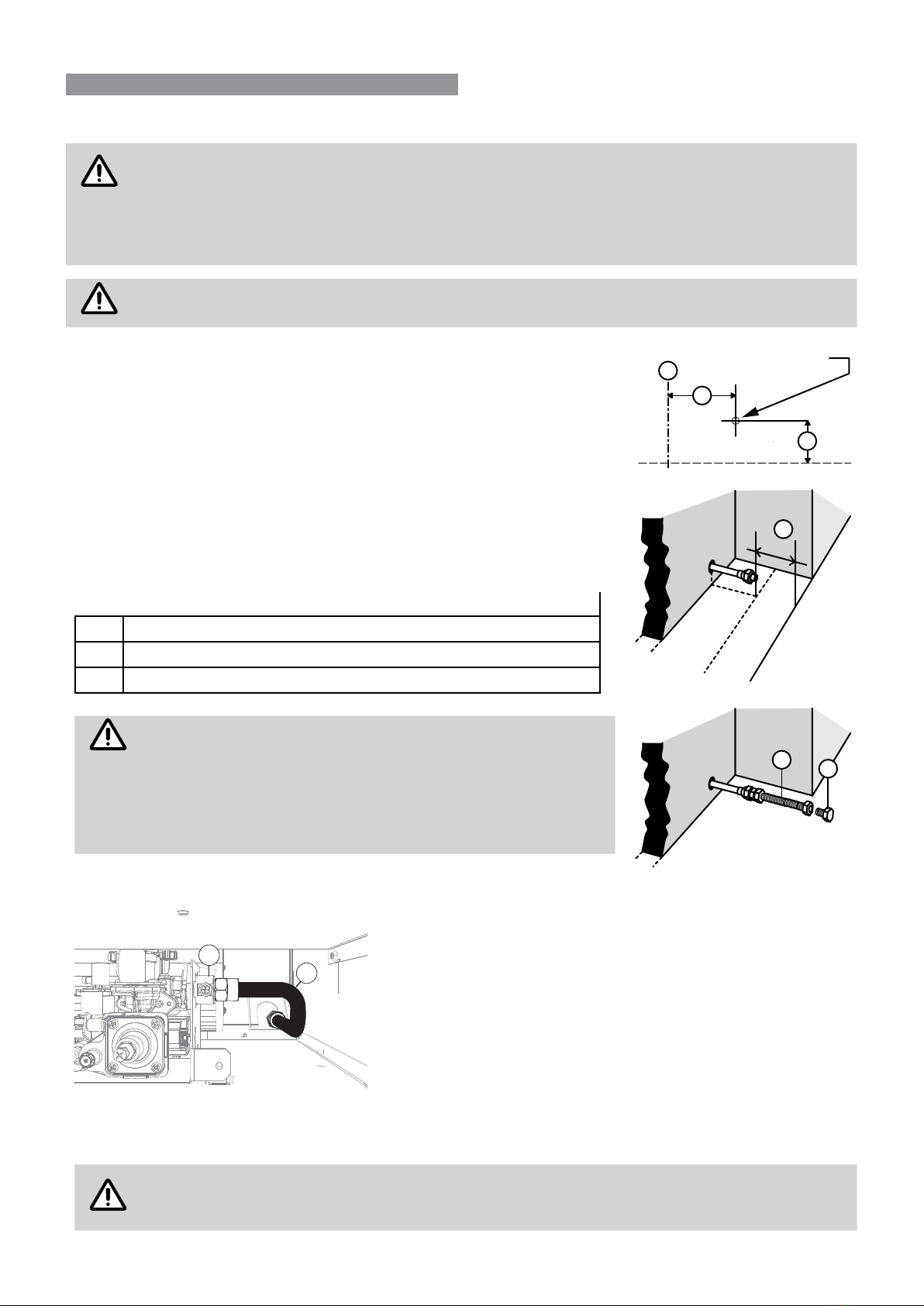

Mark o󰀨 the location for the vertical centre line ①①of the heater enclosure.
To the right of the vertical centre line ①, mark o󰀨 both the vertical ②and
horizontal ③location for the gas supply penetration (consumer piping). For
measurements refer to the Gas Supply Dimension Table below.
The length of the gas supply (consumer piping) termination ④is measured
from the front of the enclosure.
Gas Supply Dimension Table
②310mm to the right of the appliance centre-line
③35mm from base of enclosure
④Consumer piping to be terminated 230 mm from the front of enclosure.
IMPORTANT
Masonry replace installations: Gas supply dimension ④
MUST include the thickness of inll panel (when tted).
A standard Rinnai inll panel adds 2mm to the front of the
enclosure.
False replace installations: Gas supply dimension ④MUST
include thickness of the cladding used.
Once the consumer piping has been terminated the supplied exible gas
connection ⑤ may then be tted.
Gas Connection
Firmly grasp the stainless steel exi pipe ⑦and bend to line up with
the gas control valve inlet ⑧, then attach the pipe to the gas control
valve and tighten.
Purging Gas Supply
Foreign materials and debris such as swarf, lings, etc. MUST be
purged/removed from the gas supply, failure to do so may cause
damage to the gas control valve causing it to malfunction.
Leak Testing the Connection
With the supplied plug ⑥ inserted into the end of the exible gas connection, leak test all joints.
CAUTION
Use a soapy solution to test all gas connections. If a leak is present bubbles will form.
When nished remove residue with a rag. Prevent soapy solution from contacting electrical
components.
FRONT OF ENCLOSURE
LOSURE
REAR OF
ENC
4
1
2
Gas supply location
3
56
Gas supply pressure
to be 1.13 to 2.75 kPa
7
8
SUPPLY CONNECTIONS

Rinnai 12 SS850 IM
ELECTRICAL SUPPLY

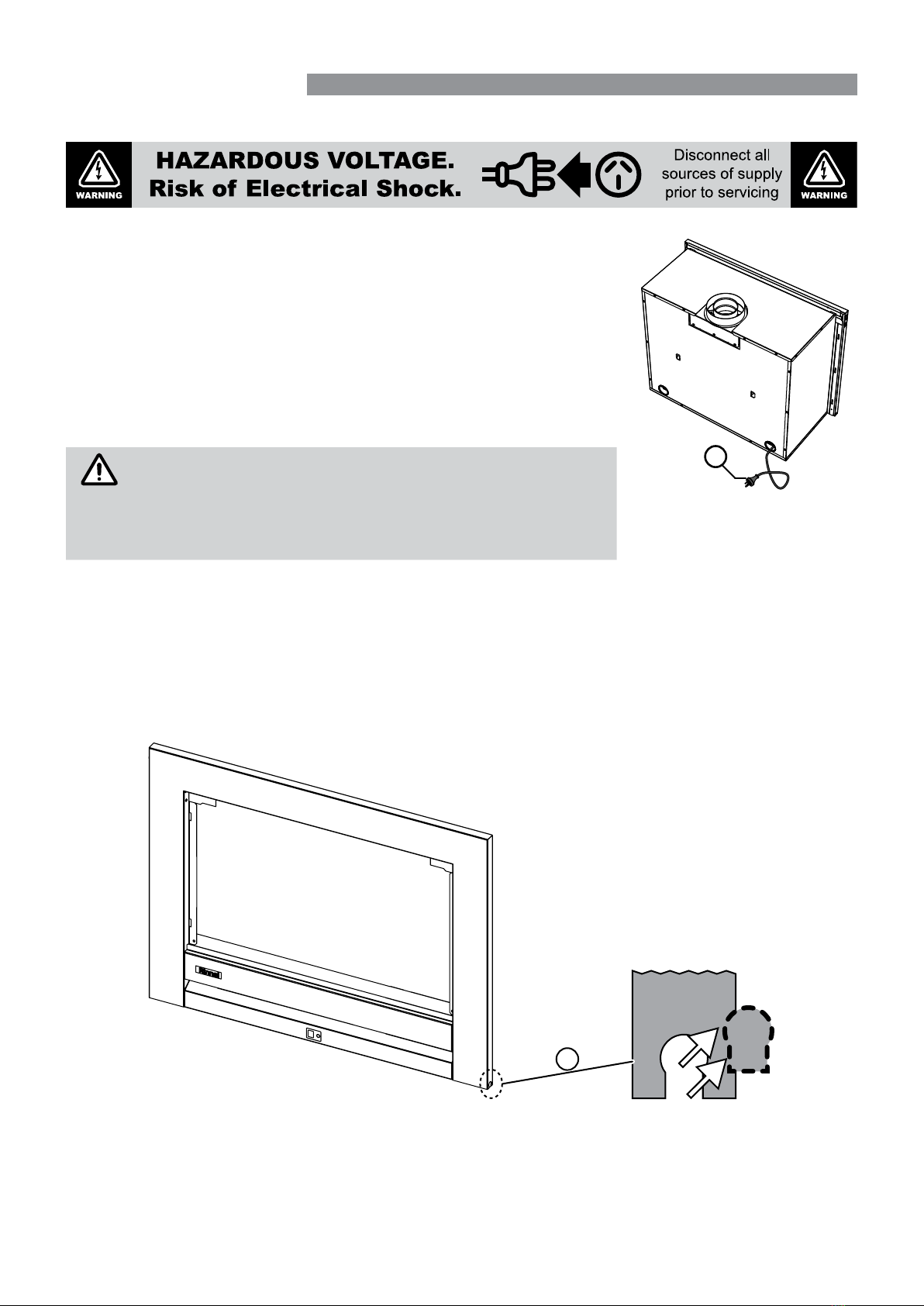

Socket Outlet
Where a power point is used it MUST be 230 V, rated at 10A and MUST be
earthed. This power point MUST NOT be located above the heater. Alternatively
the appliance can be direct wired if the power supply is to be concealed.
The heater engine is tted with a 1.5 m power cord and three pin plug ⑨ which
exits the appliance from the rear panel at the lower right when viewed from the
rear.
Direct Wired Installations
Alternatively the appliance can be direct wired if so required.
A qualied electrician will need to be consulted where a direct
wired installation is required.
Any such installation MUST comply with the requirements
of AS/NZS 5601, AS/NZS 3000 and any other relevant local
regulations.
89
IMPORTANT
Using an existing externally mounted power point
If you already have an existing power point outside the enclosure, you can redirect the power cord through the LHS
or RHS of the front panel. With the frame removed redirect the cord and plug (with the grommet), underneath the
unit and to the front (left or right).
Remove the pre-punched metal knock-out ⑩ located in the lower left or right edge of the frame, ensuring the
grommet is tted to the metal knock-out. Excess cord may be left in the cavity below the unit—DO NOT coil
excess cord.
10
SUPPLY CONNECTIONS

Rinnai 13 SS850 IM

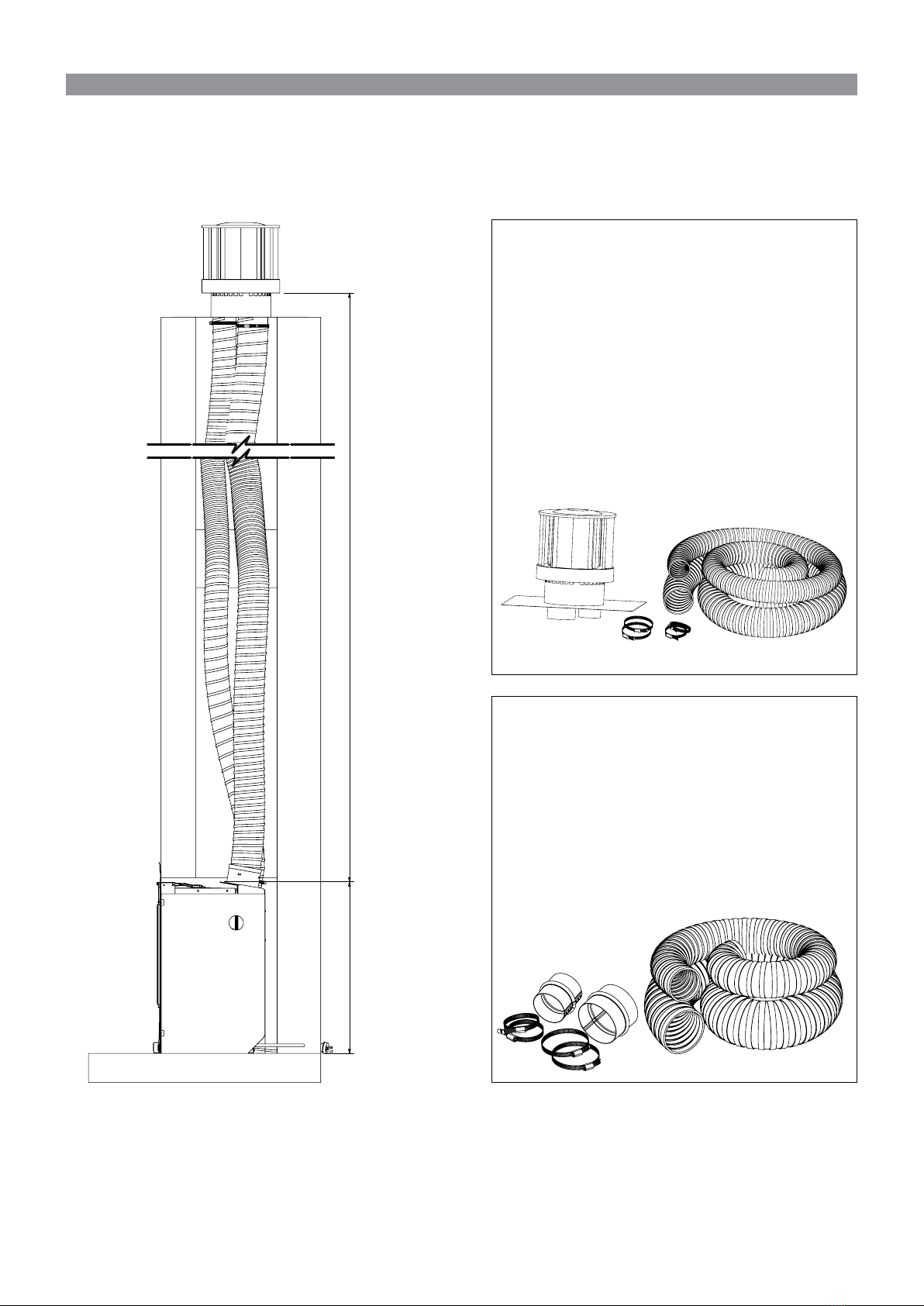

GENERAL FLUEING GUIDELINES
WARNING
The following diagrams illustrate the ue installation options that are available for the Rinnai
SS850 Heaters. ONLY the genuine Rinnai ue is certied as part of the installation requirements.
ONLY an authorised person MUST install, service and remove the Rinnai SS850 and heater and
ue system.
Only the ue system components described in this Manual are suitable and MUST be used. ‘DO
NOT USE AN UNLINED MASONRY CHIMNEY AS THE FLUE FOR THIS APPLIANCE’.
Components that are not described in that manual, whether manufactured by Rinnai or otherwise,
are NOT compatible and MUST NOT be used.
Rinnai appliance warranty conditions may be voided if non Rinnai Flue Components are tted.
AS/NZS 5601 “GAS INSTALLATIONS” requires that ue components be supported independently
of the appliance.

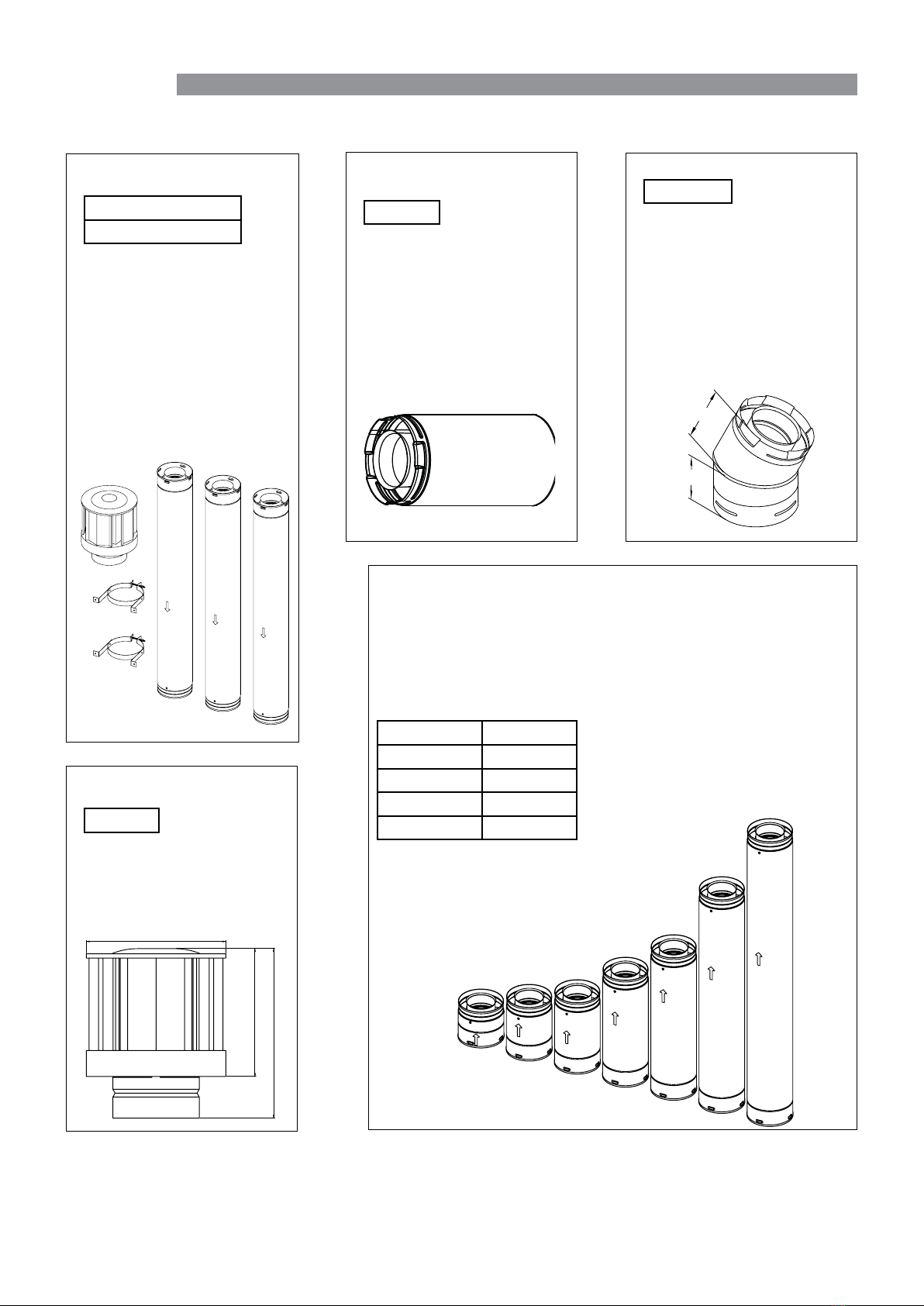

Flueing options for the SS850 depending on the installation:
• False Fireplace - coaxial ueing
• Masonry colinear ueing
Flexible aluminium ues that come directly o󰀨 the re.
Self-supporting ue - False Fireplace
The weight of the ue system should not be supported by the appliance. It should be self-supporting.
Supporting the ue is usually completed during the framing stage with ue supports or straps within the cavity.
Wall straps have been included in the Rinnai coaxial vertical ue kit. Elbow straps are also available as a separate
component to prevent excess weight on the ue elbow (if used).
Flue terminal locations
Flue terminals must be compliant with the ue terminal locations shown in AS/NZS 5601.1.
The ue cannot terminate under a oor or in a roof space.
Flue cowl clearance
To ensure products of combustion are cleared, adequate clearance
from the building is required.
The ue cowl should have a 500 mm clearance from any part of the
building. This also applies to steeped and pitched roofs where the
ue cowl should be 500 mm clear of the ridge line.
An adequate ow of fresh air must exist around the ue cowl
following installation.
Minimum clearances are shown in AS/NS 5601.1
Shared ues
WARNING
Gas appliances must not be connected to a chimney or ue serving a separate ue burning
appliance.
500 mm to
nearest
part of roof
FLUEING

Rinnai 14 SS850 IM
FLUEING OPTION: MASONRY
Vertical Colinear exi ues with Duravent cowl - 850FLEX and 850CLFLEX
Min. 3 m, Max. 8 m (with extension kit)
590
Masonry vertical exi ue kit 5.5 m DV
850FLEX
For installations in a masonry replace. Extends
out to 5.5 m. If longer ueing is required then
the colinear exi ue extension kit needs to be
ordered.
Kit includes:
• aluminium colinear roof cowl DV
• chimney plate 455 x 455 mm
• intake exi Ø75 mm (LHS)
• exhaust exi Ø100 mm (RHS)
• 2 x Ø75 mm ue clamps stainless steel
• 2 x Ø100 mm ue clamps stainless steel
Masonry vertical exi ue ext kit 2.5 m
850CLFLEX
When ueing needs to extend beyond 5.5 m.
Kit includes:
• intake exi Ø75 mm (LHS)
• exhaust exi Ø100 mm (RHS)
• 2 x joiners
• 2 x 75 mm ue clamps stainless steel
• 2 x 100 mm ue clamps stainless steel
High wind areas
If located in a windy areas, then a DV high wind vertical cowl protection kit (RDB992) is recommended. It is
designed to wrap around the vertical ue cowl to reduce wind entering the ue and causing ame disturbances.
Refer page 17 for more information.

Rinnai 15 SS850 IM
FLUEING OPTION: FALSE FIREPLACE
Vertical Coaxial ue with Duravent cowl
Min. 3 m / max. 8 m Min. 3 m / max. 8 m
Max. 2m
Straight vertical ueing
When installing a short vertical ue (no bends) for a single storey dwelling, the False Fireplace the 3.6m vertical
ue kit (RDVSV or RDVSVB) can be used. Otherwise the ue components can be ordered separately.
Flue pipe(s) or ue extension.
Roof cowl (RDV991)
Flue elbow 45 ° (RDV945G), maximum number of bends is two
High wind areas
If located in a windy areas, then a DV high wind vertical cowl protection kit (RDB992) is recommended. It is
designed to wrap around the vertical ue cowl to reduce wind entering the ue and causing ame disturbances.
Refer page 17 for more information.
FLUEING

Rinnai 16 SS850 IM
FLUE COMPONENTS
Coaxial vertical ue kit
3.6 m
RDVSV (Galv. Steel)
RDVSVB (Black)
Kit includes:
• Coaxial vertical roof
cowl (RDV991)
• 3 x 1200 mm ue
pipes (RDV902)
• 2 x wall straps
(RDV954)
If longer ueing is required
order additional lengths of
ue pipe.
Flue pipe extensions
75-360 mm
RDV911
Used for extended straight
lengths of ue. Available
in two lengths—extending
to 175 mm or 360 mm.
CANNOT be cut to size.
Inner: Aluminium Ø100 mm
Outer: Galv. steel Ø170 mm
Coaxial 45° ue elbows
RDV945G
Two bends in a kit.
O󰀨sets obstructions. Elbow
swivels 360° at base. Angle
not adjustable. Once joined
e󰀨ective length reduces
35 mm to approx. 73 mm.
Inner: Aluminium Ø100 mm
Outer: Galv. steel Ø170 mm
108
108
Coaxial vertical ue
cowl
RDV991
Aluminium ue terminal
required for all coaxial
vertical ue installations—
part of vertical ue kit.
Coaxial ue pipes DV
CANNOT be cut to size.
Once joined nominal length reduces approximately 35 mm.
Inner: Aluminium (Ø100 mm)
Outer: Galvanised steel (Ø170 mm)
230 mm RDV907
300 mm RDV906
600 mm RDV904
900 mm RDV903
1200 mm RDV902
Ø268 mm
245.6 mm
325.6 mm
FLUEING

Rinnai 17 SS850 IM
Flue Components (Cont)
Wall strap DV
RDV954
Adjustable strap used in
installations to add lateral
support to the ue.
Provides a 50-200 mm
clearance to combustibles.
Elbow ue strap DV
RDV951
Flue supports for elbows
and o󰀨sets. Strap length
approximately 432 mm.
High wind vertical cowl
protection kit
RDB992
Designed to wrap around the
vertical cowl (as pictured) to
reduce wind entering the ue
and causing disturbances. It
is tted to the cowl and can
be retrotted.
Construction - stainless steel
Flue pipe (length and code) O󰀨set Rise
None (bend to bend) N/A 124 mm 340 mm
230 mm RDV907 257 mm 473 mm
300 mm RDV906 311 mm 527 mm
600 mm RDV904 524 mm 740 mm
900 mm RDV903 737 mm 953 mm
1200 mm RDV902 949 mm 1165 mm
Rise
Offset
FLUEING

Rinnai 18 SS850 IM
FLUE INSTALLATION DIMENSIONS & RESTRICTIONS FLUE TERMINAL CLEARANCES
Flue Terminal Clearances (extract from AS/NZS 5601)
Min. Clearances
(mm)
Natural Draught
•Appliances up to 50 MJ/h input 300
•Appliances over 50 MJ/h input 500
003*ecafrusrehtoroynoclabaevoba,dnuorgehtmorFb
005*renroclanretxerollawnruteratnorFc
d
From a gas meter (M) (see 5.11.5.9 for vent terminal location of regulator )
(see Table 6.6 for New Zealand requirements) 1000
eFrom an electricity meter or fuse box (P) † 500
epipliosroepipniardamorFf
gHorizontally from any building structure* = or obstruction facing a terminal 500
hFrom any other flue terminal , cowl, or combustion air intake † 500
•Appliances up to 150 MJ/h input * 500
•Appliances over 150 MJ/h input up to 200 MJ/h input * 1500
•Appliances over 200 MJ/h input up to 250 MJ/h input * 1500
•Appliances over 250 MJ/h input * 1500
• All fan-assisted flue appliances , in the direction of discharge -
0051rewolbapsagnidulcni,telnirialacinahcemamorFk
051tupnirh/JM05otpusretaehecapS•
• Other appliances up to 50 MJ/hr input 500
•Appliances over 50 MJ/h input and up to 150 MJ/h input 1000
•Appliances over 150 MJ/h input 1500
1Where dimensions c, j or kcannot be achieved an equivalent horizontal distance
measured diagonally from the nearest discharge point of the terminal to the opening
may be deemed by the Technical Regulator to comply.
2See Clause 6.9.4 for restrictions on a flue terminal under a covered area.
3See Figure J3 for clearances required from a flue terminal to an LP Gas cylinder.
Aflue terminal is considered to be a source of ignition.
4For appliances not addressed above acceptance should be obtained from the
Technical Regulator.
metI.feR
a
Below eaves, balconies and other projections:
FIGURE 6.2 (in-part) MINIMUM CLEARANCES REQUIRED FOR FAN-ASSISTED FLUE TERMINALS,
ROOM-SEALED APPLIANCE TERMINALS AND OPENINGS OF OUTDOOR APPLIANCES
* - unless appliance is certified for closer installation
n
j
Horizontally from an openable window, door, non-mechanical air inlet, or any other opening into a
building with the exception of sub-floor ventilation:
Vertically below an openable window, non-mechanical air inlet, or any other opening into a
building with the exception of sub-floor ventilation:
NOTES:
† - Prohibited area below electricity meter or fuse box extends to ground level.
150
Shad i ng ind i c ates pro hibite d are a for flue ter m inal s
LEGE ND:
I= Mech a nica l a ir in let
M= Gas me ter
P= E le c t ri c i t y meter or fu s e box
S= Str u c ture
T= Flu e ter m inal
Z= Fan-as s iste d appl i ance o nly
Dir e ction of
discharge
See N ote 1
See N ote 1
Opening into
a building
T
T
T
T
T
T
T
C
M
d
d
e
e
h
j
j
j
n
b
f
a
h
P
Z
S
k
k
g
g
g
I
T
Door
Minimum clearance 500 mm
to nearest part of roof.
Minimum clearance 25 mm
to combustible materials.
Decktite or lead collar flashing.
This appliance is a natural draft
appliance and does not contain
a combustion fan.
NOTE
FLUEING

Rinnai 19 SS850 IM
FALSE FIREPLACE INSTALLATION
When installing the Rinnai SS850 into a purpose built false replace, which is not open to the roof
space of the building, cavity vents will need to be added.
Heat lost through the outer skin of the appliance and ue system may not adequately vent. This can
lead to excess heat in the cavity. In some cases the re may overheat and the safety mechanisms
may operate.
Adding two vents of at least 200 cm2 one at oor level and one at ceiling level, will allow adequate
airow in a cavity of approximately 1.2 m wide x 2.4 m high and 0.8 m deep.
IMPORTANT
1. Modify the enclosure:
Ensure the enclosure meets the requirements set out on "Enclosure Requirements" on page 10.
2. Gas and electrical connections:
Prepare gas and electrical connections, refer pages 11-12.
3. Take the Zero Clearance Box (ZCB) and coaxial ue adapter o󰀨 the engine
The Zero Clearance Box and ue adapter come assembled on the engine and need to be taken o󰀨.
(i) Lift and remove the inner frame.
(ii) Remove the two screws holding the outer frame to the re—lift and remove.
(iii) Disconnect the CAT5 cable from the ON/OFF button.
(iv) Remove the screws securing the Zero Clearance Box and slide the engine out
(v) Remove the four screws holding the ue adapter to the Zero Clearance Box and set aside.
4. Install the Zero Clearance Box into the enclosure
Fit the Zero Clearance Box. The base must be at and level. Front ange to be set forward to allow the wall lining
and ange to be ush when nished. Fit the Zero Clearance Box to the framing on the side and top, use packers
to ensure the screws do not deform the panels of the Zero Clearance Box.
5. Install the coaxial ue adapter
Slide the ue adapter up and in place using the support tags on the back of the Zero Clearance Box. Fix in place
using four screws through the air inlet ports.
6. Install ue system:
Install coaxial ue system. Ensure it is self supported.
7. Connect ue to ue adapter
Slide the ue into the spigot of the ue adapter and push down until it is clipped in place.
8. Check engine seals and determine ue length
Ensure the rubber seals tted to the back of the re are in place. Also determine ue length and aeration
plate conguration, refer page 23.
9. Slide engine into the cavity
Slide re into the cavity until the front ange of the re is sitting ush against the ange of the Zero Clearance
Box. When aligned the red exhaust seal goes straight into the hole, and the four holes of the coaxial adapter and
engine line up. Fix the fire to the Zero Clearance Box (four screws) and use outer slots to secure to the enclosure.
Once the fire has been screwed to the zero clearance box, the front face of the frame and the front flange of the
fire should be pulled up hard against each other. There are witness holes in the front flange of the fire to ensure
this happens, refer image on page 24.
It is critical to ensure that the air and flue seals are correctly compressed. If there is a gap present, there may not
be a proper seal and performance could be affected.
10. Complete gas connection
11. Install the burn media and commission
Install the burn media, refer page 25. Ret the glass and the inner and outer frames.
INSTALLATION

Rinnai 20 SS850 IM
Red exhaust seal
Aeration
plate
Zero clearance box
Coaxial ue adapter
False Fireplace enclosure SS850 with Zero Clearance Box and adapter
removed
Zero Clearance Box installed Zero Clearance Box and coaxial ue adapter
False Fireplace Installation Overview:
INSTALLATION
