RITEWAY RH-9222 User manual

Operation &
Maintenance Man-
ual

3
– Wing lift/lower
– Tine angle adjust
• Find a location that is as level as possible.
• Ensure that the 3-Point hitch is fully raised.
• Carefully lower the harrow wings to horizontal orientation ( hydraulic remote). Ensure that
both wing cylinders are fully extended.
• Remove the lock pins from the harrow section pivots to allow the individual sections to pivot and fol-
low the ground.
• Slowly drive the tractor ahead, while lowering the 3-Point hitch the rest of the way down.
• Set the 3-Point hitch lower level limit so that the harrow section carriers are approximately 40° from
being fully horizontal.
• IMPORTANT: Do not lower the harrow wings fully down to the ground without driving ahead simul-
taneously. Damage to your rotary harrow sections could result.
• Check the level of main frame relative to the tractor. Adjust using upper link to level the main frame
and ensure all sections are engaging the ground evenly across the width of the unit.
• Ensure all harrow section chains are tight. Tighten chains using the tools provided on the main
frame of the unit if necessary.

Contents
SECTION 1 PAGE
INTRODUCTION 1
MANUAL & EQUIPMENT DETAILS 2
SPECIFICATIONS 3
PRE-DELIVERY INSPECTION 4
SERVICE & WARRANTY POLICY 5, 6
SAFETY RECOMMENDATIONS 7
DECAL LOCATIONS 9, 10
MAINTENANCE 11,12
OPERATING INSTRUCTIONS 13-18
GRADE CHART 19
TORQUE CHART 20
Table of Contents
SECTION 2 PAGE
PARTS 1-10
HYDRAULICS 11-16

1
We are pleased to welcome you as an owner of a product from RITE WAY
MFG. This machinery is the culmination of years of agricultural and engineering
experience and has been designed to deliver you with many years of successful
operation service.
For the most efficient operation of your RH-9222 we have provided this own-
er’s manual. In this manual we have included proper maintenance and functional
procedures to offer maximum longevity for your new equipment. Before operating
we urge a careful study of this manual to provide a thorough understanding of your
new RH-9222. We also recommend that you take care of this manual so it will be
available for future reference. Should your manual become lost or destroyed a
new copy can be obtained from your Rite Way Manufacturing dealer. We will al-
so be happy to answer any questions you might have concerning the use or care
of this product.
Product Description
The RH-9222 is a vertical tillage tool designed to provide varying degrees of
soil disturbance to prepare a seedbed on minimum-till land, cut through trash and
remove small weeds, and level the soil ahead of seeding operations. The non-
driven harrow sections provide impressive soil mixing to a depth of up to 1.5” (38
mm) across a wide range of soil types. The RH-9222 can also be used post-
harvest in lighter soil conditions to mix seeds with soil promoting germination that
can be killed due to winter conditions, or chemical treatment.
Rite Way Manufacturing Co. Ltd.
P.O. Box 26097
1891 Albert St. N.
Regina, Saskatchewan, Canada
S4R 8R7
Toll Free: 1-800-352-8822
PH: 306-337-4440
Fax: [phone]
Web Site: www.ritewaymfg.com
Thank you for making the decision to purchase a RITE WAY product!
Original Instructions

2
Unit Model Number RH-9222
Manual Revision Number 1.1
Manual Revision Date November 9. 2020
Manual Serial Number Range 20-0926 to Current
Owner / Equipment Information
Serial Number of Unit
Date of Purchase
Dealer Name
Dealer Address
Dealer Phone Number
Salesman Name
Salesman Phone Number
Notes
The area below is provided for the owner / end-user to make notes regarding the equipment.

3
Pre-delivery Inspection Completed By (Sign Below) Pre-delivery Inspection Confirmed By (Sign Below)
 Remove wrapping and wash unit, removing all road debris. (Road salt, mud, snow, etc.)
 Inspect paint, decals and general appearance of unit.
 Verify that the owners manual is in the manual storage tube.
 Verify ‘SLOW MOVING VEHICLE’ sign (SMV) is on unit . (If applicable)
 Verify that jacks are with the unit and function properly.
 Check wheel bolts for proper torque. (If applicable)
 Check for proper tire pressure (PSI). (If applicable)
 Verify that the wheel hubs are lubricated. (If applicable)
 Verify that locking pins and / or ram locks are in place.
 Lubricate all components as per operators manual recommendation.
 Check that all bolts and fasteners are at the proper torque specifications.
(NOTE: All cap screws that have lock nuts joining moving pieces should not be tightened completely,
they must allow movement. i.e. Spring pressure kits, rock shaft connector, draft arm, etc.
 Check sprocket alignment and chain tension. (If applicable)
 Check locking collars and set screws for proper tension. (If applicable)
 Verify operation of lights. (If applicable)
 Verify the unit moves ‘IN’ and ‘OUT’ of transport without any binding.
 Verify that tires are tracking properly when in transport mode. (If applicable)
 Insure that all hydraulic hoses and lines are routed properly and secured.
 Verify that all hydraulic fittings / hoses are secure and there are no oil leaks.
 Inspect all cylinders for leakage and the cylinder shaft for rust, pits, or scratches.
 Verify operation of all hydraulic functions - Cycle hydraulic cylinders to remove air from the system.
 Verify that ‘The customer is aware of warning decals and proper jack placement for transport.’.
 Verify that ‘The customer is aware of proper operation and transportation of the unit’.
 Verify that ‘The customer has received an operators manual’.
 Explain all maintenance and service intervals to the customer (From operators manual).
 Advise the customer of grease zerk locations and maintenance schedules.
 Level the unit per operators manual and instruct the customer on the proper procedures.
 Verify that the center harrow section has been rotated to working position.
 Level the unit per operators manual and instruct the customer on the proper procedures.

4
Technical Information 9222
Working Width* 22’ (6.7 m) @ 40°
26’ (7.9 m) @ 25°
# of Sections 3
Transport Length 12’6” (3.8 m)
Transport Width 9’9” (2.98 m)
Transport Height 9’7” (2.92 m)
Weight 3,300 lb (1,497 kg)
Required Power 125 hp
Ideal Speed 10-14mph (16-23 km/h)
*Working width of machine is measured at noted harrow gang angle.
• Standard unit requires - 2 Hydraulic Banks.
• Heavy duty hydraulic cylinders.
• 8" x 8" x 1/4" Wall Center Frame Tube
• Integrated 3-Point hitch connection
• 25° to 40° Hydraulic Tine Angling From Tractor Cab
• 3/4” x 18” interlocking tines in one 6.5 ft and two 11ft. sections
• Quick-tension adjustment tine sections
• Class II and Class III Three-Point Hitch Compatibility

5
Rite Way Manufacturing Co. Ltd. (hereafter referred to as Rite Way) warrants each new ma-
chine to be free from defects in materials and workmanship for a period of one (1) year from date of
purchase under normal agricultural use and service. In addition, Rite Way will supply at no charge,
(F.O.B Rite Way Factory) any part that has failed within the 2nd year. Rite Way’s obligation under this
warranty is limited to the repair or replacement of any defective parts of the equipment at its own dis-
cretion.
Any alterations, modifications or additions done to a finished product will void this warranty
unless prior written permission from Rite Way is obtained.
Items that are not manufactured by Rite Way are covered by the warranty of the supplier of
these items. We will therefore extend, without assuming any responsibility, any warranty given to us by
our suppliers.
This warranty shall-not apply to any machine, that in the company’s judgment has be subjected
to misuse, negligence or accident. In no event shall the owner be entitled to recover costs for inci-
dental, special or consequential damages such as, but not limited to; Loss of crop, loss of profit or rev-
enue, other commercial losses, inconvenience or rental costs.
This warranty shall not apply unless Rite Way or its designated dealer is promptly notified of
claimed defects and the allegedly defective part is held for inspection.
Repair parts purchased for machines ‘Out of Warranty’, are warranted to be free from defects in
material and workmanship under normal use and service for a period of ninety (90) days from the date
of delivery to the customer.
The warranty shall only become valid when delivery notification for warranty is received by Rite
Way within 20 days of the completion of sale.
OWNER’S / USERS OBLIGATION: It is the responsibility of the user to read the Operators Manual and
understand the safe and correct operating procedures as it pertains to the operation of the product,
and to lubricate and maintain the product according to the maintenance schedule in the Manual.
The user is responsible for inspecting the machine, and for having parts repaired or replaced
when continued use of the product could cause damage or excessive wear to any other parts. It is the
user’s responsibility to deliver their machine to a Rite Way dealer for service or replacement of defec-
tive parts which are covered by the standard warranty.
Rite Way will not by held responsible for charges such as transportation, fuel, lodging when a
dealer / dealer representative travels to a customer location for warranty or inspection.

6
1. All claims must be handled through a dealer / distributor. All claims must be submitted on a proper-
ly completed claim form within 30 days of the date of repair.
2. A warranty registration claim form must be on file at Rite Way Mfg. to validate a warranty claim.
3. Defective parts are to be held at the dealer / distributor’s place of business until the warranty claim
form has been processed. Rite Way will advise when parts can be released.
4. Parts that require inspection by Rite Way personnel must be accompanied by a Return Goods
Form number, and must be sent by pre-paid freight. Rite Way will refund pre-paid freight charges
on any items determined to be defective.
5. Rite Way will not assume responsibility for repairs or expenses incurred without authorization. War-
ranty labour in excess of $150.00 must be authorized before such work is performed and photo-
graphs before and after repairs are required.
6. Warranty labour is to be claimed on the warranty claim form, only if the warranty labour was per-
formed by the dealer. Travel time is not covered by warranty and should not be included. Rite Way
reserves the right to adjust or allocate labour times and values based on its experience.
7. It is the responsibility of the dealer to ensure that the warranty registration forms are properly com-
pleted and returned to Rite Way Mfg., Imperial, SK.

7
1. Read manual thoroughly before operating machine.
2. Study all warning decals on implement.
3. Most accidents occur because of neglect or carelessness.
4. Do not allow riders on the tractor or implement during operation.
5. Do not allow children on or near the machine.
6. Connect the implement hitch to the tractor before operating the hydraulic system.
NOTE: Be aware of any hydraulic leaks.
7. Always throttle the tractor down and use caution when connecting the implement to the tractor
hitch.
NOTE: Never stand between the tractor and implement.
8. Lower the hitch jack onto firm ground and chock the tires when un-hooking implement from tractor.
NOTE: Ensure the unit is on level ground prior to un-hooking tractor.
9. Exercise extra caution when working on hillsides or near ditches.
10. Maximum speed while transporting the RH-9222 is 25 mph (40 km/h).
11. Ensure that the RH-9222 frame is lowered to the ground before doing any work on machine.
12. Do not work on this machine when hydraulic system is under pressure.
13. Observe all laws and regulations when transporting unit on public roads.
14. Do not transport this machine on public roads unless all safety & maintenance checks have been
completed.
This machine will provide years of trouble-free & safe operation IF
all maintenance and safety instructions are followed.

8

9

10

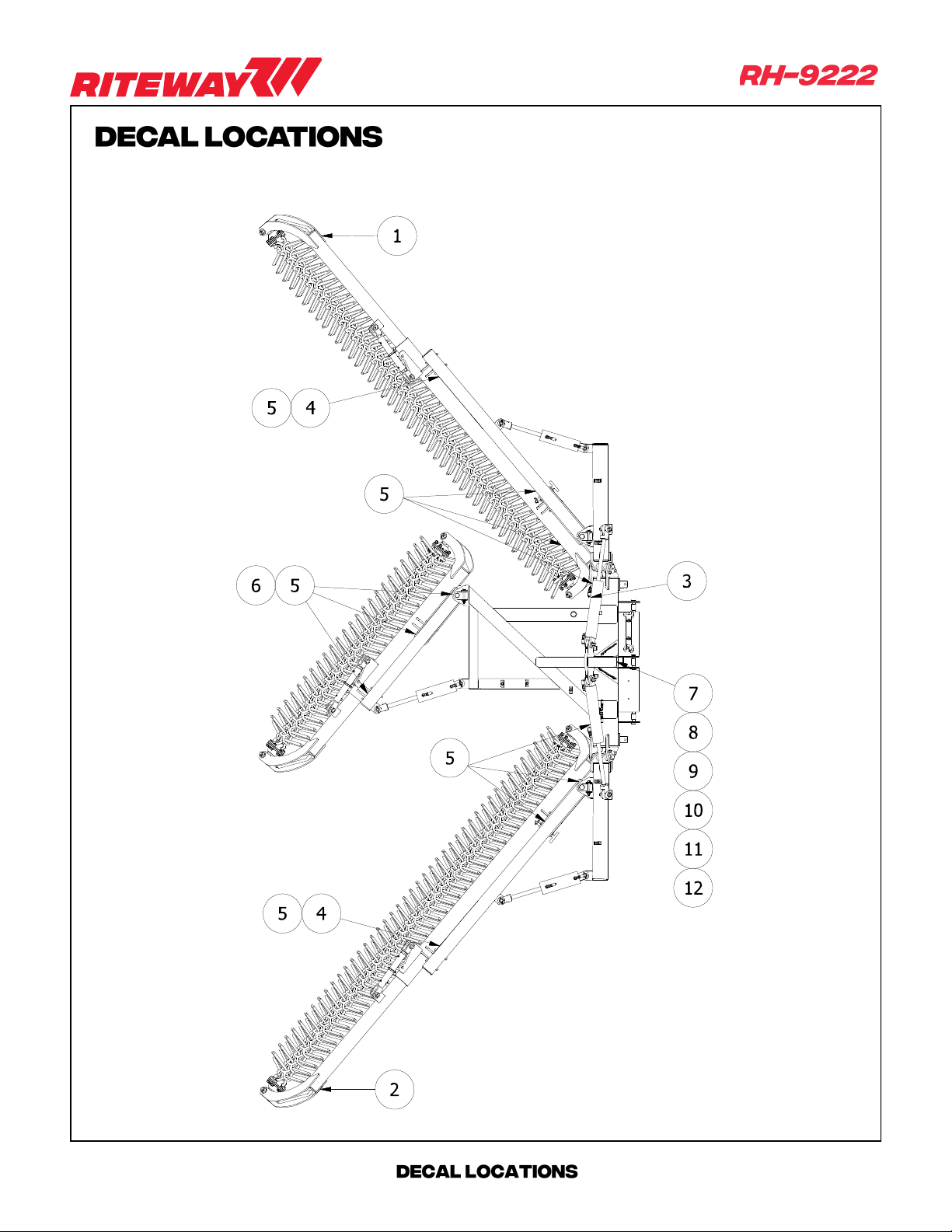

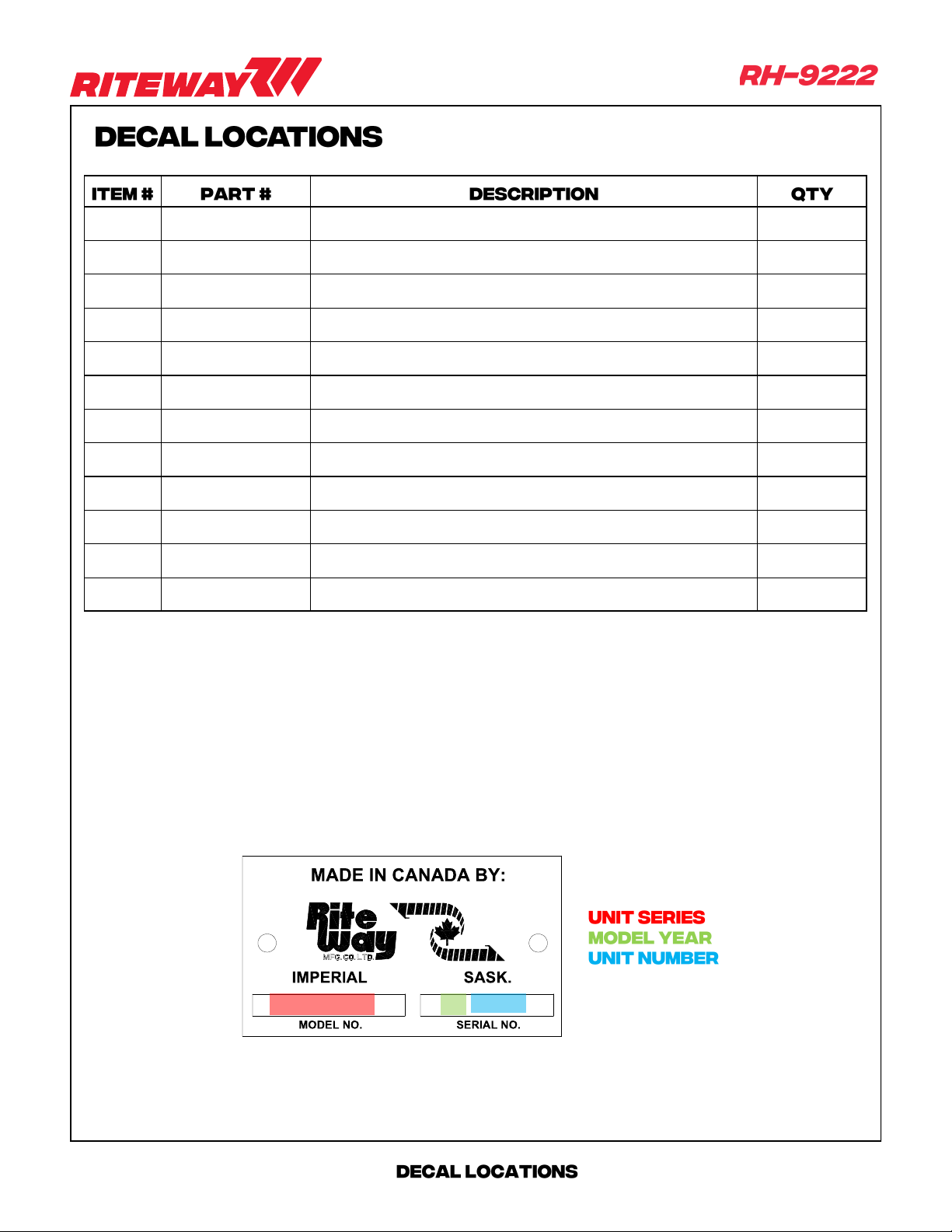

RH-9222 20-0926
1060-0022 Red Reflector (3 x 2) 2
2060-0009 Amber Reflector (3 x 2) 2
3060-0034 RiteWay Serial Number Plate 1
4060-0066 Rite Way Mfg. (Medium Decal) 2
5060-0046 Grease Every 8 Hours 11
6060-0108 www.ritewaymfg.com - (1” x 20”) 1
7060-0011 Caution - Escaping Fluid Hazard... 1
8060-0038 Attention - Ensure That All Cylinders Are Retracted... 1
9060-0028 Warning - Lower or Block Elevated Components 1
10 060-0050 Warning - Tine Angling Cylinders... 1
11 060-0061 Hydraulic - Hose Application 1
12 060-0128 RH-9200 - (3” x 11”) 2

11

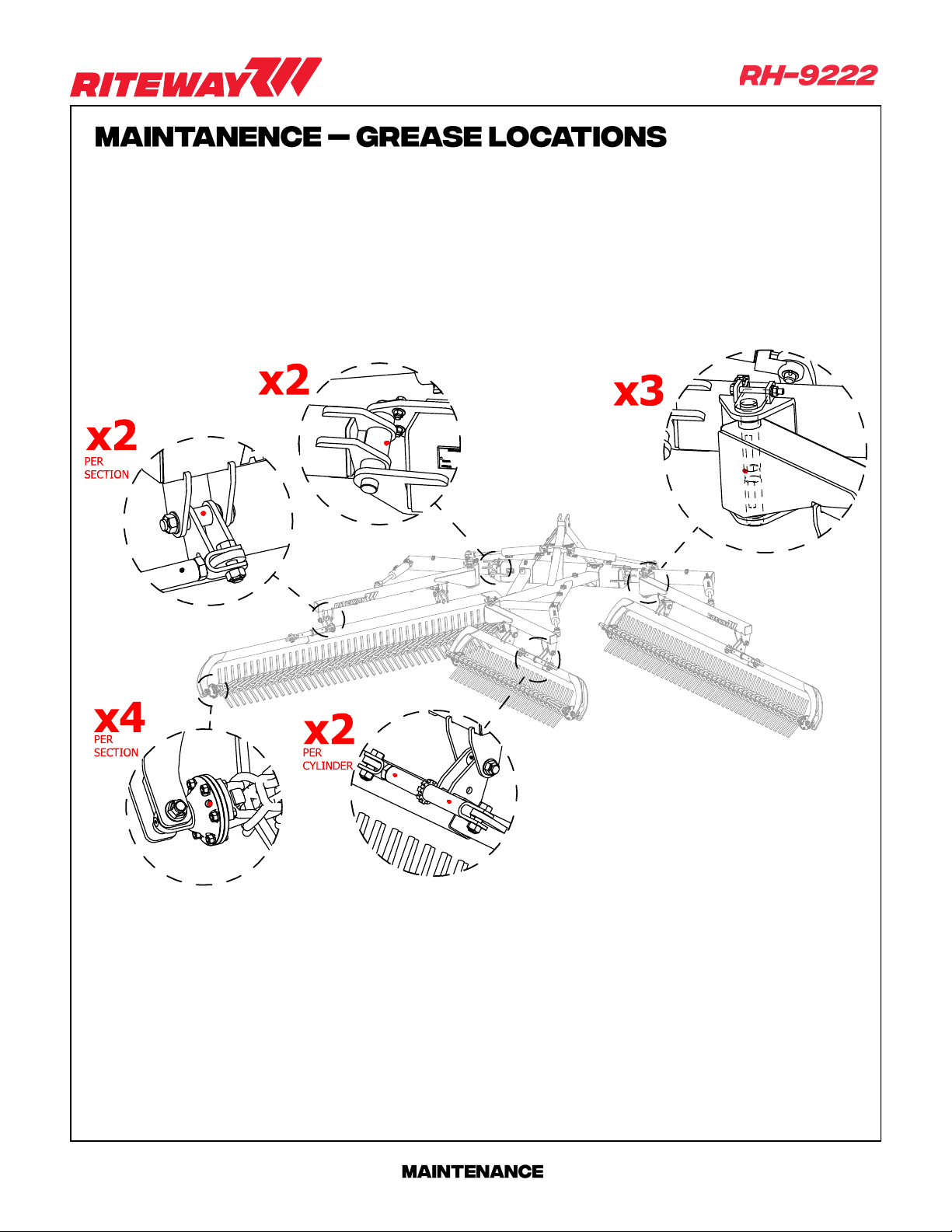

• Check harrow tine tension before use. Ensure that long sections do not sag more than 1.5” (38
mm).
• Grease all pins and knuckles. (See decals locations)
• Grease harrow chain bearings.
• Visually inspect hydraulic hoses & fittings for leaks or damage.
• Visually inspect unit for loose, worn or damaged components.
• Coat any exposed cylinder shafts with thick oil or grease.
• Ensure that parking jacks are situated on firm ground. Failure to do so may cause the hitch unit to
tip over during storage.
• Lock all applicable safety pins into place.
NOTE: All fasteners with locknuts that are used to join moving pieces should not be
tightened completely to allow for movement.

12

13
• Always choose a level area when folding the unit in or out of transport mode.
• Lubricate all pins and bearings regularly to prevent premature failure.
• Clean hydraulic hose ends prior to coupling with tractor hydraulic system.
• The RH-9222 requires two sets of hydraulic remotes to operate the machine:
– Remote 1 – Tine angle adjust
– Remote 2 – Wing lift/lower
• Always choose a level area when folding unit either to or from transport position.
• Lubricate all pins, axles and bearings regularly to prevent premature failure of components.
With unit in field position and tine sections set to maximum aggression (40° angle) adjust the top link
of the 3-Point hitch to ensure even contact of the harrow sections across the width of the unit. After
each adjustment of the top link, drive forward at working field speed (10 to 14 mph or 16 to 23 kph) to
ensure even penetration of the sections and smooth field finish. If ridges appear between section
overlaps, adjust the upper link to correct the issue.
• If the trailing edge of the section is digging deeper than the leading edge, shorten the upper link.
• If the leading edge of the section is digging deeper than the trailing edge, lengthen the upper link.
