Rittal SK 3201.200 User manual

Montage-, Installations- und Bedienungsanleitung
Assembly and operating instructions
Manuel d’installation et de maintenance
RITTAL
TOP
THERM
RITTAL
Thermoelectric Cooler
SK 3201.200
SK 3201.300
Montage- en bedieningshandleiding
Montage- och hanteringsanvisning
Istruzioni di montaggio e funzionamento
Instrucciones de montaje
Schaltschrank-
Klimagerät
Climate control unit
Climatiseur
Klimaat unit
Kylaggregat
Condizionatore
per armadi
Refrigerador
para armarios

2 RITTAL Thermoelectric Cooler assembly and operating instructions
EN
Before installation of the climate control unit,
please read this manual completely and carefully.
The manual is a permanent part of the supplied system
and must be retained until the device is decommissioned.
We thank you for deciding to purchase a RITTAL product!
The RITTAL Thermoelectric Cooler is a high-perfor-
mance thermoelectric light-weight climate control
unit with the highest efficiency (COP > 1) of its class!
The climate control unit is particularly suitable for
the climate control of operating housings and small
enclosures!
Before using the climate control unit, read this manu-
al carefully in order to make full use of the excellent
performance characteristics of the product.
RITTAL GmbH & Co. KG products are continually
adapted to the requirements and needs of our
customers. This means the information concerning
the product characteristics and functions contained
in this manual can be changed without notice in the
case of product improvements.

RITTAL Thermoelectric Cooler assembly and operating instructions 3
EN
Contents
1 Unpacking and checking. . . . . . . . . . 4
2 Notes on documentation. . . . . . . . . . 4
2.1 Retention of the manual . . . . . . . . . . . . . . . . 4
3 Safety notes . . . . . . . . . . . . . . . . . . . . 5
3.1 Proper usage . . . . . . . . . . . . . . . . . . . . . . . . . 5
4 How it works. . . . . . . . . . . . . . . . . . . . 6
5 Control . . . . . . . . . . . . . . . . . . . . . . . . 7
6 Device description . . . . . . . . . . . . . . . 8
7 Device mounting . . . . . . . . . . . . . . . . 9
7.1 External mounting. . . . . . . . . . . . . . . . . . . . 10
7.2 Internal mounting . . . . . . . . . . . . . . . . . . . . 10
8 Filter mounting. . . . . . . . . . . . . . . . . 11
9 Mounting of the
condensate discharge . . . . . . . . . . . 11
10 Electrical connection. . . . . . . . . . . . 12
10.1 Connection data . . . . . . . . . . . . . . . . . . . . . 12
11 Interfaces . . . . . . . . . . . . . . . . . . . . . 13
11.1 Interface X1 –
power supply and alarm output. . . . . . . . . 13
11.2 Interface X2 –
device programming. . . . . . . . . . . . . . . . . . 13
11.3 Interface X3 –
integration in a higher-level
monitoring system (optional). . . . . . . . . . . 13
12 Earth connection . . . . . . . . . . . . . . . 13
13 Commissioning . . . . . . . . . . . . . . . . 14
14 Status and function displays . . . . . 14

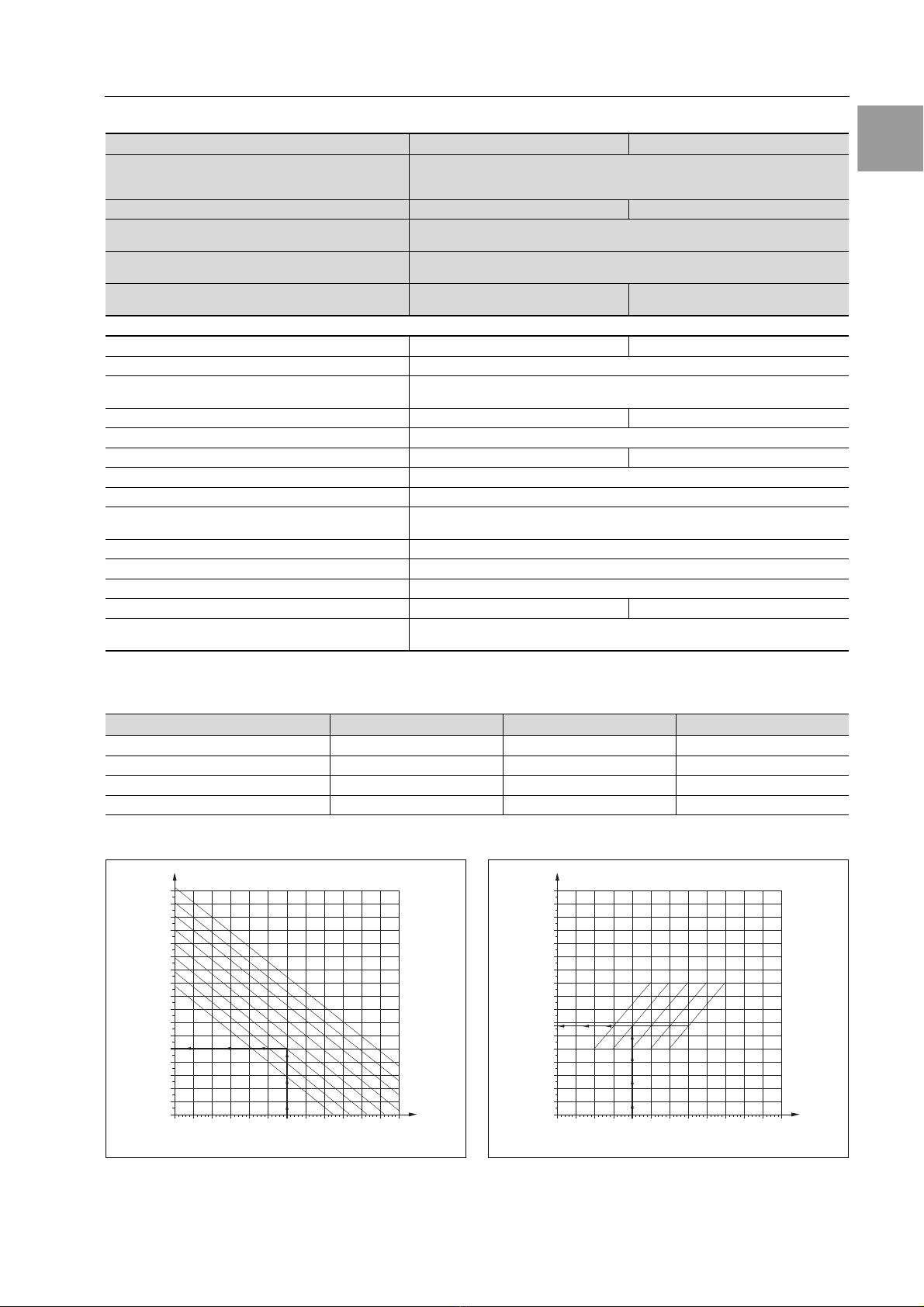

15 Technical specifications . . . . . . . . . 15
16 Maintenance and cleaning . . . . . . . 16
16.1 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . 16
16.2 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
17 Fault correction . . . . . . . . . . . . . . . . 17
18 Disposal . . . . . . . . . . . . . . . . . . . . . . 18
19 Guarantee . . . . . . . . . . . . . . . . . . . . . 18
20 Accessories . . . . . . . . . . . . . . . . . . . 18

4 RITTAL Thermoelectric Cooler assembly and operating instructions
1 Unpacking and checking
EN
1 Unpacking and checking
The RITTAL Thermoelectric Cooler is delivered in
transport packaging.
The supplied system consists of:
1 x climate control unit
1 x assembly and operating instructions
1 x accessories bag
Dispatch bag content:
1 x assembly and operating instructions
1 x self-adhesive sealing tape
1 x filter mat
1 x drilling template
1 x connector plug
(power supply and alarm output)
Assembly parts
1 x USB cable
1 x CD-ROM
Check that the delivered system is complete and un-
damaged. Any obvious transport damage must be
reported without delay to the responsible transport
company.
The latest version of the “General conditions for deli-
veries and services” of the ZVEI (Central Association
of the German Electrotechnical Industry) applies.
Prior to disposal, check the packaging material for
any loose function parts!
2 Notes on documentation
Assembly and operating instructions are available in
printed form (provided with the supplied system) and
as a PDF file on CD-ROM for the RITTAL Thermo-
electric Cooler.
A PDF file is available as free download from
www.rittal.com. ACROBAT READER®is required
to view the file.
The accompanying documentation must be obser-
ved for the assembly, installation and operation of
the climate control unit. RITTAL cannot accept any
liability for damage associated with the failure to
observe these instructions.
The information and safety notes in this manual
follow the following structure:
Safety and other instructions:
2.1 Retention of the manual
The operating company is responsible for retaining
the manual.
No part of the manual may be reproduced or
processed, copied or distributed using electronic
systems in any form (printed, microfilm or any
other form) without the written approval of
RITTAL GmbH & Co. KG. No liability can be
assumed for any damage resulting from the non-
observance of the information contained in this
manual.
Danger!
Warning of a potential danger source.
Danger to life and health in case
of non-observance!
Danger!
Warning of a dangerous electrical
voltage.
Danger to life and health in case
of non-observance!
Danger!
Warning of slippery surface.
Danger to life and health in case
of non-observance!
Note:
Useful information
and special features.

3 Safety notes
RITTAL Thermoelectric Cooler assembly and operating instructions 5
EN
3 Safety notes
The following general safety notes must be observed
for the assembly, installation and operation of the
climate control unit:
– The assembly, installation and servicing of the
climate control unit may only be performed by
properly trained specialists.
– The mains connector of the climate control unit
must only be connected and disconnected with
the system de-energised. The device must be
protected with a pre-fuse.
– No changes may be made to the climate control
unit.
– Only the customer service or authorised personnel
may open the device. The opening of the device by
the user or unauthorised persons is not permitted
and will void any warranty claim.
– The climate control unit is intended only for the
climate control of enclosures and housings. Any
other use shall be deemed improper. The manu-
facturer is not liable for any resulting damage!
Proper usage also includes the observance of all
valid documents and compliance with the inspec-
tion and servicing conditions.
– The air inlet and outlet openings on the climate
control unit must not be covered.
– Use only original spare parts and accessories ex-
pressly approved for the RITTAL Thermoelectric
Cooler. Otherwise malfunctions or damage can
occur. Warranty claims cannot be accepted for
such damage.
3.1 Proper usage
The RITTAL Thermoelectric Cooler conforms to the
current state-of-the-art.
The climate control unit is intended only for cooling/
heating enclosures and operating housings.
Any other use shall be deemed improper.
Proper usage is possible only when all associated
documents, and the device-specific assembly and
operating instructions are observed.
The manufacturer is not liable for any damage resul-
ting from improper use.

6 RITTAL Thermoelectric Cooler assembly and operating instructions
4 How it works
EN
4 How it works
The RITTAL Thermoelectric Cooler uses the Peltier
effect for cooling/heating. This effect is based on
the principle that an electric direct-current flowing
through a circuit consisting of two different metals
causes the cooling of one contact point and the
heating of the other contact point. An appropriate
layout for the cooling/heating production is desig-
nated as Peltier element.
When the Peltier effect is used for enclosure climate
control, an air flow is fed over the upper and lower
connection point. The heat energy is released or
accepted from the air flow to the Peltier element.
The air flow that releases the heat energy to the
element is introduced as cooling air flow in the
enclosure or the operating housing.
After the
heating of the cooling air flow by the active in-
stalled equipment
, it is returned to the climate control
unit and fed for renewed cooling over the “cold” side
of the Peltier element. This produces an air circulati-
on that causes the cooling of the enclosure or the
operating housing.
The air flow that accepts the heat energy from the
“warm” side of the Peltier element is released as
warm air flow to the external air circuit of the climate
control unit. This means the heat produced by the
components in the enclosure is dissipated to the
ambient air surrounding the climate control unit.
By reversing the polarity with the controller, depen-
ding on the unit's setpoints, operation is switched
to heating. This will reverse the process described
above.
Fig. 1: Peltier element Fig. 2: Peltier climate control unit (cooling operation)
n-doped
n-doped
p-doped
p-doped
Warm area
Cold area
+
–
Divider panel
Environment
Enclosure/operating housing
Warm area
Cold area

5 Control
RITTAL Thermoelectric Cooler assembly and operating instructions 7
EN

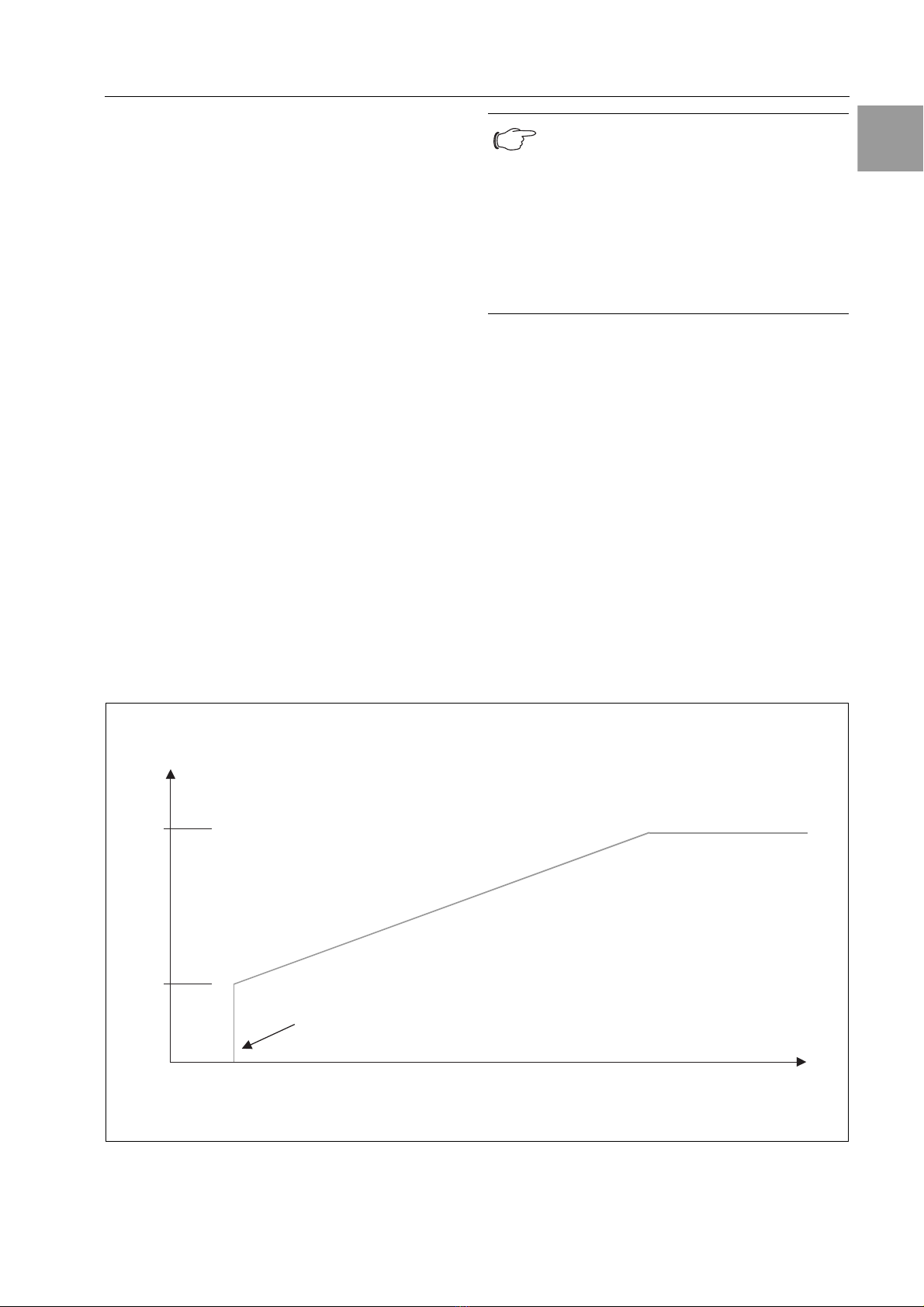

5 Control
The RITTAL Thermoelectric Cooler controls the cool-
ing/heating capacity of the Peltier elements and the
air throughput of the integrated fans so that the re-
quired internal temperature of the enclosure or the
operating housing is set with high accuracy. For this
purpose, the device permanently monitors the air
entry temperature at the warm air entry (internal cir-
culation). If this temperature exceeds or falls below
a parameterised temperature value (factory setting:
cooling 35°C/heating 5°C), the device starts cooling/
heating operation. To do this, the trigger voltages of
the Peltier elements and fans are corrected by a PID
control so that the cooling/heating capacity required
for the cooling/heating is always available and the
cooling/heating operation is provided with the least
possible power. The redundant fans in the external
air circuit of the RITTAL Thermoelectric Cooler have
variable air delivery rates (and consequently variable
speeds) appropriate for the required cooling/heating
capacity. If only limited or indeed no cooling/heating
capacity is required, this control behaviour can lead
to a temporary inactivity of the fans in the external air
circuit. This does not constitute a malfunction of the
device, but rather an extreme power-saving opera-
ting state that also increases the service life of the
used fans.
Note:
The fan speed in the external air circuit of
the climate control unit is matched to the
current cooling/heating capacity require-
ment.
Consequently, a stoppage of the fans –
interrupted by periodic, short-term fan
starts – is not a malfunction of the device,
but rather represents an extreme power-
saving operating state!
Fig. 3: Control behaviour of the fans in the external air circuit
max.
Cooling/heating capacity requirement
Fan speed in the external air circuit
Fan off
min.

8 RITTAL Thermoelectric Cooler assembly and operating instructions
6 Device description
EN
6 Device description

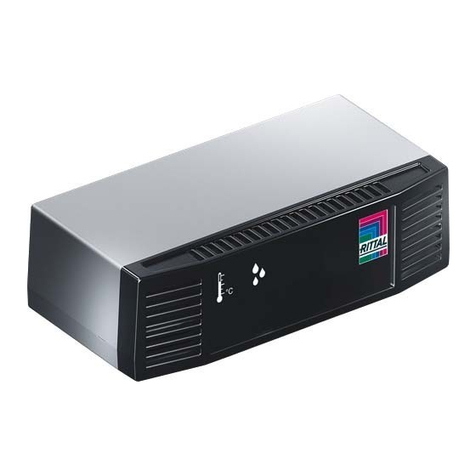

Fig. 4: Device front Fig. 5: Device rear
1
2
3
4
5
7
6
10
9
8
11
12
13
14
16
15
Legend
1 Status display
2 Function display
3Housing
4 Louvred grille
5 Air outlet opening – external air circuit
6 Air inlet opening with filter element (optional) –
external air circuit
7 Condensate discharge
8 Interface X1: supply voltage and alarm output
9 Interface X2: USB 2.0, type B
10 Interface X3: RJ 45
11 Connection diagram
12 Air inlet opening – internal air circuit
13 Potential equalisation
14 Air outlet opening – internal air circuit
15 Blind nut
16 Rating plate (on the device lower side)

7 Device mounting
RITTAL Thermoelectric Cooler assembly and operating instructions 9
EN
7 Device mounting
The following principles must be observed for deter-
mining the mounting position on the enclosure or
operating housing:
The RITTAL Thermoelectric Cooler is mounted as
external or full internal mounting.
The supplied drilling template must be used to fasten
the climate control unit on the enclosure or the ope-
rating housing.
The drilling template provides dimension lines for the
various installation options of the climate control unit.
Identify appropriate lines and dimensions on the dril-
ling template for the required mounting type (exter-
nal or full internal mounting) using figures 6 and 7.
Drill the required holes for fastening the climate con-
trol unit and then cut the required cut-out, including
the line width, in accordance with the drilling temp-
late.
The direct incidence of cold/warm air on
temperature-sensitive components must be
avoided!
Components with integrated fans deter-
mine the air routing in the enclosure or
operating housing.
The mounting position of the climate control
unit must be chosen so that the air flow
supports the cooling/heating of these com-
ponents.
A free space of at least 100 mm is required
in front of the air inlet and outlet openings
of the climate control unit in the internal and
external circuit.
The climate control unit must be positioned
on the enclosure so that the condensate
discharge opening is located at the lowest
point of the climate control unit.
Risk of injury!
Wear protective gear (safety glasses,
protective gloves) when cutting the
mounting cut-out and drilling the fasten-
ing holes.
Carefully deburr all drilled holes and
cut-outs to prevent injuries caused by
sharp edges.
Fig. 6: Mounting cut-out and hole sizes for external
mounting
Fig. 7: Mounting cut-out and hole sizes for internal mounting
(full internal mounting)
377
366 400
25
25
11.5
15
Ø 6.5
10012.5
8.5 108
125
Climate control unit external contour
386 400
25
15
100
15
25
40
377
25
18
Ø 6.5 Ø 12
10
7
11.5
85 11 12.5
8.5 108
125
12
Climate control unit external contour

10 RITTAL Thermoelectric Cooler assembly and operating instructions
7 Device mounting
EN
7.1 External mounting
When the climate control unit is mounted as external-
ly-mounted variant, the supplied self-adhesive seal-
ing tape must be fastened on the device rear wall of
the climate control unit so that no gaps result at the
joint edges. Secure the climate control unit using the
supplied washers and cheese-head screws.
Fig. 8: Position of the sealing tape
Fig. 9: Fastening the climate control unit
Fig. 10: External and internal mounting
Fig. 11: Permissible mounting positions
7.2 Internal mounting
For the full internal mounting of the climate control
unit, the louvred grille must be carefully removed
from the device. The self-adhesive sealing tape
supplied must be placed on the front of the climate
control unit (the device face from which the louvred
grille has been removed) so that no gaps result at the
joints. Secure the climate control unit using the sup-
plied washers and cheese-head screws. To com-
plete the mounting, the louvred grille must be re-
attached.
Fig. 12: Position of the sealing tape
Fig. 13: Fastening the climate control unit
125
400 400
155 55100
10055
Internal mountingExternal mounting
External
mounting,
vertical
External
mounting,
horizontal
Internal
mounting,
horizontal
Internal
mounting,
vertical
max.45°
max.45°
max. 45°
max. 45°

8 Filter mounting
RITTAL Thermoelectric Cooler assembly and operating instructions 11
EN
8 Filter mounting
The RITTAL Thermoelectric Cooler can be equipped
with a device filter (supplied).
An appropriate filter unit is recommended when the
climate control unit is used in ambient air subject to
dust.
When a filter is installed, the lower louvred grille in
the air inlet of the climate control unit must be remo-
ved. To do this, raise the louvred grille with a light tug
at the marked position (see Figure 14) and withdraw
it at the front. Then place the filter mat in the filter hol-
der of the device. The colour-marked side of the filter
mat must face the device. Then re-mount the louvred
grille and snap it into position by applying light pres-
sure.
Fig. 14: Removable louvred grille
9 Mounting of the
condensate discharge
The RITTAL Thermoelectric Cooler is equipped with
a condensate discharge.
Fig. 15: Condensate discharge
The controlled condensate discharge requires a
condensate discharge hose be connected to the cli-
mate control unit’s condensate discharge supports.
The condensate hose is available as accessory.
The installation of the condensate hose requires
that it
– is laid with a gradient (no siphon formation),
– does not have any kinks,
– must not have a reduced cross-section if
extended.
Note:
When a filter unit is used, it must be cleaned
regularly or, if necessary, replaced.
Risk of injury!
The operation of the climate control unit
without controlled condensate dis-
charge can cause liquid to accumulate
below the device.
Condensate
discharge

12 RITTAL Thermoelectric Cooler assembly and operating instructions
10 Electrical connection
EN
10 Electrical connection
10.1 Connection data
• The mains voltage and frequency must corre-
spond to the values stated on the rating plate.
• An all-range fuse specified on the rating plate must
be connected upstream as line and device pro-
tection.
• No additional temperature control is allowed to be
connected upstream of the climate control unit on
the supply side.
• An isolating device that ensures a contact opening
of at least 3 mm in switched-off state must be
connected upstream of the climate control unit.
• The mains connection must ensure low-noise
potential equalisation.
Fig. 16: Rating plate
The RITTAL Thermoelectric Cooler is available with
integrated multi-range power pack (100 – 240 V/AC)
and as 24 V/DC variant (without integrated power
pack).
Fig. 17: SK 3201.200 connection diagram,
integrated power pack
Fig. 18: SK 3201.300 connection diagram,
without integrated power pack
Legend
A1 Power PCB
A2 Power pack
B1 Temperature sensor, internal temperature
B2 Ambient temperature sensor
B3 Temperature sensor, power pack
H1/H2 Status and function display
M2.1 External fan 1
M2.2 External fan 2
M4 Internal fan
TE Thermoelectric elements
X1 Terminal strip
X2 USB connection
X3 Interface (master-slave)
Danger!
Warning of a dangerous electrical
voltage.
Danger to life and health in case
of non-observance!
M M M
M4
USB
3
2
1
2
13Se r ial
A1
TE
12
Power
PE +–
M2.2
13
2
M4
3
2
1
X1 1
PE 23
M2.2
4
M2.1
13
2
M2.1
4 4
L1 N
PE
TE
~
–
A2
PE
Mains
X2 X3
Alarm
NTC_O YELLOW
NTC_I RED
2B2
2B1
2B3
NTC_N WHITE
H1 H2
M4
NTC_O YELLOW
NTC_I RED
USB
3
2
1
2
13Se r ial
A1
TE
12
Power
PE +–
M2.2
13
2
M4
3
2
1
PE
X1
Mains
1
PE 23
X2 X3
2B2
2B1
M2.2
4
M2.1
13
2
M2.1
M
4
M M
4
+ –
PE
TE
Alarm
H1 H2

11 Interfaces
RITTAL Thermoelectric Cooler assembly and operating instructions 13
EN
11 Interfaces
Fig. 19: Designations of the device interfaces
11.1 Interface X1 –
power supply and alarm output
• Power supply
SK 3201.200: AC: 100 – 240 V, 50/60 Hz
SK 3201.300: DC: 24 V (SELV)
• Change-over contact/alarm output (floating
connection)
Switching load: AC: 250 V/2 A, DC: 6...30 V/2 A
The signal relay releases for overtemperature,
low temperature, sensor break and fan failures.
Fig. 20: Change-over contact assignment
11.2 Interface X2 –
device programming
• USB 2.0 interface for RTC PC software
• The software can be found on the CD-ROM of
these assembly instructions
11.3 Interface X3 –
integration in a higher-level
monitoring system (optional)
• RJ 45 for master-slave operation;
bus cable available as accessory
(Model No. SK 3201.070)
• Connect the units via X3
• Activating the units is done via the RTC PC
software
The interface X3 permits the connection of the cli-
mate control unit in higher-level monitoring systems.
12 Earth connection
The RITTAL Thermoelectric Cooler is equipped with
a potential equalisation connection point. A conduc-
tor with a nominal cross-section of at least 6 mm2
must be connected to this connection point and
included in the provided potential equalisation.
Fig. 21: Contact point for potential equalisation
X2X1 X3
PE
1+ – 23
24 V DC
0322231
X2X1 X3
PEL1 L2
N
123
0322416
Connection terminal designation SK 3201.300
Connection terminal designation SK 3201.200
Interface X3Interface X2Interface X1
Interface X3Interface X2Interface X1
Pin 1 Pin 2 Pin 3
Note:
The electrical signals at the interface X3 are
extra-low voltages (not extra-low safety
voltages in accordance with EN 60 335).
Note:
According to the standard, the PE conduc-
tor in the mains connection cable is not
classified as an equipotential bonding con-
ductor.
X2X1 X3
PE
123
24 V DC
0322231
Contact point for
the potential equalisation

14 RITTAL Thermoelectric Cooler assembly and operating instructions
13 Commissioning
EN
13 Commissioning
The RITTAL Thermoelectric Cooler is operational
immediately after connection of the power supply.
If the factory setting is unchanged, the temperature
control of the enclosure or operating housing uses
the following parameters:
Set enclosure interior temperature: +35°C
Start temperature for cooling operation: +35°C
High temperature alarm message: +45°C
Start temperature for heating operation: +5°C
Low temperature alarm message: –5°C
Under normal operating conditions, device operati-
on with unchanged factory setting should ensure a
problem-free enclosure climate control. If it would
appear to be useful to change the predefined para-
meters for special climate control requirements, this
can be realised with programming software.
The RTC PC software can be found on the CD-ROM
supplied.
Optional:
Master-slave operation (available on request).
14 Status and function displays
The RITTAL Thermoelectric Cooler is equipped with
a status and function display. Two coloured LEDs
show the status, alarm and error messages that indi-
cate the operating state of the climate control unit.
Fig. 22: Status and function displays on the climate control
unit
Tab. 1: Function displays
Tab. 2: Status displays
Function LED Description
Off Unit in standby mode
Green Cooling operation ON
Red Error – unit
Orange Heating operation ON
Status LED Description
Off Unit OFF
Green Unit OK
Orange Warning (temperature alarm,
temperature above or below alarm
value
)
Red Error (sensor defective,
fan defective, thermoelectric
module defective)
Red Internal temperature too high
(max. 55°C/131°F)
Function
display
Status
display

15 Technical specifications
RITTAL Thermoelectric Cooler assembly and operating instructions 15
EN
15 Technical specifications
Tab. 3: Technical specifications Technical modifications reserved.
Tab. 4: Setting ranges
Fig. 23: Cooling output characteristic curve for full internal
mounting and an enclosure internal temperature
Tiof 35°C
Fig. 24: Heating output characteristic curve for full internal
mounting and an enclosure internal temperature
Tiof –10°C
Model No. SK 3201.200 3201.300
Dimensions in mm
W
H
D
125
400
155
Operating voltage in volts, Hz 100 – 240 V AC, 50/60 Hz 24 V DC
Useful cooling output Qk
to DIN 3168
L 35
L 35 100 W (heating output 200 W [min. 100 W])
Power consumption Pel
to DIN 3168
L 35
L 35 Max. 100 W
Refrigeration factor (max.)/COP L 35
L 35 1.0 1.2
Power pack integral –
Housing colour RAL 7024/anodised aluminium
Protection category
according to EN 60 529
Internal circuit
External circuit
IP 54
IP 34
Weight 3.0 kg 2.4 kg
Noise level Max. 63 dB(A)
Operating temperature –30°C to +55°C –30°C to +60°C
Storage temperature –30°C to +70°C
Installation position Horizontal or vertical
Air throughput, unimpeded air flow Internal circuit
External circuit
132 m3/h
132 m3/h
Temperature setting range – cooling/heating +5°C to +55°C/–10°C to +20°C
Cooling/heating activation temperature +35°C (factory setting)/+5°C
Type of connection Plug-in terminal strip
Pre-fuse gG 4 A 10 A
Floating change-over contact;
contact loading
DC: 6...30 V/0.1...2 A
AC: 250 V/2 A
.
Variable Range Default value EEPROM
Cooling setpoint +5°C to +55°C +35°C Yes
Alarm message – overtemperature (0)2...15 K (0 = off) 5 K Yes
Setpoint heating –10°C to +20°C +5°C Yes
Alarm message – temperature too low (0)2...15 K (0 = off) 5 K Yes
1510
20
40
60
80
100
120
140
160
180
200
220
240
260
280
300
320
340
[W]
20 25 30 35 4540 50 55 60 65 [°C]
Cooling output
Ambient temperature
0°C
T
i
=60°C
T
i
=55°C
T
i
=50°C
T
i
=45°C
T
i
=4
T 35°C
i
=
T
i
=30°C
T
i
=25°C
– 25 – 20 – 15 – 10 – 5 +5 +10 +15 +20 +25 +300 – 30
20
40
60
80
100
120
140
160
180
200
220
240
260
280
300
320
340
[W]
[°C]
Heating output
Ambient temperature
T
i
=–5°C
T
i
=0°C
T
i
=5°C
T
i
=15°C
T
i
=20°C

16 RITTAL Thermoelectric Cooler assembly and operating instructions
16 Maintenance and cleaning
EN
16 Maintenance and cleaning
16.1 Maintenance
The RITTAL Thermoelectric Cooler is low-mainte-
nance.
16.2 Cleaning
If the RITTAL Thermoelectric Cooler is used in ambi-
ent air subject to dust, dust can accumulate in the
area of the air inlet and outlet openings and on the
heat transferring surfaces of the Peltier element. This
can cause a reduction of the air flow in the device
and thus a gradually reducing cooling/heating capa-
city.
To remove the dust, withdraw the louvred grille at the
device front. Blow compressed air through the air in-
let and outlet openings of the climate control unit.
If the Peltier climate control unit is equipped with a
device filter, it must be cleaned or replaced regular-
ly. The filter mat can be cleaned by washing, dusting
or blowing with compressed air. The high-quality
filter material used for the mat means the cleaning
does not impair the filter-technical properties and the
form stability. The fire class remains unchanged!
Danger!
Prior to any cleaning or maintenance
work, the power to the climate control
unit must be disconnected!
Note:
When the filter is replaced, use only filter
materials approved for the RITTAL Thermo-
electric Cooler.
The dust collecting efficiency and dust
storage capacity of the chosen filter equip-
ment is matched to the rated flow speed of
the climate control unit in the external air
circuit and so guarantees an excellent dust
filtering for a high useful cooling output.

17 Fault correction
RITTAL Thermoelectric Cooler assembly and operating instructions 17
EN
17 Fault correction
Tab. 5: Fault correction
Fault description Possible cause Correction
The unit does not switch on. No power supply. Check the mains connection and the
pre-fuse.
The unit does not cool/heat
adequately.
The air circulation inside the
enclosure is impaired.
Check the air circulation inside the
enclosure. Check, in particular, those
components equipped with a fan.
Check the free spaces above and
below the main heat dissipation
sources.
Ambient temperature too high/low. Reduce the ambient temperature.
Protect the unit from radiation heat
caused by direct sunshine and hot
surfaces.
Filter equipment contaminated. Check the filter and, if necessary,
clean or replace.
Internal fan defective.
Replace unit.
External fan defective. Replace unit.
The heat produced in the enclosure
exceeds the cooling capacity of the
Peltier climate control unit.
Reduce the heat loss.
Condensation. Enclosure leakages. Check the enclosure for leaks (IP 54).
Check, in particular, the cable entry
points for leaks.
Internal temperature of enclosure set
too low.
Check the set enclosure internal
temperature (factory setting: +35°C).

18 RITTAL Thermoelectric Cooler assembly and operating instructions
18 Disposal
EN
18 Disposal
To ensure the material reuse of the recyclable
packaging materials, they must be delivered to
the local collection sites.
The climate control unit must be delivered to a waste
management service provider that ensures the
correct reuse of the recyclable parts and the proper
disposal of the rest.
19 Guarantee
Provided the unit is used correctly (refer to the
operating instructions), RITTAL gives its custom-
ers a 24-month “RITTAL manufacturer’s guaran-
tee” starting with date of manufacture.
If, within the guarantee period, during the 24 months
after manufacture, a malfunction occurs on the pro-
duct that substantially adversely affects its function-
ality, RITTAL will, within a reasonable period of time,
rectify the malfunction by telephone service or, if ne-
cessary, by replacement, repair or other measures,
at its option. If this is inappropriate for the customer,
RITTAL also has the possibility to provide the custo-
mer with the replacement parts required to correct
the malfunction.
Within the scope of its guarantee, RITTAL will bear all
costs concerning the dispatching, deployment and
accommodation of its staff and with replacing or re-
pairing any parts, provided the malfunction occurred
during the proper usage of the products and provi-
ded the costs are not increased by the movement of
the products to a place other than that where they
were originally delivered. In addition, RITTAL will
bear the necessary costs for procuring and deliv-
ering the replacement parts to the place where the
products were originally delivered.
Any parts delivered for or in replacement will be new
or in mint condition and in a fully functional state free
of faults; the replaced parts will become RITTAL’s
property; the customer warrants that no rights of any
third parties will obstruct that exchange and transfer
of title.
Any claims based on this guarantee are to be sub-
mitted to RITTAL in writing within one month after the
occurrence of the malfunction.
Any further claims, in particular claims for damages ,
are not covered by the guarantee. The statutory lia-
bility for defects is not affected by the guarantee.
20 Accessories
Optional accessories:
– Filter mat
(Model No. SK 3201.050)
– Power pack 240 W for top-hat rail 35 mm
for SK 3201.200
(Model No. SK 3201.040)
– Condensate hose Ø = 6 mm
(Model No. SK 3301.606)
–Master-slave adaptor RJ 45
(Model No. SK 3201.070)

2nd edition 05/10 (03/09) ·326 832
Power Distribution
Stromverteilung
Distribution de courant
Stroomverdeling
Strömfördelning
Distribuzione di corrente
Distribución de corriente
IT Solutions
IT-Solutions
SolutionsIT
IT-Solutions
IT-lösningar
Soluzioni per IT
SolucionesTI
System-Klimatisierung
System Climate Control
Climatisation
Systeemklimatisering
Systemklimatisering
Soluzioni di climatizzazione
Climatización de sistemas
Schaltschrank-Systeme
Industrial Enclosures
Coffretset armoiresélectriques
Kastsystemen
Apparatskåpssystem
Armadi per quadri di comando
Sistemasde armarios
Elektronik-Aufbau-Systeme
Electronic Packaging
Electronique
Electronic Packaging Systems
Electronic Packaging
Contenitori per elettronica
Sistemaspara la electrónica
Communication Systems
Communication Systems
Armoiresoutdoor
Outdoor-behuizingen
Communication Systems
Soluzioni outdoor
Sistemasde comunicación
Rittal GmbH & Co. KG · Postfach 1662 · D-35726 Herborn
Telephone: [phone] · Telefax: [phone] · eMail: [email protected] · www.rittal.com·
