1 Introduction
1.1 product description
Intelligent logistics lock is a set of RFID, GPS/, Beidou RF technology and intelligent electronic lock as a
whole, with satellite positioning technology, wireless transmission technology, BSL positioning, design a
highly integrated intelligent electronic lock. Intelligent lock has only designated locations, designated ID
can unlock, illegal unlock, alarm and can be achieved, and can achieve remote lock function
GLL-150 is not only a GPS tracker to trace container remotely (location, speed, etc), but also an
intelligent electronic lock to control container door (close/open) remotely, it know the container door is
open by Who in Where and When.
1.2 Application field
•Custom cargo management
•Express cargo monitoring
•Logistic cargo transportation
•Other asset monitoring & management
2 Product Overview
2.1 Parts List
Item
Main product
charger
RFID card

GLL-150 User manual
3
2.2 Interface Definition
2.3 Parameters
Hardware features
details
Hardware architecture
Use STM32
Communication module
GPRS、WCDMA
Technical specifications
Operating Voltage
3.6 V/DC

GLL-150 User manual
4
Average operating current
170
RFID
S70
spare battery
15000mAh
Dimensions
335(with beam)mm*102mm*35mm
Host weight
1 .2KG
Environmental characteristics
Automotive EDM Interference Immunity
Discharge voltage of 1kV ~ 2kV, discharge frequency of
20 times / s ~ 200 times / s
Fast Transient Burst Impedance
4KV, experimental grade IV
Electrostatic discharge immunity
Contact discharge 6KV, air discharge 8KV, experimental
grade Ⅲ
Conducted harassment limits
Meet the requirements of Class B
Radiation disturbance limits
Meet the requirements of Class B
Temperature characteristics
Operating temperature -40 ℃~ +75 ℃
humidity
5% to 95% non-condensing
GPS performance
Sensitivity
-159dBm
Positioning time
Cold start less than 34 seconds; hot start less than 3.5
seconds; warm start less than 33 seconds, re-capture time
1.0 seconds
positioning accuracy
10m
Speed accuracy
0.1m/s
GSM / GPRS performance
2G frequency
850/ 900/ 1800/ 1900 MHz

GLL-150 User manual
5
Transmit power
Class 4 (2W @ 850/ 900 MHz)
Class 1(1W @ 1800/1900MHz)
Operating temperature
-40 °C to +85 °C
Data storage
Blind sector cache
Cache 2000 (point) location information
2.4 Function
1 ,built-in GPS module or Beidou module,
2, support 2G or 3G (WCDMA) network
3, the use of RFID electronic tag, support RFID card unlock function
4, the use of high strength plastic mold, lock body is not easy to destroy, passive failure will provide an
alarm signal, can be anti fall, shock, waterproof, dust-proof.
5, high capacity battery, up to 15000MHA, can be connected to work for up to 7 days
6, built-in strong magnetic, can make the lock firmly adsorbed on the car body
7, with low power alarm function, when the electricity is less than a certain value, the indicator light will
start
8, with buzzer prompt function, when the lock is not normally locked, the terminal will automatically issue
beep alarm to remind the driver
9, terminal with alarm reminders, when sewing is illegally cut off when the terminal will take the initiative
to send alarm
10, GPRS communication mode terminal, after each connection, automatically enter the GPS positioning
mode, using TCP/IP and UDP protocol,
11, remote configuration of the relevant logistics lock information.
12, location information, switch status, electronic lock, instant information, etc..
13, monitoring center remote authority unlock, IC card unlock mode, handheld unlock mode, SMS unlock
mode, etc.
14, monitoring center according to the pre-set location, range, vehicle overtime, route to regulate the
logistics of walking routes, such as violations, real-time reporting, monitoring and so on.

GLL-150 User manual
6
3 Getting Started
3.1 Installing a SIM Card
1. Select SIM card:
You can use mobile or Unicom's 2G SIM card, or Unicom 3G card
Supports SMS / GPRS function and has sufficient balance.

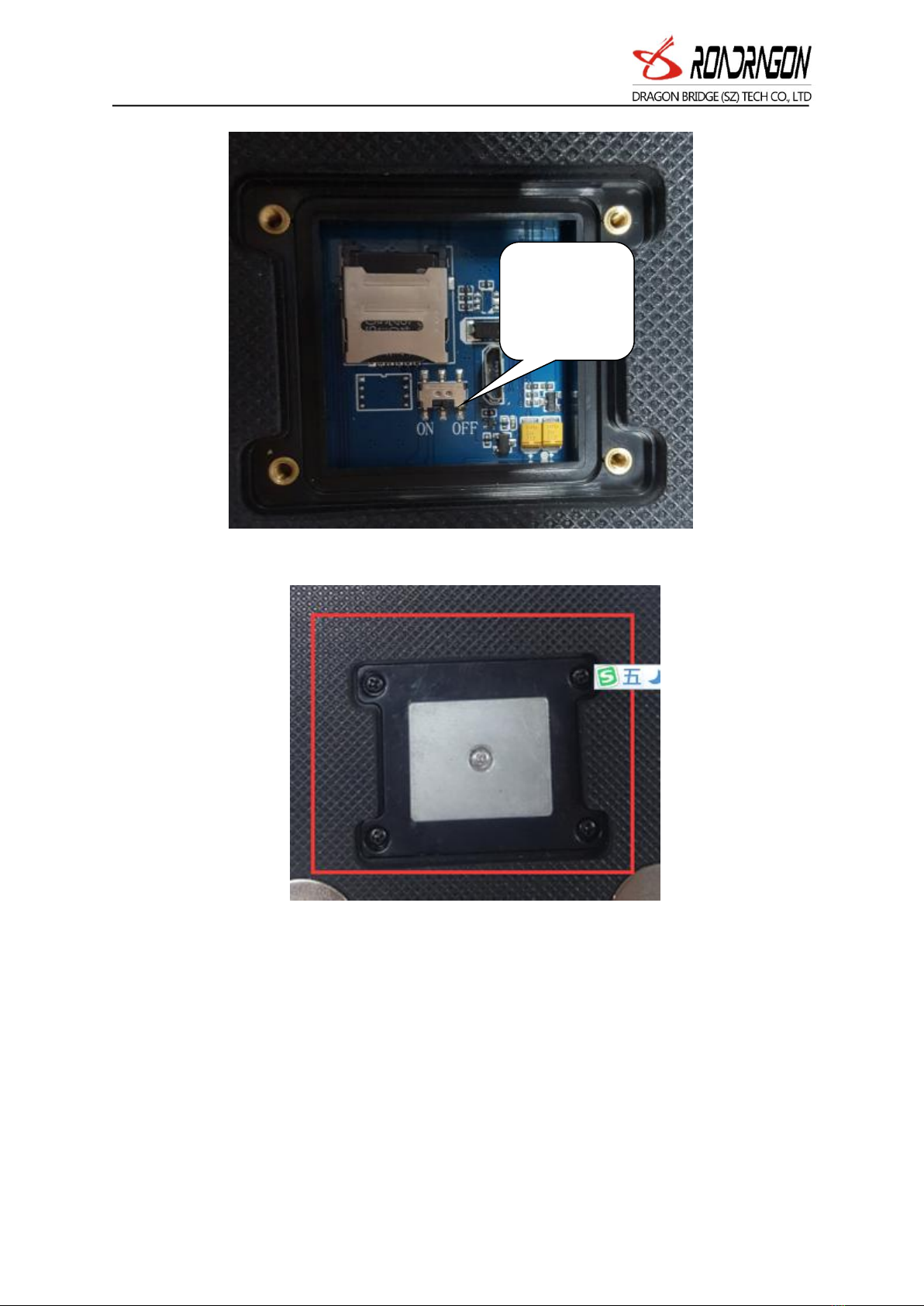

2. Remove the four screws from the rear cover, open the rear cover of the device, insert the SIM card into
the SIM card slot and lock it.
1. Turn the switch to ON, smart lock boot.
Use a screwdriver
to remove the
Use a screwdriver
to remove the
Use a screwdriver
to remove the
Use a screwdriver
to remove the
With nails, buckle
up, open the SIM
deck. Install SIM,
buckle the deck
Put micro
SIM and fix
the deck.

GLL-150 User manual
7
2. Install the SIM and turn on the battery switch, cover the bottom cover, on the good screw
3. unlock

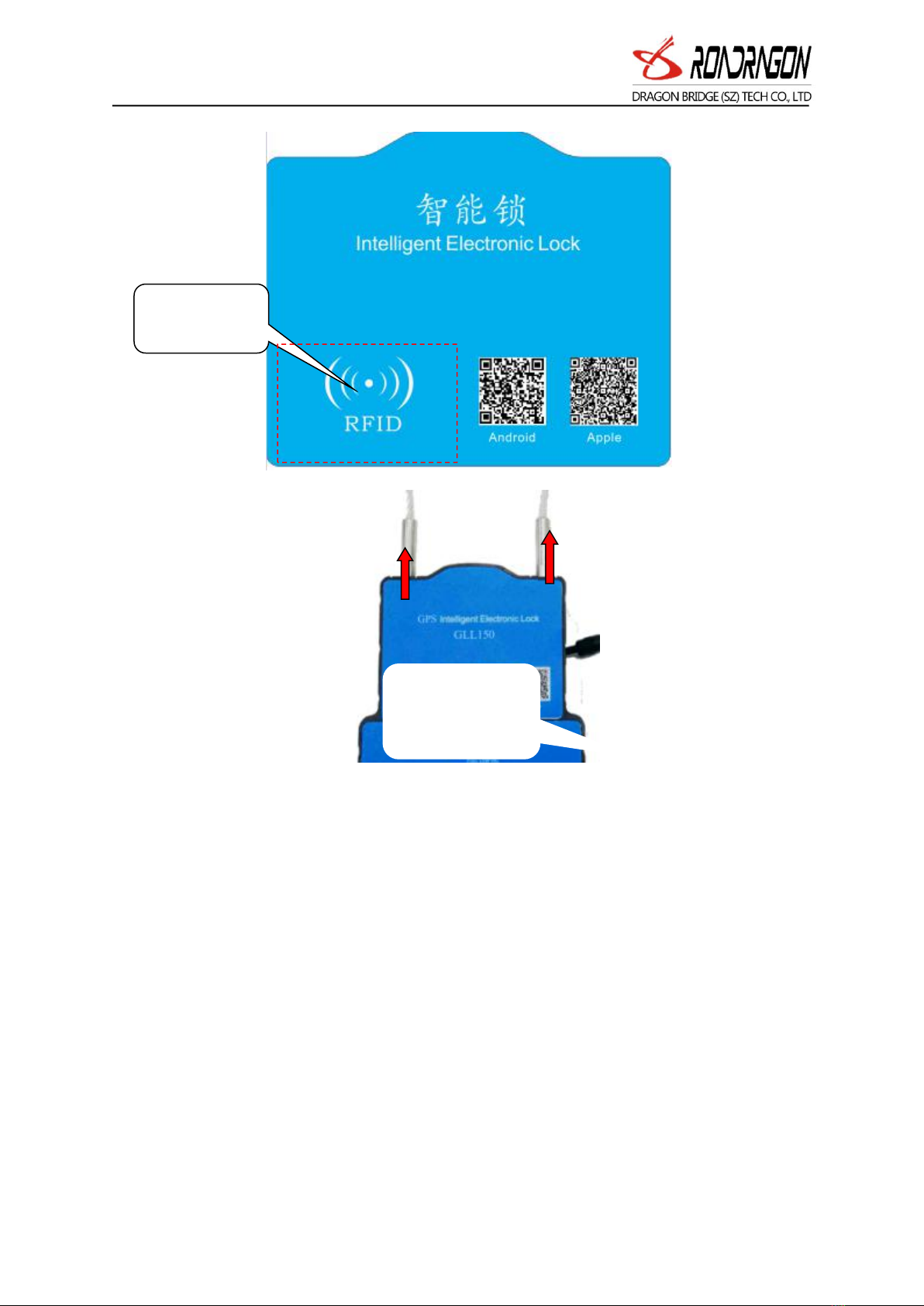

Put the RFID card on the shell RFID tag position, this time the lock electric will turn, when the lock is
successful, the buzzer will ring a reminder.
Hit the
switch to the
ON and the
machine

GLL-150 User manual
8
4. lock off
Insert the lock line into the keyhole, when the lock detects the lock line is installed normally, the lock
will automatically lock, when the lock after the buzzer will ring a reminder. When the motor lock in the
lock when the change, the buzzer will prompt the user long, the lock failed, please re-lock.
3.2 Tracking Platform
3.2.1 Login location service platform
Users can login to the global positioning service platform provided by the dealer, to check the location and
status of the vehicle, and perform corresponding operations. Please consult your dealer for the service
platform website.
Platform login on computer:
For individual users, please login with the device ID number. The ID number is on the device body and
also on the package box. When logging in to the platform, please select IEIM/License number to log in.
The default password is: 123456
RFID card
card area
After the card,
the buzzer
sounded, the

GLL-150 User manual
9
Enterprise users and fleet users please select the username to log in. User name and password are set by the
dealer, please contact your dealer for distribution!
Android APP download, please scan the QR code on the computer, and if Apple mobile phone, please
search the APP name in the App store.
3.3 Precautions
Host LED status description:
1.Green LED --- Indicates GPS signal status
State
Definition
Flash (flash once every 1 second)
Searching for GPS signals.
Slow flash (every 5 seconds flash)
Has been targeted
2.Red LED --- indicates GSM status
State
State
Flash (flash once every 1 second)
Flash (flash once every 1 second)
Slow flash (every 3 seconds flash)
Slow flash (every 3 seconds flash)
Frenzy (0.2 seconds flash 2S)
Frenzy (0.2 seconds flash 2S)
3.Blue LED --- indicates the charge status
State
Definition
not bright
No charge or full charge
Always bright
The main power has been connected
4.Orange LED --- undervoltage indication status
State
Definition
not bright
Power is normal but no power
Always bright
The machine is currently in an undervoltage
condition

GLL-150 User manual
10
3.4 Scenario
4 Set the machine parameters:
After you have read the above description of the product, the product has bee
n installed and the SIM card is installed. The following specific operation to start
using.
Note: So the SMS command should be entered in English mode, the comman
d error or format error will not reply.
4.1 Device IP address and Port
Send the message to the device number on the instruction format:
AS1234*F10#1,113.106.93.50,8011,1#
Reply to terminal parameters
IP:113.106.93.50,8011,1,cmnet,gprs,gprs,ID:31684086,M:6,GPS:A,9,CSQ:19,CG
R:5,ACC:1,BAT:65%,VER:AT10-V1.0
Such as:
IP address:113.106.93.50 port:8011,TCP
Order“AS1234*F10#1,113.106.93.50,8011,1#”

GLL-150 User manual
11
The instruction is * AS *, "1234" is the password, the initial default is 1234, "* F10
# 1" means that this command is to set the machine's IP instruction, 113.106.93.50 t
hat the machine is connected to the server, 7001 for the port, 0 means the machine
uses UDP to connect with the platform, if you want to use TCP to 1.
4.2 Query terminal status
Send SMS to device number, instruction format
AS1234STATE#
Reply terminal parameter
IP:113.106.93.50,8011,1,cmnet,gprs,gprs,ID:31684086,M:6,GPS:A,9,CSQ:19,CG
R:5,ACC:1,BAT:65%,VER:AT10-V1.0
IP: 113.106.93.50 Represents the server address reported by the current machin
e,
Port: 7001 Represents the port of the current machine,0 means UDP Repor
t,If it is 1 means TCP report
Cmnet,gprs,gprs:means current device APN
ID:31684086 means device ID number
GPS:A,9 means the positioning state of the current machine, V means no pos
itioning,A means,9 mean 9 level accuracy
CSQ:19,Mobile information for the current machine
CGR:5 indicates the status of the card,
ACC:1 indicates the status of the lock, the 1 is the unlock, and the 0 is the
lock
BAT:65% current lock capacity
VER: AT10-V1.0 Represents the version that is currently burned by the machi
ne
M:6 That represents the current state of the machine, 6 online, 0 said 1 initiali
zation, query CSQ, 2 registered network, 3 query the status of the CGREG, sa
id the 4 registered APN, 5 said the connection to the server, 7 is disconnected
from the network, said the 8 call, said 9 upgrade

GLL-150 User manual
12
4.3 SMS unlock
Send SMS commands "AS1234*F10#8,888888, #" to the number of terminal equipm
ent, the contents of the "Open lock OK replied," to this content said off terminal u
nlock success
The password can be unlocked remotely. For security, please consult the supplier to
unlock the password.
1. Set the unlock reporting frequency
Send SMS instructions“AS1234*F10#G,300,600,#”Number to device,The terminal repli
es to
“accOn:300 accOff:600 rd:0 sp:0,0s stp:0 dr:0,0 idl:0 mv:0 time:+8 cq:0,0 geo:0 step:377 ack:
0 msg:2568,56 sleep:0,0
”,The terminal has returned this content to indicate successful recovery
ACCon:Represents the lock off reporting interval
ACCoff:Represents the lock on reporting interval
Sleep Represents sleep time
4.4 Restore factory
Send SMS instructions“ASAX*%UPAS”Number to device,The terminal replies to
“password:1234,OK”,The terminal has returned this content to indicate successful
recovery
4.5 Restart terminal
Send SMS instructions“AS1234RSGS#”To the number of the device, the terminal r
eplies to“GSM/Restart;OK”,The terminal has returned this content to indicate a su
ccessful restart
Attention:
All the SMS edit in English mode, Chinese mode input will lead directly to
delete, do not reply sms.
All the messages are beginning to AS, to the end of #, format error will c
ause the application to not recognize.
The 1234 machine factory default password, if the password is wrong, will
cause the application to not reply SMS
Table of contents
Other Roadragon GPS manuals

Roadragon
Roadragon LLS-100TS Configuration guide

Roadragon
Roadragon LLS-300T Configuration guide

Roadragon
Roadragon LTS-100DS User manual

Roadragon
Roadragon G-M100 User manual

Roadragon
Roadragon LTS-100DST User manual

Roadragon
Roadragon MT-009 4G User manual

Roadragon
Roadragon BK-800 User manual

Roadragon
Roadragon LTS-60TH Configuration guide

Roadragon
Roadragon G-MT008G User manual

Roadragon
Roadragon G-V303 User manual
