Robe Anolis Ambiane XP56 User manual

Version 2.
5
QR code for user manual

Ambiane XP56 Recessed
2
Table of contents
1. Attention ..................................................................................................................................................................... 3
2. Installation .................................................................................................................................................................. 4
2.1. DMX and DALI address setting and control ......................................................................................................... 7
2.2 0-10V control ........................................................................................................................................................ 8
3. RDM ............................................................................................................................................................................ 8
4. Optional accessories installation .............................................................................................................................. 10
4.1 Top frame installation ......................................................................................................................................... 10
4.2 Louver installation .............................................................................................................................................. 11
4.3 False ceiling mounting adaptor istallation .......................................................................................................... 12
5. DMX protocols .......................................................................................................................................................... 13
6. Technical specifications ............................................................................................................................................ 15
7. Cleaning and maintenance ....................................................................................................................................... 22
7.1 Software update ................................................................................................................................................. 22
7.2 Disposing of the product .................................................................................................................................... 23

Ambiane XP56 Recessed
3
1. Attention
The unit must be installed by a qualified electrician in accordance with all national and local electrical and
construction codes and regulations.
The unit was designed for indoor use only.
Do not install the unit near highly inflammable liquids or materials.
Do not allow anything to rest on the unit.
Do not install the unit near an open flame.
Do not install the unit in dirty, dusty or badly ventilated location.
The unit has to be grounded.
A ceiling (structure) intended for installation of the unit(s) must safely hold at least 5 times the weight of the unit(s)
fastened on it.
Sufficient air accessing to the housing of the unit has to be ensured, there must not be any heat or anti-noise
insulation within a 1m x 1m area around the unit (non-IC rated fixture).
Avoid looking directly into the light beam at close range!
Suitable for fastening on Unsuitable for covering by heat insulation
non-flammable surfaces only material
Immunity of the equipment is designed for electromagnetic environments E1, E2, E3 according to the standard
EN55103-2 ed.2 Electromagnetic compatibility. Product family standard for audio, video, audiovisual and
entertainment lighting control apparatus for professional use. Part 2: Immunity.
The equipment (covers and cables) must not be exposed to a high frequency electromagnetic field higher than
3V/m.
The installation company should check levels of possible interferences above the tested levels E1,E2,E3 given by
this standard (e.g. transmitters in surrounding area) before installing the equipment.
Emission of the equipment complies with the standard EN55032 Electromagnetic compatibility
of multimedia equipment – Emission Requirements according to class B.

Ambiane XP56 Recessed
4
2. Installation
Always switch off power supply of the unit before connecting or disconnecting the unit
1. Prepare a circular opening (diameter of 186mm) in the lower ceiling (1) as shown on the picture below.
If you will use the Louver for Ambiane XP Recessed, this circular opening in the lower ceiling has to be of
diameter of 190mm.
If you will use the Top frame for Ambiane XP Recessed, this circular opening in the lower ceiling has to be of
diameter of 215mm.
Important: The Top frame for Ambiane XP Recessed has to be under lower ceiling before its inserting on
the housing of the Ambiane XP56 Recessed.
2. The yoke (2) with three holes serves for fastening the Ambiane XP56 Recessed to the ceiling (construction).
To move the yoke (2) up/down, release both screws (3), (4) on each side of the unit.
To tilt the yoke in range of +/-90° from the vertical axis, release the screw (3) on each side of the unit
Use the Allen key (size 5) to release/tighten screws (3) and (4).
The Ambiane XP56 Recessed has to be secured to the ceiling (construction) via a safety wire pulled through
the mounting lug (5) which serves for securing of the Ambiane XP 56 Recessed to the ceiling (construction) .

Ambiane XP56 Recessed
5
3. Connect cables with installed connectors to the Ambiane XP56 Recessed.
If you need access to the control PCB RB3729 (8), unscrew the four screws (7) on the cover (6).
The aperture (9) in the cover (6) allows you access to DIP switch.
The control PCB (RB3729)
Trimmer for light intensity
setting (for Secondary Power only)
The primary power input serves for a standard power (e.g. Ambiane Power XP).
The secondary power input serves for a backup power (in case that primary power failed).
If both power inputs are under voltage, the primary power has a priority and the secondary power is disabled. In
case of primary power loss, the secondary power is enabled.
If the fixture is supplied via the secondary power, the light output of the fixture is a white colour 3200K (RGBW, TW
version) and its light intensity can be set by a trimmer.
The green LED on the PCB signals way of DMX address setting:
LED lights-DMX address is set by means of the DIP switch.
LED does not light- DMX address is set by means of RDM.

Ambiane XP56 Recessed
6
The fixture can be controlled by one of the following methods: DMX 512
DALI
0-10V (for PW or TD version only)
The fixture is equipped with two DMX and DALI connection blocks for easy connection to DMX or DALI chain
(In/Out method).
Primary power connection
Connector
Vcc
0V
Function
Power +
Power
-
Secondary power connection
DMX connection
Connector
D+
D
-
0V
Function
Data +
Data
-
Data ground
(shielding)
0-10V connection
Connector
D+
0V
Function
+10V
0V
DMX connectors are used for 0-10V control
Max. length of the supply cable between the Ambiane XP56 Recessed and the Ambiane Power XP and Ambiane
Power Rack is defined by the following table:
Circular cross
-
section of wire
Max. cable length
0.5 mm
2
15 m
1 mm
2
30 m
1.5 mm
2
45 m
2 mm
2
60 m
2.5 mm
2
75 m
Connector
Vcc
0V
Function
Power +
Power
-

Ambiane XP56 Recessed
7
2.1. DMX and DALI address setting and control
The DIP switch on the control PCB (RB3729) allows you to set DMX address and run a test light.
DIP 10 - if it is switched to ON=test light (the fixture lights at 3200K (for RGBW and TW version))
DIP 11 - has to be switched to OFF position to receive DMX 512 and DALI, position ON=0-10V control
Note: If DIP 11=OFF (fixture is controlled by DMX and DALI), the last coming command switches the fixture to the
corresponding operation mode (DMX operation by a DMX command, DALI operation by a DALI command). E.g. the
fixture stays in a DALI operation and last coming command is a DMX command which switches the fixture to DMX
operation. Next command is a DALI command and switches the fixture to the DALI operation etc.
If you need the permanent DALI operation, you have to send a DALI command 8 to the fixture.
DMX control
The DMX start address, is the first channel used to receive instructions from the DMX controller. The address may
be any channel from 1 to 512. DMX address can be set either by DIP switch or by RDM. DMX address set by RDM
overwrites address set by DIP switch and vice versa. The green LED on PCB signals way of DMX address setting:
LED lights-DMX address is set by means of the DIP switch.
LED does not light-DMX address is set by means of RDM.
The DIP 11 has to be set to OFF position.
Example of DMX addresses:

Ambiane XP56 Recessed
8
DALI control
Addressing of the fixture has to be made by means of an external DALI controller.
If you need to start the permanent DALI control of the fixture (fixture will not respond to DMX commands), the
external DALI controller has to send activating command (8=ON).
If you need to stop the permanent DALI control of the fixture, the external DALI controller has to send deactivating
command (0=OFF).
2.2 0-10V control
DIP 11 has to be set in ON position. 0-10V operation has priority to DALI and DMX commands. The option is
applicable for the PW and TD version of the Ambiane XP56 Recessed only.
3. RDM
This fixture supports RDM operation. RDM (Remote Device Management) is a bi-directional communication
protocol for use in DMX 512 control systems, it is the new open standard for DMX512 device configuration and
status monitoring.
RDM allows you to set a DMX address, select DMX mode, readout software version of the fixture etc. It is also used
for fixture software update by means of the Robe Uploader.
RDM model ID for the Ambiane XP56 Recessed is 0x0109.
Parameter ID
Discovery
command
SET command
GET command
DISC_UNIQUE_BRANCH
*
DISC_MUTE
*
DISC_UN_MUTE
*
DEVICE_INFO
*
SUPPORTED_PARAMETERS
*
SOFTWARE_VERSION_LABEL
*
DMX_START_ADDRESS
* *
IDENTIFY_DEVICE
* *
DEVICE_MODEL_DESCRIPTION
*
MANUFACTURER_LABEL
*
DEVICE_LABEL
* *
DMX_PERSONALITY
* *
DMX_PERSONALITY_DESCRIPTION
*
RESET_DEVICE
*
SENSOR_VALUE
*
*
SENSOR_DEFINITION
*

Ambiane XP56 Recessed
9
SLOT_INFO
*
SLOT_DESCRIPTION
*
DEFAULT_SLOT_VALUE
*
PARAMETER_DESCRIPTION
*

Ambiane XP56 Recessed
10
4. Optional accessories installation

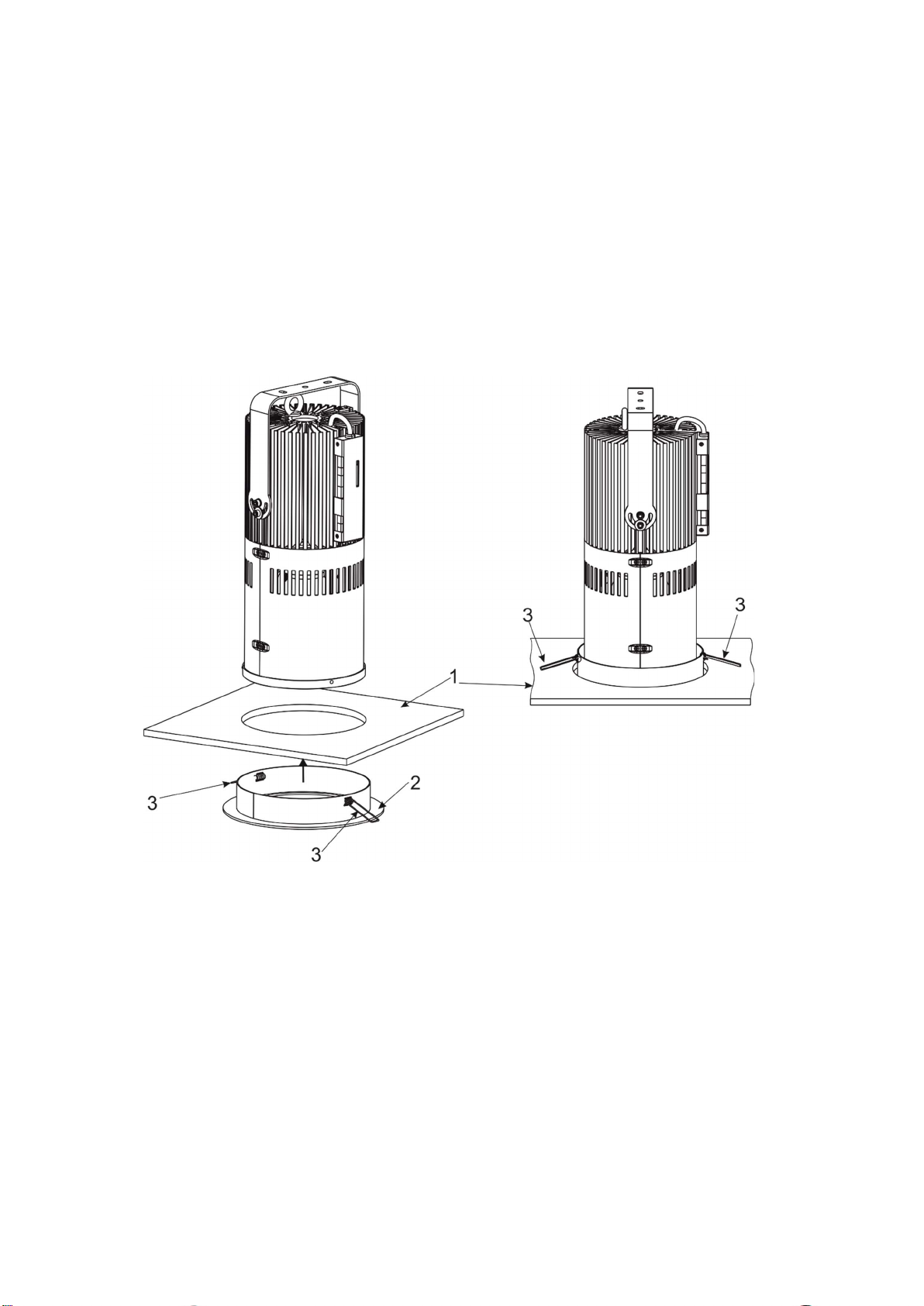

4.1 Top frame installation
The Top frame for Ambiane XP Recessed (2) serves for covering of the opening in the lower ceiling (1) if it is
required.
Note: The Top frame has to be placed under lower ceiling before sliding it onto the housing of the Ambiane XP56
Recessed.
1. Slide the Top frame (2) onto the housing of the Ambiane XP56 Recessed through the opening in the lower
ceiling.
2. Secure the Top frame in a right position by means of two spring locks (3) which have to lean against ceiling (1).

Ambiane XP56 Recessed
11

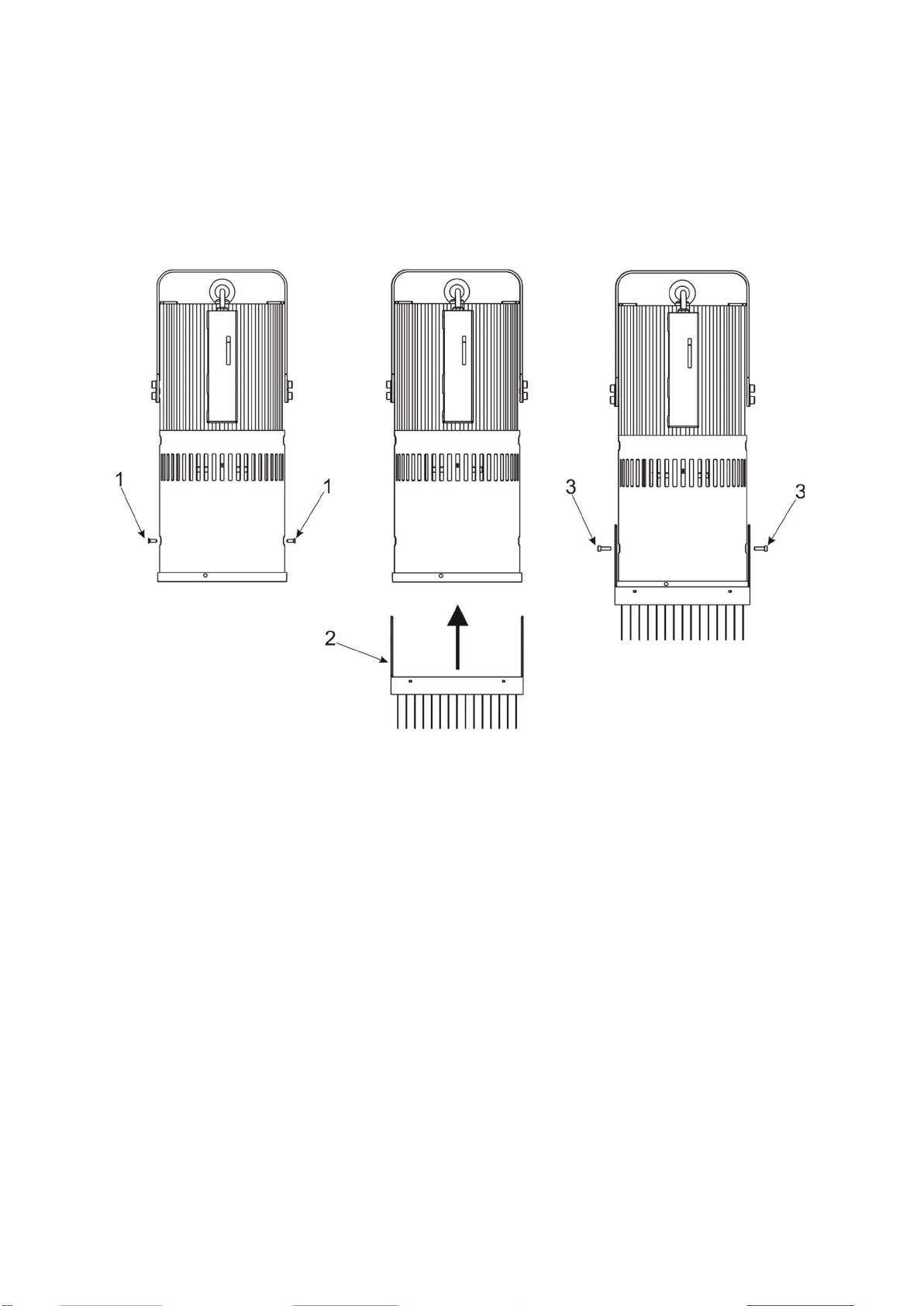

4.2 Louver installation
1. Unscrew two screws(1) on both sides of the Ambiane XP56 Recessed.
2. Slide the louver (2) onto the housing of the Ambiane XP56 Recessed.
3. Secure it by means of two socket head screws M4 x 14 (3) /screws are enclosed with the louver/ on both sides of
the housing of the Ambiane XP56 Recessed.

Ambiane XP56 Recessed
12
4.3 False ceiling mounting adaptor installation
1. Insert the bottom part (1) of the false ceiling mounting adaptor into the top part (2) of the false ceiling mounting
adaptor and secure it by means of three screws M4x12 (3) /screws are enclosed with the false ceiling mounting
adaptor/ on both sides of the installation tool.
2. Fasten the false ceiling mounting adaptor on the lower ceiling (5) by means of three holes (4) of diameter of
5.5 mm.
The lower ceiling (or another structure) intended for installation of the false ceiling mounting adaptor(s) must
safely hold at least 5 times weight of the Ambiane (s) placed on it.
3. Insert the Ambiane XP56 Recessed into the false ceiling mounting adaptor and screw its yoke to the false ceiling
mounting adaptor via the mounting hole (6) of a diameter of 8mm.
4. The Ambiane XP56 Recessed has to be secured to the ceiling (construction) via a safety wire pulled through the
mounting lug (7). The Ambiane XP56 Recessed must not be secured to the false ceiling mounting adaptor.

Ambiane XP56 Recessed
13
5. DMX protocols
Variant RGBW, version 1.1
Mode 1
Channel
Mode 2
Channel
Mode 3
Channel
Mode 4
Channel
Mode 5
Channel
DMX
value
Function Type of
control
1 1 1 - 1
0-255
Red
Red LEDs saturation control (0-->100%)
proportional
- - 2 - -
0-255
Red Fine
Red LEDs saturation control (0-->100%)
proportional
2 2 3 - 2
0-255
Green
Green LEDs saturation control (0-100%)
proportional
- - 4 - -
0-255
Green Fine
Green LEDs saturation control (0-->100%)
proportional
3 3 5 - 3
0-255
Blue
Blue LEDs saturation control (0 -->100%)
proportional
- - 6 - -
0-255
Blue Fine
Blue LEDs saturation control (0-->100%)
proportional
4 - 7 - 4
0-255
White
White LEDs saturation control (0-->100%)
proportional
- - 8 - -
0-255
White Fine
White LEDs saturation control (0-->100%)
proportional
- - 9 1 -
0
1-127
128
129-255
Green correction
Uncorrected white
Minus green --> uncorrected white
Uncorrected white (128=default)
Uncorrected white --> Plus green
step
proportional
step
proportional
- - 10 2 -
0
1-10
11-20
21-255
Colour temperature correction (CTC)
No function (0=default)
Tungsten dimming 2700 K
Tungsten dimming 3200 K
Colour temperature changing 2700 K--> 6500 K
step
step
step
proportional
- - 11 3 5
0-255
Dimmer
Light intensity coarse (0-->100%)
proportional
- - 12 - 6
0-255
Dimmer Fine
Light intensity fine (min.-->max.)
proportional
DMX mode has to be set by RDM.
Variant TW, version 1.2
Mode 1
Channel
Mode 2
Channel
Mode
3
Channel
Mode
4
Channel
DMX
value
Function
Type of
control
1
-
1
-
0-255
White colour selection
White from 2700K-->4000K proportional
-
1
-
1
0-255
Warm White
Warm white LEDs saturation control (0-->100%)
proportional
-
2
-
2
0-255
Cool White
Cool white LEDs saturation control (0-->100%)
proportional
2
3
2
3
0-255
Dimmer
Light intensity (0-->100%)
proportional
-
-
3
4
0-255
Dimmer Fine
Light intensity fine (min-->max)
proportional

Ambiane XP56 Recessed
14
Variant TD, PW version 1.1
Mode 1
Channel
Mode 2
Channel
DMX
value
Function
Type of
control
1
1
0-255
Dimmer
Light intensity coarse (0-->100%)
proportional
-
2
0-255
Dimmer Fine
Light intensity (min.-->max.)
proportional

Ambiane XP56 Recessed
15
6. Technical specifications
Nominal input voltage: 48V DC
Input voltage range: 44-50V DC
Max. power consumption: 150W
Light source: High Power LED module
Beam angle: 20°, 30°,45°, 60°
Projected Lumen Maintenance: L90B10 >90.000 hrs, Ta = 25°C / 77°F °F)
Colour Variants: RGBW (W - 2700K or 4000K), Pure White, Tunable White,
Tungsten Dim
CRI: 90+
Control: DMX, DALI, 0-10V, RDM
Settings/Addressing: DIP Switch, RDM
DMX channels (RGBW variant): 4 (Mode 1), 3 (Mode 2), 12 (Mode 3), 3 (Mode 4), 6 (Mode 5)
DMX channels (TW variant): 2 (Mode 1), 3 (Mode 2)
DMX channels (TD, PW variant): 2 (Mode 1), 2 (Mode 2)
Power supply: Ambiane Power XP, Ambiane Power Rack
Operating ambient temp. range: -20 °C / +40 °C (-4 °F / +104 °F)
Operating Temperature: +70 °C @ Ambient +40 °C (158 °F @ Ambient 104°F)
Total heat dissipation: 382 BTU/h (calculated)
Cooling: convection
Housing: High Pressure Die-Cast Aluminium Body
Weight:
Ambiane XP56 20° 6.2 kg/ 13.66 lbs
Ambiane XP56 30° 6.2 kg/ 13.66 lbs
Ambiane XP56 45° 6.02 kg/ 13.27 lbs
Ambiane XP56 60° 5.9 kg/ 13 lbs
Installation method: Recessed, via mounted bracket
IC rating: non-IC rated
Power/DMX/DALI connection: connectors
Protection factor CE: IP20

Ambiane XP56 Recessed
16

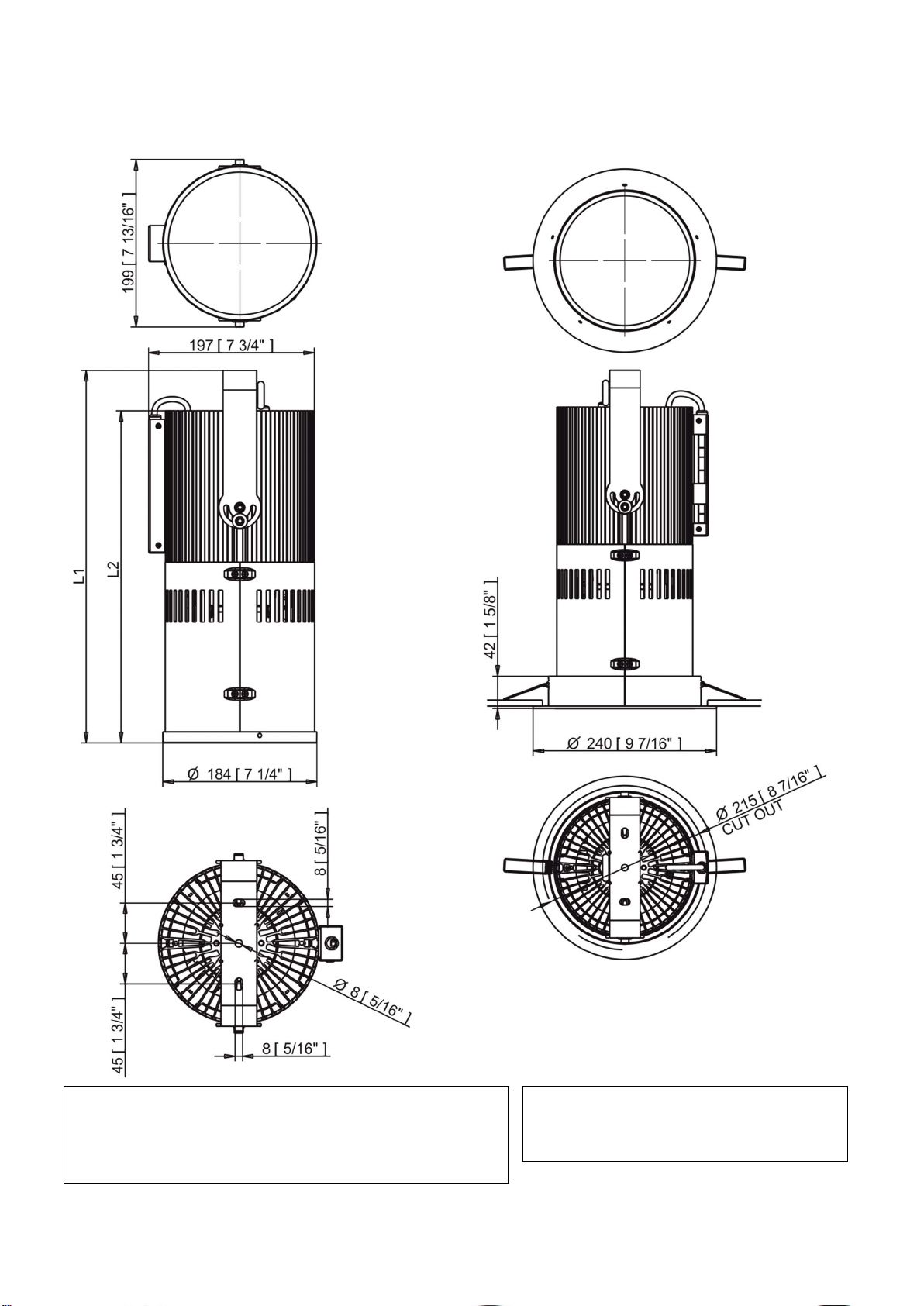

Dimensions
mm [inch]
Ambiane
XP56
20°/
30
°, L2
=395
[15 9/16”]
Ambiane XP56 45°, L2=370 [14 9/16”]
Ambiane
XP56
60°, L2
=341
[13 7/16”]
Dimension L1 depends on U
-
holder position
Ambiane XP56 20°/30°, L1=448 [17 5/8”] – 528 [20 13/16”]
Ambiane XP56 45°, L1=423 [16 5/8”] – 503 [19 13/16”]
Ambiane XP56 60°, L1=394 [15 1/2”] – 474 [18 11/16”]
Ambiane XP56 Recessed with T
op frame

Ambiane XP56 Recessed
17
Ambiane XP56 Recessed with Louver 5° Ambiane XP56 Recessed with Louver 10°

Ambiane XP56 Recessed
18
Ambiane XP56 Recessed in the false ceiling mounting adaptor

Ambiane XP56 Recessed
19

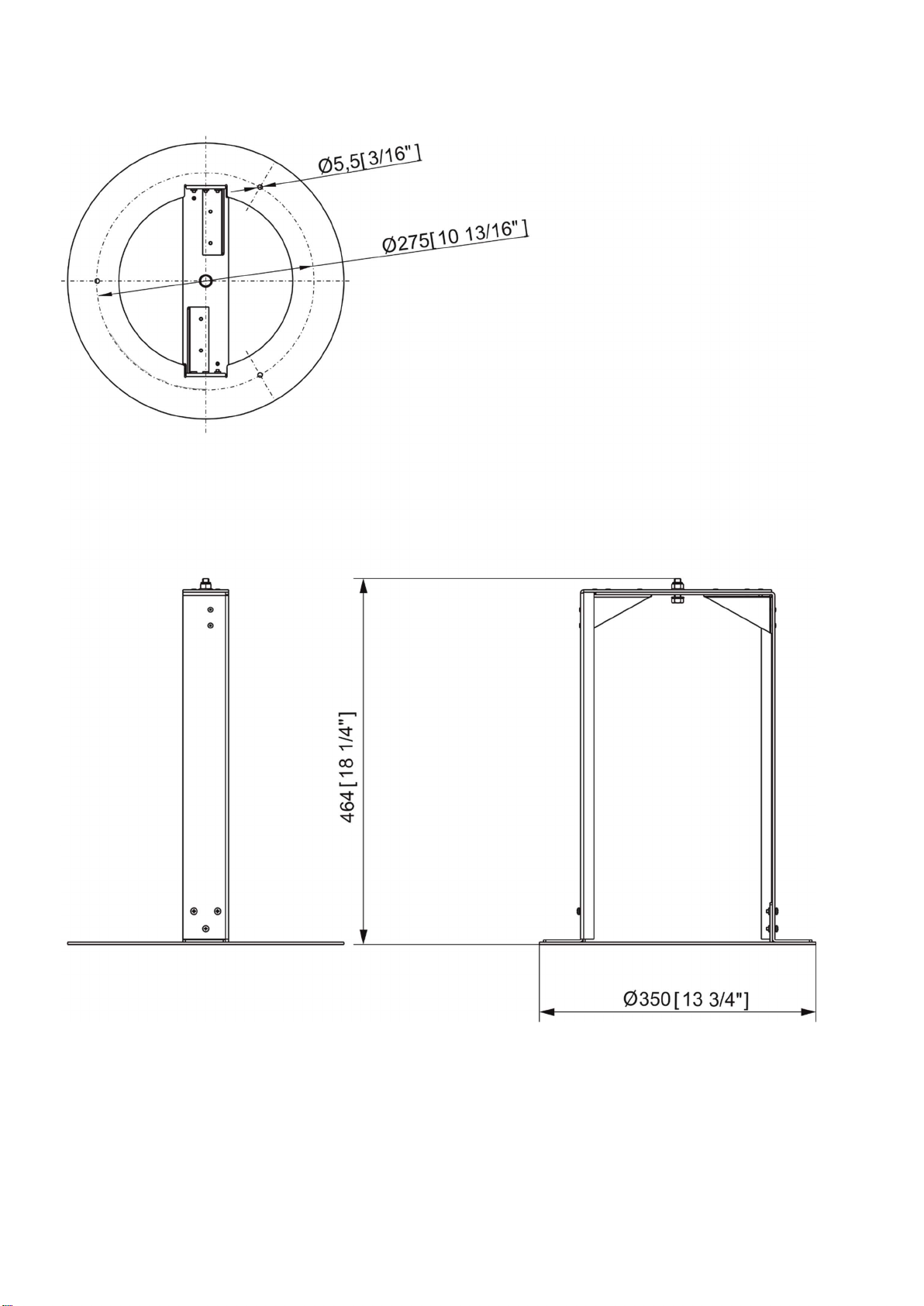

False ceiling mounting adaptor

Ambiane XP56 Recessed
20
Top frame for Ambiane XP Recessed
Louver 5° for Ambiane XP Recessed
