Robe ArcSource Outdoor 16 MC Integral RGBW US User manual

Version 1.
9
US

ArcSource Outdoor 16 MC Integral US
2
Table of contents
1. Safety instructions ...................................................................................................................................................... 3
2. Fixture exterior view ................................................................................................................................................... 5
3. Installation .................................................................................................................................................................. 5
3.1 Mounting the fixture ............................................................................................................................................ 5
3.2 Top hat (Half top hat ) installation ....................................................................................................................... 6
3.3 Connection to the mains ...................................................................................................................................... 7
4. Wireless DMX operation ........................................................................................................................................... 10
5. ArcSource Outdoor 16 MC Integral US (RGBW) - DMX protocol .............................................................................. 11
6. ArcSource Outdoor 16 MC Integral US (RGBA) - DMX protocol ............................................................................... 12
7. ArcSource Outdoor 16 MC Integral US (SmartWhite) - DMX protocol ..................................................................... 13
8. ArcSource Outdoor 16 MC Integral US (Single colour) - DMX protocol ................................................................... 13
9. Control menu map .................................................................................................................................................... 14
10. Fixture menu ........................................................................................................................................................... 20
10.1 Fixture Address ................................................................................................................................................. 20
10.2 Fixture information ........................................................................................................................................... 20
10.3 Personality ........................................................................................................................................................ 21
10.4 Manual mode .................................................................................................................................................... 22
10. 5 Test sequences................................................................................................................................................. 22
10.6 Stand-alone setting ........................................................................................................................................... 22
10.7 Special functions ............................................................................................................................................... 23
11. RDM ........................................................................................................................................................................ 26
12. Technical specifications .......................................................................................................................................... 27
13. Cleaning and maintenance ..................................................................................................................................... 30

ArcSource Outdoor 16 MC Integral US
3
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE POWERING OR INSTALLING YOUR ArcSource Outdoor 16 MC Integral US !
Save it for future reference.
This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a
safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in
this manual.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual
or any unauthorized modification to the device.
Please consider that damages caused by manual modifications to the device are not subject to warranty.
1. Safety instructions
DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT!
Make sure that the available voltage is not higher than stated on the rear panel of the fixture.
This fixture should be operated only from the type of power source indicated on the marking label. If you are not
sure of the type of power supplied, consult your authorized distributor or local power company.
Always disconnect the fixture from AC power before cleaning, removing or installing the fuses, or any part.
Do not overload wall outlets and extension cords as this can result in fire or electric shock.
Make sure that the power cord is never crimped or damaged by sharp edges. Check the fixture and the power cord
from time to time.
Do not install the unit near naked flames.
During the operation the housing becomes hot (up to 80°C)
Refer servicing to qualified service personnel.
This fixture falls under protection class I. Therefore this fixture has to be connected to a mains socket outlet with
a protective earthing connection.
Do not connect this fixture to a dimmer pack.
LED light emission. Risk of eye injury.
Do not look straight at the fixture´s LEDs during operation. The intense light beam may damage your eyes.
Keep compustible materials at least 20 cm away from the fixture.
If the fixture has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on
immediately. The arising condensation water might damage your device. Leave the device switched off until it has
reached room temperature.

ArcSource Outdoor 16 MC Integral US
4
Avoid brute force when installing or operating the fixture.
The fixture was designed for outdoor use. This fixture must not be used for underwater installation.
When choosing the installation spot, please make sure that the fixture is not exposed to extreme heat or dust.
Avoid using the unit in locations subject to possible impacts.
The fixture body never must be covered with cloth or other materials.
Only operate the fixture after having checked that the housing is firmly closed and all screws are tightly fastened.
Make sure that the area below the installation place is blocked when rigging, derigging or servicing the fixture.
Do not block the front objective LEDs with any object when the fixture is under operation.
The fixture becomes very hot during operation. Allow the fixture to cool approximately 30 minutes prior to
manipulate with it.
Operate the fixture only after having familiarized with its functions. Do not permit operation by persons not
qualified for operating the fixture. Most damages are the result of unprofessional operation!
Do not attempt to dismantle or modify the unit.
Please consider that unauthorized modifications on the fixture are forbidden due to safety reasons!
Please use the original packaging if the fixture is to be transported.
If this device will be operated in any way different to the one described in this manual, the product may suffer
damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short-
circuit, burns, electric shock etc.
Immunity of the equipment is designed for electromagnetic environments E1, E2, E3 according to the standard
EN55103-2 ed.2 Electromagnetic compatibility. Product family standard for audio, video, audiovisual and
entertainment lighting control apparatus for professional use. Part 2: Immunity.
The installation company should check levels of possible interferences above the tested levels E1,E2,E3 given by
this standard (e.g. transmitters in surrounding area) before installing the equipment.
Emission of the equipment complies with the standard EN55032 Electromagnetic compatibility of multimedia
equipment – Emission Requirements according to class B.

ArcSource Outdoor 16 MC Integral US
5
2. Fixture exterior view
3. Installation
3.1 Mounting the fixture
The ArcSource Outdoor 16 MC Integral US can be arranged in any position orientation.
The LED module can be tilted to desired position by means of the tilt lock. Use an Allen key 6 to adjust desired
position (0-90°).

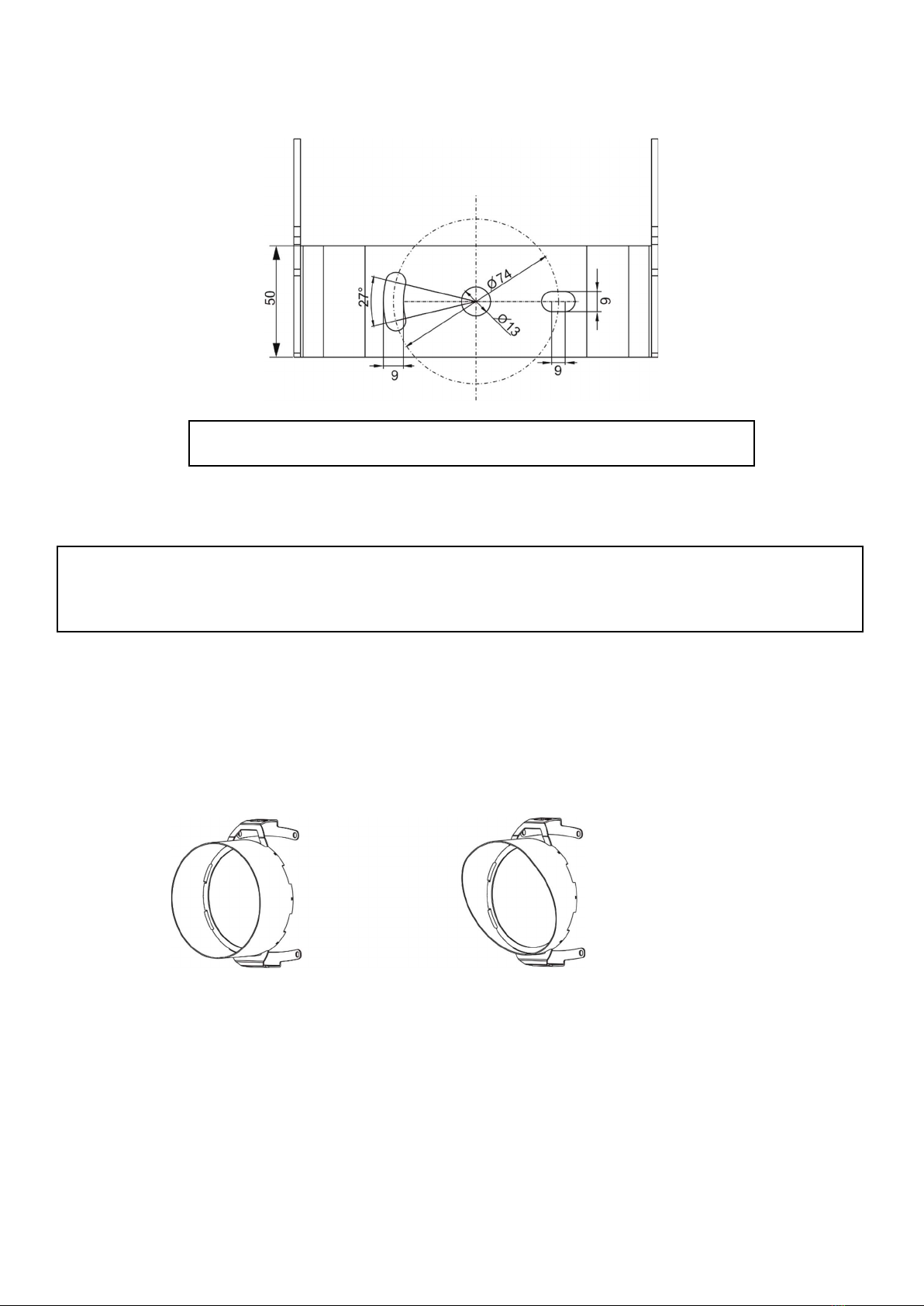

Three openings in the fixture “U” holder serve for mounting on the non-flammable flat surface
1. LED unit
2. Control unit
3. Antenna (only wireless DMX version)
4. Tilt adjusting locks
5. „U“ bracket
6. Control board with anti-vandal cover
7. Power/Data cable
8. LED unit connecting cable

ArcSource Outdoor 16 MC Integral US
6
Ensure that the structure to which you are attaching
the fixture is secure
Caution: Overhead installation requires experience. Fixtures may cause severe injuries when crashing down! If you
have doubts concerning the safety of a possible installation, do not install the device and consult installation with
an expert.
Warning for wireless DMX version!
The fixture is supplied with the cap screwed on the antenna connector. This cap provides declared IP rating of the
fixture but when the cap is removed, the enclosed antenna must be installed on the fixture to keep declared IP
rating of the fixture!
There is a possibility to install the LED unit and the control unit separately. Four holes with diameter of 5.3mm in
the control unit are intended for mounting on a flat, non-flammable surface. The length of the connection cable
between the control unit and the LED unit should not exceed 20 m.

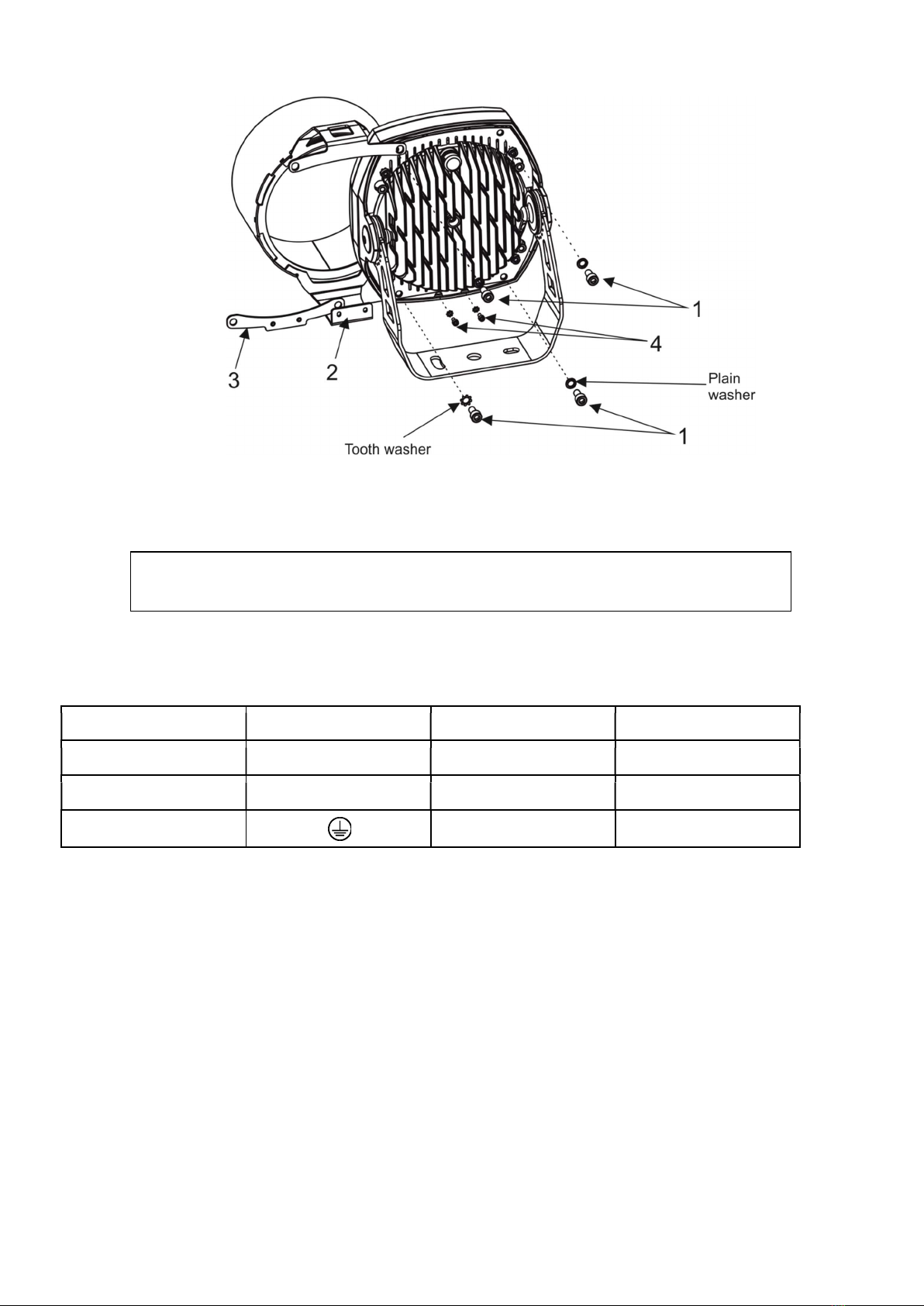

3.2 Top hat (Half top hat ) installation
Top hat Half top hat
1. Unscrew the four socket head screws M6x10 (1) in the ArcSource Outdoor 16 MC housing and slide the
top hat (2) onto ArcSource outdoor 16 MC Integral US.
2. Screw the holder (3) to the top hat (2) by means of the two screws (4) with tooth washers
3. Secure the top hat on the fixture with four socket head screws M6x10 (1) .

ArcSource Outdoor 16 MC Integral US
7
3.3 Connection to the mains
Fixtures must be installed by a qualified electrician in accordance with all national
and local electrical and construction codes and regulation.
This device falls under class one and must be grounded!
The ArcSource Outdoor 16 MC Integral US is equiped with with a 5-cored power/data cable. The 3 cores serve for
the power supply and next 2 shielded cores are intended for DMX connection as shown the table.
Core
Connection
Core
Connection
Black
Live
Red
Data +
B
lue
Neutral
White
Data
-
Yellow/Green
Shielding
0

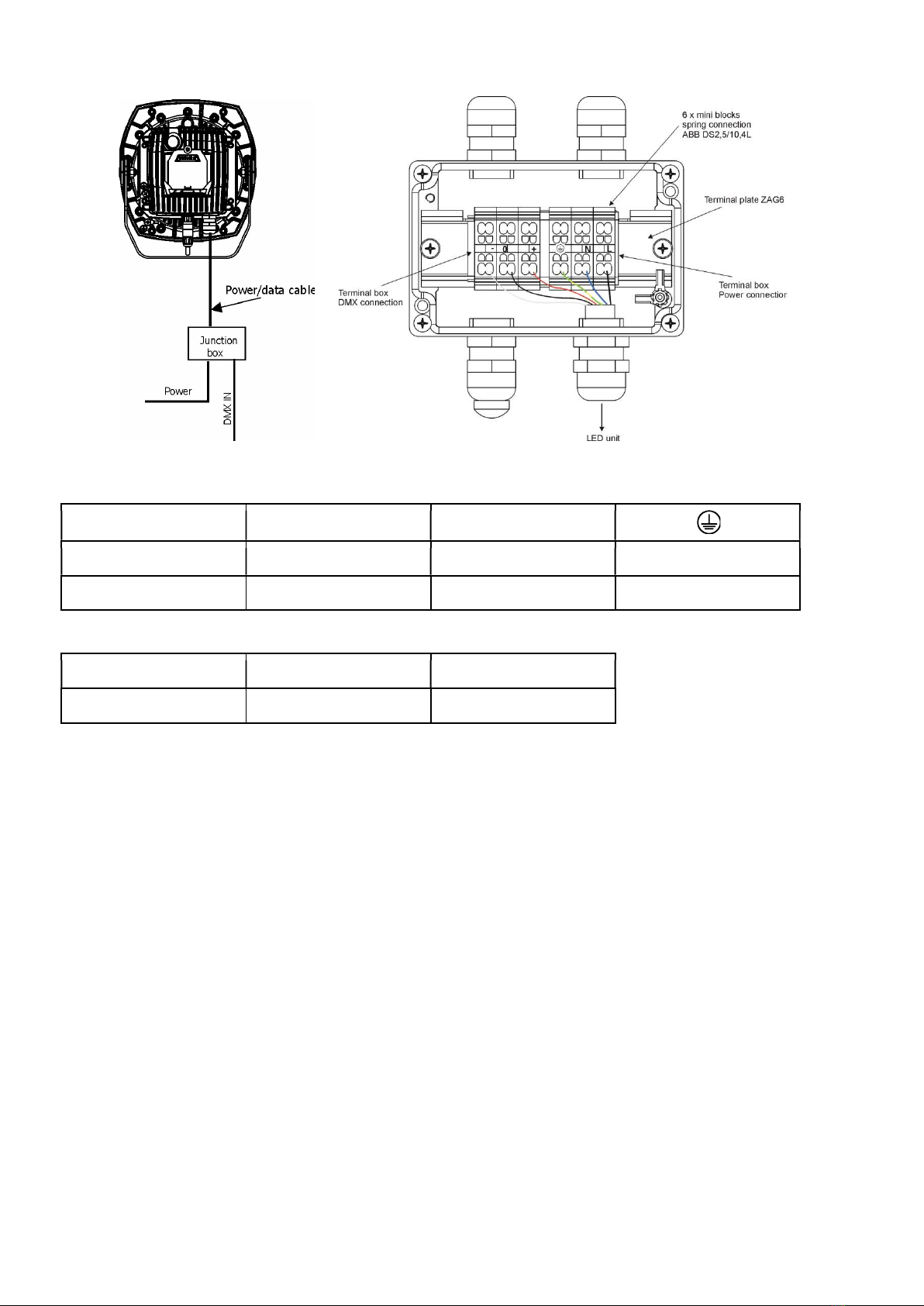

The power/data cable is connected to a junction box as shown on the picture below.

ArcSource Outdoor 16 MC Integral US
8
Connect the junction box acording to the tables below
Power connection
L
N
EU
Braun
Blue
Green/yellow
US
Black
White
Green
DMX connection
+
0
-
Data +
Data ground(shielding)
Data
-
Remove end caps from cable glands before passing cables into the junction box. The four cable glands M20 with
standard seals serve for cable of diameter of 6-12mm, for smaller diameter of cable (4-8mm) you have to remove
original sealing from the cable gland M20 and use the enclosed reducing seal instead it. Four reducing seals for
diameter of cable 4-8mm (P/N 13051388) are enclosed.
Fully tighten cable gland nuts and check that cables are properly fastened in the cable glands.
Note: To keep declared IP rating, every cable gland has to be covered with the end cap if this cable gland is not
used for cable passing.
Screw the cover of the junction box and check that it is fully tighten.

ArcSource Outdoor 16 MC Integral US
9
The junction box allows to connect several fixtures in a daisy chain of the power/data cable. Use the 3 x 1.5mm2
power cable to connect the first junction box with the mains and the power/data cable for connecting fixtures
each other. Do not overload the supply line and the connecting leads.
The max. number (theoretical) of connected fixtures in a daisy chain depends on the input voltage:
60 fixtures at power supply= 230V (for power cable 3 x 1.5mm2)
24 fixtures at power supply= 120V (for power cable 3 x 1.5mm2)
You have to take into account the the length of the power/data cable, circuit breaker, inrush current etc. at
projecting of the fixtures installation.

ArcSource Outdoor 16 MC Integral US
10
4. Wireless DMX operation
The wireless version of the ArcSource Outdoor 16 MC Integral US is equipped with the Lumen Radio CRMX module
and antenna for receiving DMX signal. CRMX module operates on the 2.4 GHz band.
To link the fixture with the DMX transmitter
Select option “Wireless“ from the menu PErS (PErS-->DMX In.--> Wireless).
The fixture can be linked with the transmitter by running the link procedure at DMX transmitter .
After linking , the level of DMX signal (in %) is displayed in the menu item “Stat“ (Special-->Wireless-->Stat.)
To unlink the fixture from DMX transmitter.
The fixture can be unlinked from DMX transmitter via the menu item “Unlink“ (Special-->Wireless-->Unlink.)
Note: The ArcSource Outdoor 16 MC Integral US sends received wireless DMX signal to its wired DMX output. The
fixture behaves as a " Wireless/Wired" adaptor.
E.g. You have 5 fixtures, one fixture is equipped with the wireless DMX module and 4 fixtures are standard fixtures
without wireless DMX module. The first fixture receives wireless DMX and sents this signal to the rest of fixures,
which are connected to the first fixture by means of the DMX cable in a DMX chain.

ArcSource Outdoor 16 MC Integral US
11
5. ArcSource Outdoor 16 MC Integral US (RGBW) - DMX protocol
Version 1.1
Mode/Channel
Value Function Type of control
1
2
3
4
-
1
1
1
0 - 255
Red LEDs
Red LEDs saturation control (0-100%) proportional
-
2
2
2
0 - 255
Green LEDs
Green LEDs saturation control (0-100%) proportional
-
3
3
3
0 - 255
Blue LEDs
Blue LEDs saturation control (0-100%) proportional
-
-
4
4
0 - 255
White LEDs
White LEDs saturation control (0-100%) proportional
-
-
-
5
0
1-255
CT0
No function
Colour temperature correction (0-100%)
proportional
1
-
-
6
0
1-2
3
4-5
6
7-9
10-12
13-15
16
17-55
56
57 - 95
96
97 – 134
135
136 - 174
175
176 -214
215
216 – 246
247
248-251
252-255
Virtual colour wheel
No function (for DMX mode 4)
White (R+G+B+W=full for DMX mode 1)
White 2700 K
White 2700 K (Halogen lamp mode)
White 3200 K
White 3200 K (Halogen lamp mode)
White 4200 K
White 5600 K
White 8000 K
Blue (Blue=full, Red+Green+White=0)
Red=0, Greenup,Blue =full, White=0
Light Blue (Red=0, Green=full, Blue =full, White=0)
Red=0, Green=full, Bluedown, White=0
Green (Red=0, Green=full, Blue =0, White=0)
Redup, Green=full, Blue=0, White=0
Yellow-green (Red=full, Green=full, Blue=0, White=0)
Red=full, Greendown, Blue=0, White=0
Red(Red=full, Green=0, Blue=0, White=0)
Red=full, Green=0, Blueup, White=0
Magenta (Red=full, Green=0, Blue=full, White=0)
Reddown, Green=0, Blue=full, White=0
Blue (Red=0, Green=0, Blue=full, White=0)
Rainbow effect with fade time (fast slow)
Rainbow effect without fade time (fast slow)
step
step
step
step
step
step
step
step
step
proportional
step
proportional
step
proportional
step
proportional
step
proportional
step
proportional
step
proportional
proportional
2
-
-
7
0 - 255
Dimmer
Dimmer intensity from 0% to 100% proportional
-
-
-
8
0 - 255
Dimmer fine
Fine dimmer intensity from low to high
Proportional

ArcSource Outdoor 16 MC Integral US
12
6. ArcSource Outdoor 16 MC Integral US (RGBA) - DMX protocol
Version 1.1
Mode/Channel
Value Function Type of control
1
2
3
4
-
1
1
1
0 - 255
Red LEDs
Red LEDs saturation control (0-100%) proportional
-
2
2
2
0 - 255
Green LEDs
Green LEDs saturation control (0-100%) proportional
-
3
3
3
0 - 255
Blue LEDs
Blue LEDs saturation control (0-100%) proportional
-
-
4
4
0 - 255
Amber
LEDs
Amber LEDs saturation control (0-100%) proportional
-
-
-
5
0
1-255
CT0
No function
Colour temperature correction (0-100%)
proportional
1
-
-
6
0
1-2
3
4-5
6
7-9
10-12
13-15
16
17-55
56
57 - 95
96
97 – 134
135
136 - 174
175
176 -214
215
216 – 246
247
248-251
252-255
Virtual colour wheel
No function (for DMX mode 4)
White (R+G+B=full for DMX mode 1)
White 2700 K
White 2700 K (Halogen lamp mode)
White 3200 K
White 3200 K (Halogen lamp mode)
White 4200 K
White 5600 K
White 8000 K
Blue (Blue=full, Red+Green+Amber=0)
Red=0, Greenup,Blue =full, White=0
Light Blue (Red=0, Green=full, Blue =full, Amber =0)
Red=0, Green=full, Bluedown, Amber =0
Green (Red=0, Green=full, Blue =0, Amber =0)
Redup, Green=full, Blue=0, Amber =0
Yellow-green (Red=full, Green=full, Blue=0, Amber =0)
Red=full, Greendown, Blue=0, Amber =0
Red(Red=full, Green=0, Blue=0, Amber =0)
Red=full, Green=0, Blueup, Amber =0
Magenta (Red=full, Green=0, Blue=full, Amber =0)
Reddown, Green=0, Blue=full, Amber =0
Blue (Red=0, Green=0, Blue=full, Amber =0)
Rainbow effect with fade time (fast slow)
Rainbow effect without fade time (fast slow)
step
step
step
step
step
step
step
step
step
proportional
step
proportional
step
proportional
step
proportional
step
proportional
step
proportional
step
proportional
proportional
2
-
-
7
0 - 255
Dimmer
Dimmer intensity from 0% to 100% proportional
-
-
-
8
0 - 255
Dimmer fine
Fine dimmer intensity from low to high
Proportional

ArcSource Outdoor 16 MC Integral US
13
7. ArcSource Outdoor 16 MC Integral US (SmartWhite) - DMX protocol
Version 1.1
Mode/Channel
Value Function Type of control
1
2
3
1
-
1
0 - 255
Warm white
LEDs
Warm white LEDs saturation control (0-100%) proportional
2
-
2
0 - 255
Cool white
LEDs
Cool white LEDs saturation control (0-100%) proportional
-
1
3
0
1-2
3-4
5-6
7-8
9-10
11-12
13-14
15-16
17-247
248
249
250-255
Colour wheel
No function
White 2800 K
White 3200 K
White 3800 K
White 4200 K
White 4600 K
White 5000 K
White 5600 K
White 6300 K
Warm white --> Cool white
Rainbow effect (with fade time)
Rainbow effect
Reserved
step
step
step
step
step
step
Step
step
proportional
step
step
-
2
4
0 - 255
Dimmer
Dimmer intensity from 0% to 100% proportional
- -
5
0 - 255
Dimmer fine
Fine dimmer intensity from low to high proportional
8. ArcSource Outdoor 16 MC Integral US (Single colour) - DMX protocol
Version 1.1
Mode/Channel
Value Function Type of control
1
2
1
1
0 - 255
Dimmer
Dimmer intensity from 0% to 100% proportional
- 2 0 - 255
Dimmer fine
Fine dimmer intensity from low to high proportional

ArcSource Outdoor 16 MC Integral US
14
9. Control menu map
Default settings=Bold print
Menu
Level 1
Menu Level 2
Menu Level 3
Menu Level 4
Menu Level 5
Menu Level 6
DMXA
0001
Set DMXA
00
0
1
-
0512
InFo
P
On Time
.
Total
Reset
DM
X
In
REd
0
-
255
:
Dimmer F
0
-
255
Temp
.
Cur
rent
Led
Board
Hi
ghest
Led
Board
High Res.
Led
Board
Sw Ver.
IC
-
1
IC
-
2
PErS
DMX Pres
Mod.1
Mod.2
Mod.3
Mod.4
RGB Cnt
Active, Deactive
DMX In
Wired
Wireless
Vrle
Out
Analog 0
-
10v
M.
FTime
2
-
25.5
Display
Turn

ArcSource Outdoor 16 MC Integral US
15
Menu Level 1
Menu Level 2
Menu Level 3
Menu Level 4
Menu Level 5
Menu Level 6
On/Off T
On,
Off
Contrast
0
-
100%
Backlight
0
-
100%
Temp Uni
°
C
, °F
I
Ef
Po
s
Red
0
-
255
Green
0
-
255
Blue
0
-
255
White
(Amber)
0
-
255
CTC
0
-
255
C Wheel
0
-
255
Strobe
0
-
255
Dimmer
0
-
255
Dimmer F
0
-
255
Stor
e
Defaults
M
a
n
ual
Red
0
-
255
:
:
Dimmer F
0
-
255
Test Prg
St ALone
Auto
Run
Off
Test
Prog 1
:
Prog 3
Pr Play
Test Prg
Prog 1
:
Prog 3

ArcSource Outdoor 16 MC Integral US
16
Menu Level 1
Menu Level 2
Menu Level 3
Menu Level 4
Menu Level 5
Menu Level 6
Pr Edit
Prog 1
Step 01
Prg End
1
-
40
:
:
Red
0
-
255
Prog 3
Step 40
:
:
F.Tim.
0
-
25.5 sec
Copy
S
pecial
rdM
L
ow
rdM
H
igh
LED type
RGBW
Sin. Col.
Smart. W.
RGBA
Wireless
Stat
, Unlink
IniBlink
On
,
Off
Flicker freeM
On
,
Off
Adjust
DMX Val
Red
0
-
255
:
Dimmer F
0
-
255
Cal Col
Red C
0
-
255
:
Store
Cal.temp
2700K
Red C
0
-
255
Grn C
0
-
255
Blu C
0
-
255
Whi C
0
-
255
Store
3200K
4200K
5600K
8000K
Cal.Def.

ArcSource Outdoor 16 MC Integral US
17
Menu
Level 1
Menu Level 2
Menu Level 3
Menu Level 4
Menu Level 5
Menu Level 6
Sw Upd
No/Yes
RDM menu (e.g. for the Robe Universal Interface WTX, because this device cannot display 2-row display of the
ArcSource Outdoor 16 MC Integral US)
Default settings=Bold print
Menu Level 1
Menu Level 2
Menu Level 3
Menu Level 4
Menu Level 5
Menu Level 6
A001
Dm.Ad.
A001
InFo
P
oti
totl
rSEt
DM
.
In
rEd
0
-
255
:
dim
0
-
255
tEM
P
.
Cur
. t.
LEd
board
Hi
.tE.
LEd
board
rSEt
.
LEd
board
VErS.
IC1
IC2
PErS
D
M.Pr.
Mod.1
Mod.2
Mod.3
Mod.4
DM
. In
Wird
rAdI
AnL.d.
M.F. ti.
2
-
25.5
tEM.u.
°
C
, °F

ArcSource Outdoor 16 MC Integral US
18
Menu Level 1
Menu Level 2
Menu
Level 3
Menu Level 4
Menu Level 5
Menu Level 6
In.Po.
rEd
GrEn
bLuE
WhIt
CtC
C.vhE
Stro
dimr
F.dim
SAVE
dF. SE.
M
a
n
. M.
rE
d
0
-
255
:
:
Dim F
0
-
255
tESt
St
. AL
Auto
O
FF
tESt
Pr
G
1
:
Pr
G
3
PLAY
tEst
Pr
G1
:
Pr
G3
Edit
Pr
G
1
St
.
01
P End
1
-
40
:
:
rEd
0
-
255
Pr
G3
St
.
40
:
:
S.
t
im.
0
-
25.5

ArcSource Outdoor 16 MC Integral US
19
Menu Level 1
Menu Level 2
Menu Level 3
Menu
Level 4
Menu Level 5
Menu Level 6
F.
t
im.
0
-
25.5
C
OP
y
S
PEC
rdM
.
L
.
rdM
.
H
.
t. LEd
rGbV
Si. Co.
S
M
.
Vh.
rAdI.
Stat
Un
Li
I
.bLi.
On
, Off
F
. FrE
On
,
Off
Adj
Man.M
rEd
0
-
255
:
F. dinr
0
-
255
C
AL.
C
.
rEd. C.
0
-
255
GrE.C
0
-
255
bLu.C.
0
-
255
VhI.C.
0
-
255
S
AVE
C
AL. t.
2700
rEd. C.
0
-
255
GrE.C
0
-
255
bLu.C.
0
-
255
VhI.C.
0
-
255
S
AVE
3200
4200
5600
8000
C
A
.
dF
.
Upd
n
o/
yES

ArcSource Outdoor 16 MC Integral US
20
10. Fixture menu
The control panel menu allows to set the fixture according to your needs, obtain information on its operation and
manual control of all effects.
The four control buttons on the front have the following functions:
- ESCAPE button-leaves menu without saving changes.
- ENTER button- enters menu, confirms adjusted values and leaves menu.
- UP and - DOWN buttons - move between menu items on the same level, sets values.
10.1 Fixture Address
Use this menu to set the DMX address of the fixture.
Set DMXA --- Set DMX address. Select this submenu to set a DMX start address.
To set a DMX address.
1. Use the UP/DOWN buttons to find “ DMXA/0001“ menu.
2. Press the ENTER button.
3. Use the UP/DOWN buttons to select desired start address.
4. Press the ENTER button to confirm the choice.
Note: After switching on, the ArcSource Outdoor 16 MC Integral US will automatically detect whether DMX 512
data is received or not.
If there is no data received at the DMX input, the display will start to flash with actually set address.
10.2 Fixture information
Use this menu to read useful information about the fixture status.
To display desired information.
1. Use the UP/DOWN buttons to find the “ InFo“ menu.
2. Press the ENTER button.
3. Use the UP/DOWN buttons to select the required menu item.
4. Press the ENTER button to confirm the choice.
Pon Time ---Power On Time. Use the menu item to read the number of operation hours of the fixture.
Total - the function shows the total number of the operation hours since the ArcSource Outdoor 16
MC Integral US has been fabricated.
Reset - the function shows the number of the operation hours that the ArcSource Outdoor 16 MC
Integral US has been powered on since the counter was last reset.
In order to reset this counter to 0 you have to press and hold the UP and DOWN buttons and at the
at the same time press the ENTER button.
DM In ---DMX values. Select this function to read DMX values of each channel received by the fixture.
Temp ---Fixture Temperatures. Select this menu to read the temperatures of the fixture:
Current --- the current temperature of the fixture inside.
Highest - the menu item shows the max. temperatures of the fixture inside since
the ArcSource Outdoor 16 MC Integral US has been fabricated.
High Res. --- the menu item shows the maximum temperatures of the fixture inside since
the counter was last reset. In order to reset this counter to 0 you have to press and hold the UP
and DOWN buttons and at the at the same time press the ENTER button.
