ROBO-TEK Robo-Plus V2 User manual

Robo-Plus V2
User Manual and Safety Warnings
Please read this manual carefully before using the Pool Cleaner.
Before performing maintenance or service on the Pool Cleaner please ensure the power is
disconnected to avoid personal injury or property loss.
The Pool Cleaner is designed for use in swimming pools only. Any other use is prohibited and no
warranty will be provided.
Do not swim in the pool whilst the Pool Cleaner is in use in order to avoid personal injury.
Do not allow the Control Box to come in contact with water and it is recommended to be placed in
a dry and shaded area.
Do not cover the Control Box whilst Pool Cleaner is in use, to avoid overheating.
When in use, the Control Box and Caddy Cart must remain 3 meters away from the edge of the pool.
Do not use the Pool Cleaner if there is a chance of thunder storm to avoid personal injury.
Ensure the Pool Cleaner is fully submerged before turning the Control Box on.
After use, make sure the Control Box is disconnected from the pool cleaner and store everything
in a safe, dry and well-ventilated area.
If the Pool Cleaner stops working, please refer to the“Troubleshooting”section of this manual.
If you cannot find the root cause, please contact your local distributor.
The optimum working temperature for the Pool Cleaner is between 10℃ and 35℃，
Avoid direct sunlight when not in use.
Remove the robot from the pool after use
The Pool Cleaner is suitable for the swimming pools no deeper than 3 meters.
Lift the Pool Cleaner out of the water by using the Pool Cleaner handle.
Do not lift the Pool Cleaner using the floating cable, as no warranty will be provided for cable misuse.
Do not use the Pool Cleaner more than 4hrs at a time (limit of 8Hrs applies for
commercial pool cleaners.).
Ensure the electrical outlet is protected by a ground fault interrupter (GFI) or an
earth leakage interrupter (ELI).
If the supply cord is damaged, order a replacement cable from the local distributor.

Children should be supervised to ensure that they do not play with the appliance.
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
The Pool Cleaner must not be used when people are in the water.
Using The Pool Cleaner

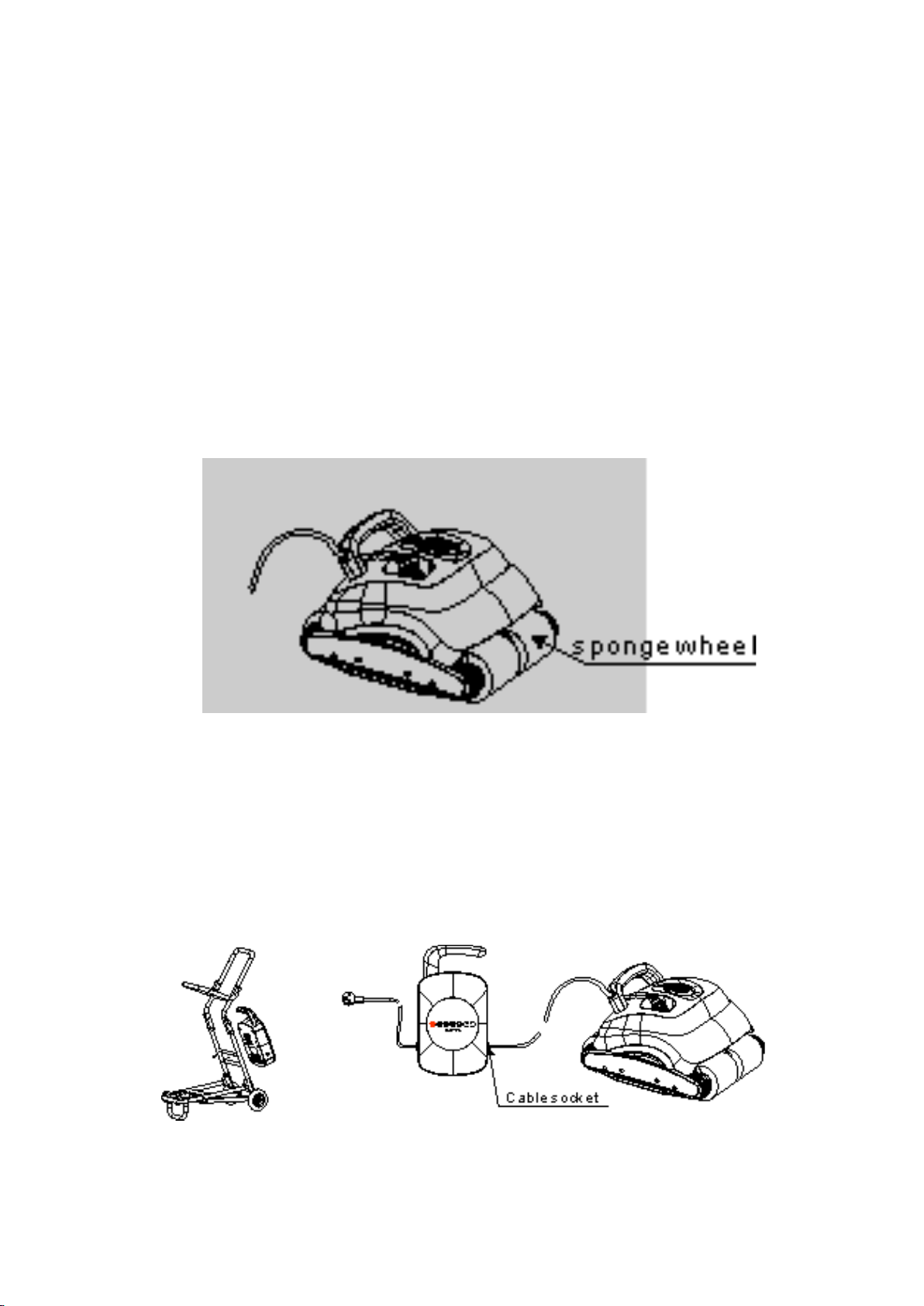

1. Place the Pool Cleaner into the pool until the sponge wheel are soft, Turn the Pool Cleaner upside down
to release the air inside. The Pool Cleaner will sink to the bottom of the pool automatically.
2. Attach the control box to the caddy with the screws. Unscrew the socket safety cap and insert the floating cable plug into the
socket of the Control Box.

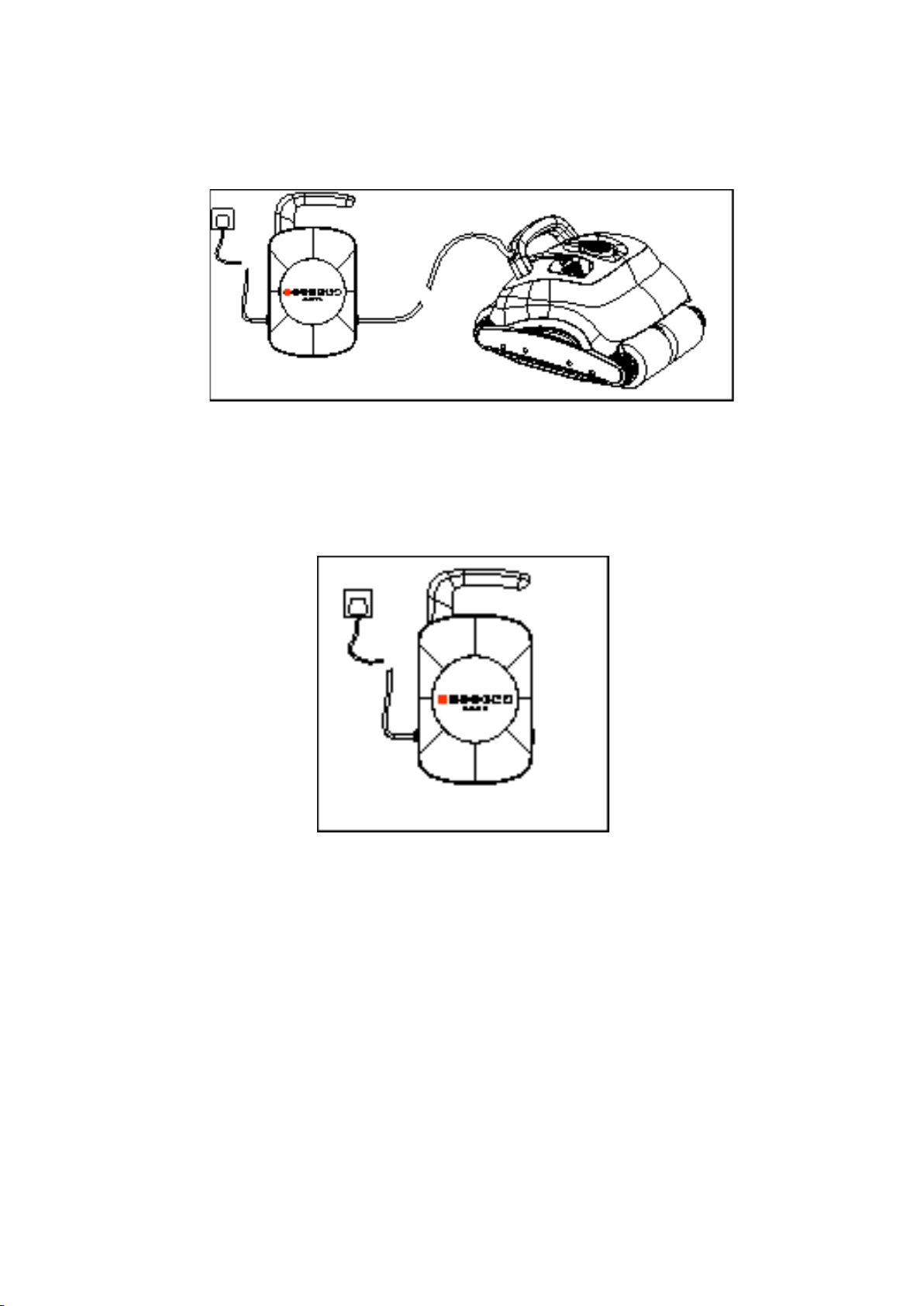

3. Connect the Control Box to an outside AC power of 100v/240v 50/60Hz with a earth leakage detection device.
Notice: Do not allow the Control Box to come in contact with water. Please ensure the Control Box is placed in a dry, shaded
area.
4. Please press the red power button on the Control Box or on the Remote Control.

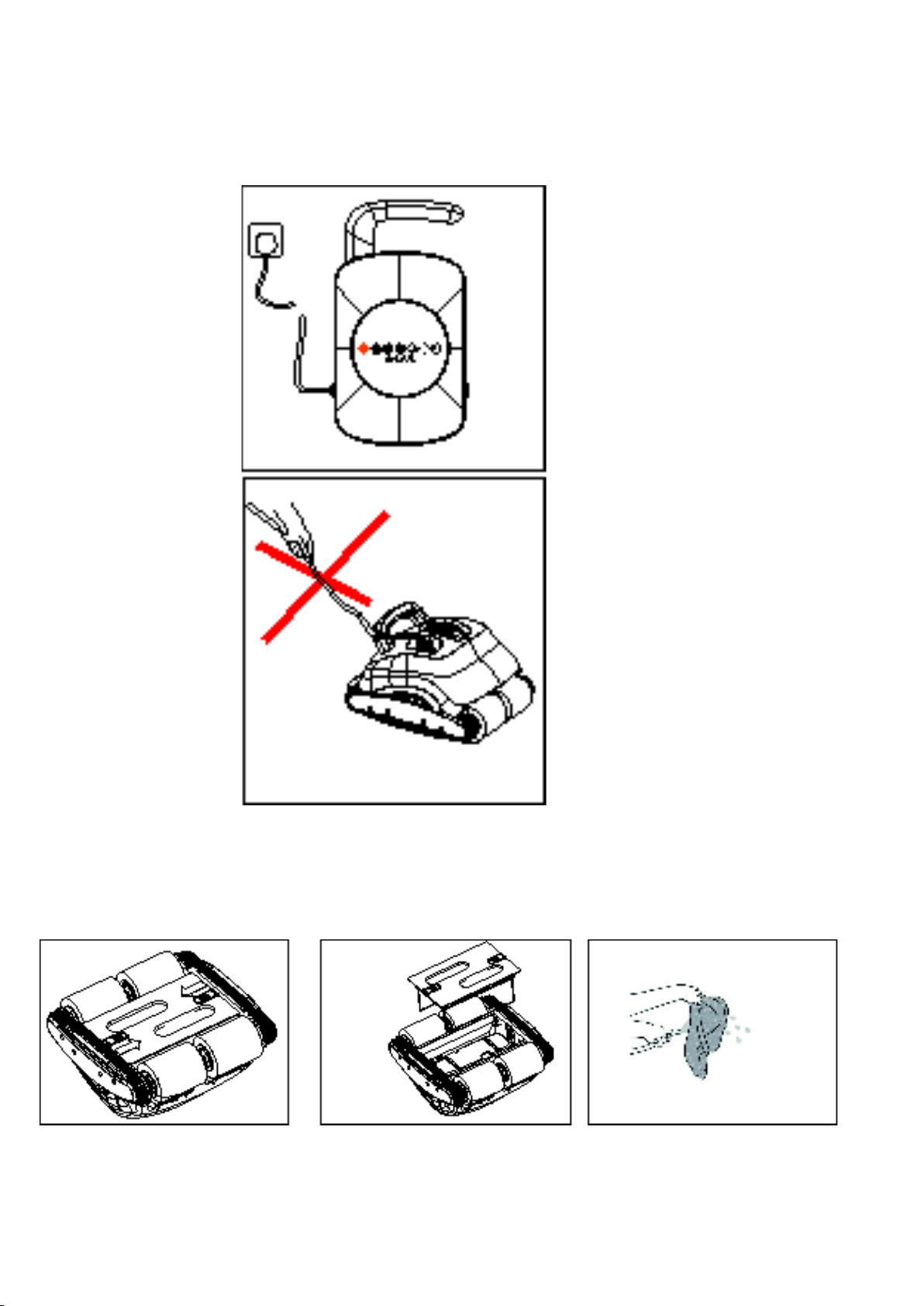

5. When the cleaning cycle is completed, Unplug the 100V/240v socket. Pull the robot out of the pool by the handle on the Pool
Cleaner. NOTE: Do not lift the Pool Cleaner out of the water by using the floating cable.
6. Remove the Base Plate and clean the Filter Bag:
Unlock the Latches on the Base Plate and remove the Filter Bag from Base Plate, clean the Filter Bag. Once clean
put the Filter Bag back onto its frame and put it back into the Pool Cleaner after the Filter Bag is dry.
(Note: when re-fitting the Filter Bag to the Base Plate, please ensure the short side “TAG” is at one of the short ends of the
base plate).

7.At the end of the cleaning cycle, wind the floating cable in a circle by hand and place it on the Pool Cleaner,
and then store the Pool Cleaner in a dry, well-ventilated area. If you have a caddy, please put the Pool Cleaner
floating cable on the caddy.
Power Button
Hold Button until robot turns in the direction required.
Short press to make the robot reverse the direction of travel.
Short press to make the robot reverse the direction of travel
Short press to commence climbing Model
Short press until prefered Delayed
Start time is selected 4,8,12hours(not available in Australia)
Short press to select the time cycle.
Lights-Control Box with Delayed start Function (Not available in
Australia).
Light1: standly mode and No Climb mode is RED. Climb mode
Green.
When press to select the time cycle:
Light 2: For the working time 0.5h.
Light 3: For the working time 1h.
Light 4: For the working time 2h.
When press the delayed start time:
Light 2: For delayed 4hrs.
Light 3: For delayed 8hrs.
Light 4: For delayed 12hrs.
Lights-Control Box without Delayed Start Function
Light 1: Standly mode is Red, No climb mode is Blue,
Climb mode Green.
When press to select the time cycle:
Light 2: For the working time 0.5h.
Light 3:For the working time 1h.
Light 4: For the working time 2h.

Troubleshooting：
Note: The power MUST BE DISCONNECTED from the Control Box prior to conducting any maintenance on the Pool Cleaner,
Contact your local distributor, or place of purchase for problems not covered in Trouble Shooting Guide.
Common fault
Reason
Solution
Remarks
Pool Cleaner doesn’t work
Connection is wrong.
Plug in the Power lead, turn
on.
Please turn off the power
before you
perform any maintenance on
the Pool Cleaner.
Check the connection.
Debris not being collected
Impeller is jammed or dirty.
Check the Impeller.
Impeller is damaged.
Replace the Impeller.
Filter Bag is full.
Clean the Filter Bag.
Impeller cover is missing
Replace Impeller cover
Pool Cleaner is
turning in one direction
only
Drive Belt is loose.
or broken at one side.
Replace the Drive Belt.
The Filter Bag is full
Clean the Filter bag.
Pool Cleaner will
not sink to the
bottom of the pool
The Sponge Wheels are not
saturated.
You must hold Pool Cleaner in
water and make sure Sponge
wheel are soft
It has air inside the Pool
Cleaner
Invert Pool Cleaner and make
sure air is released, then re-
invert.
Dirt is coming
through the
Impeller Cover.
Belt of Filter Bag is loose or
broken.
Replace broken Filter Bag or
Replace with a finer Filter Bag.
Run Pool Filter simultaneously
over the next 2 days with the
pool cleaner.
Dirt is too fine or the Filter
Bag
