Roborock H7M1A Power User manual

Roborock Cordless Stick Vacuum
Cleaner Manual
Read this manual carefully before using this product and store it
properly for future reference.

English 03
Français 28
Español 54

Contents
04 Safety Information
07 International Symbols Explanation
07 FCC Statement
10 Product Introduction
11 Parts List
12 Display
13 Buttons
14 Installation
15 Use
18 Maintenance
25 Basic Parameters
26 Troubleshooting

04
IMPORTANT SAFETY INSTRUCTIONS
WARNING
Safety Information
When using an electrical appliance, basic precautions should always be followed, including the following:
•READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE).
•Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
To reduce the risk of fire, electric shock or injury:
•Do not use on wet surfaces. Do not expose to rain. Store indoors.
•Do not allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants.
•Use only as described in this manual. Use only manufacturer’s recommended attachments.
•Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into
water, return it to a service center.
•Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance
over cord. Keep cord away from heated surfaces.
•Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
•Do not handle Power Supply, including Power Supply plug, and Power Supply terminals with wet hands.
•Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air
flow.
•Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
•Use extra care when cleaning on stairs.
•Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
•Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
•Do not use without dust bag.
•Prevent unintentional starting. Ensure the switch is in the off-position before picking up or carrying the appliance. Carrying the appliance
with your finger on the switch or energizing appliance that have the switch on invites accidents.
•Recharge only with the Power Supply specified by the manufacturer. A Power Supply that is suitable for one type of battery pack may create
a risk of fire when used with another battery pack.

05
Safety Information
•Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
•When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal
objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
•Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
•Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior
resulting in fire, explosion or risk of injury.
•Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause
explosion.
•Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the
instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
•Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product
is maintained.
•Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.
•Always turn off this appliance before connecting or disconnecting motorized nozzle.
SAVE THESE INSTRUCTIONS
Household use only.

06
Safety Information
Battery and Charging
•Please keep the power supply away from heat (such as heating plates).
•For connection to a supply not in the U.S.A., use an attachment plug adapter of the proper configuration for the power outlet, if needed.
•The battery must be removed from the appliance before it is scrapped.
•The appliance must be disconnected from the supply mains when removing the battery.
•The battery is to be disposed of safely. Please do not discard waste batteries. Leave them to a professional recycling organization.
•Do not wipe or clean the power supply shrapnel with a piece of wet cloth or wet hands.
•Please make sure the cleaner is powered off in shipment and original packaging is advised.
•If left unused for a long period, please store the cleaner in a cool and dry place afer having it fully charged and switched off, charge it at
least every three months to avoid the battery being over discharged.
•Please do not use the product when the temperature is higher than 40°C or lower than 4°C , or there is any liquid or sticky substance on
the floor.
Battery pack charging temperature
Battery pack using temperature
Battery pack storage temperature
Storage(within 3 months)
Long Storage(3months)
4°C ~ 40°C
4°C ~ 40°C
-20°C ~ 45°C@Less than 75% RH
25+/- 3°C@Less than 75% RH

07
International Symbols Explanation
–ON-OFF (push-push) symbol [symbol IEC 60417-5010 (2009-02)]
–ALTERNATING CURRENT symbol [symbol IEC 60417-5032 (2009-02)]
–DIRECT CURRENT symbol [symbol IEC 60417-5031 (2009-02)]
FCC Statement
Compliance Information
Product Name
Product Model
Compliance Statement
Company
Address
Email
Correspondence of the responsible party in USA
Cordless Stick Vacuum Cleaner with Power Supply
Cordless Stick Vacuum Cleaner Model: H7M1A
Power Supply Model: S036-1A256140HU
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including inter-
ference that may cause undesired operation.
Roborock Technology Co.
108 West 13th Street, Wilmington, Delaware 19801.
[e-mail]

08
FCC Statement
Warning
Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to
operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.

09
IC Statement
This device contains licence-exempt transmitter(s)/receiver(s) that comply with innovation, Science and Economic Development Canada’s
licence-exempt RSS(s). Operation is subject to the following two conditions:
(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired
operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement
économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :
(1)L’appareil ne doit pas produire de brouillage;
(2)L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
CAN ICES-3 (B)/NMB-3(B)

10
Vacuum
Product Introduction
Charging ContactsDustbin Release
Dustbin
Rear Filter Screen
Sustain Button
Trigger
Charging Port
•Press the Sustain button with the trigger
squeezed to enter Sustain mode.
•Squeeze to turn on
•Release to turn off.
Dustbin Opener
•Push the Dustbin Opener down to empty the
dustbin. Empty the dustbin after each use.

Mode Button
•Press the Mode button to change vacuum
mode
In MAX mode, the fan will run at full speed. Battery life will
shorten and hot air may be emitted.
Note:
•When Sustain is on, press the Sustain button to exit.
•Press and hold the Sustain button for 2 seconds to turn off,
even if the trigger is held.
Notes:

11

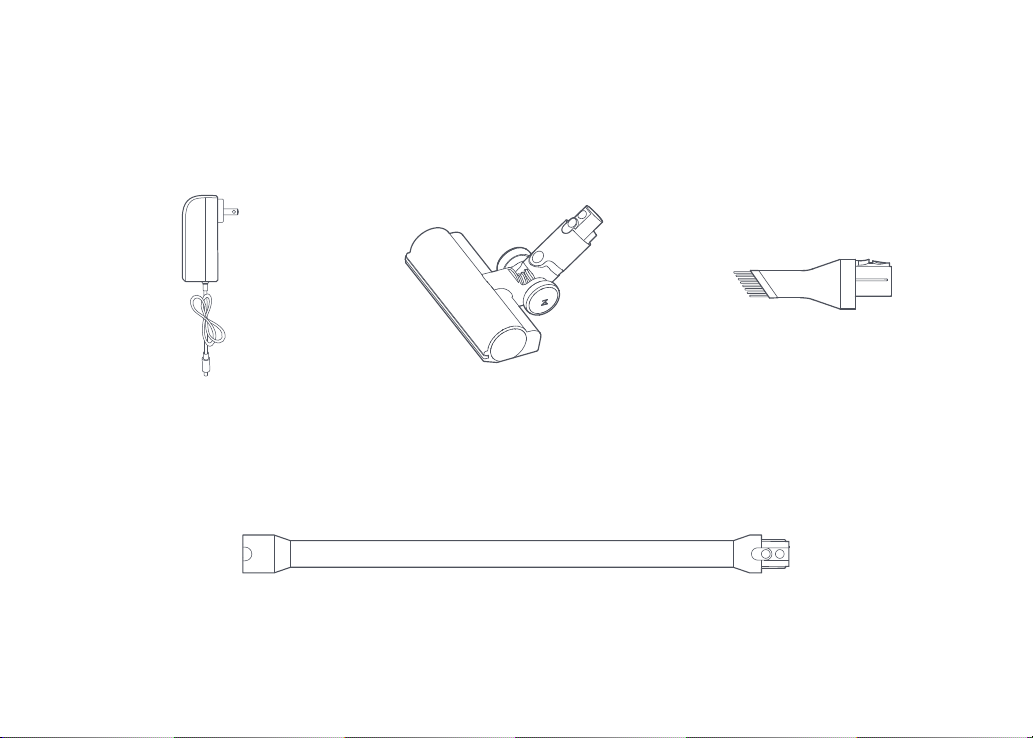

Parts List
Power Supply Multi-Surface Brush
Baton
Dusting Brush

12
Display
This Roborock cordless vacuum is equipped with a 1.3-inch OLED
display that shows relevant information in real-time.
Standby and Operating Modes When the battery is charging, a charging animation will show
alongside the current battery level. The screen will turn off
automatically after 1 minute of inactivity.
Charging
If an error occurs while the vacuum is in operation, the screen will
show an error message. See Troubleshooting for details.
Error
Press the Mode button for 10 seconds to enter language
selection. Press the Mode button to scroll through language
options. Squeeze the Trigger to confirm a language and exit
language selection.
Language selection
Sustain mode indicator
Remaining Run Time
Remaining battery in
current mode Mode Indicator
Eco
Standby
Active
Remaining power
Standard
MAX
Notes:
•The remaining run time indicator will appear after several seconds of use.
•Remaining run time is for reference only and may be different to actual run time.

13
Buttons
Sustain Button Mode Button
Notes:
•Squeezing the trigger while the vacuum is already running continuously in Sustain mode
will have no effect.
•Pressing the Sustain button for 2 seconds in any active mode will stop the vacuum.
Note: The vacuum will return to Standard mode after turning off or when charging.
Press the Sustain button to enter Sustain mode. The Sustain
icon will be highlighted on the screen. Squeeze the trigger
while in Sustain mode to start the vacuum and enable it to run
continuously. In Sustain mode, the vacuum will not stop when the
trigger is released. Press the Sustain button again to disengage
Sustain mode and stop vacuuming.
You can also enable the vacuum to continuously run by first
pressing the trigger and pressing the Sustain button.
Pressing the Sustain button for 5 seconds will activate the child
lock. The vacuum will not start when the Child Lock is on. Press
the Sustain button again for 5 seconds turn the Child Lock off.
When the vacuum is on, press the Mode button to switch
between Eco, Standard, or MAX modes. The respective icon will be
highlighted on-screen.
Notes:
•Pressing the Sustain button while Sustain mode is on will switch off Sustain mode.
•The vacuum will stop running when charging.
•Insufficient power or other errors may cause the vacuum to fail. See Troubleshooting for
details.
Trigger
Squeeze the trigger to start vacuuming.
Releasing the trigger will stop the vacuum and enter it into
Standby mode, unless it is in Sustain mode. The screen will turn
off automatically after 30 seconds of inactivity and the vacuum
will automatically turn off after 1 minute of inactivity. Squeeze the
trigger to start the vacuum again.

14
Installation
Vacuum and accessories setup
Option 1
Option 2
Connect the Baton to the vacuum, then attach an accessory.
Connect the vacuum directly to an accessory.
To disconnect,
press the lock
Click Click
Click
Click Click

15
Use
Charging
Charge with the Power Supply
When the battery is charging, a charging animation will show
alongside the current battery level.
The screen will turn off automatically after 1 minute of inactivity.
Notes:
•When charging, the screen image faces the user for easy viewing.
•When charging, the vacuum will enter Charging mode and stop operating.
•The battery temperature will increase after continuous use in MAX mode. As a result,
recharging may take longer.
•When battery levels are very low, the vacuum screen will only light up after a period of
charging.
Before using the vacuum, read the " Safety Information" in this
user manual.
Note: Make sure the Power Supply is firmly inserted into the power socket.


16

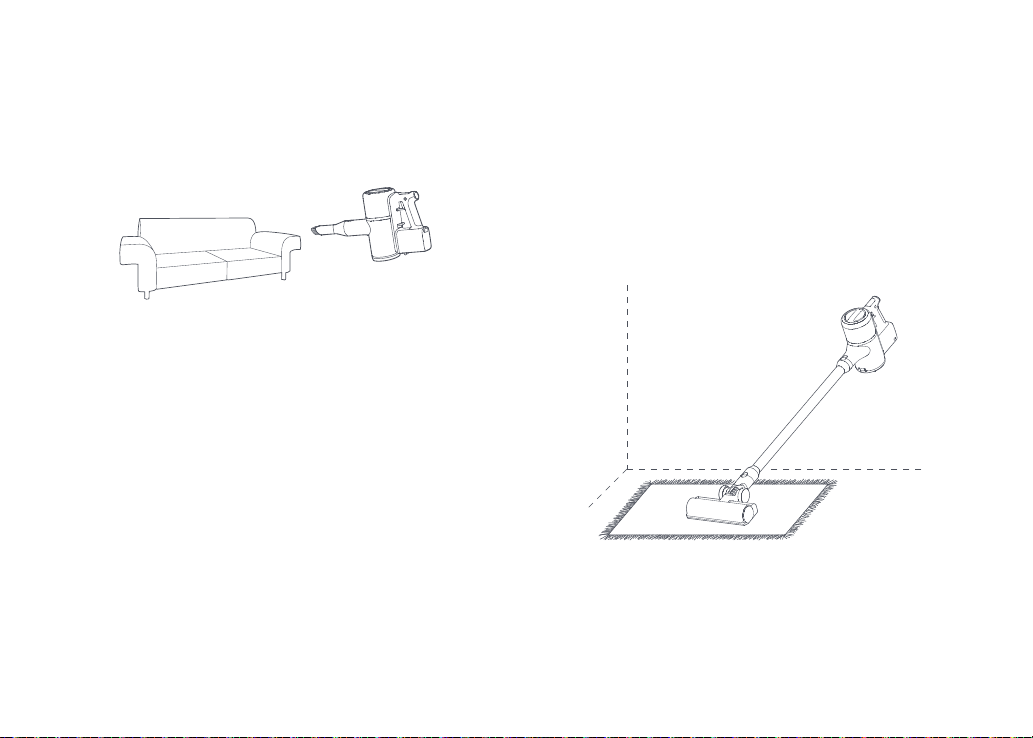

Using the vacuum Auto Shutoff
Use
1. When using the Multi-Surface Brush on the vacuum cleaner,
the surfaces of some fabrics may pill or be difficult to vacuum.
If this occurs, it is recommended that you use the dusting
brush to vacuum these surfaces.
2. Before vacuuming shiny floors such as parquet or tiles, ensure
there is no hard debris trapped the Multi-Surface Brush to
avoid scratches.
3. Before using the vacuum, ensure that the Dustbin, Multi-
Cyclone Assembly, and filters have been properly installed.
4. Do not block the exhaust outlet when vacuuming.
5. Flour, construction dust, and other fine particles should only be
vacuumed in small amounts.
6. To avoid damage to the vacuum or the floor, do not vacuum up
hard or sharp objects such as toys, pins, and paper clips.
7. Be aware of your environment as you vacuum, especially
around stairs and windows.
8. To avoid accidental fall damage, avoid placing the vacuum on
raised surfaces such as desks and shelves, or leaning it against
other objects.
9. The rotation of the Multi-Surface Brush may leave an unevenly
polished floor. This can be resolved by wiping with a damp cloth
or polishing with floor wax.
1. If any rotating parts get jammed, the vacuum will shut off
automatically. Clear the jam to continue vacuuming.
2. If the motor gets too hot, the vacuum will automatically shut off.
Wait until the temperature returns to normal before continuing.
Keep the Brush Clear
1. Electric brushes will automatically stop if jammed by dirt or long
fibers during use. If this occurs, clear them before continuing.
2. To avoid potential injury, detach the brush from the vacuum
before removing entangled objects.
Beware of sharp objects trapped in the roller.Caution:
Note: The filters are installed during production. Please refer to the "Maintenance"
section of this manual for details on filter assembly and cleaning.

17
Use
Tip: The Dusting Brush can also be used on its own to dust the vacuum and other items
around the house.
1. Dusting Brush:
Sofas, chairs, and other soft furnishings, and flat surfaces such
as desks and shelves.
2. Multi-surface brush:
Connect to the baton for cleaning low and medium pile carpets.
It can also be used on tiles or other floor surfaces.
Carpet Boost is automatically activated when the Multi-Surface
Brush is installed. When a carpet is detected, suction is
automatically boosted for a deeper clean. It will return to the
previous mode when a carpet is no longer detected.
Note: Carpet Boost will not activate when vacuuming in MAX mode.

18
Maintenance
Product Warranty
1. Only use original parts. The use of non-original parts may affect
your eligibility for warranty services.
2. If the filter or airflow is blocked, the vacuum will start and stop
several times before shutting off. Clean the filters and the
accessory before further use.
3. If the vacuum is to be left unused for an extended period, fully
charge it and shut it down before storing it in a cool and dry
place. Do not place the vacuum in humid locations or in direct
sunlight. Charge the vacuum at least once every 3 months to
prevent damage to the battery.
Cleaning the vacuum
Use a soft dry cloth to wipe the vacuum.
Cleaning the dustbin
1. When the dustbin is full, suction will be reduced. Empty it
before continuing with vacuuming. Before cleaning the dustbin,
disconnect the vacuum from mains power and keep it inactive.
2. To empty the dustbin, push the Dustbin Opener on the front of
the handle in the direction of the arrow to open it, then empty it
into a bin. The dustbin should be emptied at least once a week.
Dustbin Opener

19
Maintenance

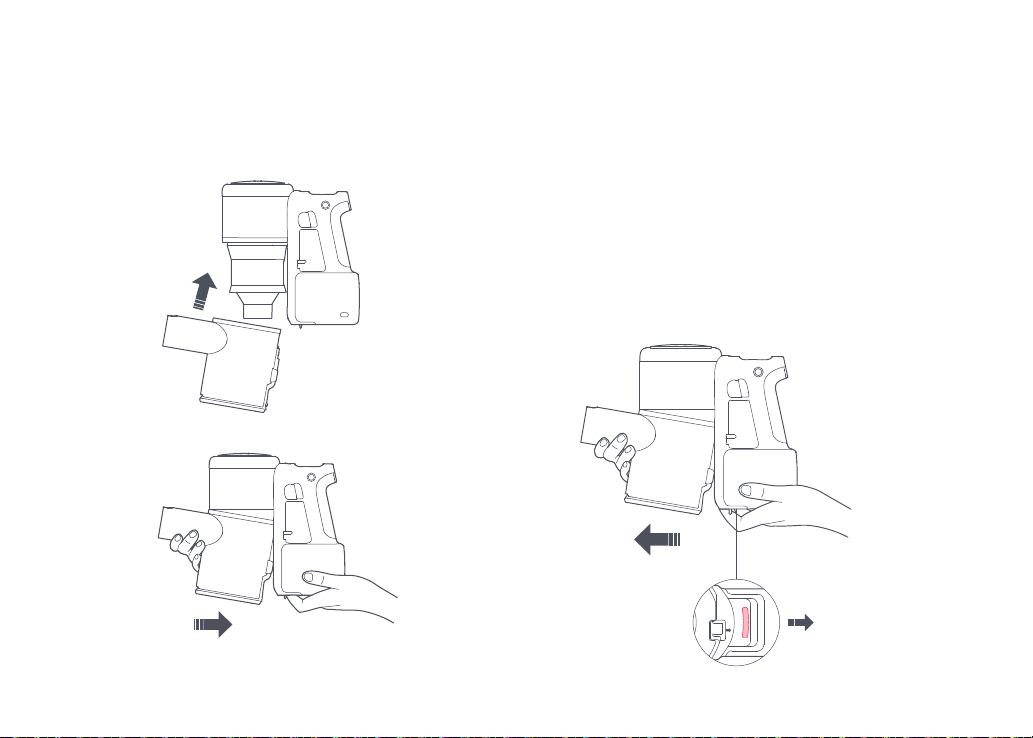

3. Push the Dustbin Release next to the dustbin after emptying it
to remove the dustbin for cleaning.
4. The dustbin should be rinsed with water at least once a month.
Charging contacts should also be wiped with a soft, dry cloth
once a month.
5. When the dustbin is thoroughly dry, reinstall it as shown.
Dustbin Release
Charging Contacts
Notes:
•Do not clean the dustbin with detergents, polishes, or air fresheners.
•Do not put the dustbin in a dishwasher or any similar appliance.
24

20
Cleaning the Front Filter and Multi-Cyclone
Assembly
Notes:
•Disconnect the vacuum from power before cleaning it, and avoid squeezing the Trigger
during cleaning.
•Inspect and clean the Front Filter according to the manual regularly to ensure optimum
vacuum performance.
•If cleaning fine dust or operating in MAX mode, the Front Filter may require more frequent
washing.
Maintenance
Dustbin Installation
*Front Filter and Multi-Cyclone Assembly should be cleaned at least once a month
1. Remove the Dustbin as shown.
Dustbin Release
