Rocket Fish RF-TVMLPT01 User manual

Tools you will need:
• Stud nder
• Awl
• Level
• Pencil
Package contents
A TV bracket (1)
B Wall plate (1)
M4 bag
C M4 x 12 mm screws (4)
D M4 x 30 mm screws (4)
E M4 washers (4)
F M4 spacers (4)
Miscellaneous bag
G Locking screw (1)
H 5/32 in. hex key (1)
Lag bolt bag
I 5/16 in. x 2¾ in. lag bolts (2)
J Concrete anchors (2)
Thank you for choosing the
Rocketsh RF-TVMLPT01.
The RF-TVMLPT01 TV mount
is designed to support
a TV weighing up to
50 lbs. (22.7 kg).
• Hammer (Concrete Only)
• Tape measure
• Power drill
• 3/16 in. wood drill bit
• 3/8 in. masonry
drill bit(Concrete Only)
• Socket wrench with ½ in. socket
or adjustable wrench
• Phillips screwdriver
QUICK SETUP GUIDE
RF-TVMLPT01
M4 x 12mm
in.
M4 bag
Miscellaneous bag
Lag bolt bag
AB
CD
GH
IJ
1 Install locking screw
Install the TV bracket locking screw (G) into the TV bracket (A) using the hex key (H).
Do not screw in more than three or four turns.
2 Attach the TV bracket
Option 1: If the back of the TV is at
Align the TV bracket (A) with the mounting screw holes
on the back of the TV. Place the washers (E) over
the screw holes on the TV bracket.
Note: If the hole pattern on your TV is 75 mm x 75 mm,
do not use the washers. Insert the screws (C) though
the screw holes and tighten.
GH
A
E
C
With washers
M4 x 30mm
EF
M4 M4
A
C
Without washers
Option 2: If the back of the TV is curved or to make room for cables
Attach the TV bracket [A] to the back of the TV using the washers (E), the spacers (F), and the screws (D).
Note: If the hole pattern on your TV is 75mm x 75mm the washers(E) will not be used.
A
E
F
D
A
D
F
With washers
Without washers

6907-002013<00> 10-0361
3 Install the wall plate
5 Adjust the tilt angle (if necessary)
H
HG
B
< 16 mm
(5⁄8 in.)
B
I
HEAVY!You will need
assistance with this step.
J
B
J
I
IMPORTANT SAFETY INSTRUCTIONS • SAVE THESE INSTRUCTIONS
Caution: Do not use this product for any purpose not explicitly specied by Rocketsh. Improper installation
may cause property damage or personal injury. If you do not understand these directions, or have doubts
about the safety of the installation, contact Customer Service or call a qualied contractor. Rocketsh is not
responsible for damage or injury caused by incorrect installation or use. The weight of your TV must not
exceed 50 lb (22.7 kg). The wall must be capable of supporting ve times the weight of the TV and wall
mount combined.
This product contains small items that could be a choking hazard if swallowed. Keep these items away from
young children!
5-year limited warranty
Visit www.rocketshproducts.com for details.
We’re here for you
www.rocketshproducts.com
For customer service, call:
800-620-2790 (U.S./Canada markets)
01 800-926-3010 (Mexico market)
© 2010 BBY Solutions, Inc., All Rights Reserved.
Distributed by Best Buy Purchasing, LLC 7601 Penn Avenue South, Richeld, MN USA 55423-3645
Best Buy Imports, S. de R.L. de C.V. Av. Santa Fe 485, Segundo Piso, Colonia Cruz Manca, Programa Parcial de Desarrollo
Santa Fe, Delegación Cuajimalpa, Distrito Federal, México 05349
ROCKETFISH is a trademark of BBY Solutions, Inc. Registered in some countries. All other products and brand names are
trademarks of their respective owners.

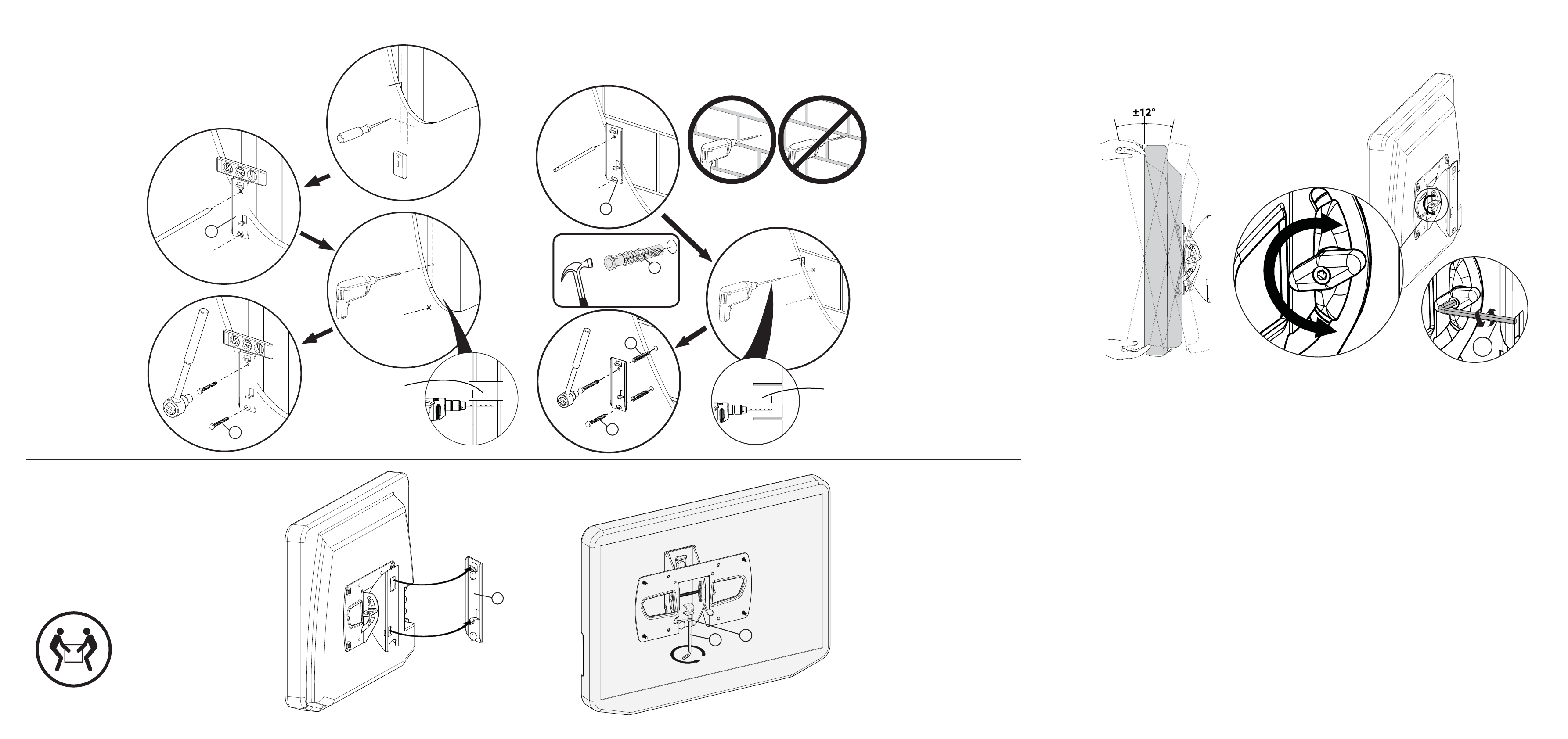

Option 1: Installing to a wood stud wall
