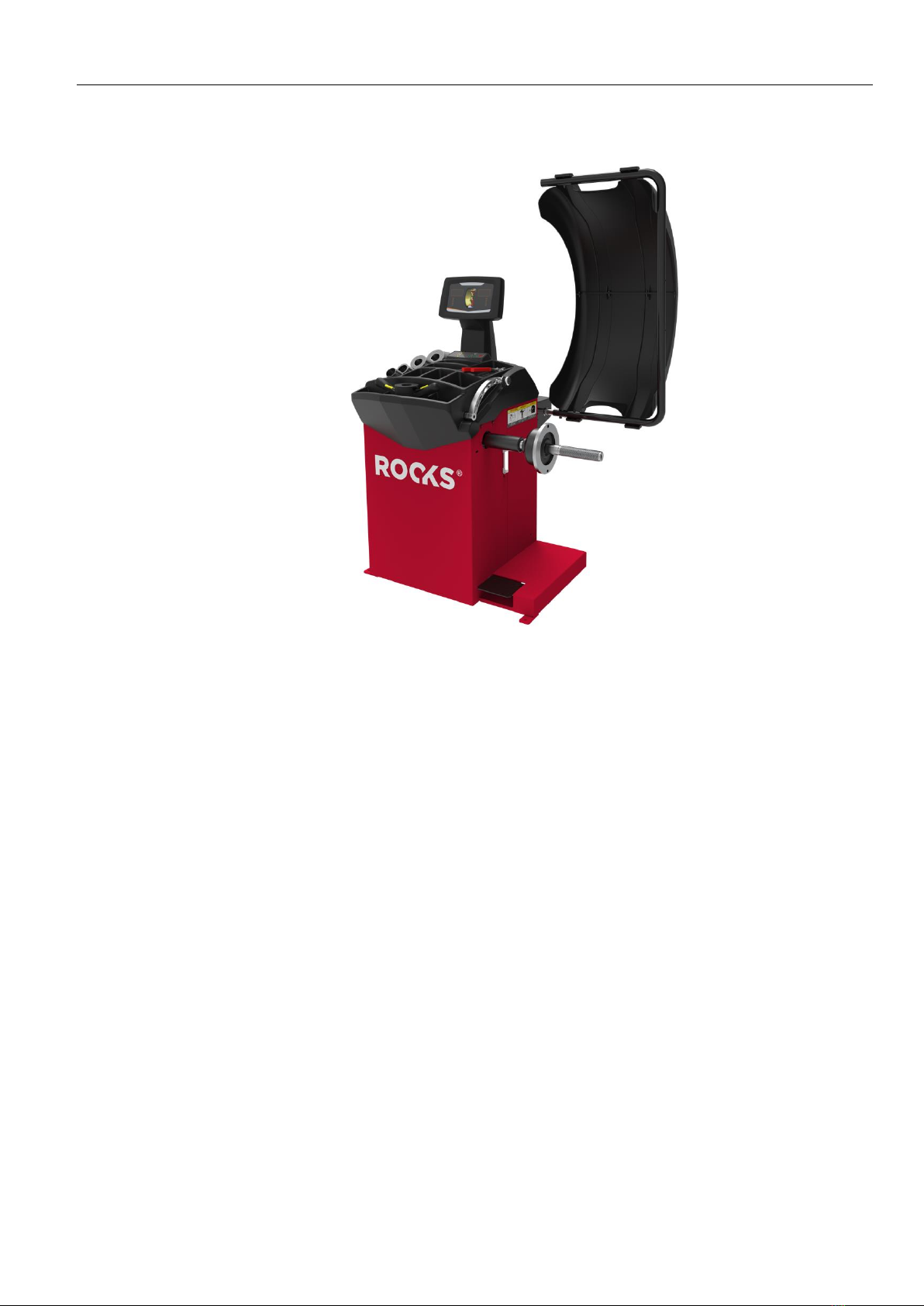

Rocks OK-08.3100 User manual

Automatic wheel balancer
OK-08.3100
Distributor:
Auto Partner SA
Ul. Ekonomiczna 20
43-150 Bieruń
www.rooks.pl

Warning
⚫This manual is a necessary part of the product. Please read carefully.
⚫Keep the manual for later use when maintaining the machine.
⚫This machine can only be used for the designated purposes. Never use it for any other purpose.
⚫The manufacturer is not responsible for the damage incurred by improper use or use other than the
intended purpose.
Precaution
⚫The equipment can only be operated by qualified personnel with special training. Modification to any
components or parts, or use the machine for other purpose without either obtaining the agreement from the producer,
or observing the requirement of the instructions may lead to direct or indirect damage to the equipment.
★The equipment should be installed on the stable ground, not wooden pallet, otherwise not accurate.
⚫Keep the back panel 0.6M away from the wall for good ventilation. Enough room should be left on both
sides for convenient operation.
⚫Do not put the equipment a place with high temperature or moisture, or near the heating system, water tap,
air-humidifier or chimney.
⚫Avoid lots of dust, ammonia, alcohol, thinner or spraying binder.
⚫People who are no operating the machines should be kept away when it is used.
⚫Use appropriate equipment and tools, protective and safety equipment, including eyeglasses, earplugs and
working boots.
⚫Pay special attention to the marks on the machine.
⚫Do not touch or approach the moving parts by hand during operating.
⚫Do not remove the safety device or keep it from working properly.

Contents
1. General-----------------------------------------------------------------------------------------------------------------1
2. Machine assembly----------------------------------------------------------------------------------------------------1
3. Controls and components--------------------------------------------------------------------------------------------3
4. Indication and use of wheel balancer------------------------------------------------------------------------------6
5. Machine Self-calibration-------------------------------------------------------------------------------------------13
6. Errors------------------------------------------------------------------------------------------------------------------19
7. OPT function --------------------------------------------------------------------------------------------------------20
8. Spare parts list and Exploded drawings -------------------------------------------------------------------------21

1
1. General
1.1. Technical data：
⚫Max wheel weight：65kg
⚫Power：0.2kw;0.37kw
⚫Power supply: 220v;230v;240v;110v;50hz;60hz
⚫Balancing accuracy：

1g
⚫8 balancing modes: DYN, ALU1, ALU2,ALU3, ALU4,ALU5,ALUS, ST
⚫Balancing speed：180r/min
⚫Cycle time：8s
⚫Rim diameter：10〃～24〃(256mm～610mm)
⚫Sound pressure level during work cycle：<70db
1.2. Features：
⚫Distance and diameter value input automatically
⚫Statistic and dynamic balancing, ALU-programs for alloy rims or special shaped
⚫Self diagnoses, easy to find the problem
⚫Apply to steel and aluminum alloy rim
1.3. Working environment：
⚫Temperature：5～50℃
⚫Height：≤4000m
2．Machine assembly

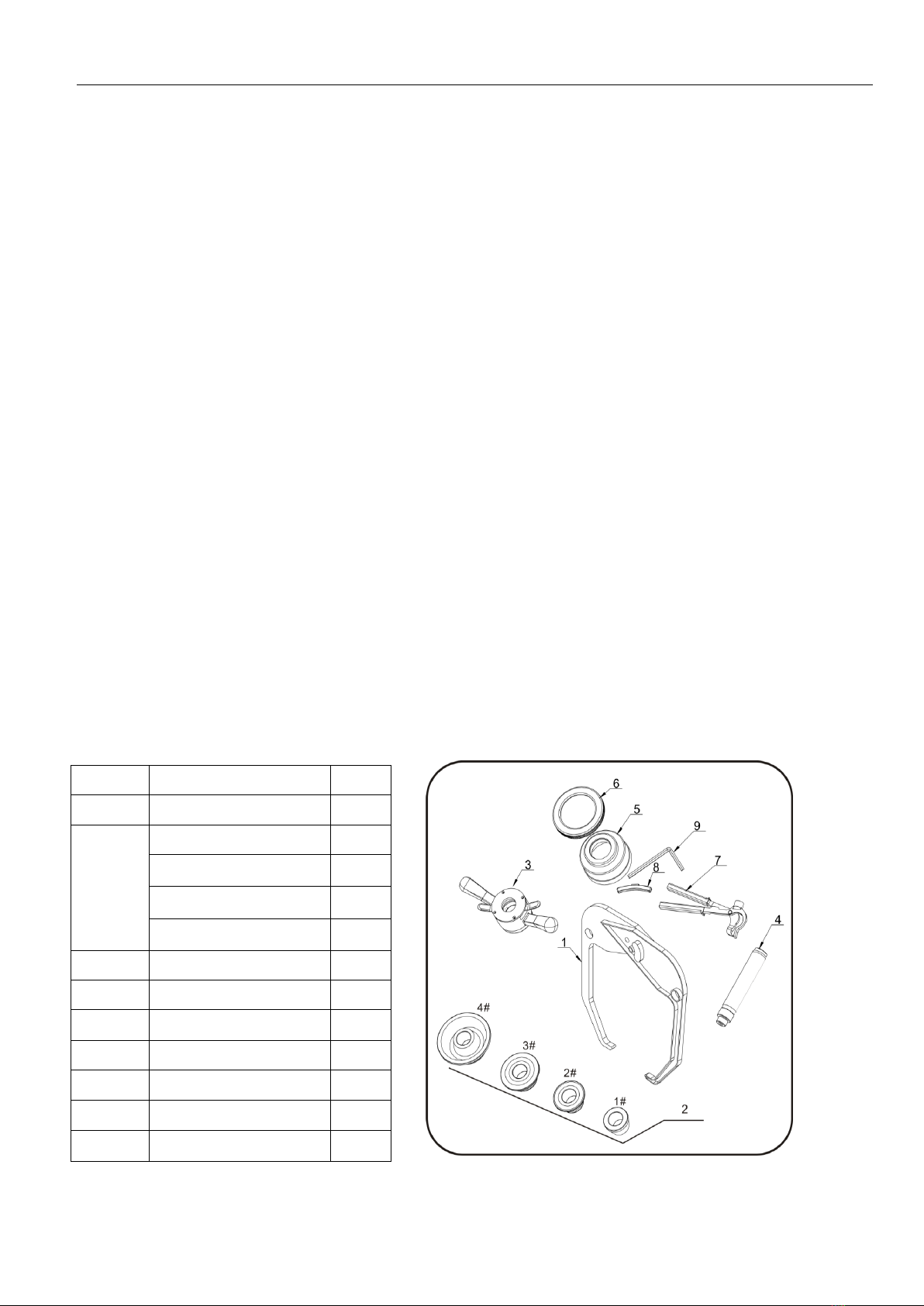

2.1. Unpack
Unpack the carton, check if missing any spare parts.
No.
Item
Qty
1
Width gauge
1
2
Conic No.1
1
Conic No.2
1
Conic No.3
1
Conic No.4
1
3
Quick release nut
1
4
Thread hub
1
5
Bowl for quick nut
1
6
Pad for bowl
1
7
Balancing hammer
1
8
100g weight
1
9
Allen wrench
1

2
2.2. Install
⚫The equipment should be installed on the stable ground, not wooden pallet, otherwise not accurate.
⚫Keep the back panel 0.6M away from the wall for good ventilation. Enough room should be left on both
sides for convenient operation.
2.3. Fix balancer to floor with screws on the bottom.
2.4. Install adaptor
The wheel balancer is supplied complete with cone type adaptor for fastening wheel with central bore. (see below
picture)
2.5. Install wheel
Clean wheel, take off counterweights, check pressure of wheel.
Choose the way of installation according to the type of wheel.

3
Main shaft-wheel—Main shaft-suitable cone(big head towards inside)
suitable cone( small head towards inside)—quick handle nut —wheel—quick handle nut
Attention：May add a wheel, and hold the wheel to help install the thread hub. When installing or taking off
wheel, do not let wheel move on the shaft, to avoid scratching shaft.
3．Controls and components
No.
Item
Standard/Option
al
A
Switch
S
B
Head with
tool tray
S
C
Gauge head
S
D
Main shaft
S
E
Pedal breaker
S
F
Safe guard
S
H
Key board
S
J
Width Gauge
S
K
Laser
S

4
Display screen (G)
1. inside amount of unbalance
2. dimension
3. outside amount of unbalance
4. Digital readout, inside position of unbalance
5. Digital readout, outside position of unbalance
6. Indicator bar for ruler when pull out ruler for outside position
7. Indicator bar for ruler when pull out ruler for inside position
8. “ALU” correction mode selected, can choose following different modes: （finishing input “a” “d” ” b”, press ALU to
choose following modes）
Eight balancing modes
Icon
Balancing
mode
Operation
Add weights
Standard/Default
1. Turn on machine
2. Input a,b,d value
3. Start spin, after spin stop
Clip on weights on
both sides of rim edge
ALU1
1. Turn on machine
2. Input a,b,d value
3. Press ALU button, indicator lit up
4. Start spin, after spin stop
Add adhesive weights
on the rim shoulder
both sides
ALU2
1. Turn on machine
2. Input a,b,d value
3. Press ALU button, indicator lit up
4. Start spin, after spin stop
Clip on weight on
inside rim edge, add
adhesive weight on
outside rim shoulder
ALU3
1. Turn on machine
2．Input a,b,d value
3．Press ALU button, indicator lit up
4．Start spin, after spin stop
Add adhesive weights
on the rim shoulder
both sides

5
ALU4
1. Turn on machine
2. Input a,b,d value
3. Press ALU button, indicator lit up
4. Start spin, after spin stop
Clip on weight on
inside rim edge, add
adhesive weight on
outside rim shoulder
ALU5
1. Turn on machine
2. Input a,b,d value
3. Press ALU button, indicator lit up
4. Start spin, after spin stop
Add adhesive weight
on inside rim shoulder,
clip on weight on
outside rim edge
ALUS
1. Turn on machine
2. Press ALU button, indicator lit up
3. Input aI,aE,d value
4. Start spin, after spin stop
Add adhesive weights
on the two positions
gauge head touch
Static mode
1. Turn on machine
2. Input a,b,d value
3. Press ALU button, indicator lit up
4. Start spin, after spin stop
Add adhesive weight
Key board(H)
Icon
Function
Icon
Function
Input rim data
Selection of “ALU” modes
Data add key
Stop/Cancel
Data reduction key
Start
Unbalance display pitch and threshold
Setting
Key combination function
Icon
Function
Icon
Function
+
Inch/mm conversion
+
OPT function

6
*electronic brakes *(if provided)
Icon
Function
Icon
Function
Automatic brake switch / can be
used to load and unload tires
Looking for imbalances
4. Indication and use of wheel balancer
4.1．DYN (Standard/Default) mode
4.1.1. Clean wheel, take off counterweights, check pressure of wheel.Choose the way of installation according to the
type of wheel.
Main shaft-wheel—Main shaft-suitable cone(big head towards inside)
suitable cone( small head towards inside)—quick handle nut —wheel—quick handle nut
Attention：May add a wheel, and hold the wheel to help install the thread hub. When installing or taking off
wheel, do not let wheel move on the shaft, to avoid scratching shaft.
4.1.2. Turn on machine
4.1.3. Input a b d value
Turn on machine, choose right way to install wheel according to the type of wheel. Set “a” “b” “d”
values:
⚫Set “a” value：move the gauge to measuring position as illustrated as Fig.1, hold the gauge still in
position for approx. 4 seconds, successful memorization is given, then return the gauge to
position 0.(The value measured in automatic mode appear on the display). Or press and
and to change.
● Set “b” value：set nominal diameter “b” marked on the wheel or use the width gauge to measure the
value of ”b” as Fig.2a, then press and and to change. If you have the
radar width gauge (optional), put down the safe guard, as figure 2b, the width value will be input automatically
⚫Set “d” value：this value measured in automatic mode same time as “a” value setting, or press
and and to change.

7

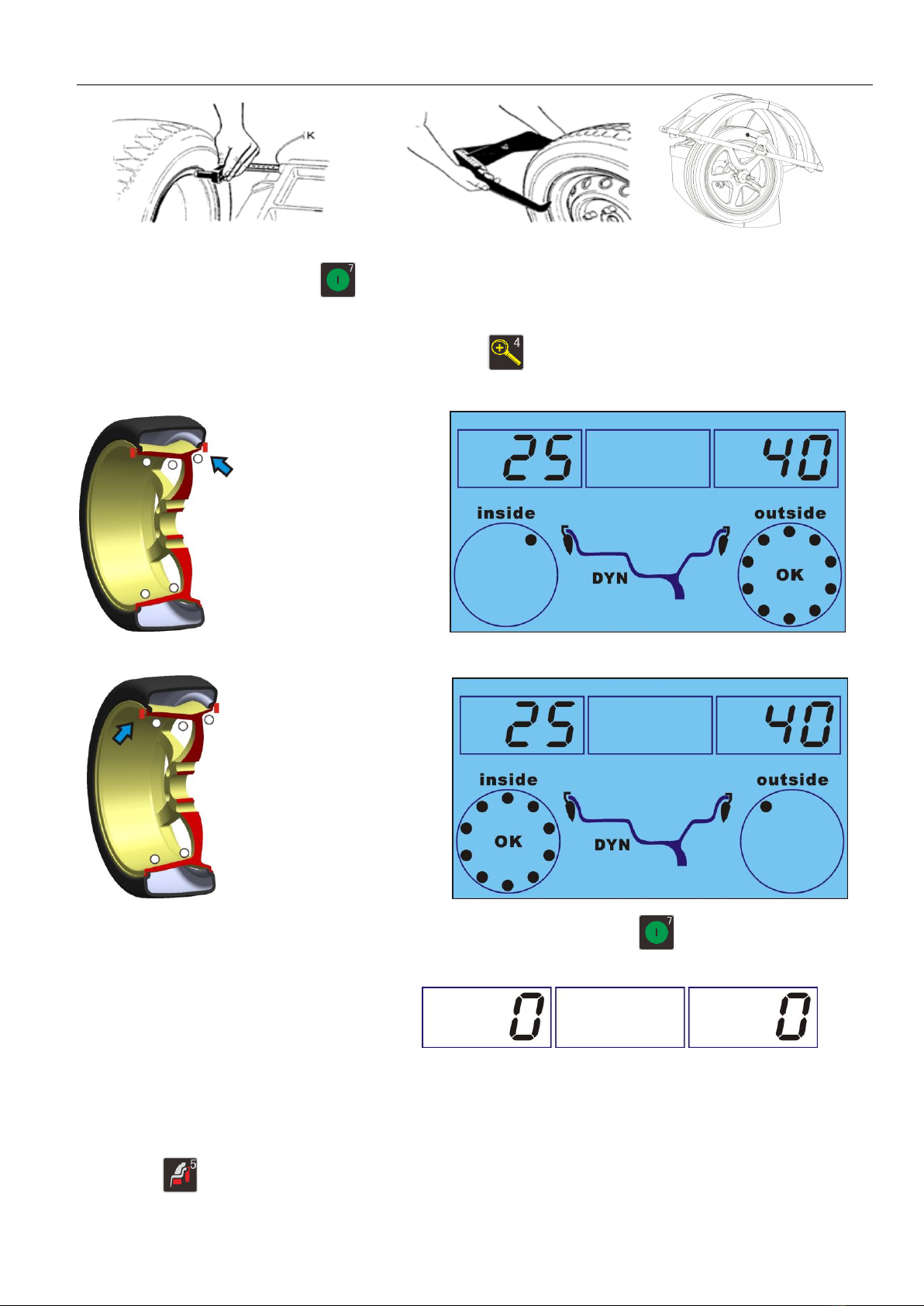

Fig.1 Fig.2 a Fig.2 b
4.1.4. Put down the guard and press to perform a measuring spin.
4.1.5. In a few seconds the wheel is brought to operating speed and begin measuring unbalance, the unbalance values
remain on instruments 1 and 3 when the wheel stopped. Press may check the real unbalance value under threshold.
4.1.6. Anticlockwise moving wheel slowly, until the right LED lit up full, clip weight on 12 o’clock position (Fig.3)
Fig. 3
4.1.7．Anticlockwise moving wheel slowly, until the left LED lit up full, clip weight on 12 o’clock position (Fig.4)
Fig. 4
4.1.8．After finishing clipping the counterweights, put down the guard and press ，to perform balancing spin
again, if comes out 00 00，means balancing succeed. (Fig.5)
Fig. 5
4.2．ALU-1 mode (ALU-1,ALU2, ALU 3，ALU 4，ALU5, same operation, only the position to add
weights different)
4.2.1. Set “a” “d” “b” values
4.2.2. Press until ALU1 indicator lit up

8

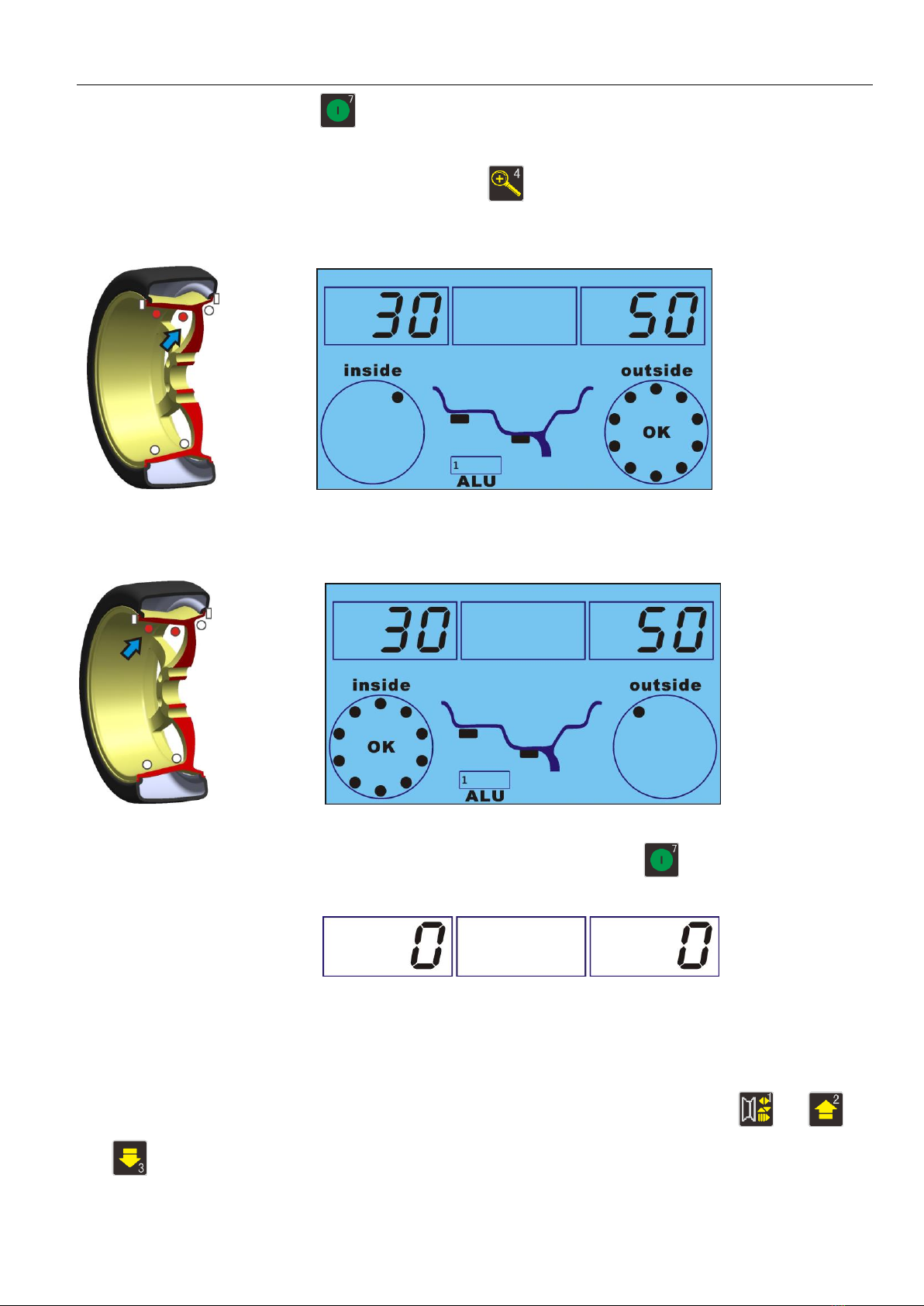

4.2.3. Put down the guard and press to perform a measuring spin.
4.2.4. In a few seconds the wheel is brought to operating speed and begin measuring unbalance, the unbalance values
remain on instruments 1 and 3 when the wheel stopped. Press may check the real unbalance value under threshold.
4.2.5. Anticlockwise moving wheel slowly, the displays with right LED’s lit up full indicate the correct angular position
where to mount the counterweights, 12 o’clock position outside, as Fig.6, add the counterweight.
Fig. 6
4.2.6. Anticlockwise moving wheel slowly, the displays with left LED’s lit up full indicate the correct angular position
where to mount the counterweights, 12 o’clock position inside, as Fig.7, add the counterweight.
Fig. 7
4.2.7. After finishing mounting the counterweights, put down the guard and press ，to perform balancing spin
again, if comes out 00 00，means balancing succeed. (Fig.8)
Fig. 8
4.3．ALU－S mode
This mode is used for special rim, ifALU1/ALU2 can not be used, you should chooseALUS mode.
Input aI, aE, d value
⚫Set “aI”: pull gauge out let the gauge head touch the position of FI for 4 seconds, may press and and
to change

9
⚫Set “aE”: pull gauge out let the gauge head touch the position of FE for 4 seconds ，may press and
and to change
⚫Set “dI”: read from rim, may press and and to change
⚫Set “dE”: read from rim, may press and and to change
Fig. 9
Put down the guard and press to perform a measuring spin.
4.3.2. Use a ruler to add weight (Set LAS=OFF as 5.2 instruction)
Fig. 10
Anticlockwise moving wheel slowly, until the right LED lit up full (Fig.11)
Fig. 11
Take off proper counterweight to be hold by the gauge head as Fig. 13

10
Fig. 12 Fig. 13
Pull out gauge until there is a square comes in the middle window (Fig. 14)
Fig. 14
Release the counterweight and let it stick on rim (Fig. 15)
Fig. 15
Anticlockwise moving wheel slowly, until the left LED lit up full (Fig.16)
Fig.16
Take off proper counterweight to be hold by the gauge head as Fig. 13
Pull out gauge until there is a square comes in the middle window (Fig. 17)

11
Fig. 17
Release the counterweight and let it stick on rim (Fig. 18)
Fig. 18
Then turn down safe guard and press to start spin, comes (Fig. 19)means the wheel is balanced.
Fig. 19

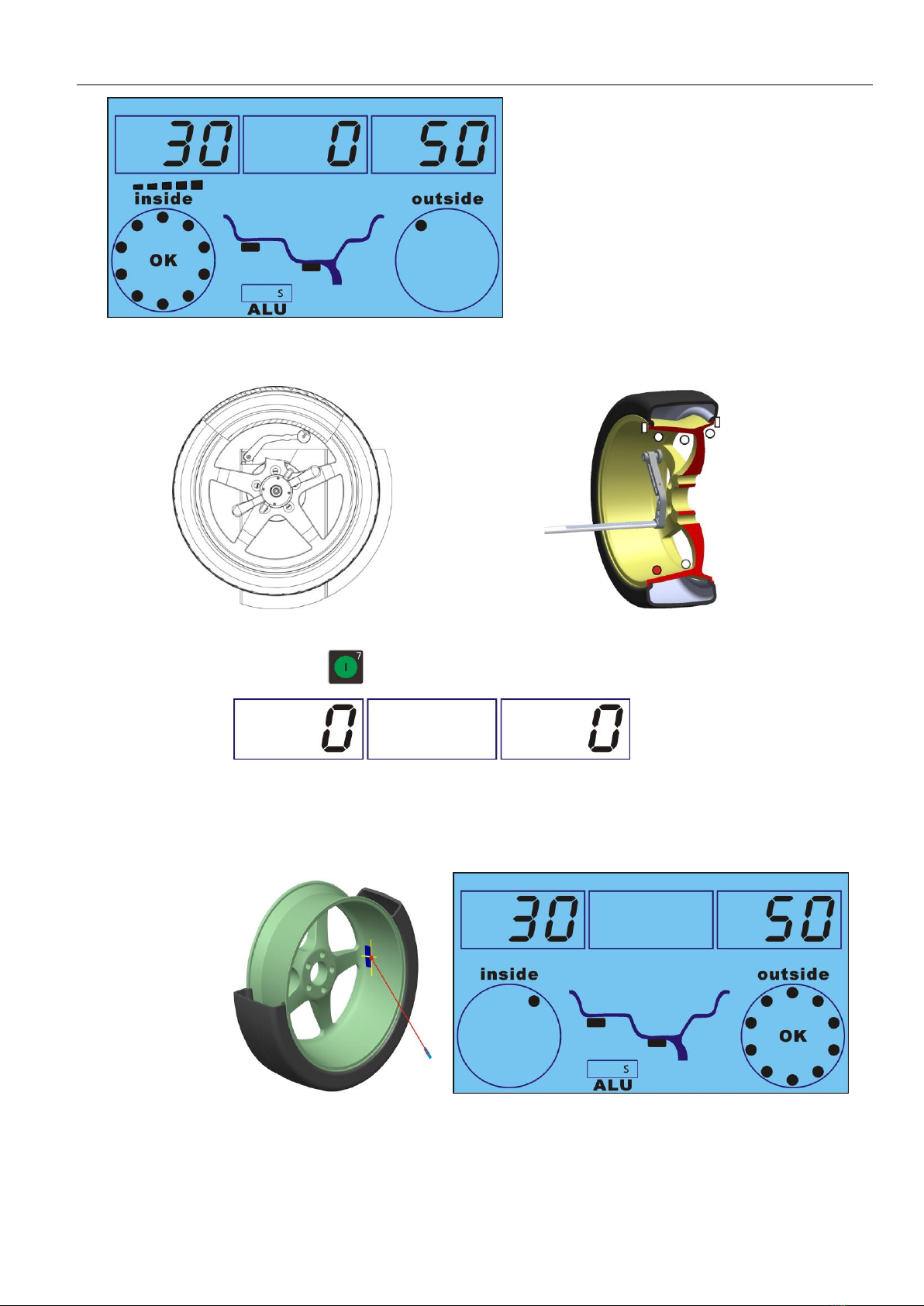

4.3.3 Laser helping mode( 9o’clock position to add weight, Set LAS=ON as 5.2 instruction)
Anticlockwise moving wheel slowly, until the right LED lit up full, add weight on laser position ( 9 o’clock ) (Fig.20)
Fig. 20
Anticlockwise moving wheel slowly, until the left LED lit up full, add weight on 9 o’clock position (Fig.21)

12
Fig. 21
After finishing mounting the counterweights, put down the guard and press ，to perform balancing spin again, if
comes out 00 00，means balancing succeed. (Fig.22)
Fig. 22
4.4. ALUS split function
Note: OnlyALU-S mode can use this function. And Operator must be experienced.
1
In ALU-S mode, press
comes
＞
2
By key and to input the numbers of
spokes, then press
comes
＞
3
Keep the next spoke( either direction is ok) on
the position of 12 o’clock, press
comes
＞
4
Anticlockwise rotate wheel by hand slowly,
until the outside SP1 LED lit up full, add the
adhesive weight（to stick the weights on
position of 9 o’clock or else depends
LAS=On or Off））
comes
＞
5
Anticlockwise rotate wheel by hand slowly,
until the outside SP2 LED lit up full, add the
adhesive weight（to stick the weights on
position of 9 o’clock or else depends
LAS=On or Off））
comes
＞

13
6
Put down safe guard and press ，after spin
stop
comes
＞
SP succeed

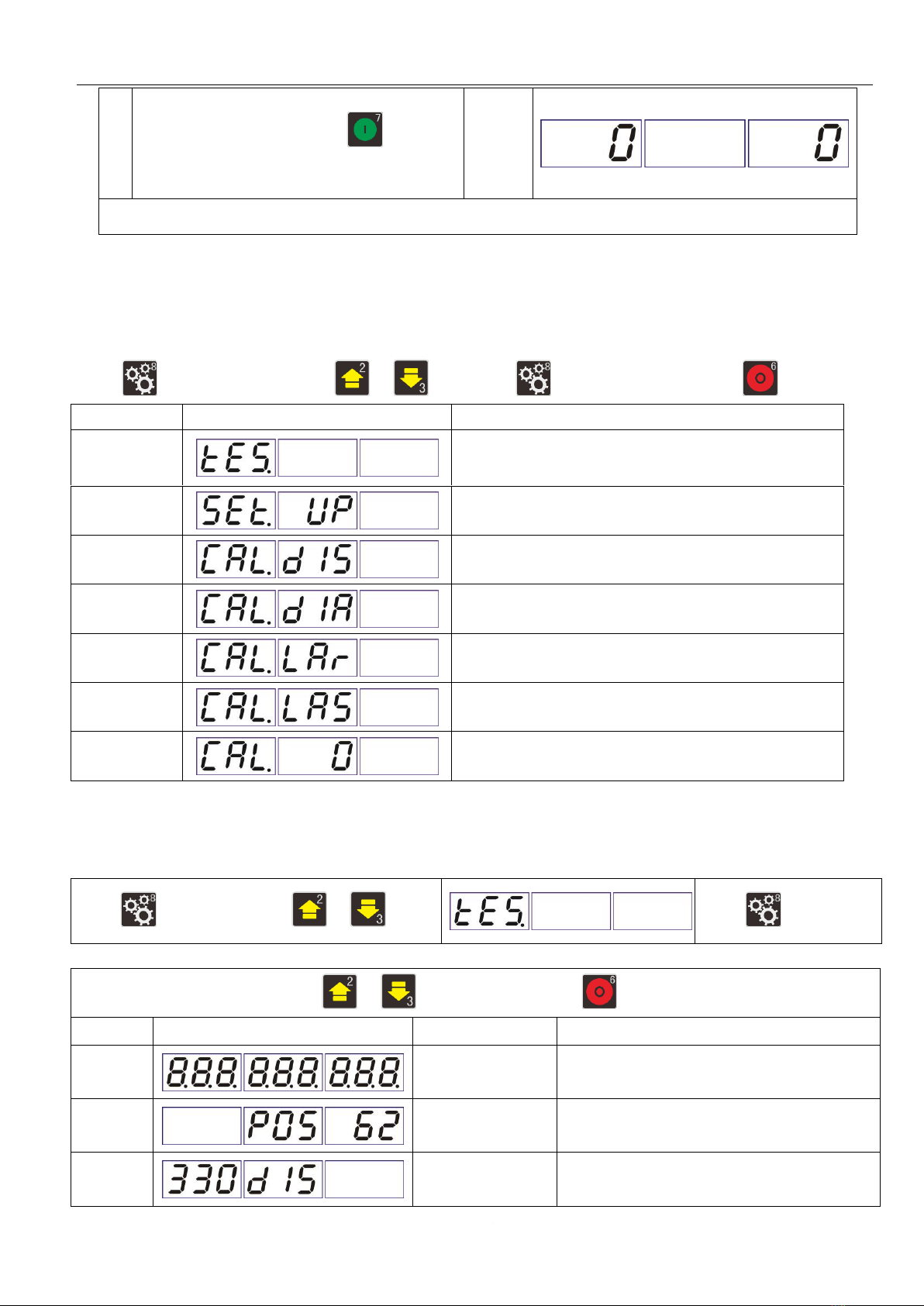

5.Machine Setting and Self-calibration
Press goes to set machine, press and to change，Confirmation of entry, press Cancel
Step
Reasons
Solution
5.1
Self diagnosis
5.2
Machine setting
5.3
Rim distance gauge calibration
5.4
Calibration of diameter gauge
5.5
Calibration of width gauge
5.6
Calibration of laser
5.7
Self-calibration
5.1 Self- diagnoses
press keys to enter. select and Select
press keys to enter
press and for the next item, press Cancel
Order
Display
Function
Function normal
1
Display
All lit up
2
Position pick up
board
POS changes in 0-127
3
Distance
potentiometer
Left window data is 327-340, when pull gauge
out, the data changes

14
4
Diameter
potentiometer
left window data is 327-340,turn ruler to
another direction, data changes
5
Width
potentiometer
left window data is 327-340,turn ruler to
another direction, data changes
6
Pressure sensor
Use hand to press main shaft, 4X-4X 6X-6X
changes

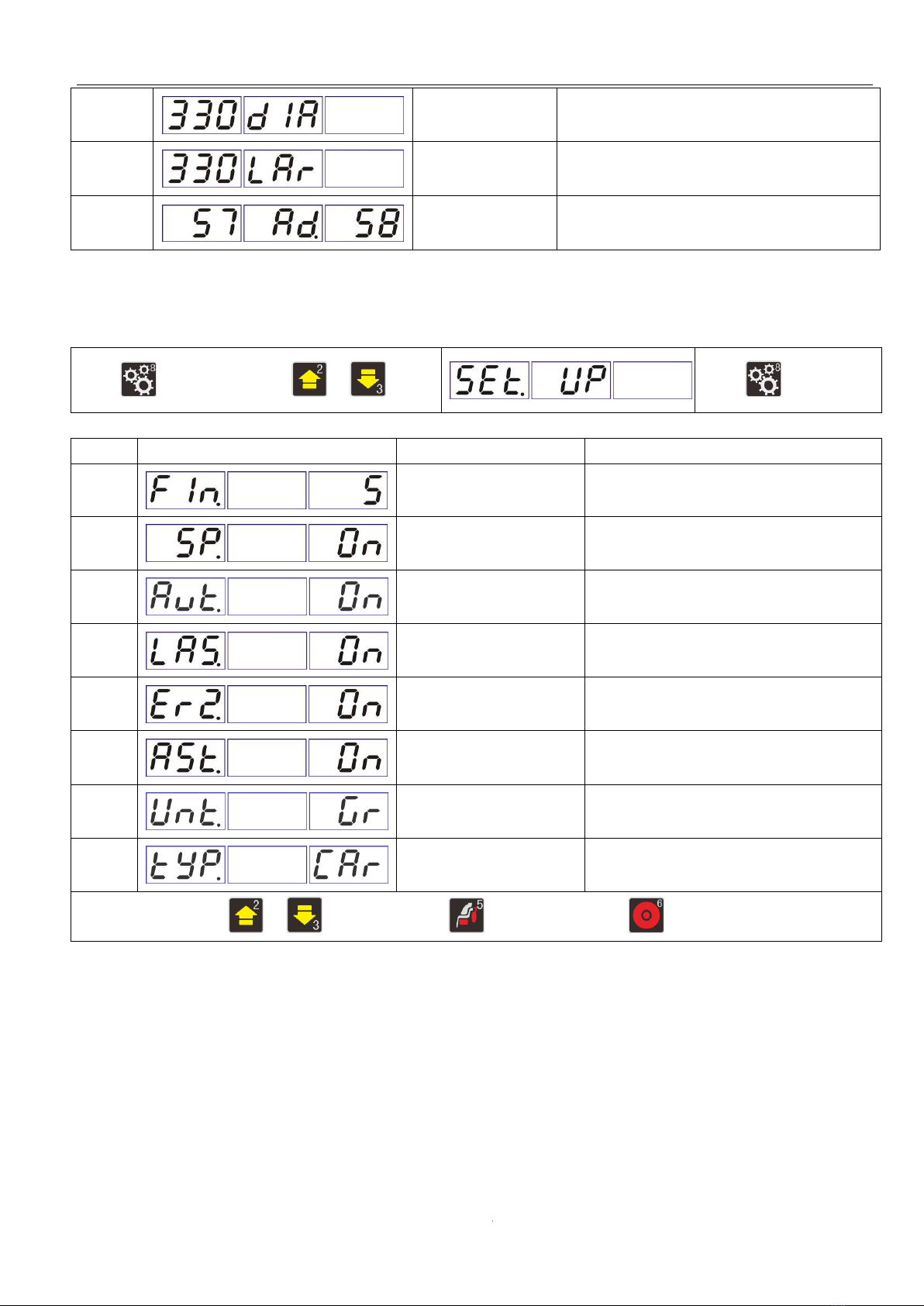

5.2 Machine setting
press keys to enter. select and Select
press keys to enter
Order
Display
function
choice
1
Unbalance display
threshold
5/10/15
2
Sound
On/off
3
width
On/off
4
Laser switch
OFF: use gauge to stick weights
ON: laser position
5
Tire weight
On/off
6
Safe guard on
Put down safe guard to start spin
7
Unit of weight
Gram
8
Wheel type operation
CAr：Car mode display [CAr]
Sco：Motorcycle mode display [Sco]
and for modification, for the next item, Save exit

15
5.2.1For motorcycle wheel
★Use the motorcycle adapter for wheel balancer we provide★
Step 1
Step 2
Step 3
1．Take off standard thread for car
2．Replace with part No.9 in position A
（Fig. 1）
1. Install part No.1 through No.9
2. Lock and fix in position C and D
（Fig. 2）
1．Take off the standard gauge head for
car
2．Replace with part No.2 in position B
（Fig. 3）
order
Display
Function
Display wheel type after turn on balancer
1
Car wheel
2
Motorcycle
wheel
★“Display wheel type after turn on balancer” means after turn on machine, it comes signal to tell you it is a car mode or
motorcycle mode. ★
5.3 Rim distance gauge calibration
press keys to enter. select and Select
press keys to enter
1
pull gauge to position “0” and hold,
press

16
2
pull gauge to position “15” and
hold, press
3
operation＞
Calibration finished
5.4.1 Radar Calibration of width gauge (No tyres need to be installed)
press keys to enter. select and Select
press keys to enter
1
Keep the protective cover in position
comes＞
2
Auto complete
comes＞
Width gauge calibration finished
5.4．2 width compensation
Tire installation required note (known tire width)

17
1
A value must be entered
explain＞
2
We're aiming the radar at the tires
explain＞
3
explain＞
Press + / at the same time to
modify the known tire width
Put down the key to save automatically
5.5.Calibration of diameter gauge(Install a tire)
press keys to enter. select and Select
press keys to enter
1
operation＞
Enter diameters by and .
2
operation＞
move gauge to touch the edge of
rim and keep still, press keys
to confirm.
3
operation＞
Calibration finished
