Chapter 1
Product Overview
Non-IO-Link Sensors 875L AC Cylindrical Cap
• Capacitive proximity switches with either sensing distance:
- M18 housing: 8 mm (0.31 in.) flush mounted in metal or sensing
distance 12 mm (0.47 in.) non-flush mounted. Gray M18 polyester
housing with 2 m (6.6 ft) PVC cable or M12 plug.
- M30 housing: 16 mm (0.63 in.) flush mounted or 25 mm (0.98 in.)
sensing distance non-flush mounted. Gray M30 polyester housing
with 2 m (6.6 ft) PVC cable or plug.
• 2-wire AC output with make (N.O.) or break (N.C.) switching. Ideal for
use in level and plastic machinery applications.
•SCRoutput
• Make or break switching function
• Status indicators
• High noise immunity
• Flush and non-flush types
• Plug and cable versions
Housing
Figure 1 - M18 Housing
Figure 2 - M30 Housing
Status Indicator
Sensitivity
Max
Min
Sensitivity
Adjustment AC Models
Programmable N.O. or N.C.
)by selector switch back view)
(2-wire device back view)
Max
Min Sensitivity

8Rockwell Automation Publication 875-UM001A-EN-P - March 2021
Chapter 1 Product Overview
Catalog Number Explanation
875F DC Flat Cap
• Detection of water-based fluids inside a container or tube without direct
contact with the fluids.
• The sensor detects the liquids reliably while compensating for residue
film, moisture, or foam build-up from liquids such as water, milk, bodily
fluids (blood), acid, or alkaline solutions with conductivity as high as
50 mS/cm inside or outside the container wall.
• Flexible and fast universal mounting bracket.
• The sensing principle detects only the level of the liquids while ignoring
foam, film, or build-up that would cause standard capacitive sensors to
detect faultily.
Features
• Compact housing
• Supply voltage: 10…30V DC
• Output: 100 mA, NPN or PNP preset
• Make or break switching function
• Status indication for output and power ON
• Protection: reverse polarity, short circuit, and transients
• Cable and pigtail M8 plug versions
• Excellent EMC performance
• IP65, IP66, IP67, IP68, and IP69K for hose-down applications
•c-UL-us
•Ecolab
875 L - F 8 N 18 A2
ab c d e f
ab c
Housing Style Shielding Sensing Distance
Code Description Code Description Code Description
LCylindrical housing
with threaded barrel
FShielded 8 8 mm (0.31 in.)
GUnshielded 12 12 mm (0.47 in.)
16 16 mm (0.63 in.)
25 25 mm (0.98 in.)
de f
Output Function Barrel Diameter Output Type
Code Description Code Description Code Description
N Normally open (N.O.) 18 18 mm (0.71 in.) A2 2 m (6.6 ft) PVC cable
C Normally closed (N.C.) 30 30 mm (1.18 in.) R3 AC micro connector
BN.O./N.C.

Rockwell Automation Publication 875-UM001A-EN-P - March 2021 9
Chapter 1 Product Overview
Housing
Catalog Number Explanation
Item Description
A Yellow status indicator (output)
B Green status indicator (power ON)
C Two M3 mounting holes
D Recessed area for cable strips, 5 mm wide (max)
E Sensing surface
Table 1 - Status Indicators
Green Status Indicator Yellow Status Indicator Output
Flashing 1 Hz OFF Full calibration (2…7 s)
Flashing 1 Hz ON Empty calibration (7…12 s)
— Flashes three times 1 Hz Successful full calibration
— Flashes three times 1 Hz Successful empty calibration
— Flashes ten times 4 Hz Unsuccessful calibration (canceled or error) (>12 s)
875 F - M 10 NP 34 A2
ab c d e f
ab c
Housing Style Mounting Sensing Distance
Code Description Code Description Code Description
F Rectangular housing MFlush 10 10 mm (0.39 in.)
de f
Output Function Housing Length Output Type
Code Description Code Description Code Description
NP N.O. PNP 34 34 mm (1.34 in.) A2 2 m (6.6 ft) PVC cable
NN N.O. NPN FP02 0.2 m (0.66 ft) PVC
cable 4-pin DC pico
CP N.C. PNP
CN N.C. NPN
D
BA
C
E

10 Rockwell Automation Publication 875-UM001A-EN-P - March 2021
Chapter 1 Product Overview
IO-Link Sensors 875L DC Cylindrical Cap
• The sensor can be operated in IO-Link mode once it is connected to an
IO-Link master or in standard I/O mode.
• Adjustable parameters via IO-Link interface: Sensing distance and
hysteresis.
- Sensing modes: single-point, two-point, or window mode.
- Timer functions like: on-delay, off-delay, one shot leading edge, or
trailing edge.
- Logic functions such as: AND, OR, XOR, and SR-FF.
-Externalinput.
- Logging functions: Maximum temperatures, minimum temperatures,
operating hours, operating cycles, power cycles, minutes above
maximum temperature, minutes below minimum temperature, and
so on.
Features
• A complete family. Availability in M18 in a robust PBT housing with an
operation of 2…10 mm (0.08…0.39 in.) flush or 3…15 mm (0.12…0.59 in.)
non-flush.
• The output can be operated either as a switching output or in IO-Link
mode.
• Fully configurable via output IO-Link v 1.1. Electrical outputs can be
configured as PNP/NPN/Push-pull/External input, normally open or
normally closed.
• Timer functions can be set, such as on-delay, off-delay, and one shots.
• Logging functions: temperatures, detection counter, power cycles, and
operating hours.
• Detection modes: single-point, two-point, and window mode.
• Analog output: In IO-Link mode, the sensor generates 16-bit analog
process data output that represents the dielectric value that the sensor
measures.
Housing
Item Description
A Sensitivity adjustment
B Yellow status indicator
C Green status indicator
DSensingface
DD
A
BC
M18 Housing M30 Housing
A
B
C

Rockwell Automation Publication 875-UM001A-EN-P - March 2021 11
Chapter 1 Product Overview
Catalog Number Explanation
875 L - M 8 NP 18 A2
ab c d e f
ab c
Housing Style Mounting Sensing Distance
Code Description Code Description Code Description
LCylindrical housing
with threaded barrel
MFlush 8 8 mm (0.31 in.)
NNon-flush 12 12 mm (0.47 in.)
16 16 mm (0.63 in.)
25 25 mm (0.98 in.)
de f
Output Function Barrel Diameter Output Type
Code Description Code Description Code Description
NP N.O. PNP 18 18 mm (0.71 in.) A2 2 m (6.6 ft) PVC cable
NN N.O. NPN 30 30 mm (1.18 in.) D4 DC micro connector
CP N.C. PNP
CN N.C. NPN

12 Rockwell Automation Publication 875-UM001A-EN-P - March 2021
Chapter 1 Product Overview
Notes:

Rockwell Automation Publication 875-UM001A-EN-P - March 2021 13
Chapter 2
Configure with IO-Link
Bulletin 875 sensors offer five different tabs (shown in Table 2) to describe the
device functionality and operations.
Table 2 - Tab Descriptions
Tab Description
Common
(page 14)Provides general product information about sensor specifications and IO-Link IODD information.
Identification
(page 15)Provides sensor catalog number, series letter, product firmware, and hardware revisions.
Observation
(page 15)Displays real-time measurement information, including distance measurement value, switching outputs, and operation conditions.
Parameter
(page 16)Allows you to configure sensors by modifying parameter settings.
Diagnosis
(page 17)Provides information of operation status and sensor health diagnosis, and enables you to restore
factory default settings and physically locate the sensor for troubleshooting.

14 Rockwell Automation Publication 875-UM001A-EN-P - March 2021
Chapter 2 Configure with IO-Link
Common Tab

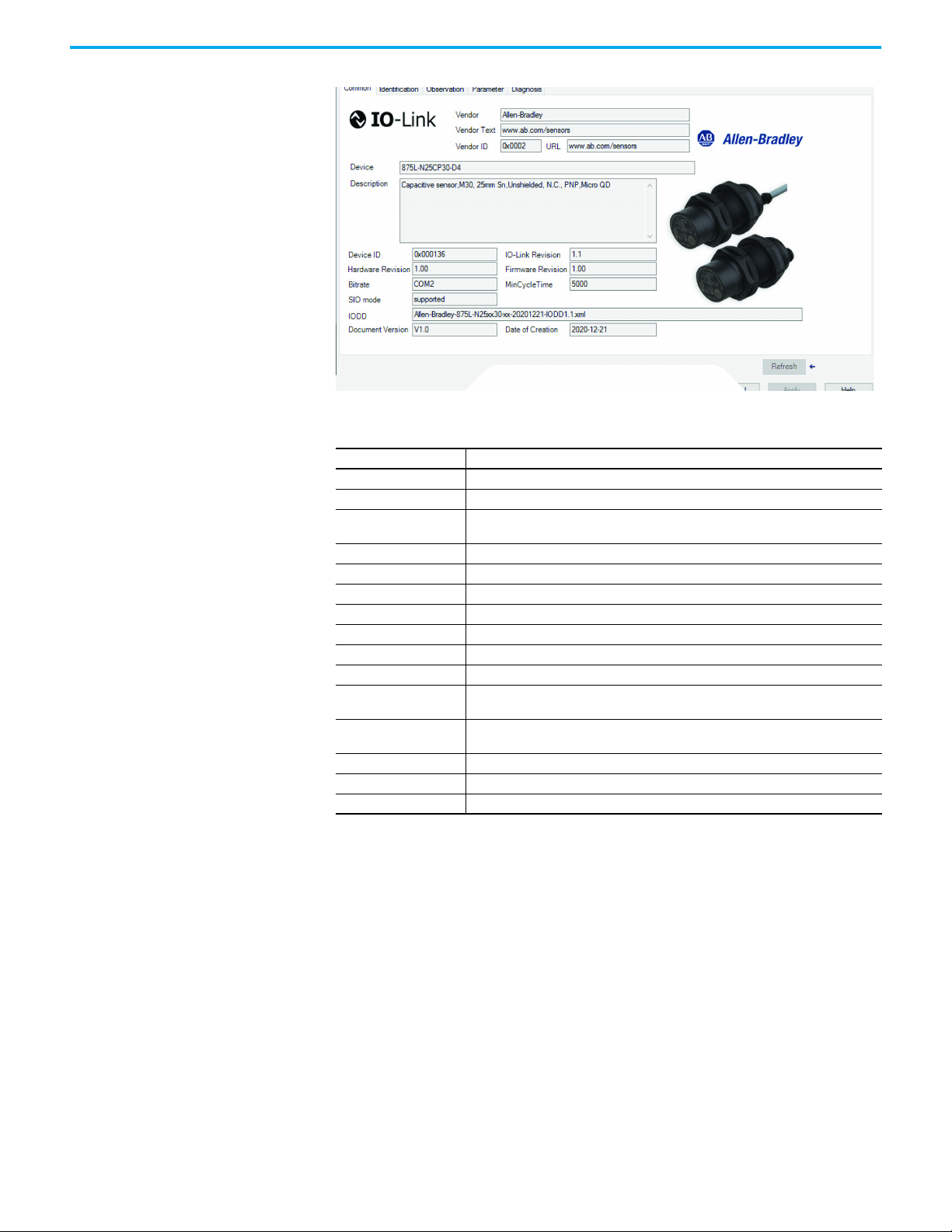

The Common tab contains the following device information:
Parameter Description
Vendor Provides the vendor name of the product.
Vendor Text Field that is used to describe additional product information.
Vendor ID Describes the vendor ID of the manufacturer of the product as designated in the
IO-Link Consortium.
URL Displays the vendor URL.
Device Provides the specific catalog number of the product.
Description Describes the sensor features and range performance.
Device ID Displays the unique device ID as defined in the IO-Link specifications.
IO-Link Revision Displays the current IO-Link version that the device supports.
Hardware Revision Displays the latest sensor hardware information.
Firmware Revision Displays the latest sensor Firmware information.
Bitrate Displays the supported bitrate for communications as defined in the IO-Link 1.1
standard.
SIO Mode Describes whether the sensor is also designed to operate without and IO-Link
connection.
IODD Displays the complete file name of the IODD that is assigned to the product.
Document Version Displays the version control for the IODD.
Date of Creation Displays when the IODD file was creation.

Rockwell Automation Publication 875-UM001A-EN-P - March 2021 15
Chapter 2 Configure with IO-Link
Identification Tab

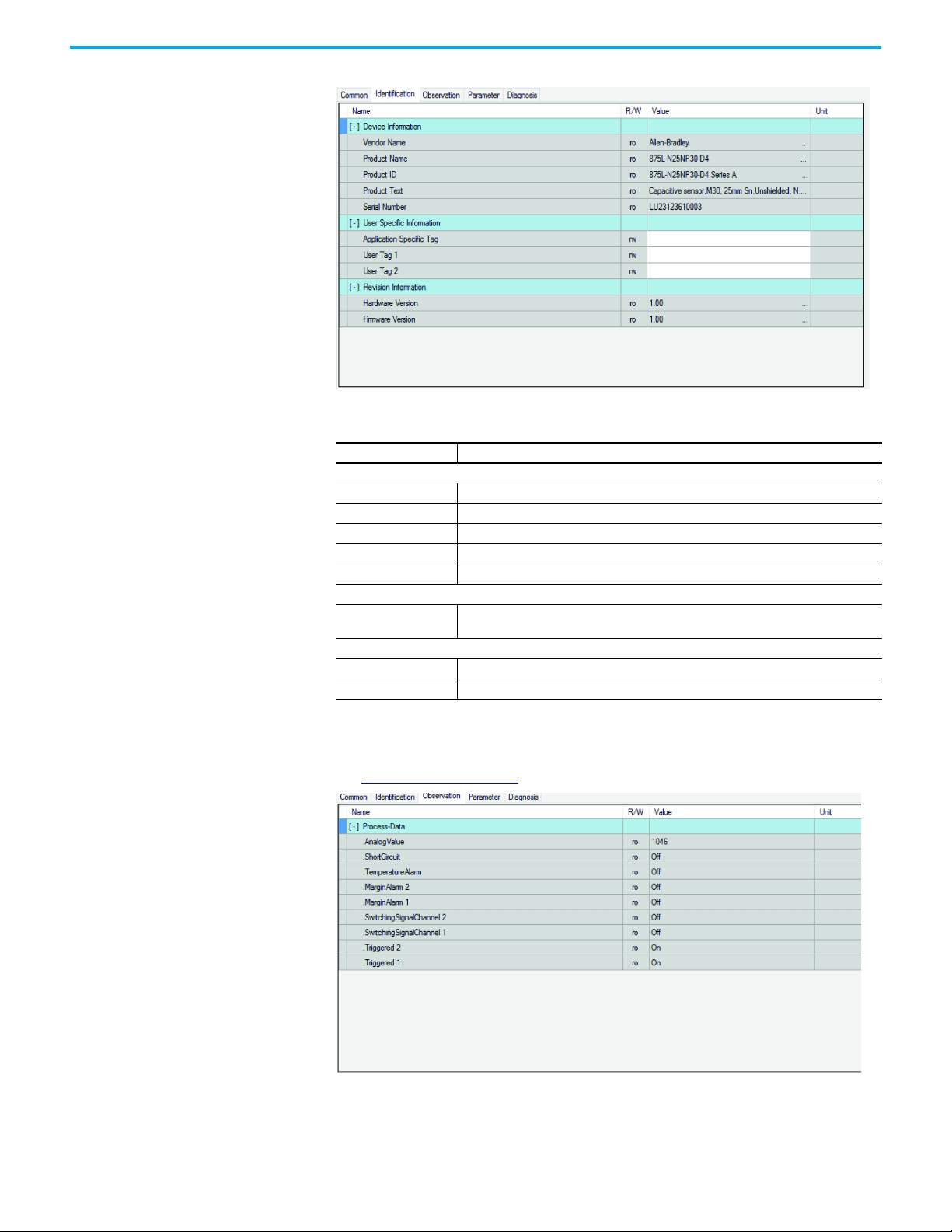

The Identification tab contains the following device information:
Observation Tab The Observation tab displays real-time device status. For more information,
see Appendix B on page 37.
Parameter Description
Device Information
Vendor Name The vendor name of the product.
Product Name The product catalog number information.
Product ID Product catalog number information with series letter.
Product Text Product description.
Serial Number Serial number of the device as unique numeric value.
User-Specific Information
Application-Specific
Tag Device-specific name that is assigned to device for device identification. This tag is a unique identity of each device. You can customize this read/write field.
Revision Information
Hardware Version Hardware version of the 875 sensor that is provided as alphanumeric value
Firmware Version Firmware revision of the875 sensor that is provided as numeric value.

16 Rockwell Automation Publication 875-UM001A-EN-P - March 2021
Chapter 2 Configure with IO-Link
Parameter Tab The Parameter tab allows you to configure the sensor. For more information,
see Appendix B on page 37.

Rockwell Automation Publication 875-UM001A-EN-P - March 2021 17
Chapter 2 Configure with IO-Link
Diagnosis Tab The Diagnosis tab provides information on operation status and sensor health
diagnosis. For more information, see Appendix B on page 37.
Parameter Description
Operating hours The sensor has a built-in counter that logs every full hour that the sensor has been operational, the maximum hours that can be recorded is
2,147,483,647 hours, this value can be read from an IO-Link master.
Number of power cycles The sensor has a built-in counter that logs every time that the sensor has been powered-up, the value is saved every hour, the maximum
numbers of power cycles that can be recorded is 2,147,483,647 cycles, this value can be read from an IO-Link master.
Event configurations See Event Configuration on page 30.
Maximum temperature -
all-time high [°C] The sensor has a built-in function that logs the highest temperature that the sensor has been exposed to during the full operational lifetime. This parameter is updated once per hour and can be read from an IO-Link master.
Minimum temperature -
all-time low [°C] The sensor has a built-in function that logs the lowest temperature that the sensor has been exposed to during the full operational lifetime. This parameter is updated once per hour and can be read from an IO-Link master.
Maximum temperature
since last power-up [°C] The maximum registered temperature has been since startup. This value is not saved in the sensor.
Minimum temperature
since last power-up [°C] The minimum registered temperature has been since startup. This value is not saved in the sensor.
Current temperature [°C] The current temperature of the sensor.
Detection counter
[cycles] The sensor logs every time the SSC1 change state. This parameter is updated once per hour and can be read from an IO-Link master.
Minutes above maximum
temperature [min] The sensor logs how many minutes the sensor has been operational above the maximum temperature for the sensor, the maximum number of minutes to be recorded is 2,147,483,647. This parameter is updated once per hour and can be read from an IO-Link master.
Minutes below minimum
temperature [min] The sensor logs how many minutes the sensor has been operational below the minimum temperature for the sensor, the maximum number of minutes to be recorded is 2,147,483,647. This parameter is updated once per hour and can be read from an IO-Link master.

18 Rockwell Automation Publication 875-UM001A-EN-P - March 2021
Chapter 2 Configure with IO-Link
Notes:

Rockwell Automation Publication 875-UM001A-EN-P - March 2021 19
Chapter 3
Switch Output Configuration
The sensor measures five different physical values. These values can be
independently adjusted and used as source for the Switching Output 1 or 2, in
addition to those an external input can be selected for SO2. After selecting one
of these sources, it is possible to configure the output of the sensor with an
IO-Link master following the steps that are shown in the Switching Output
configuration (Figure 3).
Once the sensor has been disconnected from the master, it switches to the SIO
mode and keeps the last configuration setting.
Figure 3 - Switch Output Configuration
Item Description
1 Sensor front (see page 20)
2 Input selector (see page 21)
3 Logic function block (see page 21)
4 Timer (see page 23)
5 Output inverter (see page 24)
6 Output stage mode (see page 24)
Sensor front Selector
A
Logic
A - B
Time
delay
Output
inverter
Sensor
output
One of
1 to 6
AND, OR,
XOR, S-R
divider
ON, OFF
One-shot
N.O., N.C. NPN, PNP,
Push-Pull
Selector
B
Logic
A - B
Time
delay
Output
inverter
Sensor
output
One of
1 to 6
AND, OR,
XOR, S-R
divider
ON, OFF
One-shot
N.O., N.C. NPN, PNP,
Push-Pull
EXT-Input
S.P., Two P.
Window,
Adj. Hyst.
1. SSC1
S.P., Two P.
Window,
Adj. Hyst.
2. SSC2
3. Dust 1
4. Dust 2
5. Temp
6. EXT-Input
A
B
A
B
Out 1
Out 2
EXT-
Input
1 2 3 4 5 6

20 Rockwell Automation Publication 875-UM001A-EN-P - March 2021
Chapter 3 Switch Output Configuration
Sensor Front When an object (solid or liquid) approaches the face of the sensor, the
capacitance of the detecting circuit is influenced and the sensor output
changes its status.
SSC (Switching Signal Channel)
For presence (or absence of presence) detection of an object in front of the face
of the sensor, the following settings are available: SSC1 or SSC2.
The setpoints can be set from 0…10,000 units that represent the change of
capacitance of the detecting circuit. The higher value, the closer the target
appears to the sensing face of the sensor, also a higher dielectric value of the
target increases the value. For example, a metal target has a higher dielectric
value than a plastic target.
Switchpoint Mode
The switchpoint mode setting can be used to create more advanced output
behavior. The following switchpoint modes can be selected for the switching
behavior of SSC1 and SSC2.
Mode Description
Disabled SSC1 or SSC2 can individually be disabled, which also disables the output if it is
selected in the input selector (the logic value is always 0).
Single-point mode
The switching information changes, when the measurement value passes the
threshold that is defined in setpoint SP1, with rising or falling measurement values,
considering the hysteresis.
Two-point mode
The switching information changes when the measurement value passes the threshold
that is defined in setpoint SP1. This change occurs only with rising measurement
values. The switching information also changes when the measurement value passes
the threshold that is defined in setpoint SP2. This change occurs only with falling
measurement vales. Hysteresis is not considered in this case.
Window mode
The switching information changes, when the measurement value passes the
thresholds that are defined in setpoint SP1 and setpoint SP2, with rising or falling
measurement values, considering the hysteresis.
Sensor
Sensing distance
ON OFF
SP1
Hysteresis
Sensor
Sensing distance
ON OFF
SP2
Hysteresis
SP1
Sensor
Sensing distance
SP2
Hyst
OFF OFF
ON
SP1
Hyst
window
