2090-Series Single Motor Cables
Catalog Numbers 2090-CSBM1DF, 2090-CSWM1DF, 2090-CSBM1DE, 2090-CSWM1DE, 2090-CSBM1DG, 2090-CSWM1DG,
2090-CSBM1E1
Summary of Changes
This publication contains new and updated information as indicated in the following table.
Topic Page
Summary of Changes 1
2090-Series Cables - Series Change 2
Before You Begin 4
Single Motor Cable Applications 4
Single Motor Cable Bend Radius Specifications 5
Install Single Motor Cables 5
Install Continuous-flex Extension Cables 9
Additional Resources 11
Topic Page
Added 2090-Series Cables - Series Change to help clarify the impact of series-B cables with 18 AWG brake conductors. 2
Added 2090-CSBM1DE (18 and 14 AWG) with-brake pinout illustration and series-B cable specifications. 7
Added 2090-CSBM1DE (18 and 14 AWG) without brake pinout illustration. 8
Added 2090-CSBM1DE (10, 8, 6 AWG) with-brake pinout illustration and series-B cable specifications. 9
Added 2090-CSBM1E1-06AFxx and 2090-CSBM1E1-08AFxx extension cable pinout illustration. 10
Added 2090-CSBM1E1-06AFxx and 2090-CSBM1E1-08AFxx extension cable specifications. 11

2Rockwell Automation Publication 2090-IN051D-EN-P - February 2017
2090-Series Single Motor Cables
2090-Series Cables - Series Change
To meet the current requirements of motor brake circuits on Kinetix® 5700 servo drive systems with cable lengths that exceed 50 m (164 ft), the
2090-CSBM1DE (series B) cables are available with 18 AWG brake conductors. Series B cables are designed for applications with cable lengths
from 51 m (167 ft)…90 m (294 ft) and are available in 1.0 m (3.3 ft) increments. For Kinetix 5700 drive systems requiring cable lengths from
1.0 m (3.3 ft)…50 m (164 ft), the 2090-CSBM1DE (series A) cables are still available.
Single Motor Cables
Single Extension Cables
Cable Cat. No. Drive Compatibility Brake Conductors
AWG
Available Cable Lengths, max (2)
m (ft)
(2) The maximum cable length between the drive and the motor varies, depending on the application, but never exceeds 50 m (164 ft) for Kinetix 5500 drives and 90 m (295 ft) for Kinetix 5700 drives. For details, see Additional
Resources on page 11 for the publication number of your servo drive user manual.
2090-CSBM1DF (series A and B) Kinetix 5500 22
50 (164)
2090-CSBM1DG
Kinetix 5500
and
Kinetix 5700
22
2090-CSBM1DE-18
Kinetix 5700
22
90 (294)
2090-CSBM1DE-14 (series A)
2090-CSBM1DE-10 (series A) 50 (164)
2090-CSBM1DE-14 (series B) (1)
2090-CSBM1DE-10 (series B) (1)
(1) Series B cables are used in applications with cable lengths from 51 m (167 ft)…90 m (294 ft).
18 90 (294)
2090-CSBM1DE-08
2090-CSBM1DE-06
Cable Cat. No. Drive Compatibility Brake Conductors (series B)
AWG
Brake Conductors (series A)
AWG
Available Cable Length, max
m (ft)
2090-CSBM1E1-18 Kinetix 5500
and
Kinetix 5700
N/A 22
30 (98.4)2090-CSBM1E1-14
18 22 (1)
(1) Series B cables replace series A cables. These series A cables are no longer offered.
2090-CSBM1E1-10

Rockwell Automation Publication 2090-IN051D-EN-P - February 2017 3
2090-Series Single Motor Cables
Before You Begin
Remove all packing material from within and around the item. After unpacking, verify the catalog number against the purchase order and visually
inspect the cable and each connector for damage. If necessary, notify the carrier of any shipping damage immediately.
Cables are stored and shipped in a coil. Cables retain this shape until you straighten the cable. To straighten a cable, hang a short cable from its mid-
point or lay a long cable on the floor in a straight line. Any coiling that remains in the cable is straightened out within the next 24 hours. This
practice makes the cable easier to install.
ATTENTION: Observe the following precautions when installing cables in a servo system. Failure to observe these safety notices can result in personal injury or
damage to the motor and equipment.
• Arcing or unexpected motion can occur if the power/brake or feedback cables are connected or disconnected while power is applied to the drive. Always
remove power to the servo drive before connecting or disconnecting cables at the drive or at the motor.
• To avoid electrical shock, make sure that shielded power cables are grounded at a minimum of one point. To prevent the build-up of electrical energy, factory-
supplied power cables use one of these grounding techniques:
– The overall shield is bonded to the connector housing.
– A section of the overall shield is exposed for connection to ground.
– The overall shield is connected to a ground wire.
If the exposed cable braid or a ground wire is present, connect it to the power cable clamp, housing, or another suitable chassis ground on the drive.
• The maximum cable length between the drive and the motor varies, depending on the application, but never exceeds 50 m (164 ft) for Kinetix 5500 drives
and 90 m (295 ft) for Kinetix 5700 drives. See Kinetix Servo Drives Specifications, publication KNX-TD003, for additional information.
• Do not tightly gather or coil the excess length of a power cable. Heat is generated within a cable whenever power is applied. Always position a power cable so
it can freely dissipate heat.
– Do not coil a power cable except for temporary use when building or testing a machine. If you temporarily coil a power cable, you must also derate the
cable to meet local code or follow an authoritative directive, such as Engineering Section 310.15(C) of the NEC Handbook.
• The examples in this publication show all available connections. Some connections are not used for specific installations. See your drive installation
instructions or user manual for recommended wire trim lengths and wiring examples for your drive and motor application.
– Do not connect unused wires. Trim and finish unused wires to prevent accidental contact with other wires or wire shields, or with a ground connection.
IMPORTANT Standard (non-flex) cables can be bent or reformed during installation and maintenance. Continuous-flex cables can be flexed repeatedly within a specified
bend radius when properly installed.
Do not use standard cables in a continuous-flex operation.

4Rockwell Automation Publication 2090-IN051D-EN-P - February 2017
2090-Series Single Motor Cables
Single Motor Cable Applications
SpeedTec DIN single (M1) motor cables are compatible with only Kinetix VP motors.
Single Motor Connector and Cable Plug Compatibility
The cable technology used in single cables is the same regardless of the catalog number. What is different about each cable is the lead preparation
and feedback conductor terminations.
• 2090-CSxM1DF cable conductors have flying-leads and lead preparation that is designed specifically for Kinetix 5500 servo drives. No on-
site lead preparation is required.
• 2090-CSxM1DE cables include the 2198-KITCON-DSL connector kit. The kit is pre-assembled with the feedback conductors and lead
preparation for the flying-lead power conductors is designed specifically for Kinetix 5700 servo drives. No on-site lead preparation is
required.
• 2090-CSxM1DG cable conductors have flying-leads and lead preparation that is designed for either Kinetix 5500 or Kinetix 5700 servo
drives. No on-site lead preparation is required, however, 2090-CSxM1DG cable leads are longer than 2090-CSxM1DF cable leads to
accommodate either drive family.
ATTENTION: To avoid damage to the 2198-KITCON-DSL connector kit pre-wired to 2090-CSxM1DE cables, use caution when installing the cable and
when routing the cable to the drive.
IMPORTANT To avoid problems securing the cable in the shield clamp and routing the flying leads to the motor power, feedback, and brake connector plugs, make sure
that you are using the cable that is best suited for your application.
• Use 2090-CSxM1DF cables with Kinetix 5500 servo drives (2198-KITCON-DSL connector kit is included with the drive)
• Use 2090-CSxM1DE cables with Kinetix 5700 servo drives (2198-KITCON-DSL connector kit is pre-wired to the feedback conductors)
• Use 2090-CSxM1DG cables with Kinetix 5500 or Kinetix 5700 servo drives (when used with Kinetix 5700 drives, the 2198-KITCON-DSL connector kit is
ordered separately)
• Attach cable plug with one-quarter turn
• Receives only single motor-cable plugs
Single SpeedTec
DIN Connectors
SpeedTec DIN (M1) Single Cable Plug
• 2090-CSBM1DF-xxAAxx (standard, non-flex) power/feedback/brake cables
• 2090-CSWM1DF-xxAAxx (standard, non-flex) power/feedback cables
• 2090-CSBM1DF-xxAFxx (continuous-flex) power/feedback/brake cables
• 2090-CSBM1DE-xxAAxx (standard, non-flex) power/feedback/brake cables
• 2090-CSWM1DE-xxAAxx (standard, non-flex) power/feedback cables
• 2090-CSBM1DE-xxAFxx (continuous-flex) power/feedback/brake cables
• 2090-CSBM1DG-xxAAxx (standard, non-flex) power/feedback/brake cables
• 2090-CSWM1DG-xxAAxx (standard, non-flex) power/feedback cables
• 2090-CSBM1DG-xxAFxx (continuous-flex) power/feedback/brake cables
• Attach cable plug with one-quarter turn
• Receives only single motor-cable plugs
• 5 m (16.4 ft) cable extension

Rockwell Automation Publication 2090-IN051D-EN-P - February 2017 5
2090-Series Single Motor Cables
Single Motor Cable Bend Radius Specifications
When installing cable runs between the motor and drive, be careful not to stress the cable by making bends too sharp. See the Bend Radius
Definitions table when making static and continuous bend-radius cable bends.
Bend Radius Definitions
Install Single Motor Cables
These figures illustrate how to measure the bend radius and where cable bends can be made on single motor cables. Use these figures with the cable
pinout and specification tables that follow when routing cables during system installation.

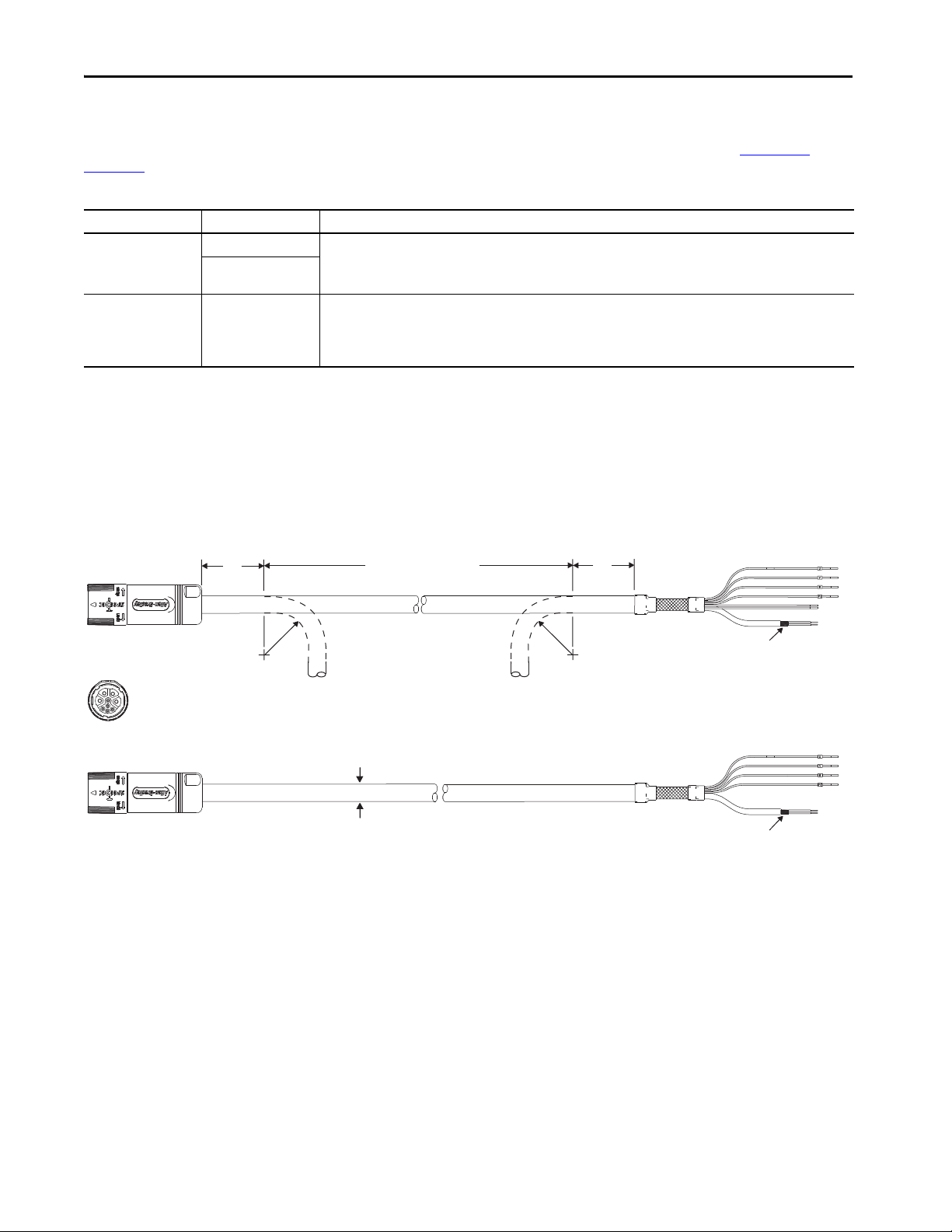

2090-CSxM1DF and 2090-CSxM1DG Motor Cables
Type of Bend Radius Type of Cable Description
Static bend radius
Standard (non-flex) The static (installation) bend radius and dimension B are 7 times the cable diameter:
• Do not begin a static bend inside dimension B.
• Use this measurement when routing the cable in a non-flex application between motor and drive (the bend area).
– The bend area is where standard (non-flex) or continuous-flex cables can be bent to their specified bend radius.
Continuous-flex
Continuous bend radius Continuous-flex
The continuous bend radius for Bulletin 2090 single motor cables is 10 times the cable diameter:
• Secure the continuous-flexing area, at least 7 cable diameters (dimension B) from each end of the cable, with a rigid mount that
prevents the cable from flexing where it connects to the motor or shield clamp.
• Use this measurement when routing the cable in a continuous-flex application between motor and drive (the continuous-flexing area).
– The continuous-flexing area is where continuous-flex cables can be flexed repeatedly.
2090-CSBM1DF-xxAAxx
2090-CSBM1DF-xxAFxx
2090-CSBM1DG-xxAAxx
2090-CSBM1DG-xxAFxx
2090-CSWM1DF-xxAAxx
2090-CSWM1DG-xxAAxx
D
BB
Bend Radius
Dimensions are in mm (in.)
(reference only)
Typical End View
Cable
Diameter
Cable Shield
(overall) Cable Shield (for DSL connector kit)
Cable Shield
(overall)
Cable Shield (for DSL connector kit)
Bend Area or
Continuous-flexing Area
Bend Radius

6Rockwell Automation Publication 2090-IN051D-EN-P - February 2017
2090-Series Single Motor Cables

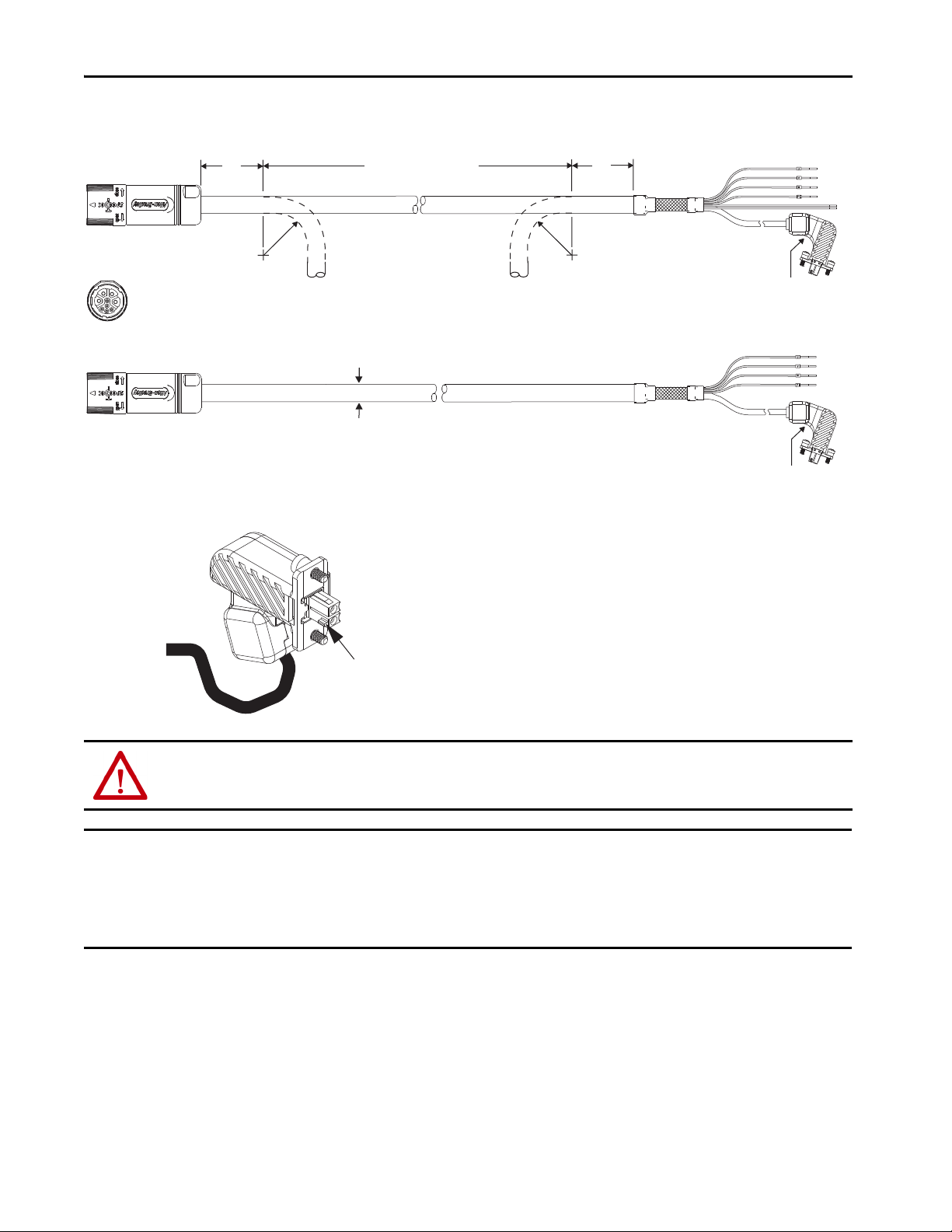

2090-CSxM1DE Motor Cables
DSL Connector Kit Pin Orientation
ATTENTION: To avoid damage tothe 2198-KITCON-DSL connector kit that is pre-wired to 2090-CSxM1DE cables, use caution when installing the cable and when
routing the cable to the drive.
IMPORTANT To avoid problems securing the cable in the shield clamp and routing the flying leads to the motor power, feedback, and brake connector plugs, make sure
that you are using the cable that is best suited for your application.
• Use 2090-CSxM1DF cables with Kinetix 5500 servo drives (2198-KITCON-DSL connector kit is included with the drive)
• Use 2090-CSxM1DE cables with Kinetix 5700 servo drives (2198-KITCON-DSL connector kit is pre-wired to the feedback conductors)
• Use 2090-CSxM1DG cables with Kinetix 5500 or Kinetix 5700 servo drives (when used with Kinetix 5700 drives, the 2198-KITCON-DSL connector kit is
ordered separately)
2090-CSBM1DE-xxAAxx
2090-CSBM1DE-xxAFxx
2090-CSWM1DE-xxAAxx
D
BB
Bend Radius
Dimensions are in mm (in.)
(reference only)
Typical End View
Cable
Diameter
Cable Shield
(overall)
Cable Shield
(overall)
Bend Area or
Continuous-flexing Area
Bend Radius
Overall shield and flying-leads are
prepared specifically for
Kinetix 5700 servo drives.
Feedback conductors are wired to
2090-KITCON-DSL connector kits.
Feedback conductors are wired to
2090-KITCON-DSL connector kits.
D+
D–
D+
D–
Bottom Pin (MF-2, D–) is Keyed
2198-KITCON-DSL Feedback
Connector Kit

Rockwell Automation Publication 2090-IN051D-EN-P - February 2017 7
2090-Series Single Motor Cables

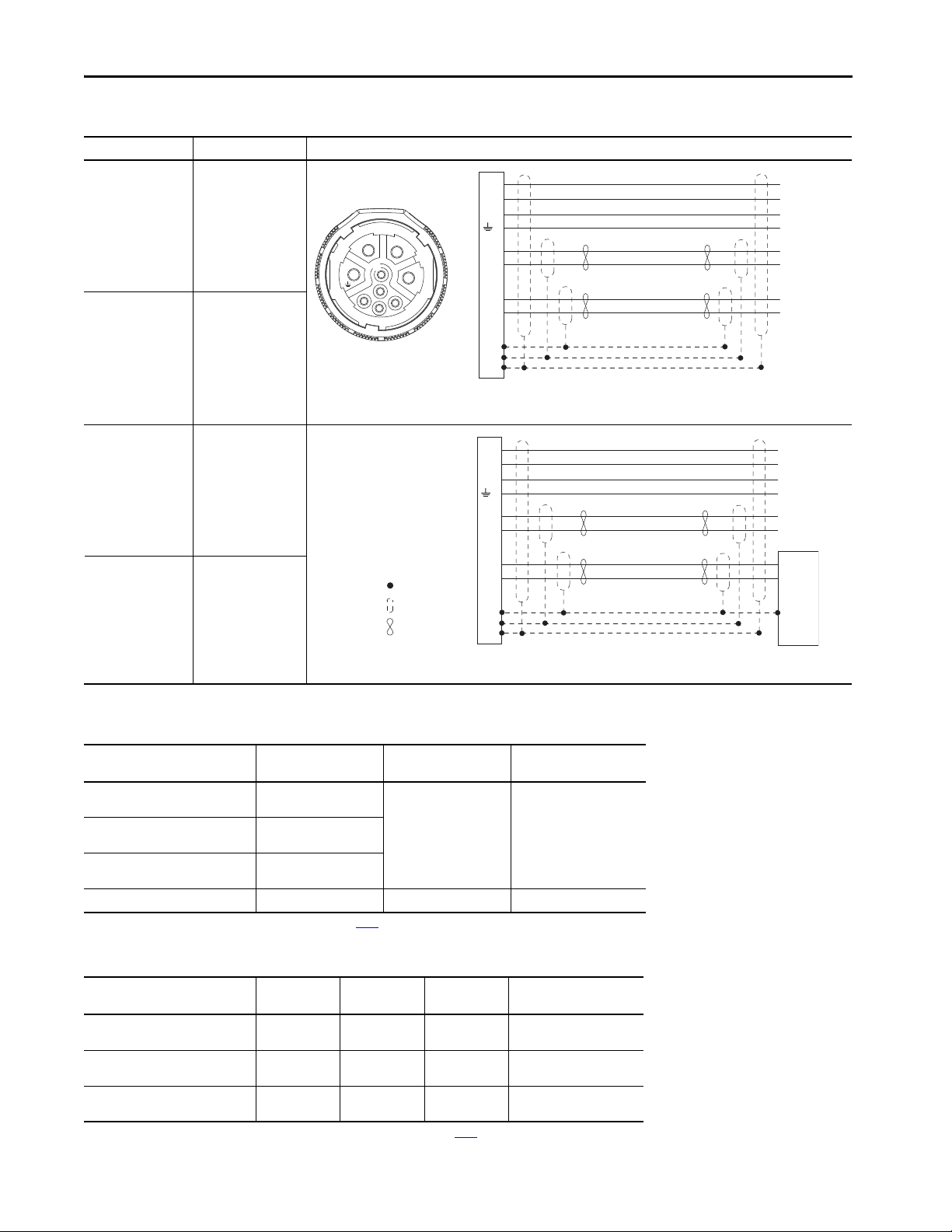

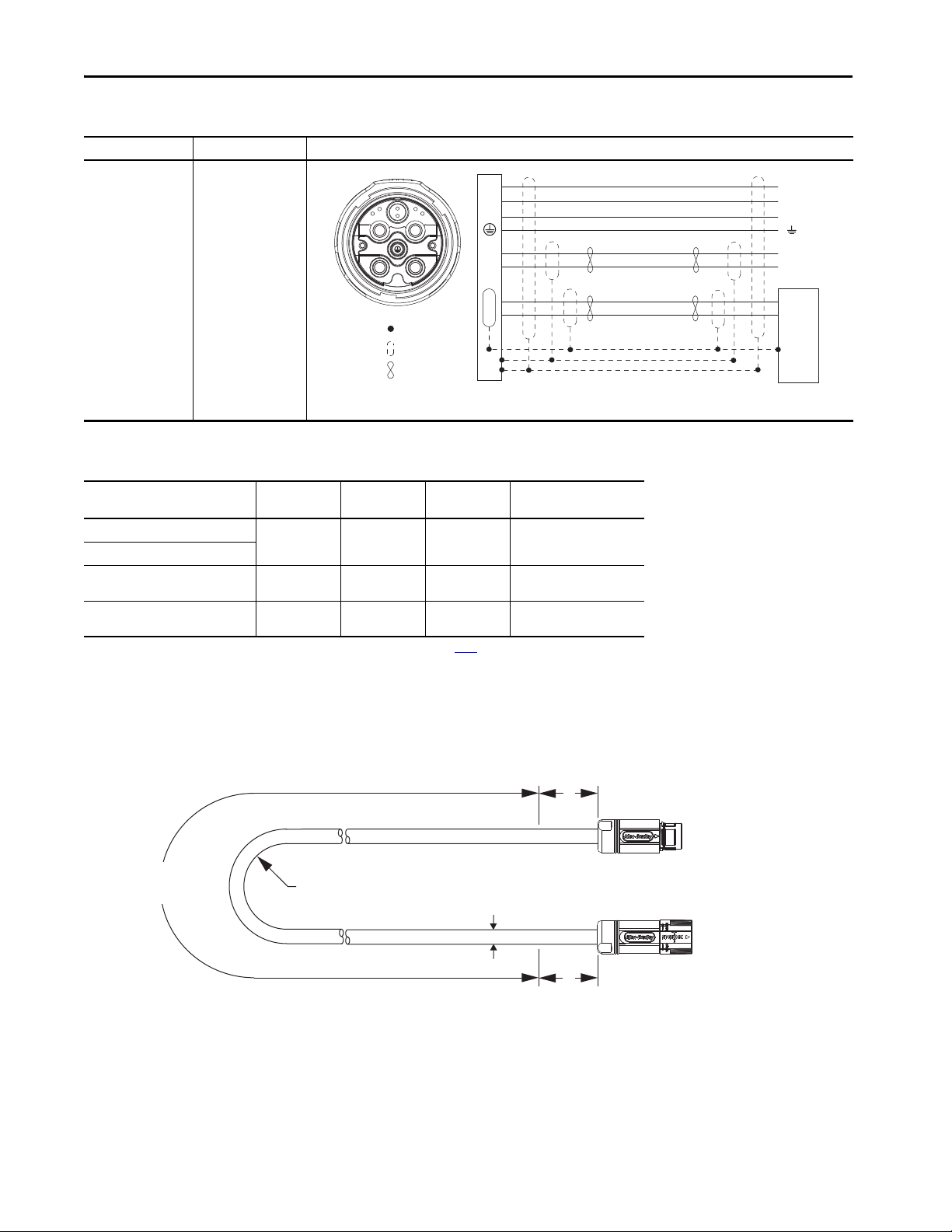

Power/Feedback/Brake Cable Pinouts (18 and 14 AWG)
(1) 18 AWG brake conductors apply to 2090-CSBM1DE (series B) cables. 22 AWG brake conductors apply to 2090-CSBM1DE (series A) cables.
Power/Feedback/Brake Cable Specifications (standard, non-flex)
Power/Feedback/Brake Cable Specifications (continuous-flex)
Cable Type Cable Cat. No. Description
Standard, non-flex
2090-CSBM1DF-18AAxx,
2090-CSBM1DF-14AAxx,
2090-CSBM1DG-18AAxx,
2090-CSBM1DG-14AAxx
Continuous-flex
2090-CSBM1DF-18AFxx,
2090-CSBM1DF-14AFxx,
2090-CSBM1DG-18AFxx,
2090-CSBM1DG-14AFxx
Cable Cat. No. Wire Size
AWG
D
mm (in.)
B (1)
mm (in.)
(1) Dimension B is based on the cable diameter. See Bend Radius Definitions on page 5 for more information.
2090-CSBM1DF-18AAxx
2090-CSBM1DF-14AAxx
18
14
15.0 (0.59) 105 (4.1)
2090-CSBM1DG-18AAxx
2090-CSBM1DG-14AAxx
18
14
2090-CSBM1DE-18AAxx
2090-CSBM1DE-14AAxx (series A)
18
14
2090-CSBM1DE-14AAxx (series B) 14 16.3 (0.64) 114 (4.5)
Cable Cat. No. Wire Size
AWG
D
mm (in.)
B (1)
mm (in.)
(1) Dimension B and continuous bend radius are based on the cable diameter. See Bend Radius Definitions on page 5 for more information.
Continuous Bend Radius (1)
mm (in.)
2090-CSBM1DF-18AFxx
2090-CSBM1DF-14AFxx
18
14
15.0 (0.59)
17.0 (0.67)
105 (4.1)
119 (4.7)
150 (5.9)
170 (6.7)
2090-CSBM1DG-18AFxx
2090-CSBM1DG-14AFxx
18
14
15.0 (0.59)
17.0 (0.67)
105 (4.1)
119 (4.7)
150 (5.9)
170 (6.7)
2090-CSBM1DE-18AFxx
2090-CSBM1DE-14AFxx (series A and B)
18
14
15.0 (0.59)
17.0 (0.67)
105 (4.1)
119 (4.7)
150 (5.9)
170 (6.7)
A
B
C
D
E
H
U
V
W
PE
D+
D–
F
G
MBRK+
MBRK–
CB
A
E
F
H
L
DG
To Motor To Drive
Brown
Black
Blue
Green/Yellow
22 AWG Black
22 AWG White
Electrical Screens (braided copper)
22 AWG Blue
22 AWG White/Blue
360° shield-to-ground
connections are required.
Conductive
Connector Housing
Standard, non-flex 2090-CSBM1DE-18AAxx,
2090-CSBM1DE-14AAxx
Continuous-flex 2090-CSBM1DE-18AFxx,
2090-CSBM1DE-14AFxx
A
B
C
D
E
H
U
V
W
PE
D+
D–
F
G
MBRK+
MBRK–
To Motor To Drive
Brown
Black
Blue
Green/Yellow
18/22 AWG Black
18/22 AWG White
Electrical Screens (braided copper)
22 AWG Blue
22 AWG White/Blue
Twisted Wire Pair
360° shield-to-ground
connections are required.
Shield
Wire Connection
Conductive
Connector Housing
Conductive
Connector Housing
(1)

8Rockwell Automation Publication 2090-IN051D-EN-P - February 2017
2090-Series Single Motor Cables
Power/Feedback Cable Pinouts (18 and 14 AWG)
Power/Feedback Cable Specifications (standard, non-flex)
Power/Feedback/Brake Cable Pinouts (10 AWG)
Cable Type Cable Cat. No. Description
Standard, non-flex
2090-CSWM1DF-18AAxx,
2090-CSWM1DF-14AAxx,
2090-CSWM1DG-18AAxx,
2090-CSWM1DG-14AAxx
Standard, non-flex 2090-CSWM1DE-18AAxx,
2090-CSWM1DE-14AAxx
Cable Cat. No. Wire Size
AWG
D
mm (in.)
B (1)
mm (in.)
(1) Dimension B is based on the cable diameter. See Bend Radius Definitions on page 5 for more information.
2090-CSWM1DF-18AAxx
2090-CSWM1DF-14AAxx
18
14
15.0 (0.59) 105 (4.1)
2090-CSWM1DG-18AAxx
2090-CSWM1DG-14AAxx
18
14
2090-CSWM1DE-18AAxx
2090-CSWM1DE-14AAxx
18
14
Cable Type Cable Cat. No. Description
Continuous-flex 2090-CSBM1DF-10AFxx
2090-CSBM1DG-10AFxx
CB
A
E
F
H
L
A
B
C
D
E
H
U
V
W
D+
D–
D
To Motor To Drive
Brown
Black
Blue
Green/Yellow
Electrical Screens (braided copper)
22 AWG Blue
22 AWG White/Blue
360° shield-to-ground
connections are required.
Conductive
Connector Housing
A
B
C
D
E
H
U
V
W
D+
D–
Twisted Wire Pair
To Motor
Shield
Wire Connection
To Drive
Brown
Black
Blue
Green/Yellow
Electrical Screens (braided copper)
22 AWG Blue
22 AWG White/Blue
360° shield-to-ground
connections are required.
Conductive
Connector Housing
Conductive
Connector Housing
U
V
W
L
H
U
V
W
D+
D–
1
2
MBRK+
MBRK–
SHIELD
V
–
W
2
1
U
+
N
H
L
To Motor To Drive
Brown
Black
Blue
Green/Yellow
22 AWG Black
22 AWG White
Electrical Screens (braided copper)
22 AWG Blue
22 AWG White/Blue
Conductive
Connector Housing
360° shield-to-ground
connections are required.
Twisted Wire Pair
Shield
Wire Connection

Rockwell Automation Publication 2090-IN051D-EN-P - February 2017 9
2090-Series Single Motor Cables
Power/Feedback/Brake Cable Pinouts (10, 8, and 6 AWG)
(1) 18 AWG brake conductors apply to 2090-CSBM1DE-10AFxx (series B) cables and 2090-CSBM1DE-08AFxx and 2090-CSBM1DE-06AFxx cables. 22 AWG brake conductors apply to 2090-CSBM1DE-10AFxx (series A) cables.
Power/Feedback/Brake Cable Specifications (continuous-flex)
Install Continuous-flex Extension Cables
This figure illustrates how to measure the bend radius and where cable bends can be made on continuous-flex extension cables.
Continuous-flex Extension Cable Bend-radius Example
Cable Type Cable Cat. No. Description
Continuous-flex
2090-CSBM1DE-10AFxx
2090-CSBM1DE- 08AFxx
2090-CSBM1DE- 06AFxx
Cable Cat. No. Wire Size
AWG
D
mm (in.)
B (1)
mm (in.)
(1) Dimension B and continuous bend radius are based on the cable diameter. See Bend Radius Definitions on page 5 for more information.
Continuous Bend Radius (1)
mm (in.)
2090-CSBM1DF-10AFxx
10 19.0 (0.75) 133 (5.2) 190 (7.5)
2090-CSBM1DG-10AFxx
2090-CSBM1DE-10AFxx (series A)
2090-CSBM1DE-10AFxx (series B)
10
10
19.0 (0.75)
20.3 (0.80)
133 (5.2)
142 (5.6)
190 (7.5)
203 (8.0)
2090-CSBM1DE-08AFxx
2090-CSBM1DE-06AFxx
8
625.0 (0.98) 200 (8.0) 250 (10.0)
U
V
W
L
H
U
V
W
D+
D–
1
2
MBRK+
MBRK–
V
–
W
2
1
U
+
N
H
L
Twisted Wire Pair
To Motor
Shield
Wire Connection
To Drive
Brown
Black
Blue
Green/Yellow
18/22 AWG Black
18/22 AWG White
Electrical Screens (braided copper)
22 AWG Blue
22 AWG White/Blue
Conductive
Connector Housing
360° shield-to-ground
connections are required. Conductive
Connector Housing
(1)
B
B
D
Bend Area or
Continuous Flexing Area 2090-CSBM1E1-xxAFxx cable is shown.
Continuous
Bend Radius Cable
Diameter

10 Rockwell Automation Publication 2090-IN051D-EN-P - February 2017
2090-Series Single Motor Cables
Extension Cable Pinouts
(1) On 18 AWG and 14 AWG cables, the electrical screen of the blue and white/blue pair is grounded to the connector chassis.
(2) On 10, 8, and 6 AWG cables, the electrical screen of the blue and white/blue pair is grounded to the internal metal EMC/EMI tube.
Extension Cable Type Cable Cat. No. Description
Continuous-flex 2090-CSBM1E1-18AFxx,
2090-CSBM1E1-14AFxx,
2090-CSBM1E1-10AFxx
2090-CSBM1E1-06AFxx,
2090-CSBM1E1-08AFxx
CB
A
EF
H
U
V
W
U
V
W
A
B
C
A
B
C
F
G
E
H
F
G
E
H
L
1
2
1
2
V
–
W
2
1
U
+
G
L
E
H
L
A
BC
F
G
N
H
L
V
–
W
21
U
+
N
H
L
D+
D–
MBRK+
MBRK–
DD
H
L
H
(1)
(2)
(1)
(2)
U
V
W
U
V
W
L
1
2
1
2
D+
D–
MBRK+
MBRK–
H
L
H
(2) (2)
2090-CSBM1E1-18AFxx
2090-CSBM1E1-14AFxx
2090-CSBM1E1-10AFxx
2090-CSBM1E1-08AFxx
2090-CSBM1E1-06AFxx
Brown
Black
Blue
Green/Yellow
18/22AWG Black
18/22 AWG White
Motor Plug Extension Plug
Twisted Wire Pair Wire Connection
Shield Conductive
Connector Housing
22 AWG Blue
22 AWG White/Blue
Electrical Screens (braided copper)
Conductive
Connector Housing
EMC/EMI
Tube
EMC/EMI
Tube
EMC/EMI
Tube
EMC/EMI
Tube
Brown
Black
Blue
18 AWG Black
18 AWG White
22 AWG Blue
Electrical Screens (braided copper)
22 AWG White/Blue

Rockwell Automation Publication 2090-IN051D-EN-P - February 2017 11
2090-Series Single Motor Cables
Extension Cable Specifications (continuous-flex)
Additional Resources
These documents contain additional information concerning related products from Rockwell Automation.
You can view or download publications at http://www.rockwellautomation.com/global/literature-library/overview.page. To order paper copies of
technical documentation, contact your local Allen-Bradley distributor or Rockwell Automation sales representative.
Cable Cat. No. Wire Size
AWG
D
mm (in.)
B (1)
mm (in.)
(1) Dimension B and continuous bend radius are based on the cable diameter. See Bend Radius Definitions on page 5 for more information.
Continuous Bend Radius (1)
mm (in.)
2090-CSBM1E1-18AFxx 18 15.0 (0.59) 105 (4.1) 150 (5.9)
2090-CSBM1E1-14AFxx (series A and B) 14 17.0 (0.67) 119 (4.7) 170 (6.7)
2090-CSBM1E1-10AFxx (series A)
2090-CSBM1E1-10AFxx (series B)
10
10
19.0 (0.75)
20.3 (0.80)
133 (5.2)
142 (5.6)
190 (7.5)
203 (8.0)
2090-CSBM1E1-08AFxx 8
25.0 (0.98) 200 (8.0) 250 (10.0)
2090-CSBM1E1-06AFxx 6
Resource Description
Kinetix Rotary Motion Specifications, publication KNX-TD001 Product specifications for Kinetix VP (Bulletin VPL, VPF, VPS), MP-Series™ (Bulletin MPL, MPM, MPF, MPS), Kinetix 6000M
(Bulletin MDF), TL-Series™, RDD-Series™, and HPK-Series™ rotary motors.
Kinetix Linear Motion Specifications, publication KNX-TD002 Product specifications for LDAT-Series linear thrusters, Bulletin MPAS and MPMA linear stages, Bulletin MPAR, MPAI, and
TLAR electric cylinders, and LDC-Series™ and LDL-Series™ linear motors.
Kinetix Servo Drives Specifications, publication KNX-TD003 Product specifications for Kinetix Integrated Motion over the EtherNet/IP network, Integrated Motion over sercos interface,
EtherNet/IP networking, and component servo drive families.
Kinetix Motion Accessories Specifications, publication KNX-TD004 Product specifications for Bulletin 2090 motor and interface cables, low-profile connector kits, drive power components, and
other servo drive accessory items.
Kinetix Motion Control Selection Guide, publication KNX-SG001 Overview of Kinetix servo drives, motors, actuators, and motion accessories designed to help make initial decisions for the
motion control products best suited for your system requirements.
Kinetix 5500 Servo Drives User Manual, publication 2198-UM001
Provides information on installing, configuring, startup, troubleshooting, and applications for your servo drive system.
Kinetix 5700 Servo Drives User Manual, publication 2198-UM002
System Design for Control of Electrical Noise Reference Manual,
publication GMC-RM001 Provides information, examples, and techniques designed to minimize system failures caused by electrical noise.
Rockwell Automation® Product Certification, website http://
www.rockwellautomation.com/global/certification/overview.page Provides declarations of conformity, certificates, and other certification details.

Allen-Bradley, HPK-Series, Kinetix, LDC-Series, LDL-Series, MP-Series, RDD-Series, Rockwell Automation, Rockwell Software, and TL-Series are trademarks of Rockwell Automation, Inc.
Trademarks not belonging to Rockwell Automation are property of their respective companies.
Rockwell Otomasyon Ticaret A.Ş., Kar Plaza İş Merkezi E Blok Kat:6 34752 İçerenköy, İstanbul, Tel: [phone]
Rockwell Automation maintains current product environmental information on its website at
http://www.rockwellautomation.com/rockwellautomation/about-us/sustainability-ethics/product-environmental-compliance.page.
Publication 2090-IN051D-EN-P - February 2017
Supersedes Publication 2090-IN051C-EN-P - February 2016 Copyright © 2017 Rockwell Automation, Inc. All rights reserved. Printed in the U.S.A.
Rockwell Automation Support
Use the following resources to access support information.
Documentation Feedback
Your comments will help us serve your documentation needs better. If you have any suggestions on how to improve this document, complete the
How Are We Doing? form at http://literature.rockwellautomation.com/idc/groups/literature/documents/du/ra-du002_-en-e.pdf.
Technical Support Center Knowledgebase Articles, How-to Videos, FAQs, Chat, User
Forums, and Product Notification Updates. https://rockwellautomation.custhelp.com/
Local Technical Support Phone Numbers Locate the phone number for your country. http://www.rockwellautomation.com/global/support/get-support-now.page
Direct Dial Codes Find the Direct Dial Code for your product. Use the code to route
your call directly to a technical support engineer. http://www.rockwellautomation.com/global/support/direct-dial.page
Literature Library Installation Instructions, Manuals, Brochures, and Technical
Data. http://www.rockwellautomation.com/global/literature-library/overview.page
Product Compatibility and Download Center
(PCDC)
Get help determining how products interact, check features
and capabilities, and find associated firmware. http://www.rockwellautomation.com/global/support/pcdc.page
