Rockwell Automation Reliance electric GV3000/SE User manual

Hardware Reference, Installation, and Troubleshooting Manual D2-3392-7 RELIANCE
ELECTRICSL/
GV3000/SE AC Drive
30 - 200 HP, 460V AC
Version 6.07
@ Allen-Bradley - Rockwell Software Automation

Important User Information
Solid-state equipment has operational characteristics differing from those of electromechanical equipment. Safety
Guidelines for the Application, Installation and Maintenance of Solid State Controls (publication SGI-L.1 available from
your local Rockwell Automation sales office or online at http://www.rockwellautomation.com/literature/) describes some
important differences between solid-state equipment and hard-wired electromechanical devices. Because of this difference,
and also because of the wide variety of uses for solid-state equipment, all persons responsible for applying this equipment
must satisfy themselves that each intended application of this equipment is acceptable.
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the
use or application of this equipment.
The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and
requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or
liability for actual use based on the examples and diagrams.
No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or
software described in this manual.
Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation,
Inc., is prohibited.
Throughout this manual, when necessary, we use notes to make you aware of safety considerations.
WARNING: Identifies information about practices or circumstances that can cause an explosion in a hazardous environment,
which may lead to personal injury or death, property damage, or economic loss.
ATTENTION: Identifies information about practices or circumstances that can lead to personal injury or death, property
damage, or economic loss. Attentions help you identify ahazard, avoid a hazard, and recognize the consequence.
SHOCK HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that dangerous
voltage may be present.
BURN HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that surfaces may
reach dangerous temperatures.
ARC FLASH HAZARD: Labels may beon or inside the equipment, for example, a motor control center, to alert people to
potential Arc Flash. Arc Flash will cause severe injury or death. Wear proper Personal Protective Equipment (PPE). Follow ALL
Regulatory requirements for safe work practices and for Personal Protective Equipment (PPE).
>
>|
i>
>
IMPORTANT _Identifies information that is critical for successful application and understanding of the product.
Allen-Bradley, Rockwell Software, Rockwell Automation, and TechConnect are trademarks of Rockwell Automation, Inc.
Trademarks not belonging to Rockwell Automation are property of their respective companies.

Document Update
Document Update
Electronic Motor Overload This product does not offer speed-sensitive overload protection, thermal memory
Pr ot e cti on retention or provisions to act upon motor over-temperature sensing in motors. If
such protection is needed in the end-use product, it needs to be provided by
additional means.

Document Update
Notes:

Summary of Changes
The information below summarizes the changes made to this manual since
its last release (June 2001).
Description of Changes Page
Added Document Update. After manual
front cover
Deleted the following statement: ‘The Motor Overload Enable parameter (P.040) can 6-1
beused in place of the electronic thermal overload relays in single motor
applications’.

soc-ii Summary of Changes
Notes:

CONTENTS
Chapter 1 Introduction
1.1. Related Publications 0.0.0... cc cccccsecscseeseeeseeenssesecancneanseseenneeessersenseaeenres 1-1
1.2 Getting Assistance from Reliance Electric 2.0.0.0... esseessseseeeenenssesnerseet 1-1
1.3 Notes on Handling the GV3000/SE Drive... eee eseenenaneaennenees 1-2
Chapter 2 About the Drive
2.1 Identify the Drive by Model NUMDET .............cessceeeessesesennesnernenesatsenenees 2-1
2.2 ENcClOSUIES .........cccssccececeesceeeeeneneeerensceeseeesscaseupeednessacsaauaceussadsassnseasnenanannes 2-2
2.3. 30-200 HP GV3000/SE Drive Component Locations ...............ccccccceescon 2-3
2.4 Regulator Board DeSCription............cccseeecsessrsceseneseeseseesereeeeaeneesansantonss 2-8
2.4.1 Jumper Locations and Settings 0.0.0... cscs sesensensesnesseneesees 2-10
2.4.1.1 Analog Input Speed Reference Jumper (J4)............cssseee 2-10
2.4.1.2 Analog Output Jumper (S17) «20... ee eeeeeecetseesetnenneneenensees 2-11
2.4.2 Wiring the Terminal Strip... sce cssscecsesetesseseseenereecseseeens 2-12
2.4.3 RS-232 Communication Port ........... ce ec seesessnseeeseceserseenseseeees 2-13
2.4.4 Option Board GCOmmnector ........cccsccsessecssscsesseesseenssnesseneesereecesates 2-13
2.4.5 Operator Interface Module Connector..........ececssesceeesseeseeneeeees 2-13
2.4.6 KeypPad/DISDlAaY .....ccceccsssssssscscesessneeesnsesesscerersaecenseesensesenseeeeseness 2-14
2.5 Jumpers on Base Board (PISC-60 and PISC-75/75A) 00... eecsssssersseees 2-14
2.6 Optional EquipMent .0........ ee ccs sesssceesesseenssessrnssenessesseressesneseesseesaeaees 2-16
Chapter 3 Planning Before Installing
3.1. General Requirements for the Installation Site... cc eeeeesteeesesseeteees 3-1
3.1.1. Making Sure Environmental Conditions are Met ........ccssesseee 3-1
3.1.2 Determining Total Area Required Based on Drive ,
DIMENSIONS ............ccccescceeeecccssedesssseceesccesnaasencnesseasecsueseeseenensnereered 3-2
3.1.3 Verifying the Site Provides for Recommended Air Flow
CICAPANCES. .........ecececseceseecetsrernenerereeeereseaanareeeneaneanenteeeseesenaaesersenens 3-5
3.1.4 Verifying Power Module AC input Ratings Match
Supplied POWeN........... cc ccssessssssasscssssceseussessecesavsasnenaseesseesoeenteneeees 3-6
3.2 Wiring Requirements for the Drive ou... ecseccescceeseneneeeesseeseesuscnaseanennens 3-6
3.2.1 Meeting Terminal Strip Input and Output Specifications ........... 3-6
3.2.2 Determining Wire Size Requirement ......... eee eeseeeseeneeeeneeees 3-6
3.2.2.1 Recommended Power Wire SiZe@S ...........seseesessseresseetaes 3-6
3.2.2.2 Recommended Control and Signal Wire Sizes .........0.... 3-7
3.2.2.3 Recommended Motor Lead Lengths .......... eee ee sceeeeccees 3-8
3.2.2.4 Recommended Serial Communication Cable Lengths ..... 3-9
3.2.3 Selecting AC Input Line Branch Circuit Fuses, Circuit
Breakers, and AC R@ACtOrs 20... ......ccccceeecesssesetnceceestneseeneneneneceaeee 3-10
3.2.4 Meeting Encoder Specifications (FVC Regulation Only) ........... 3-11
3.2.4.1 Encoder Wiring Guidelines 2.0.0... eee ceeeensseaneeenssensens 3-11
3.2.5 Verifying Power Module Output Current Rating is Greater
© Than Motor Full Load AMPS... csccssssssssssseseesesseeseesseessensasenees 3-11
Table of Contents |

Chapier 4
Mounting the Drive, Grounding, and Finding Wire Routing Locations
4.1. Mounting theDrive 0... eee eee seseeesecceeseaseeeessensenesesseesasnneesssaeaaseeneaes 4-1
4.1.1 Verifying the Drive's Watts Loss Rating .......0. 0 eeesereeeeeees 4-1
4.2 Routing Input, Motor Output, Ground, and Control Wiring
FOF thE Di iVe oe. ecsecesesssssesenceceeescesceseeesuenneenenseessseseeeeseaeenseenereeseeeeaeene 4-1
4.2.1 Replacing Conduit PIUQS ............. eee eseeeceeseeeeeeeseeseeenenoeneneeeneeens 4-2
4.3 Grounding the Drive 2... ecscsssessscecsseceseesnesnesceersesseensaceenseseseesatssecenves 4-2
Chapter 5 Installing Input Power Wiring
5.1Installing Transformers and Reactors (Optional) ....ccsssscsssesesenseeseereees 5-1
5.2 Installing Fuses for Branch Circuit Protection 00.0.0... ssesscssrceccenereseees 5-2
5.3 Installing a Required External/Separate Input Disconnect..............:cc0 5-2
5.4 Installing Power Wiring from the AC Input Line to the Drive's
POWer TOrmimallS ............sscsescssseessersersnssresnesssraccassensesseaseneusssecsassenseseseeasnens 5-5
5.5 Installing Power Wiring from an External DC Bus to the
Drive's Internal DC Bus Terminals ...........c:cccscesensssescessetsesecesseesnneseanersees 5-5
Chapter 6 Installing Output Power Wiring
6.1 Installing Output Contactors (Optional) ....0.... ec seseesseseeseeneeneeneesneeseee 6-1
6.2 Installing Mechanical Motor Overload Protection (Optional) .............0.0 6-1
6.3 Installing Output Wiring from the Drive Output Terminals to the Motor... 6-1
Chapter 7 Wiring the Regulator Board Terminal Strip
7.1 Stopping the Drive... eceeccesescesseeceescensceeeeeeneesseneesanenansaneeeeeeeesanenatens 7-6
7.2 Wiring the Encoder Feedback Device (FVC Regulation Only) .....-- eee 7-7
7.3 Wiring the Signal and Control 1/0 ou... se seessnsssssrssesseenseseateasesseonneases 7-9
Chapter 8 Completing the Installation
8.1 Checking the Installation ........ cc cssesesseesssscrensacsenentearersstsesresenneessrsneees 8-1
8.2 Powering Up After Installation is Complete ............::ccssccessersessseessceenesees 8-2
Chapter 9 Troubleshooting the Drive ;
9.1 Test Equipment Needed to Troubleshoot ..0....... cece eens eeereneeeeneeeee 9-1
9.2 Drive Alarms and Faults ..........e eee eeseesececeseeceeseeeeesnesuaseeeeeseeseuenneeeseeenaes 9-1
9.3 Verifying That DC Bus Capacitors are Discharged ..........cssssseseeesees 9-1
9.4 Checking Out the Power Module withInput Power Off ......esseseseersescess 9-3
9.5 Replacement Parts ............esseccescccecsseeesssseseanerssenesssereneceesonneesseesanesenanees 9-5
Appendix A Technical Specifications ...............cssssssrssnseseseseessenesssensseecaesnesessnsseenensesesesees A-1
Appendix B 30-200 HP GV3000/SE System Wiring Diagram .........ssscsccsssessensessressessenanens B-1
Appendix C Compliance with Electromagnetic Compatibility Standards ..........ssssssereen C-1
GV3000/SE 460 VAC 30-200 HP Drive, Hardware Reference Version 6.07

List of Figures
Figure 2.1 — Identifying the Drive Model NUMDET .............c.:ccceseseeetsseeteseeseenees 2-1
Figure 2.2 — 30 and 40 HP Drive Component Locations ...........cccscseseeseeeees 2-3
Figure 2.3 — 50 and 60 HP Drive Component Locations .............ccsssseseneesens 2-4
Figure 2.4 — 75 and 100 HP Drive Component Locations ...........cccsseceeesseees 2-5
Figure 2.5 — 125 HP Drive Component Locations ........csceesesenestreseeensereess 2-6
Figure 2.6 — 150 and200 HP Drive Component Locations ........scessssseserees 2-7
Figure 2.7 — Regulator Board Component Locations ............cccseesseesneeeneeees 2-9
Figure 2.8 — Jumper J4 Settings for Analog Input Speed Reference............... 2-11
Figure 2.9 — Jumper J17 Settings for Analog Outputs ......... ce seeseeeeseeteeeeres 2-12
Figure 2.10 — Typical Terminal Strip COMMGCtIONS........cesssstereteneneneeeneees 2-13
Figure 2.11 — Keypad/Display .............cccsesssessseseseeessssenseneenssesesneneeannsensensaenes 2-14
Figure 2.12 — Base Board Jumper Locations ...........ccscsesereeneeenssetsesenersenes 2-15
Figure 3.1 — Dimensions of 30 HP and 40 HP Drives .........::cssssssseseseersees 3-3
Figure 3.2 — Dimensions of 50 HP to 200 HP Drives ...........ccseessereresereseeeeees 3-4
Figure 3.3 — Recommended Air Flow Clearances .......ccesscsesescneersnn neers 3-5
Figure 3.4 — How to Calculate Motor Lead Lengths ........cseecessssssntesssertnerners 3-8
Figure 4.1 — Terminal Locations of 30 HP and 40 HP Drives..........cssseseereers 4-3
Figure 4.2 — Terminal Locations of 50 HP to 200 HP Drives............ccssseesees 4-4
Figure 5.1 — Typical AC Input Electrical Connections ............scscssecseresreeeees 5-3
Figure 5.2 — Typical DC Bus Electrical Comme ction ........ccsssessssessneseeseeseeees 5-4
Figure 7.1 — Two-Wire Start/Stop Sample Control Wiring ........--.::::ceeeeeeeteeees 7-4
Figure 7.2 — Three-Wire Start/Stop Sample Control Wiring ............cseereees 7-5
Figure 7.3 — Encoder Wiring Connections ............scececesseeceeensenseesneesenseeesenaas 7-8
Figure 9.1 - DC Bus Voltage Terminals of 30 HP and 40 HP Drives .............. 9-2
Figure 9.1 — DC Bus Voltage Terminals of 50 HP to 200 HP Drives ............... 9-2
Figure B.1 — 30-40 HP GV3000/SE System Wiring Diagram... B-1
Figure B.2 — 50-60 HP GV3000/SE System Wiring Diagram .......scseseeeees B-2
Figure B.3 — 75-200 HP GV3000/SE System Wiring Diagram ..............se B-3
Table of Contents

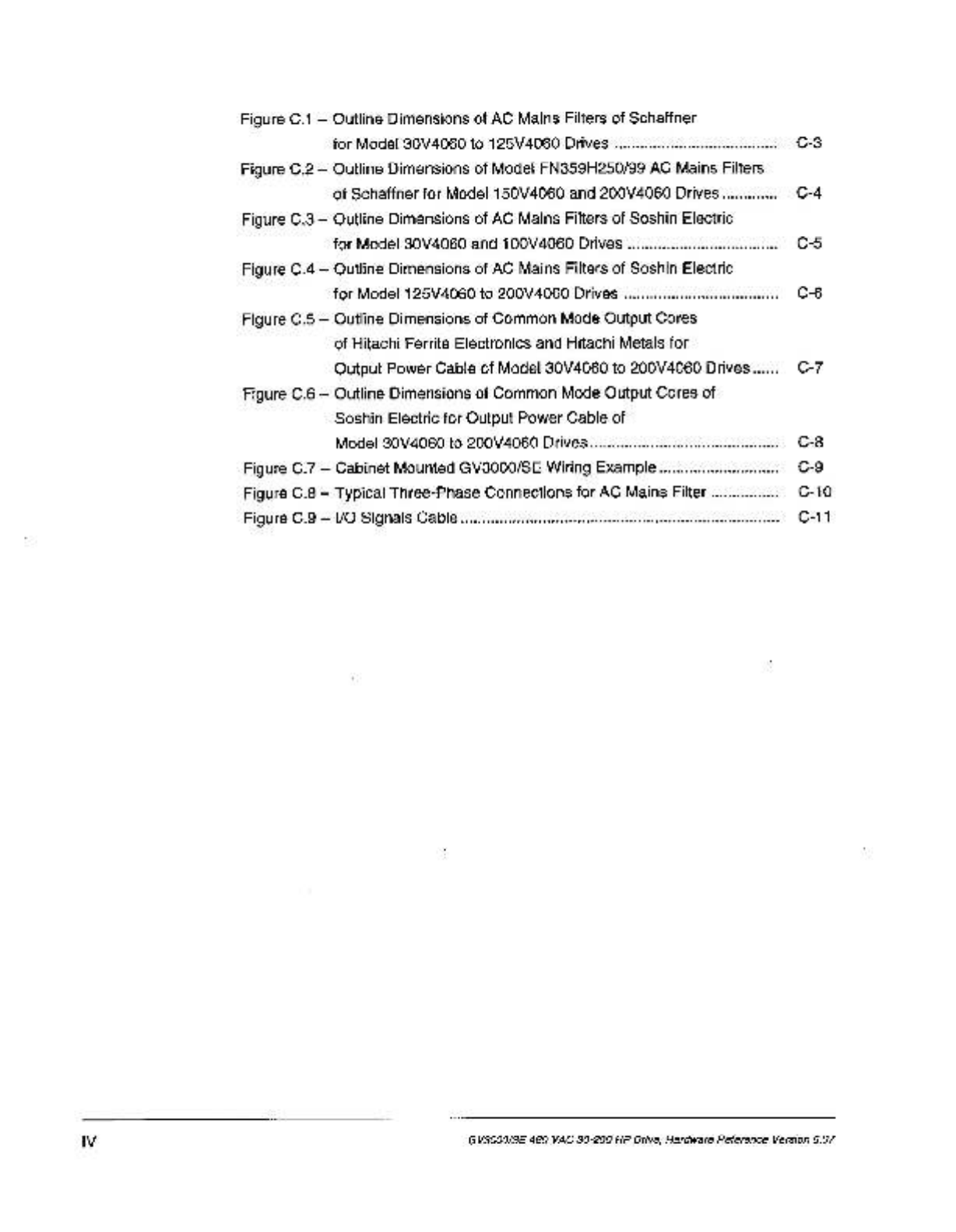

Figure C.1 — Outline Dimensions of AC Mains Filters of Schaffner
for Model 30V4060 to 125V4060 Drives .0...... eee eeeeeees C-3
Figure C.2 — Outline Dimensions of Model FN359H250/99 AC Mains Filters
of Schaffner for Model 150V4060 and 200V4060 Drives.............. C-4
Figure C.3 ~ Outline Dimensions of AC Mains Filters of Soshin Electric
for Model 30V4060 and 100V4060 Drives .......2.... cee eeeseeeeereeeee C-5
Figure C.4 — Outline Dimensions of AC Mains Filters of Soshin Electric
for Model 125V4060 to 200V4060 Drives .......... es eeseeseceeesereesee C-6
Figure C.5 — Outline Dimensions of Common Mode Output Cores
of Hitachi Ferrite Electronics and Hitachi Metals for
Output Power Cable of Model 30V4060 to 200V4060 Drives...... C-7
Figure C.6 — Outline Dimensions of Common Mode Output Cores of
Soshin Electric for Output Power Cable of
Model 30V4060 to 200V4060 Dives .........:-..ecceescesseeserereeeeeneeeees C-8
Figure C.7 — Cabinet Mounted GV3000/SE Wiring Example............sseserees C-9
Figure C.8 — Typical Three-Phase Connections for AC Mains Filter ................ C-10
Figure C.9 — 1/0 Signals Cable... cccsseeeseeserceeeeensenenteenannsneeesesensenstenees C-11
GV3000/SE 460 VAC 30-200 HP Drive, Hardware Reference Version 6.07

List of Tables
Table 2.1 — Power RattingS ...........:..sesscsscsesseessneserescerssssassersessnerentecessnneseaseas 2-2
Table 2.2— Settings of Jumpers on Base Board ........ccccssescessesseneeeeseeneeneneaes 2-15
Table 2.3— Standard Kits and Options ................cee-ceecseeseeceeseeeeeseeeseeneeeeeneerens 2-16
Table 3.1 — Ambient Conditions ...........cecsccscsesseseeceneerenseececasetsoesenaneenseneeeees 3-2
Table 3.2— Drive Dimensions and Weights ................:c:sccccssesseressseeseseeenaes 3-2
Table 3.3-— Recommended Power Wire Sizes for 30 and 40 HP Drives ........ 3-6
Table 3.4— Recommended Power Wire Sizes for 50and60 HP Drives......... 3-7
Table 3.5 - Recommended Power Wire Sizes for 75 and 100 HP Drives...... 3-7
Table 3.6 — Recommended Power Wire Sizes for 125 HP Drive................. 3-7
Table 3.7 - Recommended Power Wire Sizes for 150 and200 HP Drives.... 3-7
Table 3.8-— Recommended Terminal Strip Wire Sizes .............ceeceeseseeseesees 3-7
Table 3.9— Motor Lead Lengths for Reliance Inverter Duty Motors ............... 3-9
Table 3.10 — Reactors ooo... ccc cecesseeceesceeceeenseaaanessensecasenenengeenaenassensecsneesneseenass 3-9
Table 3.11 — AC Input Line Fuse Selection Values . 20.0... cet ccessesseeeeseerees 3-10
Table 3.12 — Circuit Breaker Selection Values .............:..::ccesseeseeeesecertaeensneneess 3-10
Table 3.13 — AC Reactor Selection Values 00.0.2... cccescceccesceeseecesssessessessesneeseens 3-11
Table 5.1 — AC Line REActors .....cccccccccessssseeeeesesscreeeseeesnnersessrenessseenassseeneneess 5-2
Table 7.1-— RS-232 Connections (Terminals 1-3) .........ssssssrees panenssaaaesseetenses 7-1
Table 7.2— Encoder Connections (Terminals 4-9) ..0....... eee eceeeeeeeseeeeeeeennees 7-1
Table 7.3— Analog Output Connections (Terminals 10 and 11)... 7-2
Table 7.4- Analog Speed/Torque Reference Connections
(Terminals 12-15) .........cesccesceesseeceeessareesannseneatannensousensersnasouseneees 7-2
Table 7.5 — Digital Input Connections (Terminals 16-25) oc eseeeeeseeeeees 7-2
Table 7.6— Snubber Resistor Braking Connections (Terminals 26 and 27)... 7-3
Table 7.7— Status Relay Connections (Terminals 28-31) 0. .cccceceseuesseeeees 7-3
Table 7.8— Wiring Signal and Control I/O to the Terminal Strip 0... 7-9
Table 9.1— Resistance Checks ...........cccccceeseceeceecesceeseeseessasderseeseseaeensenenasennas 9-4
Table 9.2— Replacement Parts for the GV3000/SE Drives ....... cesses een 9-5
Table A.1 — Service Conditions ............ecescsssseesesceeeseenensnreensnseeseseeeeesasessneseeas A-1
Table A.2 — Environmental Conditions .......ccscssseseressssceecensesreenrssseressnersenenses A-2
Table A.3- Terminal Strip Input Specifications ..........ccescssseeeseesetrsesseeeesees A-2
Table A.4— Terminal Strip Output Specifications ....... cee eesssecssseteeeneecseees A-2
Table A.5 - Terminal Strip RS-232 Specifications .......... ce seeessssssstsenteerenees A-3
Tableof Contents V

Table A.6~— Encoder Feedback Device Specifications
(FVC Regulation Only)... eee eee sesesenscsenscesscessssassenecsassans A-3
Table A.7— Input Signal Response Times (Maximum) .........cccccssesesereereees A-4
Table C.1— AC Mains Filters and the Common Mode Output Cores .........00 C-2
Vi
GV3000/SE 460 VAC 30-200 HP Drive, Hardware Reference Version 6.07

CHAPTER 1
Introduction
This instruction manual describes the GV3000/SE drive hardware. It does not cover
the GV3000/SE drive software. For software information, refer to the GV3000/SE
AC General Purpose (V/Hz) and Vector Duty Software Start-Up and Reference
Manual (D2-3391).
This manual is intendedd for qualified electrical personnel. It is organized according
to a logical progression of steps to be followed to install and troubleshoot the drive.
GV3000/SE drives will typically be referenced by horsepower in the manual. If
additional clarity is required, drive model numbers will also be included.
1.1. Related Publications
Refer to the following related publications as necessary for more information.
* D2-3391 GV3000/SE AC 460VAC General purpose (Volts/Hertz) and Vector
Duty Drive M/Ns: 30V4060-200V4060 Software Start-Up and
Reference Manual
D2-3305 Motor Encoder Cable Kit
D2-3308 AutoMax Network Communication Option Board
D2-3348 Control and Configuartion Software (CS3000)
D2-3341 Super Remote Meter Interface (RMI) Board
D2-3342 Operator Interface Module (OIM)
D2-3390 ControlNet Network Communication Option Board
1.2 Getting Assistance from Reliance Electric
If you have any questions or problems with the products described in this instruction
manual, contact your local Reliance Electric sales office. For technical assistance,
call 1-800-726-8112.
Introduction
1-1

1.3 Notes on Handling the GV3000/SE Drive
The following four labels are put on the GV3000/SE drive, advising the user of the
notes on handling the drive. Read and understand the contents before using the
drive.
A\ ows
WHEN YOU APPLY POWER
AGAIN, VERIFY THAT
THIS LAMP “PWR" IS
TURNED OFF.
ME-86013
A. DANGER
RISK OF ELECTRICAL SHOCK. DISCONNECT INPUT
POWER BEFORE SERVICING EQUIPMENT.
A DANGER
RISK OF ELECTRICAL SHOCK.
ENSURE DC BUS VOLTAGE IS
DISCHARGED BEFORE TOUCHING
EQUIPMENT
ATTENTION: © This symbol shows a grounding terminal.
Connect grounding conductor to this terminal without fail.
1-2
GV3000/SE 460 VAC 30-200 HP Drive, Hardware Reference Version 6.07

CHAPTER 2
About the Drive
This chapter provides an overview of the drive including how to identify the drive, a
description of the Regulator boards, and the identification of major components of
the drive.
The GV3000/SE AC drive is a PWM (Pulse-Width-Modulated) drive that provides
vector and general purpose regulation for a wide range of applications.
Using vector regulation, the drive can provide high dynamic response, maintain full
rated motor torque to zero speed, and precisely control motor speed in both
directions. The drive can provide this functionality either with encoder feedback
(flux vector control or FVC) or without (sensorless vector control or SVC).
Using general purpose (volts/hertz or V/Hz) regulation, the drive is suited for a
broad range of applications requiring adjustable speed control of motors.
2.1 Identify the Drive by Model Number
Each GV3000/SE AC Drive can be identified by its model number. See figure 2.1.
This number appears on the shipping label and on the drive's nameplate. The
drive's model number includes the Power Module and the regulator. Drive power
ratings are provided in table 2.1.
NNN V 4 OO NN
Horsepower Ratings ee
30 = 30HP 100 = 100 HP
40 = 40HP 125 = 125 HP
50 = 50HP 150 = 150 HP
60 = 6OHP 200 = 200 HP
75 = 765HP
GV3000/SE
V = VW/Hz or Vector
Voltage
4 = 380 - 460 VAC
Enclosure
0
= Chassis
Regulator Version
60 = Vector and V/Hz Regulator
Figure 2.1 — Identifying the Drive Model Number
About the Drive 2-1

Table 2.1 — Power Ratings
Model
Input
Volts
Input
Input
Amps
Output
Amps
Power
Loss
Watts
Number
(AC)
KVA
(Maximum)
(Maximum)
“
@)
(Full
Load)
30V4060
380-460
VAC
35.0
45440A
660
+/-
10%
380-460
V
360-460
V
40V4060
380-460
VAC
46.2
60A
54
A
900
+/—
10%
380-460
V
360-460
V
50V4060
380-460
VAC
57.3
80A
67A
1100
tl
10%
380-460
V
360-460
V
60V4060
380-460
VAC
71.7
92A
78A
1350
+/—
10%
380-460
V
360-460
V
75V4060
380-460
VAC
79.7
100A
100A
1350
+/—
10%
380-460
V
360-460
V
100V4060
380-460
VAC
111.5
140A
140A
1650
+/-
10%
380-460
V
360-460
V
125V4060
380-460
VAC
135.4
170A
170A
2250
+/-
10%
380-460
V
360-460
V
150V4060
380-460
VAC
159.3
200
A
200
A
2700
+/-
10%
380-460
V
360-460
V
200V4060
380-460
VAC
191.2
240A
240A
3300
+/—
10%
380-460
V
360-460
V
() With vector regulation, 150% output current capability for one minute.
@)
These
values
are
for
operation
with
4
kHz
carrier
frequency.
For
operation
with
8
kHz
carrier
frequency,
derating
by
20%
is
required.
2.2 Enclosures
This manual describes GV3000/SE chassis style drives. These drives should be
installed
in
cabinets.
2-2 : GV3000/SE 460 VAC 30-200 HP Drive, Hardware Reference Version 6.07

2.3
30-200 HP GV3000/SE Drive Component Locations
The 30-200 HP GV3000/SE drives have the following main components. The
identification numbers provided correspond to the number used in figures 2.2 to2.6.
Replacement parts are listed in chapter 9.
Fan Assembly
Membrane Switch (Keypad/Bracket)
Regulator Printed Circuit Board
Base Board (PISC Board)
Bus Capacitor
oa
fF
wo
PN
>
Internal Fan Assembly.
Precharge LED. See section 8.2.
Ve
dé
Figure 2.2 -— 30 and 40 HP Drive Component Locations
About the Drive
2-3

2-4
GV3000/SE 460 VAC 30-200 HP Drive, Hardware Reference Version 6.07
Figure 2.3 — 50 and 60 HP Drive Component Locations
Precharge LED. See section 8.2.

Precharge LED. See section 8.2.
Ve
ddd
Figure 2.4 — 75 and100 HP Drive Component Locations
About the Drive

Precharge LED. See section 8.2.
bed
dd
§
Figure2.5 — 125 HP Drive Component Locations
2-6
GV3000/SE 460 VAC 30-200 HP Drive, Hardware Reference Version 6.07
