Rockwell Automation Allen-Bradley CENTERLINE 800 User manual

CENTERLINE 800 A One-
High Cabinet, Standard and
Arc-Resistant Enclosure
Bulletin Numbers 1512A, 1512AT, 1512DM, 1512M
User Manual Original Instructions

2Rockwell Automation Publication 1512A-UM102D-EN-P - August 2021
CENTERLINE 800 A One-High Cabinet, Standard and Arc-Resistant Enclosure User Manual
Important User Information
Read this document and the documents listed in the additional resources section about installation, configuration, and
operation of this equipment before you install, configure, operate, or maintain this product. Users are required to familiarize
themselves with installation and wiring instructions in addition to requirements of all applicable codes, laws, and standards.
Activities including installation, adjustments, putting into service, use, assembly, disassembly, and maintenance are required to
be carried out by suitably trained personnel in accordance with applicable code of practice.
If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be
impaired.
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use
or application of this equipment.
The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and
requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or liability for
actual use based on the examples and diagrams.
No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or software
described in this manual.
Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation, Inc., is
prohibited.
Throughout this manual, when necessary, we use notes to make you aware of safety considerations.
Labels may also be on or inside the equipment to provide specific precautions.
WARNING: Identifies information about practices or circumstances that can cause an explosion in a hazardous environment,
which may lead to personal injury or death, property damage, or economic loss.
ATTENTION: Identifies information about practices or circumstances that can lead to personal injury or death, property
damage, or economic loss. Attentions help you identify a hazard, avoid a hazard, and recognize the consequence.
IMPORTANT Identifies information that is critical for successful application and understanding of the product.
SHOCK HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that dangerous
voltage may be present.
BURN HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that surfaces may
reach dangerous temperatures.
ARC FLASH HAZARD: Labels may be on or inside the equipment, for example, a motor control center, to alert people to
potential Arc Flash. Arc Flash will cause severe injury or death. Wear proper Personal Protective Equipment (PPE). Follow ALL
Regulatory requirements for safe work practices and for Personal Protective Equipment (PPE).

Rockwell Automation Publication 1512A-UM102D-EN-P - August 2021 3
Table of Contents
Preface
Summary of Changes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
About This Publication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Download Firmware, AOP, EDS, and Other Files . . . . . . . . . . . . . . . . . . . . 7
Chapter 1
Installation - Standard
Enclosure
Recommended Torque Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Starter Identification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Door Opening Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Opening the Low Voltage Doors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Opening the Medium Voltage Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Anchoring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Joining the Sections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Access to the Power Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Rear Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Side Access. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Front Access – Top Incoming Load Cables. . . . . . . . . . . . . . . . . . . . . . 15
Front Access – Bottom Incoming Line Cables. . . . . . . . . . . . . . . . . . . 17
Load Cable Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Chapter 2
Installation – Arc Resistant
Enclosure
Door Opening Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Opening the Low Voltage Doors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Opening the Medium Voltage Doors. . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Anchoring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Access Power Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Rear Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Side Access. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Front Access – Top Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Chapter 3
Common Installation Bus Splicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Power Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Insulated Power Bus Splicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Ground Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Incoming Line Cable Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Hi-Pot and Insulation Resistance Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Start-up Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Vacuum Contactor Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Preliminary Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Testing the Contactor Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

4Rockwell Automation Publication 1512A-UM102D-EN-P - August 2021
Table of Contents
Chapter 4
Maintenance Tool Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Door Interlock Circumvention . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Power Lockout Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Fuse Removal and Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Bolt-on Fuses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Bolt-on Fuse Removal and Installation. . . . . . . . . . . . . . . . . . . . . . . . . 47
Contactor Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Removing the Contactor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Contactor Interlock Rod Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Reduce the Gap Distance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Increase the Gap Distance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Isolation Switch Mechanism Inspection and Maintenance . . . . . . . . . . 51
Isolation Switch Mechanism Grounding Adjustment . . . . . . . . . . . . . . . 52
Auxiliary Contacts Inspection and Replacement . . . . . . . . . . . . . . . . . . . 53
Isolation Switch Auxiliary Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Adjusting the Normally Open (ISa) Contacts . . . . . . . . . . . . . . . . . . . 54
Adjusting the Normally Closed (ISb) Contacts . . . . . . . . . . . . . . . . . . 55
Adjusting the Change of State Point . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Emergency Circumvention Procedure for Power Cell Entry. . . . . . 56
Chapter 5
Spare Parts Spare Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Appendix A
ArcShield Unit Information Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
ArcShield Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Exhaust Systems: Chimney or Plenum Option . . . . . . . . . . . . . . . . . . . . . 62
Plenum Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Plenum Exhaust Considerations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Additional Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Chimney Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Chimney Exhaust Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Appendix B
ArcShield Plenum Installation
Instructions
Recommended Torque Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Plenum Bracing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
General Plenum Layout for ArcShield Line-up . . . . . . . . . . . . . . . . . . . . . 69
STEP 1 – Mounting a Single Plenum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Cabinet Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Plenum Placement on Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
STEP 2 – Alignment of ‘Side-by-Side’ Plenums . . . . . . . . . . . . . . . . . . . . . 72
STEP 3 – Sequence of Final Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
STEP 4 – Closing the Front of the Plenum Sections . . . . . . . . . . . . . . . . . 73
STEP 5 – Extension and Elbow Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . 73
STEP 6 – Mounting Extension/Elbow to Plenum Line-up. . . . . . . . . . . . 75
STEP 7 – Additional Mounting Support . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Rockwell Automation Publication 1512A-UM102D-EN-P - August 2021 5
Table of Contents
Appendix C
ArcShield Chimney Installation
Instructions
Recommended Torque Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
General Plenum Layout for ArcShield Line-up . . . . . . . . . . . . . . . . . . . . . 78
Cabinet Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Chimney Placement on Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Appendix D
Integrated Protective
Maintenance Grounding Device
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
IPMG Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Operating Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
IPMG Positioning Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Key Interlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Auxiliary Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
IPMG Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Appendix E
History of Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

6Rockwell Automation Publication 1512A-UM102D-EN-P - August 2021
Table of Contents
Notes:

Rockwell Automation Publication 1512A-UM102D-EN-P - August 2021 7
Preface
Summary of Changes This publication contains the following new or updated information. This list
includes substantive updates only and is not intended to reflect all changes.
About This Publication This document pertains to the Rockwell Automation® Bulletin 1512A medium
voltage (MV) controller. The Bulletin 1512A structure provides one complete
MV controller unit.
The product Bulletin numbers that are covered by this document are:
• 1512A 800A FVNR controller
• 1512AT 800A transformer feeder
This document can also be used as a reference guide for these Bulletin
numbers:
• 1512DM 800A (FVIO) Input Contactor with Output Isolator
• 1512M 800A (FVOP) Output Bypass Controller
Download Firmware, AOP,
EDS, and Other Files
Download firmware, associated files (such as AOP, EDS, and DTM), and access
product release notes from the Product Compatibility and Download Center at
rok.auto/pcdc.
Topic Page
Added specific information around using stress cones 18, 29, 36
Added 3000 A power bus graphic 34
Added section on isolation switch maintenance 51
Added Appendix D, Integrated Protective Maintenance Grounding device 81
Added History of Changes 89
IMPORTANT This document is used for all Bulletin 800 A 1512A unit types,
including arc resistant (ArcShield™) units. Important information
specifically for ArcShield units can be found in Appendix A,
Appendix B, and Appendix C.
ATTENTION: See the information in Appendix A, Appendix B, and
Appendix C to install and maintain ArcShield arc resistant units. Failure
to do so can negate the arc resistant benefits that are provided by
ArcShield, which exposes personnel to risk of serious injury or death.

8Rockwell Automation Publication 1512A-UM102D-EN-P - August 2021
Preface
Notes:

Rockwell Automation Publication 1512A-UM102D-EN-P - August 2021 9
Chapter 1
Installation - Standard Enclosure
Recommended Torque
Values
When you are installing components, or when assembling the cabinet, tighten
these bolt sizes to the specified torque values.
Starter Identification A nameplate is attached to the right-side flange of the structure (Figure 1). See
the nameplate for information such as series number, section number, NEMA
(National Electrical Manufacturers Association) enclosure type, unit ratings,
and bus ratings.
IMPORTANT For installation of ArcShield™ arc resistant equipment, refer to
Chapter 2.
IMPORTANT For information on the installation site preparation, see General
Handling Procedures for MV Products, publication MV-QS050.
ATTENTION: Use personal protective equipment (PPE) per local codes
or regulations. Failure to do so can result in severe burns, injury, or
death.
Table 1 - Torque Values
1/4 in. hardware 6 lb•ft (8 N•m)
5/16 in. hardware 12 lb•ft (15 N•m)
3/8 in. hardware 20 lb•ft (27 N•m)
1/2 in. hardware 48 lb•ft (65 N•m)

10 Rockwell Automation Publication 1512A-UM102D-EN-P - August 2021
Chapter 1 Installation - Standard Enclosure

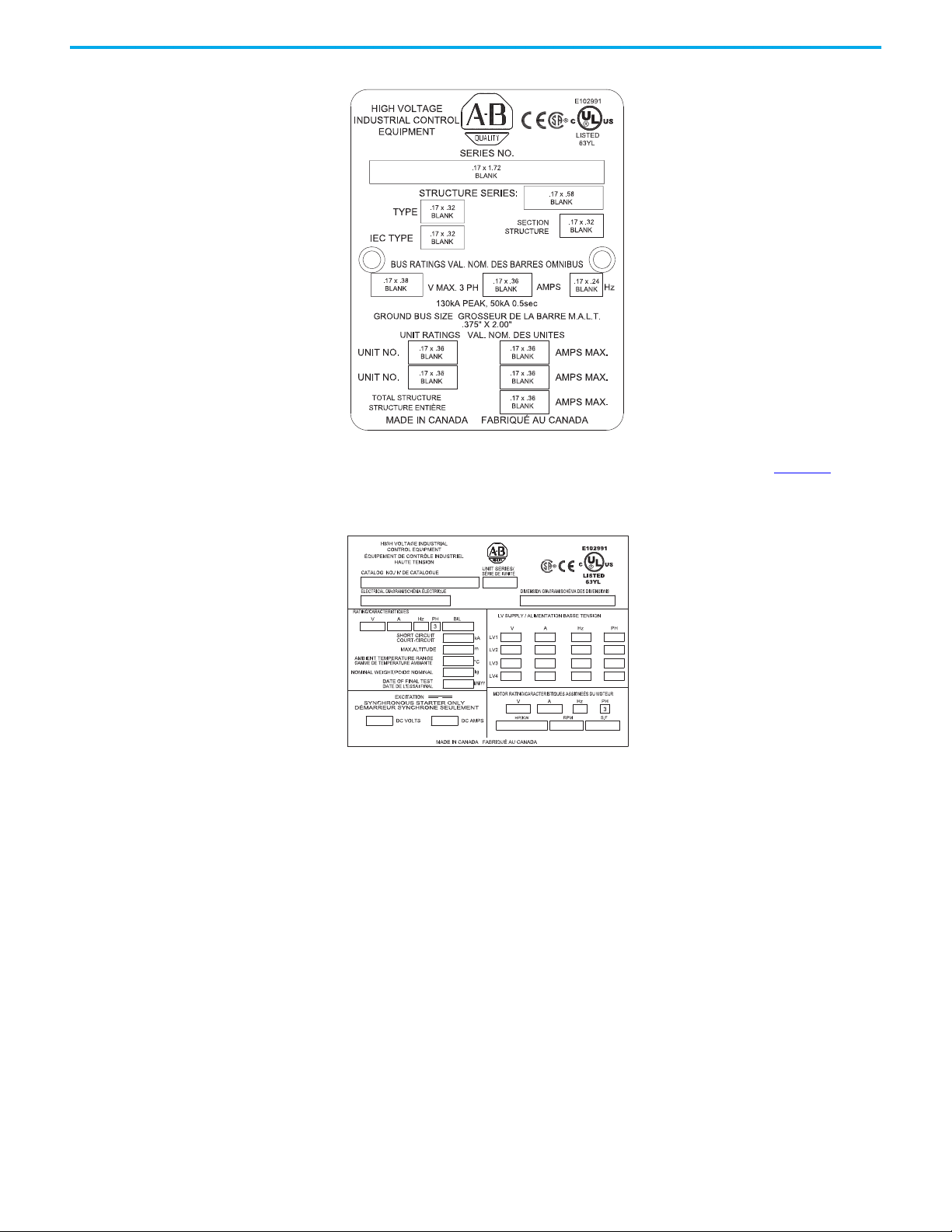

Figure 1 - Typical Structure Nameplate
A nameplate is also found in the low voltage compartment (see Figure 2) with
unit motor application information.
Figure 2 - Typical Unit Nameplate
Refer to these nameplates whenever you contact Rockwell Automation for
assistance. Be prepared to provide such information as series number,
structure series, unit series, diagram schematic, and catalog number.

Rockwell Automation Publication 1512A-UM102D-EN-P - August 2021 11
Chapter 1 Installation - Standard Enclosure
Door Opening Procedure Opening the Low Voltage Doors
Low voltage door is identified as LV in Figure 3.
1. To access the low voltage compartment, use a flat-head screwdriver to
turn both 1/4-turn fasteners on the low voltage door, counterclockwise
90°. See Figure 3.
2. The door is now released and swings open.
3. To secure the door, reverse the procedure.
Figure 3 - Access to Low Voltage Compartments, Standard Enclosure
Opening the Medium
Voltage Doors
Medium voltage (MV) doors are identified in Figure 4.
Figure 4 - Access to Medium Voltage Compartments, Standard Enclosure
The MV door has its own isolation switch handle and the interlocking
safeguards.
See Access to the Power Bus on page 14, for the procedure to open the swing-
out low voltage (LV) panel behind the low voltage (LV) door (for standard
cabinet only).
1. Press the STOP button on the starter or at the remote control location.
Both open the contactor electrically.
2. Move the isolation switch handle to the OFF position.
3. Unscrew the locking 3/8-1.75 bolts for the upper right-hand MV door.
The door is now released.
4. Open the upper right-hand MV door by swinging it open.
1/4 turn Fasteners for
Upper LV Door
MV MV
MV
LV
Door locking bolts
Door locking bolts
Isolation Switch handle
LV
MV MV
MV

12 Rockwell Automation Publication 1512A-UM102D-EN-P - August 2021
Chapter 1 Installation - Standard Enclosure
5. Pull the interlock release lever forward. The Interlock release lever is at
the bottom right corner of the door opening.
6. Open the bottom right-hand door by unscrewing the locking 3/8-1.75
bolts.
7. Unbolt and open the bottom left door.
8. Close the doors by reversing the procedure.
Anchoring Place the controller in the required installation location. Use M12 (1/2 in.) floor
mounting-bolts to fasten the controller to the mounting surface. See Figure 5
as an example of the location of the mounting holes in the cabinet.
IMPORTANT The bottom MV doors cannot be opened until the interlock release
lever is pulled forward.
IMPORTANT Verify that the swing-out low voltage panel is in its original position
before attempting to close the medium voltage (MV) door. When
closing the MV doors, verify all door locking-bolts on the right side
of the MV door are in place. Tightened the bolts until the door is
even with the flange. Do not over tighten the bolts. If the door is not
securely fastened, the isolation switch handle cannot be moved to
the ON position.
ATTENTION: Complete the Power Lockout Procedure on page 43 before
beginning any service procedures to the unit. Failure to do so can result
in severe burns, injury, or death.
IMPORTANT See the Dimension Drawing for additional details that are related to
the cabinet floor plan.
IMPORTANT Pre-determined cabinets are designed for Uniform Building Code
(UBC) seismic zone 1, 2A, 2B, 3, 4, and IBC (International Building
Code) seismic activity without overturning or lateral movement.
Provided they are securely mounted according to UBC, IBC, and the
local building codes. This restriction can include concrete pad
design, steel floor design and the sizing of cabinet anchors.
Concrete floor cutouts must not be next to floor anchor bolts and
must be sized to seismic load. If an accredited engineer must
review the floor mounting, consult the factory. Many jurisdictions
require an engineer from the local area to review the design.
Seismic qualification does not indicate that the equipment will
function properly after a seismic event.

Rockwell Automation Publication 1512A-UM102D-EN-P - August 2021 13
Chapter 1 Installation - Standard Enclosure
Figure 5 - Cabinet Floor Plan
Joining the Sections
1. Position the left side section on a level surface and secure the section in
place with M12 (1/2 in.) floor mounting-bolts (see Anchoring on page 12).
2. When joining NEMA/EEMAC Type 12 sections, apply a continuous
3 mm (0.125 in.) bead of silicon around the perimeter of one section.
3. Remove the side bus access covers, if applicable.
4. Position the right section against the left section. Make sure that the
surface is level.
5. Secure the sections together with 1/4-20 self-tapping screws (12 lb•ft
[15 N•m]). Thread the screw through the 0.281 in. clearance hole to the
corresponding 0.219 in. pilot hole. To access the front clearance holes of
the left-side cabinet, open the medium voltage (MV) doors. To access the
rear clearance holes, remove the rear covers of the starter. If rear access
is not available, refer to Front Access – Top Incoming Load Cables on
page 15 or Front Access – Bottom Incoming Line Cables on page 17.
6. Secure the right section to the floor using ½ in. (M12) floor mounting-
bolts (see Anchoring on page 12).
Line Cable Conduit opening.
Load Cable Conduit opening.
Control Wire Conduit opening.
Mounting Holes for M12 (1/2 in.) Diameter Anchor Bolts.
Removable Lifting Angle (2).
1.00 [25] X 3.00 [76] Non- removeable Sill Channels.
Front
IMPORTANT FOR SEISMIC APPLICATIONS
For installations on concrete – the minimum depth and radius of
concrete that supports the cabinet anchors is dependent on
seismic loads. See Anchoring on page 12 for important information.
For installations on a metal structure – the metal plate depth and
the method to anchor the cabinet is dependent on seismic loads.
IMPORTANT The joining hardware can be found in a package mounted to the
front of the shipping skid. See Publication MV-QS050 requirements
for a level floor surface.

14 Rockwell Automation Publication 1512A-UM102D-EN-P - August 2021
Chapter 1 Installation - Standard Enclosure
Figure 6 - Joining the Sections
Access to the Power Bus
Rear Access
1. Remove the hardware that secures the center rear bus access-cover
(Figure 7).
2. Remove the center rear bus access-cover.
3. When the rear bus cover is removed, you see the three power bus bars
and grounding bus (Figure 8).
Figure 7 - Access to Power Bus From Side and Rear Cabinet, typical
Side Bus Access Cover
0.281 in. (7.137 mm) Clearance (Qty 3)
0.219 in.(5.562) Pilot Holes (Qty 5)
0.219 in. (5.562)Pilot Holes (Qty 3)
0.281 in. (7.137 mm) Clearance Holes (Qty 5)
ATTENTION: This procedure requires contact with medium voltage (MV)
components. To avoid shock hazards and stop incoming power, do the
Power Lockout Procedure on page 43. Verify that all circuits are voltage
free by using a hot stick or appropriate device that measures voltage.
Failure to do so can result in severe burns, injury, or death.
Center Rear Bus Access Cover
Side Bus Access Cover

Rockwell Automation Publication 1512A-UM102D-EN-P - August 2021 15
Chapter 1 Installation - Standard Enclosure
Figure 8 - Bus Bars from Back Access
Side Access
A side bus access cover is on each side of the controller.
1. Remove the hardware from the appropriate side bus access cover.
2. Remove the side bus access cover.
3. When the side bus access cover is removed, you see the three power bus
bars and grounding bus (Figure 9).
Figure 9 - Side Bus Access Cover Removed
Front Access – Top Incoming Load Cables
1. Complete the Power Lockout Procedure on page 43 for medium-voltage
power cells and the power bus.
2. Open the low-voltage cell door (see page 11).
3. Open the medium-voltage cell doors (see page 11).
4. Remove the 1/4-20 self-tapping screws from the low voltage panel if
installed. Installed for shipment purposes – Figure 10.

16 Rockwell Automation Publication 1512A-UM102D-EN-P - August 2021
Chapter 1 Installation - Standard Enclosure
Figure 10 - Removal of Access Panel with Low Voltage Panel Rotated.
5. Use a flat head screwdriver to turn the 1/4 turn fasteners
counterclockwise 180°.
6. Pull on right-hand side of low voltage panel. Swing the low voltage panel
to the front and left of cabinet (see Figure 12).
7. Locate the removable bus access barriers.
Figure 11 - Access to Power Bus with Low Voltage Panel Rotated
8. Remove the retaining 1/4-20 self-tapping screws from removable bus
access barrier. The incoming cable connections to main bus are exposed
(see Figure 12).
1/4 turn fasteners
Self-tapping screws
IMPORTANT Before the low voltage panel is rotated, the power cell door must be
in a fully opened position.
1/4-20 Self-tapping Screws
Bus Access Barriers

Rockwell Automation Publication 1512A-UM102D-EN-P - August 2021 17
Chapter 1 Installation - Standard Enclosure
Figure 12 - Power Bus with Barrier Removed
9. Install the incoming line cables to power bus. Torque to recommended
values on page 9.
10. Reverse procedure after cables are installed.
Front Access – Bottom Incoming Line Cables
If the incoming cables in your cabinet enter the section from the bottom,
follow the same procedure as for Front Access – Top Incoming Load Cables on
page 15.
1. Open all power cell doors.
2. Locate incoming cable duct at rear left-hand side of power cell (see
Figure 13).
3. Remove the 1/4-20 self-tapping screws from the cable duct access-
barriers. Remove barriers.
4. Route and install incoming line cables up to power bus. Torque to the
recommended values specified on page 9.
5. Reverse procedure after cables are installed.
Figure 13 - Access to Bottom Incoming Cables
ATTENTION: Make sure that all barriers are installed before re-
energizing the equipment. Failure to do so can result in electrical faults,
damage equipment, or severe injury to personnel.
Bottom cable opening
(top exit cables
configuration shown)
ATTENTION: Make sure that all barriers are installed before re-
energizing the equipment. Failure to do so can result in electrical faults,
damage equipment, or severe injury to personnel.

18 Rockwell Automation Publication 1512A-UM102D-EN-P - August 2021
Chapter 1 Installation - Standard Enclosure
Load Cable Connections
1. Complete the Power Lockout Procedure on page 43.
2. Remove the appropriate cable conduit-opening plate from the cabinet
(see Figure 14…Figure 17). The plate can be punched or cut to mount
conduit.
3. Route load cables for the power cell before control cables. Pull the cables
into the cabinet through the appropriate opening (see
Figure 14…Figure 17).
4. Connect the cables to the terminal assembly and tighten the 1/2-13
hardware to 45 lb•ft (61 N•m).
5. Connect cable shields (if present) to the ground lug.
6. Reinstall the current transformer barrier and reassemble the cabinet.

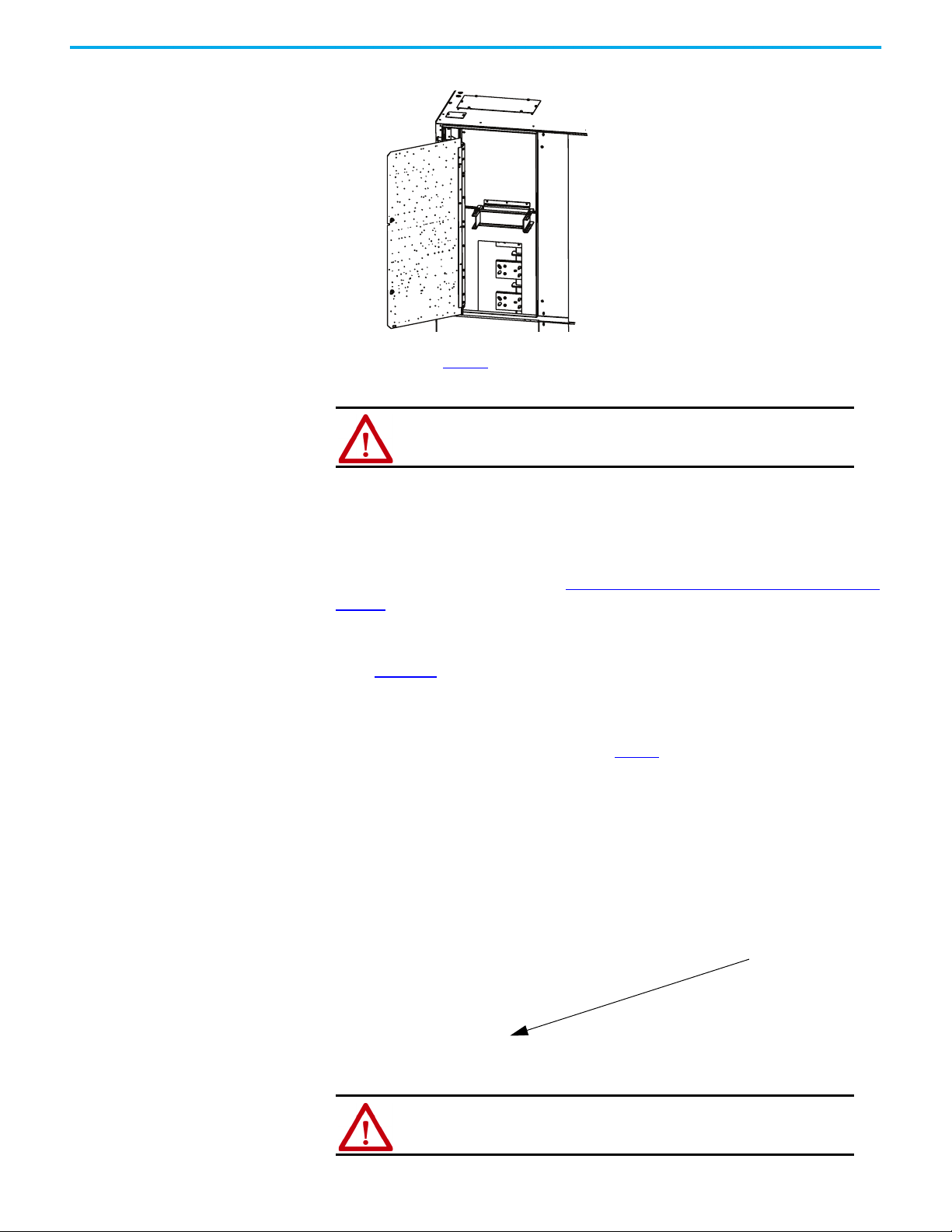

Figure 14 - Access to Load Cable Conduit Openings (Top Exit Configuration Shown)
ATTENTION: To avoid shock hazards and lockout incoming power, do
the Power Lockout Procedure on page 43 before working on the
equipment. Verify that all circuits are voltage free by using a hot stick
or appropriate device that measures voltage. Failure to do so can result
in severe burns, injury, or death.
IMPORTANT The current transformers can be positioned for top or bottom cable
exit. Follow the appropriate procedure that is described for your
starter configuration.
IMPORTANT Cable size cannot exceed 1-1000 MCM, 2-750 MCM, 3-500MCM, or
4-500 MCM per phase.
Stress cones should be internal, non-skirted style only. Do not use
external (skirted-style) stress cones due to space considerations.
IMPORTANT See Dimensional Drawings that are provided with order
documentation for additional details that are related to cabinet
floor plan.
Current Transformer
Control Cable Conduit Opening
Bottom-exit removable
load cable conduit-plate

Rockwell Automation Publication 1512A-UM102D-EN-P - August 2021 19
Chapter 1 Installation - Standard Enclosure

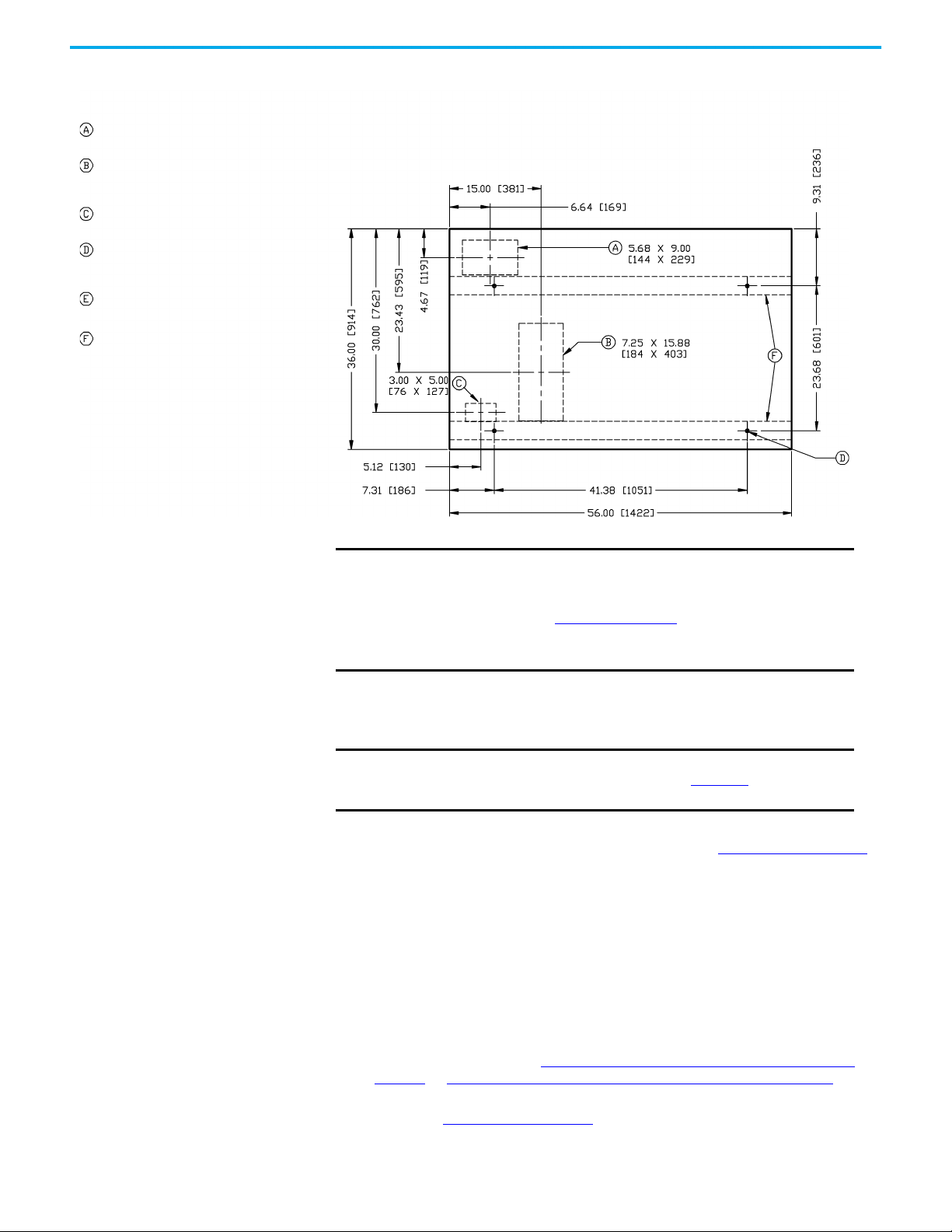

Figure 15 - Load Cable Conduit Openings, Bottom Exit
Figure 16 - Routing of Load Cables (Top exit shown)
Line Cable Conduit Opening.
Load Cable Conduit Opening.
Control Wire Conduit Opening.
Mounting Holes for M12 (1/2 in.)Diameter
Anchor Bolts.
Removable handle lifting angles (2).
1.00 [25] x 3.00 [76] Non-removable
Sill Channels.
Floor Plan
Front
Current Transformer
ATTENTION: Install all barriers before re-energizing the equipment.
Failure to do so can result in electrical faults and damage equipment or
severe injury to personnel.

20 Rockwell Automation Publication 1512A-UM102D-EN-P - August 2021
Chapter 1 Installation - Standard Enclosure

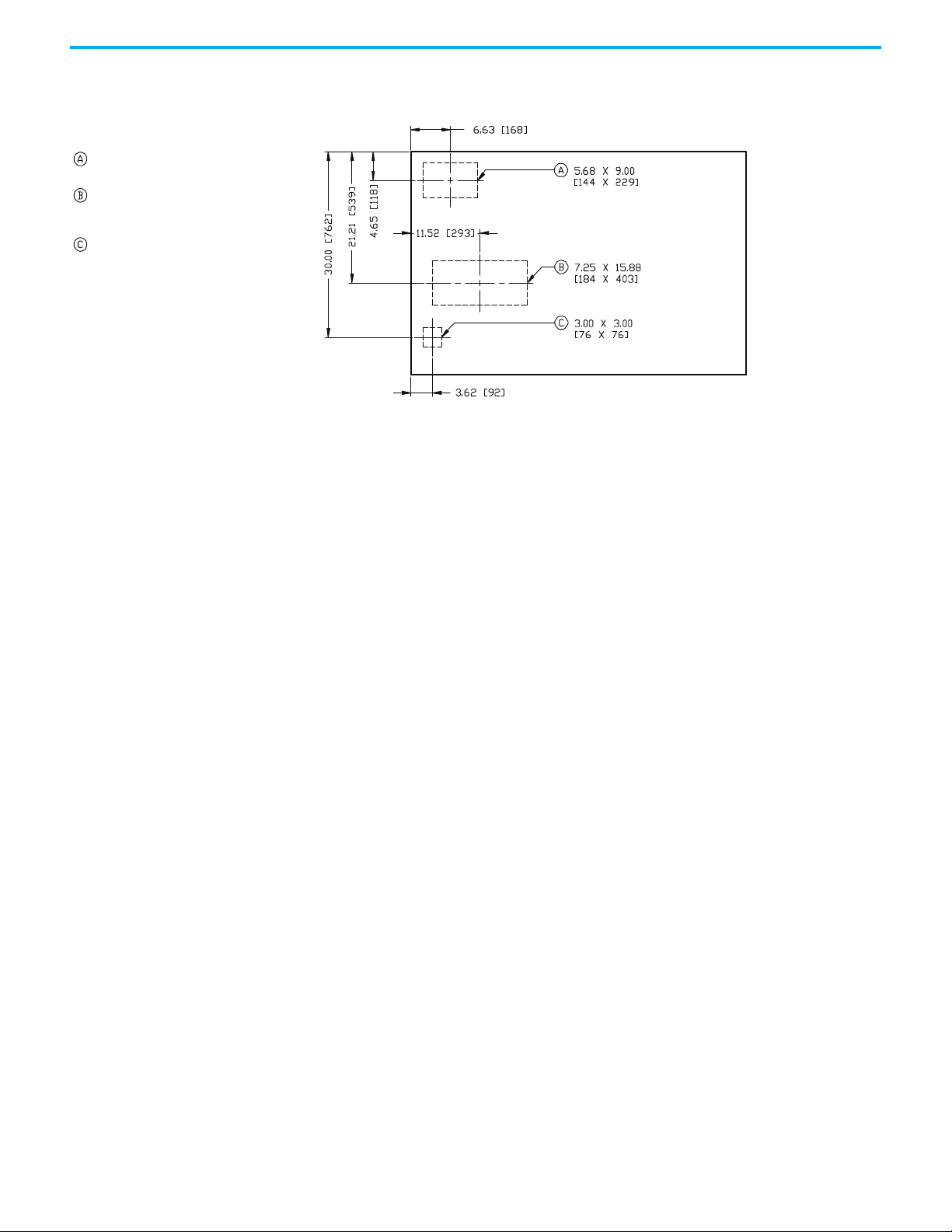

Figure 17 - Load Cable Conduit Openings, Top Exit
Line Cable Conduit Opening.
Load Conduit Opening.
Control Wire Conduit Opening.
Roof Plan
Front
