Rocky's Eazy Roller Senior Commercial User manual

T960521SR
This box contains
ROCKY'S EAZY ROLLERS INSTRUCTIONS - SENIOR COMMERCIAL
ITEM
#
1
5
7
9
13
15
19
21
25
29
31
57
59
61
63
67
73
101
103
105
107
109
203
211
DESCRIPTION
Self-tapping Screw
5/16"x1" Bolt
3/8" x 1" Bolt
3/8" x 1.5" Bolt
3/8"x8" Anchor Bolt
Concrete Anchor
5/16" Washer
3/8" Washer
Spring
Acorn Nut
3/8" Nut
#4 A-Frame
SR Bottom Base
White Knob
3rd Leg Frame
4" Commercial Hub
Large Handle
Male Grommet
Female Grommet
Plastic Bushing
Plastic Washer
Spring Guard
36' Strapping
4" Wheels
QTY
16
2
4
4
2
2
2
18
2
6
4
2
2
1
2
2
1
12
12
2
2
2
1
6
RE-
ORDER
#
501
505
507
509
513
515
505
21
517
523
525
57
59
533
535
541
547
549
549
555
555
109
589
585
Reversible Drill
1/2" Concrete (masonary) Drill Bit
Hammer & Center Punch (or large nail)
5/16" Hex Head Socket Bit
1/2" Wrench
5/8" Wrench
9/16" Wrench
Tools Required:
For use with Rocky's 4" twelve
sided commercial tubing.
1

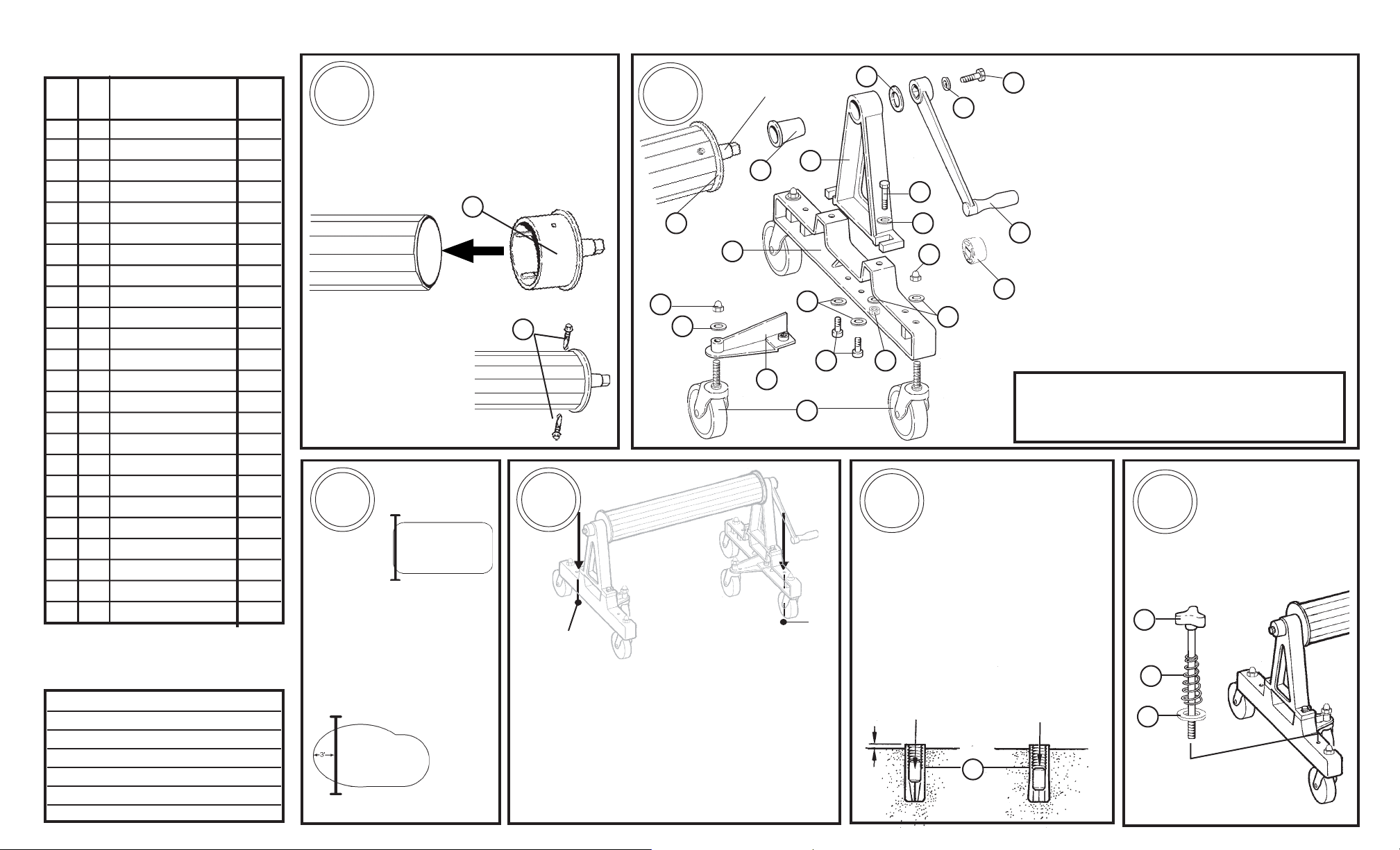

Insert 4" hub (item #67) into one end of tube.
SELF-DRILLING
NOTE: Tube length should be about 1' wider than
pool.
67 2
6
For regular shaped pools, align
the outside edge of the tube
parallel with the end of the pool.
For irregular shaped pools, the
outside edge of the tube
should be 3'
inside
from the
end of
the pool.
5
1/16"
Insert the anchor bolt
(item #13) through the spring
(item #25) and through the hole
of the SR base.
Tighten the anchor bolt.
NOTE: Do not over tighten
15
4
3
MARK
#1
211
63
29
21
7
21
31
29
61
73
59
21
21
9
67
10557
1075
19
APPLY PETROLEUM BASED
GREASE
Bolt the castors (item #211) to the SR bottom base
(item #59) and to the 3rd leg frame (item #63), as
shown in the diagram. Next, bolt the 3rd leg frames
(item #63) to the SR bottom base (item #59). Bolt
the #4 A-frame (item #57) to the SR bottom base
(item #59).
Assemble one end unit to the tube, using the large
handle (item #73), as shown in the diagram.
Assemble the other end unit to the tube, using the
white knob (item #61).
For smoother operation, apply petroleum based
grease between the hub (item #67) and the black
plastic bushing (item #105). This should be done
once a year.
Position the assembled roller unit at the widest end
of the pool.
MARK
#2 13
25
109
2
Hit center slug
with hammer &
center punch,or
large nail.
Drive the concrete anchor into
the hole with a hammer. Leave
the anchor raised 1/16".
To set the concrete anchor, then tap
the slug into the hole with a hammer,
then using a center punch or large
nail drive the slug down into the
anchor forcing legs out into concrete.
Slug
Using one of the two holes in the A-frame as a guide,
make mark #1 on deck. With a 1/2" concrete drill bit,
drill a 1 1/2" deep hole at mark #1. Complete steps 5
and 6 before continuing with step 4.
On the other side of the roller unit, make mark #2 by
using one of the two holes in the A-frame as of guide.
With a 1/2" concrete drill bit, drill a 1 1/2" deep hole at
mark #2.
NOTE:
Set one bolt at front of frame on one end and one
at the rear of the frame on the other end.
Repeat with other side.
With 2 self-drill/tapping screws
(item #1), attach hub to tube
using electric drill. Apply
pressure to ensure screw
cuts into aluminum tube
then cuts it's own thread.
(No predrilling required)
1
VER Y IMPOR TANT
PREVENT DROWNING
Attach Warning Label to one end of tube.
®

T9605074
7A
8A8B
7B
Open cover over the pool and set
into position. Ensure that the end
of the cover (where it attaches to
the roller) is square to the roller.
If the cover has seams, then the
seams should be parallel to the
roller. (This may not be possible
with some types of covers.)
When cutting the cover, al-
low a 1 1/2" wide border
around the pool edge to com-
pensate for shrinkage.
FOR IRREGULAR, KIDNEY, OR ROUND SHAPED INGROUND POOLS
Open cover over the pool and set
into position. Ensure that the
seams on the cover are parallel to
the roller. (This may not be possible
with some types of covers).
GROMMET DETAIL
Position the blue strap on the cover. With the
hole punch provided (item #207), punch a hole
through the strapping and the cover. Ensure that
the hole in strapping is at least 1 1/2" from the
end of the strap and that the hole in the cover is
at least 1 1/2" from the end of the cover. Use a
piece of wood to avoid damaging the hole punch.
COVER STRAP
WOOD
207
Insert female grommet (item #103) through hole
in strapping and cover. Ensure that material is
completely pushed down shaft. Insert male
grommet (item #101) into female grommet. Once
in place, hit gently with hammer until secure.
(Caution - excess force will break grommet).
COVER
101 STRAP
1
STRAP
Using self-
tapping/drill
screws (item #1),
secure strap to tube.
FOR REGULAR SHAPED INGROUND POOLS
ROLLER
SEAMS
1 1/2" BORDER
COVER
POOL
Attach the cut cover to
the roller with the blue
straps (See grommet
detail). Ensure length
of strap allows cover
to lay flat on pool, to
prevent wind from get-
ting under cover.
STRAPS EVERY 3'
COVER
POOL
SEAMS
ROLLER
A
When cutting the cover, allow a
1 1/2" wide border around the pool edge to com-
pensate for shrinkage.
For odd shaped pools, pinch the cover and attach the strap as shown. Attach the cut cover
to the roller with the blue straps (see grommet detail) by folding the cover in a straight line
as shown in the diagrams. Ensure that the fold in the cover is straight.
Cover
Strap
Grommets
STRAPS EVERY 3'
Roller
Fold in
cover
103
For odd shaped pools, pinch the cover and attach
the strap as shown.
