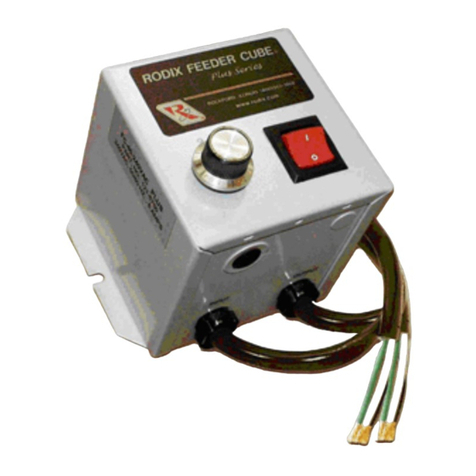

Rodix FEEDER CUBE FC-40 Plus Series Setup guide

Model - FC-41H
Plus
PlusPlus
Plus
P/N 121-000-0882
Circuit Board P/N 24-210
Listed, File No. E183233
Input: 120 VAC, 50/60 HZ.
(Operating range 90-130 VAC)
Single Unit Fuse Size: 30 AMPS
Output: 0-120 VAC
80% Duty Cycle at Rated AMPS
© 2000, 2011 RODIX INC.
1. SELECT THE PULSE SETTING
Match the control’s pulse mode to the feeder’s tuning:
A. For 60 pulse output - Set DIP switch (S1) to 60
on the circuit card.
B. For 120 pulse output - Set DIP switch (S1) to 120
on the circuit card.
C. For 40, 30 or 60 Reverse pulse settings, see the
“S1 Programming Chart.”
Note: Readjust the MAX trimpot after changing
pulse switch setting.
2. LIMITING THE MAXIMUM
OUTPUT OF CONTROL
The MAX output trimpot can be adjusted to limit the
maximum vibration level of the vibratory feeder when
the Main Control Dial is fully turned up. When setting
up the MAX output of the feeder control, the output
wiring to feeder must be connected and the control
set for the proper pulse (60 or 120) setting. The Run
Jumper must be connected as shown on the wiring
diagram or on the ON/OFF Control Guide.
A. Power input should be OFF or disconnected.
B. Open cover to allow access to circuit card.
C. Adjust the MAX Output trimpot counter-clockwise
to its minimum setting.
D. Using CAUTION, turn power ON (no output
should be present).
E. Rotate the MAIN CONTROL DIAL on front cover
clockwise to its highest setting.
F. Adjust the MAX Output trimpot so that the output
to the feeder reaches its desired maximum level.
3. SETTING THE MINIMUM
OUTPUT LEVEL OF CONTROL
When the vibratory feeder is nearly empty, turn the
MAIN CONTROL DIAL to “1” and adjust the MIN
trimpot to just below the slowest speed that provides
the proper feed rate. The MIN trimpot also serves as
the “low speed” trimpot for 2-speed operation. See
“S1 Programming Chart” for feature selection details.
4. MAIN CONTROL DIAL
The output power is controlled by the MAIN
CONTROL DIAL. It is a logarithmic-tapered
power out curve (non-linear) that spreads the
power broadly across the MAIN CONTROL DIAL
The logarithmic taper power curve helps to give
maximum "Fine Control" over the output speed of
the vibratory feeder. When very precise
adjustment of the MAIN CONTROL DIAL is
needed, increase the MIN trimpot setting and/or
decrease the MAX trimpot setting. For precise
scaling at low amplitudes, use the linear POT
taper or reduce the Max pot setting. To select a
linear pot taper for the Main Control Dial, see the
“S1 Programming Chart.”
5. SETTING THE SOFT-START
The start-up rate of the control output can be
adjusted to ramp up to the desired output level
instead of starting abruptly. Soft-start keeps parts
from falling off the tooling, reduces spring shock,
and hammering when the control turns ON. Turn
the SOFT Start trimpot clockwise for the gentlest
start (about a 6 sec. ramp up to full output). Turn
the trimpot fully counter-clockwise for no soft start.
6. REMOTE OFF/ON CONTROL
A Run Jumper has been installed at the factory as
shown on the enclosed wiring diagram.
Remote OFF/ON operation of the FC-40 Plus
PlusPlus
Plus
Series
SeriesSeries
Series
Feeder Cube®control can be configured
to operate in one of the following ways.
A. A low current switch such as a paddle
switch can replace the factory-installed Run
Jumper "J1." The "Run Contact" connects to
terminals 6 and 7. The contact must be able
to switch 5VDC and 2mA. The control will
run only when the contact is closed. Refer to
Section A of the OFF/ON CONTROL GUIDE.
B. Feeder Bowl/Hopper Interlock allows the
Hopper control to operate onlywhen the Bowl
is running and the paddle switch contact is
closed. The interlock input on terminals 11
and 12 of TB2 is controlled by the interlock
output of a "Parts Sensing Feeder Bowl
Control" such as an FC-90
Plus
PlusPlus
Plus .
FC-41H Plus 24-210.doc 8/30/2011 Page 1
ADJUSTMENTS & SET UP
RODIX INC.
FEEDER CUBE


FC-90 Plus Series
Plus SeriesPlus Series
Plus Series
GENERAL PURPOSE



RODIX INC.
FEEDER CUBE


FC-40 Plus Series
Plus SeriesPlus Series
Plus Series
Oil Resistant




Removejumper"J1"of this control fromterminals6
and 7. Connect the Hopper Paddle switch to
alternateterminals5and 6. Connect TB2terminals
11 and 12 of this control to the "Parts Sensing
Control". Refer to Section B of the OFF/ON
CONTROL GUIDE. Check specific instructions for
the "Parts Sensing Control" wiring. Two FC-40
Seriescontrolswillnot interlock to eachothersince
neither one has an interlock output.
C. Low Voltage DC can be used to turn the control
ON and OFF. Movejumper"J1"from terminal 7, to
terminal 5, (6 remains the same). Then connect
the positive signal (+10 to 30VDC @ 10mA) to
terminal 12 and the negative to terminal 11 of TB2.
Thecontrolwillnow turn ON when theDCsignalis
present at terminals 11 and 12 of TB2. Thisinputis
optically isolated.Referto SectionCof theOFF/ON
CONTROL GUIDE.
7. REMOTE SPEED CONTROL
Remote control of the power level can be accomplished
by the following methods:
A. 4-20mA signal from a PLC can be used to remotely
vary the output of the control instead of the Main
Control Dial. The 4-20mA input is automatically in
control whenever a 4-20mA signal is applied to the
control (terminals TB2-8 & 9). The Main Control dial
setting is ignored whenever there is a 4-20mA signal.
The 4-20mA input is transformer isolated from the
power line. In an environment with high electrical
noise, use a shielded cable for the 4-20mA signal.
The“S1 Programming Chart”shows howchangeto0-
20mAspeed control instead of the default of 4-20mA.
B. A 0-5VDC Analog input signal may be applied in
place of the Main Control Dial at H1. The 0-5VDC
input is transformer isolated from the power line.
8. LINE VOLTAGE COMPENSATION
Fluctuations in the line voltage can causea feeder bowl
to vary its feed rate. The line voltage compensation
feature adjusts the control's output to help compensate
for fluctuations in the supply voltage. If it becomes
necessary to disable this feature, set “Disable LVC”
from the S1 programming chart.
9. SUPPLEMENTARY FEATURES
Special supplementary software features can be
enabled on the 24-210/24-211 circuit boards The
featuresinclude: linearpot taper, 0-20mAcontrol,empty
bowl timer, low pulse rates, and two speed pots. See
the S1 Switch Programming Chart. For more feature
information download (or request from RODIX) the
FC-40
Plus Advanced Application Note 24-210/24-
211.
10. STATUS LEDs
When any of the inputs are active, the associated
LED will turn ON. When the RUNinput conditions are
met, the RUN LED will turn ON. See section 6 and
the wiring diagram’s ON/OFF Control Guide for more
information on how to satisfy the RUN conditions.
TROUBLESHOOTING
For the control to run: The MAIN CONTROL DIAL
must be turned up or have over 4mA at the 4-20mA
input. Either the DIRECT LED must be lit or both the
INTERLOCK and EXT VOLTS LEDs must be on. To
light the DIRECT LED, connect a Run Jumper at
Terminals 6 & 7. To light the INTERLOCK LED, a
Run Jumper must connect Terminal 5 to 6. To
illuminatethe EXTVOLTS LED,TB2-11 & 12needs a
10-30 VDC signal. See the “FC-40 Plus
Troubleshooting Guide” for more information. If the
feeder only hums, flip the 60/120 dip switch.
WARNING:
Fuses should be replaced with a Bussman ABC
or Littelfuse 3AB "Fast Acting" type or
equivalent of manufacturer's original value.
Mounting this control on a vibrating surface will
void the warranty.
WARRANTY
Rodix Control Products are Warranted to be free from
defects in material and workmanship under normal use
for a period of two years from date ofshipment. For the
full description of the warranty, terms, and softwarelicense,
please contact the factory.
For assistance installing or operating your Rodix Feeder
Cube® please call the factory or visit our web site.
Technical help is available to answer your questions and
fax any needed information. To return a control for IN or
OUT of warranty service, please ship it prepaid to:
Rodix Inc., ATTN: Repair Department
If under warranty, Rodix will repair or replaceyour controlat
no charge; If out of warranty, we will repair it and you will be
billed for the repair charges (Time and Material) plus the
return freight. Quotes for repairs are available upon
request. A brief note describing the symptoms helps
our technicians address the issue.
Feeder Cube® is a registered TM of Rodix Inc.
DIMENSIONS
RODIX, INC.
2316 23rd Ave., Rockford, IL 61104
Toll Free [phone], FAX [phone]
E-mail [email protected]
www.rodix.com
FC-41H Plus 24-210.doc 10/9/2012 Page 2
S1 Programming Chart
Program Description S1 Switch Positions
SW3 SW4 SW5
Standard Program 0 0 0
Linear Pot Taper 1 0 0
0-20mA option 0 1 0
Empty Bowl Timer 1 1 0
Disable LVC 0 0 1
2-Speed Operation 1 0 1
30/40 Pulse Operation 0 1 1
Low Amplitude at “1” 1 1 1

INPUT
Wh #10
INTERLOCK
GND
HOT
COM
INPUT POWER
HOT
COM
CHASSIS
GND
J1
Torque to 20 in. lbs.
MAIN TERMINAL
Customer supplied wiring
is shown by dashed lines.
OUTPUT POWER
6
11 8
812
60
SW3
SW5
External
SW4
-
+
211
5
4
9
10
7
37
12
1
6
59
10
LOAD
LINE VOLTAGE
G
TRIAC
TERM. STRIP
(SMALL)
AC HOT
FUSE
A1
+
GATE
AUX FEATURE
Pot Input
AC COMMON
TB2
120
TERM. STRIP
TB2
A2
(TALL)
4-20mA
TB1
+
-
S1
-
TB1
Or #20
Bl #10
Bl #10
Wh #20
Vi #20
Bl #20
Direct
RUN Interlock
H1
Min
Soft Max
60 Rev
TRANSFORMER
1
Sig.
SIG
cw
-
100K
+
CONTROL
1/8WMIN
MAIN
POT
75 62 431
POWER
P/N 24-210
FC-40 PLUS
See section 6 of the Application Note for more
details on the REMOTE OFF/ON CONTROL guide.
OFF/ON CONTROL GUIDE
LOW CURRENT
SWITCH
FC-40 PLUS SERIES TERM STRIP TB-2
A)
MAIN TERM
STRIP
MAIN TERM
STRIP
J1
79
OFF/ON CONTROL
SWITCH
5
-
FC-40 PLUS SERIES TERM STRIP TB-2, INPUT
+
11 10 6
10-30 VDC INPUT VOLTAGE
812
2
3
TERM STRIP TB-2, OUTPUT
FC-90 PLUS SERIES
1
B)
PADDLE
6754
C)
LOW VOLTAGE INPUT SWITCHING
(DC Voltage from PLC or FC-90 Plus)
8
7
6
11 10 912 75
4 5
6
8
7
6
11 10 912 75
4 5
6
MAIN TERM
STRIP
FC-40 PLUS SERIES TERM STRIP TB-2
FEEDER BOWL/HOPPER INTERLOC
K
RODIX INC.
FEEDER CUBE
FC-40 Plus Series
WIRING DIAGRAM
MODEL INPUT VAC AMPS OUTPUT
FC-41H
P
lu
s
120 VAC 30 0-120

RODIX, INC.
2316 23rd Ave., Rockford, IL 61104
Toll Free [phone], FAX [phone]
Email [email protected]
www.rodix.com
FC-41H Plus 24-210.doc 10/9/2012 Page 3

RODIX SOLUTION
Good wiring practices for
avoiding electrical noise
problems.
Rodixcontrolshavebeen designedwitha
high degree of immunity to electrical
noise;however,dependingon the control
installation, electrical noise can cause
problems. These problems occur in less
than 1% of theproduct installations. Most
electrical noise problems can be avoided
by following some simple guidelines.
Good wiring practices need to be used to
prevent electrical noise from interfering
with your control’s operation. Another
name for electrical noise is Electro-
Magnetic Interference (EMI).
Symptoms of Electrical Noise
The symptoms of electrical noise would
appear as follows: a brief pauseor a brief
“bump” in the vibratory feeder’s output
that the control automatically recovers
from. In rare cases the control will either
stop operating or run continuously at full
power in 120 pulse mode until the power
switch is slowly cycled OFF and ON.
Sources of Electrical Noise
Electrical noise is generated by devices
like relay coils, solenoid valves,
contactors, servo motors, and variable
frequency inverter drives. The electrical
noise is then transferred to another
device by one of three ways. The noise
could be conducted through the power
wires,orcapacitivelycoupled fromwireto
adjacent wire, or it is transmitted from the
wires of a nearby noise source.
Solutions for Electrical Noise
1. Use shielded wires for all I/O (Input /
Output) signals. The I/O signals may
include: 4-20mA input, Run input,Sensor
input, 0-5VDC input, Interlock input or
AUX output. The shield “drain” wire
should be tied to the chassis in the Rodix
control. The drain wire should be kept
shorter than 2”. Please see the enclosed
picture.
Example of a “drain” wire termination
2. Never run I/O signal wires in thesame
conduit or raceway as AC power lines
such as wires to motors, solenoids,
heaters, welders and Rodix controls, etc.
3. I/O wires within an enclosure should
be routed as far away as possible from
relays, solenoids, transformers, power
wiring and other noisy equipment. Keep
the I/O signal wires separate from the
control’s input and output power wiring.
Secure the wires in place.
4. Whenever relays or solenoid valves
are used, install a Snubber on them to
reduce electrical noise. Use a diode ona
DC coil. Use a RC Snubber on an AC
coil.
5. In extremely high EMI environments,
Power Line Filters and ferrite beads can
be effective. Install ferrite beads on I/O
signal wires as close as possible to the
circuit board terminal strip. Loop the wire
through the bead several times or use
several beads on each wire for additional
protection.
RODIX, INC.
2316 23rd Avenue, Rockford, IL 61104
Toll Free [phone], FAX [phone]
E-mail custserv[email protected]
www.rodix.com
2000,2011 RODIX INC.Good Wiring10/25/2011
RODIX INC.
FEEDER CUBE


RODIX SOLUTION
.408
Drain
Wire
RELAY
COILSNUBBER
VAC
104M06QC47
QUENCH-ARC
RECTIFIER
DIODE RELAY
COIL
1N4006
VDC
+
-
