Roland RD-700 Quick start guide

SERVICE NOTES
Issued by RJA
Copyright © 2001 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the written permission
of ROLAND CORPORATION.
Printed in Japan (0800) (NB)17058000E0
Jun. 2001 RD-700
DIGITAL PIANO
TABLE OF CONTENTS
SPECIFICATIONS.............................................................2
LOCATION OF CONTROLS PARTS LIST ...................3
LOCATION OF CONTROLS ..........................................3
EXPLODED VIEW ............................................................4
EXPLODED VIEW PARTS LIST.....................................5
WIRING DIAGRAM.........................................................6
PARTS LIST........................................................................8
KEYBOARD ASSY (PA-588-ST) PARTS LIST.............14
INDENTIFYING VERSION NUMBER........................15
SAVE USER DATA & RELOADING SAVED DATA ...15
TEST MODE.....................................................................16
PROCEDURE FOR UPDATING THE SOFTWARE ....19
RESTORING THE FACTORY SETTINGS (Factory Reset) ....20
ERROR MESSAGE..........................................................21
BLOCK DIAGRAM.........................................................22
CIRCUIT BOARD (MAIN BOARD).............................24
CIRCUIT DIAGRAM (MAIN BOARD 1/4)................26
CIRCUIT DIAGRAM (MAIN BOARD 2/4)................28
CIRCUIT DIAGRAM (MAIN BOARD 3/4)................30
CIRCUIT DIAGRAM (MAIN BOARD 4/4)................32
CIRCUIT BOARD (PANEL/JACK/INLET BOARD) ....34
CIRCUIT BOARD (PANEL/JACK/INLET BOARD) ....36
CIRCUIT DIAGRAM (PANEL R BOARD) .................38
CIRCUIT DIAGRAM (PANEL L BOARD)..................40
CIRCUIT DIAGRAM (JACK/INLET BOARD) ..........42
CIRCUIT DIAGRAM (SRX BASE BOARD) ................44
CIRCUIT DIAGRAM (SRX BASE BOARD) ................46
fig.cover

2
Jun. 2001 RD-700
SPECIFICATIONS
RD-700 : Digital Piano (Conforms to General
MIDI 2 System)
• Keyboard
88 keys (Progressive Hammer Action Keyboard)
• Part
16
• Maximum Polyphony
128 voices
• Wave Memory
64 M bytes (16-bit linear equivalent)
• Expansion Slot
Wave Expansion Board SRX Series: 2 slots (*1)
• Tones
Normal Tones : 189
Tone Wheel Organ : 10
General MIDI 2 Tones : 256
Rhythm Sets : 4
General MIDI 2 Rhythm Sets : 9
• Setups
100
• Effects
Multi-Effects : 65 types
Reverb : 4 types
Chorus : 2 types
Equalizer : Digital 3 Band
• Arpeggiator
45 styles
• Rhythm Pattern
80 styles
• Controllers
PART VOLUME slider (x 4),
EQUALIZER knobs,
REVERB knob, CHORUS knob,
MULTI EFFECTS CONTROL knob,
Pitch Bend/Modulation lever
• Display
128 x 64 dots, Full Graphic LCD (backlit LCD)
• Connectors
Output Jacks (L/MONO, R)
Pedal Jacks (Damper, FC 1, FC 2)
MIDI Connectors (IN, OUT, THRU)
Headphones Jack
• Power Supply
AC 117 V, AC 230 V, AC 240 V
• Power Consumption
12 W
• Dimensions
1414 (W) x 374 (D) x 143 (H) mm
55-11/16 (W) x 14-3/4 (D) x 5-11/16 (H) inches
• Weight
24.1 kg / 53 lbs 3 oz
• Accessories
Owner’s Manual English (#71894023)
AC Cord 120 V (#02129289)
AC Cord 230 V (#02129290)
AC Cord 240 V (#02129301)
EURO CONVERTER PLUG ECP01-5A (#00905234)
Pedal Switch DP-6 (#********)
• Options
Wave Expansion Board SRX Series (*1)
Keyboard Stand (KS-17)
Pedal Switch (DP-2/6)
Expression Pedal (EV-5)
* 1 : Tones may sound differently, and the number of them that can be selected
may differ compared with synthesizers in the Roland XV series.
* In the interest of product improvement, the specifications and/or appearance of
this unit are subject to change without prior notice.

3
Jun. 2001 RD-700
LOCATION OF CONTROLS PARTS LIST
LOCATION OF CONTROLS
fig.TopPanel
No. Part Code Part Name Q’ty
1 22485295 D S-KNOB S BLK/LCG 5
2 22480260 P R-KNOB MF BLK/LCG 6
3 02011412 Y S-KEYTOP SD1H BLK 17
4 01125890 D S-KEYTOP SD1H-A CLR 4
5 02670234 Y S-KEYTOP SX1H LCG 1
6 02564912 DISPLAY COVER 1
7 01234090 D T-KEYTOP MX4B BLK 1
8 02011456 Y S-KEYTOP SX1H BLK 1
9 01783956 N S-KEYTOP MD4H 2
10 01783934 N S-KEYTOP MD2H 1
CONTROL
➀ ➂ ➀ ➄ ➅ ➇ ➂ ➈ ➈ ➉
➂ ➃ ➂ ➂➆

4
Jun. 2001 RD-700
EXPLODED VIEW
fig.bunkai

5
Jun. 2001 RD-700
EXPLODED VIEW PARTS LIST
[parts]
[Screws]
No. Part Code Part Name Q’ty
1 02564945 BOTTOM BOARD 1
2 02564890 BLIND 1
3 71677345 PA-588-C KEYBOARD-ST ASSY 1
4 02560690 SIDE PANEL R 1
5 02564889 SIDE HOLDER R1
6 02560701 END BLOCK 1
7 70905189 BENDER UNIT PB-A0112 1
8 02560712 BENDER PANEL 1
9 02564878 SIDE HOLDER L 1
10 02560689 SIDE PANEL L 1
11 00128089 END BLOCK HOLDER 1
12 71788156 SRX BASE BOARD ASSY 1
13 71788067 MAIN BOARD ASSY 1
14 71788367 JACK BOARD ASSY 1
15 71788378 INLET BOARD ASSY 1
16 71788356 PANEL R BOARD ASSY 1
17 71788345 PANEL L BOARD ASSY 1
18 02455467 TOP PANEL 1
19 02564923 EXP COVER 1
20 02565034 LCD UNIT F-51320GNY-LY-AA 1
21 02564901 LCD HOLDER 2
22 01784401 SEESAW SWITCH SDDJE1-A-2 10A/250VAC 1
23 01785823 SWITCHING REGULATOR A1DU2L3B034 1
24 12359105 FOOT W 235-105 4
25 02564912 DISPLAY COVER 1
26 22265286 KEY FELT 1
27 02239834 GROUNDING TERMINAL MT-903CS 1
No. Part Code Part Name Q’ty
A 40128512 SCREW 4x25x20 PAN WASHER HEAD TAPTITE B BZC 13
B 40013023 SCREW M4x25 PAN HEAD DOUBLE SEMS FE BZC 11
C 40012145 SCREW 4x14 TRUSS TAPPING A BZC 2
D 40011101 SCREW 3x8 BINDING TAPTITE B BZC 11
E 40238501 SCREW 4x8 BINDING TAPTITE P BZC 18
F 40011056 SCREW 3x6 BINDING TAPTITE B ZC 29
G 40012912 SCREW M4x20 PAN MACHINE W/PW+SW FE ZC 2
H 40346201 SCREW 4x20 TRUSS TAPPING TWIN BZC 15
I 40012301 SCREW 4x8 BINDING TAPTITE B FE ZC 4
J 40011312 SCREW 3x8 BINDING TAPTITE P BZC 7
K 40017934 SCREW M3x6 PAN MACHINE W/SW+PW FE ZC 13
L 40011501 SCREW M3x8 PAN MACHINE W/SW+PW BZC 4
M 40230590 SCREW M3x10 BINDING MACHINE NI 5

Jun. 2001 RD-700
WIRING DIAGRAM fig.wiringdia
MAIN BOARD
SRX BASE BOARD
SRX SLOT 1 SRX SLOT 2
JACK BOARD
LCD UNIT
PANEL L BOARD PANEL R BOARD
INLET BOARD
SWITCHING REGULATOR
A B C
D
E F
G
H
I
J K L
M
N
O
A
02344178 WIRING 14X350-P2.0-PHR-PHR-F
B C D E F G H I J K L M N O
02564356 WIRING 7X470-P2.5-XHP-XHP-F 02343534 WIRING 8X100-P2.0-PHR-PHR-F 02010690 BNCD-P=1.25-K-16-260 02018767 BNCD-P=1.25-K-20-300 02564312 BNCD-P=1.25-K-12-280 02564323 BNCD-P=1.25-K-16-650 02564334 BNCD-P=1.25-K-32-70 02564345 BNCD-P=1.25-K-34-70 02565489 RD-700 WIRING LCD-MAIN 02565034 LCD F-51320GNY-LY-AA (UNIT) 02564612 RD-700 WIRING INL-PS 02564634 RD-700 WIRING INL-SSSW 70905189 BENDER UNIT PB-A0112 (UNIT) 02565078 BNCD-P=1.25-K-16-700 02565089 BNCD-P=1.25-K-22-650
P
P
CN301 CN401
CN202 CN201 CN002 CN001 CN101CN102
CN4CN1
CN502
CN501
CN11 CN17
CN3
CN12CN8
CN2 CN10 CN18 CN14 CN15
CN6 CN7
BENDER
Keyboard
Power Supply
6 7

8
Jun. 2001 RD-700
PARTS LIST
fig.part1e
MB -> MAIN BAORD ASSY, SRX -> SRX BASE BOARD ASSY, PLB ->PANEL L BOARD ASSY, PRB -> PANEL R BOARD ASSY, JB -> JACK BOARD ASSY,
IB -> INLET BOARD ASSY
SAFETY PRECAUTIONS:
The parts marked have
safety-related characteristics. Use
only listed parts for replacement.
SAFETY PRECAUTIONS:
The parts marked have safety-related characteristics. Use only listed parts for replacement.
QTY PART NUMBER DESCRIPTION MODEL NUMBER
Ex. 10 22575241 Sharp Key C-20/50
15 2247017300 Knob (orange) DAC-15D
Failure to completely fill the above items with correct number and description will result in delayed or even
undelivered replacement.
NOTE: The parts marked # are new. (initial parts)
CASING Q’ty
# 02560712 BENDER PANEL 1
# 02564890 BLIND 1
# 02564945 BOTTOM BOARD 1
# 02564912 DISPLAY COVER 1
# 02560701 END BLOCK 1
22225371 ESCUTCHEON 2P D S-ESCT SX2H BLK L=30 2
# 02564923 EXP COVER 1
01236834 POT. DUST COVER A 1
# 02560689 SIDE PANEL L 1
# 02560690 SIDE PANEL R 1
22225373 SVR COVER D S-ESCT SX1H BLK L=30 222-373 1
# 02455467 TOP PANEL 1
CHASSIS
00128089 END BLOCK HOLDER 1
# 02564878 SIDE HOLDER L 1
# 02564889 SIDE HOLDER R 1
KNOB, BUTTON
01125890 D S-KEYTOP SD1H-A CLR 4
22485295 D S-KNOB S BLK/LCG 5
01234090 D T-KEYTOP MX4B BLK 1
01783934 N S-KEYTOP MD2H 1
01783956 N S-KEYTOP MD4H 2
22480260 P R-KNOB MF BLK/LCG 6
02011412 Y S-KEYTOP SD1H BLK 17
02011456 Y S-KEYTOP SX1H BLK 1
# 02670234 Y S-KEYTOP SX1H LCG 1
SWITCH
01784401 SDDJE1-A-2 10A/250VAC SEESAW SWITCH 1
01783801 SKHJFF WITH LED AMBER TACT SWITCH SW005 on PLB 1
01343478 SKQNAE TACT SWITCH SW013,SW002,SW001,SW008,SW010,SW012,SW014,
SW011 on PLB.SW116,SW105,SW106,SW107,SW108,
SW109,SW111,SW127,SW112,SW104,SW115,SW121,
SW117,SW118,SW119,SW120,SW103,SW122,SW124,
SW125,SW126,SW113,SW102,SW101,SW123 on PRB
8+25
01232212 SKHJGR (GREEN) TACT SWITCH WITH LED SW004 on PLB 1
01232201 SKHJGS (ORANGE) TACT SWITCH WITH LED SW003,SW006 on PLB 2
JACK, EXT TERMINAL
13449261 HLJ4306-01-3070 6.5MM JACK JK403,JK404,JK405 on JB 3
13449284 HLJ7001-01-3010 6.5MM JACK JK303,JK302 on JB 2
13449169 YKB21-5078 6.5MM JACK JK301 on JB 1
13429274 YKF51-5041 MIDI CONNECTOR JK401 on JB 1
DISPLAY UNIT
# 02565034 F-51320GNY-LY-AA LCD UNIT 1
NOTE: Replacement F-51320GNY-LY-AA should be made on a unit base.
POWER SUPPLY UNIT
01785823 A1DU2L3B034 SWITCHING REGULATOR 1
NOTE: Replacement A1DU2L3B034 should be made on a unit base.

9
Jun. 2001 RD-700
BENDER UNIT
70905189 BENDER UNIT PB-A0112 1
NOTE: Replacement BENDER UNIT PB-A0112 should be made on a unit base.
KEYBOARD ASSY
71677345 KEYBOARD ASSY PA-588-ST for SERVICE 1
NOTE: See ‘KEYBOARD PARTS LIST’ for details.
PCB ASSY
# 71788067 MAIN BOARD ASSY 1
# 71897523 LCD ASSY 1
NOTE: ‘LCD ASSY’ includes the following parts.
# 02565489 WIRING LCD-MAIN LCD to CN3 on MB 1
40232123 ACETATE TAPE NITTO #5 BLACK W20MM 30M
20P 3
# 02564901 LCD HOLDER 2
40011056 SCREW 3x6 BINDING TAPTITE B ZC 4
# 71788156 SRX BASE BOARD ASSY 1
NOTE: ‘SRX BASE BOARD ASSY’ includes the following parts.
02019034 PWB SPACER RSPLS-12L 2
01902756 PWB SPACER RSPS-12L 2
# 71788345 PANEL L BOARD ASSY 1
# 71788356 PANEL R BOARD ASSY 1
# 71788367 JACK BOARD ASSY 1
NOTE: ‘JACK BOARD ASSY’ includes the following parts.
12199584 GROUNDING TERMINAL M1698 TER402,TER401,TER403 on JB. TER501 on IB 3
# 71788378 INLET BOARD ASSY 1
IC
# 02230101 HD6417709A 100MHZ IC (32BIT CPU) IC2 on MB 1
01679978 RA09-002XP6TC203C180AF002 IC (CUSTOM) IC24,IC25 on MB 2
# 02455212 SLAC02AF2H (KSM) IC (CUSTOM) IC39 on MB 1
# ******** MBM29LV160BE70TN-K IC (FLASH MEMORY/BLANK) IC3 on MB 1
# 02561723 23C128040LGY-515-MJH IC (MASK ROM) IC34 on MB 1
# 02561734 23C128040LGY-516-MJH IC (MASK ROM) IC30 on MB 1
02234167 AK4393-VF-E2 IC (DAC) IC36 on MB 1
02453389 LC32V4265T-25 IC (DRAM) IC31,IC32 on MB 2
# 02562556 M2V64S40DTP-7 IC (DRAM) IC5 on MB 1
15189190 M5216L-600Y IC (BIPOLAR OP AMP) IC205 on PLB 1
15189250 M5218AL IC (BIPOLAR OP AMP) IC204,IC203,IC202 on PLB 3
15289105 UPC4570G2-E2 IC (BIPOLAR OP AMP) IC40,IC54,IC47,IC37,IC43,IC38 on MB 6
# 01677745 HD74HC08P IC (CMOS) IC102,IC103 on PRB 2
01677756 HD74HC138P IC (CMOS) IC101 on PRB 1
# 02565212 SN74LV245A-PW IC (CMOS) IC1,IC59,IC58,IC14,IC13,IC7,IC6 on MB 7
15259864T0 TC74HC4052AF(EL) IC (CMOS) IC42,IC44 on MB 2
00901456 TC74VHC02F(EL) IC (CMOS) IC33 on MB 1
00236834 TC74VHC21F(EL) IC (CMOS) IC17 on MB 1
01679090 TC74VHC08FT(EL) IC (CMOS) IC57 on MB 1
01675023 TC74VHC139FT(EL) IC (CMOS) IC18 on MB 1
00231889 TC74VHC32F(EL) IC (CMOS) IC2 on SRX 1
# 02230123 TC74VHCT00AF(EL) IC (CMOS) IC45 on MB 1
00456301 TC7S14S(TE85L) IC (CMOS) IC12 on MB 1
01786690 TC7SET08F(TE85L) IC (CMOS) IC61 on MB 1
00564701 TC7SH08F(TE85L) IC (CMOS) IC60,IC27,IC16 on MB 3
01455301 TC7WH04FU(TE12L) IC (CMOS) IC10 on MB 1
# 02340756 TC7WH32FU(TE12L) IC (CMOS) IC26 on MB 1
01349590 TC7WU04FU(TE12L) IC (CMOS) IC29,IC21 on MB 2
15229706S0 PC910XK IC (PHOTO CUPLER) IC401 on JB 1
15199286 AN78L05M-(E1) IC (REGULATOR) IC35 on MB 1
# 02671545 PQ070XZ01ZP IC (REGULATOR) IC23 on MB 1
02230056 PQ07VZ5M2ZP IC (REGULATOR) IC20 on MB 1
01458445 UPC29M33T-T1 IC (REGULATOR) IC41 on MB. IC7 on SRX 1+1
01678512 UPC2933T-T2 IC (REGULATOR) IC19 on MB 1
15199937 M51953BFP-600C IC (RESET) IC11 on MB 1
TRANSISTOR
15119132 2SA1015GR(TPE2) TRANSISTOR Q207 on PLB. Q605,Q603 on JB 1+2
15119615 2SB647CTZ TRANSISTOR Q209 on PLB 1
15129151 2SC1815GR(TPE2) TRANSISTOR Q208 on PLB. Q601,Q602,Q604 on JB 1+3
15319101 2SC2412KR T146 TRANSISTOR Q4 on MB 1
15129152 2SC2878A(TPE2) TRANSISTOR Q205,Q204,Q203,Q202,Q201,Q206 on PLB 6
15129623 2SD667CTZ TRANSISTOR Q210 on PLB 1

10
Jun. 2001 RD-700
15329507 DTA114EKT146 DIGITAL TRANSISTOR Q2,Q1 on SRX 2
# 02671067 DTA114YSATP DIGITAL TRANSISTOR 3
15329503 DTA124EK T146 DIGITAL TRANSISTOR Q3 on MB 1
15129197 DTC144WSTP DIGITAL TRANSISTOR Q403,Q406,Q409 on JB 3
15119170 RN2226(TPE4) DIGITAL TRANSISTOR Q001,Q002 on PLB. Q101,Q106,Q105,Q104,Q103,
Q102 on PRB. Q401 on JB 2+6 +1
00456856 TD62593AP TRANSISTOR ARRAY IC104 on PRB 1
TRANSISTOR
DIODE
00019356 1SR139-400 T-32 RECTIFIER DIODE D603 on JB 1
15019126 1SS133 T-77 SWITCHING DIODE D011,D006,D005,D004,D003,D002,D010,D012,D013,
D014,D008,D001 on PLB. D102,D111,D112,D108,
D107,D109,D106,D105,D103,D101,D113,D124,D104,
D126,D122,D127,D115,D125,D123,D121,D120,D119,
D118,D117,D116 on PRB. D402,D401 on JB
12
+25
+2
15019416 MTZJ T-77 6.2B ZENER DIODE D604,D602 on JB 2
15039253 GL-3HY8 (YELLOW) LED LED108 on PRB 1
15029253 GL3KG8 LED LED107 on PRB 1
15039275 SML-010MT T87 LED (GREEN) LED3,LED1 on SRX 2
00348490 SLR-325VCT31 LED (RED) LED001,LED014,LED013,LED012,LED010,LED008,
LED002 on PLB. LED116,LED115,LED114,LED113,
LED112,LED111,LED109,LED106,LED105,LED117
on PRB
7+8
01121689 SPR-325MVWT31 LED (RED/GREEN) LED120,LED127,LED119,LED121,LED122,LED123,
LED124,LED125,LED126,LED118 on PRB
10
01121323 DA204U T106 DIODE ARRAY DA2,DA7,DA6,DA5,DA4,DA3,DA8 on MB 7
RESISTOR
15399926 MCR50-101J CHIP RESISTOR R150 on MB 1
00674223 RR1220P-911D RESISTOR R295 on MB 1
13749831T0 SR25TR 273 J CARBON RESISTOR R223,R201 on PLB 2
13749773T0 SR25TRE 101 J CARBON RESISTOR R429,R433,R425,R614,R402 on JB 5
13749797T0 SR25TRE 102 J CARBON RESISTOR R279,R278,R277,R276,R275,R274 on PLB. R107,R105,
R106,R108,R109,R111,R112 on PRB. R407 on JB
6+7
+1
13749845T0 SR25TRE 104 J CARBON RESISTOR R271,R272 on PLB. R606,R432,R428,R424 on JB 2+4
# 13749751T0 SR25TRE 120 J CARBON RESISTOR R002,R001 on PLB 2
13749775T0 SR25TRE 121 J CARBON RESISTOR R401 on JB 1
13749825T0 SR25TRE 153 J CARBON RESISTOR R251,R235,R258,R270,R273,R213 on PLB 6
13749779T0 SR25TRE 181 J CARBON RESISTOR R206,R243,R228,R221 on PLB 4
13749803T0 SR25TRE 182 J CARBON RESISTOR R226,R204 on PLB 2
13749757T0 SR25TRE 220 J CARBON RESISTOR R004,R003 on PLB. R117,R115,R118,R116,R119 on PRB 2+5
13749781T0 SR25TRE 221 J CARBON RESISTOR R405,R602,R403,R409,R601,R404,R406 on JB 7
13749829T0 SR25TRE 223 J CARBON RESISTOR R224,R202 on PLB 2
13749759T0 SR25TRE 270 J CARBON RESISTOR R113,R114 on PRB 2
13749761T0 SR25TRE 330 J CARBON RESISTOR R304,R303,R302,R301 on JB 4
13749809T0 SR25TRE 332 J CARBON RESISTOR R260,R269,R218,R222,R232,R234,R240,R244,R264,
R268,R267,R266,R210,R265,R212,R261,R262,R263,
R241,R219 on PLB. R603,R612 on JB
20+2
13749833T0 SR25TRE 333 J CARBON RESISTOR R256,R249 on PLB ,R613 on JB 2+1
13749813T0 SR25TRE 472 J CARBON RESISTOR R434,R426,R408,R430 on JB 4
13749837T0 SR25TRE 473 J CARBON RESISTOR R211,R233 on PLB 2
13749817T0 SR25TRE 682 J CARBON RESISTOR R238,R209,R231,R216 on PLB. R608,R604,R609,
R607,R611 on JB 4+5
13749841T0 SR25TRE 683 J CARBON RESISTOR R236,R214,R239,R217 on PLB 4
13749819T0 SR25TRE 822 J CARBON RESISTOR R215,R237 on PLB 2
13749189 SR50TR 101 J 1/2W CARBON RESISTOR R220,R205,R227,R242,R250,R253,R259,R257 on PLB 8
01011856 RPC05T 0R0 J MTL.FILM RESIST0R 115
15399713 MCR25 JZH J 101 MTL.FILM RESISTOR R276,R275 on MB 2
02014945 MCR50 JZH J 0R0 MTL.FILM RESISTOR R3 on SRX 1
00566867 RPC05T 100 J MTL.FILM RESISTOR R302 on MB 1
00567023 RPC05T 101 J MTL.FILM RESISTOR R136,R123,R125,R126,R127,R128,R135,R121,R137,
R139,R140,R72,R129,R120,R119,R118,R116,R115,
R114,R113,R104,R94,R91,R75,R141,R73,R124,R74,
R309,R308,R122 on MB. R5,R8,R9 on SRX
3+31
00567156 RPC05T 102 J MTL.FILM RESISTOR R69,R257,R255,R238,R237,R233,R229,R230,R211,
R207,R301,R219,R221,R210,R214,R232,R213onMB 17
00567289 RPC05T 103 J MTL.FILM RESISTOR R143,R98,R99,R100,R101,R142,R65,R145,R291,R102,
R90,R67,R63,R52,R51,R50,R30,R2,R292,R289,R89,
R144 on MB. R1,R2 on SRX
2+22
00567412 RPC05T 104 J MTL.FILM RESISTOR R225,R215,R231,R306,R212,R305 on MB 6
00567556 RPC05T 105 J MTL.FILM RESISTOR R109,R103 on MB 2
00567167 RPC05T 122 J MTL.FILM RESISTOR R288 on MB 1
00567290 RPC05T 123 J MTL.FILM RESISTOR R157,R170,R179,R196 on MB 4
00566912 RPC05T 220 J MTL.FILM RESISTOR R76 on MB 1
00567067 RPC05T 221 J MTL.FILM RESISTOR R133,R300,R138,R134,R132 on MB 5
00567190 RPC05T 222 J MTL.FILM RESISTOR R62,R61,R60,R59,R58,R56,R283,R55,R54,R43,R42,
R41,R1,R290,R57 on MB 15
00567201 RPC05T 272 J MTL.FILM RESISTOR R286 on MB 1
00566934 RPC05T 330 J MTL.FILM RESISTOR R14,R23,R110,R29,R28,R27,R20,R11,R10,R9,R22onMB 11
00567345 RPC05T 333 J MTL.FILM RESISTOR R188,R166 on MB 2
00566967 RPC05T 470 J MTL.FILM RESISTOR R7,R6 on SRX 2

11
Jun. 2001 RD-700

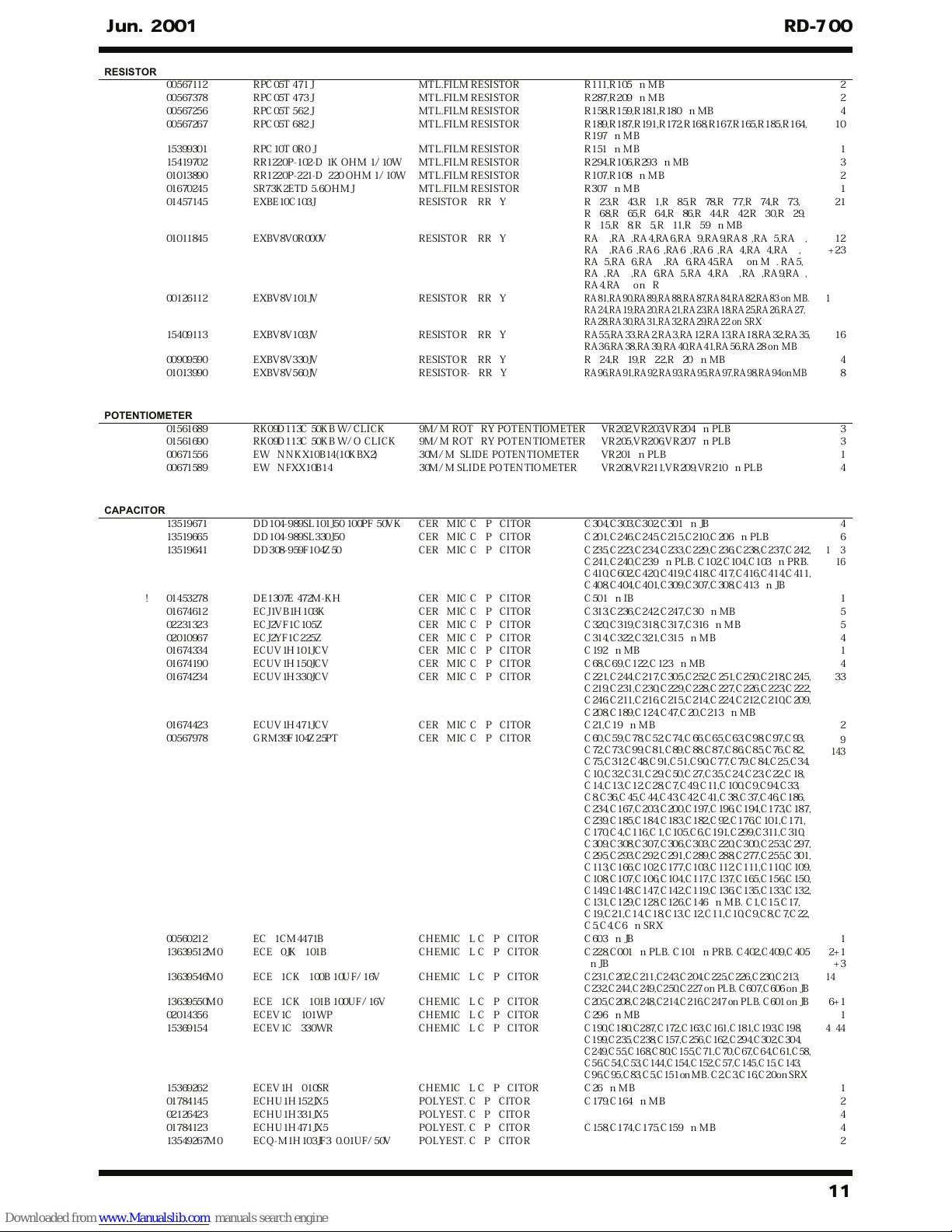

00567112 RPC05T 471 J MTL.FILM RESISTOR R111,R105 on MB 2
00567378 RPC05T 473 J MTL.FILM RESISTOR R287,R209 on MB 2
00567256 RPC05T 562 J MTL.FILM RESISTOR R158,R159,R181,R180 on MB 4
00567267 RPC05T 682 J MTL.FILM RESISTOR R189,R187,R191,R172,R168,R167,R165,R185,R164,
R197 on MB 10
15399301 RPC10T 0R0 J MTL.FILM RESISTOR R151 on MB 1
15419702 RR1220P-102-D 1K OHM 1/10W MTL.FILM RESISTOR R294,R106,R293 on MB 3
01013890 RR1220P-221-D 220 OHM 1/10W MTL.FILM RESISTOR R107,R108 on MB 2
01670245 SR73K2ETD 5.6OHMJ MTL.FILM RESISTOR R307 on MB 1
01457145 EXBE10C103J RESISTOR ARRAY RA23,RA43,RA1,RA85,RA78,RA77,RA74,RA73,
RA68,RA65,RA64,RA86,RA44,RA42,RA30,RA29,
RA15,RA8,RA5,RA11,RA59 on MB
21
01011845 EXBV8V0R000V RESISTOR ARRAY RA27,RA7,RA4,RA6,RA79,RA9,RA80,RA75,RA72,
RA71,RA63,RA62,RA61,RA60,RA14,RA34,RA31,
RA25,RA26,RA17,RA16,RA45,RA10 on MB. RA5,
RA7,RA17,RA16,RA15,RA14,RA12,RA2,RA9,RA1,
RA4,RA11 on SRX
12
+23
00126112 EXBV8V101JV RESISTOR ARRAY RA81,RA90,RA89,RA88,RA87,RA84,RA82,RA83 on MB.
RA24,RA19,RA20,RA21,RA23,RA18,RA25,RA26,RA27,
RA28,RA30,RA31,RA32,RA29,RA22 on SRX
15+8
15409113 EXBV8V103JV RESISTOR ARRAY RA55,RA33,RA2,RA3,RA12,RA13,RA18,RA32,RA35,
RA36,RA38,RA39,RA40,RA41,RA56,RA28 on MB
16
00909590 EXBV8V330JV RESISTOR ARRAY RA24,RA19,RA22,RA20 on MB 4
01013990 EXBV8V560JV RESISTOR-ARRAY RA96,RA91,RA92,RA93,RA95,RA97,RA98,RA94onMB 8
RESISTOR
POTENTIOMETER
01561689 RK09D113C 50KB W/CLICK 9M/M ROTARY POTENTIOMETER VR202,VR203,VR204 on PLB 3
01561690 RK09D113C 50KB W/O CLICK 9M/M ROTARY POTENTIOMETER VR205,VR206,VR207 on PLB 3
00671556 EWANNKX10B14(10KBX2) 30M/M SLIDE POTENTIOMETER VR201 on PLB 1
00671589 EWANFXX10B14 30M/M SLIDE POTENTIOMETER VR208,VR211,VR209,VR210 on PLB 4
CAPACITOR
13519671 DD104-989SL101J50 100PF 50VK CERAMIC CAPACITOR C304,C303,C302,C301 on JB 4
13519665 DD104-989SL330J50 CERAMIC CAPACITOR C201,C246,C245,C215,C210,C206 on PLB 6
13519641 DD308-959F104Z50 CERAMIC CAPACITOR C235,C223,C234,C233,C229,C236,C238,C237,C242,
C241,C240,C239 on PLB. C102,C104,C103 on PRB.
C410,C602,C420,C419,C418,C417,C416,C414,C411,
C408,C404,C401,C309,C307,C308,C413 on JB
12+3
+16
! 01453278 DE1307E 472M-KH CERAMIC CAPACITOR C501 on IB 1
01674612 ECJ1VB1H103K CERAMIC CAPACITOR C313,C236,C242,C247,C30 on MB 5
02231323 ECJ2VF1C105Z CERAMIC CAPACITOR C320,C319,C318,C317,C316 on MB 5
02010967 ECJ2YF1C225Z CERAMIC CAPACITOR C314,C322,C321,C315 on MB 4
01674334 ECUV1H101JCV CERAMIC CAPACITOR C192 on MB 1
01674190 ECUV1H150JCV CERAMIC CAPACITOR C68,C69,C122,C123 on MB 4
01674234 ECUV1H330JCV CERAMIC CAPACITOR C221,C244,C217,C305,C252,C251,C250,C218,C245,
C219,C231,C230,C229,C228,C227,C226,C223,C222,
C246,C211,C216,C215,C214,C224,C212,C210,C209,
C208,C189,C124,C47,C20,C213 on MB
33
01674423 ECUV1H471JCV CERAMIC CAPACITOR C21,C19 on MB 2
00567978 GRM39F104Z25PT CERAMIC CAPACITOR C60,C59,C78,C52,C74,C66,C65,C63,C98,C97,C93,
C72,C73,C99,C81,C89,C88,C87,C86,C85,C76,C82,
C75,C312,C48,C91,C51,C90,C77,C79,C84,C25,C34,
C10,C32,C31,C29,C50,C27,C35,C24,C23,C22,C18,
C14,C13,C12,C28,C7,C49,C11,C100,C9,C94,C33,
C8,C36,C45,C44,C43,C42,C41,C38,C37,C46,C186,
C234,C167,C203,C200,C197,C196,C194,C173,C187,
C239,C185,C184,C183,C182,C92,C176,C101,C171,
C170,C4,C116,C1,C105,C6,C191,C299,C311,C310,
C309,C308,C307,C306,C303,C220,C300,C253,C297,
C295,C293,C292,C291,C289,C288,C277,C255,C301,
C113,C166,C102,C177,C103,C112,C111,C110,C109,
C108,C107,C106,C104,C117,C137,C165,C156,C150,
C149,C148,C147,C142,C119,C136,C135,C133,C132,
C131,C129,C128,C126,C146 on MB. C1,C15,C17,
C19,C21,C14,C18,C13,C12,C11,C10,C9,C8,C7,C22,
C5,C4,C6 on SRX
9
+143
00560212 ECA1CM4471B CHEMICAL CAPACITOR C603 on JB 1
13639512M0 ECEA0JKA101B CHEMICAL CAPACITOR C228,C001 on PLB. C101 on PRB. C402,C409,C405
on JB 2+1 +3
13639546M0 ECEA1CKA100B 10UF/16V CHEMICAL CAPACITOR C231,C202,C211,C243,C204,C225,C226,C230,C213,
C232,C244,C249,C250,C227 on PLB. C607,C606 on JB
14+2
13639550M0 ECEA1CKA101B 100UF/16V CHEMICAL CAPACITOR C205,C208,C248,C214,C216,C247 on PLB. C601 on JB 6+1
02014356 ECEV1CA101WP CHEMICAL CAPACITOR C296 on MB 1
15369154 ECEV1CA330WR CHEMICAL CAPACITOR C190,C180,C287,C172,C163,C161,C181,C193,C198,
C199,C235,C238,C157,C256,C162,C294,C302,C304,
C249,C55,C168,C80,C155,C71,C70,C67,C64,C61,C58,
C56,C54,C53,C144,C154,C152,C57,C145,C15,C143,
C96,C95,C83,C5,C151onMB.C2,C3,C16,C20onSRX
4+44
15369262 ECEV1HA010SR CHEMICAL CAPACITOR C26 on MB 1
01784145 ECHU1H152JX5 POLYEST. CAPACITOR C179,C164 on MB 2
02126423 ECHU1H331JX5 POLYEST. CAPACITOR 4
01784123 ECHU1H471JX5 POLYEST. CAPACITOR C158,C174,C175,C159 on MB 4
13549267M0 ECQ-M1H103JF3 0.01UF/50V POLYEST. CAPACITOR 2

12
Jun. 2001 RD-700
13549255M0 ECQ-B1H102JF3 POLYEST.CAPACITOR C306,C305 on JB 2
CAPACITOR
INDUCTOR, COIL, FILTER
01346089 SBC3-331-551 CHOKE COIL L6,L7 on MB
12449347 EXC ELDR35V FERRITE-BEAD L305,L416,L415,L414,L413,L412,L405,L417,L306,
L406,L304,L303,L302,L301,L403,L404 on JB 16
01787056 N1608Z102T01 FERRITE-BEAD L6,L5,L11,L8,L4,L7,L12,L10,L3,L1,L2,L9 on MB 12
CRYSTAL, RESONATOR
# 02561712 MA-406 12.500MHZ TE24 CRYSTAL X1 on MB 1
00901912 MA-406 24.576MHZ TE24 CRYSTAL X2 on MB 1
CONNECTOR
01909601 12FE-BT-VK-N CONNECTOR CN18 on MB 1
# 02564678 12FE-ST-VK-N CONNECTOR CN002 on PLB 1
01908645 16FE-BT-VK-N CONNECTOR CN11,CN6,CN14 on MB 3
02010867 16FE-ST-VK-N FOR WIRING CONNECTOR CN101 on PRB. CN401 on JB 1+1
02018712 20FE-ST-VK-N FOR WIRING CONNECTOR CN001 on PLB. CN102 on PRB 1+1
01908667 22FE-BT-VK-N CONNECTOR CN9,CN7 on MB 1
# 02671745 30FLT-SM1-TB CONNECTOR CN15 on MB 1
02019001 32FE-BT-VK-N FOR WIRING CONNECTOR CN8 on MB. CN1 on SRX 1+1
02018990 34FE-BT-VK-N CONNECTOR CN12 on MB. CN4 on SRX 1+1
13369570 B2B-PH-K-S (2P) CONNECTOR CN3 on MB 1
13369592 B7B-XH-A(7P) JST CONNECTOR CN17 on MB 1
13369504 B8B-PH-K-S JST CONNECTOR CN2 on MB 1
13439335 IL-S-6P-S2T2-EF 6P CONNECTOR CN10 on MB 1
13369674 S14B PH-K-S CONNECTOR CN202 on PLB. CN301 on JB 1+1
13369668 S8B-PH-K-S JST (8P) CONNECTOR CN201 on PLB 1
02010078 TX25-80P-6ST-E1 CONNECTOR CN3,CN2 on SRX 2
WIRING, CABLE
# 02564356 7x470-P2.5-XHP-XHP-F WIRING CN2 on SW.REG to CN17 on MB 1
# 02343534 8x100-P2.0-PHR-PHR-F WIRING CN2 on MB to CN201 on PLB 1
# 02344178 14x350-P2.0-PHR-PHR-F WIRING CN202 on PLB to CN301 on JB 1
# 02564334 BNCD-P=1.25-K-32-70 BAN CARD CN8 on MB to CN1 on SRX 1
# 02564345 BNCD-P=1.25-K-34-70 BAN CARD CN12 on MB to CN4 on SRX 1
# 02010690 BNCD-P=1.25-K-16-260 BAN CARD CN11 on MB to CN101 on PRB 1
# 02564312 BNCD-P=1.25-K-12-280 BAN CARD CN18 on MB to CN002 on PLB 1
# 02018767 BNCD-P=1.25-K-20-300 BAN CARD CN102 on PRB to CN001 on PLB 1
# 02564323 BNCD-P=1.25-K-16-650 BAN CARD CN14 on MB to CN401 on JB 1
AC INLET, OUTLET
02129389 M1818A(PWI1818) 2P AC INLET JK501 on IB 1
SCREWS
40011056 SCREW 3x6 BINDING TAPTITE B ZC 29
40017934 SCREW M3x6 PAN MACHINE W/SW+PW FE ZC 13
40011101 SCREW 3x8 BINDING TAPTITE B BZC 11
40011312 SCREW 3x8 BINDING TAPTITE P BZC 7
40011501 SCREW M3x8 PAN MACHINE W/SW+PW BZC 4
40230590 SCREW 3x10 BINDING MACHINE NI 5
40010745 SCREW 3x16 BINDING TAPTITE A1 FEZC 4
40012301 SCREW 4x8 BINDING TAPTITE B FE ZC 4
40238501 SCREW 4x8 BINDING TAPTITE P BZC 18
40012145 SCREW 4x14 TRUSS TAPTITE A BZC 2
40346201 SCREW 4x20 TRUSS TAPPING TWIN BZC 15
40012912 SCREW M4x20 PAN HEAD W/SW+PW FE ZC 2
40128512 SCREW 4x25x20 PAN WASHER HEAD TAPTITE B BZC 13
40013023 SCREW M4x25 PAN HEAD W/SW+PW FE BZC 11
40011712 NUT M4x11.5 WOOD ANCHOR B ZC 2
40011723 NUT M5x12 WOOD ANCHOR B ZC 4
PACKING
# 02564956 PACKING CASE 1
22675516 PACKING SHEET 1
MISCELLANEOUS
40122812 ACETATE TAPE NITTO NO.5 BLK W15MM 30M 1
40122434 DOUBLE-FACED TAPE #500 W7MM 20M 30P 1
40122923 DOUBLE FACED ADHESHIVE TAPE NITTO NO.501F W20MM 20M 1
# 02672678 FLAT CABLE CLIP NKF-3264 CORD 2
22265286 KEY FELT 226-286 1

13
Jun. 2001 RD-700
02239834 GROUNDING TERMINAL MT-903CS 1
40017378 COATING CLIP CS-7 1
40016512 INSULOK TIE 80M/M T-18S 6
12359105 RUBBER FOOT W RS-09 235-105 4
40231845 STRAIGHT PIN 6x20 FOR WOOD 2
MISCELLANEOUS
ACCESSORIES (STANDARD)
# 71788090 OWNER’S MANUAL JAPANESE 1
# 71894023 OWNER’S MANUAL ENGLISH 1
02129278 AC CORD SET 100V 2P 2.5M 1
02129289 AC CORD SET 120V 2P 2.5M 1
02129290 AC CORD SET 230V EU 2P 2.5M 1
02129301 AC CORD SET 240V A 2P 2.5M 1
00905234 EURO CONVERTER PLUG ECP01-5A (PLUG for 230 VE) 1
******** PEDAL DP-6BK 1
40232334 WARRANTY CARD (JAPAN ONLY) 1

14
Jun. 2001 RD-700
KEYBOARD ASSY (PA-588-ST) PARTS LIST
fig.keyparts
PART NAME
PA-5 N-KEY A
PA-5 N-KEY B
PA-5 N-KEY C
PA-5 N-KEY D
PA-5 N-KEY E
PA-5 N-KEY F
PA-5 N-KEY G
PA-5 N-KEY A'
PA-5 N-KEY C'
PA-5 SHARP-KEY
PA-5 HAMMER-1
PA-5 HAMMER-2
PA-5 HAMMER-3
PA-5 HAMMER-4
PA-5 CHASSIS 88P-A ASSY
PA-5 CHASSIS 88P
PA-5 SUB CHASSIS 12P
PA-5 SUB CHASSIS 4P
PA-4A GUIDE BUSHING C
PA-4 GUIDE BUSHING S-KEY
PA-5 KEY CUSHION A
PA-5 HAMMER CUSHION C
PA-5 HAMMER CUSHION B
SCREW 3 x 10 BINDING B-TITE FEZC
PA-5 PWB LOW ASSY
PA-5 PWB MID ASSY
PA-5 PWB HI ASSY
PA-5 RUBBER SWITCH 12P
SCREW 3 x 6 BINDING TAPTITE P FEZC
BNCD-P=1.25-K-16-80
PART CODE
01894234
01894245
01894256
01894267
01894278
01894289
01894290
01894312
01894323
01894334
01906756
01906767
01906778
01906789
71564645
01894412
01894434
01894445
01894923
00019912
02016901
02233878
02016945
40012256
71564612
71564623
71564634
01898956
40011267
02016989
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Qty.
7
8
7
7
7
7
7
1
1
36
22
22
22
22
1
1
7
1
52
36
3
1
1
37
1
1
1
8
22
1
PART NAME
BNCD-P=1.25-K-16-700
BNCD-P=1.25-K-22-650
PART CODE
02565078
02565089
No. Qty.
1
1
Item 13 marked is included in each unit of 12.
The following parts do not include the keyboard Assy.
71677345
ST-SERVICE ASSY PARTS LIST
12
345
6
7
89
10 11
12
13 14 15

15
Jun. 2001 RD-700
INDENTIFYING VERSION
NUMBER
1. Turn on the power.
2. Press the [EDIT] button while pressing both the CURSOR [ ] and
PART SELECT [LOWER] buttons to enter the Test mode.
The following screen is displayed:
fig.0info
fig.0info-1e
Turn the power off then on again, and the machine returns to normal
mode.
SAVE USER DATA &
RELOADING SAVED DATA
SAVING DATA
Transferring the RD-700’s Settings to an External MIDI Device. (Bulk Dump)
You can transfer the contents of Setups and the RD-700’s system settings to an
external MIDI device.
This operation is called ‘bulk dump.’
Use this procedure to save the data to an external MIDI device in situations
such as when you want to prevent your Setups and system settings from
corruption.
1. Use a MIDI cable (optional) to connect the RD-700’s MIDI OUT connector
to the MIDI IN connector on an external sequencer.
2. Press [EDIT] button to turn it on.
The Edit Menu screen appears.
fig.05-33
3. Press CURSOR [ ] button to select ‘9.Utility.’
4. Press CURSOR [ ] button to display the Edit screen.
fig.05-34
5. Press CURSOR [ ] or [ ] button to select ‘Bulk Dump Temporary’
or ‘Bulk Dump SETUP.’
Parameter Value
Bulk Dump Temporary :The contents of the currently selected Setup are
transmitted.
Bulk Dump SETUP :The contents of Setups in the specified range are
transmitted.
* While the Bulk Dump is in progress, no sounds are produced even when the keys
are pressed. In addition, Rhythms and arpeggios being played are also stopped.
Bulk Dump Temporary
6. Press CURSOR [ ] button.
A screen like the one shown below appears.
fig.05-35-1
7. Put the external sequencer in record mode.
8. Press [INC/YES] button to transmit the settings.
To cancel the Bulk Dump, press [DEC/NO] button.
The message “Now, Executing...” appears in the display during
transmission of the data.
9. After the transmitting is finished, the display will indicate “COMPLETED.”
You are returned to the Edit screen.
10. Stop the external sequencer.
Bulk Dump SETUP
11. Press CURSOR [ ] button.
A screen like the one shown below appears.
fig.05-35-2
Parameter Value
From: Setup number for the first Setup to be transmitted.
To: Setup number for the last Setup to be transmitted.
Send System: Determines whether the system settings are to be transmitted
(YES), or not (NO).
12. Press CURSOR [ ] / [ ] and [INC/YES]/[DEC/NO] buttons to set
the transmitted SETUPs.
13. Press CURSOR [ ] button.
A screen like the one shown below appears.
fig.05-36-1
14. Put the external sequencer in record mode.
Display Description
---------------------- + -----------------------------------
Product Name : Model Name
PRG Version No : Program's Version Number
PRG Build No : Program's Build Number
Booter Version : Booter's Version Number

16
Jun. 2001 RD-700
15. Press [INC/YES] button to transmit the settings.
To cancel the Bulk Dump, press [DEC/NO].
A screen like the one shown below appears.
fig.05-36-2
16. After the transmitting is finished, the display will indicate
“COMPLETED.”
You are returned to the Edit screen.
17. Stop the external sequencer.
RESTORING SAVED SETTINGS TO
THE RD-700
When returning settings saved to an external sequencer back to the RD-700, an
Exclusive message is transmitted from the external sequencer, then the data is
received by the RD-700.
* Be aware that when you restore SETUPs data to the RD-700, the data in the
RD-700 will be overwritten and lost.
1. Use a MIDI cable to connect the MIDI OUT connector of the external
sequencer to the MIDI IN connector of the RD-700.
2. Set the device ID number to the same setting as when you performed the
bulk dump.
-> Setting the Device ID Number ` “Setting the Device ID Number
(Device ID)”
3. Make sure that [EDIT] indicator is extinguished.
If the [EDIT] indicator is lit, press [EDIT] to turn the indicator light off
and put the RD-700 in normal performance mode.
4. Transmit (play back) the data from the external sequencer.
5. After the transmitting is finished, the display will indicate
“COMPLETED.”
-> For details on transmitting exclusive data, refer to the owner’s manual
for your sequencer.
* Play back the external sequencer at the same tempo you used when performing
the bulk dump.
If you use a faster tempo, the data may not be restored correctly.
* Data cannot be received if the Device ID of the receiving device differs from the
Device ID used when Bulk Dump was carried out.
* Exclusive messages cannot be received when set to GM Mode.
Carry out the operation after first exiting GM Mode.
TEST MODE
Items required
• EV-5
• MIDI cable
• Oscilloscope
• Monitor speaker
• Headphones
• Cable for mono standard plug (TS type)
• Cable for stereo standard plug (TRS type)
Some Cautions Before Starting
the Tests
Entering the Test mode may erase the user data, be sure to back it up first.
Install the wave expansion board before turning on the power.
If you install it after turning on the power, it may be destroyed.
How to Enter the Test Mode
1. Turn on the power.
2. Press the [EDIT] button while pressing both the CURSOR [ ] and
PART SELECT [LOWER] buttons to enter the Test mode.
How to Exit the Test Mode
Turn the power off then on again, and the machine returns to normal mode.
Test Items and How to Select
Them in the Test Mode
The Test mode has the following test items.
You can select any of them by pressing the [EDIT] button and the
corresponding [TONE SELECT] button.
You can move to another item by pressing both the [EDIT] and CURSOR
[ ]/CURSOR [ ] buttons.
fig.testitem-e
Function Operation Test items
---------------------------------- + -------------- + -------------------------------------
0.Product Information [EDIT]+[0] Version display
1.Device Check [EDIT]+[1] Device check
2.SW/LED Check [EDIT]+[2] SW/LED check
3.LCD Contrast [EDIT]+[3] Adiustment of LCD contrast
4.LCD Check [EDIT]+[4] LCD check
5.Bender/Pedal Check [EDIT]+[5] Bender/Pedal check
6.Volume Check [EDIT]+[6] Volume check
7.MIDI Check [EDIT]+[7] MIDI check
8.Sound Check [EDIT]+[8] Sound check
9.Factory Reset [EDIT]+[9] Factory Reset

17
Jun. 2001 RD-700
0. Product Information
The following screen appears when you enter the Test mode:
fig.0info
fig.0info-1e
Note : “PRG Build No” and “Booter Version” are for factory testing.
Press both the [EDIT] and CORSOR [ ] buttons to start the next test.
1. Device Check
Device checking starts automatically.
fig.1-0device
fig.1-0device-1e
The above seven items are checked.
If a fault is found in a device, the following screen appears and checking
stops.
fig.1-1device2
When checking of all the devices is completed, checking of sound source
operation starts automatically.
fig.1-2device3
During checking, the mute circuit is activated to prevent sound output.
Make sure that no sound is being output after “Finished” appears on the
screen.
After the test is completed, the next test starts automatically.
2. SW/LED Check
The following screen appears.
fig.2swled
Make sure that all the LEDs are lit.
For a switch button without an LED, make sure that its name is
displayed.
Press the buttons one by one to switch their LEDs off (a sound is output
corresponding to each switch).
Press the switches in the correct order.
If not, you will not get any response. (The correct order is as shown below.)
If a button without an LED is pressed, its name disappears from the screen.
A button originally lit up in orange changes to green if pressed, and is
turned off if pressed again.
To exit from the SW/LED check halfway to go to another test, press the
CURSOR [ ] button while pressing the [EDIT] button.
The order in which to press the switches
fig.2swled-1
After the test is completed, the next test starts automatically.
3. LCD Contrast
fig.3lcd-cont
Check to see that the contrast value changes from “1” to “10” and the
contrast of the display changes accordingly as you press the [INC] and
[DEC] buttons.
Also check to see that you can read letters displayed even when the value
is “1”.
Next, adjust the LCD’s contrast.
Set the contrast value which produces the most easy-to-read display by
using the [INC] and [DEC] buttons.
You can put into memory such value as the reference value of Factory
Reset.
Press both the [EDIT] and [WRITE] buttons, and the current value is
saved in memory for reference.
Be sure to execute Factory Reset before you exit from the Test mode.
Press both the [EDIT] and CURSOR [ ] buttons to go to the next test.
Display Description
---------------------- + -----------------------------------
Product Name : Model Name
PRG Version No : Program's Version Number
PRG Build No : Program's Build Number
Booter Version : Booter's Version Number
Display Description
------------------------- + -----------------------------------------------------
PROGRAM ROM Check the contents of the program ROM
DSP 1/2 Check's the DSP and the effect RAM
built into the Master/Slave's sound chip
EXP A/B Checks the wave expansion's A/B slot
WROM1/2 Checks wave ROM 1/2
[EQ_ON/OFF] -> [MFX_ON/OFF] -> [RHYHM] -> [LOWER] ->
[UPPER2] -> [UPPER1] -> [ARPEGGIO] -> [TRANSPOSE] ->
[SPLIT] -> [LAYER] -> [PIANO] -> [SET UP] -> [UP] ->
[LEFT] -> [RIGHT] -> [DOWM] -> [DEC] -> [INC] -> [LOWER] ->
[UPPER 2] -> [UPPER 1] -> [EXP_A] -> [EXP_B] -> [EDIT] ->
[WRITE] -> [MIDI] -> [NUM LOCK] -> [0] [9] (LED Orange ->
Green) -> [0] [9](LED Green -> OFF)

18
Jun. 2001 RD-700
4. LCD Check
Check for any LCD dot abnomalities.
fig.4lcd-dot
Press the [0] button, and check to see that the full screen is lit.
Press the [1] button, and check to see that the full screen is turned off.
Press the [2] button, and check to see that the screen is lit with a vertical
stripe pattern.
Press the [3] button, and check to see that the stripes on the screen
disappear.
Press the [4] button, and check to see that the vertical stripes are
displayed again.
Press both the [EDIT] and CURSOR [ ] buttons to go to the next test.
5. Bender/Pedal Check
Check the bender, modulation and the operation of the pedal.
fig.5bender
Check to see that the displayed value changes from “0” to “127” as you
push the bender lever all the way to the left and right.
(If it changes, the operator name is displayed in reverse video.)
Also make sure that “64” appears when the lever is in the center.
Check to see that the displayed value changes from “0” to “127” as you
push the bender lever all the way over to the modulation side.
Make sure that no pedal is connected to the three [PEDAL] jacks on the
rear panel.
At the same time, make sure that all the “Damper”, “FC1” and “FC2”
boxes on the display show “***”.
Insert an EV-5 (expression pedal) into the DAMPER jack on the rear
panel.
Check to see that the displayed value changes from “0” to “127” as you
step on the pedal.
(If it changes, the operator name is displayed in reverse video.)
Also check the FC1 and FC2 jacks in the same way.
After the test is completed, the next test starts automatically.
6. Volume Check
Check the operation of the sliding and round VRs.
fig.6volume
Check to see that the displayed value changes from “0” to “127” as you
move the RHYTHM slider all the way up and down.
(If it changes, the operator name is displayed in reverse video.)
Also check the LOWER, UPPER2 and UPPER1 sliders in the same way.
Check to see that the displayed value changes from “0” to “127” as you
move the round VR of EQ LOW all the way to the left and right.
Make sure that “64” is shown when the VR is in the central click position.
Also check the round VRs of EQ MID and EQ HIGH in the same way.
Check to see that the displayed value changes from “0” to “127” as you
move the round VR of REVERB all the way to the left and right.
Also check the round VRs of CHORUS and MULTI EFX in the same way.
After the test is completed, the next test starts automatically.
7. MIDI Check
Check the MIDI operation.
fig.7-0midi1
Connect MIDI IN and MIDI OUT with a MIDI cable.
When you have connected them, “Connection OK.” is momentarily
displayed then changes to the following screen:
fig.7-1midi2
Remove the plug from MIDI OUT while leaving MIDI IN connected.
As you do this, “Disconnection OK.”is displayed, then “Check Finished.”
momentarily appears.
After the test is completed, the next test starts automatically.
8. Sound Check
Check the output from the sound source.
Set the volume on the RD-700 at the maximum level.
fig.8sound
The following sound is output corresponding to the Tone Select button
pressed:
Tone Select : Sound
[0] : Direct tone
[1] : The tone effected by Chorus
[2] : The tone effected by Reverb
[3] : The tone effected by Resonance
[4] : Sine wave from the left channel only
[5] : Square wave from the right channel only
[6] : Sine wave from both channels
Press each button twice to check the sound.Also, follow the order listed
above when pressing the buttons.
(If not, you will not get any response.)
The tone display changes to reverse video as its sound is output
successfully.
Connect an oscilloscope to the OUTPUT L and R jacks on the rear panel
so that you can obverse the outputs.
Also, connect a set of headphones to the PHONES jack.
As you press each button displayed, the corresponding sound is output.
Be sure to confirm that no abnormal sound is output.
Connect an oscilloscope to the stereo-type standard jacks (TRS type) so
that you can obverse the outputs.
Connections
Tip <- Ch1
Ring <- Ch2
Sleeve <- Ground
Connect an oscilloscope to the OUTPUT L/MONO and R jacks on the
rear panel in the order listed above.
Check the oscilloscope to see that the waveforms from Ch1 and Ch2 are
in reverse phase to each other.
Press both the [EDIT] and CORSOR [ ] buttons to go to the next test.

19
Jun. 2001 RD-700
9. Factory Reset
Factory Reset returns the data recorded in the internal memory to the
factory settings.
fig.9factory
Press the [INC/ENTER] button to execute Factory Reset.
After Factory Reset is completed “Finished” is displayed and the Test
mode ends.
Or, you can exit the Test mode without executing the Factory Reset by
pressing the [DEC] button.
PROCEDURE FOR UPDATING
THE SOFTWARE
Items required
• Update disk Set (#17041058)
• A sequencer which can replay continuously
• MIDI cable x1
Procedure
Connect MIDI IN of the RD-700 and MIDI OUT of the sequencer with a MIDI
cable.
Insert Disk 1 into the sequencer, and turn on its power.
Check to see that the sequencer is ready for data transmission.
Turn on the power of the RD-700 while pressing the PART SELECT [LOWER],
PART SELECT [UPPER1] and TONE SELECT [CLAV/MALLET(2)] buttons at
the same time.
The LCD shows the following screen:
fig.up-1
Let the sequencer start replaying continuously.
When the sequencer starts to replay the second song (udata002.mid) after
completing the first (udata001.mid) in the Disk 1, the screen changes as shown
below:
fig.up-2
Wait until the sequencer completes replaying the 17th song (udata017.mid).
After it finishes replaying the 17th song, the following message is displayed:
fig.up-3
Remove Disk 1, and insert Disk 2.
After the sequencer is ready for data transmission, let it start replaying the
data continuously.
RD-700 resumes receiveing data.
After the 14th song (udata114.mid) Disk 2 was replayed, the following screen
is displayed and the machine
begins writing the received data into the internal memory.
fig.up-4
After all the data has been written and the checksum calculated successfully,
the following screen appears to indicate completion of the updating
procedure.
fig.up-5
Caution: Don’t turn off the power while changing Disk 1 with Disk 2.
Error messages:
“The disk is wrong. Please change disk.”
The wrong disk is inserted.
Insert the correct disk, and start continuous replay again.
This message also appears when the sequencer tries to replay songs in the
wrong order.
Set the sequencer so that it can replay the songs in the order of their file names.
“Error”
Wrong data was received.
Check if a wrong MIDI device is connected or if the sequencer has a setting
which causes unnecessary data
to be sent.
After solving the problem, turn the power off and on again to restart updating
from the beginning.
=Load from MIDI=
Please start
sequencer.
[01/16]
>o <
Receiving...
00020000 to 00030000
Please insert
next update disk,
then start sequencer.
Writing...
Writing...
Check Sum...OK
Finished.

20
Jun. 2001 RD-700
RESTORING THE FACTORY
SETTINGS (Factory Reset)
The settings stored in the RD-700 can be returned to their factory settings.
* Executing “Factory Reset All” results in deletion of the Setups.
If you want to keep any data you have stored, use the “Bulk Dump
SETUP” operation to save the data to an external sequencer.
1. Press [EDIT] button , getting the indicator to light.
The Edit Menu screen appears.
fig.05-33
2. Press CURSOR [ ] button to select “9.Utility.”
3. Press CURSOR [ ] button to display the Edit screen.
fig.05-37
4. Press CURSOR [ ] or [ ] button to select “Factory Reset Current”
or “Factory Reset All.”
Parameter Value
Factory Reset CurrentThe currently selected Setup returned to their factory
settings.
Factory Reset All The settings stored in the RD-700 can be returned to their
factory settings.
* While the Factory Reset is in progress, no sounds are produced even when the
keys are pressed.
In addition, Rhythms and arpeggios being played are also stopped.
Factory Reset Current
5. Press CURSOR [ ] button.
A screen like the one shown below appears.
fig.05-38
6. Press [INC/YES] button.
The confirmation message appears.
fig.05-39
To cancel the Factory Reset, press [DEC/NO] button.
7. Press [INC/YES] button once again to start the Factory Reset operation.
* Never turn off the power during Factory Reset (while “Now, Executing”
appears in the display).
8. After the Factory Reset operation is finished, the display will indicate
“COMPLETED.”
The Tone screen returns to the display.
Factory Reset All
9. Press CURSOR [ ] button.
A screen like the one shown below appears.
fig.05-40
10. Press [INC/YES] button.
The confirmation message appears.
fig.05-41
To cancel the Factory Reset, press [DEC/NO] button.
11. Press [INC/YES] button once again to start the Factory Reset operation.
* Never turn off the power during Factory Reset (while “Now, Executing”
appears in the display).
12. After the Factory Reset operation is finished, the display will indicate
“COMPLETED.”
The Tone screen returns to the display.

21
Jun. 2001 RD-700
ERROR MESSAGE
Error messages
Indication : MIDI Buffer Full
Situation : Due to an inordinate volume of MIDI messages received, the RD-
700 has failed to process them properly.
Action : Reduce the amount of MIDI messages to be transmitted.
Indication : MIDI Communication Error
Situation : A problem has occurred with the MIDI cable connections.
Action : Check that MIDI cables are not broken or pulled out.
Indication : BULK DUMP: Receive Data Error
Situation : A MIDI message was received incorrectly.
Action : If the same error message is displayed repeatedly, there is a
problem with the MIDI messages that are being transmitted to the
RD-700.
Indication : BULK DUMP: Check Sum Error
Situation : There is a problem with the System Exclusive message’s Check
Sum.
Action : Check the value of the Check Sum.
Other Messages
Indication : Now, Transmitting System Exclusive.
Situation : Indicated when a Data Request message (RQ1) is received.
Action : The RD-700 outputs the requested data while this message
continues to be displayed.
Indication : Now, writing Bulk Dump Data. Keep on POWER!!
Situation : Indicated when Bulk Dump data is being received.
Action : Once received, the data is written to the RD-700’s internal
memory; be absolutely sure not to turn off the power until
“COMPLETED” appears in the display.
Indication : Unavailable while in Rec Mode
Situation : This is displayed when the [MIDI TX] button is pressed with Rec
Mode ‘ON.’
Action : When Rec Mode is ‘ON,’ you cannot change the MIDI TX settings.
To make changes to the MIDI TX settings, set Rec Mode to “OFF.”
