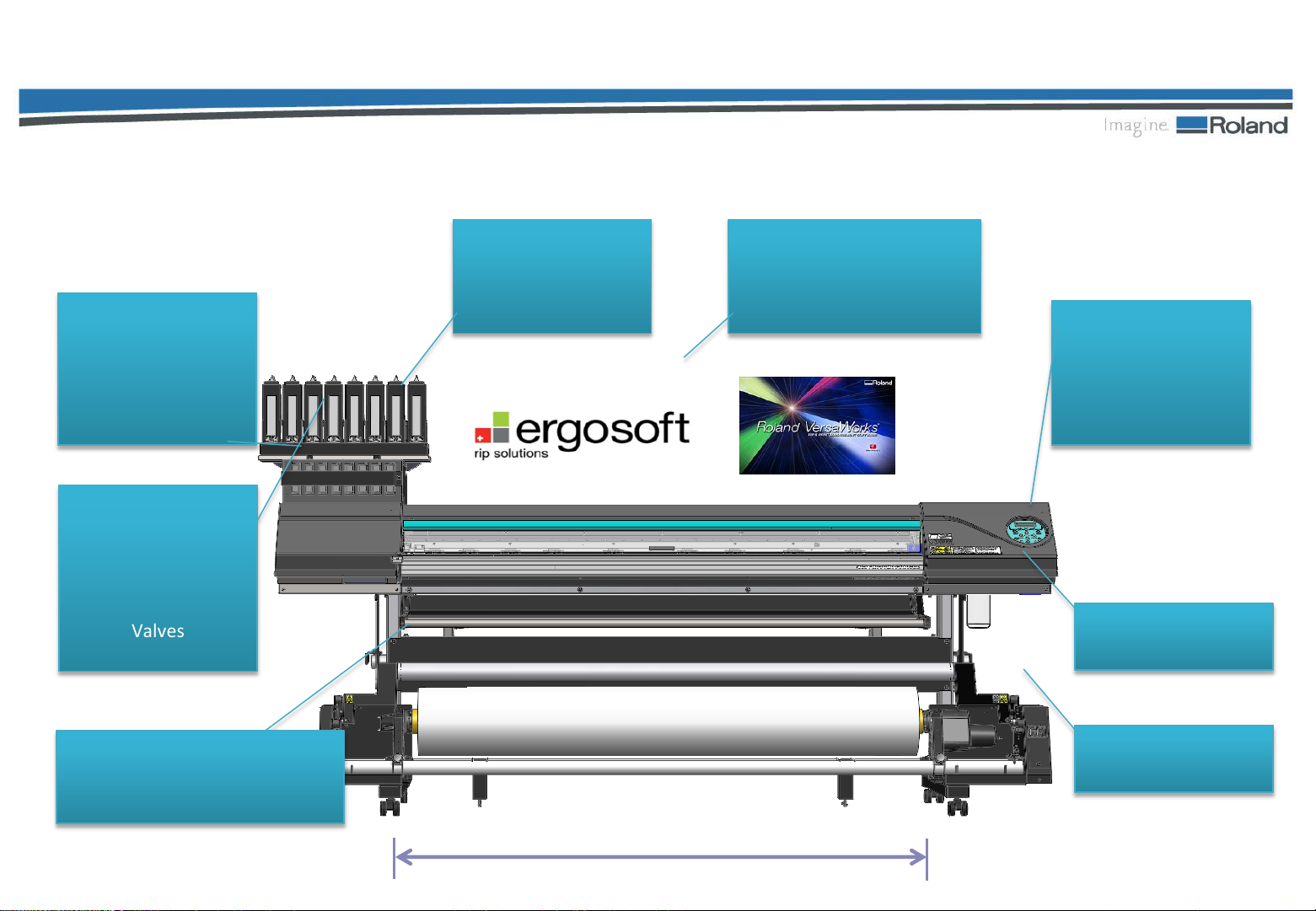

RT-640
RT-640 is a dye-sublimation printer developed based on RF-640.
Texart Series
64 inches, Print only
Gold print head
Roland Original Dye-Sublimation Ink
Texart Ink SBL3-xx
Ink Configuration:
4 colors C M Y K
8 colors C M Y K Lc Lm Or Vi
Electrical Driven Auto-Choke System
Roland Ink Switching System (4 colors)
Roland Ink System: 1L ink system
FeedAdjuster: Optimized for roll media
Take-Up Unit: TUC-3 (Optional)
Bundled Software (Selectable RIP)
Roland VersaWorks (4 colors)
Ergosoft Roland Edition (4 colors, 8 colors)

1. Product Information
6/32
64”
Gold print head
New Optimized
Waveform for
Roland Original
Texart Ink
Selectable RIP
Ergosoft Roland Edition
Roland VersaWorks
Roland Original
Texart Ink (8/4c)
Roland Ink
System
1L Ink System
Roland Ink
Switching System
Individual Control
System by Solenoid
Valves
Feed Adjuster
Optimized for Roll Media
Roland Printer
Assist
RT-640

7/32
Item Specification RF-640 RT-640
Preventive
Measure against
Cockling
(When feeding
roll media)
Built-In Heater -
Feed Adjuster -
Vacuum FAN (default setting) Change depending
on the media width 100%
Improved
Take-Up Feed Adjuster -
Firing Stability
New Optimized Waveform for Roland
Original Texart Ink -
Cap Valve -
Ink Supply Roland Ink System
1L Ink System -
RIP Bundled RIP Software RVW RVW
Ergosoft
Colors Number of Colors 4 4/8
Difference from RF Series
1. Product Information

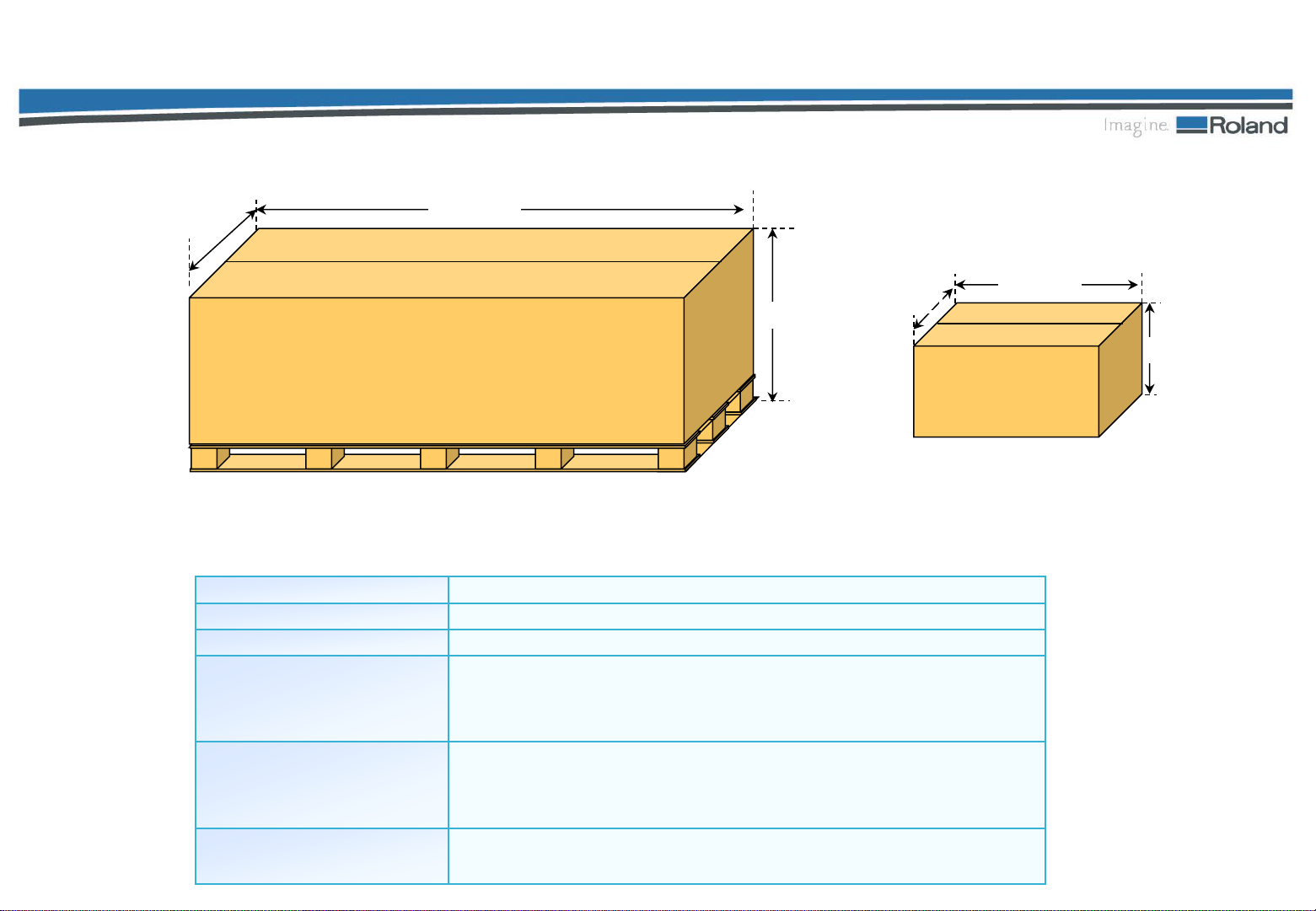

Package Size
1. Product Information
8/32
Media width 259 to 1625mm
Maximum printing width 1615mm
Media weight 40kg
Exterior dimensions
（Including stand,
Not including TU-3）
2650[W] x 795[D] x 1600[H]mm
Weight: 160 Kg
Power requirements AC 100 to 120 V ±10%,8.1 A, 50/60 Hz or
AC 220 to 240 V ±10%,4.1 A, 50/60 Hz
Power consumption During Operation: approx. 140 W
Sleep Mode: approx. 31 W
2720 mm
760 mm
830 mm
Specification
800 mm
410 mm
380 mm
Printer 1L Ink System
*1L Ink System is packed
in a separate box.

Roland Ink System
Original 1L Ink System
Designed to prevent ink from being exposed to the air,
which ensures stable printing
Enables continuous printing for hours
Roland Ink Switching System (4 colors only)
Easy to install and remove an ink pouch
The installation of the Ink System should be performed by
service engineers.
1. Product Information
4C
9/32
Subtank cartridge
Cartridge IC
Empty detector
Subtank slot
1000ml
Ink pouch
Ink pouch holder
8C Damper
*The Ink System in these photos is a prototype.
Valve

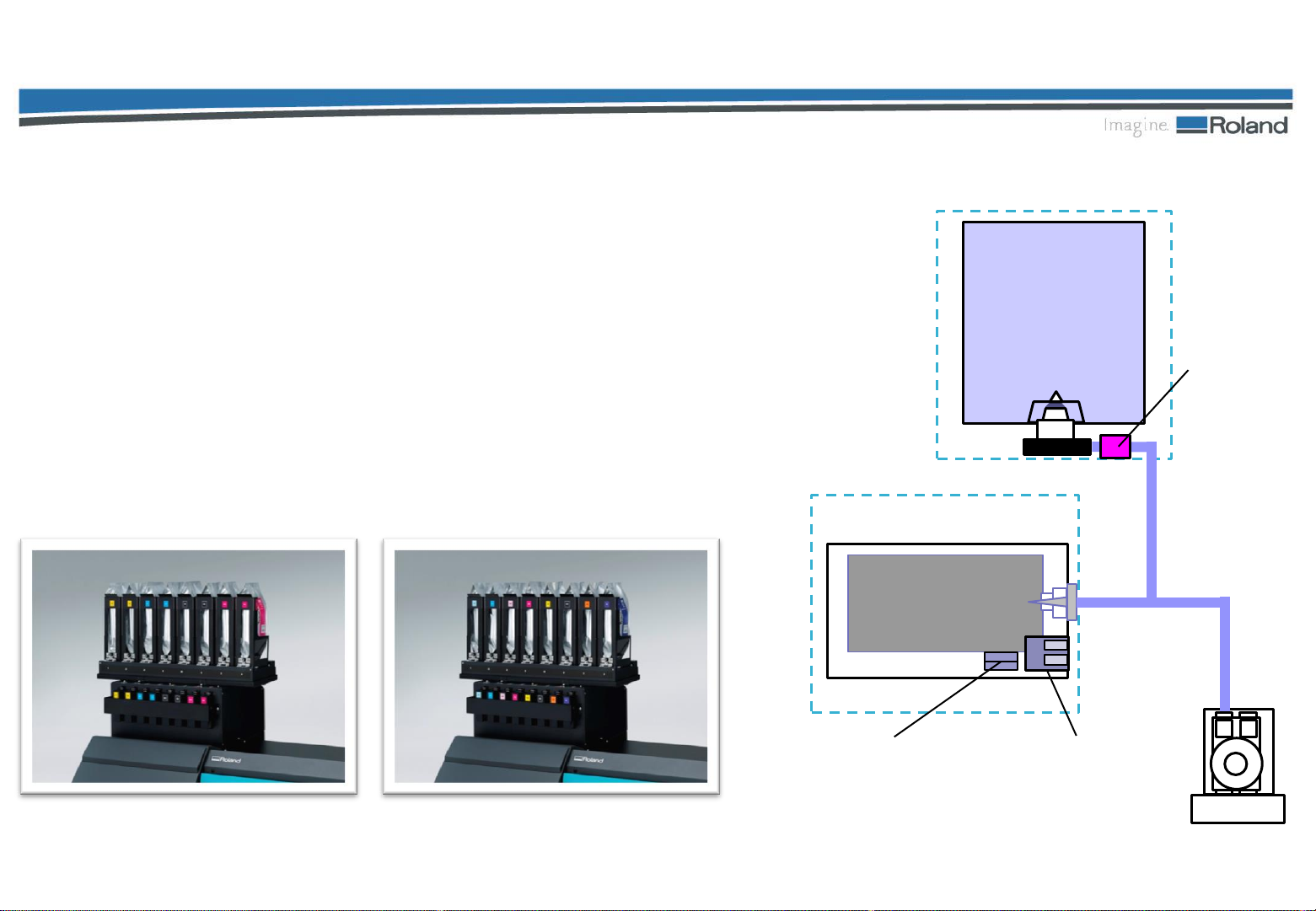

Roland Ink System - Ink Flow -
1. Product Information
10/32
Subtank cartridge
Cartridge IC
Empty detector
Subtank slot
1000ml
Ink pouch
Ink pouch holder
Damper
1000ml
Ink pouch
* The ink remaining amount in the ink pouch cannot be checked neither with RIP software nor in the Main Menu on the Operation Panel.
In other words, there is no “INK REMAINING” menu in the Menu List.
* The sensor detects empty only when the ink in the sub tank runs out.
1. When an ink pouch is installed,
approx.100cc of ink moves to the
sub tank.
2. Then ink will be supplied only from
the ink pouch.
Valve
3. When the ink pouch is removed,
the valve closes, and the sub tank
becomes active.
Ink pouch holder Ink pouch holder
Subtank slot Subtank slot
Subtank cartridge Subtank cartridge
Empty detector
Empty detector Cartridge IC
Cartridge IC
Damper
Damper

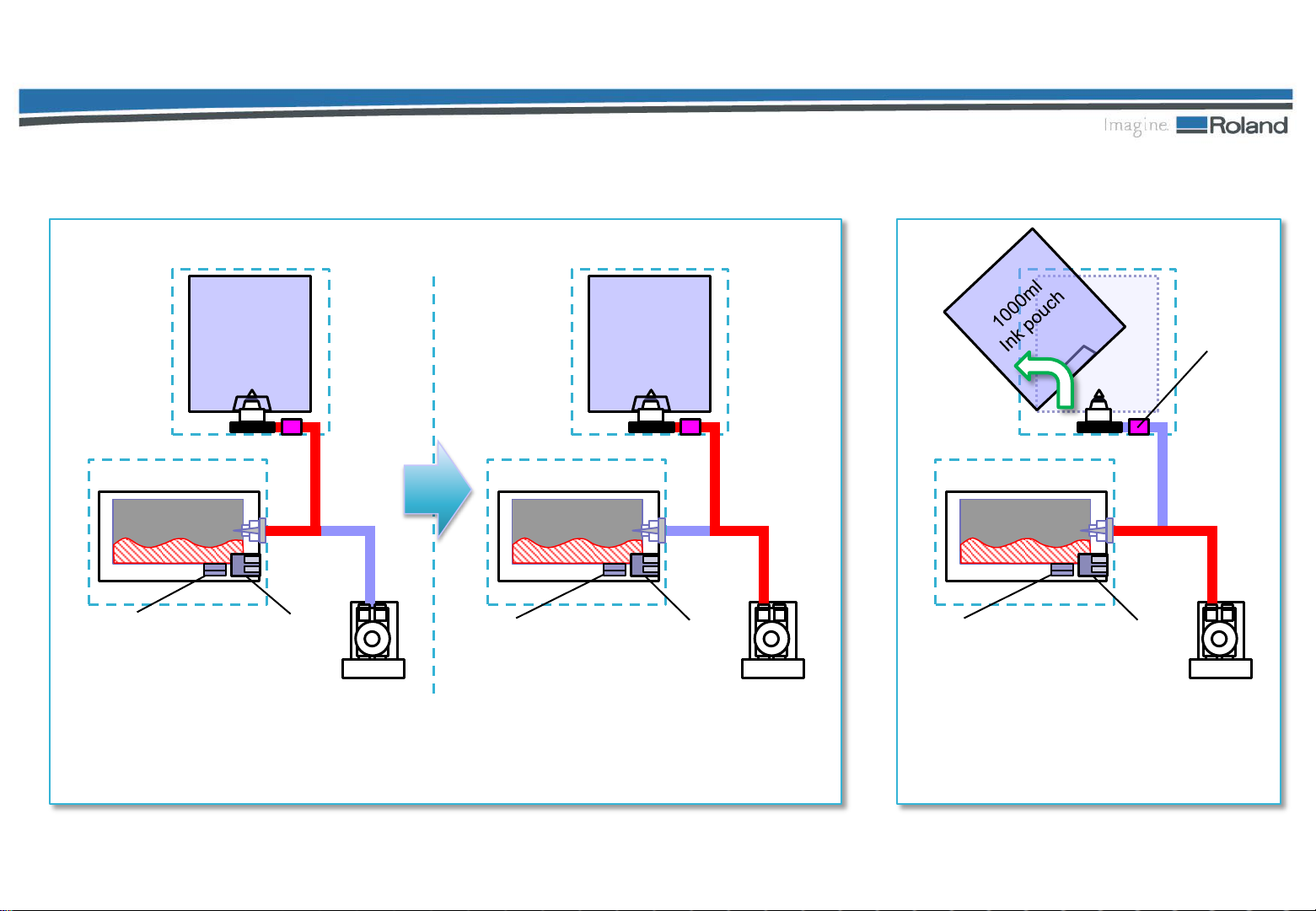

Roland Ink System - Ink Pouch Replacement -
The Roland Ink System allows you to replace an ink pouch even during the printing.
However, if you replace an ink pouch before the empty is detected, the ink will remain in
the sub tank for a long time, resulting in the settlement of ink components.
In order to avoid problems such as uneven colors, it is recommended to replace an ink
pouch after the ink in the sub tank runs out and the empty is detected.
In order to prevent the settlement of ink components, refresh sub tanks once every 6
months.
1. Product Information
11/32
1000ml
Ink pouch
1. The ink pouch is in use. 2. When the ink in the ink pouch runs
out, the sub tank becomes active. 3. When the ink in the sub tank runs out,
a sensor detects empty.
Ink pouch holder Ink pouch holder Ink pouch holder
1000ml
Ink pouch
1000ml
Ink pouch
Subtank slot Subtank slot Subtank slot
Subtank cartridge
Subtank cartridge
Subtank cartridge
Empty detector Empty detector
Empty detector Cartridge IC Cartridge IC Cartridge IC
Damper Damper Damper

Roland Ink System Installation
The machine and Ink System are packed in separate boxes.

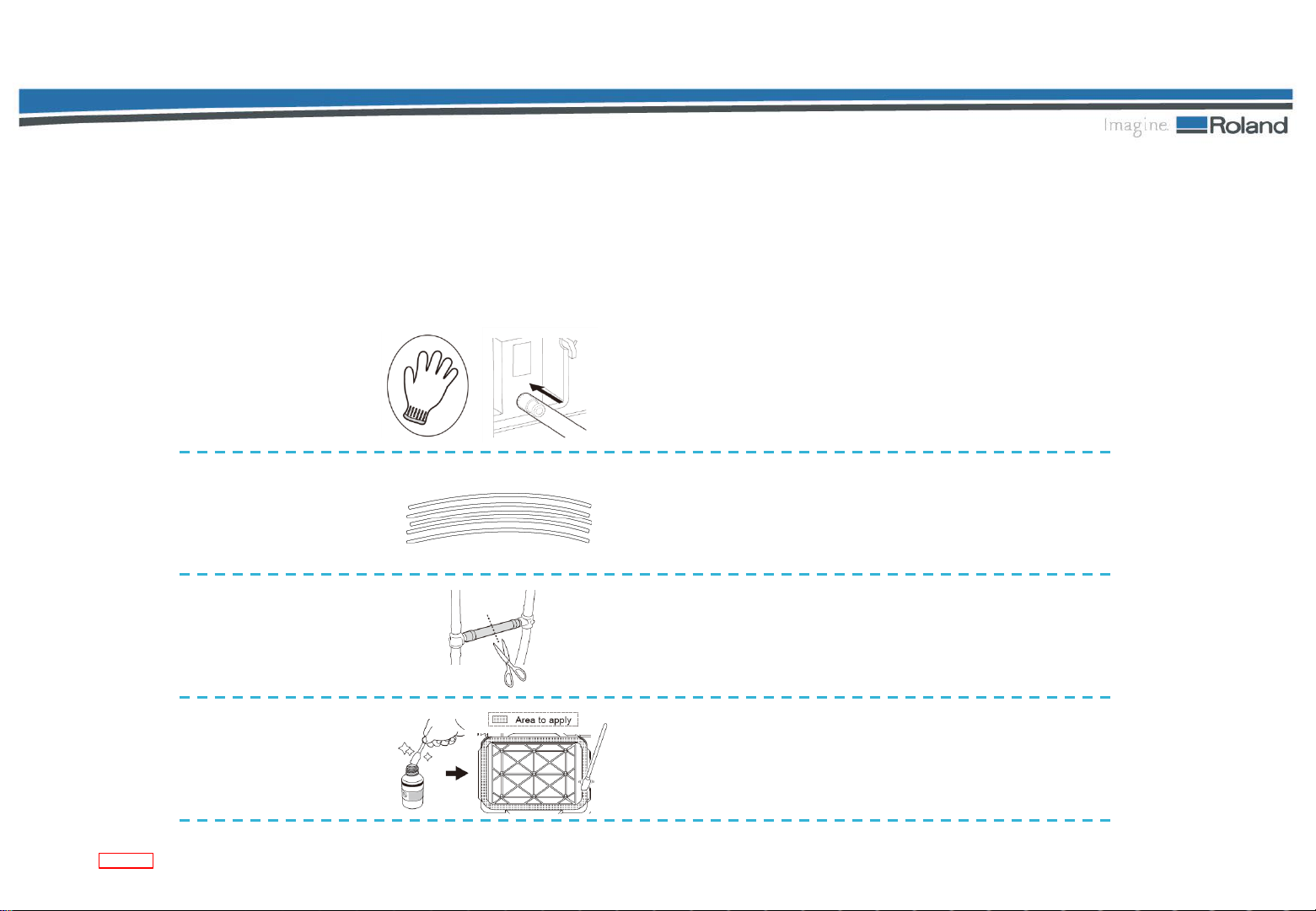

Following items will be supplied by service engineers at the time of installation.
1. Product Information
12/32
*For detailed instructions on how to install the Ink System, refer to Chapter 5 of the Service Note.
Gloves (anti-slip)
Tubes inserted to ink pouch holders need to be
replaced with included Y-shaped tubes at the time of
installation. Wear gloves when replacing, and be
careful not to break them.
In case a tube breaks, use a spare tube.
A broken tube has low gas barrier capability to prevent
ink from solidifying, causing missing dots.
When using 8 colors, it is required to cut off ink tubes
at the time of installation.
Apply cleaning liquid to the cap top before performing
initial ink filling. Use water-based cleaning liquid.
Spare tubes
Scissors
to cut off ink tubes
(8 colors)
Cleaning liquid
1
2
3
4
P/N 1000002455 ASSY,TUBING 3*3080MM FP-740
Rev.1.3

1. Product Information
13/32

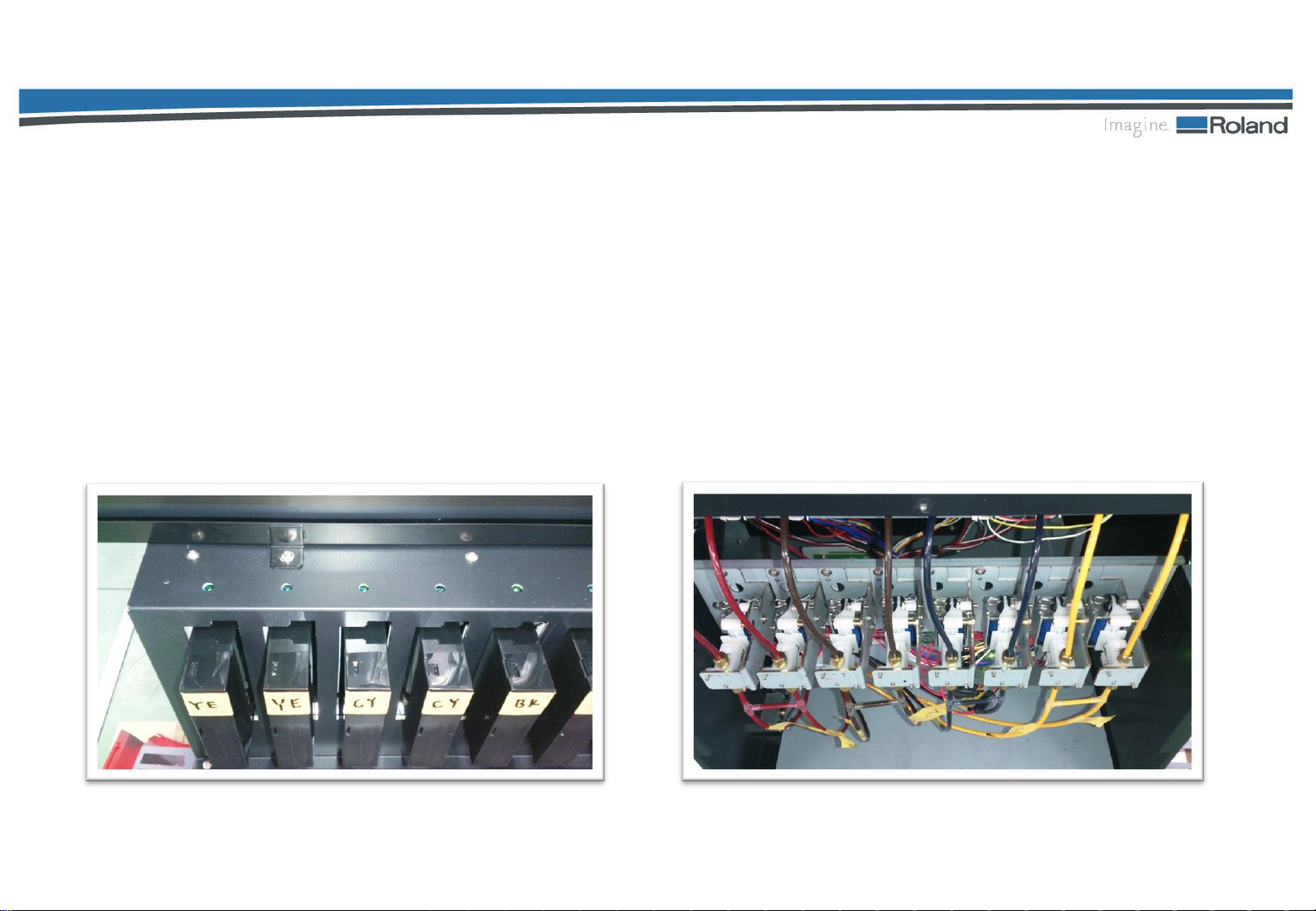

Roland Ink Switching System (Available only in 4 color-mode）
Individual Control System by Solenoid Valves
When one of the sub tank cartridges becomes empty, it automatically switches the valves and
activates the other ink pouch cartridge of the same color.
When the sub power is turned off or the machine switches to the sleep mode, the valve of the ink
cartridge in use remains open, and the valve of the ink cartridge that is not in use remains closed.
Since it is electrically controlled by solenoid, all choke valves open automatically when the main
power is turned off.
*The Ink Switching System in these photos is a prototype.

Feed Adjuster
Optimized for Roll Media
Allows you to adjust parallelism of the media holder,
grit rollers, and take-up unit
Reduces banding caused by gap or overlap of printing
by feeding media as straight as possible
Prevents cockling by feeding media as straight as possible
and prevents media from touching the print head
Improved take-up
The installation and adjustment of the feed adjuster
should be performed by service engineers.
1. Product Information
14/32
* For detailed instructions on how to install and adjust the feed adjuster,
refer to Set Up Guide and Service Note.
Installation
environment
Axis
parallelism
Part and installation accuracy

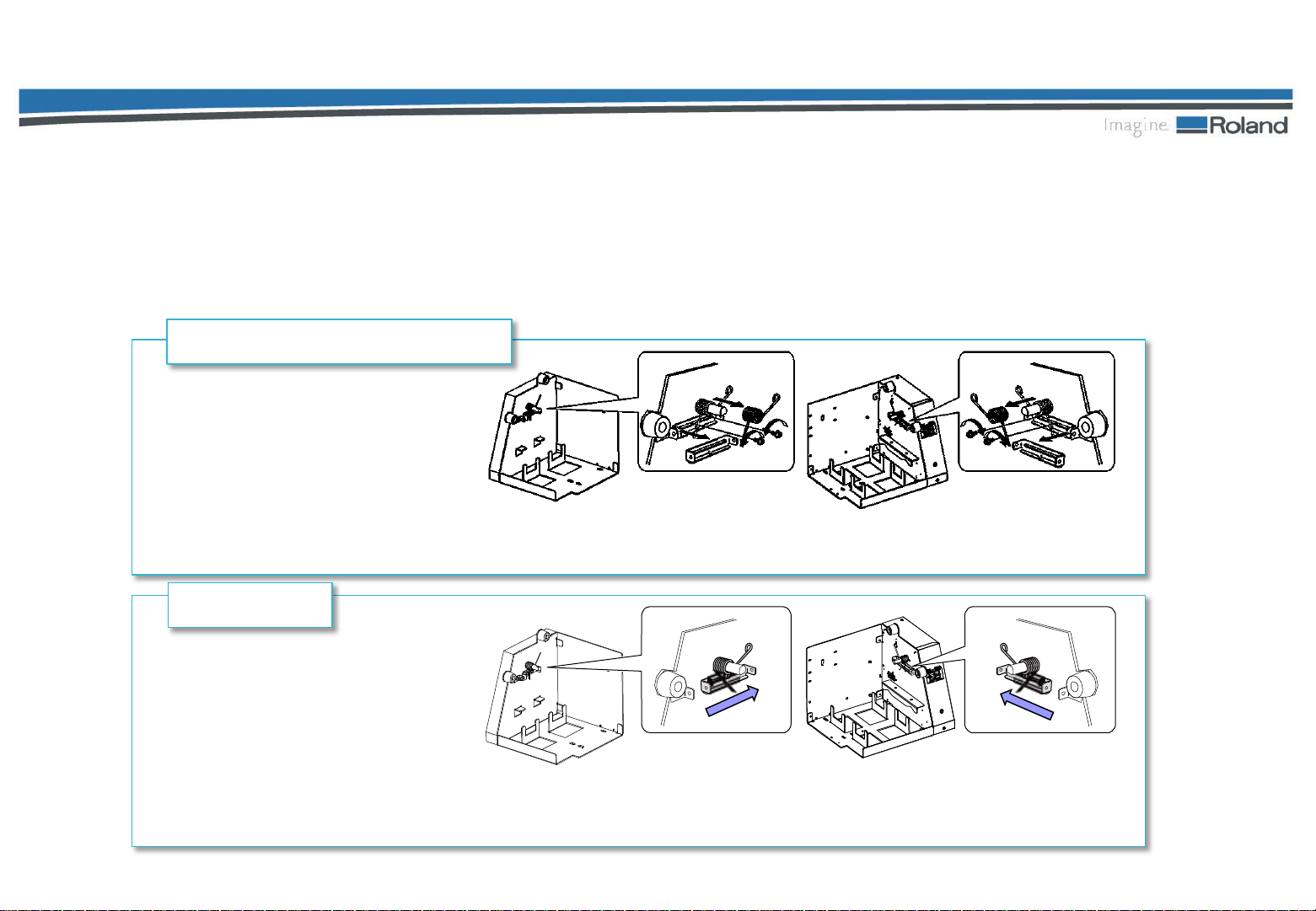

Take-Up Unit: TUC-3/ TU3-64 (Optional)- Optimized for Roll Media -
The take-up unit can be installed for use with either INWARD or OUTWARD curl, and service engineers
will adjust it so that it gives just the right tension to media.
Take-up with INWARD curl is recommended in order to protect the printed side from being damaged,
move on to the transfer process smoothly, and fully utilize the performance of the feed adjuster.
15/32
INWARD (Recommended)
Remove springs and screws from
the TUC-3 control box and frame.
The take-up unit is adjusted for
use with INWARD curl.
If you use it with OUTWARD curl,
media will not be taken up properly.
OUTWARD
Adjust the position of springs and
brackets of the TUC-3 control box
and frame.
The take-up unit is adjusted for use
with OUTWARD curl.
If you use it with INWARD curl,
media will not be taken up properly.
* TUC-3 unit: S/N: ZBO1276 or later are compatible with RF-640/ 640A and RT-640. For ZBO1275 or earlier, replace the part listed below with the new one.
Old part: W702270210 ASSY,TU CONTROL TUC-3 New part: W702270211 ASSY,TU CONTROL TUC-3_01
1. Remove the dancer roller
2. Remove the springs, screws, and brackets
3. Fix the dancer roller
1. Loosen screws
2. Move brackets towards the back until they don’t go any further
3. Tighten screws
1. Product Information

1. Product Information
16/32

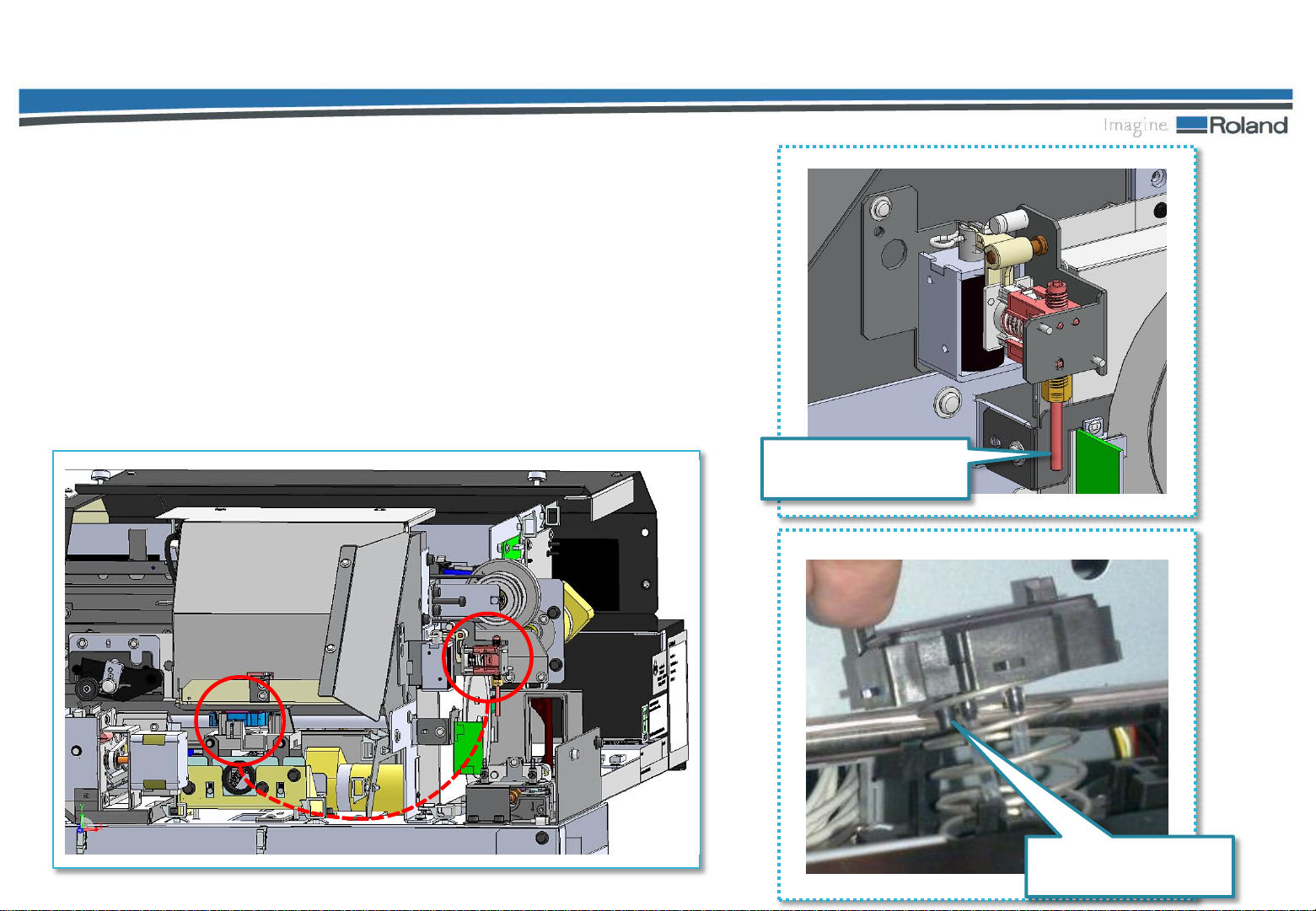

Cap Valve
Pressure relief valve (to release air pressure)
Relieves air pressure inside the cap top during cleaning.
Optimized for dye-sub ink.
Prevents a situation where the cap top is filled with ink
and bubbles are generated on the cap top while
performing cleaning, causing missing dots
Connect a tube
from the cap valve
Connect a tube to
the cap top

Printing Speed (4 colors)
17/32
Media Mode dpi Pass Dir. [m2/h]
Decoration (Banner Satin) Draft 360x360 1pass Bi 48.5 m2/h *
Decoration (Banner)
High Speed 540x360 2pass Bi 32.6 m2/h
Production 540x360 3pass Bi 22 m2/h
Standard 360x720 4pass Bi 16 m2/h
High Quality 720x720 8pass Bi 8 m2/h
720x1440 16pass Bi 4 m2/h
Decoration (Banner Satin)
High Speed 540x360 2pass Bi 32.6 m2/h
Production 540x360 3pass Bi 22 m2/h
Standard 360x720 4pass Bi 16 m2/h
High Quality 720x720 8pass Bi 8 m2/h
720x1440 16pass Bi 4 m2/h
Decoration (Display Toromat)
High Speed 540x360 2pass Bi 32.6 m2/h
Production 540x360 3pass Bi 22 m2/h
Standard 360x720 4pass Bi 16 m2/h
High Quality 720x720 8pass Bi 8 m2/h
720x1440 16pass Bi 4 m2/h
Decoration (Flag Ink Through)
High Speed 540x360 2pass Bi 32.6 m2/h
Production 540x360 3pass Bi 22 m2/h
Standard 360x720 4pass Bi 16 m2/h
High Quality 720x720 8pass Bi 8 m2/h
720x1440 16pass Bi 4 m2/h
2. Printing Theory
Applicable to both RVW and Ergosoft.
1 pass print mode is avaliable with only Ergosoft.
*When using 1 pass print mode, you may experience banding issue depending on printing and environmental conditions.
Please conduct test printing in advance to check your results.
Rev.1.3

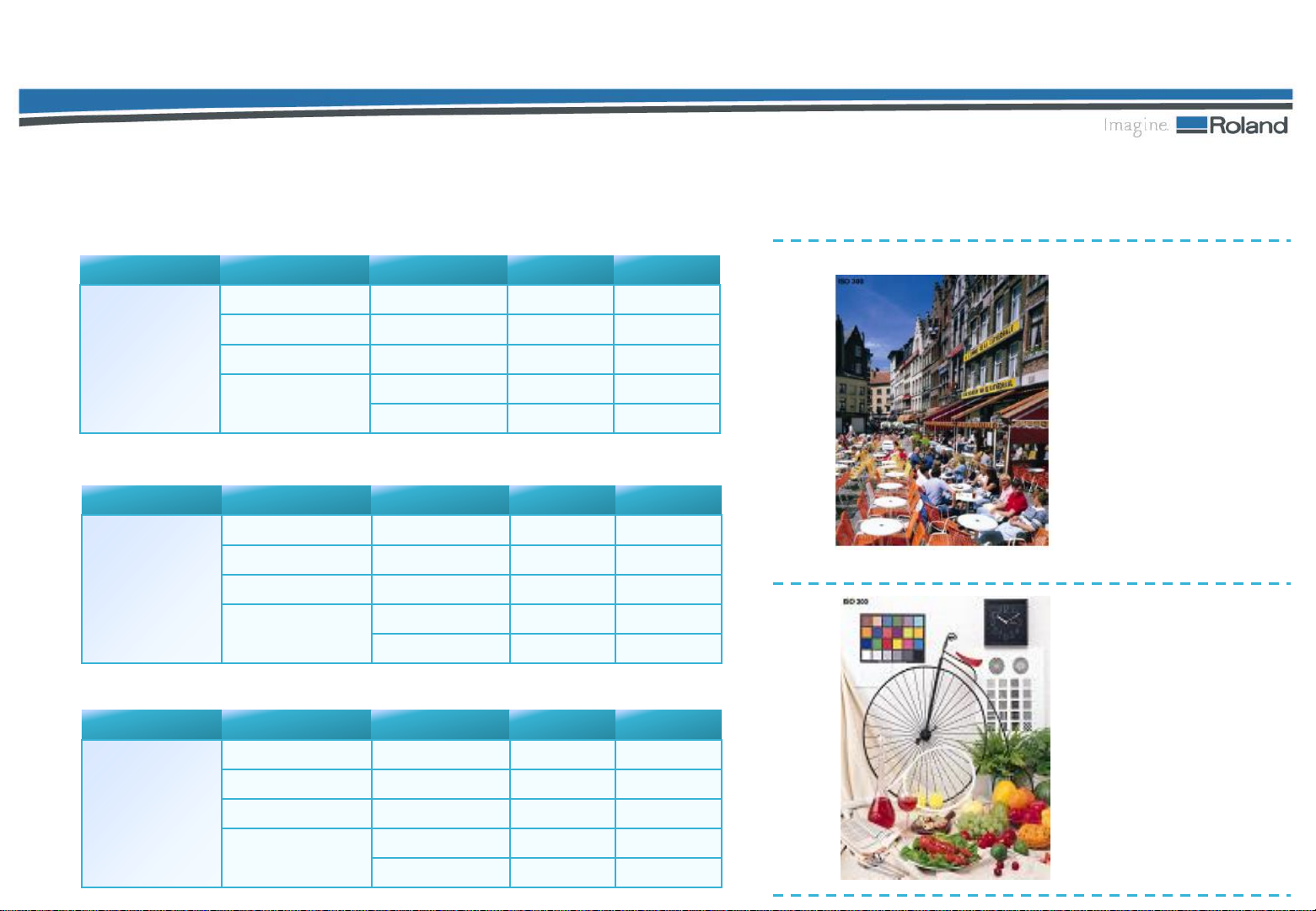

Printing Speed (8 colors)
18/32
Media Mode dpi Pass Dir. [m2/h]
Decoration (Banner)
High Speed 540x360 4pass Bi 16 m2/h
Production 540x360 6pass Bi 10.7 m2/h
Standard 360x720 8pass Bi 8 m2/h
High Quality 720x720 12pass Bi 5.4 m2/h
720x1440 24pass Bi 2.2 m2/h
Decoration (Banner Satin)
High Speed 540x360 4pass Bi 16 m2/h
Production 540x360 6pass Bi 10.7 m2/h
Standard 360x720 8pass Bi 8 m2/h
High Quality 720x720 12pass Bi 5.4 m2/h
720x1440 24pass Bi 2.2 m2/h
Decoration (Display Toromat)
High Speed 540x360 4pass Bi 16 m2/h
Production 540x360 6pass Bi 10.7 m2/h
Standard 360x720 8pass Bi 8 m2/h
High Quality 720x720 12pass Bi 5.4 m2/h
720x1440 24pass Bi 2.2 m2/h
Decoration (Flag Ink Through)
High Speed 540x360 4pass Bi 16 m2/h
Production 540x360 6pass Bi 10.7 m2/h
Standard 360x720 8pass Bi 8 m2/h
High Quality 720x720 12pass Bi 5.4 m2/h
720x1440 24pass Bi 2.2 m2/h
2. Printing Theory
Applicable to only Ergosoft

2. Printing Theory
19/32
Conditions
Data: ISO N2A
Size: 841mmX1189mm
(A0)
Ink Consumption
Profiles Print Mode dpi N2A N5A
Decoration
(Display
Toromat)
High Speed 540x360 3.31 cc 1.66 cc
Production 540x360 3.10 cc 1.72 cc
Standard 360x720 3.88 cc 2.10 cc
High Quality 720x720 2.99 cc 1.83 cc
720x1440 3.82 cc 1.89 cc
4 colors x ErgoSoft Roland Edition
4 colors x Roland VersaWorks
8 colors x ErgoSoft Roland Edition Conditions
Data: ISO N5A
Size: 841mmX1189mm
(A0)
Profiles Print Mode dpi N2A N5A
Decoration
(Display
Toromat)
High Speed 540x360 5.42 cc 2.84 cc
Production 540x360 5.42 cc 2.84 cc
Standard 360x720 6.08 cc 2.97 cc
High Quality 720x720 6.39 cc 3.29 cc
720x1440 6.28 cc 3.26 cc
Profiles Print Mode dpi N2A N5A
Decoration
(Display
Toromat)
High Speed 540x360 5.10 cc 2.43 cc
Production 540x360 4.33 cc 2.55 cc
Standard 360x720 5.27 cc 2.92 cc
High Quality 720x720 6.54 cc 3.49 cc
720x1440 7.76 cc 4.52 cc

3. Ink
20/32
* An ink pouch is not equipped with an IC chip.
Texart ink
8 colors：C M Y K Lc Lm Or Vi
Model number：SBL3-BK / CY / MG / YE / LC / LM / OR / VI
Ink pouch：1000cc
Shake an ink pouch gently. Install the new ink pouch.
Raise the stopper. Raise the ink pouch holder.
Rev.1.2
