SECTION A | TOOLS AND ADDITIONAL ITEMS REQUIRED
TOOLS REQUIRED
ADDITIONAL ITEMS REQUIRED (NOT SUPPLIED)
• Saw
• Drill
• Drill Bits – 2.5mm, 2.6mm, 3mm, 3.2mm & 4mm
• Screw Driver – Philips Head
• Scissors
• Measuring Tape
• Spirit Level
To install a Zipscreen, the following non-stocked items are required:
• Fixings for Box/Open Brackets/Hardware (ensure appropriate fixings are used to suit application)
• Trims to conceal packing (if required)
Page. 4 Zipscreen Installation Manual | v4.2| August 2019
2019 ©Copyright All Rights Reserved Rollease Acmeda
BLIND ITEMS REQUIRED
SECTION A | TOOLS AND ADDITIONAL ITEMS REQUIRED
BOX COVER (FULL OR FASCIA COVER)
OPEN BRACKETS
NOTE: Ensure to pre-drill holes before fixing
A 40mm offcut of the Box 120 Back is recommended every
1200mm to support the Cover.
SIDE GUIDES
BLIND RIVETS / SCREWS
QUANTITY AS REQUIRED
OR OR
SIDE GUIDES: SIDE FIX SIDE GUIDES: FACE FIX OPTION 1 SIDE GUIDES: FACE FIX OPTION 2
NOTE: Store Idler/Spring Adapter retaining
clip until required (can be left in adaptor as
shown)
Page. 5
Zipscreen Installation Manual | v4.2| August 2019
2019 ©Copyright All Rights Reserved Rollease Acmeda
SECTION B | INSTALLATION
PART A PREPARING INSTALLATION
STEP 1 CHECK FOR OBSTRUCTIONS
STEP 2 CHECK TOP OF INSTALLATION IS LEVEL
STEP 3 PACK AND LEVEL TOP OF INSTALLATION TO SMALLEST DROP DIMENSION
Check for any obstructions that may interfere in installation.
E.g. If there is an architrave at the bottom of a post that the Zipscreen is to be installed into, ensure you prepare the space for the
installation.
This may mean that the installer needs to cut into the architrave to make room for the side rails.
If un-even go to step 3
If level go to step 4
D = Drop of Blind
NOTE: In some instances, when the drop is level D1 & D2
will not be equal as there is an uneven ground.
Ensure the smallest value of D1 & D2 = Blind Drop (D
specified in initial measurement)
D1 D2
D1 D2
D1 D2
D1 D2
D1 D2
D1 D2
Page. 6 Zipscreen Installation Manual | v4.2| August 2019
2019 ©Copyright All Rights Reserved Rollease Acmeda
SECTION B | INSTALLATION
STEP 4 CHECK HORIZONTAL INSTALLATION DIMENSION AT TOP, CENTRE & BOTTOM
STEP 5 PACK INSTALLATION WIDTH TO BLIND WIDTH MEASUREMENT
W = Width of blind
If W1, W2, & W3 are equal or within10mm of each other, proceed to Step 5
for Side Fix applications, or Step 6 for Face Fix applications.
If W1, W2, & W3 are not equal or within10mm of each other, review
the scenarios outlined in Step 4 and determine if and where packing is
required.
When using face Fix U Mounting Rail, W3 must be less than or equal to W1.
The following steps describe scenarios when using L Fixing Rail in
application.
SCENARIO PACKING DETAILS
W3 is greater than W1 and W2
Determine dimension x on each side
If X1 or X2 is less than 10, no packing necessary (however, a
square space will provide greater flexibility with the rest of
the installation). If x is equal to or greater than 10, pack-
ing is required. Pack out the largest dimensions (W3) to be
within 10mm of the smallest dimension (W1).
Ensure W1 = Blind Width (Blind width is specified in initial
check and measure) Proceed to Step 6 for Side Fix applica-
tions, or Step 7 for Face Fix applications
W1 is greater than W2 and W3
Pack space so that the top is equal to or within 10mm of the
smallest dimension (W3)
Ensure W3 = Blind Width
(Blind width is specified in initial check and measure)
Proceed to Step 6 for Side Fix applications, or Step 7 for
Face Fix applications
Page. 7
Zipscreen Installation Manual | v4.2| August 2019
2019 ©Copyright All Rights Reserved Rollease Acmeda
SECTION B | INSTALLATION
SCENARIO PACKING DETAILS
D1 D2
D1 D2
D1 D2
W3 is greater than W1 and W2
Determine dimension x on each side
If X1 or X2 is less than 10, no packing necessary (however, a
square space will provide greater flexibility with the rest of
the installation).
If X1 or X2 is equal to or greater than 10, packing is
required. Pack out the sides so they are level or within
10mm of W1.
Ensure the finished W1 width = Blind Width
(Blind width is specified in initial check and measure)
STEP 6 CHECK SIDES OF INSTALLATION ARE LEVEL (FOR SIDE FIX APPLICATIONS ONLY)
STEP 7 CHECK AND ENSURE THE INSTALLATION SPACE IS LEVEL & SQUARE
Page. 8 Zipscreen Installation Manual | v4.2| August 2019
2019 ©Copyright All Rights Reserved Rollease Acmeda
SECTION B | INSTALLATION
STEP 8 IDENTIFY HIGHEST POINT ON FLOOR/GROUND
Take multiple readings to measure the highest point on floor/ground.
Note: Whilst installing the shade (in the next sections), ensure that the base of the side guides should not be lower than the
measured highest point on floor/ground.
Highest P
oint
Page. 9
Zipscreen Installation Manual | v4.2| August 2019
2019 ©Copyright All Rights Reserved Rollease Acmeda
PART B SPRING PRETENSIONING
SECTION B | INSTALLATION

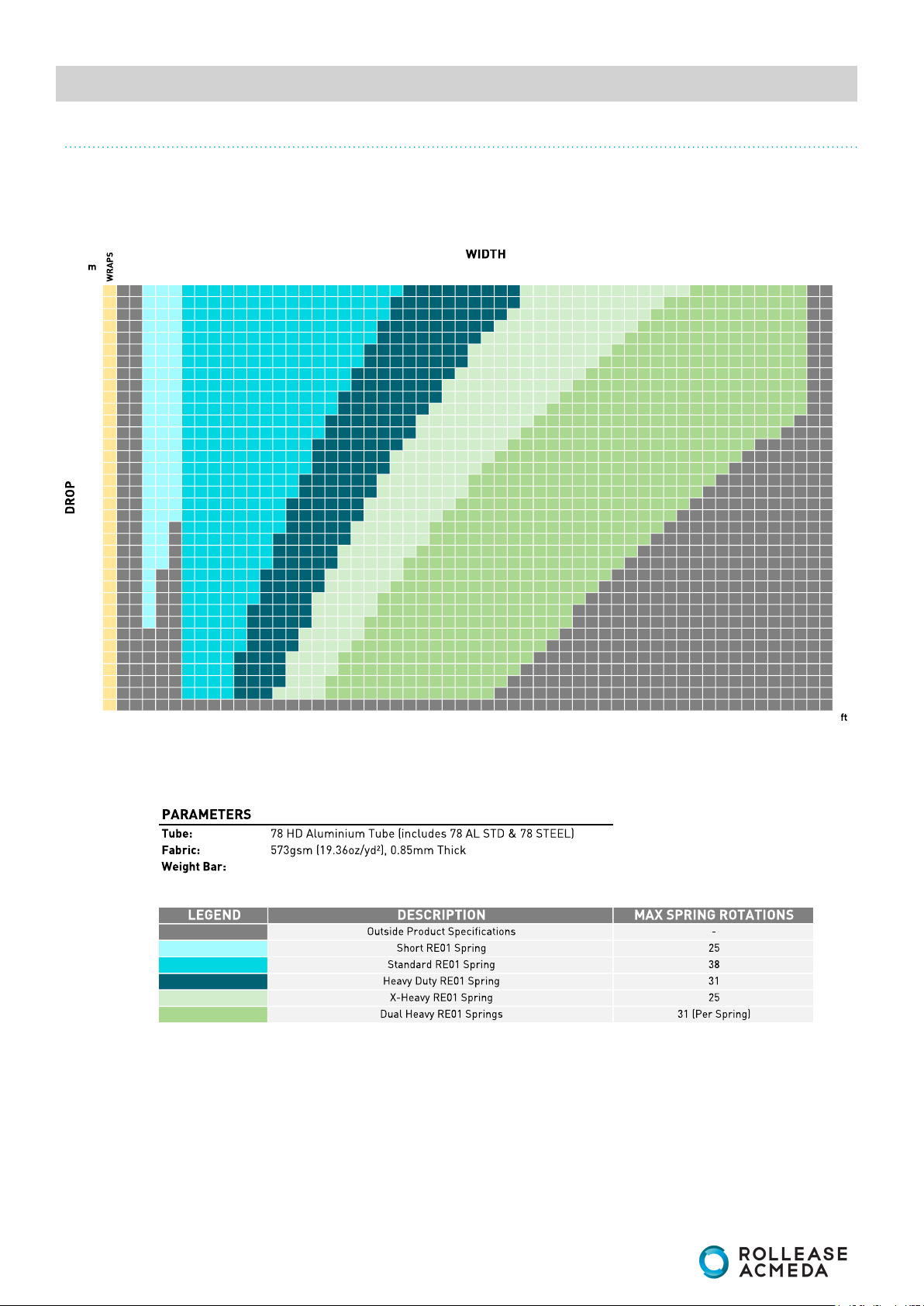

STEP 1 IDENTIFY NUMBER OF PRETURNS REQUIRED FOR BLIND SIZE
78mm Tube [F56 Weight Bar]
The above charts are indicative only and indicate the minimum number of pre-turns required. Due to variances in fabric weights,
additional ballast weight and installations the optimum number of pre-turns will vary. Pre-turns can be adjusted during
