Please read this assembly and handling manual before
installing the product.
Introduction
Thank you and congratulations with the purchase of the Rollz
Flex umbrella, an original product of MPB (from Bielefeld,
Germany).
Before installing the rollator umbrella, read the assembly and
handling manual and note all the safety instructions. When the
assembling of the umbrella has been completed you can start
enjoying the best quality and easy handling of this original
MPB product.
All MPB rollator umbrellas give optimal
protection against rain and sun, as they
block the harmful UV radiation almost
completely.
The patented Air-Vent-System ensures
stability in windy weather.
Because of the space-saving placement
on the right side (usually) you can use
your rollator with both hands without
being restricted.
All manuals and user guides at all-guides.com

3

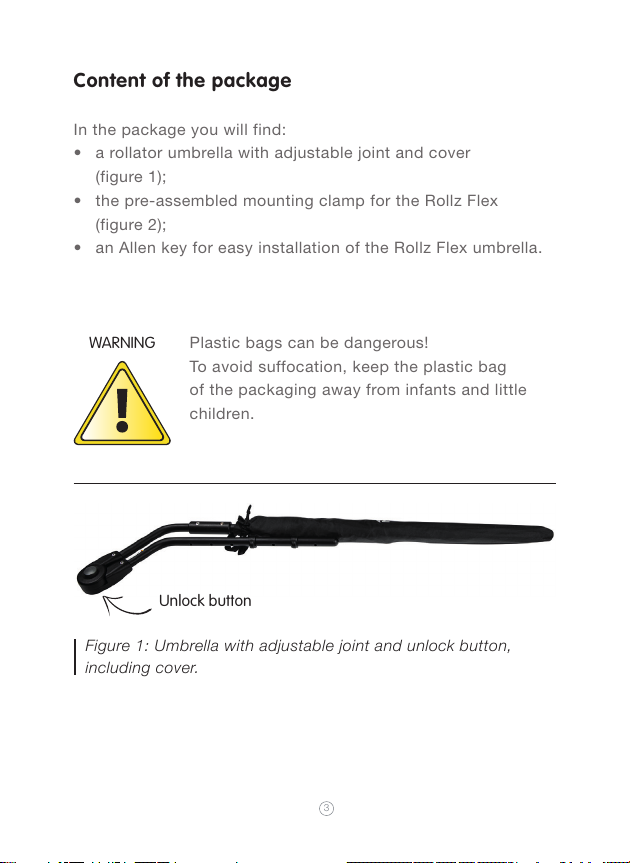

Content of the package
In the package you will find:
• a rollator umbrella with adjustable joint and cover
(figure 1);
• the pre-assembled mounting clamp for the Rollz Flex
(figure 2);
• an Allen key for easy installation of the Rollz Flex umbrella.
Plastic bags can be dangerous!
To avoid suffocation, keep the plastic bag
of the packaging away from infants and little
children.
Unlock button
Figure 1: Umbrella with adjustable joint and unlock button,
including cover.
WARNING
All manuals and user guides at all-guides.com

4

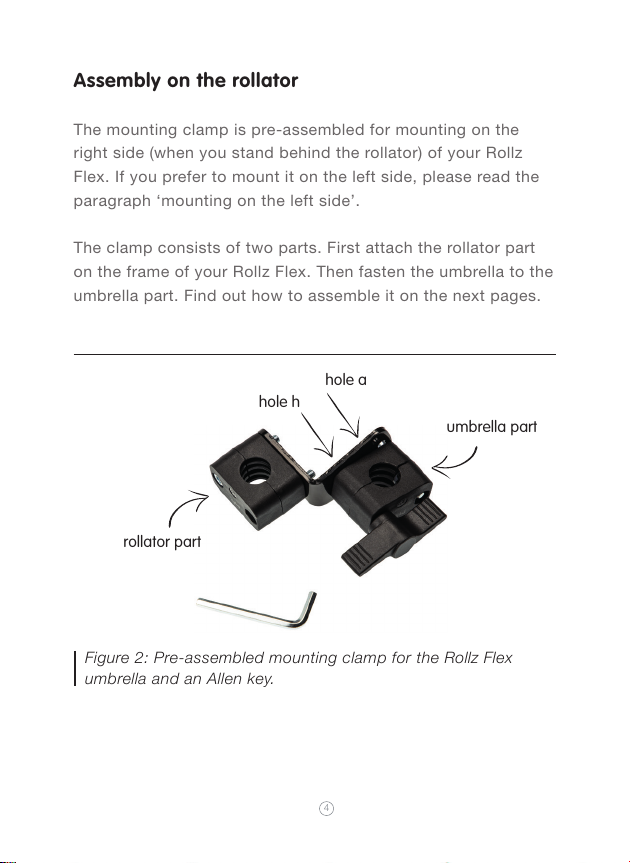

Assembly on the rollator
The mounting clamp is pre-assembled for mounting on the
right side (when you stand behind the rollator) of your Rollz
Flex. If you prefer to mount it on the left side, please read the
paragraph ‘mounting on the left side’.
The clamp consists of two parts. First attach the rollator part
on the frame of your Rollz Flex. Then fasten the umbrella to the
umbrella part. Find out how to assemble it on the next pages.
umbrella part
Figure 2: Pre-assembled mounting clamp for the Rollz Flex
umbrella and an Allen key.
rollator part
hole a
hole h
All manuals and user guides at all-guides.com

5

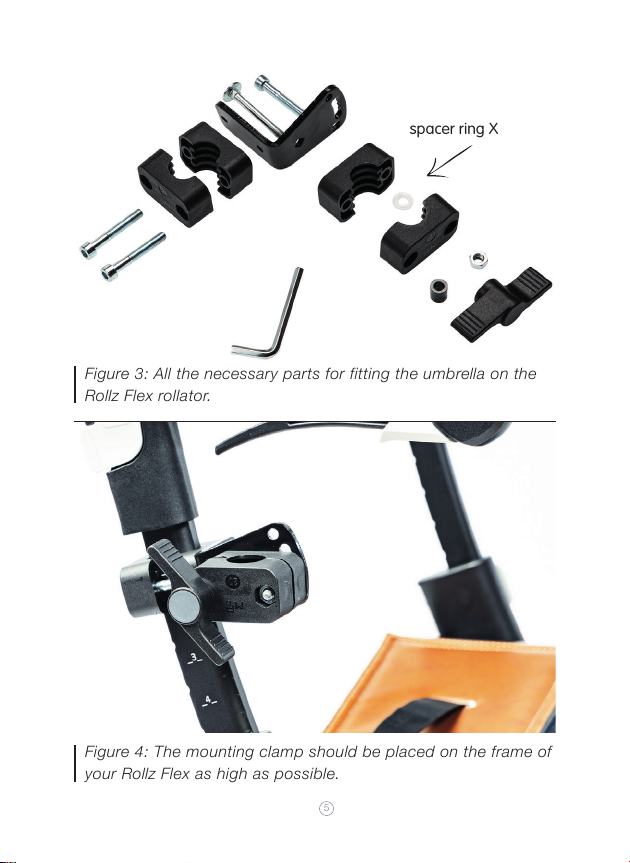

Figure 3: All the necessary parts for fitting the umbrella on the
Rollz Flex rollator.
spacer ring X
Figure 4: The mounting clamp should be placed on the frame of
your Rollz Flex as high as possible.
All manuals and user guides at all-guides.com

6
Assembling goes as follows:
• Make sure to not lose the small pre-mounted spacer ring X
placed in-between the clamps of the mounting clamp. It
should always remain on the long Allen screw with flat head.
• Fix the mounting clamp as high as possible on the frame,
with help of the Allen key (figure 4). The plastic wing nut
must point outwards.
• Tighten the screws firmly.
• You can now place the umbrella pole in the umbrella clamp
from above and tighten the plastic wing nut (figure 4).
• One of the two adjusting rings Y (figure 5) can be placed on
the umbrella pole for setting the umbrella to the desired
height. You can choose from a maximum of three different
heights.
• The distance between the tip of the umbrella and the ground
should be at least 3-5 cm when the umbrella is folded.
• Place the second adjusting ring Y under the mounting
clamp. This secures your umbrella on the bottom.
• Tighten the screws again after two days.
Figure 5: Attaching the adjusting
ring Y.
All manuals and user guides at all-guides.com

7

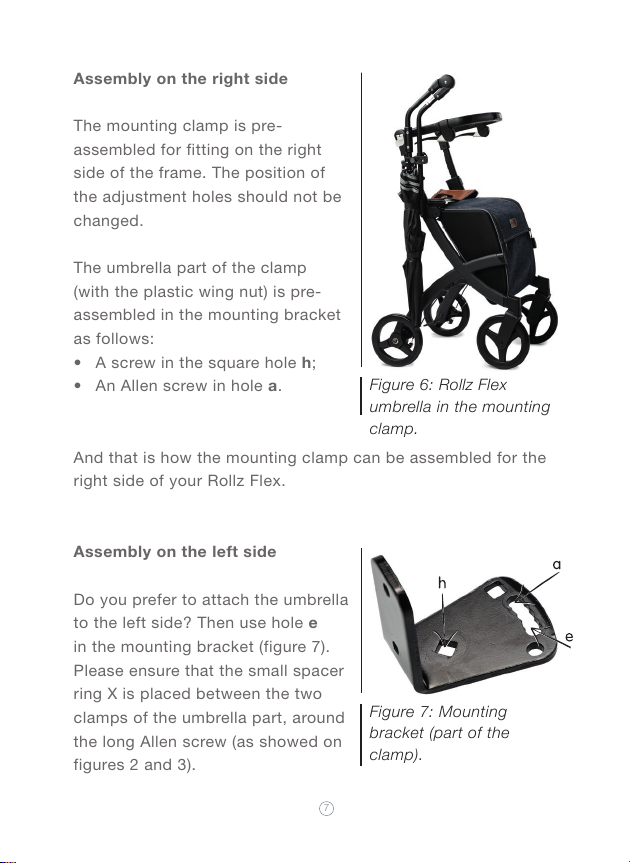

Assembly on the right side
The mounting clamp is pre-
assembled for fitting on the right
side of the frame. The position of
the adjustment holes should not be
changed.
The umbrella part of the clamp
(with the plastic wing nut) is pre-
assembled in the mounting bracket
as follows:
• A screw in the square hole h;
• An Allen screw in hole a.
And that is how the mounting clamp can be assembled for the
right side of your Rollz Flex.
Assembly on the left side
Do you prefer to attach the umbrella
to the left side? Then use hole e
in the mounting bracket (figure 7).
Please ensure that the small spacer
ring X is placed between the two
clamps of the umbrella part, around
the long Allen screw (as showed on
figures 2 and 3).
Figure 7: Mounting
bracket (part of the
clamp).
Figure 6: Rollz Flex
umbrella in the mounting
clamp.
All manuals and user guides at all-guides.com

8
Handling manual of the rollator umbrella
Thanks to the long adjustable tube,
the umbrella can be used by people
with heights up to 200 cm.
When the umbrella is not used, it
can remain attached to the frame.
The lock button will allow to fold
the umbrella, with the tip pointing
downwards (figure 6). Do not set the
handlebar of the Rollz Flex too low
when umbrella is fitted on the frame.
There should be 3-5 cm between the
ground and the tip of the umbrella.
Figure 8: The lock button
helps adjusting the tube
Figure 9: Set the umbrella to
the desired position.
Figure 10: Protects from sun
and rain.
All manuals and user guides at all-guides.com

9
INSTRUCTIONS
We recommend that you practice opening and closing the
umbrella before using it for the first time.
• Do you want to open the umbrella? Then make sure to first
remove its cover.
• By pressing the grey lock button on the adjustment joint
(figure 8) you can change the position of the umbrella and
place it on the desired one (figure 9).
• When tightening the ergonomically shaped plastic wing nut
you can easily stop the umbrella from twisting and turning.
• After all of the above steps have been completed, open the
two Velcro straps on the umbrella.
• Press the opening button of the umbrella.
Attention! The umbrella opens very fast and has a wide
umbrella canopy - please keep the safety instructions in
mind.
• If you used the umbrella in rain make sure to let it dry before
stowing it away. Follow the above instructions in reverse
order to close the umbrella when completely dry.
Attention! Be careful to not catch your fingers between the
hinges.
All manuals and user guides at all-guides.com

10

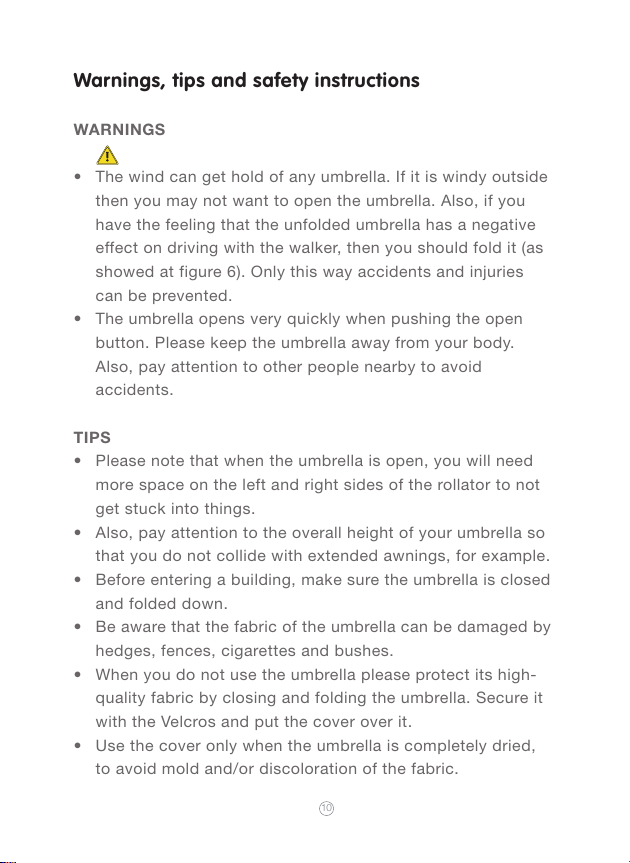

Warnings, tips and safety instructions
WARNINGS
• The wind can get hold of any umbrella. If it is windy outside
then you may not want to open the umbrella. Also, if you
have the feeling that the unfolded umbrella has a negative
effect on driving with the walker, then you should fold it (as
showed at figure 6). Only this way accidents and injuries
can be prevented.
• The umbrella opens very quickly when pushing the open
button. Please keep the umbrella away from your body.
Also, pay attention to other people nearby to avoid
accidents.
TIPS
• Please note that when the umbrella is open, you will need
more space on the left and right sides of the rollator to not
get stuck into things.
• Also, pay attention to the overall height of your umbrella so
that you do not collide with extended awnings, for example.
• Before entering a building, make sure the umbrella is closed
and folded down.
• Be aware that the fabric of the umbrella can be damaged by
hedges, fences, cigarettes and bushes.
• When you do not use the umbrella please protect its high-
quality fabric by closing and folding the umbrella. Secure it
with the Velcros and put the cover over it.
• Use the cover only when the umbrella is completely dried,
to avoid mold and/or discoloration of the fabric.
All manuals and user guides at all-guides.com

11

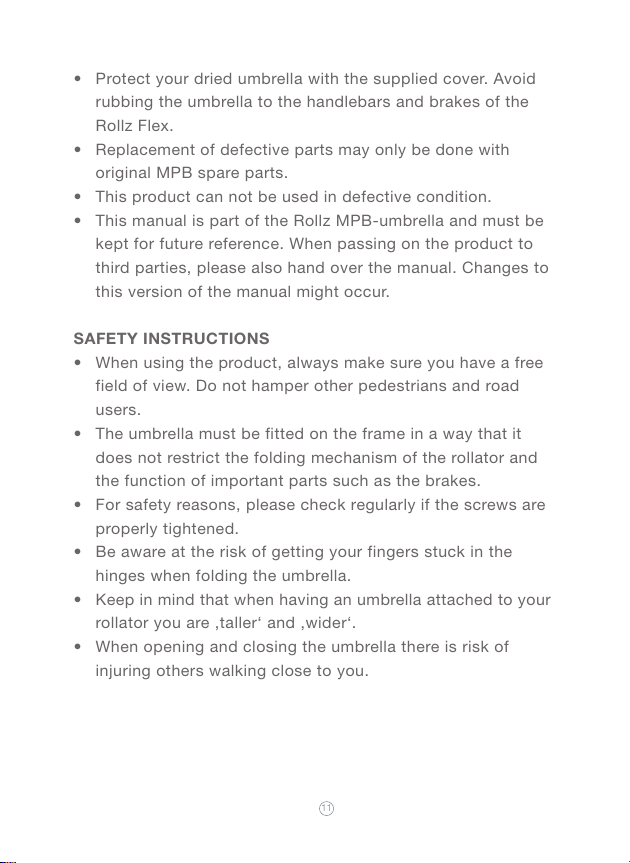

• Protect your dried umbrella with the supplied cover. Avoid
rubbing the umbrella to the handlebars and brakes of the
Rollz Flex.
• Replacement of defective parts may only be done with
original MPB spare parts.
• This product can not be used in defective condition.
• This manual is part of the Rollz MPB-umbrella and must be
kept for future reference. When passing on the product to
third parties, please also hand over the manual. Changes to
this version of the manual might occur.
SAFETY INSTRUCTIONS
• When using the product, always make sure you have a free
field of view. Do not hamper other pedestrians and road
users.
• The umbrella must be fitted on the frame in a way that it
does not restrict the folding mechanism of the rollator and
the function of important parts such as the brakes.
• For safety reasons, please check regularly if the screws are
properly tightened.
• Be aware at the risk of getting your fingers stuck in the
hinges when folding the umbrella.
• Keep in mind that when having an umbrella attached to your
rollator you are ‚taller‘ and ‚wider‘.
• When opening and closing the umbrella there is risk of
injuring others walking close to you.
All manuals and user guides at all-guides.com

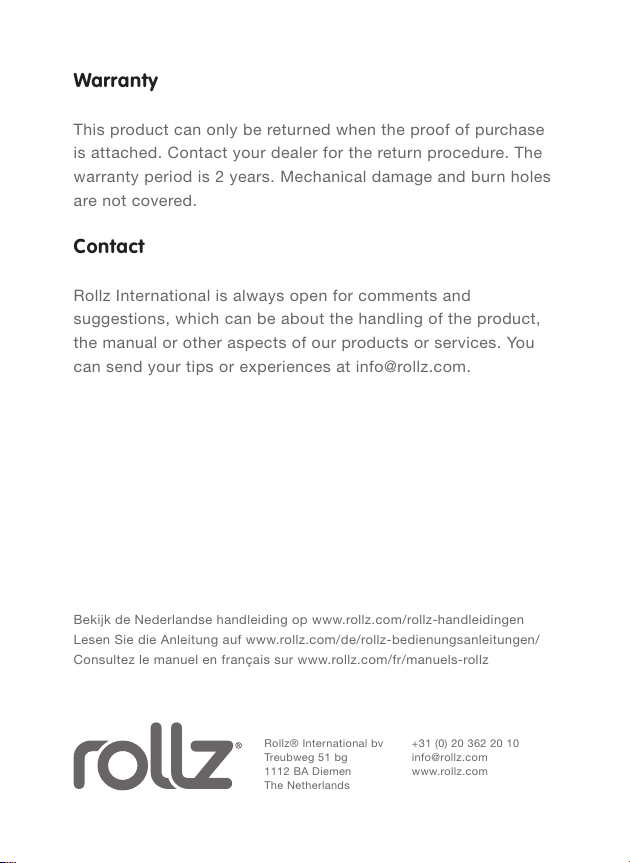

Warranty
This product can only be returned when the proof of purchase
is attached. Contact your dealer for the return procedure. The
warranty period is 2 years. Mechanical damage and burn holes
are not covered.
Contact
Rollz International is always open for comments and
suggestions, which can be about the handling of the product,
the manual or other aspects of our products or services. You
can send your tips or experiences at [e-mail].
[phone]
[e-mail]
www.rollz.com
Rollz® International bv
Treubweg 51 bg
1112 BA Diemen
The Netherlands
