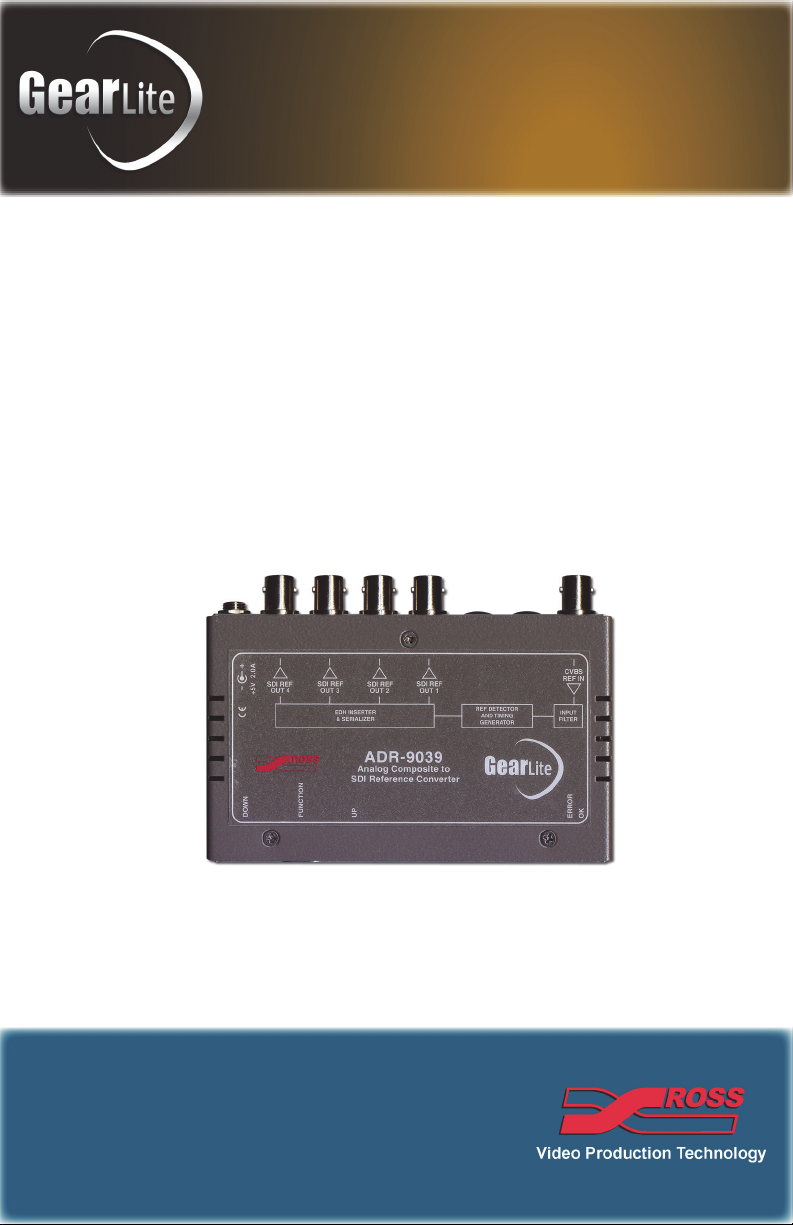

Ross GearLite ADR-9039 User manual

ADR-9039
Analog Composite to SDI
Reference Converter
User Manual

1
ADR-9039 User Manual
• Ross Part Number: 9039DR-004-05
• Release Date: October 11, 2012.
The information contained in this manual is subject to change without notice or
obligation.
Copyright
© 2012 Ross Video Limited. All rights reserved.
This work is proprietary and confidential to Ross Video Limited, its subsidiaries
and its other affiliated corporations and may not be copied, distributed, sold or
otherwise used or relied upon without the express written permission of Ross
Video Limited. Reproduction or reverse engineering of copyrighted software is
prohibited.
Patents
This product is protected by the following US Patents: 4,205,346; 5,115,314;
5,280,346; 5,561,404; 7,034,886; 7,508,455; 7,602,446; 7,834,886; 7,914,332.
This product is protected by the following Canadian Patents: 2039277;
1237518; 1127289. Other patents pending.
Notice
The material in this manual is furnished for informational use only. It is subject
to change without notice and should not be construed as commitment by Ross
Video Limited. Ross Video Limited assumes no responsibility or liability for
errors or inaccuracies that may appear in this manual.
Trademarks
• is a registered trademark of Ross Video Limited.
• is a trademark of Ross Video Limited.
• Ross, ROSS, ROSS®, and MLE are registered trademarks of Ross
Video Limited.
• VELCRO® is a registered trademark of Velcro Industries B.V.
• All other product names and any registered and unregistered
trademarks mentioned in this manual are used for identification
purposes only and remain the exclusive property of their respective
owners.

2
Important Regulatory and Safety Notices to Service
Personnel
Before using this product and any associated equipment, refer to the
“Important Safety Instructions” listed below to avoid personnel injury and to
prevent product damage.
Product may require specific equipment, and/or installation procedures to be
carried out to satisfy certain regulatory compliance requirements. Notices have
been included in this publication to call attention to these specific requirements.
Symbol Meanings
Protective Earth — This symbol identifies a Protective Earth (PE)
terminal, which is provided for connection of the supply system’s
protective earth (green or green/yellow) conductor.
This symbol on the equipment refers you to important operating and
maintenance (servicing) instructions within the Product Manual
Documentation. Failure to heed this information may present a major
risk of damage or injury to persons or equipment.
Warning — The symbol with the word “Warning” within the
equipment manual indicates a potentially hazardous situation which, if
not avoided, could result in death or serious injury.
Caution — The symbol with the word “Caution” within the
equipment manual indicates a potentially hazardous situation which, if
not avoided, may result in minor or moderate injury. It may also be
used to alert against unsafe practices.
Warning Hazardous Voltages — This symbol is intended to alert
the user to the presence of uninsulated “dangerous voltage” within the
product enclosure that may be of sufficient magnitude to constitute a
risk of shock to persons.
ESD Susceptibility — This symbol is used to alert the user that an
electrical or electronic device or assembly is susceptible to damage
from an ESD event.

3
Important Safety Instructions
1. Warning – Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. The safe operation of this product requires that a protective earth
connection be provided. A grounding conductor in the equipment's
supply cord provides this protective earth. To reduce the risk of
electrical shock to the operator and service personnel, this ground
conductor must be connected to an earthed ground.
6. Do not defeat the safety purpose of the grounding-type plug. A
grounding type plug has two blades and a third grounding prong. The
third prong is provided for your safety. If the provided plug does not
fit in to your outlet, consult an electrician for replacement of the
obsolete outlet. Protect the power cord from being walked on or
pinching particularly at plugs, convenience receptacles, and point
where they exit from the apparatus.
7. Warning – Indoor Use: WARNING: To reduce the risk of fire or
electric shock, do not expose this apparatus to rain or moisture.
8. Do not block ventilation openings. Install in accordance with
manufacturer's instructions.
9. Do not install near heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
10. Do not use this apparatus near water.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug this apparatus during lightning storms or when unused for
long periods of time.
13. Clean only with a dry cloth.
14. To avoid electrical shock, disconnect the A/C power cord before any
servicing.
15. Refer all servicing to qualified personnel. Servicing is required when
the apparatus has been damaged in any way, such as power-supply
cord or plug damage, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.

4
EMC Notices
United States of America
FCC Part 15
This equipment has been tested and found to comply with the limits for a class A
Digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense.
Notice — Changes or modifications to this equipment not expressly
approved by Ross Video Limited could void the user’s authority to
operate this equipment.
CANADA
This Class “A” digital apparatus complies with Canadian ICES-003.
Cet appariel numerique de la classe “A” est conforme a la norme NMB-003 du
Canada.
EUROPE
This equipment is in compliance with the essential requirements and other
relevant provisions of CE Directive 93/68/EEC.
INTERNATIONAL
This equipment has been tested to CISPR 22:1997 along with amendments
A1:2000 and A2:2002, and found to comply with the limits for a Class A
Digital device.
Notice — This is a Class A product. In domestic environments, this
product may cause radio interference, in which case the user may
have to take adequate measures.
Maintenance/User Serviceable Parts
Routine maintenance to this GearLite product is not required. This product
contains no user serviceable parts. If the module does not appear to be working
properly, please contact Technical Support using the numbers listed under the

5
“Contact Us” section on the last page of this manual. All GearLite products are
covered by a generous 3-year warranty and will be repaired without charge for
materials or labor within this period. See the “Warranty and Repair Policy”
section in this manual for details.
Environmental Information
The equipment that you purchased required the extraction and use
of natural resources for its production. It may contain hazardous
substances that could impact health and the environment.
To avoid the potential release of those substances into the environment and to
diminish the need for the extraction of natural resources, Ross Video encourages
you to use the appropriate take-back systems. These systems will reuse or
recycle most of the materials from your end-of-life equipment in an
environmentally friendly and health conscious manner.
The crossed-out wheeled bin symbol invites you to use these systems.
If you need more information on the collection, reuse, and recycling systems,
please contact your local or regional waste administration.
You can also contact Ross Video for more information on the environmental
performances of our products.

Introduction (Iss. 05) • 6
Introduction
Overview
The ADR-9039 Analog Composite to SDI Reference Converter is a high-quality
reference conversion solution within the growing family of GearLite compact,
self-contained modular products. Supporting 525 and 625 analog composite
video reference, the ADR-9039 is the ideal analog to SDI reference converter
for virtually all composite reference to digital reference conversion
requirements.
The ADR-9039 provides high-quality digital black reference into four separate

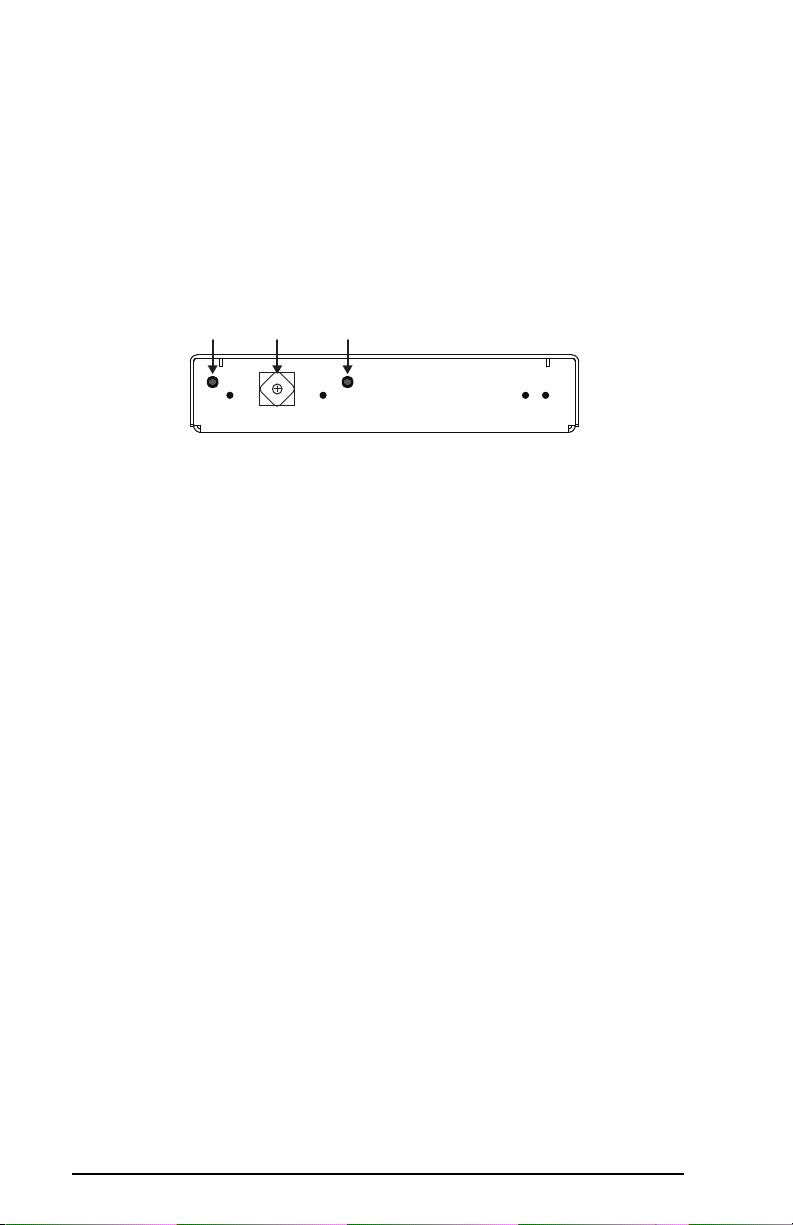

270Mbps SDI coaxial outputs. Timing adjustment controls on the front edge
enable output timing to be adjusted over one full frame. The chassis front edge

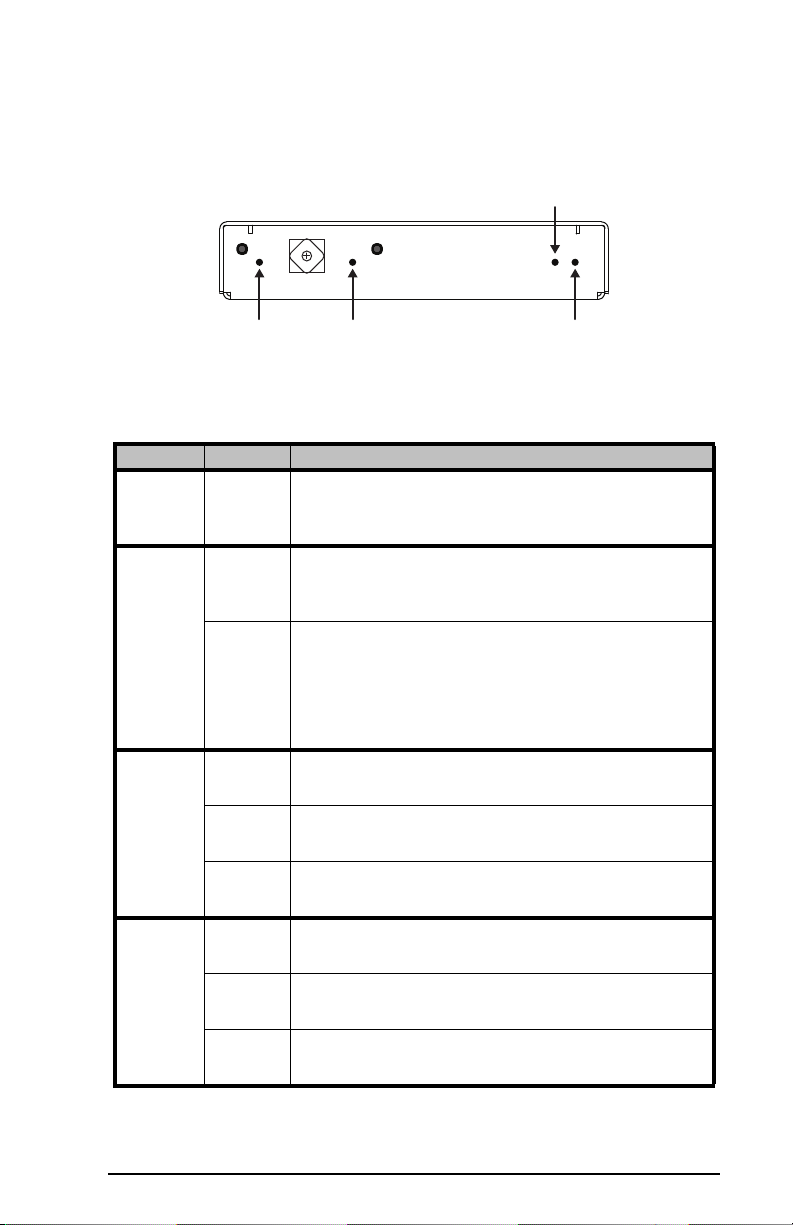

also provides power, error, and function LEDs for visual reference.
A universal power adaptor and line cord, suitable for the country of use, is
supplied with each module. Various mounting options are included that enable a
wide range of installation choices.
The ADR-9039 is a high-quality analog to SDI reference converter making it a
perfect solution for existing analog facilities in a growing SDI world.

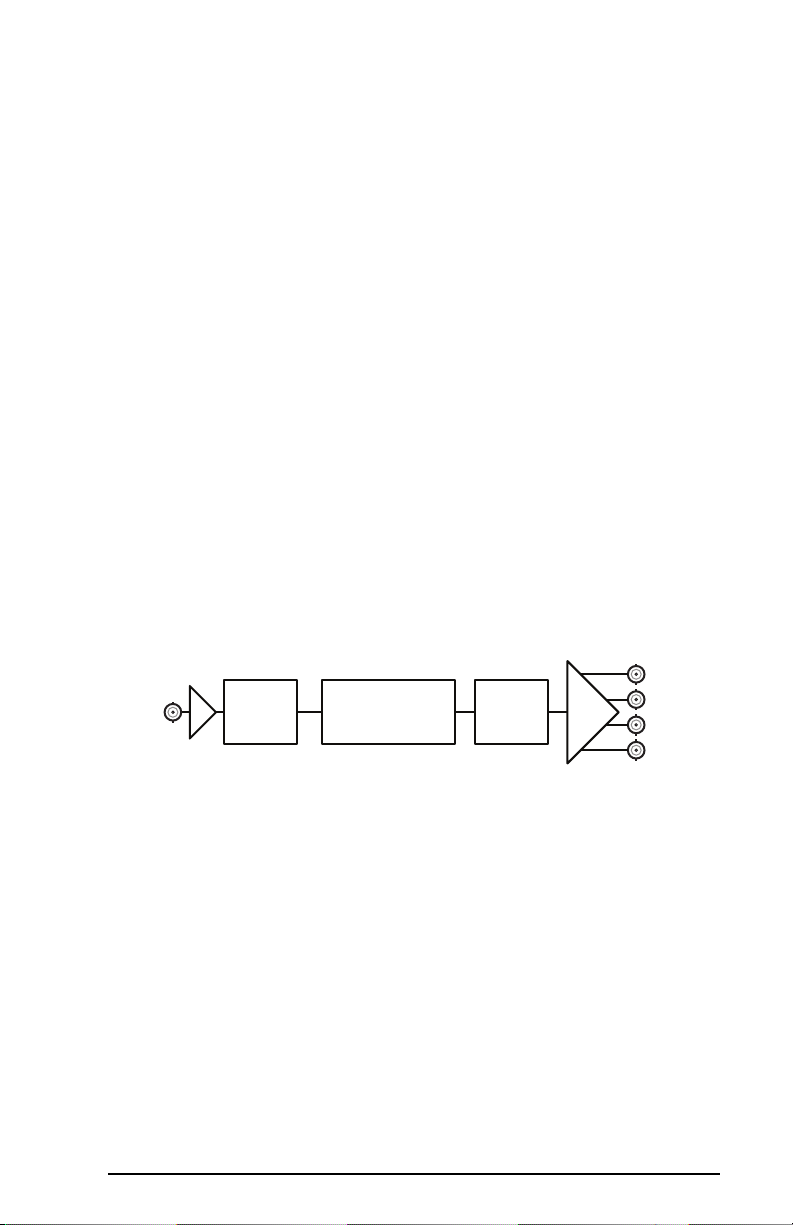

Simplified Block Diagram
Figure 1 Simplified Block Diagram of ADR-9039 Functions
Features
The ADR-9039 includes the following features:
• Supports 525 and 625 composite analog video input signals
• Output timing adjustable from 0 to 1 frame
• Horizontal and Vertical timing adjustable
• 4 SDI outputs
• Low jitter
• Input and Error status indicator LEDs
• Small brick form factor
• 5V universal adapter with locking DC connector
• 3-year warranty
SDI REF OUT 1
SDI REF OUT 2
SDI REF OUT 3
SDI REF OUT 4
ANLG REF
IN*
*525 OR 625
EDH
INSERTION
&
SERIALIZER
REFERENCE
DETECTOR
&
TIMING GENERATOR
INPUT
AMPLIFER

7 • Installation (Iss. 05)
Installation
Static Discharge
Whenever handling the ADR-9039 and other related equipment, please observe
all static discharge precautions as described in the following note:
ESD Susceptibility — Static discharge can cause serious damage
to sensitive semiconductor devices. Avoid handling circuit boards in
high static environments, such as carpeted areas, and when wearing
synthetic fiber clothing. Always exercise proper grounding precautions
when working on circuit boards and related equipment.
Unpacking
Unpack each ADR-9039 module you received from the shipping container and
check the contents to ensure that all items are included. If any items are missing
or damaged, contact your sales representative or Ross Video directly.
Mounting and Installation
The ADR-9039 can be mounted in any convenient location. However, to ensure
long life for this product, observe the following precautions and operating
requirements:
• Maintain an ambient temperature of 20°C to 40°C.
• Allow for air circulation around the chassis for convectional cooling.

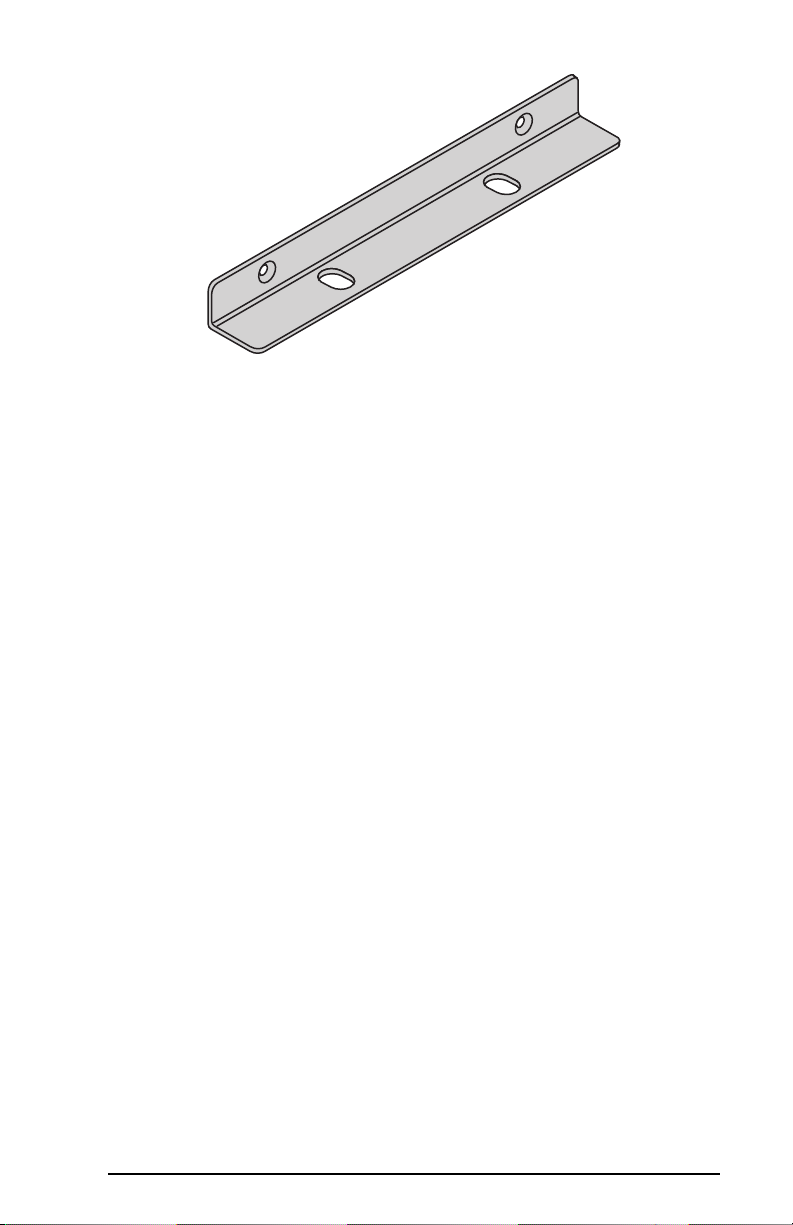

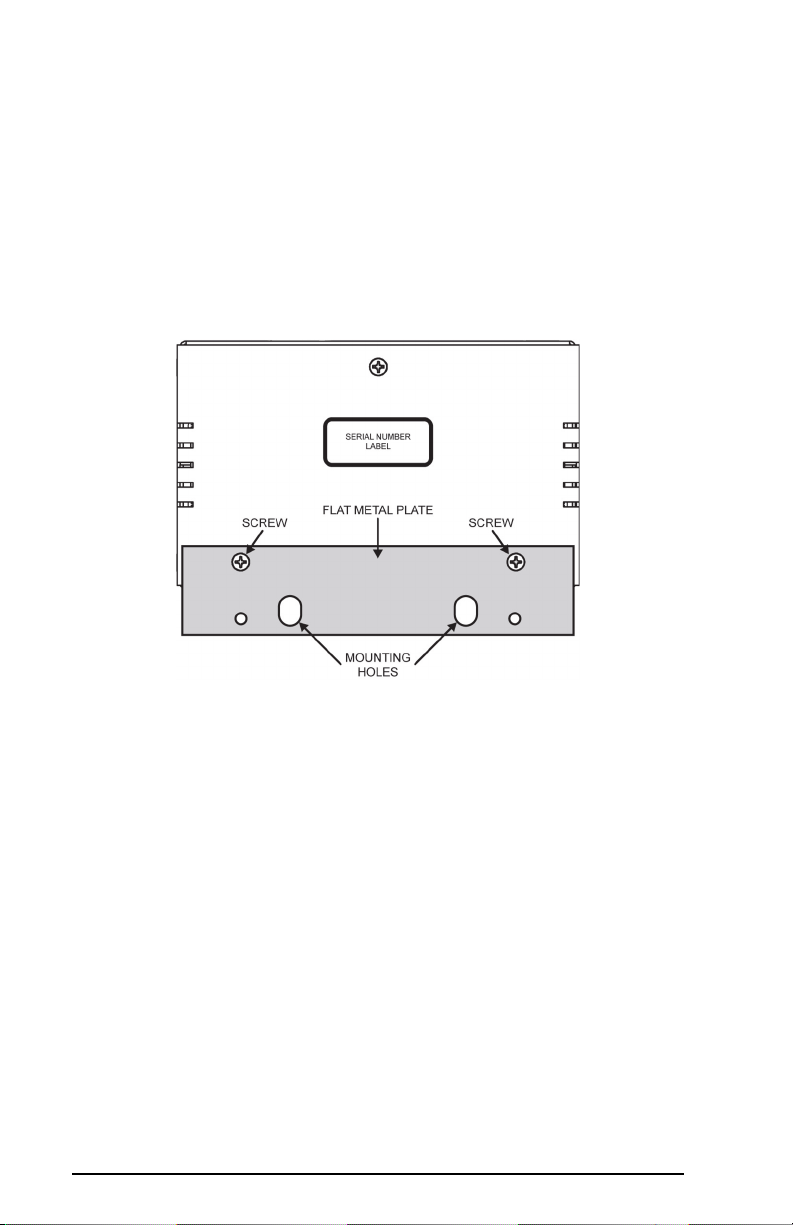

Many different mounting positions are possible with the included mounting
hardware. Some installation options are permanent and require careful
consideration of the final positioning before installation. Please note that in
some mounting locations, the power adaptor must be affixed in a similar manner
as the chassis.

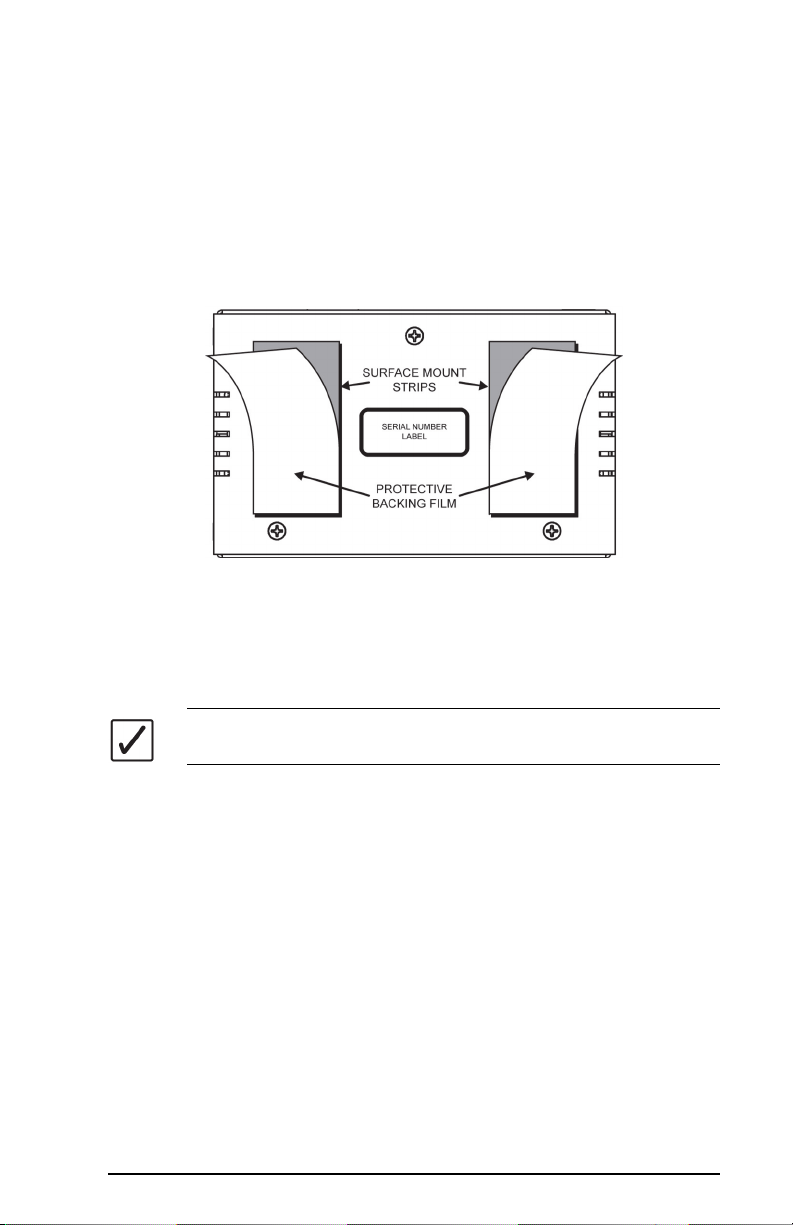

Other possible options include the use of adhesive magnetic sheets (not
included) affixed to the chassis and the power adaptor, for removable mounting
on metal cabinets etc.
Cable ties may be necessary in some applications to relieve strain on the
mounting hardware and the connectors.
Surface Mount Strips
The included VELCRO® brand surface mount strips allow the GearLite module
and power supply to be affixed to a permanent location during use and easily

Installation (Iss. 05) • 8
removed for adjustments. Carefully consider the installation location before
proceeding; the adhesive is very aggressive and is not easily removed. The
adhesive will cure fully in 24 hours.
To install the Surface Mount Strips
1. Remove the Protective Backing Film from the adhesive on the
bottom of the two VELCRO® brand Surface Mount Strips.
2. Adhere the Surface Mount Strips to the bottom side of the chassis.
(Figure 2)
Figure 2 Surface Mount Installation Option
3. Remove the Protective Backing Film from the other side of the
VELCRO® brand Surface Mount Strips.
4. Press the chassis into position on the surface you want to mount it to.
Operating Tip — An additional VELCRO® brand Surface Mount
Strip is available to mount the power adapter.
Non-Slip Pads
Four non-slip adhesive pads have been supplied for desktop placements. Simply
remove the protective backing film from the adhesive and affix one non-slip pad
to each of the four corners on the bottom of the chassis.
Optional Mounting Accessories
Ross Video is committed to providing practical solutions for the needs of your
high-quality broadcast facility.

9 • Installation (Iss. 05)
Flat Metal Plate
Use the flat metal plate for permanent mounting to a rack, a desk, or any other
location where bolts or screws can be applied. Be sure to position the module to
allow for operator adjustments, if required.
To install the Flat Metal Plate
1. Remove the 2screws from the bottom of the chassis.
2. Install the Flat Metal Plate onto the bottom of the chassis (Figure 3)
using the screws provided in the Mounting Kit. Do not use the screws
removed during Step 1.
Figure 3 Flat Metal Plate Installation Option
3. Install the chassis in the desired location using the Mounting Holes
on the Flat Metal Plate. Mounting screws are not provided by Ross
Video.
Angle Mounting Bracket
The Angle Mounting Bracket (Figure 4) allows a single GearLite module to be
installed in positions not possible with the flat metal plate. The bracket has a 90°
angle. Mounting screws are not provided by Ross Video.

Installation (Iss. 05) • 10
Figure 4 Angle Mounting Bracket

11 • Setup (Iss. 05)
Setup
Power Adapter and Supply
Connect the PS-9000 power adaptor to the power supply connector. The
PS-9000 provides up to 2A of regulated +5V DC (5%). The DC power cord has
a locking connector that securely fastens into the power supply DC jack on the
ADR-9039. The ADR-9039 has a standard miniature power jack (center pin
positive).
If using an adaptor other than the PS-9000, ensure that:
• the polarity is correct
• the voltage is +5V DC regulated to 5%
• sufficient current for the ADR-9039 is supplied
Caution — Use of improper adaptors may damage the ADR-9039
and will void the warranty.
Installations outside of North America using line voltages of 200-240V require a
plug, certified for the country of use, to be installed on the supplied line cord.
Refer to the section “Important Regulatory and Safety Notices to Service
Personnel” at the front of this manual for details.
Cable Connections Overview
Connect the analog input and SDI output cables to the ADR-9039 according to
the designations indicated on the chassis label and Figure 5. The input is
internally terminated at 75ohm. It is not necessary to terminate unused outputs.

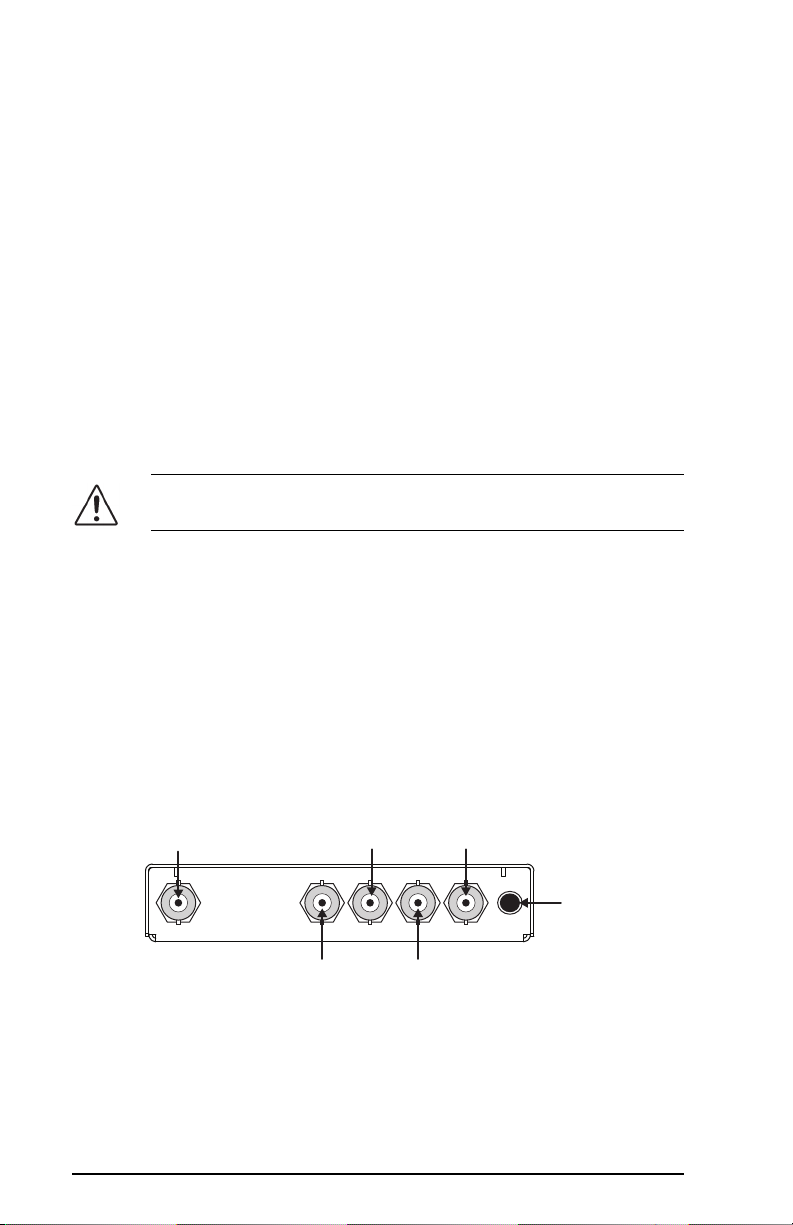

Figure 5 ADR-9039 Connections
POWER
SUPPL
Y
CVBS REF IN
SDI REF
OUT 2
SDI REF
OUT 4
SDI REF
OUT 1
SDI REF
OUT 3

Setup (Iss. 05) • 12
Status LEDs
The front edge of the ADR-9039 has four LED indicators that display the status
of the input signals, and indicate menu function and configuration selections.
(Figure 6)
Figure 6 ADR-9039 Front Edge Status Indicator LEDs
Table 1 describes the status LEDs available on the ADR-9039.
Table 1 Status LED Descriptions
LED Color Function
OK Green
When lit, this LED indicates that a valid reference signal
is present and no anomalies have been detected. The
ADR-9039 is functioning correctly.
ERROR
Flashing
Red
When this flashing, this LED indicates that the input
video standard is not the same as the standard selected
in the system menu.
Red
When lit, this LED indicates that one of the following
conditions has occurred:
• the input signal is not valid
• the input is not present
The SDI output is muted.
DOWNa
a.For menu items that have multiple selections, the LED will be in a state as indicated in the Function
Setup and Configuration Menu. For menu items that have a range, refer to the section “Function Set-
up and Configuration Menu” on page 14.
Flashing
Yell ow
When flashing, this LED indicates the selected menu
item is adjusted to the lower limit.
Yell ow When lit, this LED indicates that the selected menu item
is less than or equal to the mid-point.
Off When unlit, this LED indicates the selected menu item is
adjusted above the mid-point.
UPb
Flashing
Yell ow
When flashing, this LED indicates that the selected menu
item is adjusted to the upper limit.
Yell ow When lit, this LED indicates that the selected menu item
range is greater than or equal to the mid-point.
Off When unlit, this LED indicates that the selected menu
item is adjusted below the mid-point.
OK LEDUP LEDDOWN LED
ERROR LED
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E

13 • Configuration (Iss. 05)
Configuration
Use the Function Select switch and the Down and Up buttons to configure
the ADR-9039 to convert analog video signals to SDI. Settings are described in
the section “Function Setup and Configuration Menus” on page 14. Refer to
Figure 7 for switch and button locations.
Figure 7 ADR-9039 Switch and Button Locations
General Operating Rules
Please note the following important operating rules for the ADR-9039:
• For each of the supported Reference Standard (525/625), the
ADR-9039 stores the timing settings independently in non-volatile
memory.
• The ADR-9039 always powers up in the last configuration used.
• Always check to see that the OK LED is lit. If not, check that the input
is valid and the correct Reference Standard has been selected from the
Function menu.
Example Configuration
1. To configure the Reference Standard function:
• Turn the Function Select switch to Position 6. The default
configuration is Auto Select.
• Both LEDs are now lit, to indicate this configuration selection.
2. To change Reference Standard configuration to PAL (625):
• Keep the Function Select in Position 6.
• Press the Up button twice.
• The DOWN LED will be unlit and the UP LED will be lit, to
indicate PAL (625) configuration selection.
Down Button Up Button
Function
Select
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E

Configuration (Iss. 05) • 14
Function Setup and Configuration Menus
A single press of the Down and Up buttons is a “momentary” click of the
button unless indicated by “(h)”.
Table Legend
+ Press the Up button from the default position
– Press the Down button from the default position
(h) Hold Up or Down button for 2-3 seconds for faster adjustment or special
function
* Factory default state
mStored in memory and this setting will be applied upon power-up in the
last known state
Lit LED display
Unlit LED display
Flashing LED display
Table 2 Function Setup and Configuration Menu
Function
Selection
Switch
Position
Function
Menu
Up/Down Buttons Mode
Selection Menu
LED Display
DOWN UP
0Format
Display
625 (PAL) 
525 (NTSC) – 
1H Delaym
Max. Delay +(h) 
Delay between Mid-point
and Max. +(h) 
Mid-point 
Delay between Min-point
and Mid. –(h) 
Min. Delay* –(h) 
2H Reset
Reset + 
Not Reset 

15 • Configuration (Iss. 05)
Function Menu Notes
Some of the menu items in Table 2 are explained here in further detail as
follows:
3V Delaym
Max. Delay +(h) 
Delay between Mid-point
and Max. +(h) 
Mid-point 
Delay between Min. and
Mid-point –(h) 
Min. Delay* –(h) 
4V Reset
Reset + 
Not Reset 
5Set Min.
Delay
Reset + 
Not Reset 
6Reference
Standardm
625 (PAL) + 
525 (NTSC) + 
Auto Select* – 
7Not implemented
8Not implemented
9Not implemented
ANot implemented
BNot implemented
CNot implemented
DNot implemented
ENot implemented
FDefault Default -(h) 
Table 2 Function Setup and Configuration Menu
Function
Selection
Switch
Position
Function
Menu
Up/Down Buttons Mode
Selection Menu
LED Display
DOWN UP

Configuration (Iss. 05) • 16
Format Display
This read-only menu indicates the reference system standard currently in
operation.
H Delay
Use this menu to adjust the output horizontal delay from 0 (zero) to one full line,
one pixel clock at a time. Note the following important points regarding
H Delay:
• If you cross over the maximum H Delay for 1 line, the value returns to
0 (zero) and the V Delay value increments by 1.
• Crossing the minimum delay returns the H Delay value to 1715 (525)
or 1727 (625) and decrements the V Delay value by 1.
H Reset
Use this menu to reset just the horizontal delay value to 0 (zero). This function is
particularly useful if your adjustment range is far off the mark, or if you simply
want to quickly return to zero.
V Delay
Use this menu to adjust the output vertical delay in one line steps.
V Reset
Use this menu to reset just the vertical delay value to 0 (zero).
Set Minimum Delay
Use this menu to reset both the H Delay and V Delay values to 0 (zero).
Reference Standard
Use this menu to select the input reference signal standard. You can set the
ADR-9039 to lock to 525 only, 625 only, or automatically detect either format
from the input signal.
Default
Use this menu to reset all settings to factory defaults. When the ADR-9039 is
restored to the default settings, both the UP and DOWN LEDs are unlit.

17 • Specifications (Iss. 05)
Specifications
Specifications are subject to change without notification.
Table 3 ADR-9039 — Technical Specifications
Category Parameter Specification
Analog Video
Input
Number of Inputs 1
Signal Standards Composite Black (NTSC or
PAL-B/-G)
Input Impedance 75ohm terminating
Return Loss >41dB to 5MHz
SDI Video
Output
Number of Outputs 4
Standard SMPTE 259M (270Mbps, 525/
625 lines)
Impedance 75ohm
Return Loss >18dB to 270MHz
Signal Level 800mV ±10%
DC Offset <50mV
Rise and Fall Time 800pS (20%-80%)
Overshoot <9%
Jitter <700pS
Output Delay 0-1 frame, in 37nS steps
Thermal Drift 2.5nS/10°C
Short Circuit Protected Yes
Power
Require Voltage +5V DC (5% regulation)
Current Consumption <250mA typical
Total Power 1.25W typical
Other
Thermal Environment 20°C to 40°C (68°F to 104°F),
ambient, non-condensing
Dimensions (approx.) 13cm x 9cm x 2.5cm
(5” x 3.5” x 1”)
Weight (approx.) 312g (11oz)

Service Information (Iss. 05) • 18
Service Information
Warranty and Repair Policy
The GearLite ADR-9039 is warranted to be free of any defect with respect to
performance, quality, reliability, and workmanship for a period of THREE (3)
years from the date of delivery to the customer. In the event that your GearLite
ADR-9039 proves to be defective in any way during this warranty period, Ross
Video Limited reserves the right to repair or replace this piece of equipment
with a unit of equal or superior performance characteristics.
Should you find that this GearLite ADR-9039 has failed after your warranty
period has expired, we will repair your defective product should suitable
replacement components be available. You, the owner, will bear any labor and/
or part costs incurred in the repair or refurbishment of said equipment beyond
the THREE (3) year warranty period.
In no event shall Ross Video Limited be liable for direct, indirect, special,
incidental, or consequential damages (including loss of profits) incurred by the
use of this product. Implied warranties are expressly limited to the duration of
this warranty.
This GearLite ADR-9039 User Manual provides all pertinent information for
the safe installation and operation of your GearLite Product. Ross Video policy
dictates that all repairs to the GearLite ADR-9039 are to be conducted only by
an authorized Ross Video Limited factory representative. Therefore, any
unauthorized attempt to repair this product, by anyone other than an authorized
Ross Video Limited factory representative, will automatically void the warranty.
Please contact Ross Video Technical Support for more information.
In Case of Problems
Should any problem arise with your GearLite ADR-9039, please contact the
Ross Video Technical Support Department. (Contact information is supplied at
the end of this publication.)
A Return Material Authorization number (RMA) will be issued to you, as well
as specific shipping instructions, should you wish our factory to repair your
GearLite ADR-9039. If required, a temporary replacement module will be made
available at a nominal charge. Any shipping costs incurred will be the
responsibility of you, the customer. All products shipped to you from Ross
Video Limited will be shipped collect.
The Ross Video Technical Support Department will continue to provide advice
on any product manufactured by Ross Video Limited, beyond the warranty
period without charge, for the life of the equipment.

Contact Us
Contact our friendly and professional support representatives for
the following:
• Name and address of your local dealer
• Product information and pricing
• Technical support
• Upcoming trade show information
Visit Us
Visit our website for:
• Company information and news
• Related products and full product lines
• Online catalog
• Testimonials
T e c h n i c a l
Support
Telephone: +1 613 • 652 • 4886
After Hours Emergency: +1 613 • 349 • 0006
Email: [email protected]
General
Information
Telephone: +1 613 • 652 • 4886
Fax: +1 613 • 652 • 4425
Email: [email protected]
Website: http://www.rossvideo.com
