Ross IGGY-AES16-16 User manual

IGGY-AES16.16 User Guide

Thank You for Choosing Ross
You've made a great choice. We expect you will be very happy with your purchase of Ross
Technology.
Our mission is to:
1. Provide a Superior Customer Experience
• offer the best product quality and support
2. Make Cool Practical Technology
• develop great products that customers love
Ross has become well known for the Ross Video Code of Ethics. It guides our interactions and
empowers our employees. I hope you enjoy reading it below.
If anything at all with your Ross experience does not live up to your expectations be sure to reach
out to us at [e-mail].
David Ross
CEO, Ross Video
[email protected]
Ross Video Code of Ethics
Any company is the sum total of the people that make things happen. At Ross, our employees are a
special group. Our employees truly care about doing a great job and delivering a high quality
customer experience every day. This code of ethics hangs on the wall of all Ross Video locations to
guide our behavior:
1. We will always act in our customers’ best interest.
2. We will do our best to understand our customers’ requirements.
3. We will not ship crap.
4. We will be great to work with.
5. We will do something extra for our customers, as an apology, when something big goes wrong
and it's our fault.
6. We will keep our promises.
7. We will treat the competition with respect.
8. We will cooperate with and help other friendly companies.
9. We will go above and beyond in times of crisis. If there's no one to authorize the required action in
times of company or customer crisis - do what you know in your heart is right. (You may rent
helicopters if necessary.)

IGGY-AES16.16 · User Guide
• Ross Part Number: 1000DR-816-02
• Software Version: 2.0
• Release Date: July 17, 2023.
The information contained in this manual is subject to change without notice or obligation.
Copyright
©2023 Ross Video Limited, Ross®, and any related marks are trademarks or registered trademarks
of Ross Video Limited. All other trademarks are the property of their respective companies.
PATENTS ISSUED and PENDING. All rights reserved. No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in any form or by any means, mechanical, photocopying,
recording or otherwise, without the prior written permission of Ross Video. While every precaution
has been taken in the preparation of this document, Ross Video assumes no responsibility for
errors or omissions. Neither is any liability assumed for damages resulting from the use of the
information contained herein.
Patents
Patent numbers US 7,034,886; US 7,508,455; US 7,602,446; US 7,802,802 B2; US 7,834,886; US
7,914,332; US 8,307,284; US 8,407,374 B2; US 8,499,019 B2; US 8,519,949 B2; US 8,743,292 B2; GB
2,419,119 B; GB 2,447,380 B; and other patents pending.
Notice
The material in this manual is furnished for informational use only. It is subject to change without
notice and should not be construed as commitment by Ross Video Limited. Ross Video Limited
assumes no responsibility or liability for errors or inaccuracies that may appear in this manual.
Safety Notices
Refer to the “Important Regulatory and Safety Notices” document that accompanied your
product.
Statement of Compliance
This product has been determined to be compliant with the applicable standards, regulations, and
directives for the countries where the product is marketed.
Compliance documentation, such as certification or Declaration of Compliance for the product is
available upon request by contacting [email protected]. Please include the product;
model number identifiers and serial number and country that compliance information is needed in
the request.
EMC Notices
United States of America - FCC Part 15
This equipment has been tested and found to comply with the limits for a class A Digital device,
pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a Commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
Canada
This Class A device complies with Canadian ICES-003 and part 15 of the FCC Rules.
Cet appariel numerique de la classe “A” est conforme a la norme NMB-003 du Canada.
European Union
This equipment is in compliance with the essential requirements and other relevant provisions
established under regulation (EC) No 765/2008 and Decision No 768/2008/EC referred to as the
“New Legislative Framework”.
Australia/New Zealand
This equipment is in compliance with the provisions established under the Radiocommunications
Act 1992 and Radiocommunications Labelling (Electromagnetic Compatibility) Notice 2008.
Korea
Class A equipment (Broadcasting and communications service for business use).
This device is a business-use (Class A) EMC-compliant device. The seller and user are advised to be
aware of this fact. This device is intended for use in areas outside home.
International
This equipment has been tested under the requirements of CISPR 22:2008 or CISPR 32:2015 and
found to comply with the limits for a Class A Digital device.
Maintenance/User Serviceable Parts
Routine maintenance to this Ross product is not required. This product contains no user
serviceable parts. If the module does not appear to be working properly, please contact Technical
Support using the numbers listed under the section “Contacting Technical Support”. This product
is covered by a generous 1-year warranty and will be repaired without charge for materials or labor
within this period. See the section “Warranty and Repair Policy” for details.
Notice — Changes or modifications to this equipment not expressly approved by Ross Video Ltd. could void the
user’s authority to operate this equipment.
Warning — This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may
cause radio interference.
Notice — This is a Class A product. In domestic environments, this product may cause radio interference, in which
case the user may have to take adequate measures.

Environmental Information
The equipment may contain hazardous substances that could impact health and the environment.
To avoid the potential release of those substances into the environment and to diminish the need
for the extraction of natural resources, Ross Video encourages you to use the appropriate take-back
systems. These systems will reuse or recycle most of the materials from your end-of-life equipment
in an environmentally friendly and health conscious manner.
The crossed-out wheeled bin symbol invites you to use these systems.
If you need more information on the collection, reuse, and recycling systems, please contact your
local or regional waste administration. You can also contact Ross Video for more information on the
environmental performances of our products.
Security and Privacy
If you would like more information on how Ross Video security and privacy practices have been
applied to the IGGY-AES16.16, what you should know about maintaining security of this product,
and how we can partner with you to ensure security throughout this product's life-cycle, contact
[email protected].
Ross Video has implemented reasonable administrative, technical, and physical safeguards to help
protect against security incidents and privacy breaches involving a Ross Video product provided
those products are used in accordance with Ross Video instructions for use. However, as systems
and threats evolve, no system can be protected against all vulnerabilities and we consider our
customers the most important partner in maintaining security and privacy safeguards. If you have
any concerns, we ask that you bring them to our attention, and we will investigate. Where
appropriate, we will address the issue with product changes, technical bulletins and/or responsible
disclosures to customers and regulators. Ross Video continuously strives to improve security and
privacy throughout the product life-cycle using practices such as:
• Privacy and Security by Design
• Product and Supplier Risk Assessment
• Vulnerability and Patch Management
• Secure Coding Practices and Analysis
• Vulnerability Scanning
• Access Controls appropriate to Customer Data
• Incident Response
• Clear paths for two-way communication between customers and Ross Video
If you would like to report a potential product related privacy or security issue (incident, breach, or
vulnerability), contact [e-mail].

Company Address
Ross Video Limited
8 John Street
Iroquois, Ontario
Canada, K0E 1K0
Ross Video Incorporated
P.O. Box 880
Ogdensburg, New York
USA 13669-0880
General Business Office: (+1) 613  652  4886
Fax: (+1) 613  652  4425
Technical Support: (+1) 613  652  4886
After Hours Emergency: (+1) 613  349  0006
E-mail (Technical Support): [email protected]
E-mail (General Information): [email protected]
Website: http://www.rossvideo.com

IGGY-AES16.16 User Guide (v2.0) Contents • i
Contents
Introduction 11
Related Publications ................................................................................................................................ 11
Documentation Conventions .................................................................................................................. 12
Interface Elements ................................................................................................................................. 12
User Entered Text .................................................................................................................................. 12
Referenced Guides ................................................................................................................................ 12
Menu Sequences ................................................................................................................................... 12
Important Instructions .......................................................................................................................... 12
Contacting Technical Support ................................................................................................................. 12
Before You Begin 13
Features ..................................................................................................................................................... 13
Work Flow Diagram .................................................................................................................................. 14
What are Receivers, Senders, and Streams? ......................................................................................... 14
Installation and Setup Overview ............................................................................................................ 15
Quick Start 17
Hardware Overview 19
Chassis Faceplate Overview .................................................................................................................... 19
PSU Connection and PWR Status LED .................................................................................................... 19
PWR 15V 4A Connection ....................................................................................................................... 20
POWER/STATUS LED .............................................................................................................................. 20
CONTROL Port .......................................................................................................................................... 21
NET 1, NET 2 Ports .................................................................................................................................... 21
NET 1 ACT LED ........................................................................................................................................ 22
AES3 I/O Connections .............................................................................................................................. 22
Reference Connections ............................................................................................................................ 23
PTP LEDs Overview ................................................................................................................................... 23
PTP MASTER LED .................................................................................................................................... 24
PTP LOCK LED ........................................................................................................................................ 24
TALLY/GPIO Port ....................................................................................................................................... 24
Other Features .......................................................................................................................................... 25
Reset Button ........................................................................................................................................... 25
USB Port .................................................................................................................................................. 25
Micro SD Card ........................................................................................................................................... 25
Physical Installation 27
Static Discharge ........................................................................................................................................ 27
Unpacking ................................................................................................................................................. 27
Mounting and Installing the IGGY-AES16.16 ......................................................................................... 27
Cabling 29
Before You Begin ...................................................................................................................................... 29
Connecting to a 15V PSU ......................................................................................................................... 29
Cabling the NET Ports .............................................................................................................................. 29
Cabling NET 1 as a PoE Connection ..................................................................................................... 29
Connecting the NET Ports to a Network ............................................................................................. 30
Cabling the CONTROL Port ..................................................................................................................... 30
Cabling the Reference Ports ................................................................................................................... 30

ii • Contents IGGY-AES16.16 User Guide (v2.0)
Connecting a Reference Source to the IGGY-AES16.16 .................................................................... 30
Cabling the Reference Output ............................................................................................................. 31
Cabling the AES3 Inputs and Outputs .................................................................................................... 31
AES3 I/O CH1-8 Pin Designations ........................................................................................................ 32
AES3 I/O CH9-16 Pin Designations ...................................................................................................... 32
Connecting an External Device to the TALLY/GPIO Port ..................................................................... 32
GPIO Pin Designations .......................................................................................................................... 33
Tally Pin Designations ........................................................................................................................... 33
Ground Pin Designations ...................................................................................................................... 33
Getting Started 35
Before You Begin ...................................................................................................................................... 35
Configuration Overview ........................................................................................................................... 35
Launching DashBoard ............................................................................................................................. 35
Using Walkabout to Assign the Initial IP Address to IGGY-AES16.16 ................................................. 35
Manually Adding the IGGY-AES16.16 to the Tree View ........................................................................ 36
Using the IGGY Setup Wizard .................................................................................................................. 37
Accessing the IGGY-AES16.16 in DashBoard ......................................................................................... 38
Configuring the Device Settings ............................................................................................................. 38
Setting the Audio Channel Count Mode ................................................................................................ 39
Configuring the Ethernet Settings 41
Configuring the CONTROL Port .............................................................................................................. 41
Configuring the NET Ports ....................................................................................................................... 42
Protocol Setup 43
NMOS Support .......................................................................................................................................... 43
RAVENNA Support .................................................................................................................................... 43
ANEMAN Support ..................................................................................................................................... 44
RTSP Support ............................................................................................................................................ 44
Ember+ Support ....................................................................................................................................... 44
Establishing a Connection .................................................................................................................... 47
Specifying the Audio Channel Count Mode on the IGGY-AES16.16 ................................................ 47
Configuring the IGGY-AES16.16 for Ember+ ....................................................................................... 47
SLP Support ............................................................................................................................................... 47
Enabling Source Specific Multicast Mode (SSM) ................................................................................... 47
Configuring the Timing Settings 49
Configuring the PTP Settings .................................................................................................................. 49
Configuring the Audio Delay for Outputs .............................................................................................. 50
Setting the Audio Packet Time ................................................................................................................ 50
Configuring the Destinations 53
Using the Default Destination Settings .................................................................................................. 53
Customizing a Destination ...................................................................................................................... 53
Configuring the Senders 55
Configuring an Audio Sender .................................................................................................................. 55
Mapping the Audio Channels to a Sender Stream ............................................................................... 55

IGGY-AES16.16 User Guide (v2.0) Contents • iii
Configuring the Receivers 57
Configuring Presets 59
Overview .................................................................................................................................................... 59
What is a Preset? .................................................................................................................................... 59
Work Flow ............................................................................................................................................... 59
Adding a Preset ........................................................................................................................................ 59
Using an Advertised Stream ................................................................................................................. 59
Manually Assigning a Stream ............................................................................................................... 60
Mapping the Audio Channels ................................................................................................................. 61
Operation 63
Connections Tab Overview ..................................................................................................................... 63
Routing the Signals .................................................................................................................................. 64
Using IGGY-AES16.16 with Ultritouch .................................................................................................... 64
Accessing the IGGY-AES16.16 Interfaces ............................................................................................ 65
Upgrading the Software 67
DashBoard Interface Overview 69
Welcome Tab ............................................................................................................................................ 69
Initial Setup Tab ........................................................................................................................................ 69
Connections Tab ....................................................................................................................................... 70
Routing Selection Area .......................................................................................................................... 70
Stream Sources Area ............................................................................................................................. 71
Presets Tab ................................................................................................................................................ 72
Audio Gain Tab ......................................................................................................................................... 74
Destination Audio Gain ......................................................................................................................... 75
Advanced Tabs .......................................................................................................................................... 75
Status Tab ............................................................................................................................................... 75
AES3 Input Status Tab ........................................................................................................................... 77
Device Setup Tab ................................................................................................................................... 78
Ethernet I/O Tab .................................................................................................................................... 80
Receivers Tab ......................................................................................................................................... 81
Destinations Tab .................................................................................................................................... 83
Senders Tab ............................................................................................................................................ 84
Discovery Tab ......................................................................................................................................... 85
Timing Tab .............................................................................................................................................. 88
Alarms Tab .............................................................................................................................................. 91
Diagnostics Tab ........................................................................................................................................ 93
Network Diagnostics ............................................................................................................................. 93
CPU Diagnostics ..................................................................................................................................... 93
Technical Specifications 95
CONTROL Port .......................................................................................................................................... 95
NET 1 and NET 2 Ports ............................................................................................................................. 95
TALLY/GPIO Port ....................................................................................................................................... 95
Reference Clock ........................................................................................................................................ 96
Power ......................................................................................................................................................... 96
Environment ............................................................................................................................................. 97
Dimensions ............................................................................................................................................... 97
Service Information 99
Troubleshooting Checklist ....................................................................................................................... 99

iv • Contents IGGY-AES16.16 User Guide (v2.0)
Warranty and Repair Policy ..................................................................................................................... 99
In Case of Problems ............................................................................................................................ 100
Software Licenses 101
BSD ........................................................................................................................................................... 101
Dual GPL .................................................................................................................................................. 101
GPL ........................................................................................................................................................... 101
LGPL ......................................................................................................................................................... 106
MIT ............................................................................................................................................................ 107
zlib ............................................................................................................................................................ 107
Glossary 109

IGGY-AES16.16 User Guide (v2.0) Introduction • 11
Introduction
This guide covers the installation, configuration, and use of the IGGY-AES16.16. The following
chapters are included:
• “Introduction” summarizes the guide and provides important terms, and conventions.
• “Before You Begin” provides a brief product overview and installation requirements for the
IGGY-AES16.16.
• “Hardware Overview” describes the IGGY-AES16.16 hardware features and physical
connections.
• “Physical Installation” provides information when installing the IGGY-AES16.16 in your system.
• “Cabling” provides an overview of connecting external devices to the IGGY-AES16.16.
• “Getting Started” outlines how to display the IGGY-AES16.16 interfaces in DashBoard.
• “Configuring the Ethernet Settings” provides instructions for configuring the IGGY-AES16.16
settings for basic network communications.
• “Protocol Setup” provides information for setting up media distribution via the IGGY-AES16.16
using third-party protocols.
• “Configuring the Timing Settings” provides instructions for configuring the IGGY-AES16.16 to
use Precision Time Protocol, and specifying a reference source.
• “Configuring the Destinations” provides instructions for configuring the destination channels
on the IGGY-AES16.16.
• “Configuring the Senders” provides instructions for configuring the sender channels on the
IGGY-AES16.16.
• “Configuring the Receivers” outlines how to use the audio receiver options on the
IGGY-AES16.16.
• “Configuring Presets” outlines how to define the network streams that the IGGY-AES16.16 can
access.
• “Operation” provides general information for operating the IGGY-AES16.16.
• “Upgrading the Software” provides instructions for upgrading the software via DashBoard.
• “DashBoard Interface Overview” summarizes the functions, menus, and parameters of the
IGGY-AES16.16 in DashBoard.
• “Technical Specifications” provides the specifications for the IGGY-AES16.16.
• “Service Information” provides information on the warranty and repair policy for your
IGGY-AES16.16.
• “Software Licenses” provides third-party software license information for your IGGY-AES16.16.
• “Glossary” provides a list of terms used throughout this guide.
Related Publications
It is recommended to consult the following Ross documentation before installing and configuring
your IGGY-AES16.16:
•DashBoard User Manual, Ross Part Number: 8351DR-004
•IGGY-AES16.16 Quick Start Guide, Ross Part Number: 1000DR-821
• IGGY-AES16.16 video tutorials, available from the Ross View website (http://www.rossvideo.com)

12 • Introduction IGGY-AES16.16 User Guide (v2.0)
Documentation Conventions
Special text formats are used in this guide to identify parts of the user interface, text that a user
must enter, or a sequence of menus and sub-menus that must be followed to reach a particular
command.
Interface Elements
Bold text is used to identify a user interface element such as a dialog box, or menu. Bold text set in
Arial font is used to identify a button. For example:
In the Edit dialog, click Apply.
User Entered Text
Courier text is used to identify text that a user must enter. For example:
In the Language box, enter English.
Referenced Guides
Italic text is used to identify the titles of referenced guides, manuals, or documents. For example:
For more information, refer to the DashBoard User Manual.
Menu Sequences
Menu arrows are used in procedures to identify a sequence of menu items that you must follow.
For example, if a step reads “Advanced > Timing,” you would select the Advanced tab and then
select the Timing sub-tab.
Important Instructions
Star icons are used to identify important instructions or features. For example:
Contact your IT department before connecting to your facility network to ensure that there are
no conflicts. They will provide you with an appropriate value for the IP Address, Subnet Mask, and
Gateway for your IGGY-AES16.16.
Contacting Technical Support
At Ross Video, we take pride in the quality of our products, but if problems occur, help is as close as
the nearest telephone.
Our 24-hour Hot Line service ensures you have access to technical expertise around the clock.
After-sales service and technical support is provided directly by Ross Video personnel. During
business hours (Eastern Time), technical support personnel are available by telephone. After hours
and on weekends, a direct emergency technical support phone line is available. If the technical
support person who is on call does not answer this line immediately, a voice message can be left
and the call will be returned shortly. This team of highly trained staff is available to react to any
problem and to do whatever is necessary to ensure customer satisfaction.
•Technical Support: ([phone]
•After Hours Emergency: ([phone]
•E-mail: [email protected]
•Website: http://www.rossvideo.com

IGGY-AES16.16 User Guide (v2.0) Before You Begin • 13
Before You Begin
If you have questions pertaining to the operation of the IGGY-AES16.16, contact us at the numbers
listed in “Contacting Technical Support”. Our technical staff is always available for consultation,
training, or service.
Features
Some features of the IGGY-AES16.16 include:
• Dual redundant Gigabit Ethernet audio interfaces, and optional GE control interface
• 16 audio receivers, 16 audio senders
› SMPTE ST 2022-7 hitless 1+1 redundancy per sender and receiver
› Packet times: 125µs, 250µs, and 1ms
› Samples/packet: 6, 12, and 48
› Sample rates: 48kHz with ASRC available and 44.1kHz with ASRC available
› Receive up to a 64 channel stream
› Supports the L24 and L16 audio formats; configurable per audio stream
› WAN-capable buffering: 30ms per receiver stream
• SMPTE ST 2110-30, including all conformance levels: A, B, and C
• Supports discovery and registration via:
› RAVENNA
› ANEMAN
› NMOS
› Dante/SAP (only in AES67 mode)
• Connection control via:
› Ember+
› JSON API
› ANEMAN
› NMOS
• Configuration via JSON API, Ember+, and DashBoard
• Flexible mounting options
• Full DashBoard control

14 • Before You Begin IGGY-AES16.16 User Guide (v2.0)

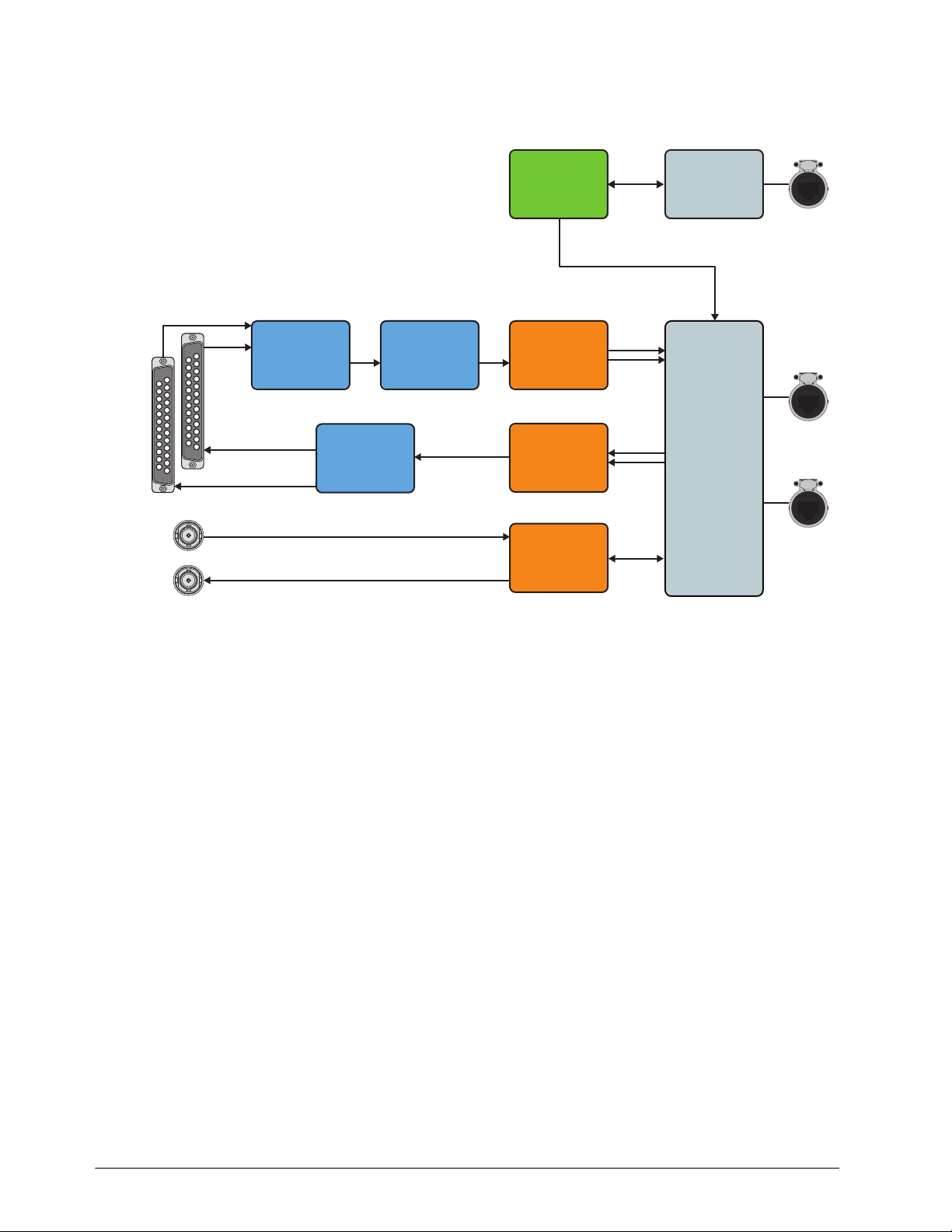

Work Flow Diagram
Figure 1 provides an example work flow of the IGGY-AES16.16.
Figure 1 IGGY-AES16.16 Work Flow Diagram
What are Receivers, Senders, and Streams?
The following terms are used throughout this user guide:
Device
A physical, virtual, or software application that may include multiple sources, destinations, senders,
or receivers.
Essence
A single elementary logical media signal. For example, a video essence is one video channel. An
audio essence is a single audio (mono) channel.
Flow
The continuous raw media content. It can contain more than one essence (e.g. an audio flow can
contain multiple channels).
A flow is independent of the transport protocol. For example, 48kHz LPCM audio is a flow; AES67 is
one type of stream which can carry the flow.
Flows cannot generally be passed around natively, and need to be encapsulated in a stream. Flows
from the same source are considered “editorially equivalent”, but may be encoded differently.
CONTROL
NET 1
NET 2
AES3 I/O 1-8
AES3 I/O 9-16
WORDCLOCK
OUT
WORDCLOCK
REF IN PTP ENGINE
AUDIO CLOCK
GENERATOR
PTP
16+16
REDUNDANT
FLOWS
16+16
REDUNDANT
FLOWS
GIGABIT
ETHERNET MAC
CONTROL AND
MANAGEMENT
DUAL GIGABIT
ETHERNET
MAC
16 SENDER
AES67 & ST2110
WITH 2022-7
AUDIO MATRIX
AND SHUFFLE
ASYNC
SAMPLE RATE
CONVERSION
ASYNC
SAMPLE RATE
CONVERSION
16 RECEIVERS
AES67 & ST2110
WITH 2022-7

IGGY-AES16.16 User Guide (v2.0) Before You Begin • 15
Receiver
An element within a device that receives exactly one stream, which contains one flow from a
network.
Sender
An element within a device which presents exactly one flow, packaged as a stream onto a network.
Stream
One flow, encapsulated within a transport protocol. Examples include SMPTE ST 2022-6, SMPTE ST
2110-20 Video, or SMPTE ST 2110-30 Audio (AES67).
Installation and Setup Overview
The generalized work flow of installing and configuring your IGGY-AES16.16 is:
1. Download and install the latest version of the DashBoard client software.
2. Contact your IT department for the required IP addresses for your IGGY-AES16.16.
3. Physically install and cable the IGGY-AES16.16.
4. Use DashBoard to access the IGGY-AES16.16.
5. Use the IGGY Setup Wizard to configure the basic settings for your module.
6. Define the Network Stream Sources.
7. Make your connections.

16 • Before You Begin IGGY-AES16.16 User Guide (v2.0)

IGGY-AES16.16 User Guide (v2.0) Quick Start • 17
Quick Start
This chapter is intended to help you get started quickly with your IGGY-AES16.16.
For More Information on...
• installing your IGGY-AES16.16, refer to the IGGY-AES16.16 Quick Start Guide.
What is an IGGY?
Each IGGY model is a device that allows audio data to travel across an ethernet network with
professional quality AES67 and ST2110 protocols. Different IGGY models connect to different types
of audio devices (using connection types such as MADI and AES3), but the network features and
setup remain the same.
Figure 2 Possible Workflow with an IGGY-MADI and an IGGY-AES16.16
What are AES67 and ST2110?
These are protocols for sending audio data across an ethernet network. Input audio channels (from
the MADI or AES3 ports) are grouped and converted to data packets by IGGY and sent out across
the network as source streams. Other IGGY models can be configured to listen to these packet
streams, receive and process the data, and then pass the audio out the destination MADI or AES3
port(s).
For this streaming to work, the IGGY needs a little configuration. Your IGGY ships with default
configurations that work well in many scenarios. A Configuration Wizard simplifies the set up.
Connect the IGGY-AES16.16
1. Connect the IGGY-AES16.16 to a power source. Refer to “Connecting to a 15V PSU”.
2. Connect the NET1 port of your IGGY-AES16.16 to the same local network that your PC is
connected to (i.e., connected to the same ethernet switch).
Set up the IGGY-AES16.16
1. Locate the serial number label on the side of your IGGY-AES16.16.
• Scan the QR code on the serial number label, or
• Use a browser to go to: www.rossvideo.com/device and enter the serial number.
2. Review the information reported about your IGGY-AES16.16.
3. Select Local Link to launch the IGGY-AES16.16 web UI and open the Welcome page.
4. Select the Initial Setup tab at the top.
5. Follow the on-screen instructions to quickly set up the IP address and user settings.
IGGY-MADI
IGGY-AES16.16
AES67 Over
Ethernet
Network
AES3
MADI
IGGY-MADI IGGY-AES16.16MADI DEVICE AES3 DEVICE
AES I/O
MADI

18 • Quick Start IGGY-AES16.16 User Guide (v2.0)

IGGY-AES16.16 User Guide (v2.0) Hardware Overview • 19
Hardware Overview
This chapter presents information on the IGGY-AES16.16 hardware components and features.
Chassis Faceplate Overview
The chassis faceplate of the IGGY-AES16.16 provides a silk-screen map of the available connections
and LEDs. Figure 3 illustrates the IGGY-AES16.16 faceplate top. From the top you can see that the
chassis has two areas:
• the POWER connection, NET ports, CONTROL port, and Ref/Clk BNCs are located on the left side
• the status LEDs, TALLY/GPIO connector, and AES3 I/O ports are located on the right side
Figure 3 IGGY-AES16.16 — Faceplate Components
PSU Connection and PWR Status LED
The left-side of the IGGY-AES16.16 chassis provides one PSU port. (Figure 4)
Figure 4 IGGY-AES16.16 — PWR Connection
IGGY-AES16.16
PSU Connection

20 • Hardware Overview IGGY-AES16.16 User Guide (v2.0)
PWR 15V 4A Connection
The IGGY-AES16.16 can be powered from an external 15V PSU. This port is a standard miniature
power jack (center pin positive). Refer to “Connecting to a 15V PSU” for details.
POWER/STATUS LED
A POWER/STATUS LED is located on the right side of the IGGY-AES16.16 chassis and reports on
general communication and status conditions. (Figure 5)
Figure 5 IGGY-AES16.16 — POWER/STATUS LED
Table 1 describes the possible status information the POWER/STATUS LED will report.
Table 1 POWER/STATUS LED
Status Description
Green The IGGY-AES16.16 is receiving +15VDC on the PSU (DC) port of
its chassis.
No errors are detected in the communication activity between
the IGGY-AES16.16 and external devices.
Yellow/Green The IGGY-AES16.16 is initializing.
Red A communication error is detected or the IGGY-AES16.16 is
currently in reboot mode.
Monitor the IGGY-AES16.16 status before taking action.
Off When this LED is unlit, a valid power connection is not connected
to the POWER port.
POWER/STATUS
LED
