Ross RCS-8120 User manual

Ross Video Limited
RCS-8120
Remote Control Selector
User Manual
Ross Part Number: 8120SDR-004
Issue: 01A

RCS-8120 Remote Control Selector User Manual
• Ross Part Number: 8120SDR-004
• Document Issue: 01A
• Release Date: November 30, 2005. Printed in Canada.
The information contained in this User Manual is subject to change without notice or obligation.
Copyright
© 2005 Ross Video Limited. All rights reserved.
Contents of this publication may not be reproduced in any form without the written permission of Ross
Video Limited. Reproduction or reverse engineering of copyrighted software is prohibited.
Notice
The material in this manual is furnished for informational use only. It is subject to change without
notice and should not be construed as a commitment by Ross Video Limited. Ross Video Limited
assumes no responsibility or liability for errors or inaccuracies that may appear in this manual.
Trademarks
•is a registered trademark of Ross Video Limited.
•Ross, ROSS, ROSS, and MLE are registered trademarks of Ross Video Limited.
•All other product names and any registered and unregistered trademarks mentioned in
this manual are used for identification purposes only and remain the exclusive property
of their respective owners.

Important Regulatory and Safety Notices
Before using this product and any associated equipment, refer to the “Important Safety Instructions”
listed below so as to avoid personnel injury and to prevent product damage.
Products may require specific equipment, and /or installation procedures be carried out to satisfy
certain regulatory compliance requirements. Notices have been included in this publication to call
attention to these Specific requirements.
Symbol Meanings
This symbol on the equipment refers you to important operating and maintenance
(servicing) instructions within the Product Manual Documentation. Failure to heed
this information may present a major risk of damage or injury to persons or
equipment.
Warning
The symbol with the word “Warning” within the equipment manual indicates a
potentially hazardous situation, which if not avoided, could result in death or serious
injury.
Caution
The symbol with the word “Caution” within the equipment manual indicates a
potentially hazardous situation, which if not avoided, may result in minor or
moderate injury. It may also be used to alert against unsafe practices.
Notice
The symbol with the word “Notice” within the equipment manual indicates a
situation, which if not avoided, may result in major or minor equipment damage or a
situation which could place the equipment in a non-compliant operating state.
ESD
Susceptibility
This symbol is used to alert the user that an electrical or electronic device or
assembly is susceptible to damage from an ESD event.
Important Safety Instructions
Caution
This product is intended to be a component product of the RossGear 8000 series
frame. Refer to the RossGear 8000 series frame User Manual for important safety
instructions regarding the proper installation and safe operation of the frame as well
as it’s component products.
Warning
Certain parts of this equipment namely the power supply area still present a safety
hazard, with the power switch in the OFF position. To avoid electrical shock,
disconnect all A/C power cords from the chassis' rear appliance connectors before
ervicing this area.s
Warning
Service barriers within this product are intended to protect the operator and service
personnel from hazardous voltages. For continued safety, replace all barriers after
any servicing.
This product contains safety critical parts, which if incorrectly replaced may present
a risk of fire or electrical shock. Components contained within the product’s power
supplies and power supply area, are not intended to be customer serviced and should
be returned to the factory for repair.
To reduce the risk of fire, replacement fuses must be the same type and rating.
Only use attachments/accessories specified by the manufacturer.

EMC Notices
US FCC Part 15
This equipment has been tested and found to comply with the limits for a class A Digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
users will be required to correct the interference at their own expense.
Notice
Changes or modifications to this equipment not expressly approved by Ross Video
Ltd. could void the user’s authority to operate this equipment.
CANADA
This Class “A” digital apparatus complies with Canadian ICES-003.
Cet appareil numerique de classe “A” est conforme à la norme NMB-003 du Canada.
EUROPE
This equipment is in compliance with the essential requirements and other relevant provisions of CE
Directive 93/68/EEC.
INTERNATIONAL
This equipment has been tested to CISPR 22:1997 along with amendments A1:2000 and A2:2002 and
found to comply with the limits for a Class A Digital device.
Notice
This is a Class A product. In domestic environments this product may cause radio
interference in which case the user may have to take adequate measures.
Maintenance/User Serviceable Parts
Routine maintenance to this RossGear product is not required. This product contains no user
serviceable parts. If the module does not appear to be working properly, please contact Technical
Support using the numbers listed under the “Contact Us” section on the last page of this manual. All
RossGear products are covered by a generous 5-year warranty and will be repaired without charge for
materials or labor within this period. See the “Warranty and Repair Policy” section in this manual for
details.

Environmental Information
The equipment that you purchased required the extraction and use of natural resources for its
production. It may contain hazardous substances that could impact health and the environment.
To avoid the potential release of those substances into the environment and to diminish the need for
the extraction of natural resources, Ross Video encourages you to use the appropriate take-back
systems. These systems will reuse or recycle most of the materials from your end-of-life equipment in
an environmentally friendly and health conscious manner.
The crossed-out wheeled bin symbol invites you to use these systems.
If you need more information on the collection, reuse, and recycling systems, please contact your local
or regional waste administration.
You can also contact Ross Video for more information on the environmental performances of our
products.

Contents
Introduction 1-1
In This Chapter .......................................................................................................................1-1
A Word of Thanks....................................................................................................1-1
Overview ..................................................................................................................1-2
Functional Block Diagram .......................................................................................1-2
Features ....................................................................................................................1-2
Installation and Setup 2-1
In This Chapter .......................................................................................................................2-1
Static Discharge........................................................................................................2-1
Unpacking ................................................................................................................2-1
Module Installation...................................................................................................2-2
Cabling .....................................................................................................................2-4
Service Information 3-1
In This Chapter .......................................................................................................................3-1
Troubleshooting Checklist .......................................................................................3-1
Warranty and Repair Policy .....................................................................................3-2
Ordering Information 4-1
In This Chapter .......................................................................................................................4-1
RCS-8120 and Related Products ..............................................................................4-1
RCS-8120 User Manual (Iss. 01A) Contents •i

ii •Contents RCS-8120 User Manual (Iss. 01A)

Introduction
In This Chapter
This chapter contains the following information sections:
• A Word of Thanks
• Overview
• Functional Block Diagram
• Features
• Documentation Terms
A Word of Thanks
Congratulations on choosing the Ross Video RCS-8120 Remote Control Selector. The RCS-8120 is
part of a full line of Digital Products within the RossGear Terminal Equipment family of products,
backed by Ross Video’s experience in engineering and design expertise since 1974.
You will be pleased at how easily your new RCS-8120 fits into your overall working environment.
Equally pleasing is the product quality, reliability and functionality. Thank you for joining the group
of worldwide satisfied Ross Video customers!
Should you have a question pertaining to the installation or operation of your RCS-8120, please
contact us at the numbers listed on the back cover of this manual. Our technical support staff is always
available for consultation, training, or service.
RCS-8120 User Manual (Iss. 01A) Introduction •1-1

Overview
The RCS-8120 Modules provide a convenient method of controlling the Ross family of utility
switches (AVS-8064, DSS-8024, and ADS-7864).
Each switch panel has 2 dual push button switches (switch “A” and switch “B”). Two audio type
connectors and 1 BNC connector are provided for each switch. These connectors allow easy interface
to the Ross family of utility switches or to the RCM-8120 remote panels.
The RCS-8120 is designed to be mounted in the MRP-8120 1RU mounting panel (which can hold up
to 5 modules), or mounted in desk with the DCA-8120 in desk mounting adapter. Blank cover plates
are available for unused positions on the MRP-8120.
Each of the switches on the RCS-8120 can be used for one of two things:
1. To provide GPI control of a Ross utility switch. Connect a coax from GPI A BNC (GPI B
BNC for the B switch) on the RCS-8120 to the DSS-8024 or AVS-8064 it is to control. To
connect to an ADS-7864, use A Right for the A switch (B Right for the B switch). When the
left switch is pressed in, the GPI will be open. When the right switch is pressed in, the GPI
will be shorted.
2. To select between two RCM-8120 panels connected to the same control bus (see owners
manual for the RCM-8120). Connect J1 (J3 for the B switch) to the panel you want active
when the left button is pushed in, J2 (J4 for the B switch) to the panel you want active when
the right button is pushed in.
Note If selecting between two RCM-8120 modules, ensure that pin 1
on the J1 connector at the RCM-8120 is not connected to the
cable.

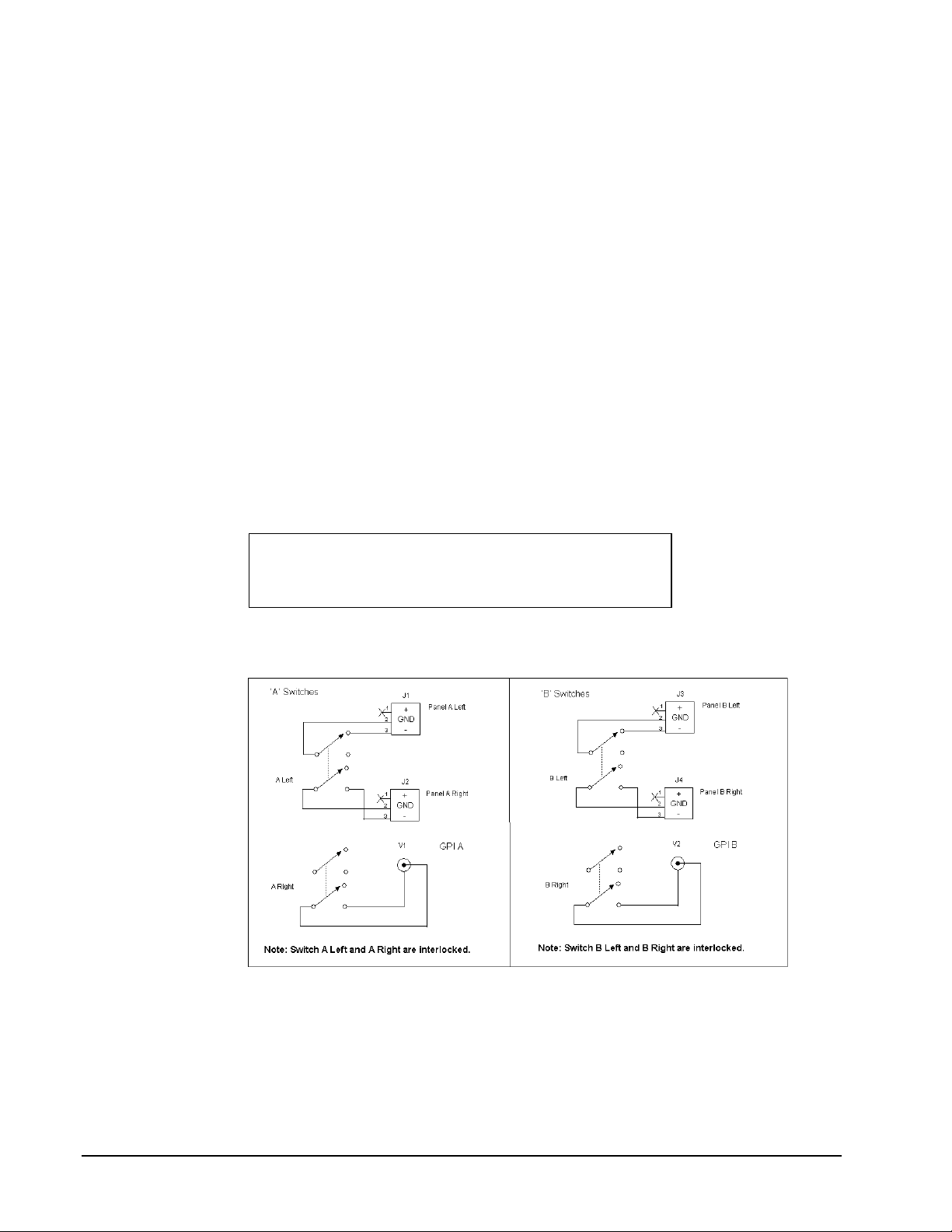

Functional Block Diagram
Figure 1. RCS-8120 Functional Block Diagram
Features
• Controls Ross Utility Switches (AVS-8064, DDS-8024 or ADS-7864)
• Controls RCM-8120 or RCM-8120-1
• All-purpose GPI
1-2 •Introduction RCS-8120 User Manual (Iss. 01A)

Installation and Setup
In This Chapter
This chapter contains the following information sections:
• Static Discharge
• Unpacking
• Module Installation
• Cabling
Static Discharge
Whenever handling the RCS-8120 and other related equipment, please observe all static discharge
precautions as described in the following note:
ESD
Susceptibility
Static discharge can cause serious damage to sensitive
semiconductor devices. Avoid handling circuit boards in high
static environments such as carpeted areas, and when wearing
synthetic fiber clothing. Always exercise proper grounding
precautions when working on circuit boards and related
equipment.
Unpacking
Unpack the RCS-8120 and related components you received from the shipping container, and check
the contents against the packing list to ensure that all items are included. If any items are missing or
damaged, contact your sales representative or Ross Video directly.
RCS-8120 User Manual (Iss. 01A) Installation and Setup •2-1

Module Installation
The RCS-8120 were designed to be mounted in the MRP-8120 1RU mounting panel (which can hold
up to 5 modules), or mounted in desk with the DCA-8120 in desk mounting adapter. Blank cover
plates are available for unused positions on the MRP-8120.
Rack-mount Installation
Use the following steps to install the module in a RossGear MRP-8120 chassis unit:
1. Remove the 4 corner hex nuts from the cover plate bolts.
2. Remove the 2 hex nuts that attach the U bracket to the module cover plate.
3. Install the cover plate on the MRP-8120 (or DCA-8120) with the 4 corner hex nuts.
4. Attach the switch unit to the module cover plate with the 2 hex nuts at the U bracket.
5. Repeat this procedure for each module and any blank slot cover plates you wish to
install to the MRP-8120 chassis. All five of the module slots on the chassis should
be occupied with modules or blank plates.
6. Install the MRP-8120 chassis in the rack.
4 Corner
Hex Nuts
2 U-Bracket
Hex Nuts
Figure 2. Rack Mount Installation Details
2-2 •Installation and Setup RCS-8120 User Manual (Iss. 01A)

In-desk DCA-8120 Installation
To mount the DCA-8120, use the dimensions on the following figure to make your cutout in the
desktop. Note the figure is not to scale.

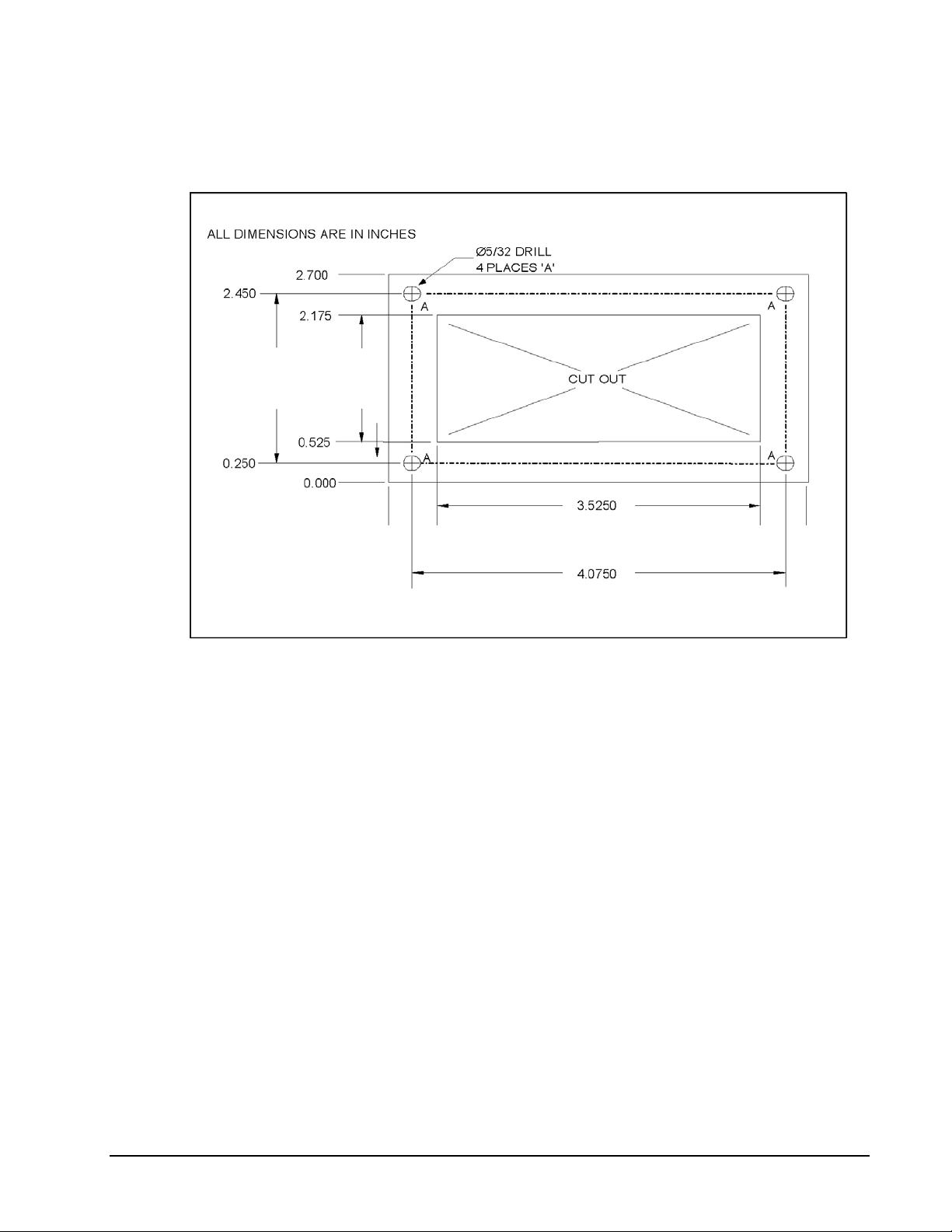

Figure 3. DCA-8120 In Desk Mounting Template.
1. Using the measurements supplied in the figure above, drill, cut, and finish the
appropriate holes for the DCA-8120 installation.
2. Using a ¼” nut driver, unscrew the four corner hex nuts which hold the PCB to the
module.
3. Remove the PCB assembly from the module cover plate.
4. Install the module cover plate in the DCA-8120.
5. Install the RCM module in the DCA-8120.
6. Using a ¼” nut driver, install the four corner hex nuts to the bolts at the back of the
module.
7. Install the DCA-8120 into the desk cut out.
RCS-8120 User Manual (Iss. 01A) Installation and Setup •2-3

Cabling
This section provides instructions for connecting cables to the RCS-8120 before mounting the chassis
into the rack bay near the frame holding the switcher cards.
Connect switch A of the RCS-8120 to the utility switch via J2 (for AVS-7864) or V1 (for DSS-8024
and AVS-8064). If using the 3 pin audio connector, use a good quality audio/control cable (i.e. Belden
1503A 22AWG shielded pair). Connect switch B of the RCS-8120 to the utility switch via J4 (for
AVS-7864) or V2 (for DSS-8024 and AVS-8064). See the following Figure.

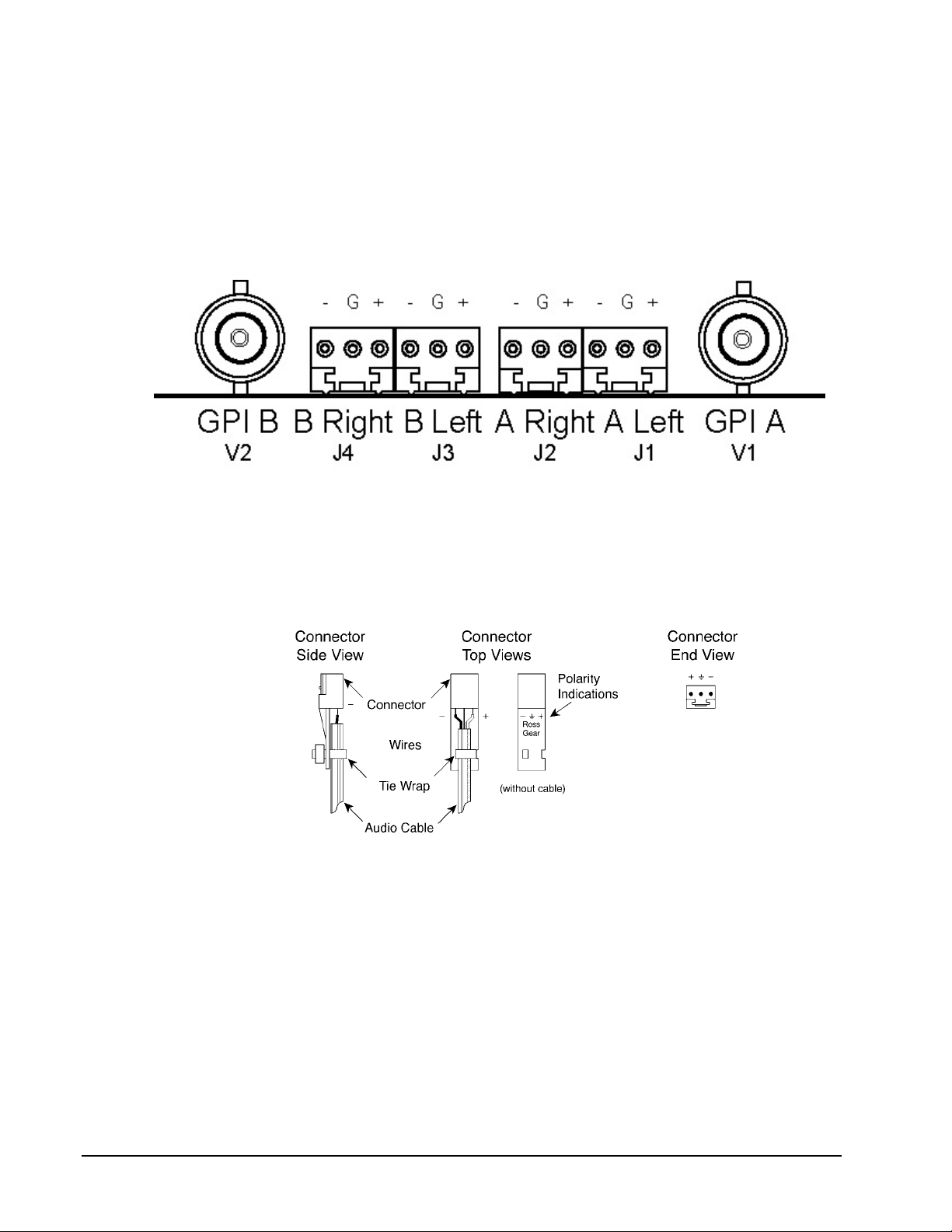

Figure 4. RCS-8120 Cable Connector Locations
Rear Plug-on Connector Wiring
Wire the external cables to the plug-able terminal block connectors as outlined in the diagram and
procedure below.
Figure 5. Connector Wiring for Remote Control Selectors
1. Insert the designated wire to the appropriate slot on the connector. See the figure
above for details.
2. Use a tweaker screwdriver to tighten the corresponding screw on the underside of
the connector.
3. Repeat steps 1 and 2 for each wire on each connector.
Once the cables have been wired to the connectors, install the connectors to the sockets on the
RCS-8120 module so that the slotted tongue fits in the grooves on the module socket.
2-4 •Installation and Setup RCS-8120 User Manual (Iss. 01A)

Service Information
In This Chapter
This chapter contains the following sections:
• Troubleshooting Checklist
• Warranty and Repair Policy
Troubleshooting Checklist
Routine maintenance to this RossGear product is not required. In the event of problems with your
RCS-8120, the following basic troubleshooting checklist may help identify the source of the problem.
If the module still does not appear to be working properly after checking all possible causes, please
contact your Ross Video products distributor, or the Ross Video Technical Support department at the
numbers listed under the “Contact Us” section at the end of this manual.
1. Check Control Settings – Refer to the Installation and Operation sections of the
manual and verify all user-adjustable component settings.
2. Input Signal Status – Verify that source equipment is operating correctly and that a
valid signal is being supplied.
3. Output Signal Path – Verify that destination equipment is operating correctly and
receiving a valid signal.
4. Module Exchange – Exchanging a suspect module with a module that is known to
be working correctly is an efficient method for localizing problems to individual
modules.
RCS-8120 User Manual (Iss. 01A) Service Information •3-1

Warranty and Repair Policy
The RossGear RCS-8120 is warranted to be free of any defect with respect to performance, quality,
reliability, and workmanship for a period of FIVE (5) years from the date of shipment from our
factory. In the event that your RossGear RCS-8120 proves to be defective in any way during this
warranty period, Ross Video Limited reserves the right to repair or replace this piece of equipment
with a unit of equal or superior performance characteristics.
Should you find that this RossGear RCS-8120 has failed after your warranty period has expired, we
will repair your defective product should suitable replacement components be available. You, the
owner, will bear any labor and/or part costs incurred in the repair or refurbishment of said equipment
beyond the FIVE (5) year warranty period.
In no event shall Ross Video Limited be liable for direct, indirect, special, incidental, or consequential
damages (including loss of profits) incurred by the use of this product. Implied warranties are
expressly limited to the duration of this warranty.
This RossGear RCS-8120 User Manual provides all pertinent information for the safe installation and
operation of your RossGear Product. Ross Video policy dictates that all repairs to the RossGear RCS-
8120 are to be conducted only by an authorized Ross Video Limited factory representative. Therefore,
any unauthorized attempt to repair this product, by anyone other than an authorized Ross Video
Limited factory representative, will automatically void the warranty. Please contact Ross Video
Technical Support for more information.
In Case of Problems
Should any problem arise with your RossGear RCS-8120, please contact the Ross Video Technical
Support Department. (Contact information is supplied at the end of this publication.)
A Return Material Authorization number (RMA) will be issued to you, as well as specific shipping
instructions, should you wish our factory to repair your RossGear RCS-8120. If required, a temporary
replacement module will be made available at a nominal charge. Any shipping costs incurred will be
the responsibility of you, the customer. All products shipped to you from Ross Video Limited will be
shipped collect.
The Ross Video Technical Support Department will continue to provide advice on any product
manufactured by Ross Video Limited, beyond the warranty period without charge, for the life of the
equipment.
3-2 •Service Information RCS-8120 User Manual (Iss. 01A)

Ordering Information
In This Chapter
This chapter contains ordering information for the RCS-8120 and related products.
RCS-8120 and Related Products
Standard Equipment
• RCS-8120 Panel Module (four buttons)
Optional Equipment
• MRP-8120 Modular Rack Panel (holds 5 modules)
• BPM-8120 Blank Panel Module (cover plate)
• DCA-8120 Desk Carrier Adapter
• AVS-8064 AES/Analog Video Switch (Dual 2x1/4x2)
• DSS-8024 Digital Serial Switch (Dual 2x1/4x2)
• ADS-7864 Analog Audio Switch (Dual 2X1 / 4X2)
• RCM-8120 Panel Module (four buttons)
• RCM-8120-1 Panel Module (two buttons)
• PS-8102 Universal Power Supply (85-250 volts)
Two recommended for DFR-8110
• DFR-8104 Digital Frame 1 RU, Holds 4 Modules
• DFR-8110 Digital Frame 2 RU, Holds 10 Modules
• EXT-8100 Module Extender for Digital Modules
Your RCS-8120 remote Control Selector is a part of the RossGear family of products. Ross Video
offers a full line of RossGear terminal equipment including distribution, conversion, monitoring,
synchronizers, encoders, decoders, keyers, switchers, as well as analog audio and video products.
RCS-8120 User Manual (Iss. 01A) Ordering Information •4-1

Notes
4-2 •Ordering Information RCS-8120 User Manual (Iss. 01)

Notes
RCS-8120 User Manual (Iss. 01A) Ordering Information •4-3

Contact Us
Contact our friendly and professional support representatives for the following:
• Name and address of your local dealer
• Product information and pricing
• Technical support
• Upcoming trade show information
General Business Office
and Technical Support 613 •652 •4886
After-hours Emergency 613 •652 •4886 ext. 333
PHONE
Fax 613 •652 •4425
General Information [email protected]
E-MAIL
Technical Support [email protected]
Ross Video Limited
8 John Street,
Iroquois, Ontario, Canada
K0E 1K0
POSTAL
SERVICE
Ross Video Incorporated
P.O. Box 880,
Ogdensburg, New York, USA
13669-0880
Visit Us
Please visit us at our website for:
• Company information
• Related products and full product lines
• On-line catalog
• Trade show information
• News
• Testimonials
